Overview

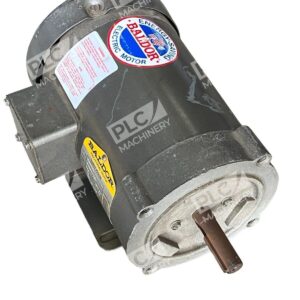

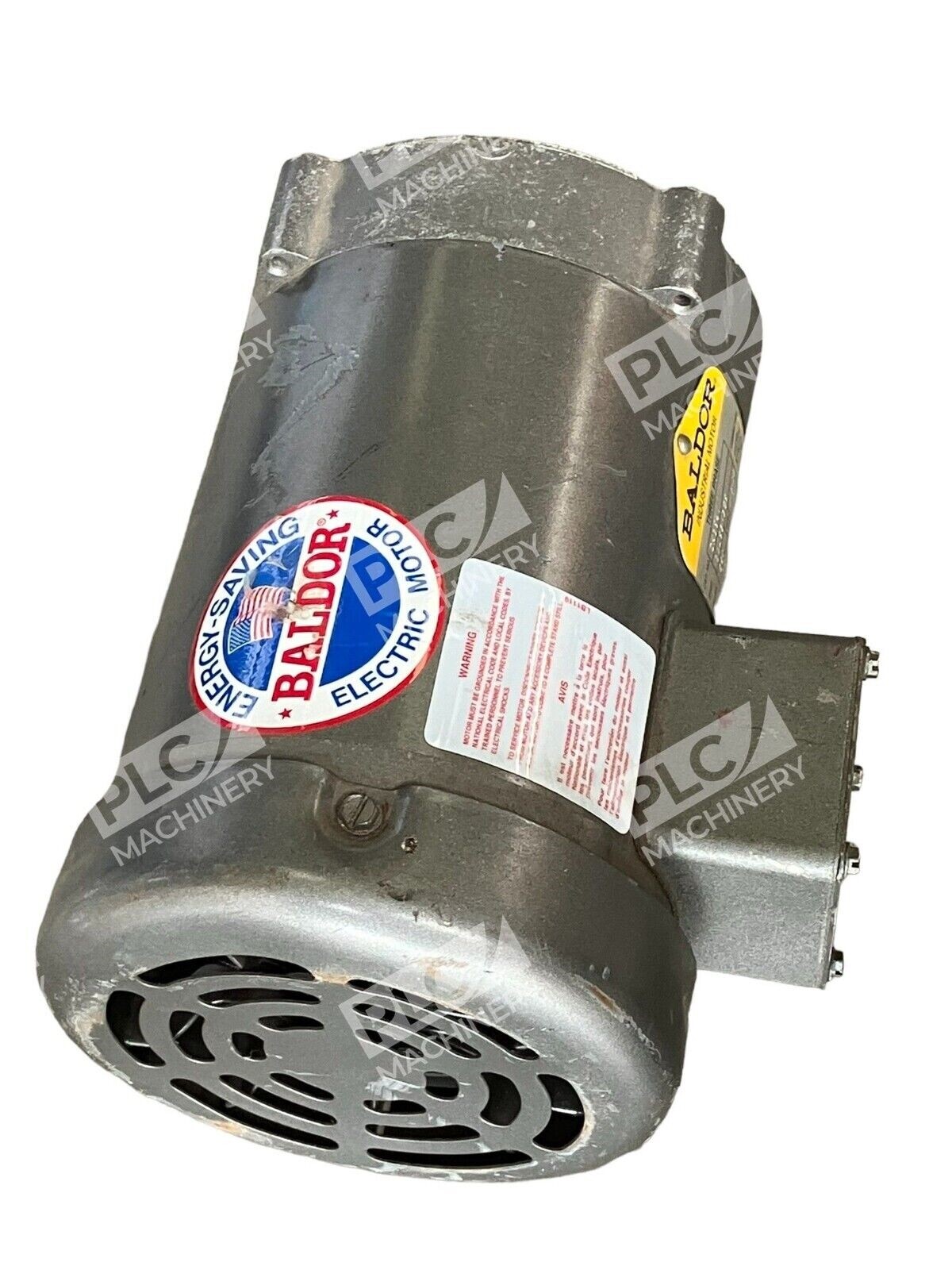

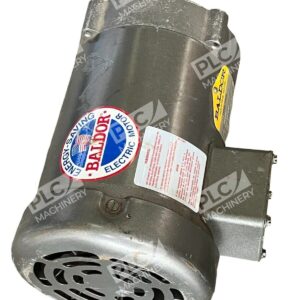

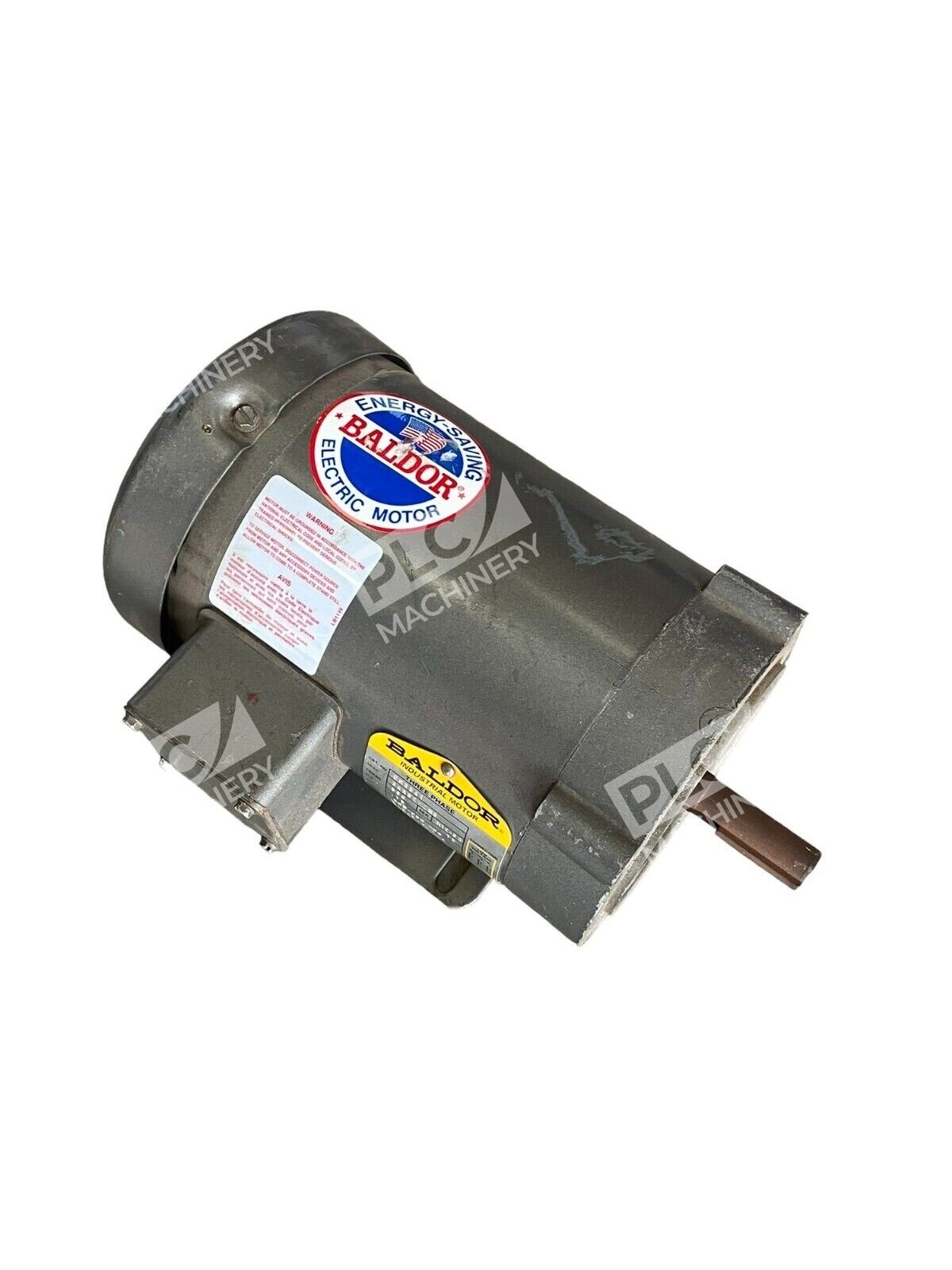

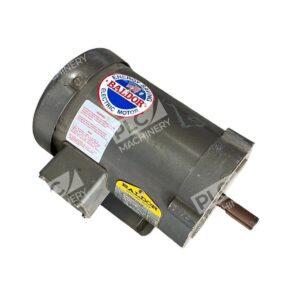

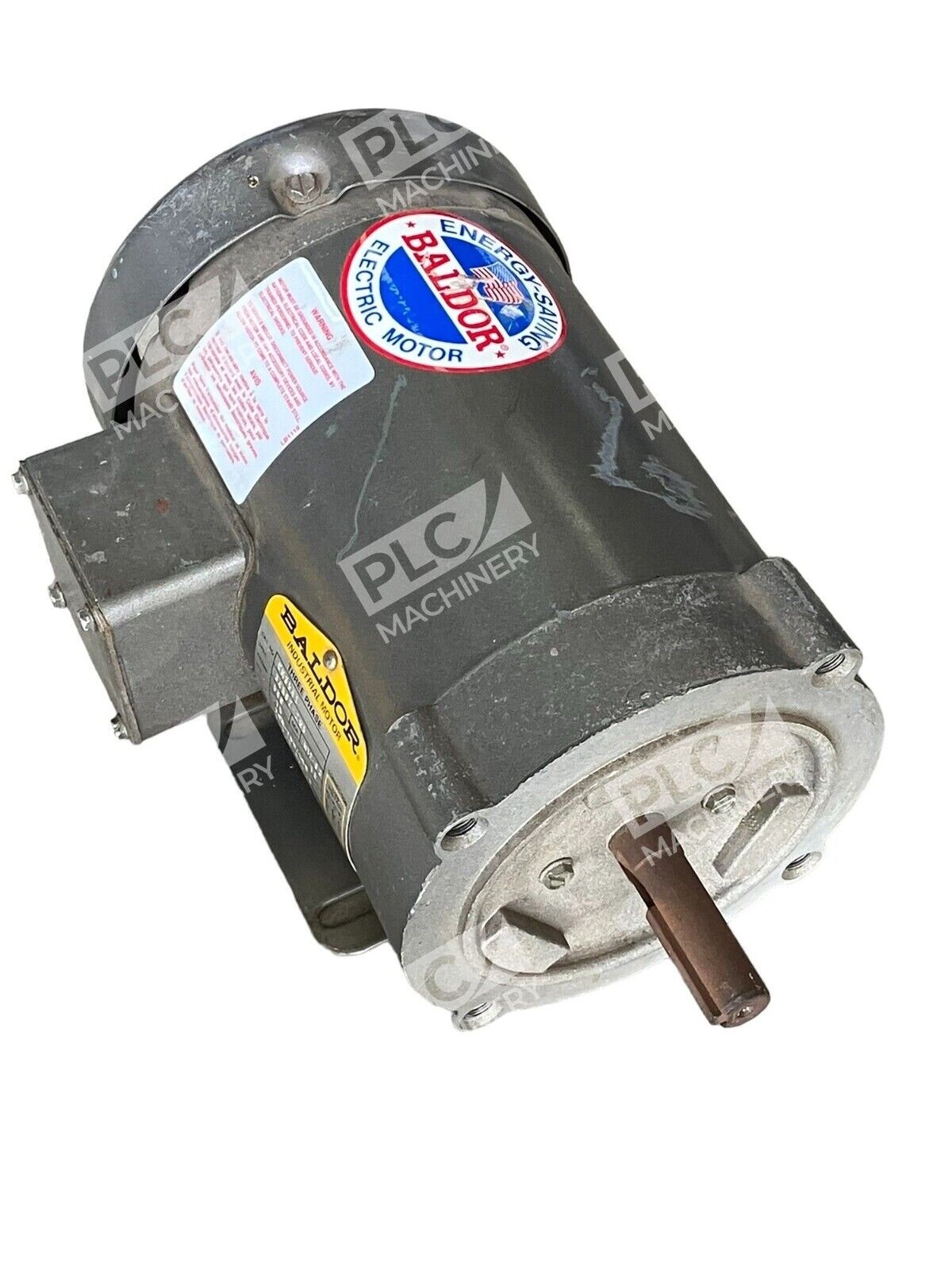

The Baldor CM3541 is a three-phase, 3/4 horsepower general-purpose industrial motor designed for reliable, continuous-duty operation in demanding applications. Operating at 3450 nameplate RPM (3600 Hz synchronous speed) with a 56C rolled-steel frame, this TEFC (Totally Enclosed Fan Cooled) motor delivers consistent performance across a wide range of industrial and commercial environments.
Key Features
- TEFC Enclosure: Totally Enclosed Fan Cooled protection prevents dust and debris ingress, extending motor life in harsh shop and outdoor conditions
- C-Face Foot Mount: Compact configuration with C-face flange and rigid feet allows direct coupling to pumps, gear reducers, and other equipment without adapters
- Dual Voltage: 230V/460V input selection optimizes efficiency and reduces wiring complexity for 3-phase installations
- Continuous Duty Rated: Class B insulation and 74% efficiency at full load ensure reliable 24/7 operation
- Standard Shaft: 5/8-inch keyed shaft fits common pump and mechanical couplings

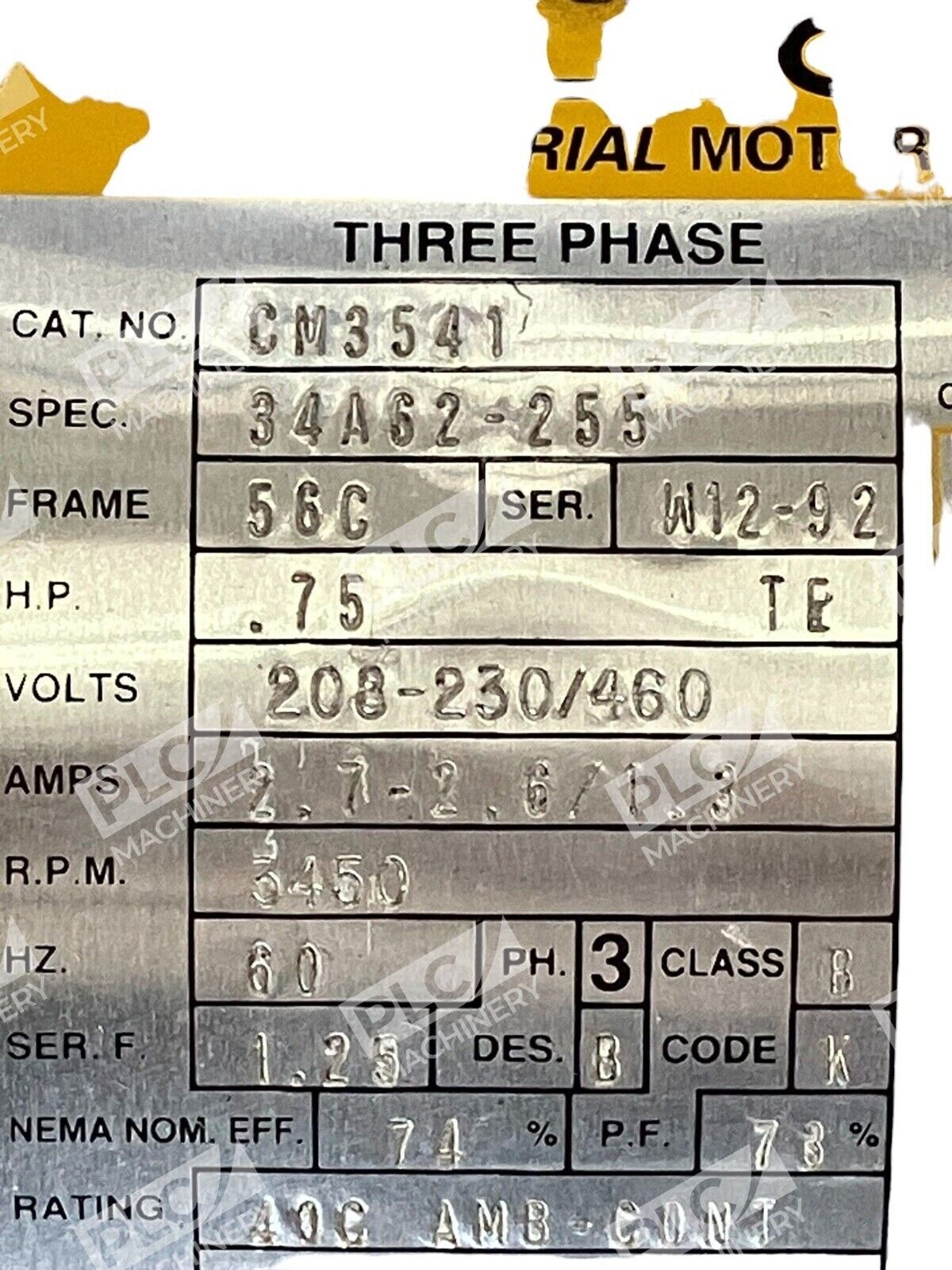

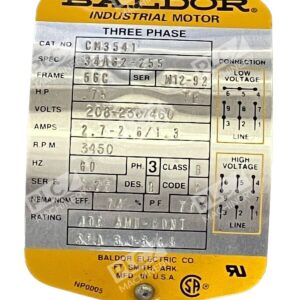

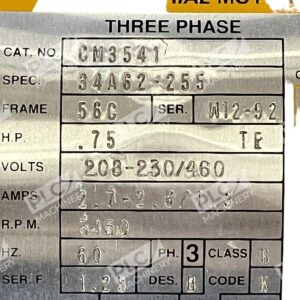

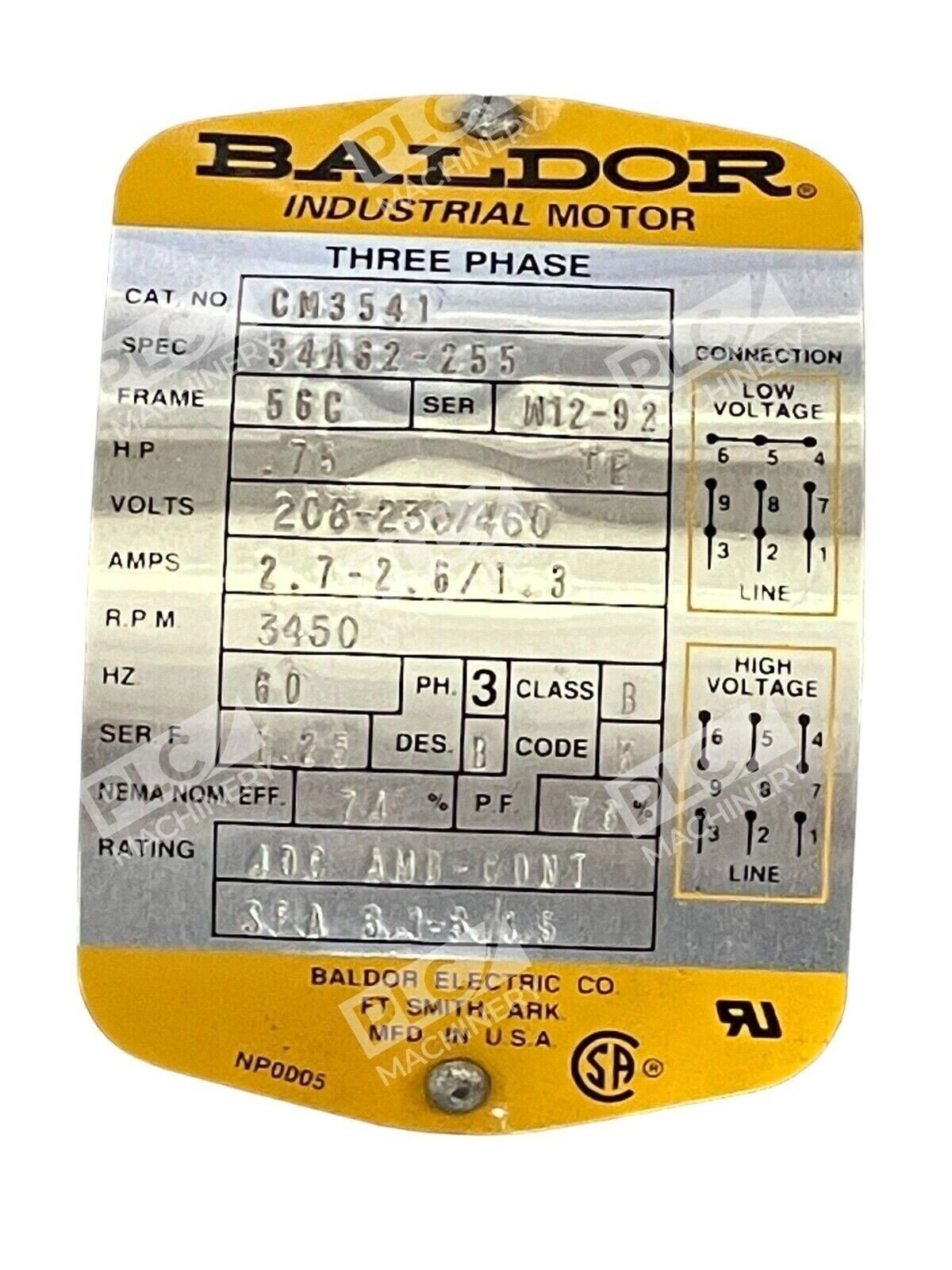

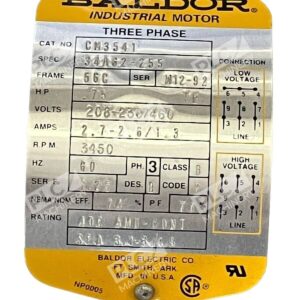

Technical Specifications
- Motor Output: 3/4 HP (0.55 kW)
- Nameplate Speed: 3450 RPM, 60 Hz
- Phase: 3-phase AC
- Voltage Rating: 230V / 460V
- Full-Load Current: 2.6 A @ 230V, 1.3 A @ 460V
- Frame Size: 56C (rolled steel)
- Enclosure Type: TEFC
- Mounting: C-Face / Foot Mount
- Shaft Diameter: 5/8 inch (keyed)
- Insulation Class: B
- Design Code: NEMA B (standard efficiency)
- Efficiency @ 100% Load: 74%
- Duty Rating: Continuous
- Frequency: 60 Hz
- Bearing Type: Grease-lubricated (POLYREX EM, -20°F to +300°F)
Typical Applications
- Centrifugal and rotary pumps (water supply, circulation)
- Ventilation and process fans
- Belt and chain conveyors
- Machine tool drives and spindle motors
- Gear reducer and gearbox inputs
- Compressor drives and air handling units
Compatibility & Replacements
Compatible With
- Three-phase 230V or 460V AC power systems (60 Hz)
- NEMA C-face mounted equipment (pumps, gear reducers, compressors)
- Foot-mounted or pad-mounted mechanical installations
- Standard flexible couplings and shaft components sized for 5/8-inch keyed shafts
- Industrial motor control centers, soft starters, and variable frequency drives (VFDs)
Replaces / Drop-In Replacement For
- Baldor M3541 — older designation for equivalent 3/4 HP 3450 RPM 56C frame motor
- Other OEM 3/4 HP 3450 RPM 56C frame motors with C-face/foot mount configuration and similar dimensional specifications
Works With
- Standard 3-phase power distribution and circuit protection devices
- Motor starters, contactors, and overload protection relays rated for 230/460V 3-phase
- Variable frequency drives (VFDs) — verify drive specifications for motor control compatibility
- Thermal overload protectors and motor soft starters
- Industrial automation systems and legacy machinery control platforms
