Overview

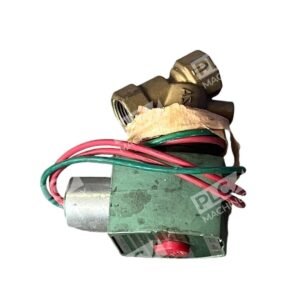

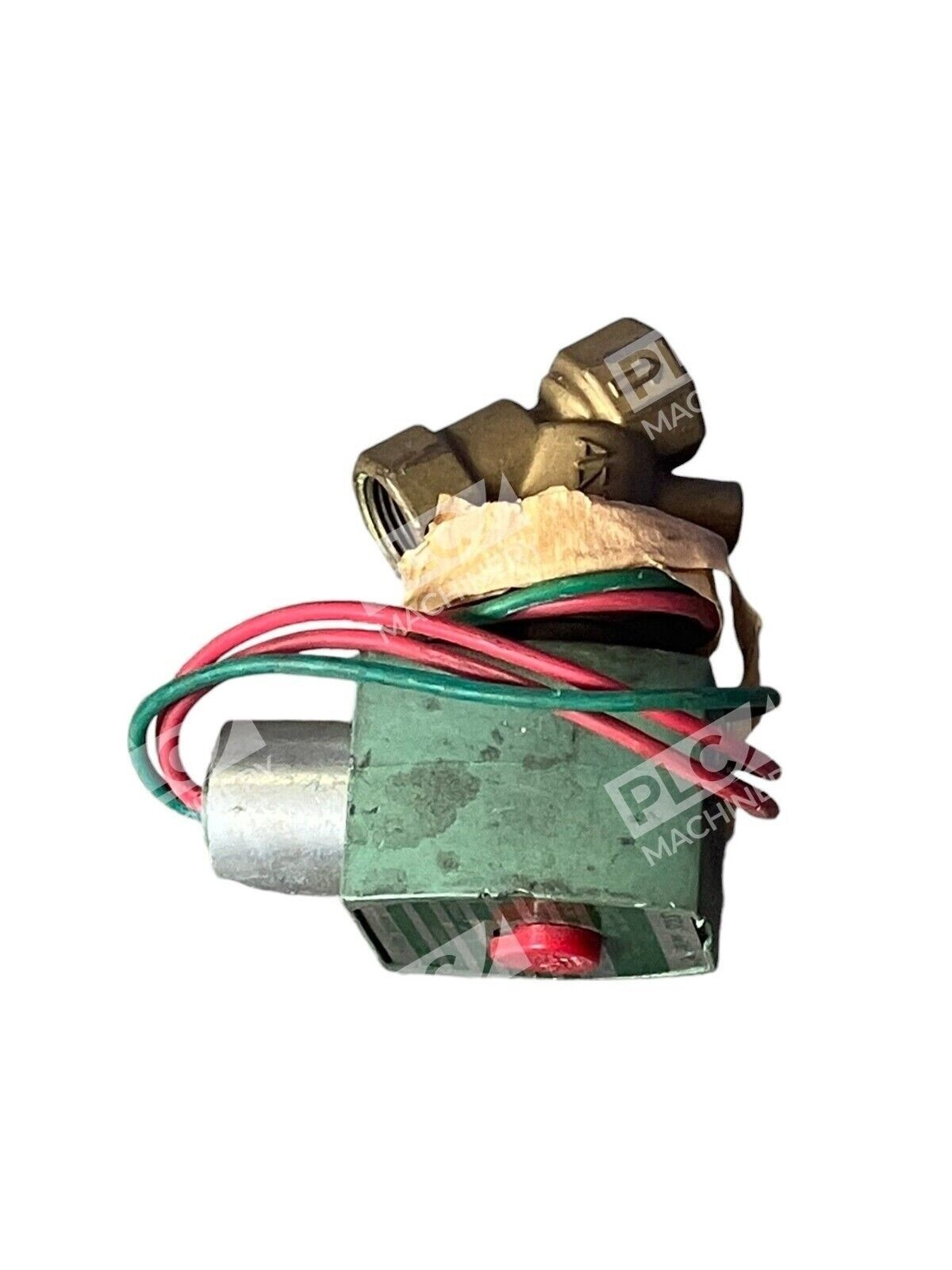

The ASCO 8030G10 Red Hat II solenoid valve is a two-way general-purpose control valve engineered for direct-acting low pressure and vacuum service. The 3/8″ brass body with 120-volt AC coil design makes this valve suitable for a broad range of fluid control applications, including pool systems, water treatment, compressed air circuits, and light-duty pneumatic equipment.
Key Features
- Direct-acting design requires no minimum operating pressure
- Two-way solenoid valve for simple on/off fluid control
- Brass construction with durable sealing materials
- Red Hat II watertight enclosure rated Type 1, 2, 3, 3S, 4, 4X
- Standard 120V AC coil operation
- Compatible with low-pressure water, compressed air, and inert gas applications
Technical Specifications

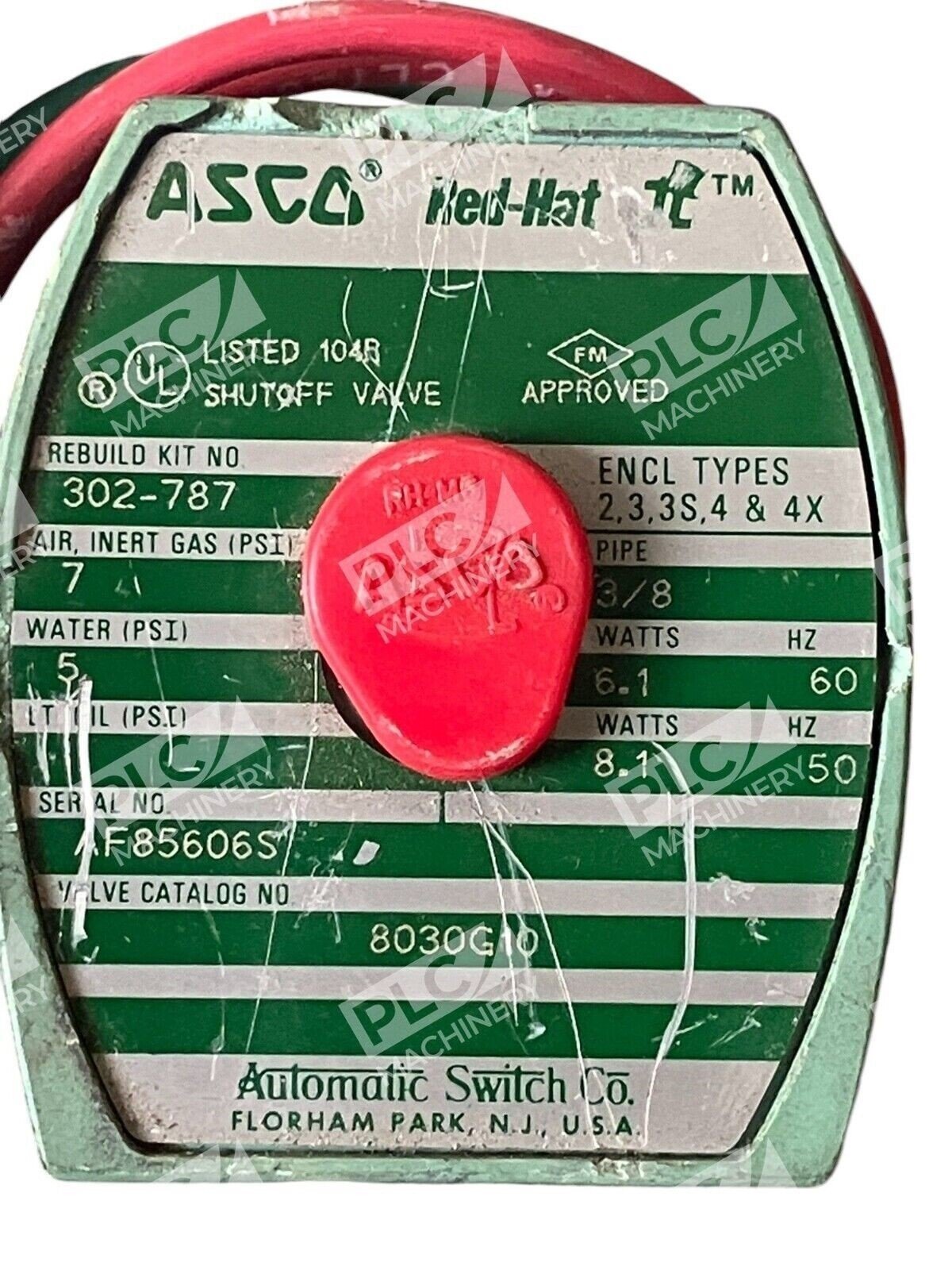

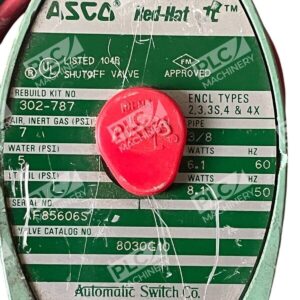

- Manufacturer: Automatic Switch Company (ASCO)
- Part Number: 8030G10
- Port Size: 3/8″ NPT
- Body Material: Brass
- Valve Type: 2-Way, Normally Closed
- Operation Type: Direct Acting
- Coil Voltage: 120V AC (60 Hz)
- Pressure Rating: Low Pressure & Vacuum Service
- Enclosure: Red Hat II, Watertight
- Certifications: CSA Certified, UL Listed, CE Compliant
- Series: Red Hat II / 8030 General Purpose
Typical Applications
- Swimming pool and spa chemical control systems
- Water treatment and fluid dispensing systems
- Compressed air vent and shut-off circuits
- Light-duty vacuum applications
- Liquid level control and water fill systems
- General industrial pneumatic ON/OFF switching
Compatibility & Replacements
Compatible With
- Chemtrol pool chemical controllers
- CO2 feed systems
- Standard 120V AC power circuits (60 Hz)
- Low-pressure water supply systems
- Compressed air networks below 100 PSI
- Industrial control cabinets with standard power distribution
Replaces / Drop-In Replacement For
- Earlier ASCO Red Hat (non-II) 8030 series valves
- Other 3/8″ brass 2-way solenoid valves in equivalent pressure class
- OEM equipment using 8030-series direct-acting solenoid control
Works With
- Standard industrial control relays and timer modules
- Pressure switches and flow controls
- Manual override handles (ASCO optional accessories)
- Low-pressure relief valves and check valves in pilot circuits
- All standard 3/8″ NPT port connectors and adapters
