Overview

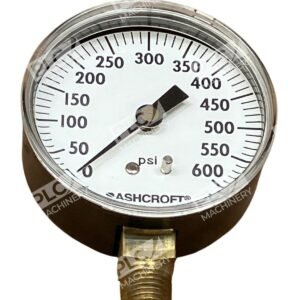

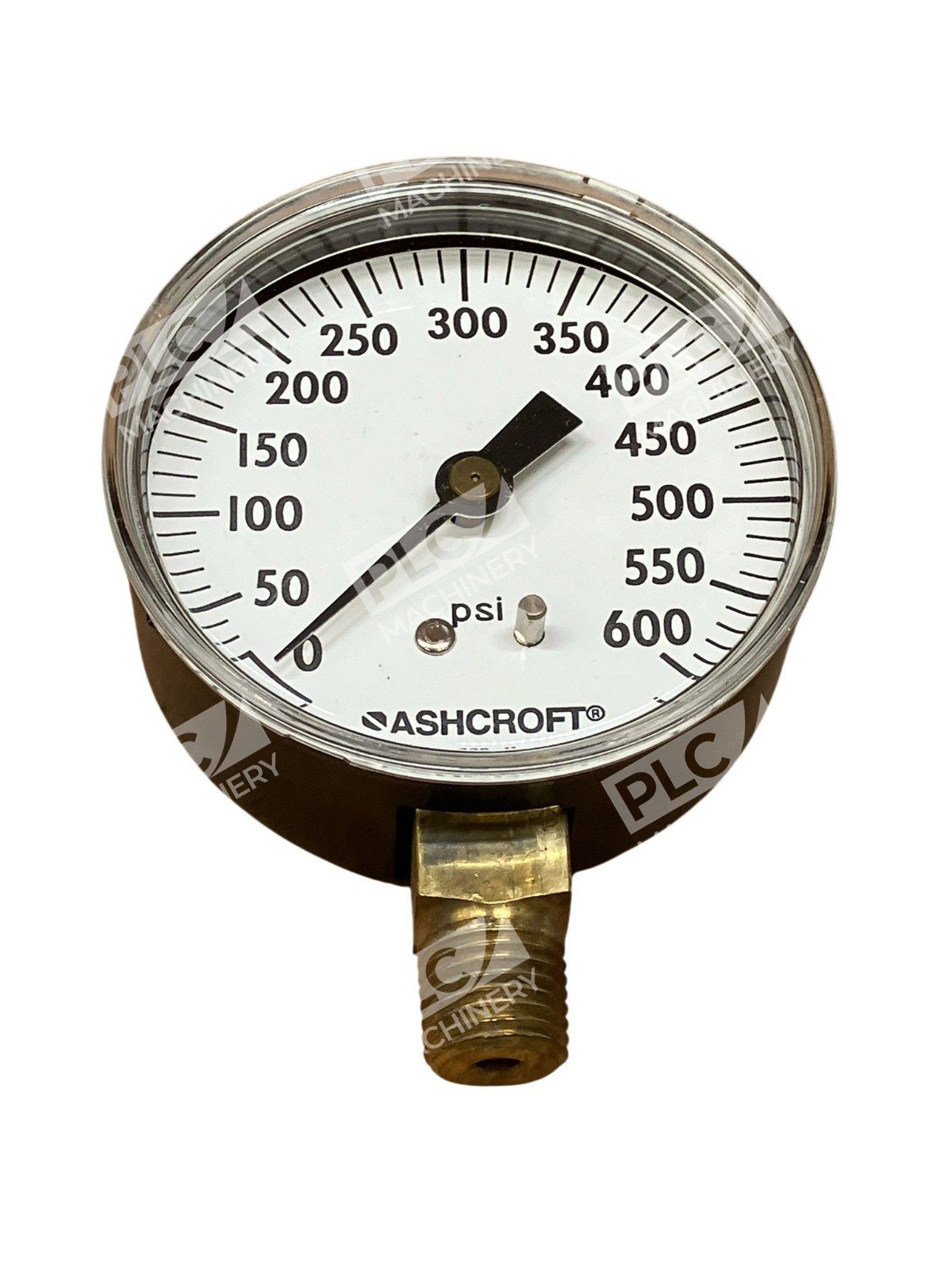

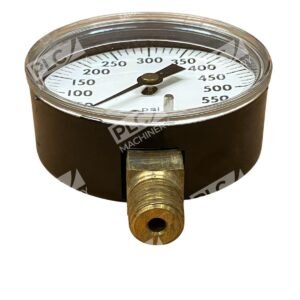

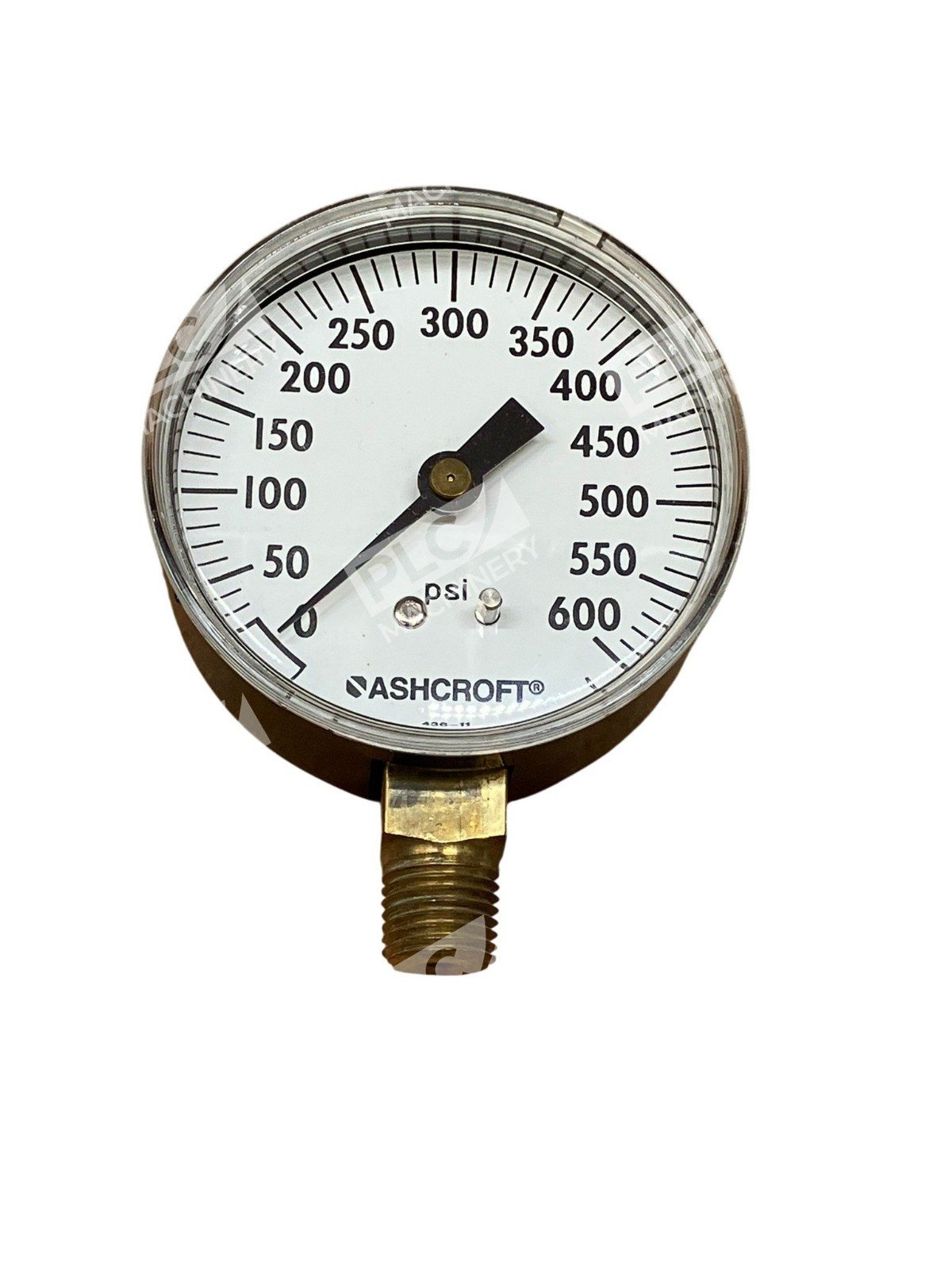

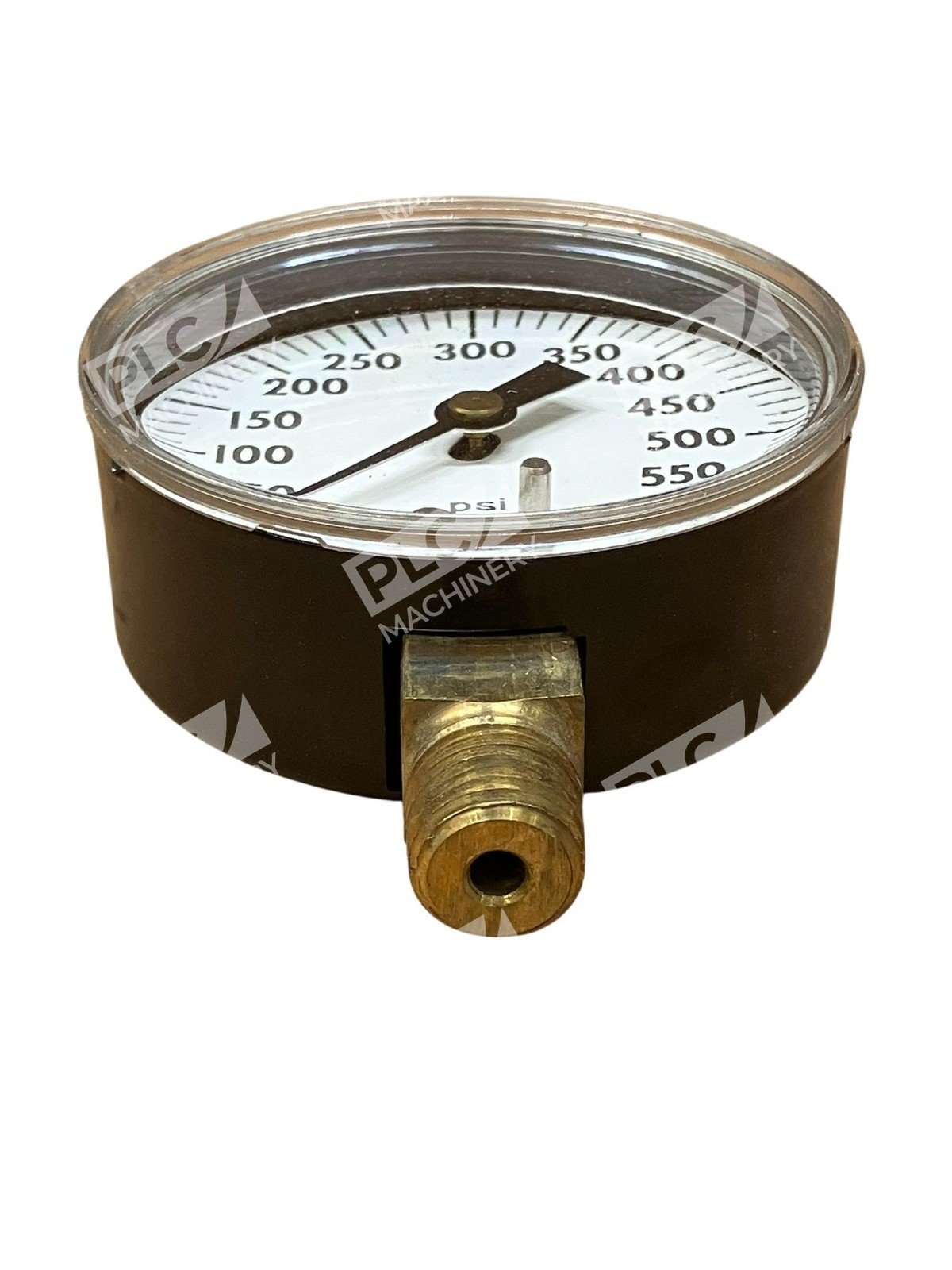

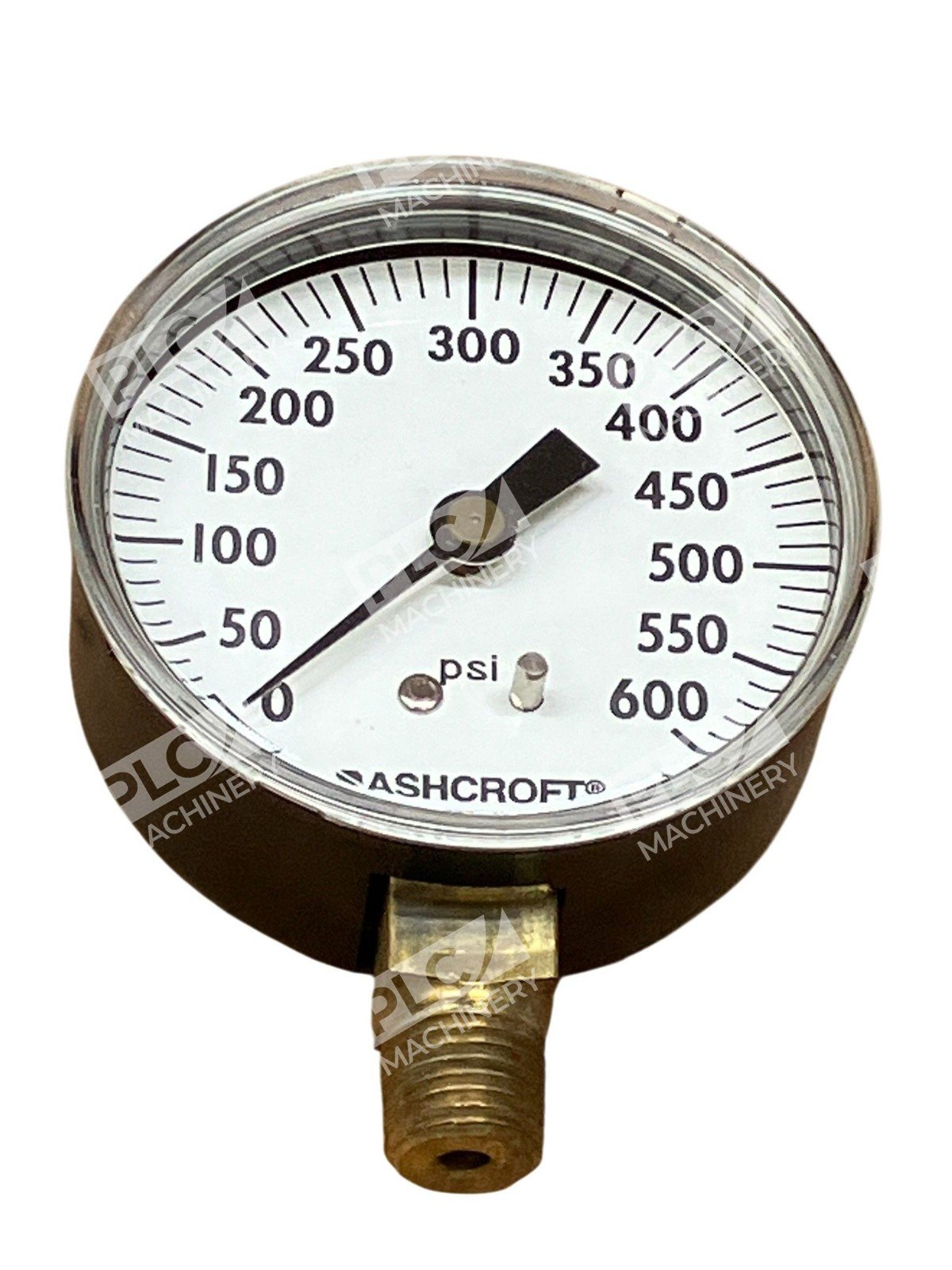

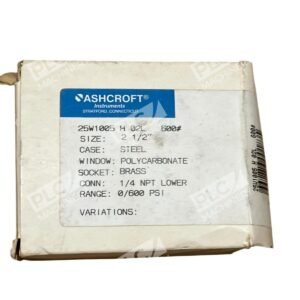

The Ashcroft 25W1005H02L600 is a Type 1005 commercial pressure gauge engineered for industrial pneumatic and hydraulic applications. With a 2.5″ dial face, 0–600 PSI range, and 1/4″ NPT lower-mount connection, this gauge delivers accurate, dependable pressure monitoring in pump, compressor, filter-regulator, and beverage dispensing systems. PowerFlex™ movement technology resists shock, vibration, and pulsation—extending service life and reducing maintenance costs.
Key Features
- PowerFlex™ Movement: Patented design proven more resistant to shock, vibration, and pulsation than conventional movements, ensuring long-term accuracy and durability.
- True Zero™ Indication: Unique safety feature that ensures accurate zero-pressure indication using a “zero box” instead of conventional dial pins.
- Bronze Bourdon Tube & Brass Socket: Premium wetted materials for corrosion resistance and reliable performance.
- Black Steel Case: Durable construction with polycarbonate window for visibility and protection.
- Dry Service: Suitable for air, inert gases, and non-corrosive liquid service without fill fluid.
Technical Specifications

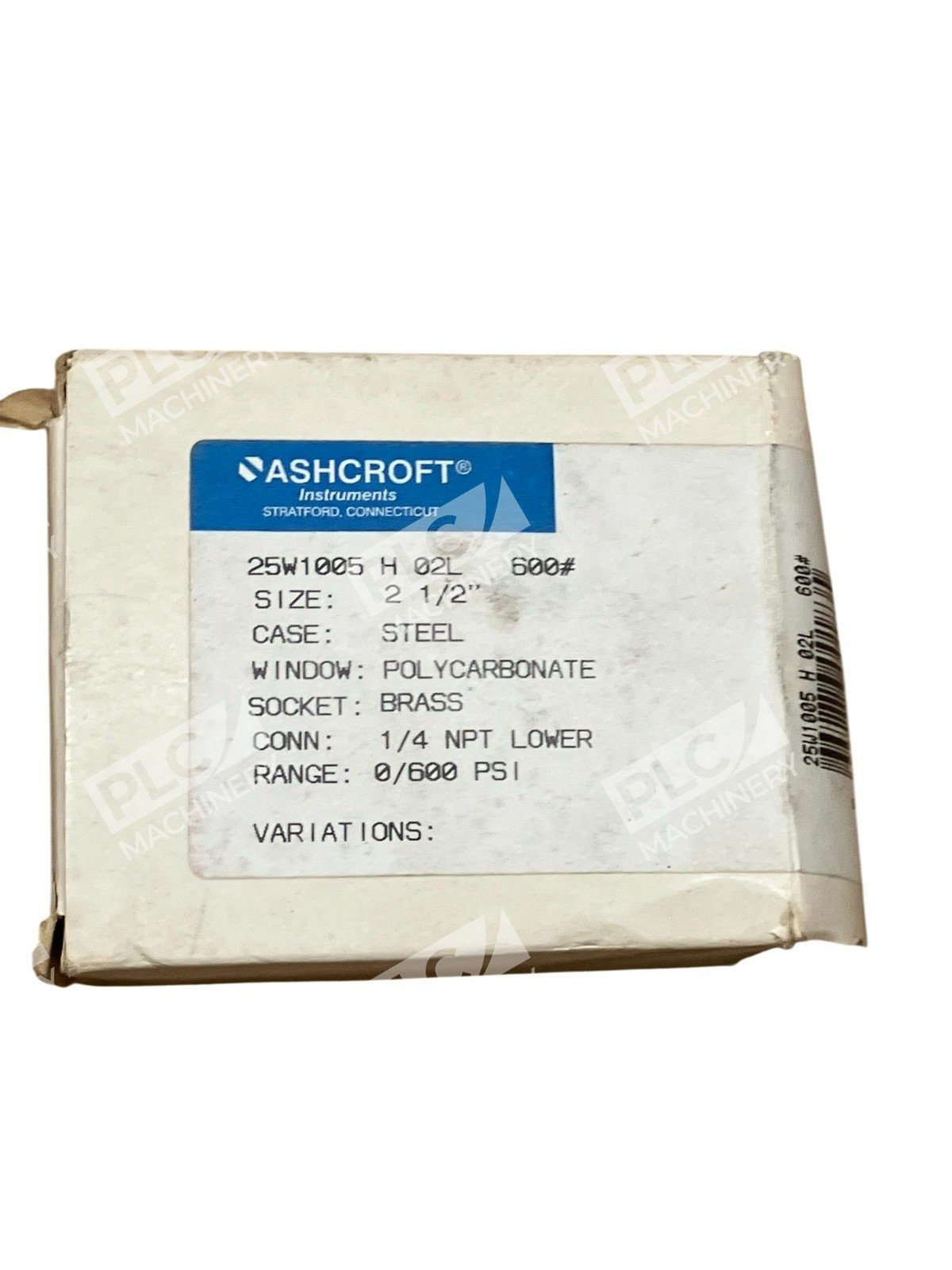

- Manufacturer: Ashcroft Inc.
- Model: 25W1005H02L600#
- Series: Type 1005 Commercial Pressure Gauge
- Pressure Range: 0–600 PSI
- Dial Size: 2.5″ diameter
- Accuracy: ±3% of full scale
- Connection Size: 1/4″ NPT
- Connection Location: Lower mount

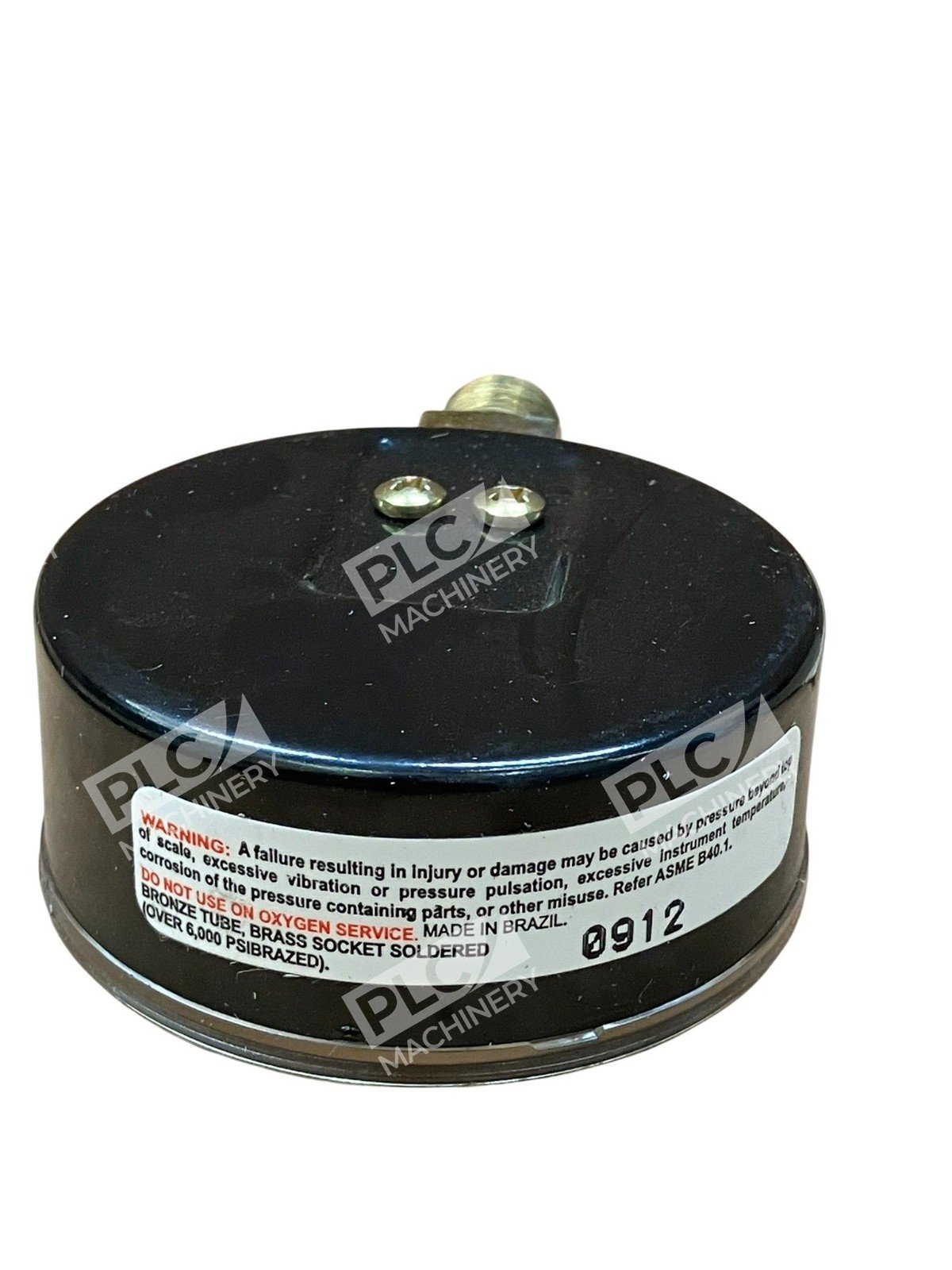

- Case Material: Black painted steel
- Pointer: Black
- Bourdon Tube Material: Bronze
- Socket Material: Brass
- Movement Type: PowerFlex™ with polyester segment
- Service Type: Dry (air and inert gases)
- Scale: Single scale
Typical Applications
- Hydraulic and pneumatic system pressure monitoring
- Pump and compressor discharge pressure indication
- Filter-regulator inlet/outlet pressure measurement
- Water pump systems
- Beverage dispensing equipment
- Industrial equipment and machinery control
- OEM integration and retrofit applications
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT female ports on hydraulic and pneumatic manifolds
- Industrial pressure systems rated for 600 PSI maximum
- Dry service applications (air, nitrogen, inert gases)
- Systems requiring ±3% accuracy pressure indication
Replaces / Drop-In Replacement For
- Other Ashcroft Type 1005 gauges with identical 1/4″ NPT, 2.5″ dial configuration
- Legacy commercial pressure gauges (verify mounting and connection compatibility)
Works With
- Standard NPT threaded pressure ports
- Hydrostatic/pneumatic pressure monitoring systems
- Ashcroft isolation manifolds and snubbers (optional accessories)
- Industrial control and safety systems requiring analog pressure indication
