Overview

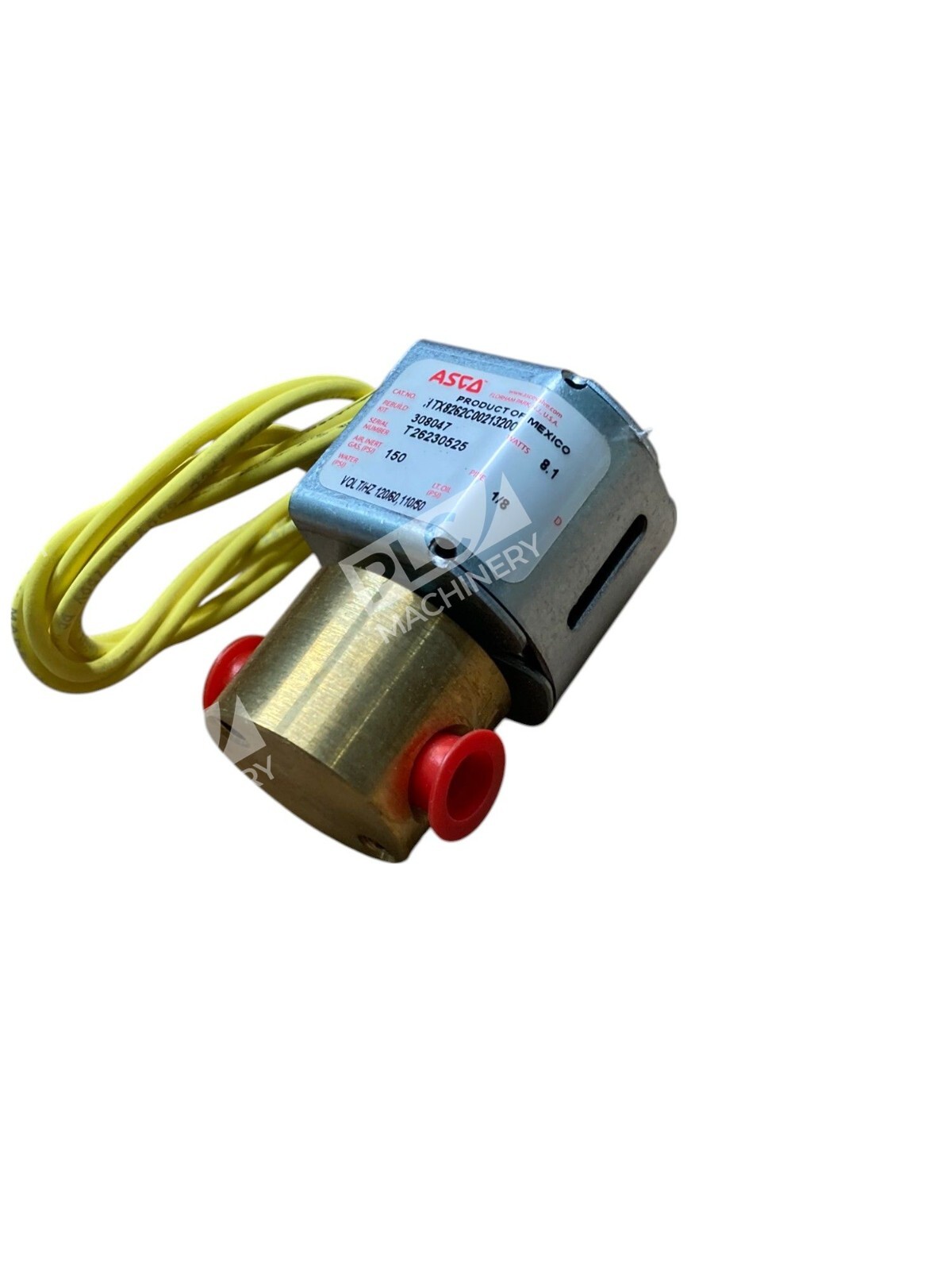

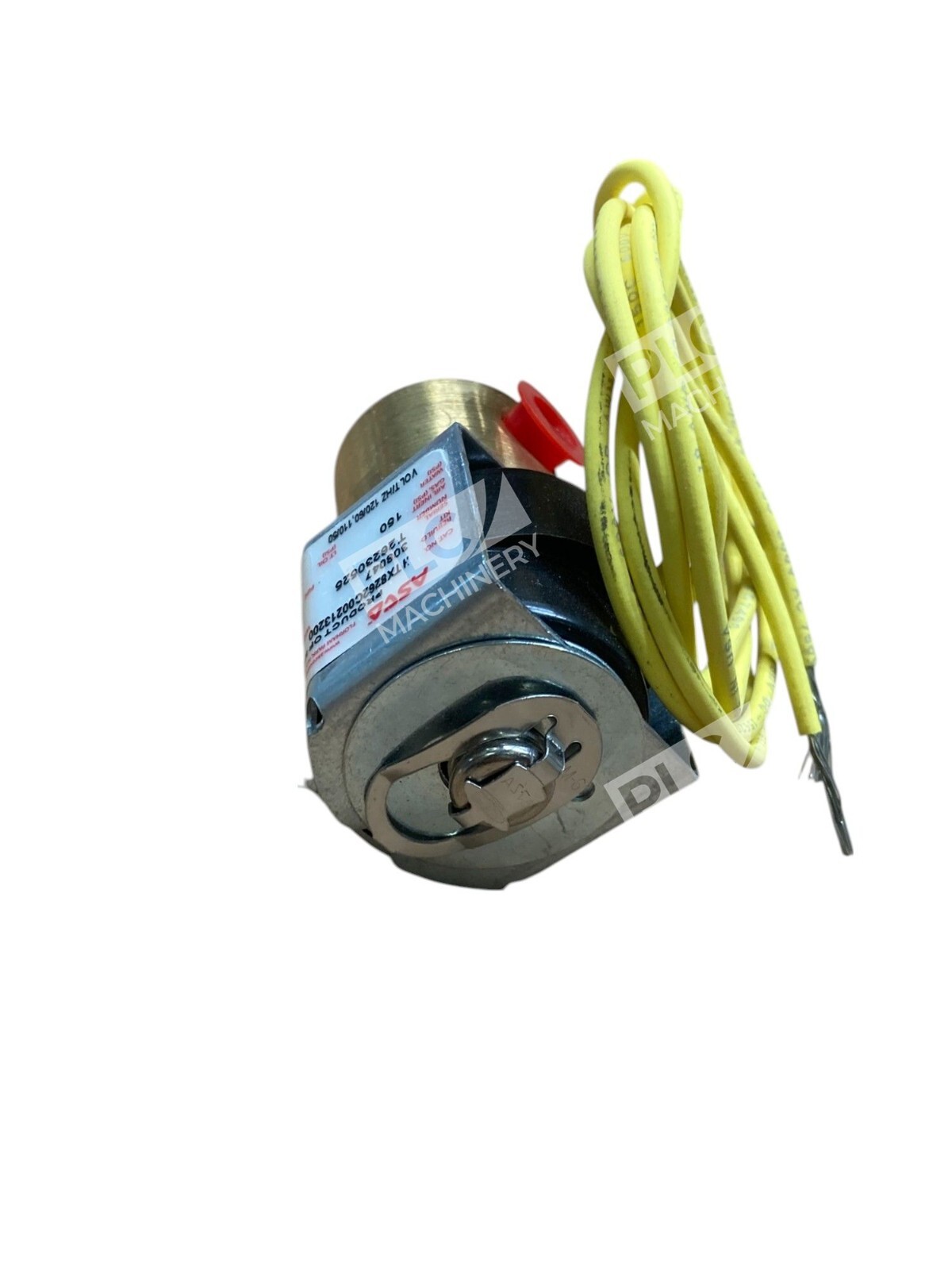

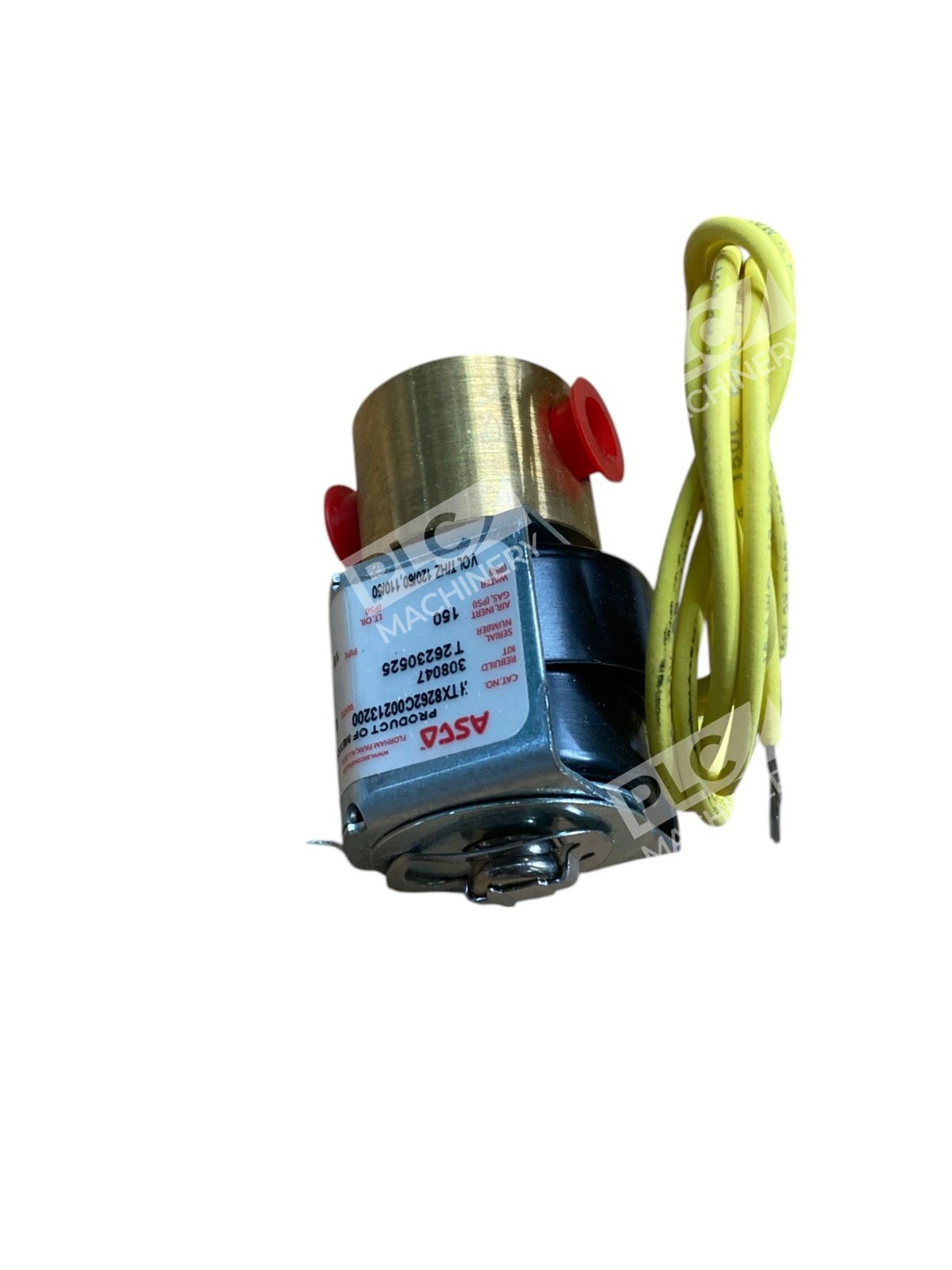

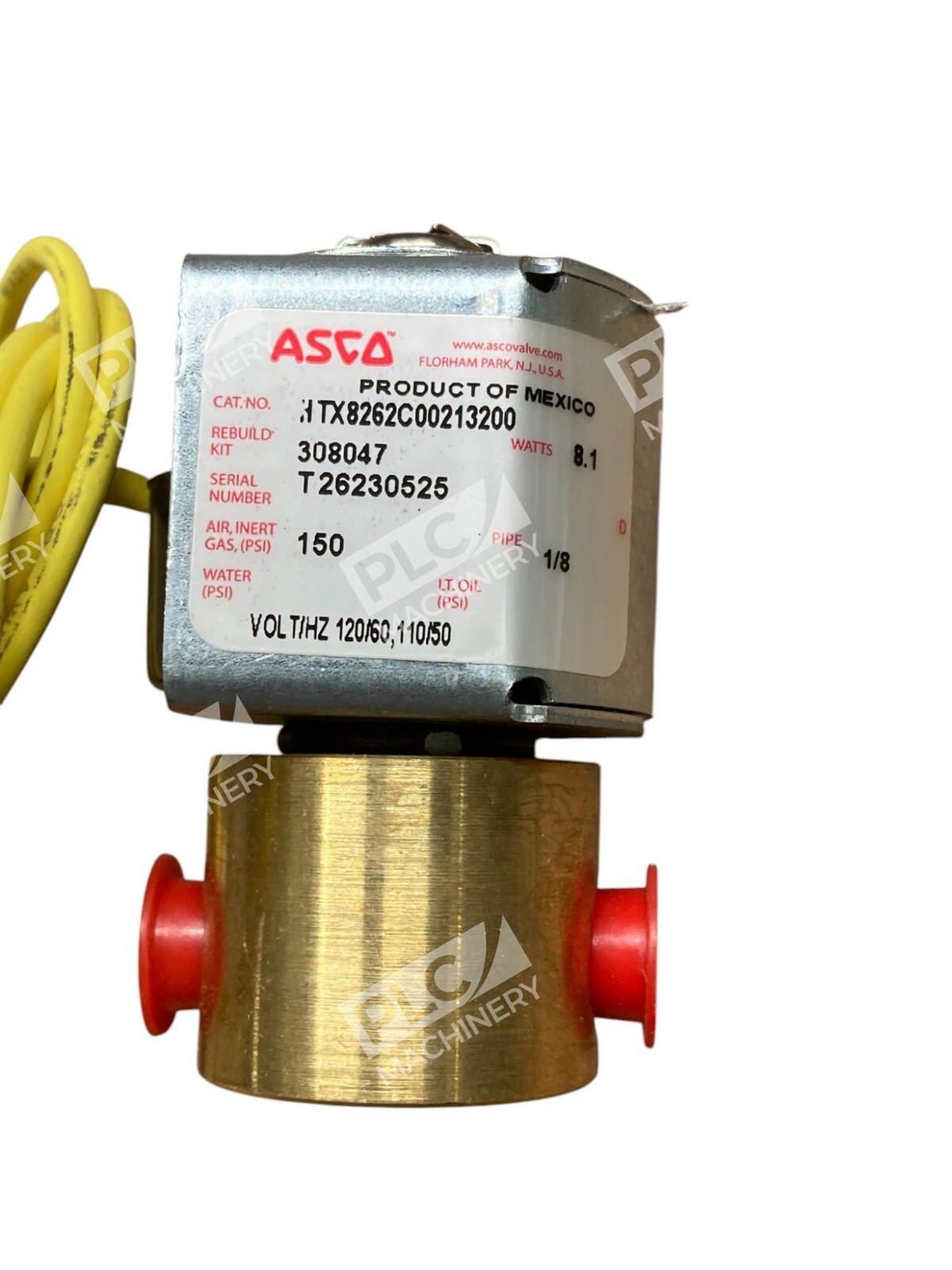

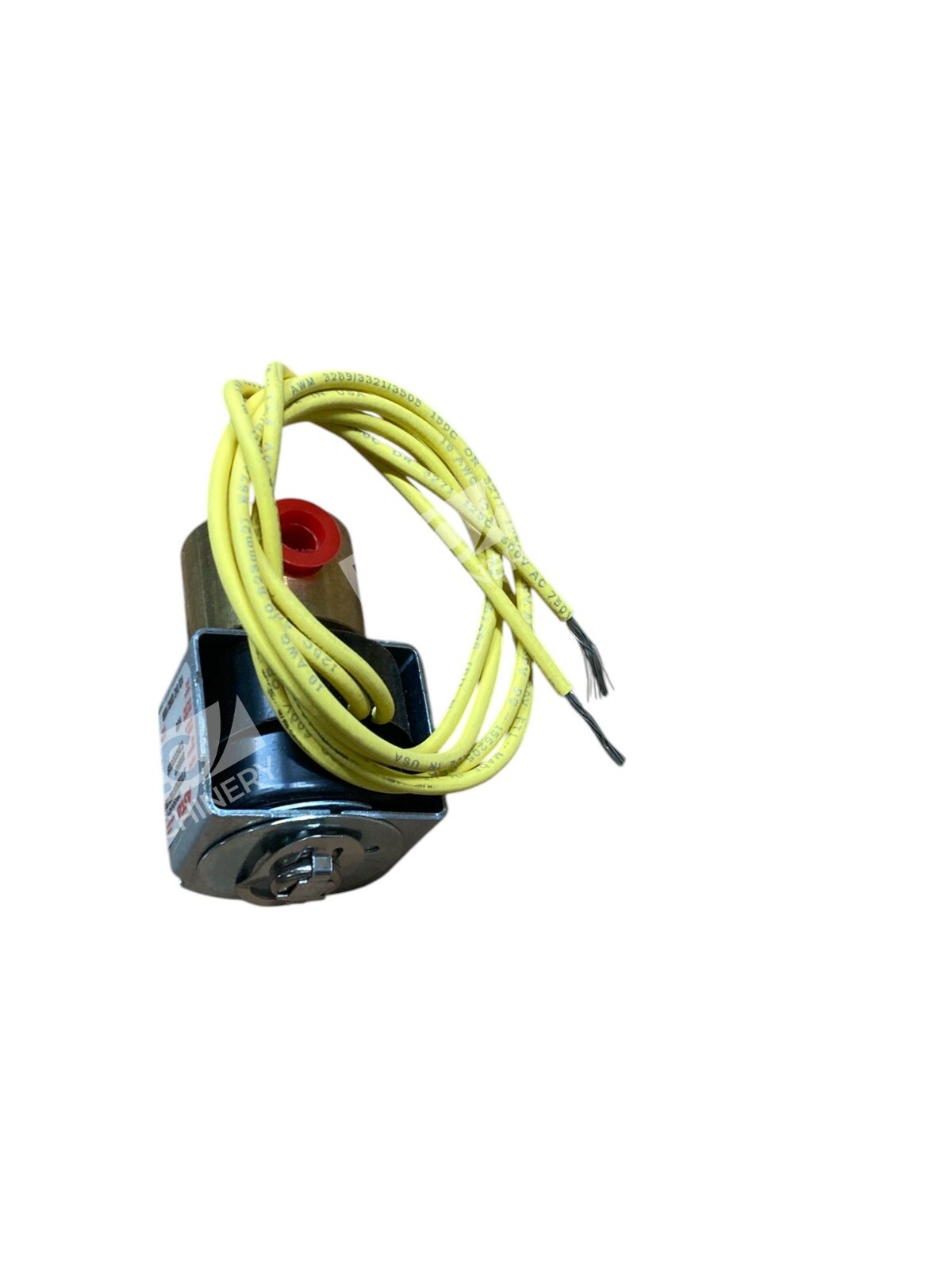

The ASCO HTX8262C00213200 is a 1/8″ NPT direct-acting solenoid valve rated for 150 PSI maximum operating pressure. Part of ASCO’s proven RedHat line, this 2-way normally closed valve provides reliable fluid control for general service applications. The unit operates at 120/60 VAC and 110/50 VAC, with 8.1W power consumption. It requires no minimum operating pressure and is ideal for air, water, and light oil systems.
Key Features
- Direct-acting design—no minimum pressure requirement
- Normally closed (de-energized closed, energized open)
- 1/8″ NPT port size for compact piping integration
- Brass body construction with welded core tube for high-pressure reliability
- NBR (Nitrile) seat and disc materials—standard for water and light oil
- Dual voltage support: 120/60 VAC and 110/50 VAC
- Mountable in any position
- Tapped mounting holes for secure installation
Technical Specifications
- Valve Type: Direct-acting, 2-way, normally closed solenoid valve
- Port Size: 1/8″ NPT (female)
- Max Operating Pressure: 150 PSI (operating pressure differential)
- Min Operating Pressure: 0 PSI (direct-acting—no minimum required)
- Body Material: Brass
- Seat & Disc: NBR (Nitrile)
- Solenoid Coil Voltage: 120/60 VAC, 110/50 VAC
- Coil Power: 8.1W
- Ambient Temp Range: -13°F to 131°F (-10°C to 55°C)
- Fluid Temp Max: 180°F (82°C)
- Compatible Fluids: Air, water, light oil
- Enclosure Type: Watertight (standard); Explosionproof optional
- Series: 8262 RedHat
- Part Number: HTX8262C00213200
- Condition: New in Box
Typical Applications
The ASCO 8262 series is widely used in:
- Automated pneumatic and hydraulic systems
- Industrial water supply and drainage control
- Light oil flow regulation in machinery
- Pump bypass and dump circuits
- General manufacturing automation
- HVAC and refrigeration systems
- Food processing and packaging equipment
Compatibility & Replacements
Compatible With
- Industrial pneumatic and hydraulic systems with 0–150 PSI operating range
- Standard DIN 43650C solenoid coil interfaces
- Piloted and direct-acting valve manifold systems
- All standard industrial control voltages (120/60 VAC, 110/50 VAC)
Replaces / Drop-In Replacement For
The HTX8262C00213200 is part of the ASCO 8262 family. Verify compatibility with your system integrator before ordering alternative configurations or upgrades within the 8262 series.
Works With
- Manual pushbutton and pilot control circuits
- Solenoid valve manifold subbases (joinable subbase designs)
- Standard 24 VDC and 120 VAC industrial control systems
- Pressure relief and flow control logic circuits
- All industry-standard PLC and process control platforms
