Overview

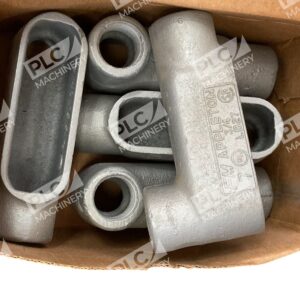

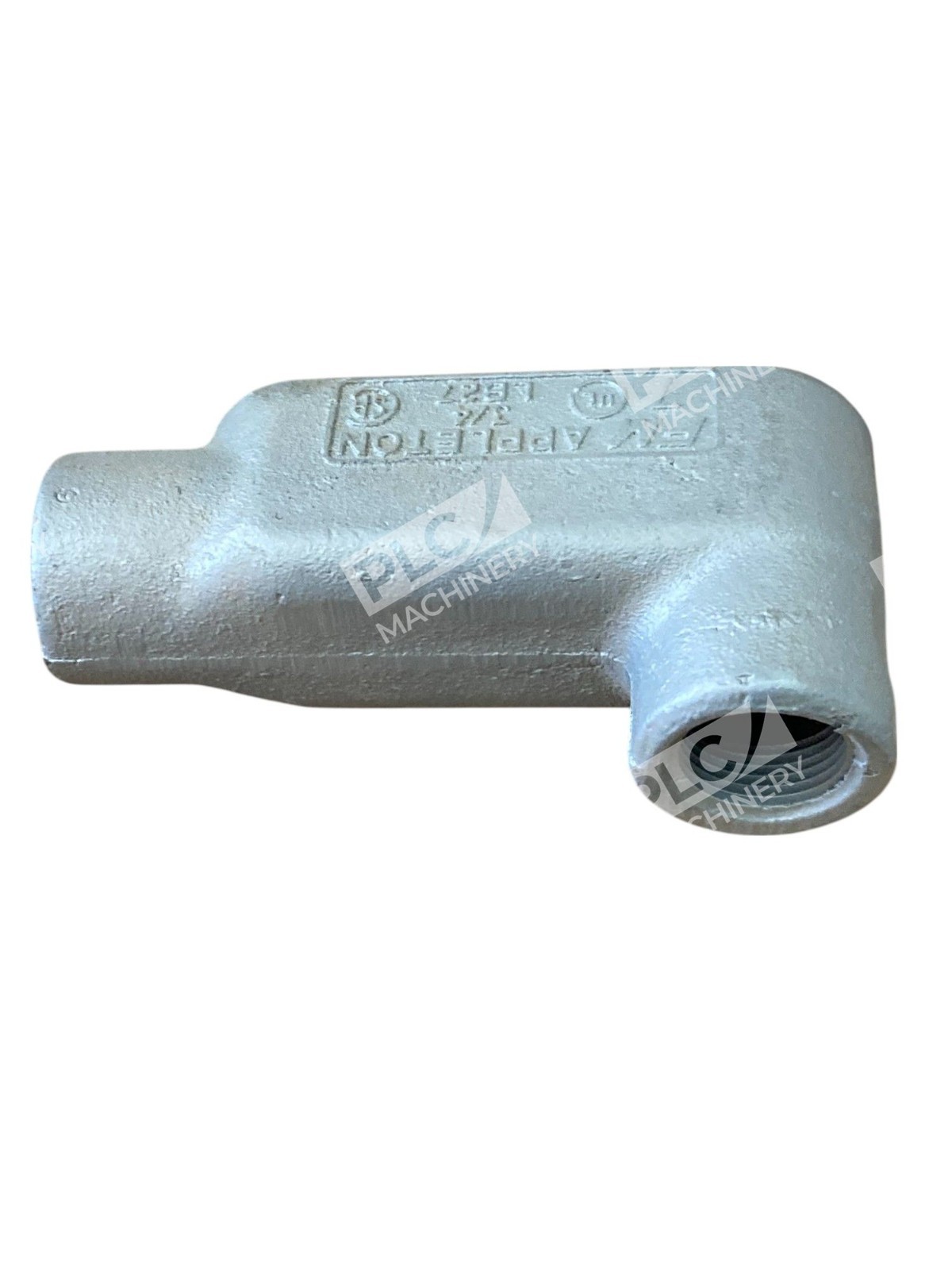

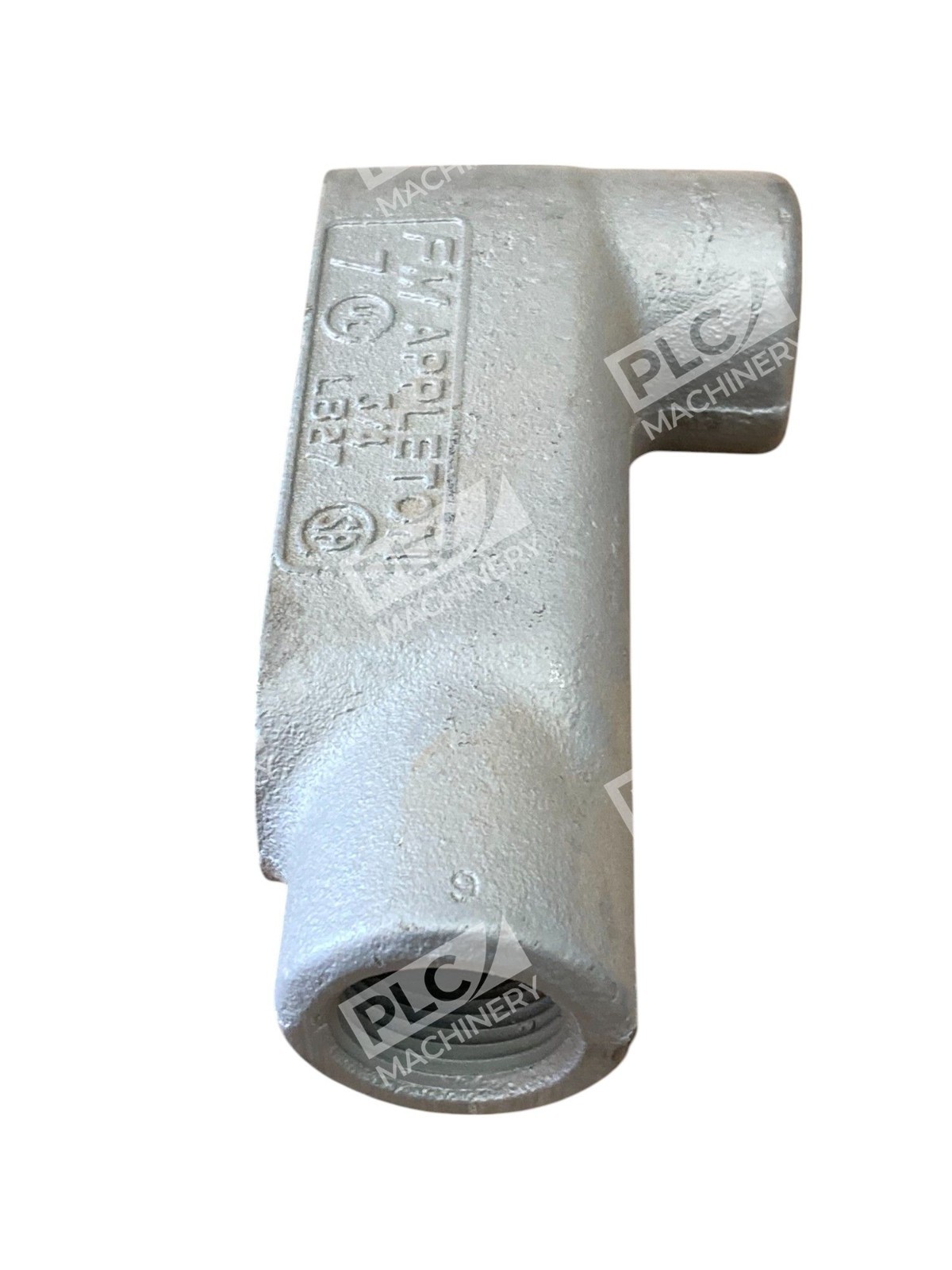

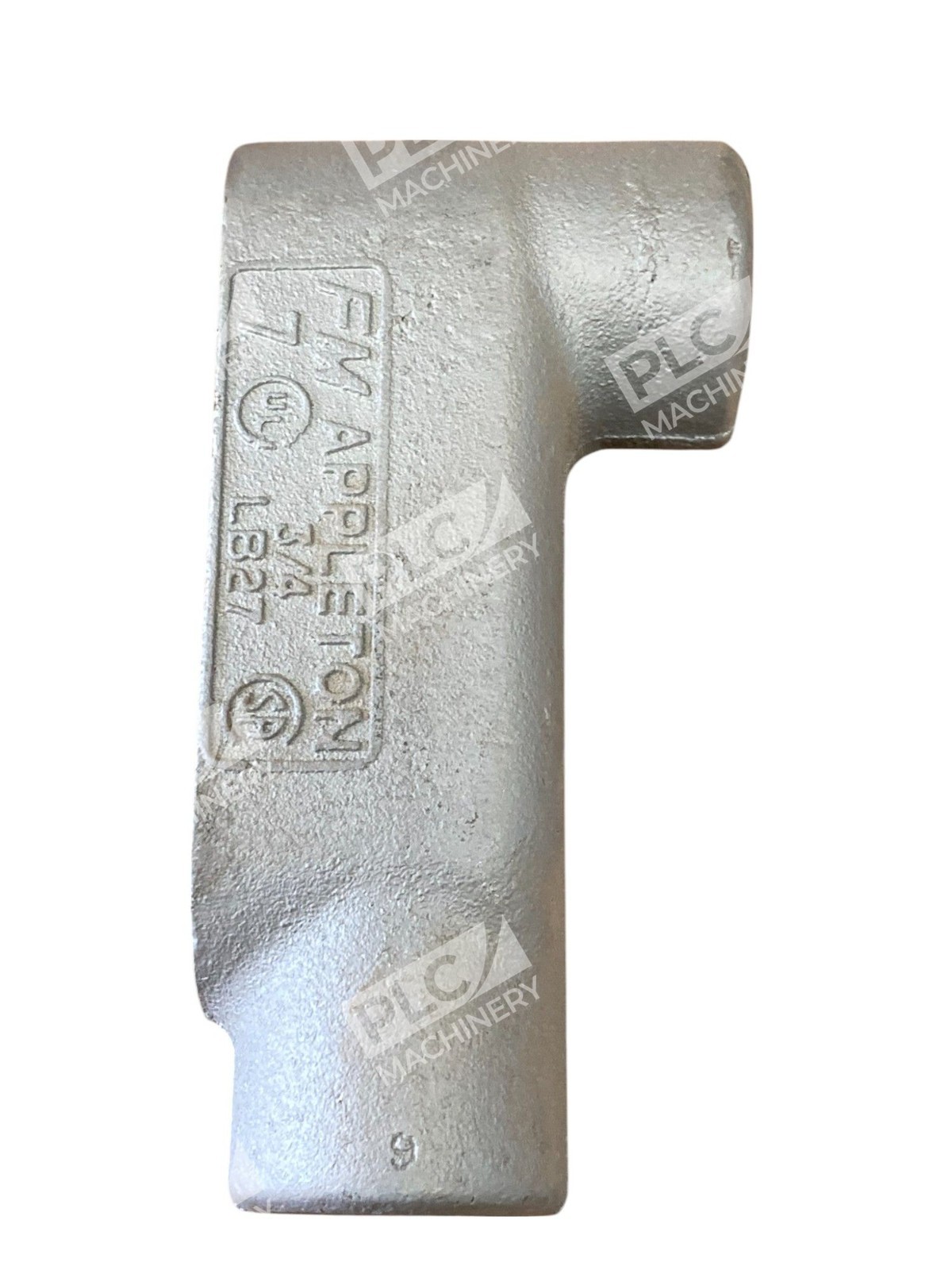

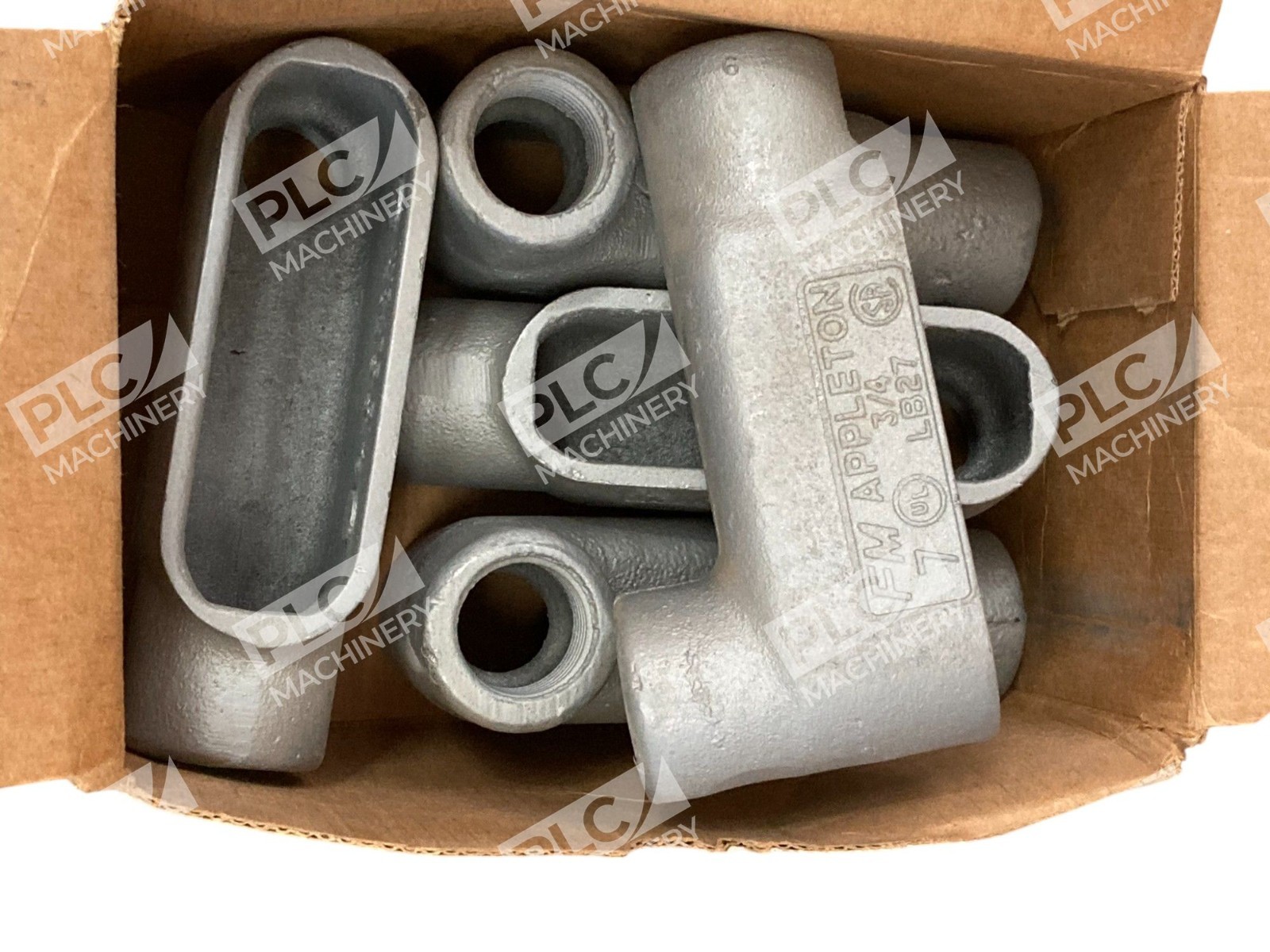

The Appleton LB27 is a Type LB conduit outlet body featuring Form 7 configuration with a 3/4″ hub and 7 cubic inch internal capacity. Made from Grayloy iron, it features a triple coating for durability and moisture resistance. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance, allowing connections for branch runs and enabling bends in conduit systems.
Key Features
- Unique Wedge-Lokâ„¢ clip cover design allows easy removal at any later time, without damaging the conduit body
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers

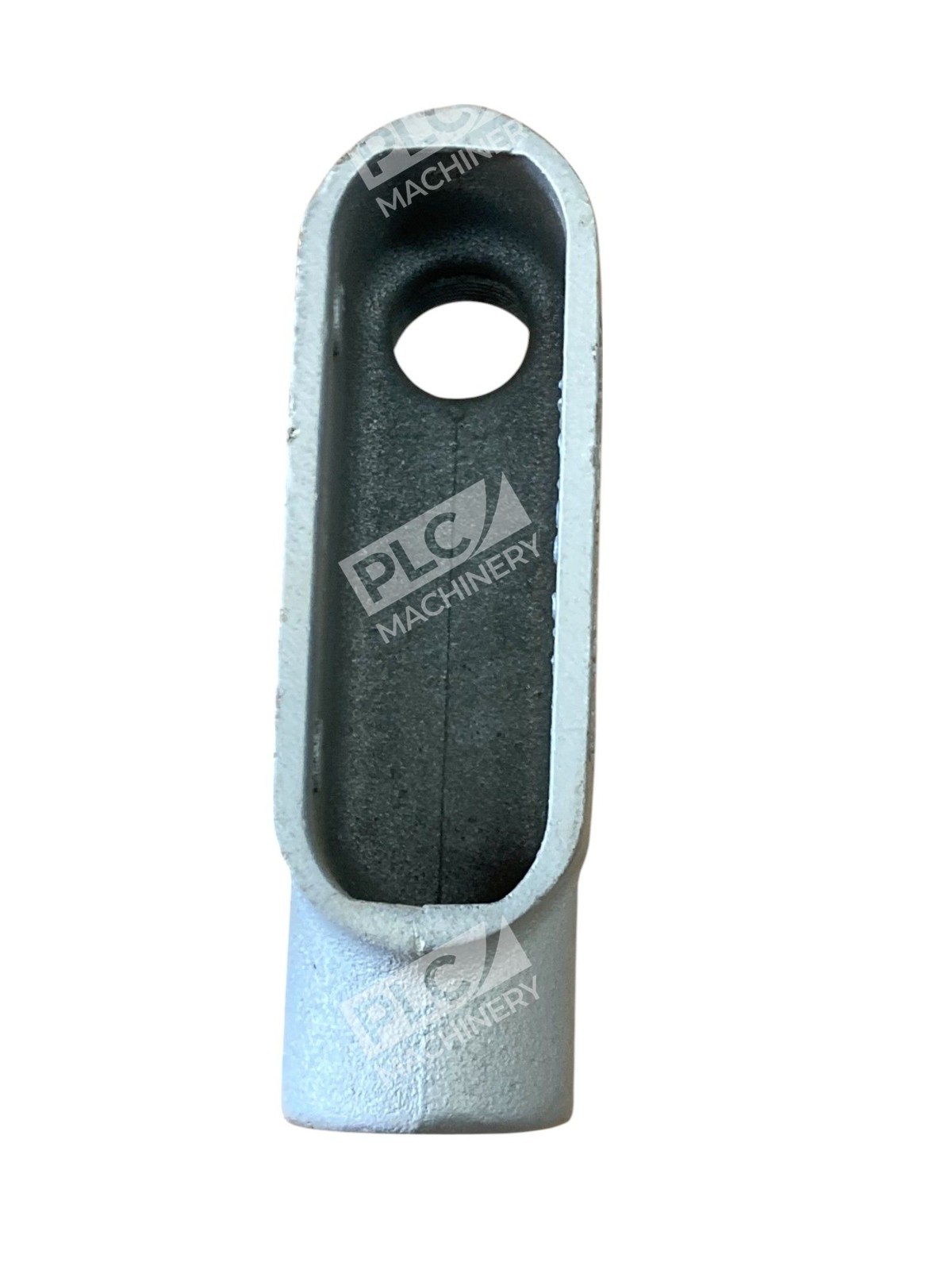

- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Compatible with rigid steel, aluminum, and IMC conduits
- Smooth, rounded integral bushings safeguard conductor insulation
- UL listed and CSA certified
Technical Specifications
- Type: LB (Side-Outlet)
- Form: Form 7 (FM7â„¢)
- Hub Size: 3/4″ NPT
- Capacity: 7 cubic inches
- Material: Grayloy Iron with triple coating
- Finish: Zinc electroplated/chromate/epoxy powder coated
- Dimensions: 5.19″ L × 2.5″ H (2.44″ W)
- Connection: Tapered FNPT (threaded)
- Max Conductor Size: 6 AWG
- Certifications: UL listed, CSA certified
- Enclosure Type: NEMA FB-1
Typical Applications
Appleton Conduit Outlet Bodies are used to connect and change direction of conduit runs, and allow connections for branch runs. Common uses include:
- Pull points for accessing conductors during installation and troubleshooting
- Wire splicing and termination locations
- Branch run connections in rigid and IMC conduit systems
- Direction changes in conduit runs
- Industrial control systems and factory automation
- Commercial electrical installations
Compatibility & Replacements
Compatible With
- Rigid steel conduit
- Aluminum conduit
- IMC (Intermediate Metal Conduit)
- 3/4″ NPT threaded connections
- Standard electrical panel and enclosure installations
Replaces / Drop-In Replacement For
- Crouse-Hinds Type LB Form 7 bodies (equivalent dimensions and specifications)
- LB27SA (aluminum version) – Appleton offers this same model in copper-free aluminum construction for corrosive environments
- Previous generation Appleton conduit outlet bodies of equivalent size and type
Works With
- Appleton UNILETSâ„¢ conduit outlet body covers and gaskets
- Standard electrical codes and NEMA standards (NEMA FB-1)
- UL and CSA certified electrical systems
- Industrial and commercial wiring methods and practices
