Overview

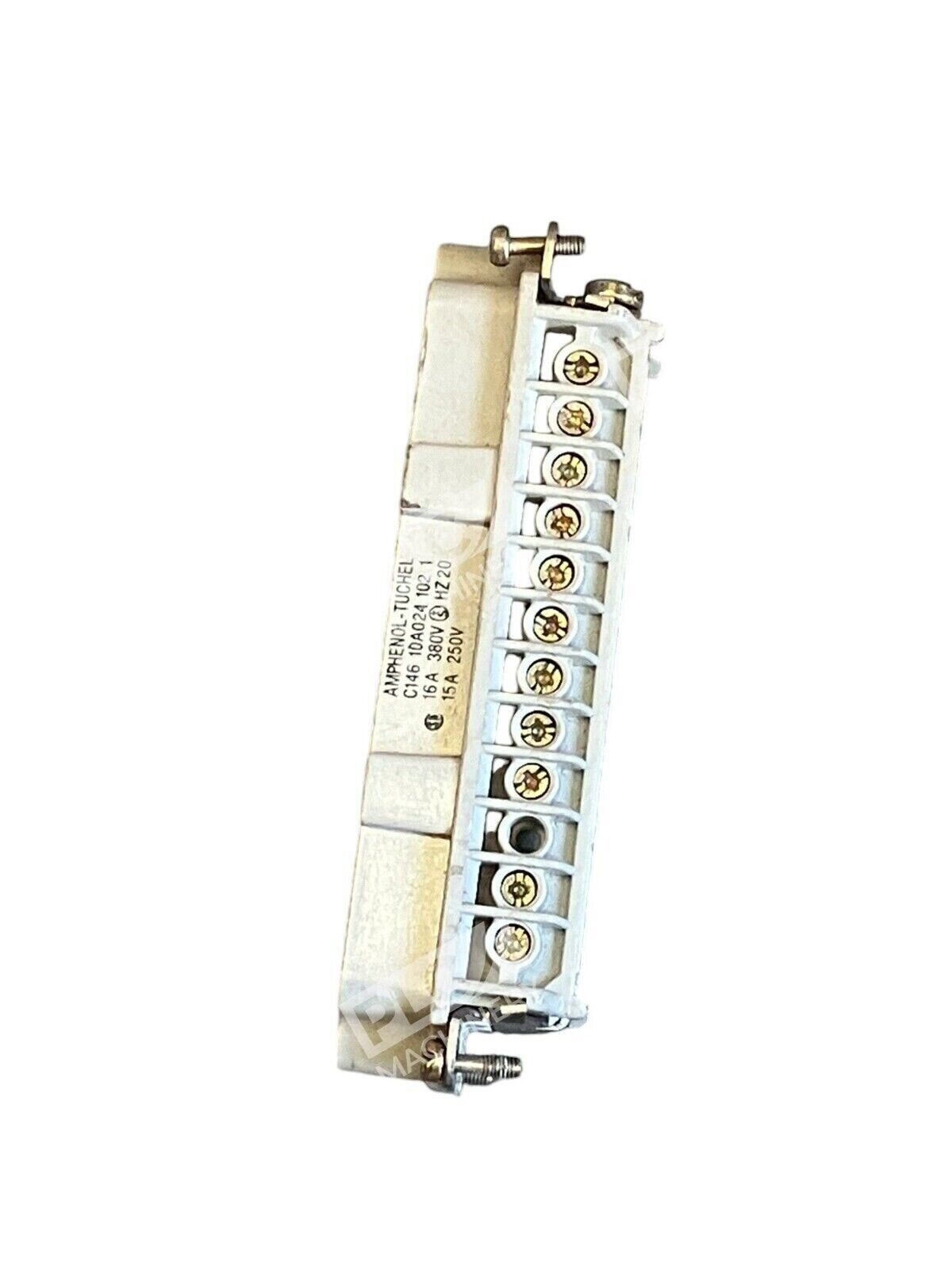

The Amphenol Tuchel C146-10A024-102-1 is a rectangular industrial connector plug insert engineered for demanding electrical distribution applications. Part of the C146E Series heavy-duty connector family, this male insert accommodates 24 contacts plus one ground contact. The modular construction allows integration into various housing configurations to meet specific application requirements.
Key Features
- 24 + PE (ground) contact positions for flexible wiring configurations
- Screw termination for secure, field-serviceable connections
- Modular design enables multiple housing and contact insert combinations

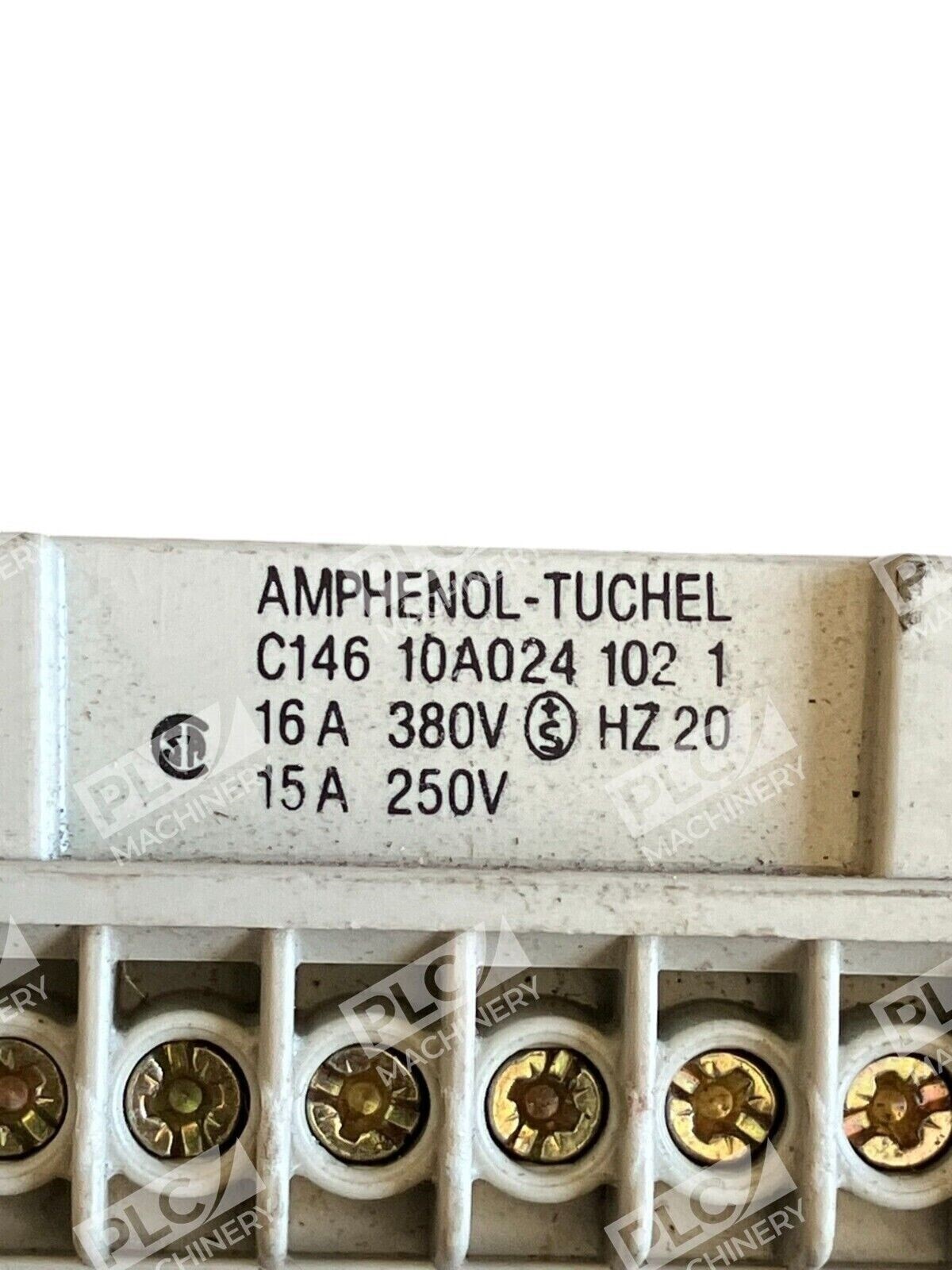

- Heavy-duty industrial construction rated for 16A @ 380V and 15A @ 250V per original specifications
- Wire protection on insert body to prevent accidental contact with live pins
- Compatible with standard industrial connector housings
Technical Specifications
The C146-10A024-102-1 insert is designed for use in high-voltage, industrial control and power distribution systems where modular flexibility is essential.
Typical Applications
- Industrial machinery control systems
- Power distribution panels and enclosures
- Heavy equipment electrical interconnects
- Control system wiring in manufacturing environments
- Multi-signal and multi-power distribution networks
Compatibility & Replacements
Compatible With
- C146 Series heavy-duty connector housings (various sizes)
- Amphenol industrial connector systems
- Standard 24+PE contact arrangements
- Screw-termination wiring configurations
Replaces / Drop-In Replacement For
Direct replacement for original C146-10A024-102-1 installations. Verify compatibility with your system integrator before ordering if substituting from a different connector family.
Works With
- Amphenol industrial connector housings and backshells
- Standard cable glands and strain relief accessories
- Industrial control systems requiring modular connectivity
- IEC-compliant power distribution infrastructure
