Overview

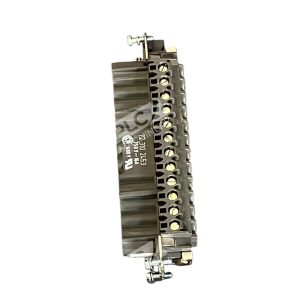

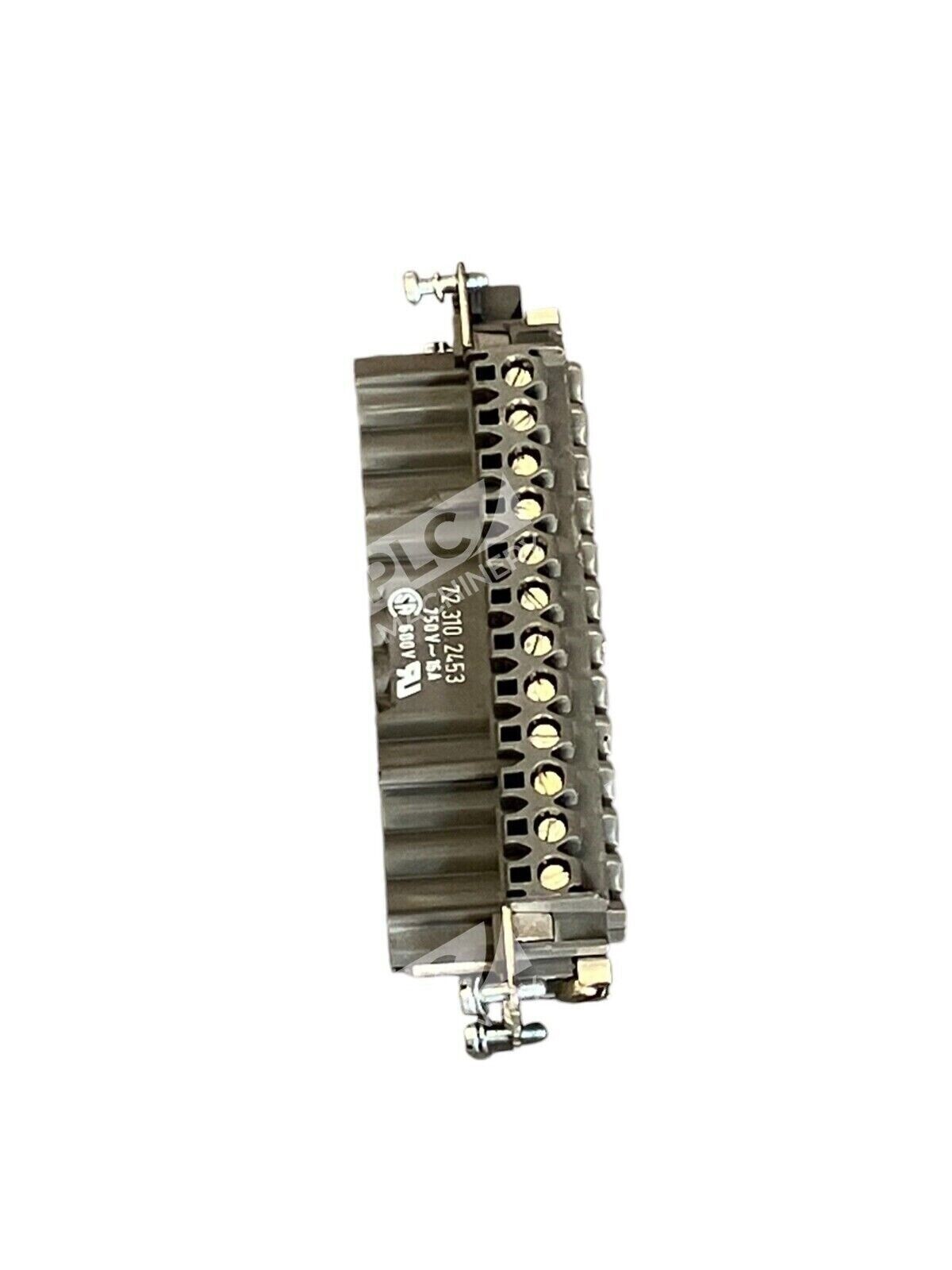

The Wieland 72.310.2453 is a rugged 24-pole rectangular connector designed for industrial electrical applications requiring secure, high-current connections. With a 16A current rating and 690V maximum voltage, this connector suits control panels, machinery interconnects, and distribution systems across manufacturing and process automation environments.
Key Features
- 24-pole male connector configuration for reliable signal and power distribution
- 16A rated current capacity per contact
- 690V maximum operating voltage for industrial-grade reliability
- Screw terminal connection method ensures vibration-resistant terminations
- Tinned copper contacts for superior corrosion resistance
- Operating temperature range from -40 to +110°C for diverse environments
Technical Specifications
This connector meets industrial connector standards and is commonly found in European manufacturing equipment and control systems. The HDC rectangular form factor provides space-efficient panel mounting with standardized socket and mating configurations. Designed for cable-mount applications, the 72.310.2453 supports both signal and power connections within a single housing.
Typical Applications
- Industrial control panel interconnects
- Machine tool wiring harnesses
- PLC and drive cabinet connections
- Factory automation equipment
- Power distribution and switching systems
- Heavy-duty machinery control circuits
Compatibility & Replacements
Compatible With
- European industrial equipment manufacturers using Wieland connectors
- Control systems and automation panels
- Power distribution and motor control cabinets
- Machine tool and manufacturing automation platforms
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Wieland 72.310.2453 is a specific model within Wieland’s HDC connector family; direct equivalents may vary by manufacturer and application requirements.
Works With
- Wieland HDC connector family mating connectors (72.350.xxxx series housings)
- Standard industrial screw-terminal wiring practices
- European industrial automation platforms
- CE-marked electrical systems and control enclosures
