Overview

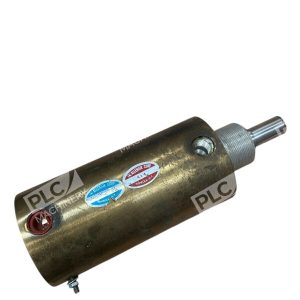

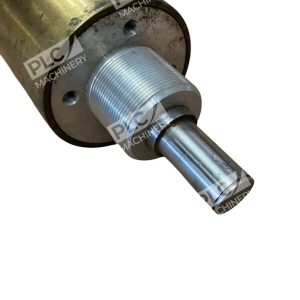

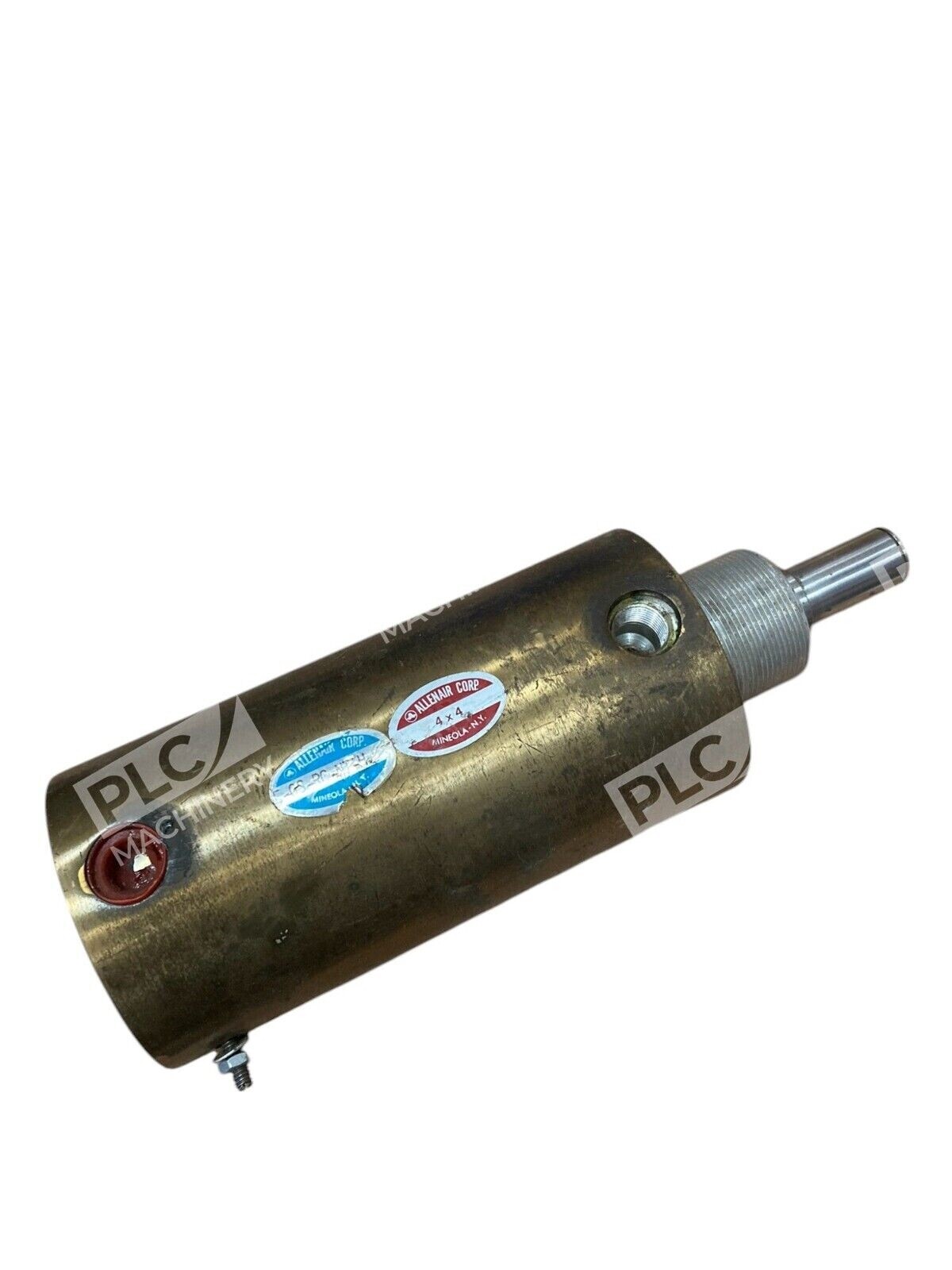

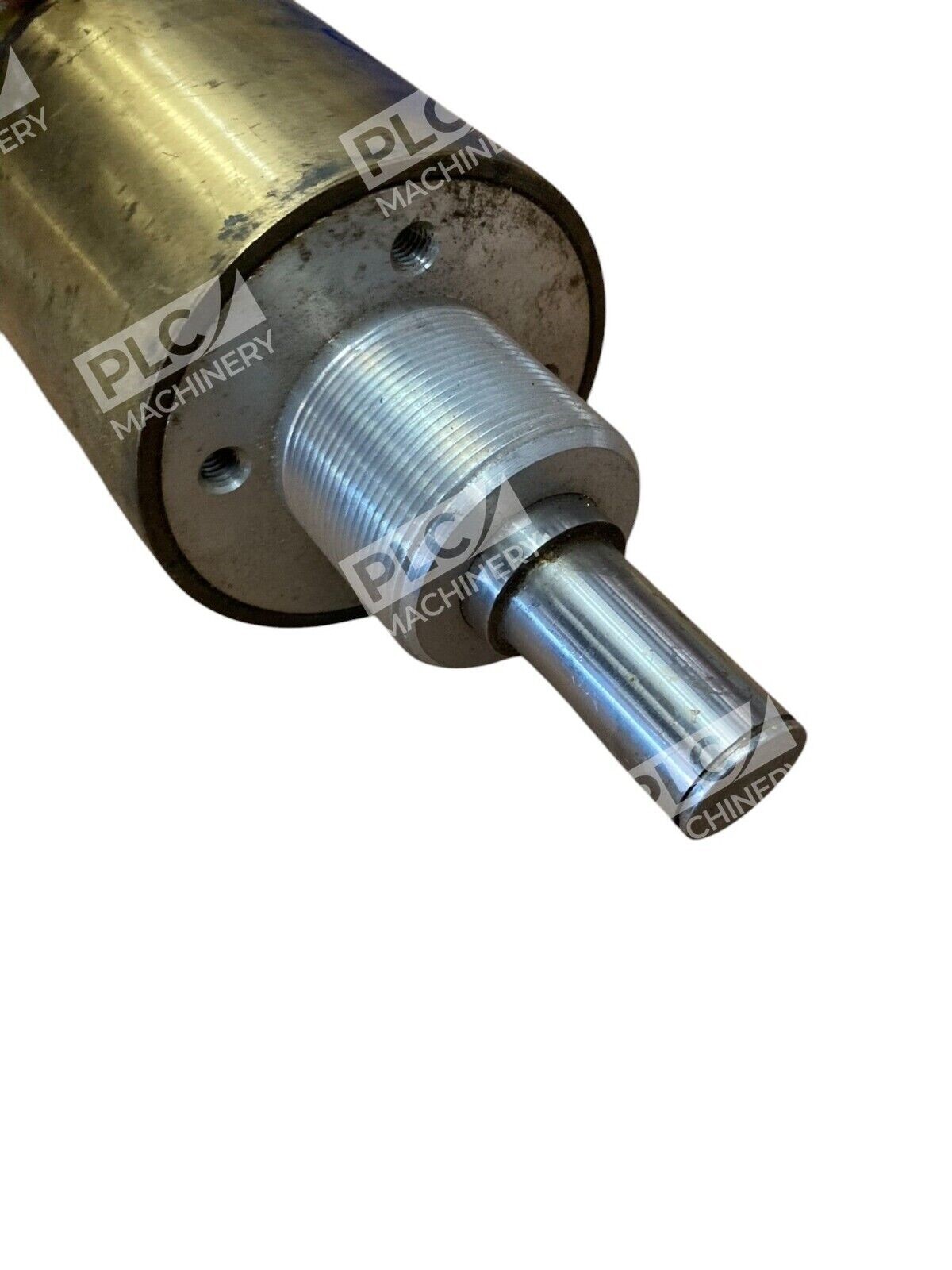

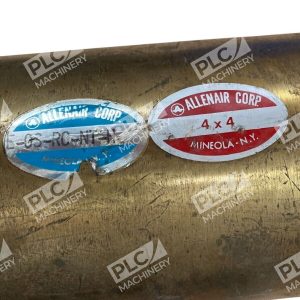

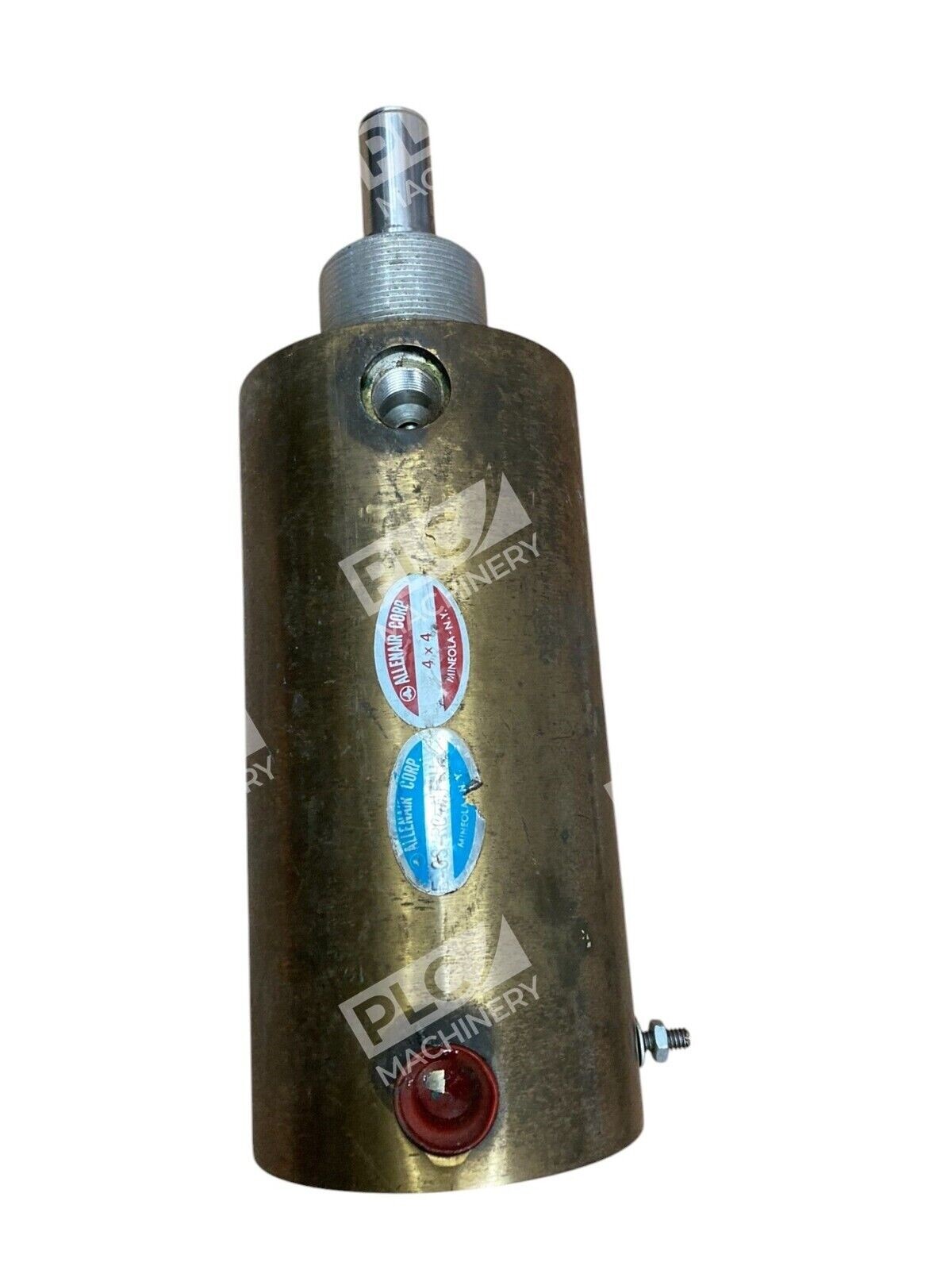

The Allenair E-0S-RC-NT-H is a single-ended, double-acting pneumatic cylinder designed for demanding industrial applications requiring precise linear motion and extended component life. Built with Block-Vee seals and heavy-duty wear strips, the E-0S-RC-NT-H delivers consistent performance in environments with high side loads and continuous operation.
Key Features
- 4″ Bore Diameter – Delivers robust force output for heavy-duty applications
- Type E Construction – Block-Vee seals with heavy-duty wear strips and double rod seals in front head for enhanced durability
- 150 PSI Pneumatic Rated – Optimized for standard compressed air supply pressures
- Low Breakaway Pressure – Approximately 5 to 8 PSI for responsive control
- Extended Stroke Options – Available in standard whole-inch increments from 1″ through 20″; special strokes available up to 130″
- USA Manufactured – Built in the USA with adherence to highest standards of excellence and reliability
Technical Specifications
Operating Pressure: 150 PSI pneumatic rating
Bore Size: 4″
Seal Material: Standard Nitrile (Buna-N) seals with operating temperature range of –40°F to +250°F maximum
Lubrication: Pre-lubricated at assembly with specially formulated long-lasting lubricant
Cylinder Type: Single-ended, double-acting
Typical Applications
Allenair Type E cylinders are recommended for heavy-duty applications and where side load conditions are present. The E-0S-RC-NT-H is well-suited for:
- Automated production line systems
- Heavy-load linear actuation
- Press and stamping machine controls
- Machine tool feed mechanisms
- Industrial material handling
- Clamping and positioning fixtures
Compatibility & Replacements
Compatible With
- Standard pneumatic 4-way directional control valves
- Compressed air systems rated 150 PSI or lower
- Industrial automation platforms requiring linear actuation
- Mounting surfaces accepting SAE flange or clevis configurations
Replaces / Drop-In Replacement For
Verify compatibility with your original equipment documentation before ordering. Allenair cylinders may be used in place of other brand cylinders in the same pressure and bore classifications. Similar bore 4″ cylinders from competing manufacturers may be compatible; consult your equipment OEM for exact cross-reference.
Works With
- 4-way pneumatic directional valves (manual, pilot, or solenoid operated)
- Flow control regulators and speed valves
- Pressure gauges and relief valves
- Compressed air supply systems (100–150 PSI range)
