Overview

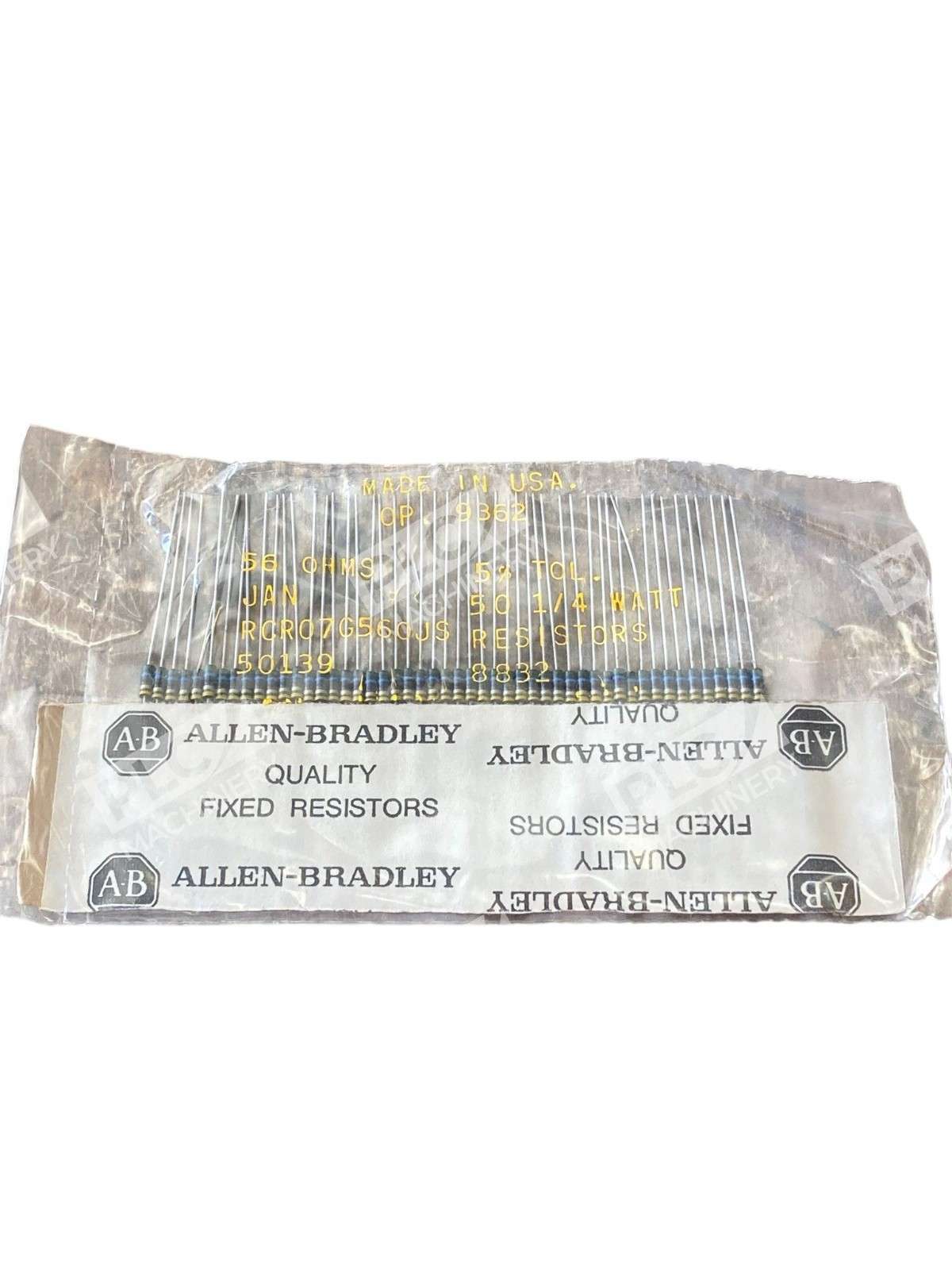

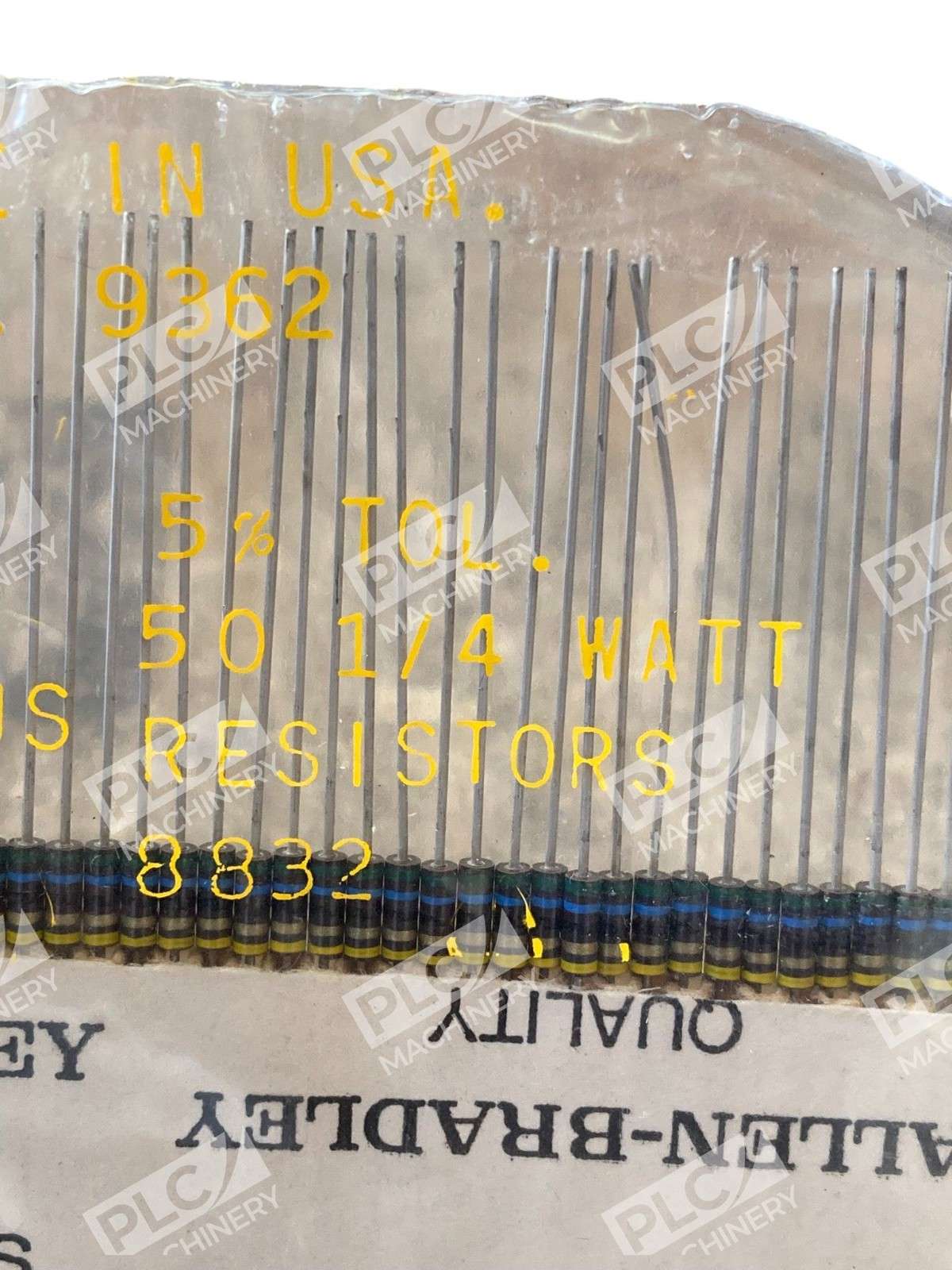

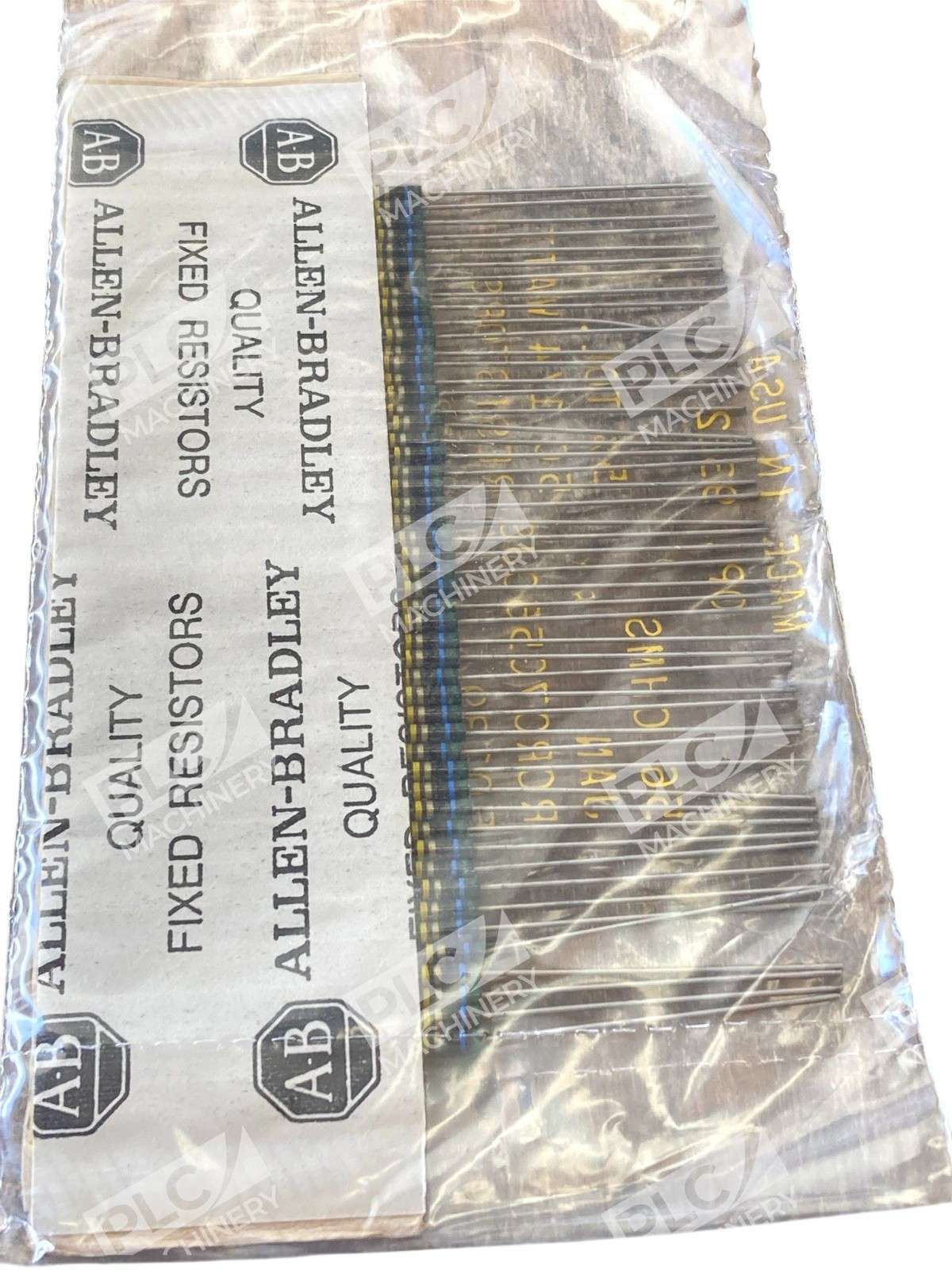

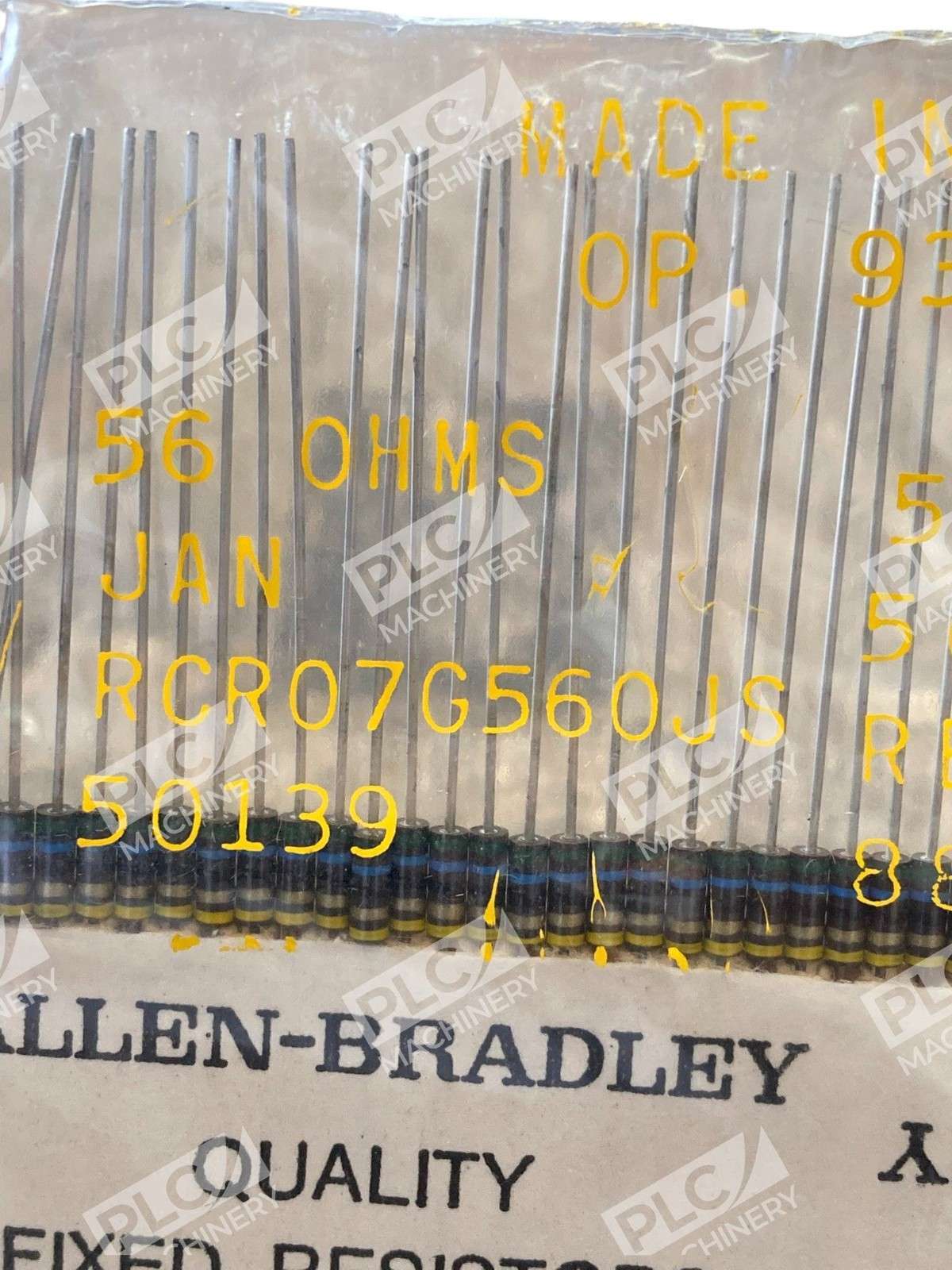

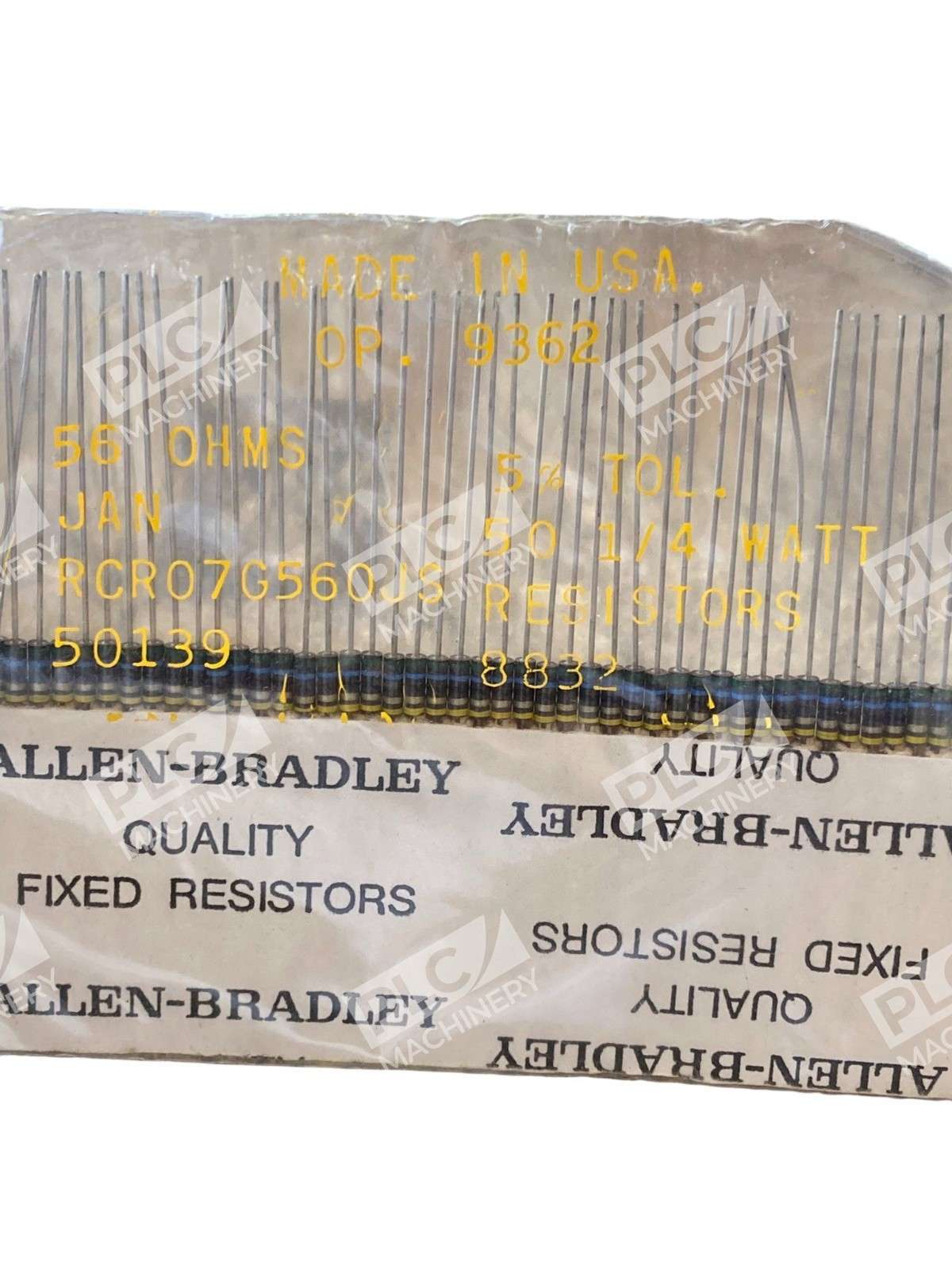

The Allen-Bradley RCR07G560JS resistor is a precision fixed resistor designed for demanding industrial and commercial applications. As part of the RCR07 military-grade series, this 56-ohm component combines rugged construction with dependable electrical performance. The axial through-hole design integrates seamlessly into legacy systems and new builds requiring MIL-spec reliability.
Key Features
- Military-Grade Specification: RCR designation denotes Grade-S military specification for maximum reliability
- Hot-Molded Carbon Construction: Solid cylindrical carbon resistive element with embedded leads provides non-magnetic, non-inductive performance
- Oxygen-Free Copper Leads: Ensures superior corrosion resistance and long-term stability in harsh environments
- ±5% Tolerance: Tight tolerance rating for precise circuit biasing and signal conditioning
- Operating Temperature: Rated to 70°C for reliable performance across industrial temperature ranges
Technical Specifications
- Resistance Value: 56 ohms (560 × 0.1 per RCR07 nomenclature)
- Power Rating: 0.25W (1/4W)
- Tolerance: ±5%
- Operating Temperature Range: –55°C to +70°C
- Mounting Style: Axial through-hole
- Lead Material: Oxygen-free copper
- Termination: Tinned leads
Typical Applications
The RCR07G560JS excels in:
- Legacy industrial control systems and PLC circuits
- Analog biasing networks in analog I/O modules
- Signal conditioning and measurement circuits
- Military and aerospace equipment requiring MIL-spec components
- Audio and instrumentation circuits valuing organic response characteristics
- Equipment retrofits and board-level repairs requiring exact part matching
Compatibility & Replacements
The RCR07G560JS is a direct replacement for other Allen-Bradley RCR07 series 56-ohm resistors with equivalent specifications. It is compatible with any circuit calling for a 0.25W, 56-ohm, 5% carbon composition resistor with through-hole axial leads. When specifying replacements, verify tolerance and power rating requirements; this unit’s 5% tolerance and 1/4W rating make it suitable for general-purpose industrial circuits. NOS (new, old stock) units may require a brief oven treatment at 80°C to remove atmospheric moisture and achieve stated tolerance specs.
