Overview

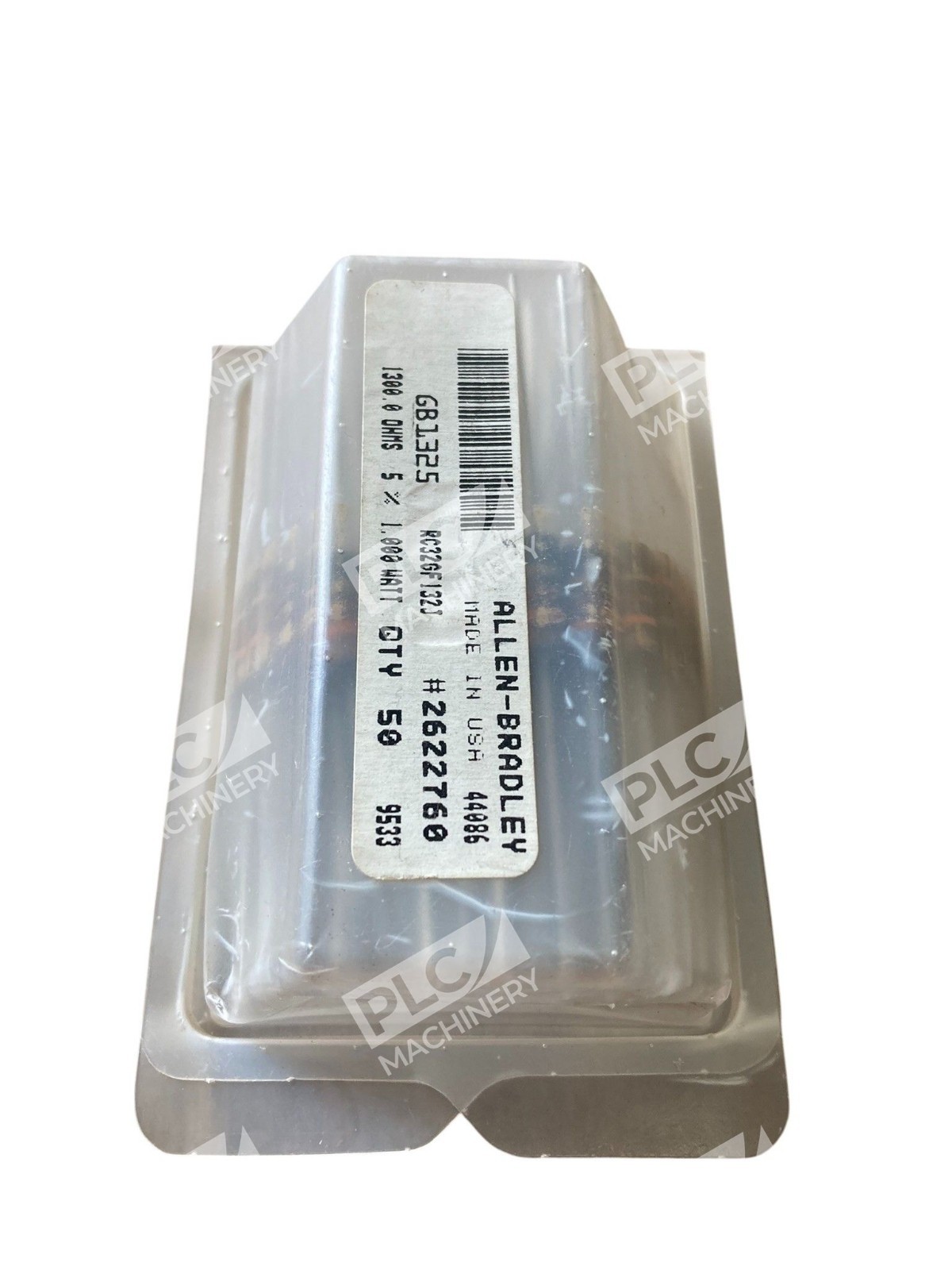

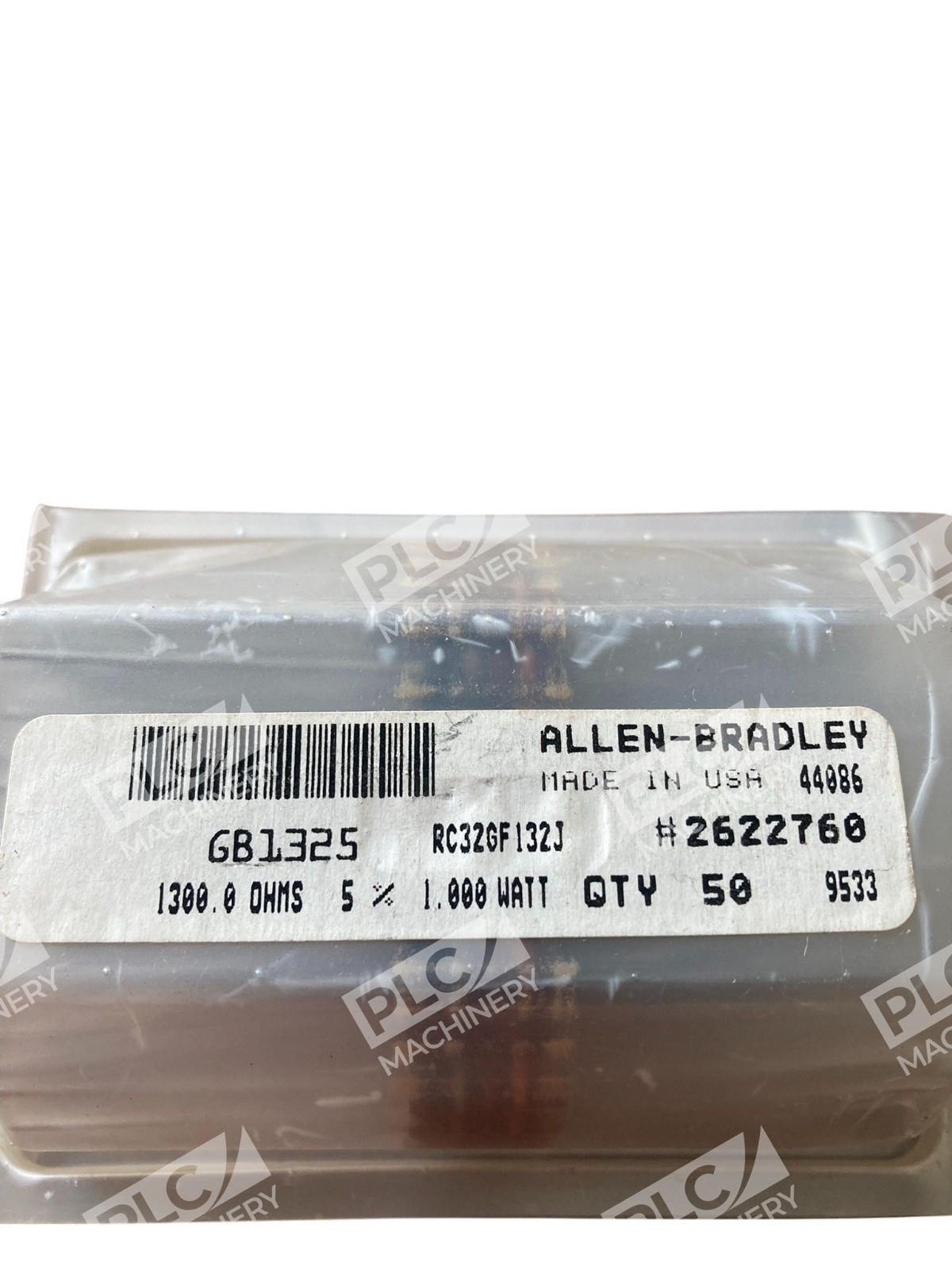

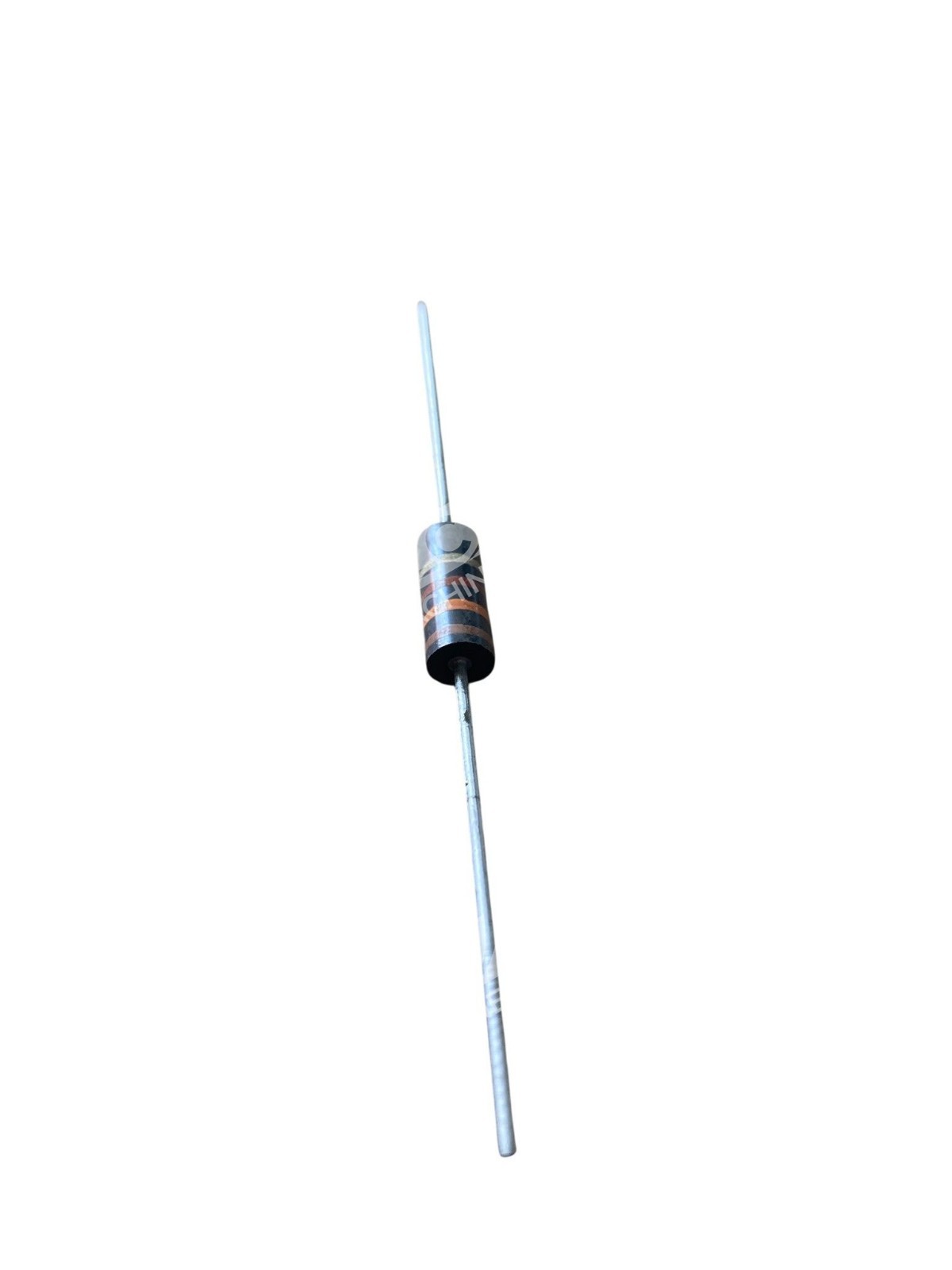

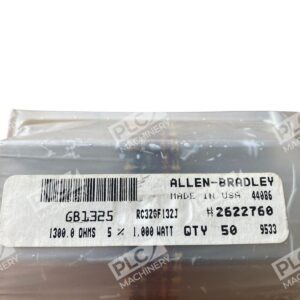

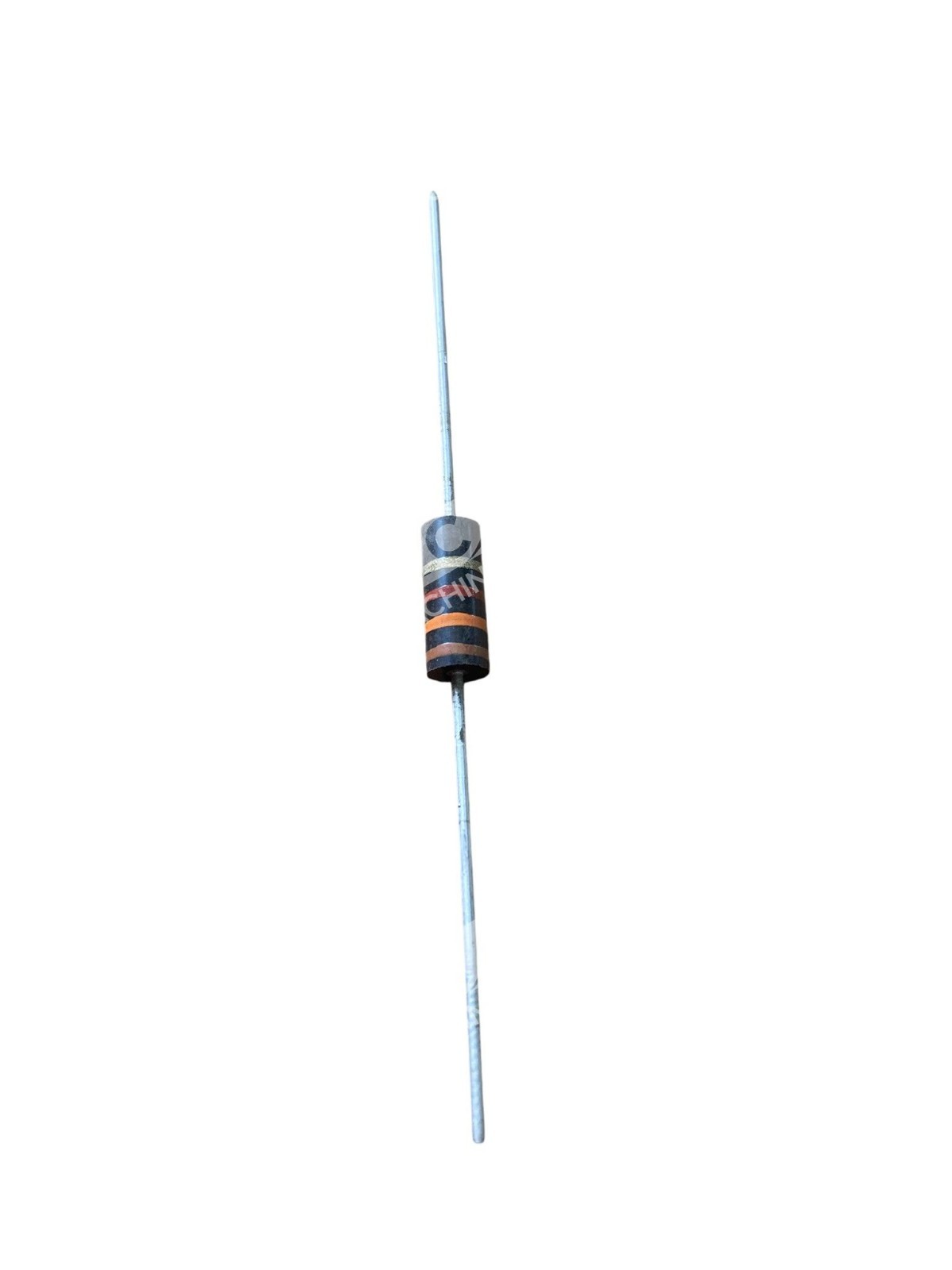

The Allen-Bradley RC32GF132J is a carbon composition fixed resistor designed to industrial and military specifications. The GB1325 designation identifies this 1-watt resistor series, with the RC32GF prefix indicating military-grade MIL-SPEC compliance. This box of 33 units provides reliable resistors for circuit design, equipment repair, and production requirements.
Key Features
- 1.3K ohm resistance value with ±5% tolerance
- 1-watt power rating for standard circuit applications
- Carbon composition construction for superior reliability and stability
- Oxygen-free copper leads for consistent electrical connection
- MIL-SPEC qualified for aerospace, military, and industrial use
- Bulk packaging: 33 units per box for economical purchasing
Technical Specifications
- Resistance Value: 1,300 ohms (1.3K)
- Power Rating: 1 watt
- Tolerance: ±5%
- Construction Type: Carbon composition (hot-molded)
- Lead Material: Oxygen-free copper
- Operating Temperature Range: -55°C to +70°C
- Temperature Coefficient: Typical per MIL-R-11/MIL-R-39008
- Package Quantity: 33 units per box
- Compliance: MIL-R-11, MIL-R-39008
Typical Applications
- Test equipment and instrumentation circuits
- Audio and RF equipment repair and restoration
- Industrial control and automation systems
- Power supply biasing and current limiting
- Military and aerospace electronics
- Vintage equipment restoration and maintenance
Compatibility & Replacements
The RC32GF132J carries multiple designation systems. The industrial designation is GB1325; the military RC-series equivalent is RC32GF132J; and the Grade-S military designation is RCR32G132JS. These designations refer to the same component and are interchangeable. As a carbon composition resistor, this part is not typically replaced by modern metal film or film-based resistors in vintage or MIL-SPEC applications where the specific sonic or performance characteristics of carbon composition construction are required.
