Overview

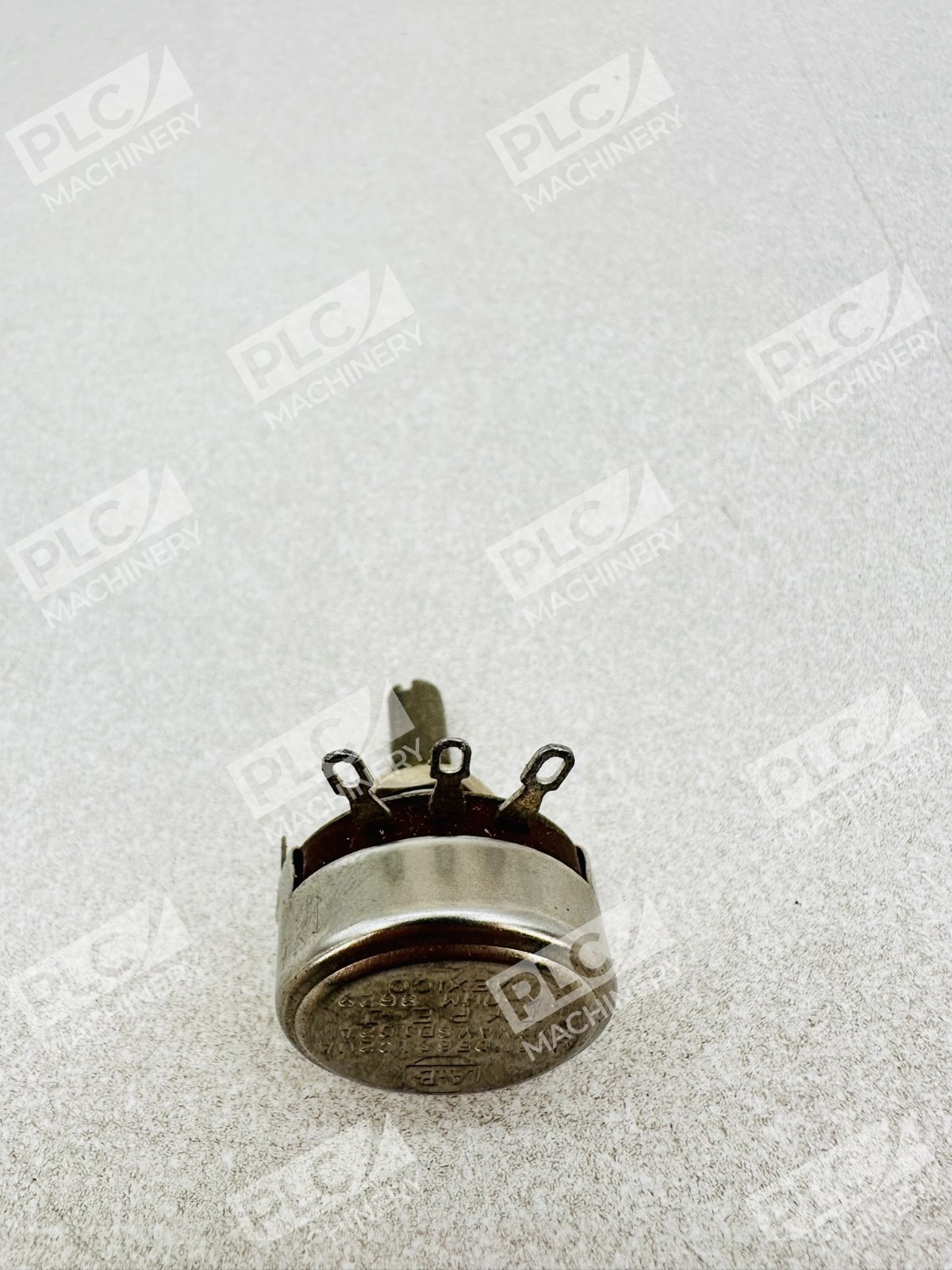

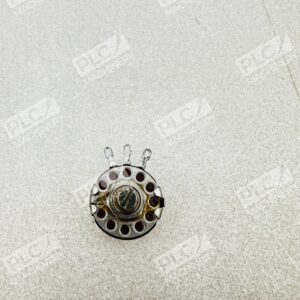

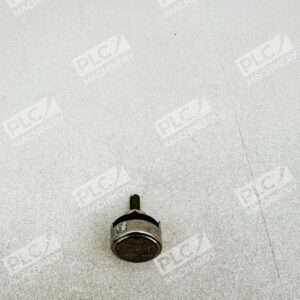

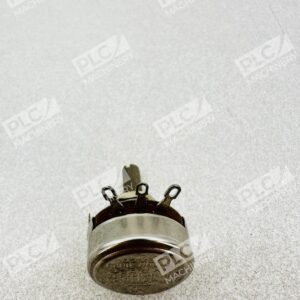

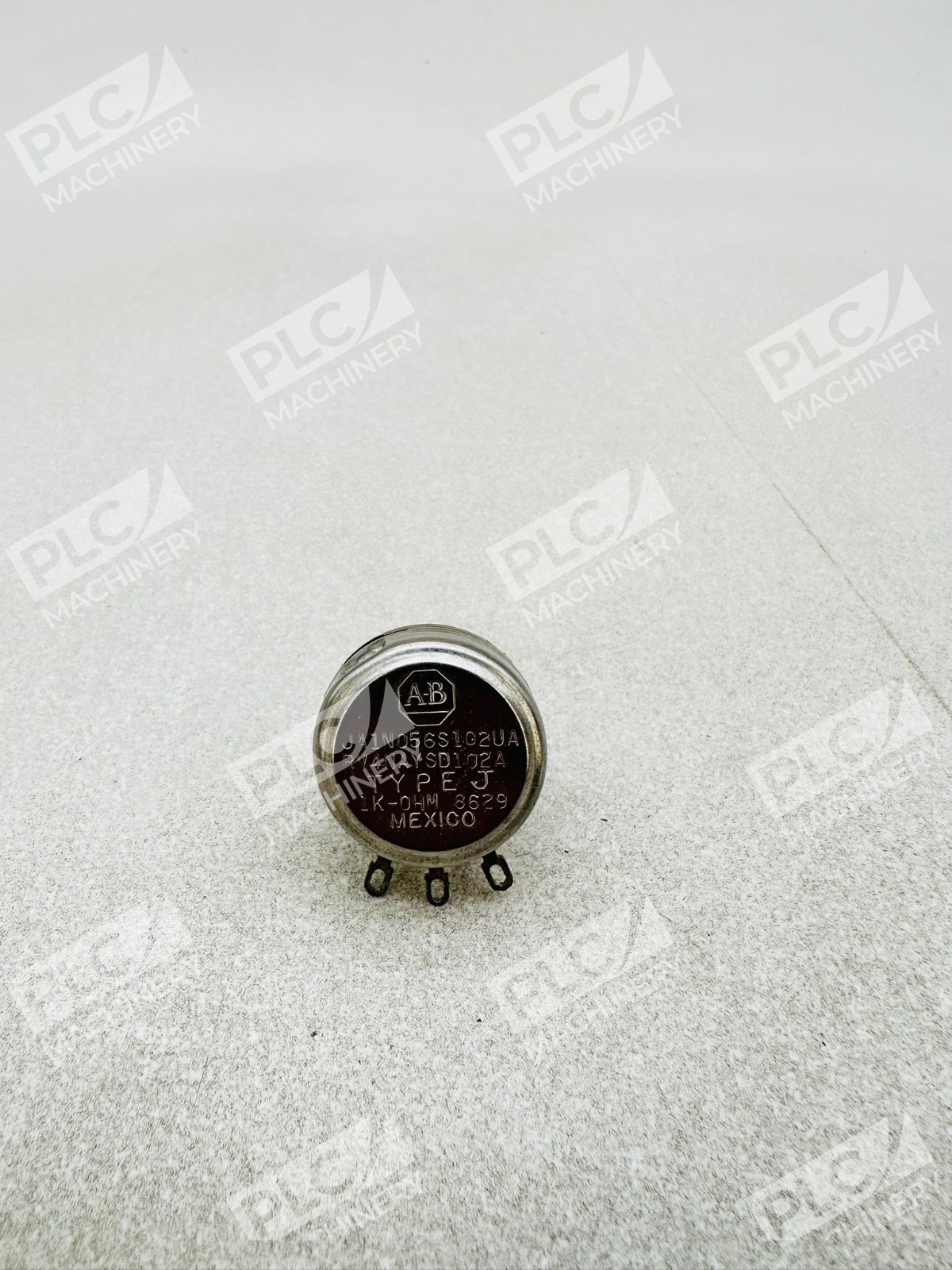

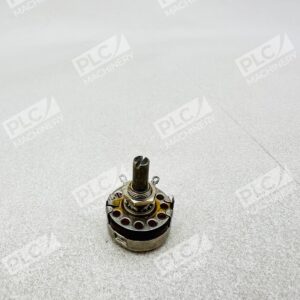

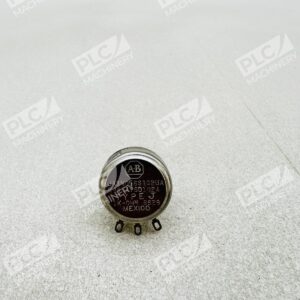

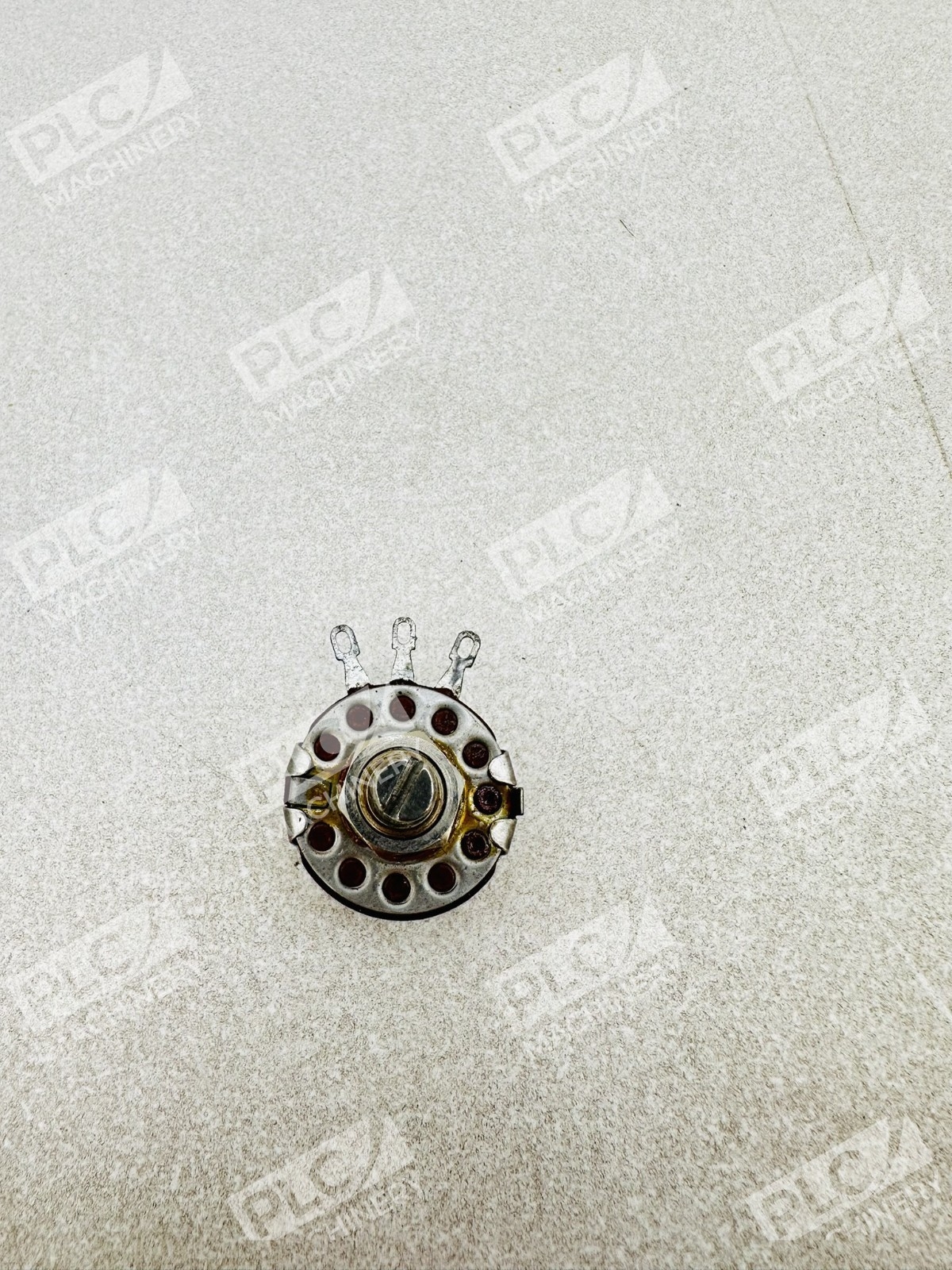

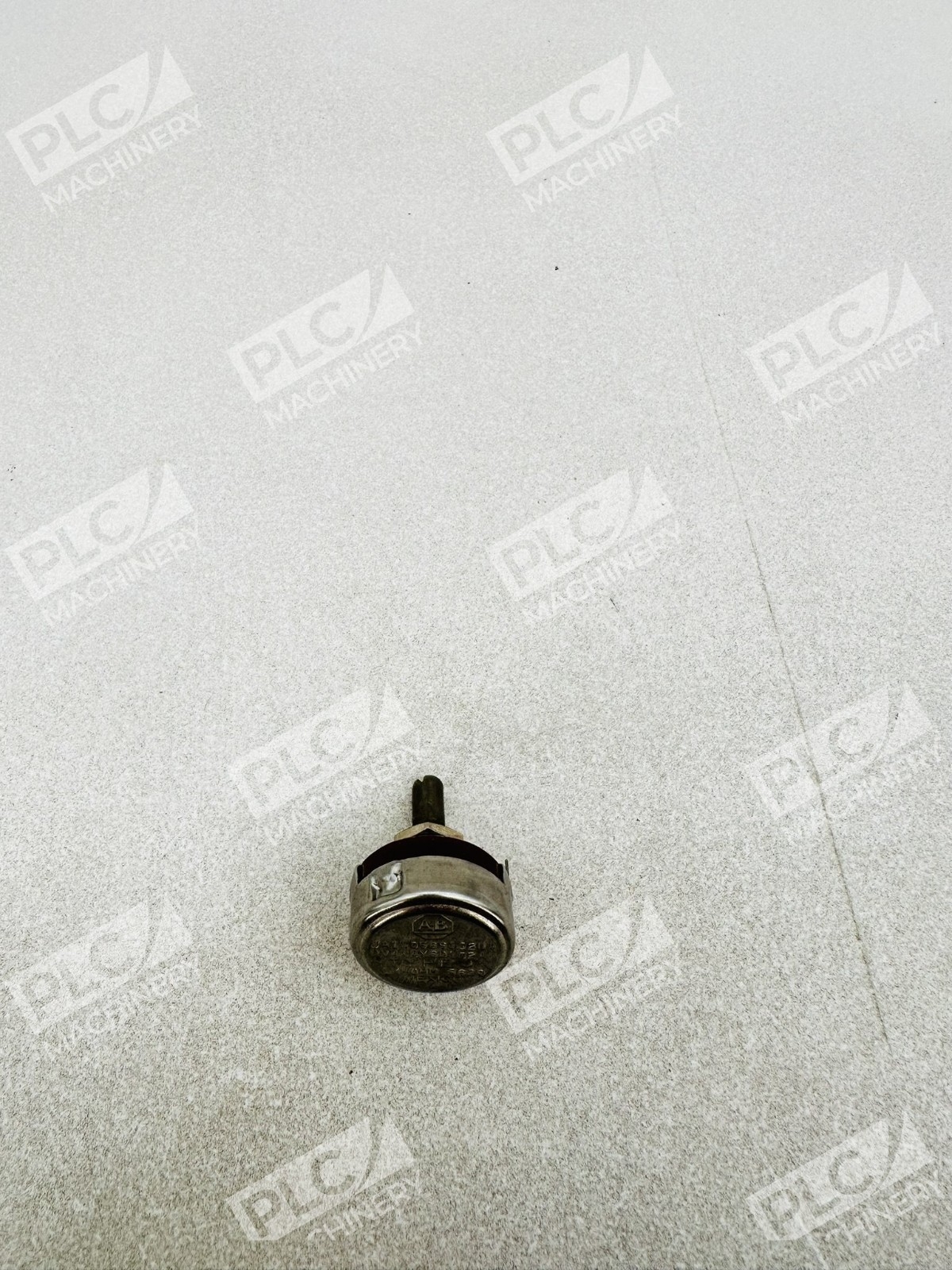

The Allen-Bradley JA1N056S102UA potentiometer is a single-turn rotary component rated at 1 kilohm (1kΩ) with a 2-watt power dissipation capacity. This industrial-grade potentiometer features linear electrical taper and Type J hot-molded carbon composition construction, making it well-suited for demanding industrial and military applications requiring dependable variable resistance control.
Key Features
- Resistance: 1 kilohm (1kΩ) with ±10% tolerance
- Taper: Linear (LIN) electrical response for proportional control
- Power Rating: 2 watts continuous dissipation
- Construction: Type J hot-molded carbon composition—proven for rugged industrial environments

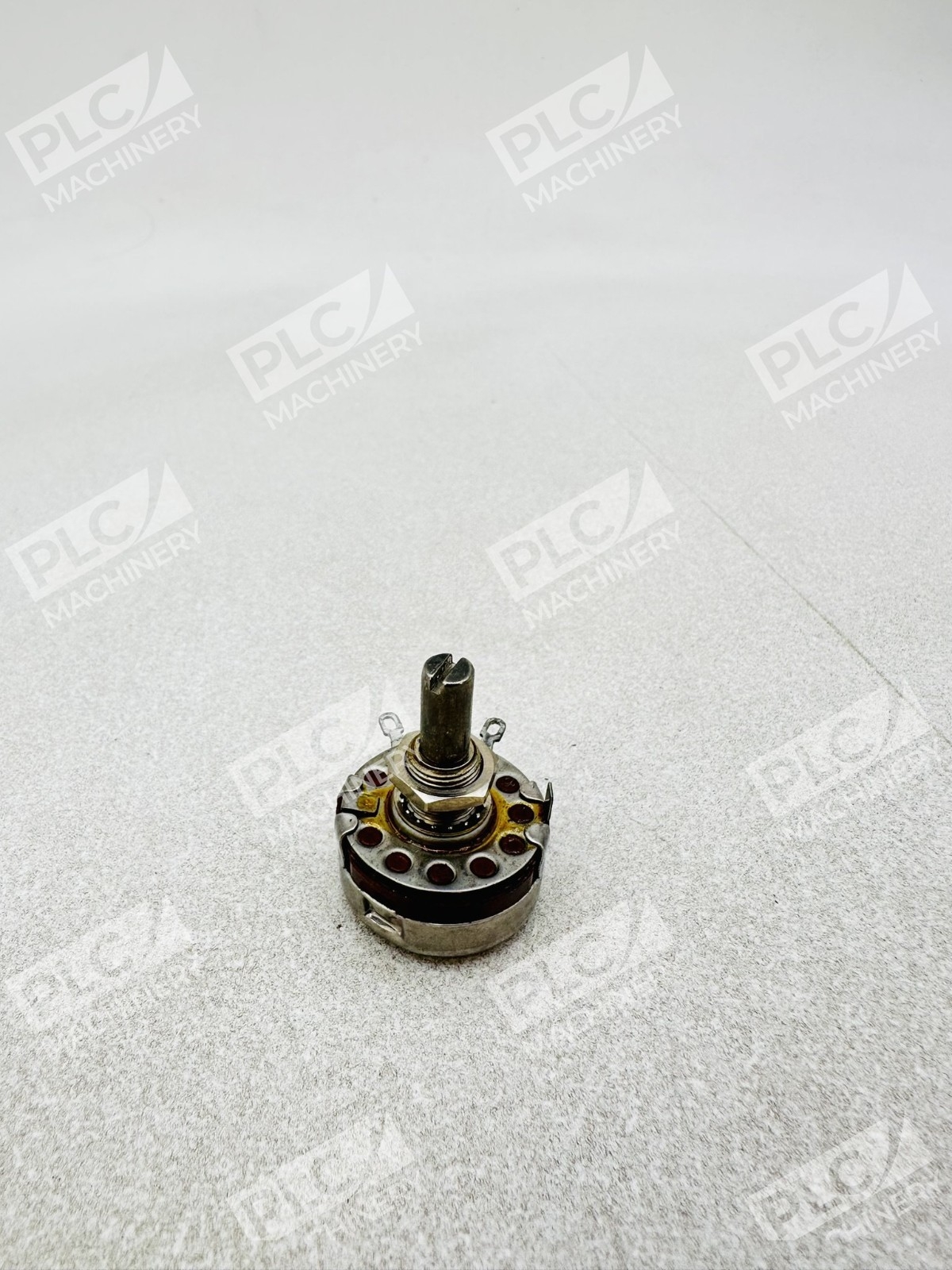

- Shaft: Slotted shaft style with 3/8 inch bushing and 1/2 inch length
- Single Turn: One complete rotation from minimum to maximum resistance
- Termination: Solder connections for panel mounting
Technical Specifications
- Actuator Type: Slotted shaft
- Electrical Taper: Linear
- Element Material: Carbon composition
- Resistance Value: 1 kΩ
- Tolerance: ±10%
- Power Rating: 2 W
- Potentiometer Type: Single-turn rotary
- Shaft Diameter: 6.35 mm
- Shaft Length: 22.2 mm (½ inch)
- Bushing Size: 3/8 inch
- Mounting Type: Panel mount (solder termination)
- Number of Gangs: 1
- Series: J
- RoHS Compliant: Yes
Typical Applications
- Industrial control systems requiring variable resistance input
- Motor speed controls and power regulation circuits
- Measurement and calibration circuits
- Audio level adjustments in industrial equipment
- Temperature and process control feedback
- Military and aerospace control systems
- Panel-mounted adjustable voltage dividers
Compatibility & Replacements
Compatible With
- Allen-Bradley pilot device control systems
- Industrial control panels with 3/8 inch bushing panel cutouts
- Standard PCB-mounted or panel-mounted applications requiring 2-watt variable resistances
- Any circuit requiring 1kΩ single-turn linear potentiometer
Replaces / Drop-In Replacement For

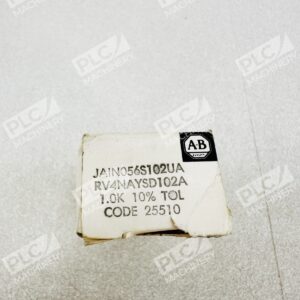

- RV4NAYSD102A (equivalent NTE Electronics designation)
- Other Type J 1kΩ single-turn potentiometers with identical bushing and shaft specifications
Works With
- Standard industrial control circuit design using variable resistors
- Any 2-watt or lower power dissipation application
- Generic potentiometer sockets and panel mounts
- Analog signal conditioning circuits common in industrial automation
