Overview

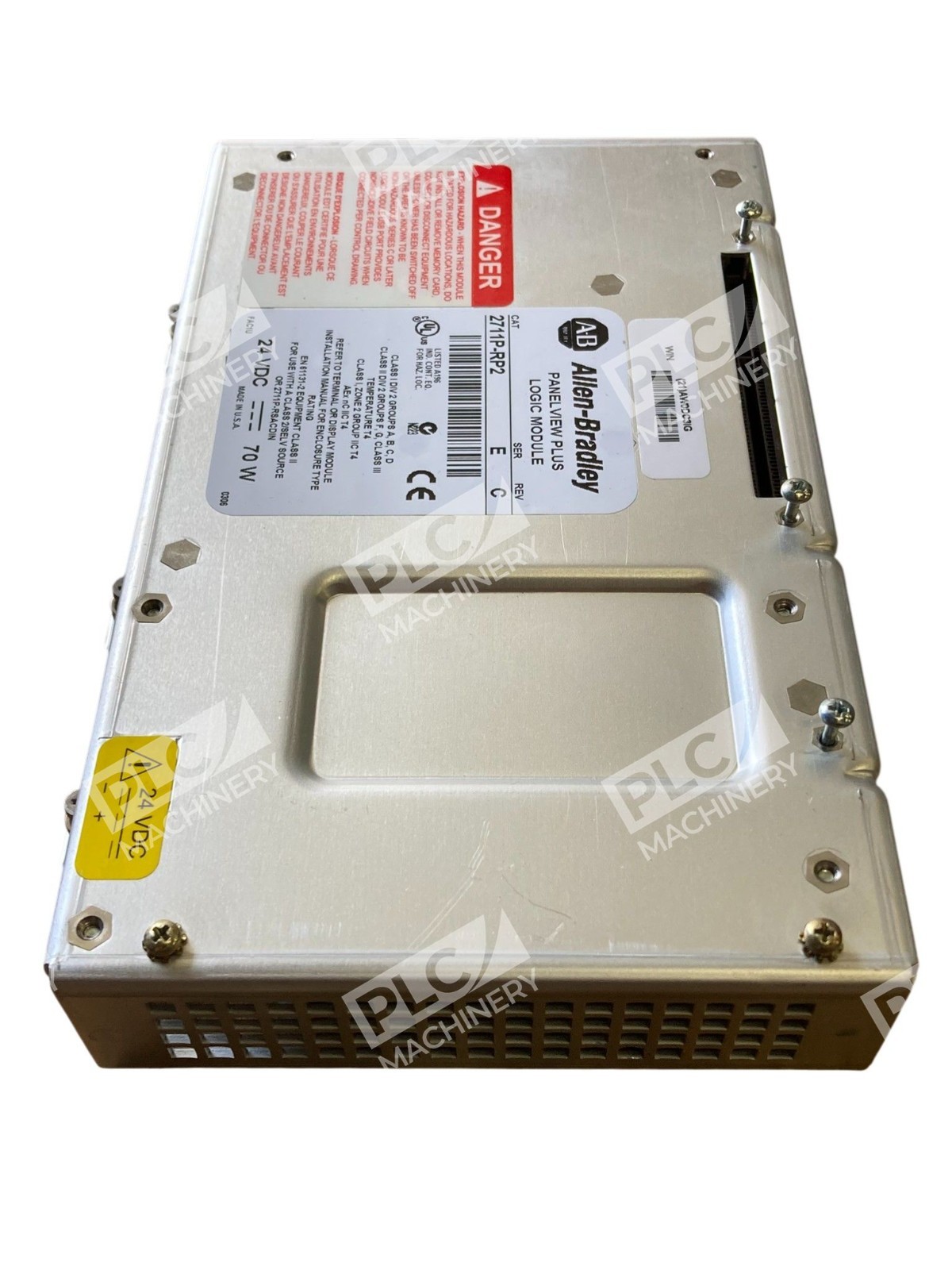

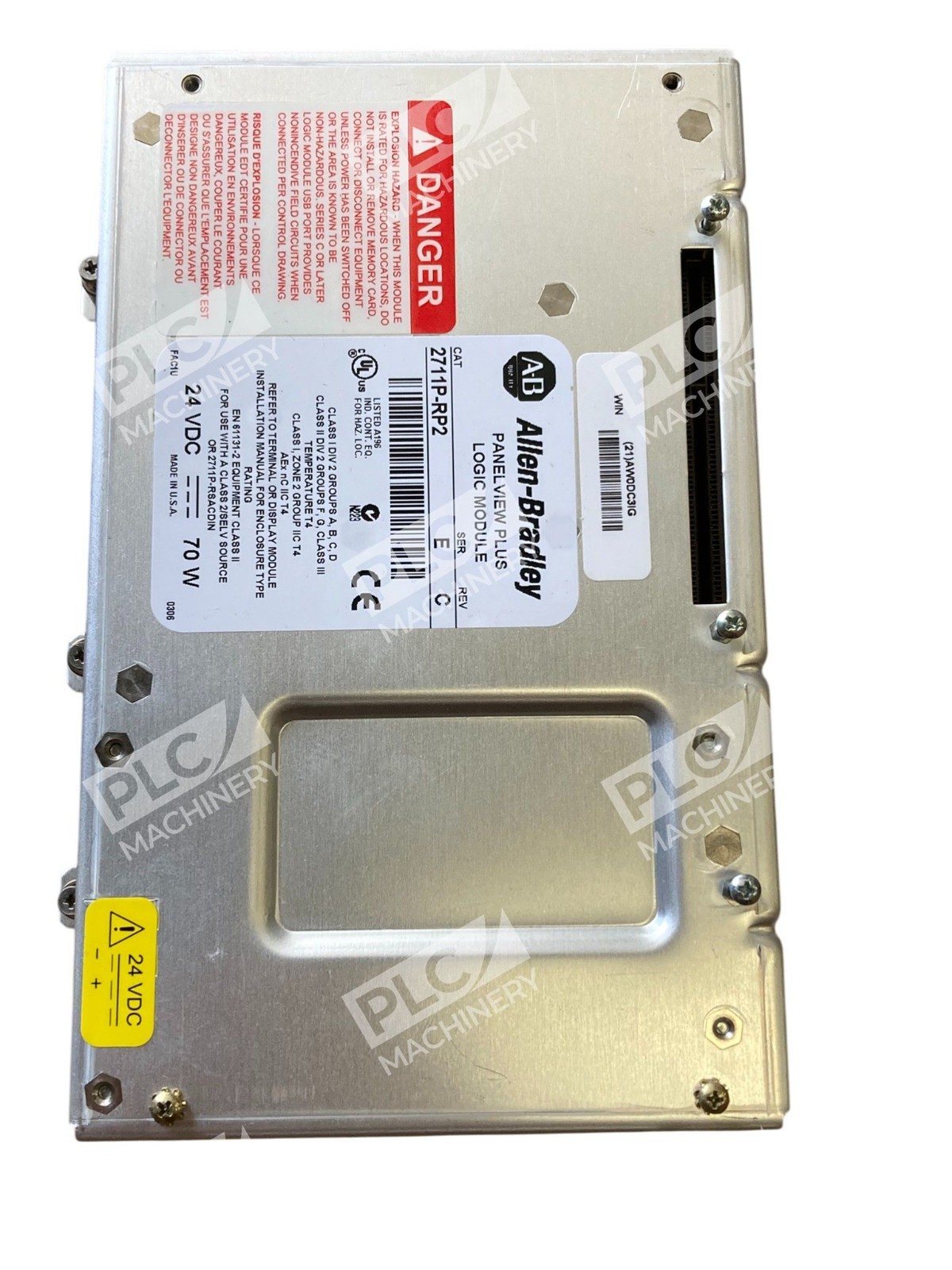

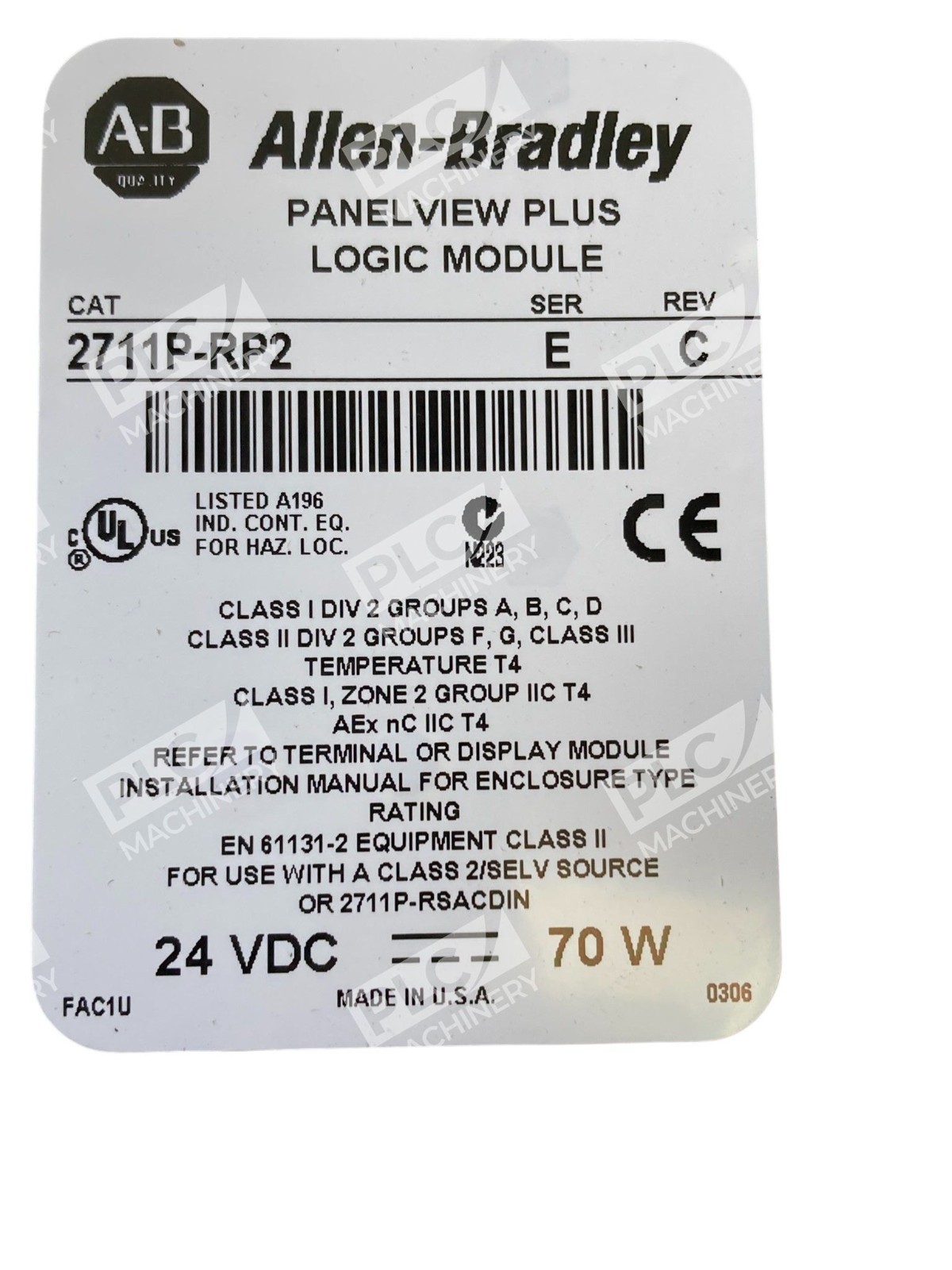

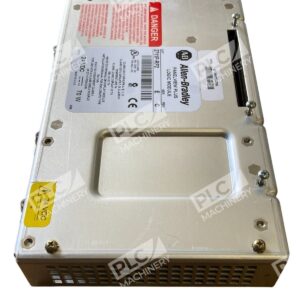

The Allen-Bradley 2711P-RP2 is a logic module engineered for the PanelView Plus family of operator terminals. It is designed to be mounted on the back of a display module from the Allen-Bradley PanelView Plus 700, 1000, 1250, or 1500 series. This logic module is equipped with 128 MB of flash memory and 128 MB of RAM. This combination enables secure storage and fast runtime performance for HMI applications across manufacturing, process control, and discrete automation environments.
Key Features

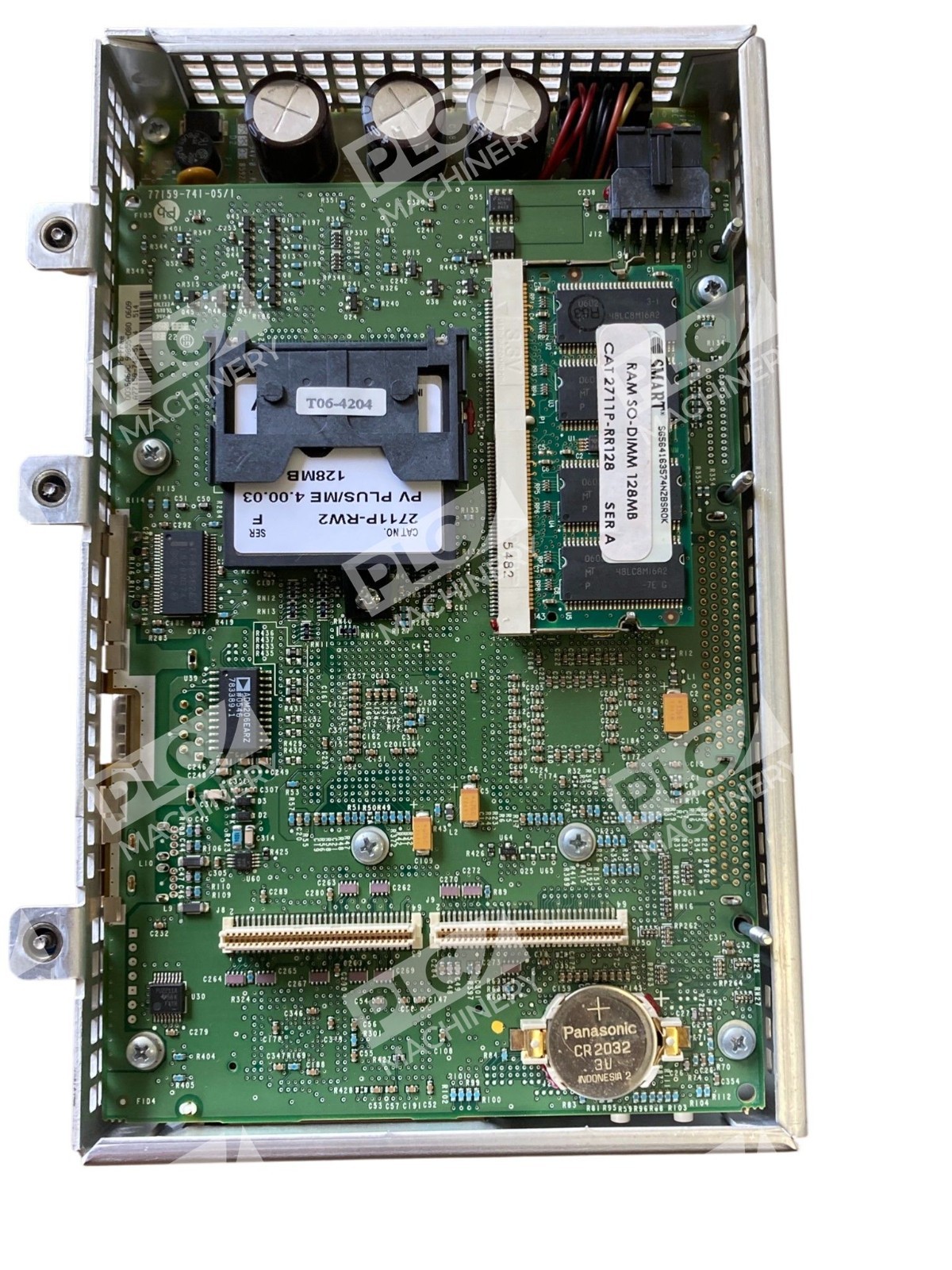

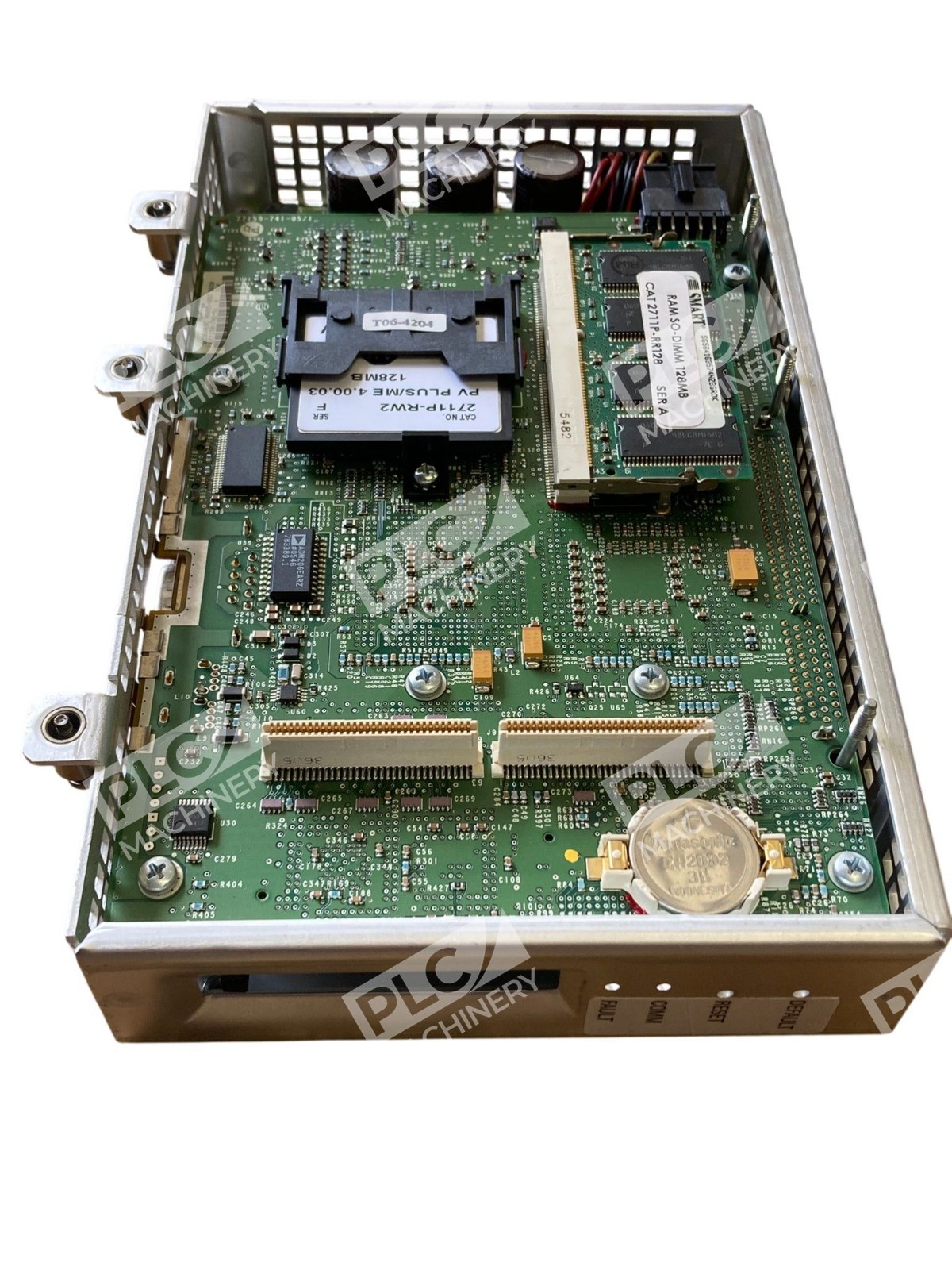

- Built-in upgradable memory of 128 MB RAM and 128 MB Flash memory
- Equipped with an Ethernet port, plus two USB ports, one RS-232 port, and a CompactFlash card slot
- Standard features include ActiveX controls, third-party device support, a PDF reader, and an FTP server connection
- Series F and later versions are compatible with both PanelView Plus and PanelView Plus CE CompactFlash cards
- Conformally-coated for environmental protection
Technical Specifications
- Memory: 128 MB flash memory and 128 MB RAM
- Power Supply: 24 volts DC
- Power Consumption: 70 watts
- Ethernet: One Ethernet port
- Serial: One RS-232 port
- USB: Two USB ports
- Storage: CompactFlash card slot
- Weight: 2.01 lbs (approximately 0.91 kg)
- Status Indicators: Red and Green LED
- Mounting: DIN rail or panel-mount via PanelView Plus display module
Typical Applications
The 2711P-RP2 logic module and the display module together make a PanelView terminal that can control industrial machines and systems. Typical deployments include:
- Machine automation and process control interfaces
- Manufacturing line monitoring and diagnostics
- Discrete and continuous process supervision
- Remote monitoring via Ethernet connectivity
- Applications requiring stand-alone or networked HMI operation
Compatibility & Replacements
Compatible With
- PanelView Plus CE 700, 1000, 1250, 1500 operator terminals
- EtherNet/IP networks
- Rockwell Automation CompactFlash cards (Series F and later)
- ActiveX controls and third-party device integrations
- Legacy PanelView Plus display modules (700–1500)
Replaces / Drop-In Replacement For
- 2711P-RP1 (earlier version with 64 MB Flash and 64 MB RAM) — upgrade option with double the memory
- Older logic modules in PanelView Plus terminal retrofit projects
Works With
- Rockwell Automation FactoryTalk View applications
- PanelView Plus design environment and firmware
- EtherNet/IP protocol and networking infrastructure
- RS-232 serial devices and legacy equipment
- USB peripherals and mass storage devices
- PDF readers and FTP server functionality (built-in)
