Overview

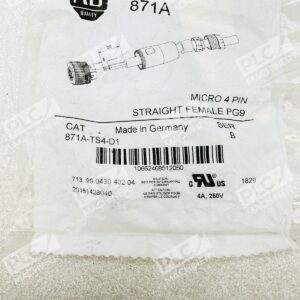

The Allen-Bradley 871A-TS4-D1 is a terminal chamber connector designed for DC Micro (M12) sensor applications. This straight female connector features a 4-pin configuration and accommodates 6–8mm PG9 cable glands, making it suitable for fast, reliable connections in industrial control environments. The connector is rated at 4 Amp DC and meets CUL, KC, and UL safety standards for global deployment.
Key Features
- Straight female 4-pin configuration for M12 sensors
- 4 Amp DC rating for reliable power distribution
- Accommodates 6–8mm (PG9) cable entries
- Field-attachable design for on-site installation
- CUL, KC, and UL certified for safety compliance
- Rockwell Automation quality and engineering
Technical Specifications
- Part Number: 871A-TS4-D1
- Connector Type: Terminal Chamber, DC Micro (M12)
- Pin Configuration: 4-Pin Straight Female
- Current Rating: 4 Amp DC
- Cable Size Range: 6–8mm (0.24–0.32 in) PG9
- Standards: CUL, KC, UL
- Manufacturer: Rockwell Automation / Allen-Bradley
- Product Type: Field Attachable Connector
Typical Applications
- Inductive proximity sensor connections in manufacturing automation
- Light-duty packaging and conveyor system controls
- Automotive welding and metal detection circuits
- Food processing plant sensor networks requiring washdown resistance
- Industrial control system sensor terminal chambers
Compatibility & Replacements
Compatible With
- Allen-Bradley DC Micro (M12) proximity sensors
- Allen-Bradley inductive proximity sensor families
- Standard M12 4-pin DC sensor configurations
- 6–8mm PG9 cable entry systems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering for OEM-specific replacements.
Works With
- Rockwell Automation CompactLogix and ControlLogix platforms
- Allen-Bradley sensor networks (DeviceNet, EtherNet/IP)
- Standard industrial PLC I/O module terminal connections
- PROFIBUS and PROFINET gateways via M12 adapters
