Overview

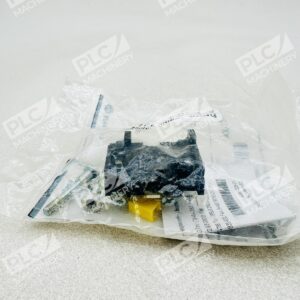

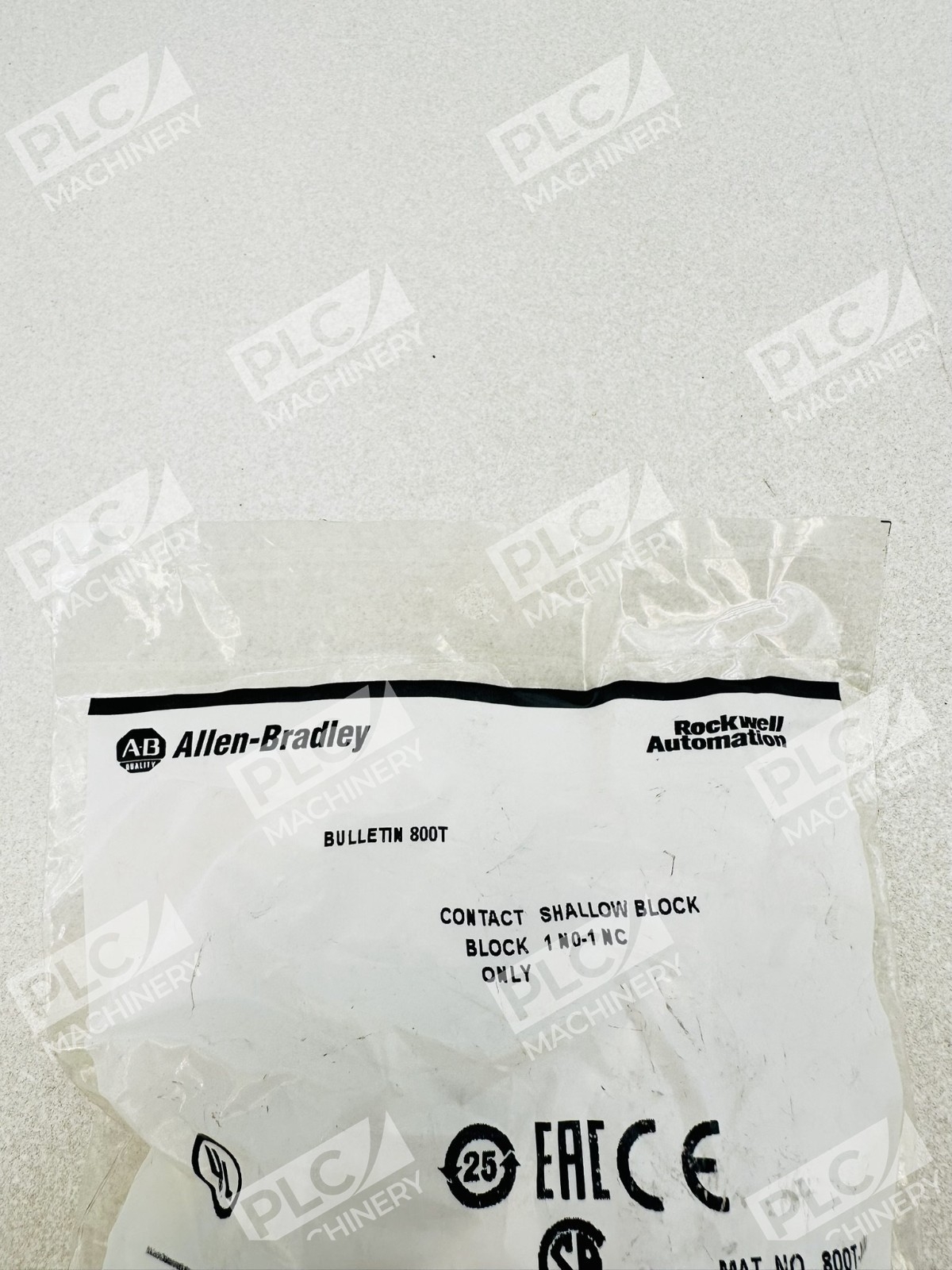

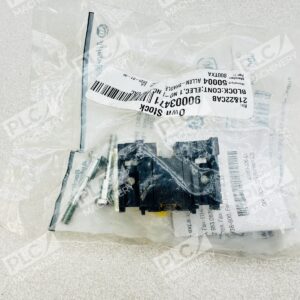

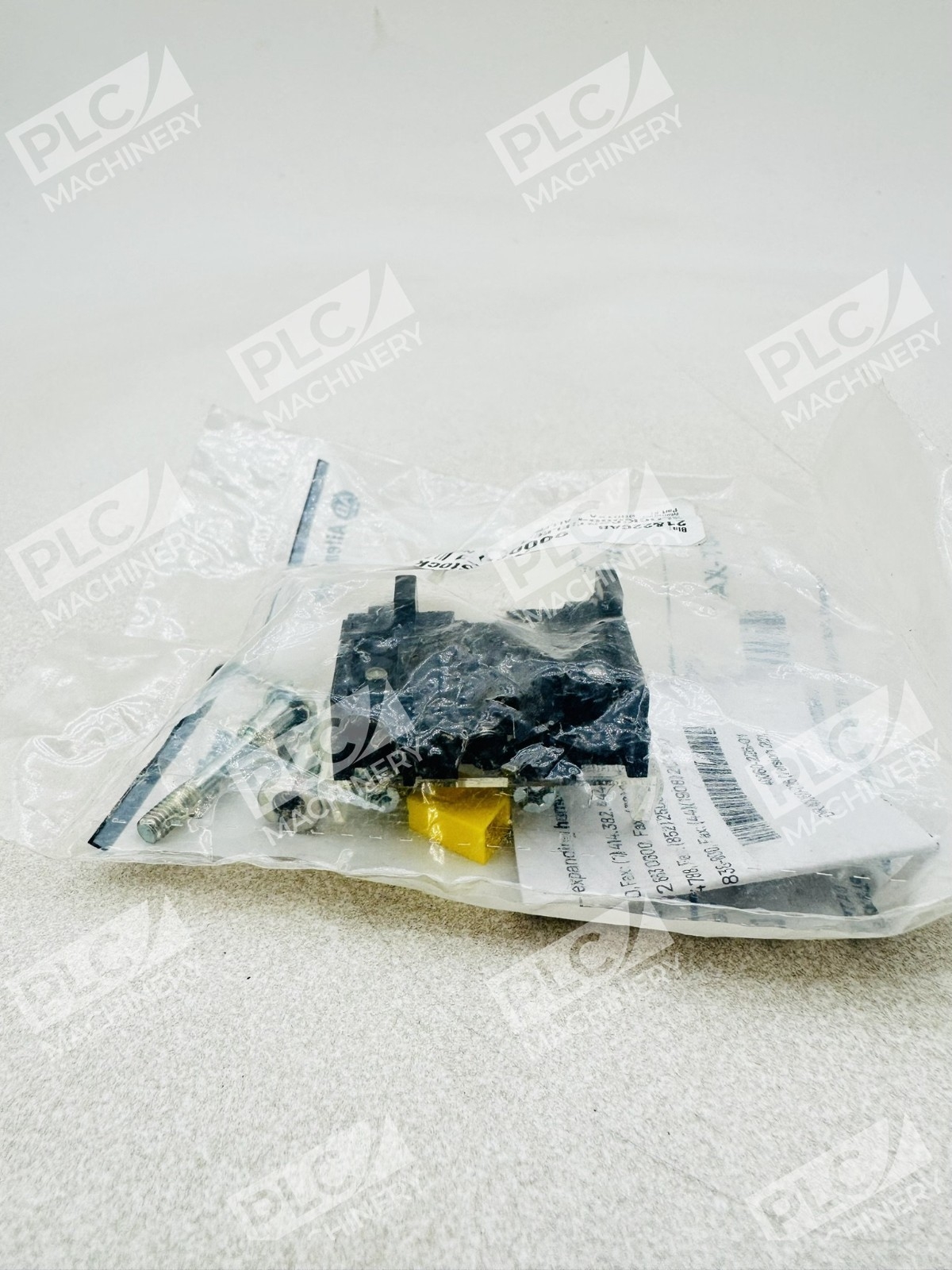

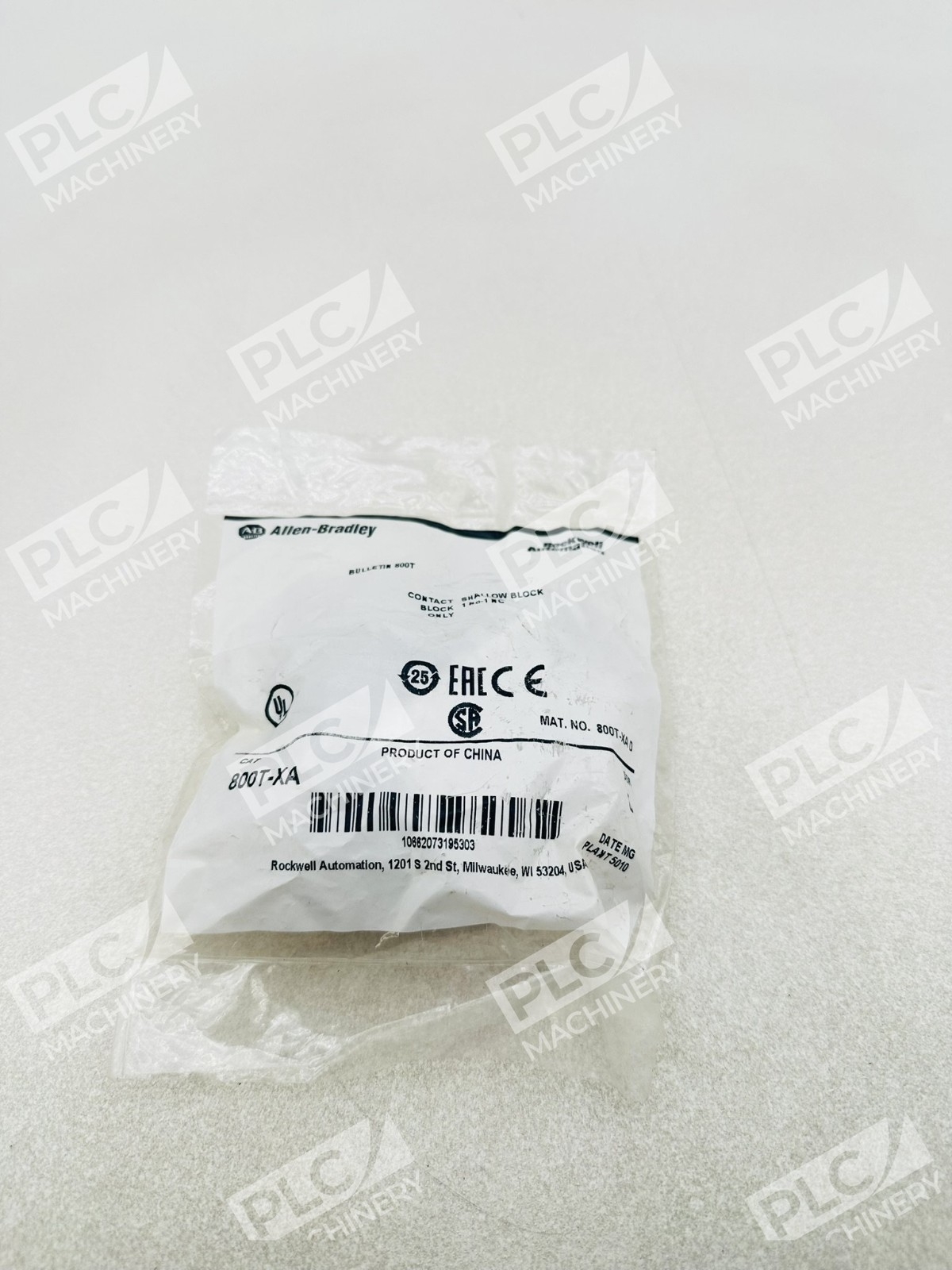

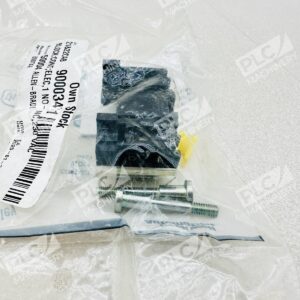

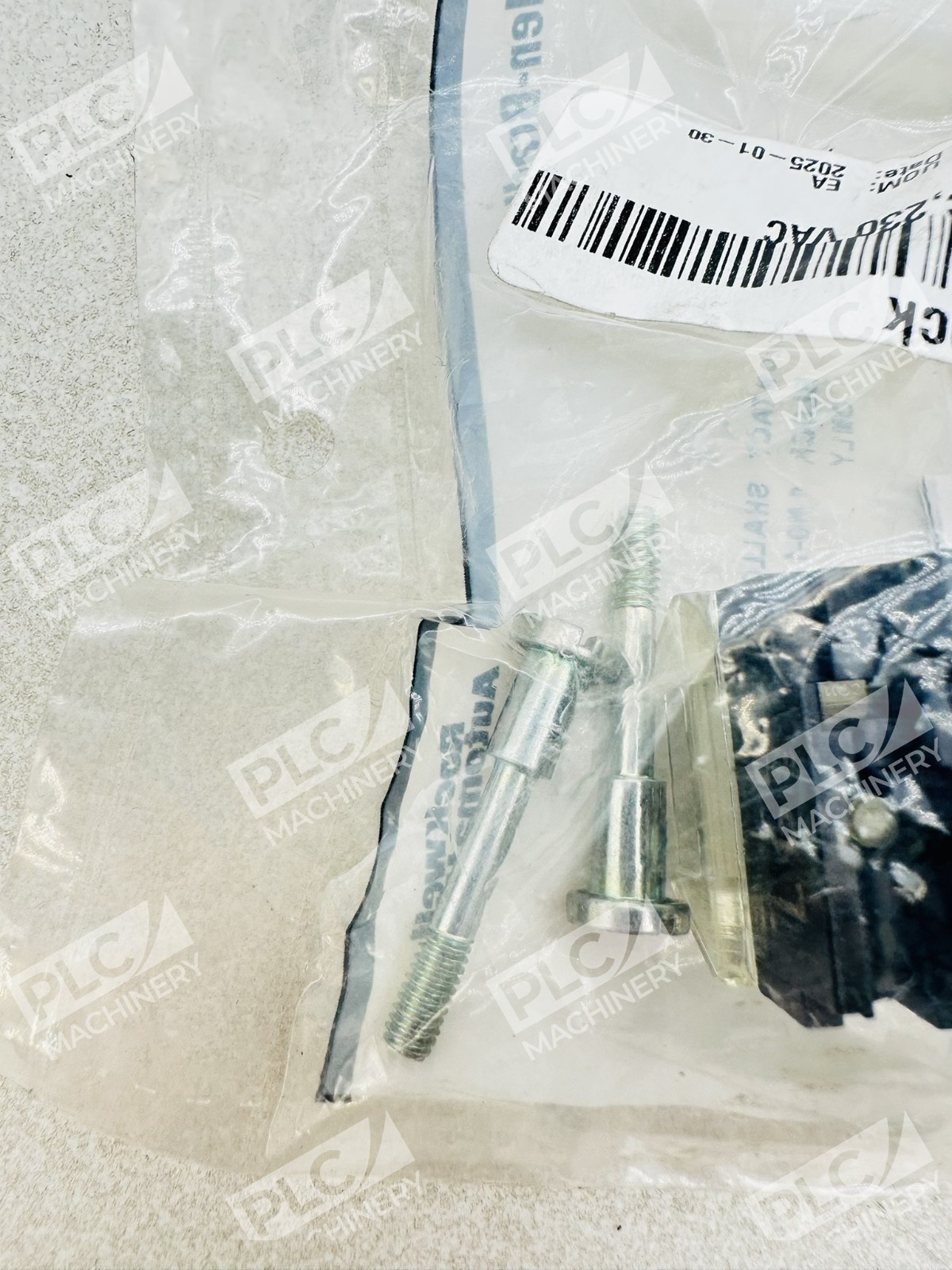

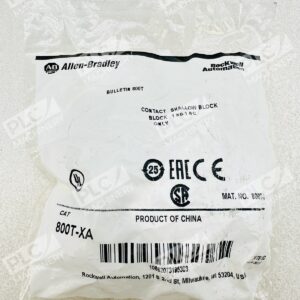

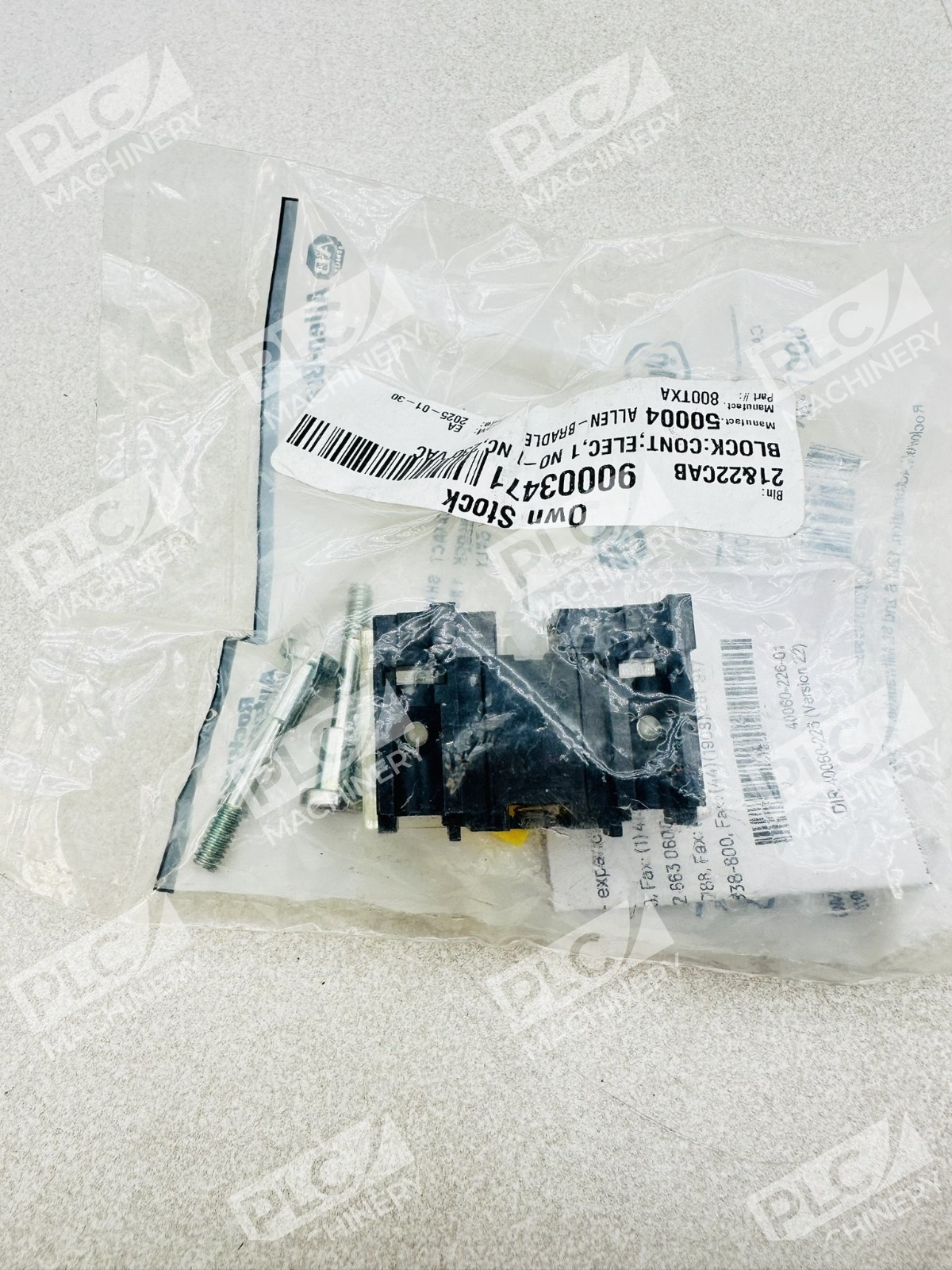

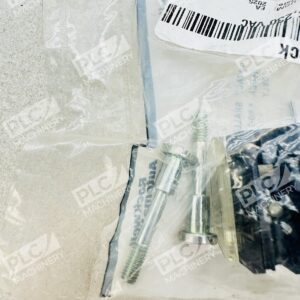

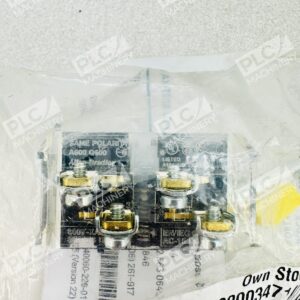

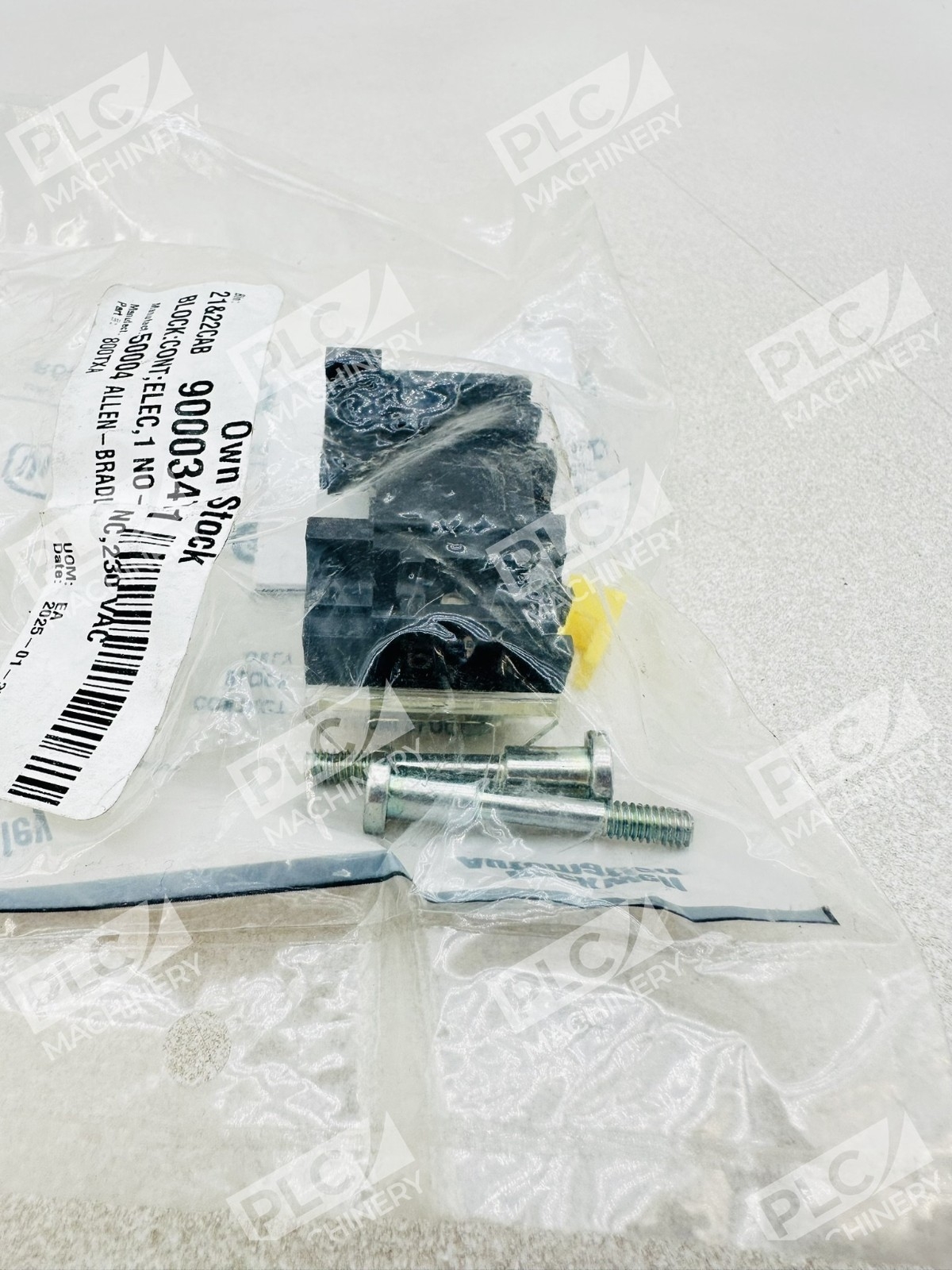

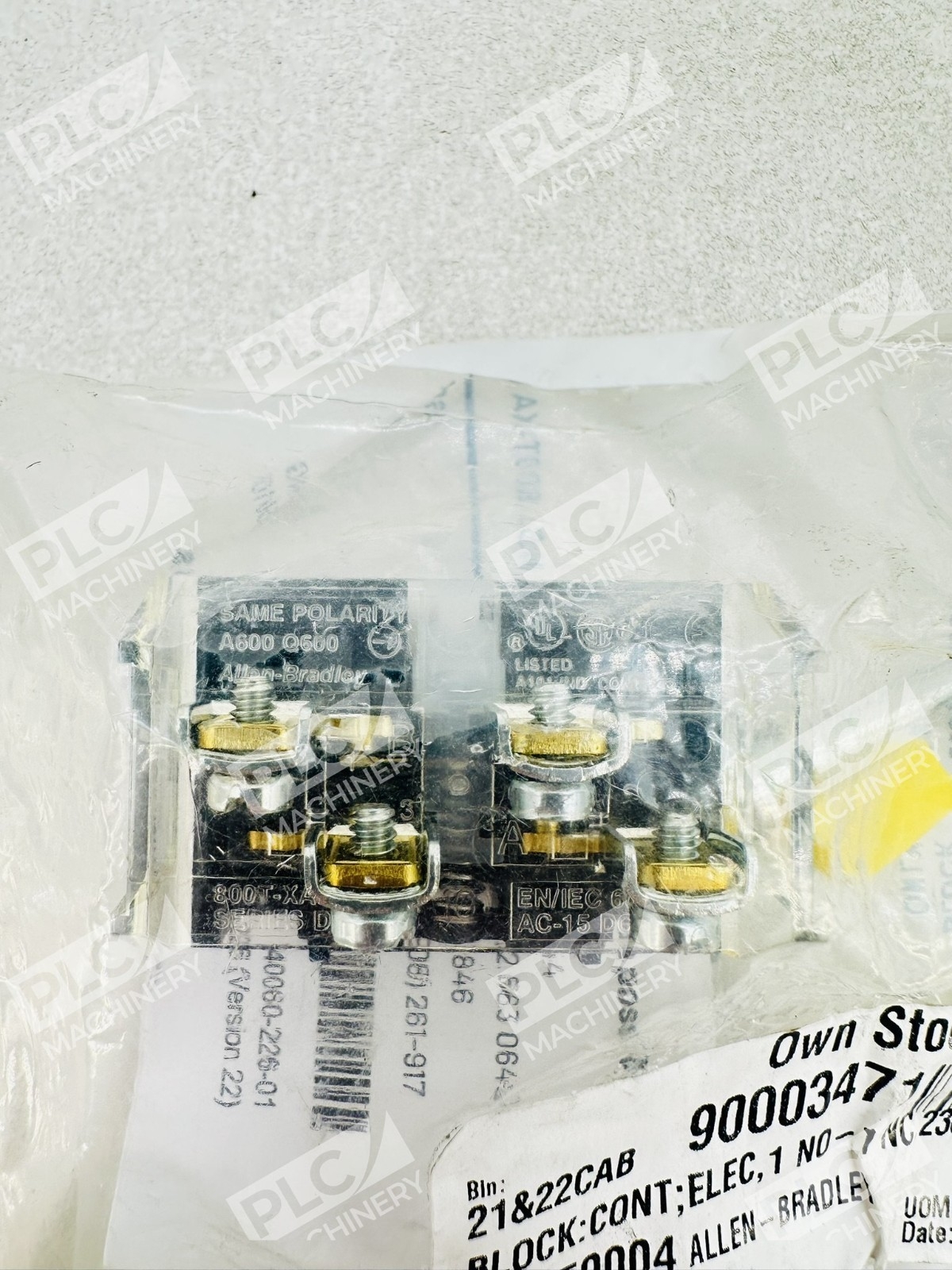

The Allen-Bradley 800T-XA is a 30mm shallow contact block designed for use with 800T and 800H series pushbuttons. This 30mm push button contact block features 1 normally open and 1 normally closed contact configuration. The Allen Bradley 800T-XA is a contact block with a voltage rating of 600VAC. This non-metallic contact block is designed to be base mounted and comes with screw attachment. The shallow depth reduces enclosure footprint, making it ideal for compact control panels.
Key Features
- Contact Configuration: 1 NO, 1 NC contact rating of 10 A at 230 VAC-15
- Voltage Rating: 600VAC
- Mounting: Base mounting type with screw terminals
- Material: Non-metallic construction for cost-effective industrial applications
- Certifications: CCC certified, CE-LVD certified, CSA certified, MARINE-ABS, and C/US UL listed
- Compatibility: Works with Allen-Bradley 800T and 800H series 30mm pushbuttons
Technical Specifications
- Contact Configuration: 1 NO, 1 NC
- Contact Current Rating: 10 A @ 230 VAC
- Voltage Rating: 600 VAC
- Mounting Type: Base (Shallow)
- Terminal Type: Screw attachment
- Size: 30 mm
- Material: Non-metallic
- NEMA Rating: NEMA 4/13
- Number of Poles: 1 Pole (2 contacts)
- Standards: CCC, CE-LVD, CSA, MARINE-ABS, C/US UL
- Dimensions: Length 1.42″, Height 1.78″
- Weight: 0.09 lb
Typical Applications
The Allen-Bradley 800T-XA is widely used in:
- Motor control circuits requiring both normally open and normally closed logic
- Safety interlocks and permissive circuits in industrial automation
- Emergency stop and start/stop station configurations
- NEMA 4/13 rated control enclosures for washdown and harsh environments
- OEM machinery and panel builders requiring compact contact block solutions
- Process control and facility automation systems
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T series 30mm pushbuttons
- Allen-Bradley 800H series 30mm pushbuttons
- NEMA 4/13 rated control enclosures
- Standard industrial control circuits rated for 600V AC
- Rockwell Automation automation platforms and systems
Replaces / Drop-In Replacement For
- 800T-XA1 (with late-break contact configuration)
- Verify with your system integrator for specific application compatibility before ordering
Works With
- All 800T and 800H series 30mm pushbutton units
- Standard electrical control circuits and motor starters
- Pilot duty and general-purpose control applications
- Allen-Bradley industrial automation enclosures and control stations
