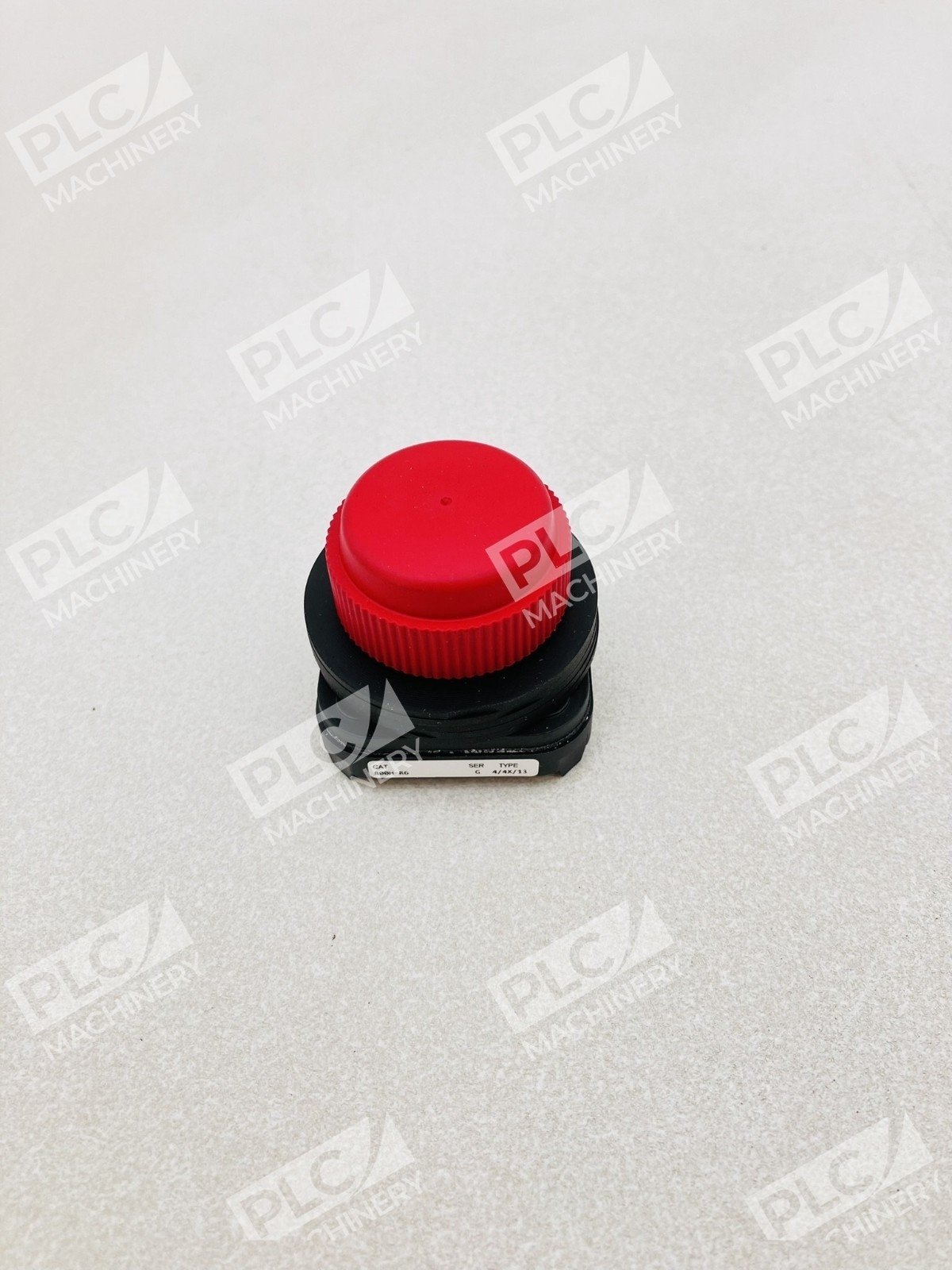

Overview

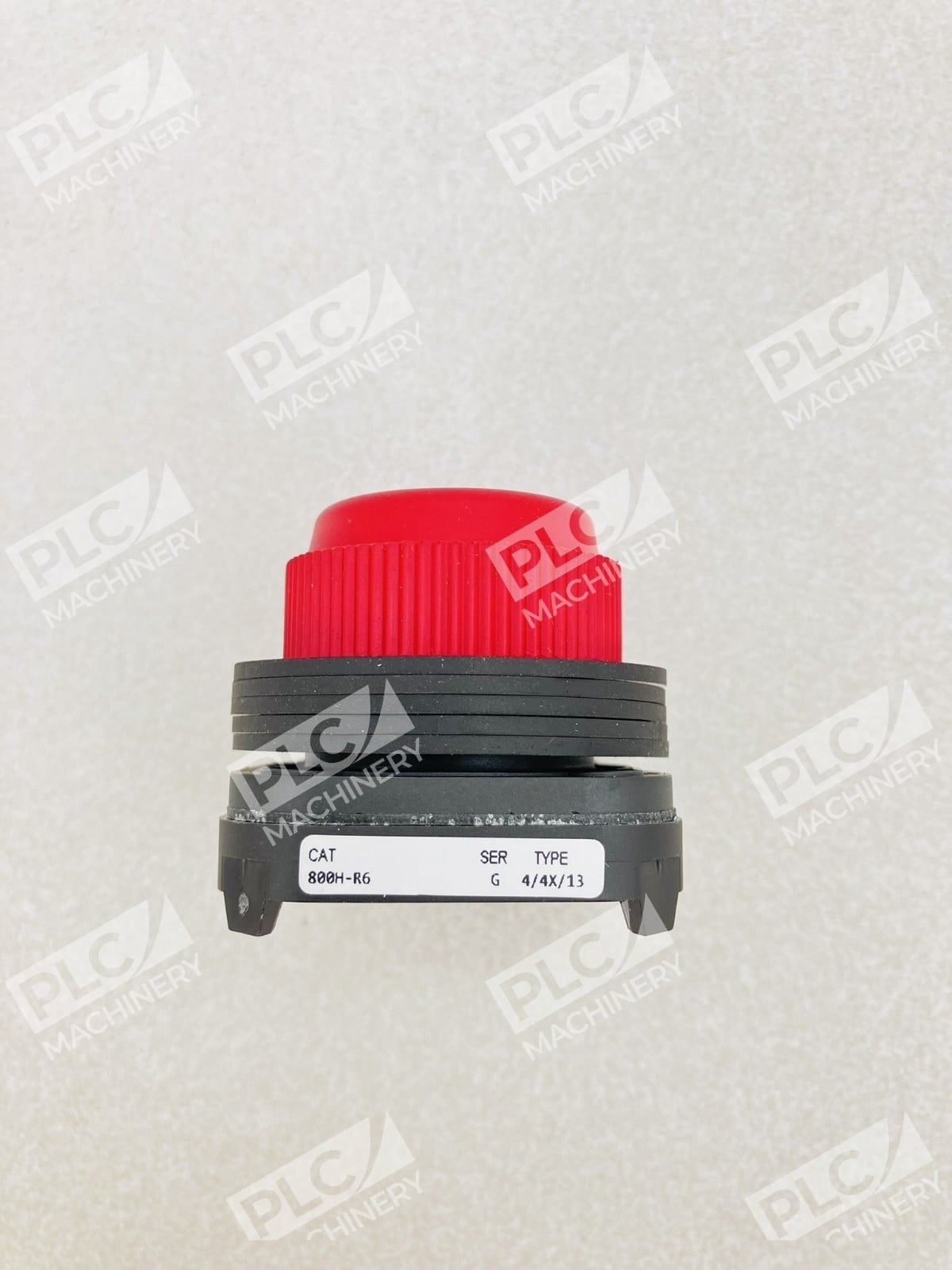

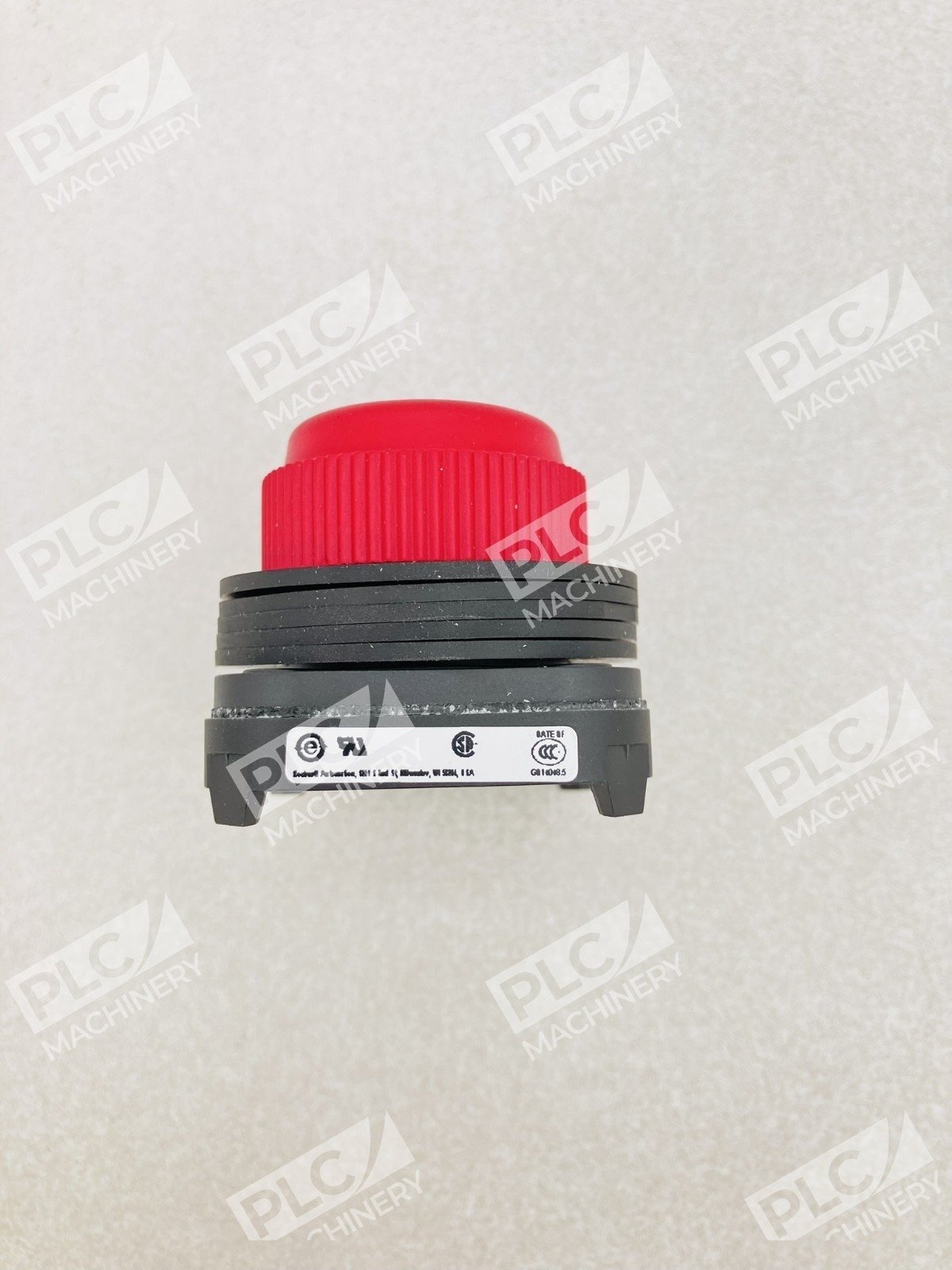

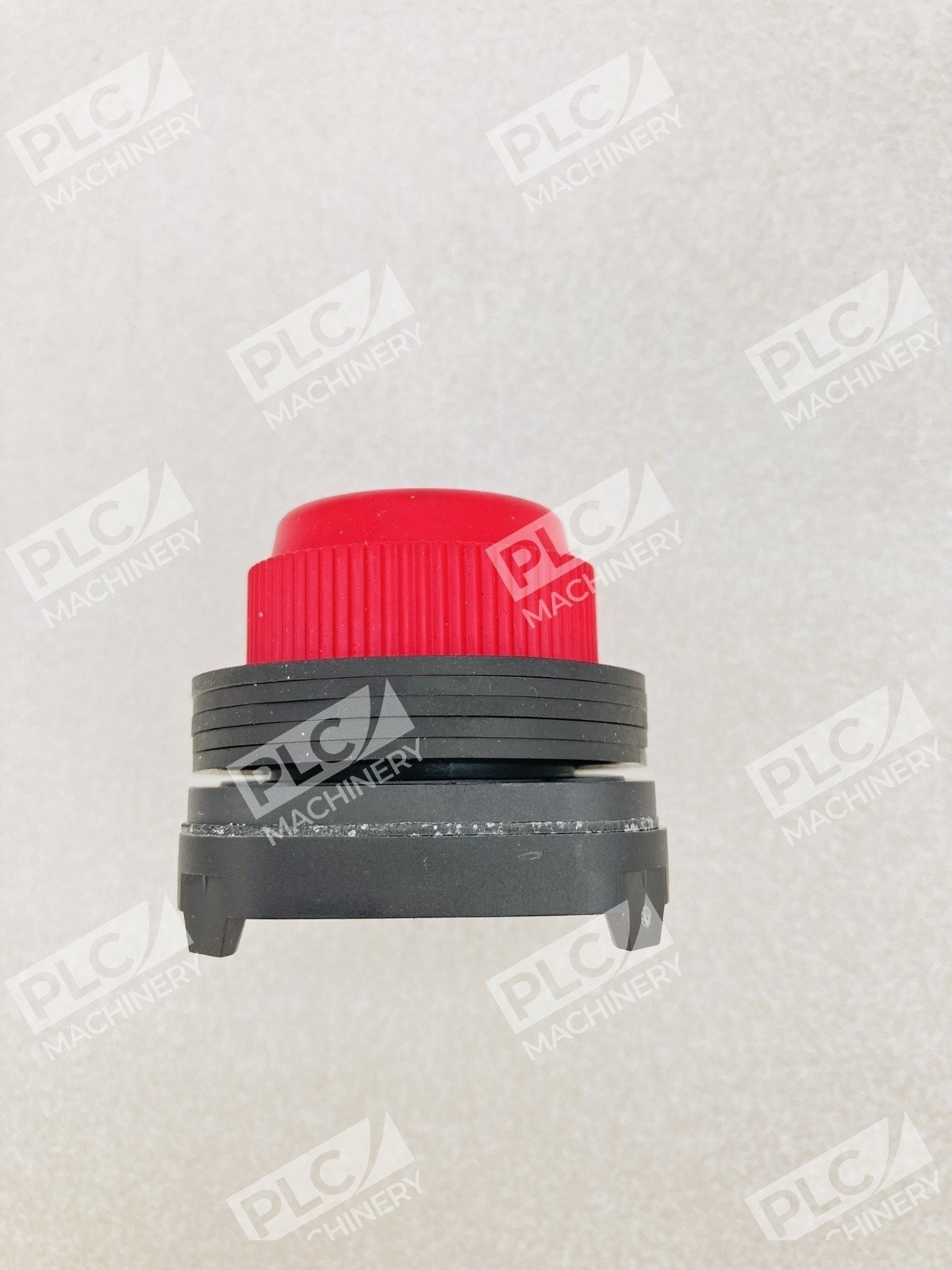

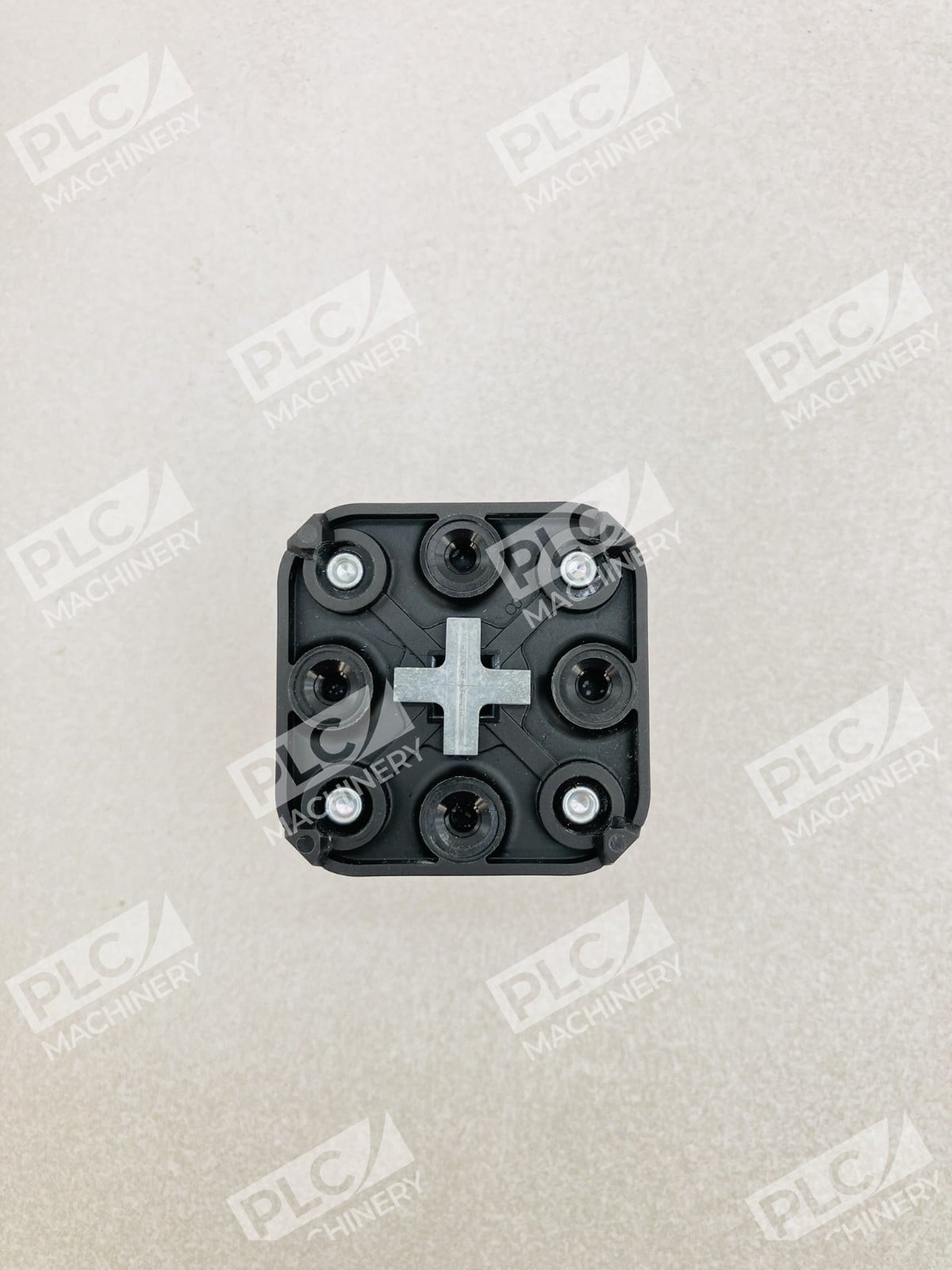

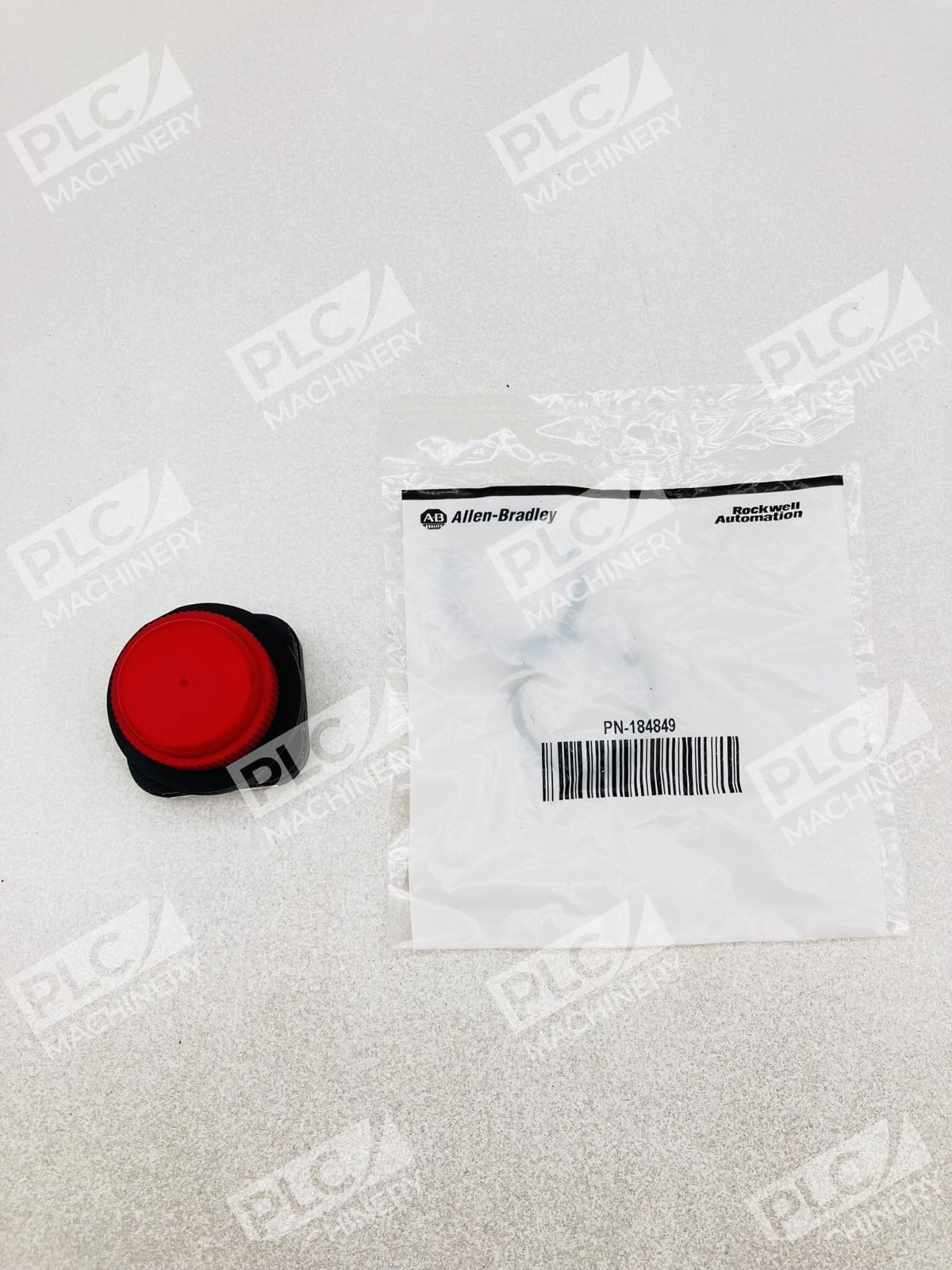

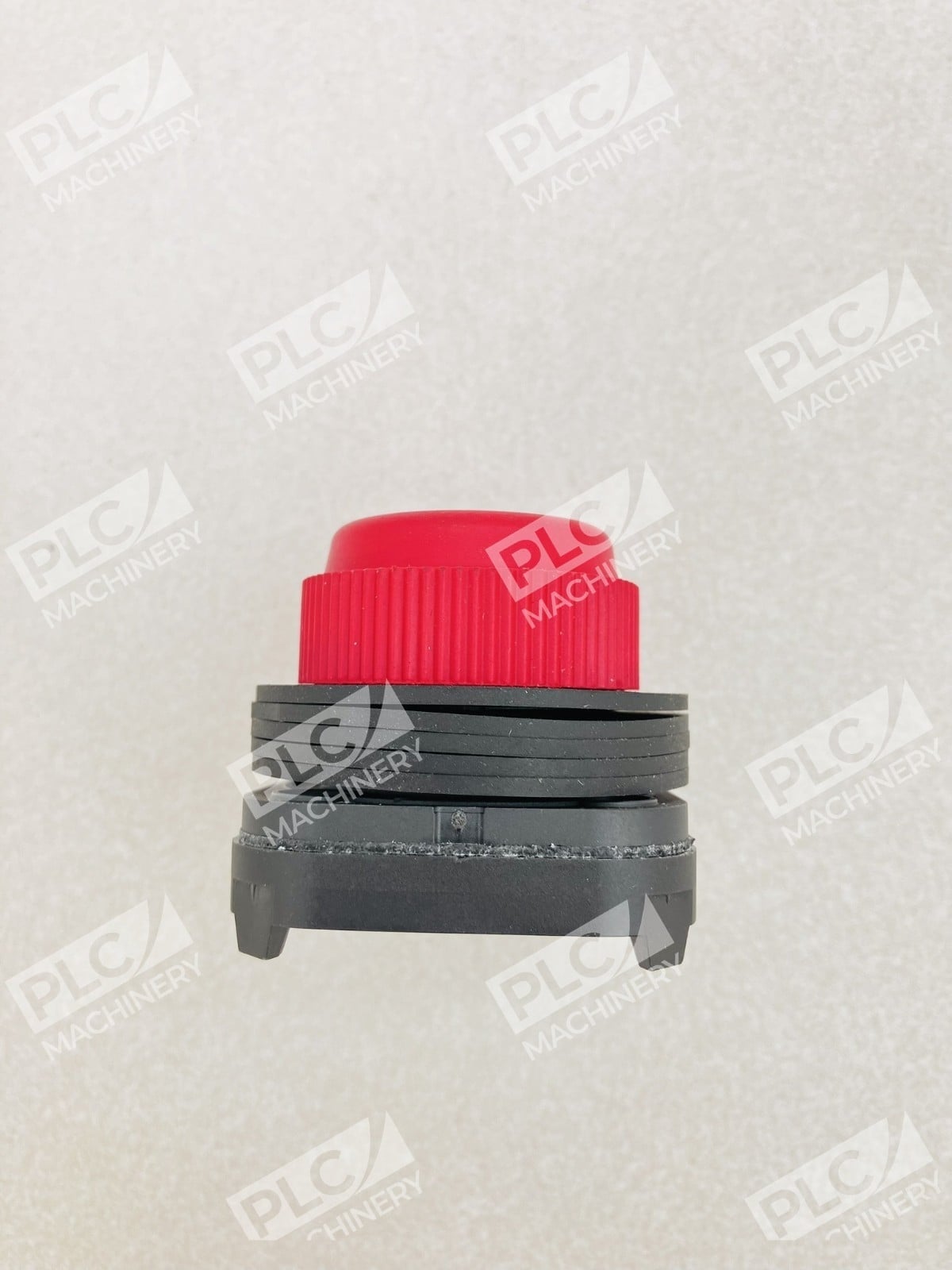

The Allen-Bradley 800H-R6 is a high-reliability 30mm momentary pushbutton switch built for demanding industrial environments. This non-illuminated model features a bright red lens and booted head actuator, making it ideal for emergency stop circuits, manual control stations, and general process control applications. Rated for 600 VAC/VDC, it provides dependable performance in electrical enclosures rated NEMA 4, 4X, and 13.
Key Features
- Momentary action with booted head actuator for tactile feedback
- Non-illuminated red lens for clear visual identification
- Rated 600 VAC/VDC, 10 A maximum contact current
- NEMA 4, 4X, and 13 enclosure rated for corrosive and washdown environments
- Screw-type wire terminal connections (18–14 AWG)
- 10 million minimum operating cycles for long service life
Technical Specifications
The 800H-R6 is engineered to precise industrial standards with verified electrical and mechanical performance. Key operating parameters include a temperature range from −40 °F to 131 °F (−40 °C to 55 °C), a 30.5 mm mounting hole diameter, and round plastic construction that resists corrosion and contamination. Its sealed switch design ensures reliable operation in wet, oily, or chemically aggressive environments.
Typical Applications
- Emergency stop (E-stop) circuits in manufacturing equipment
- Manual control stations for pumps, compressors, and motors
- Process start/stop controls in washdown and food processing facilities
- Operator interface panels in NEMA 4X stainless steel enclosures
- Machine tool and conveyor system control
Compatibility & Replacements
Compatible With
- NEMA 4, 4X, and 13 rated electrical enclosures
- Modular control stations and operator interface panels
- Motor starters and industrial control circuits
- Allen-Bradley 800H series mounting bases and shrouds
- Standard DIN rail and wall-mounted control systems
Replaces / Drop-In Replacement For
- Legacy Allen-Bradley 800H-R models in older control systems
- Direct replacement for worn or failed 800H-R6 units
- Verify compatibility with your system integrator before ordering.
Works With
- Standard industrial relay logic circuits
- PLC discrete input modules and operator panels
- Allen-Bradley CompactLogix, SLC 500, and ControlLogix systems
- Hardwired and programmed automation systems
- Third-party pushbutton stations and auxiliary contact blocks
