Overview

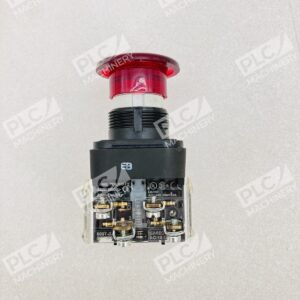

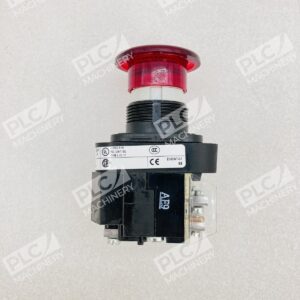

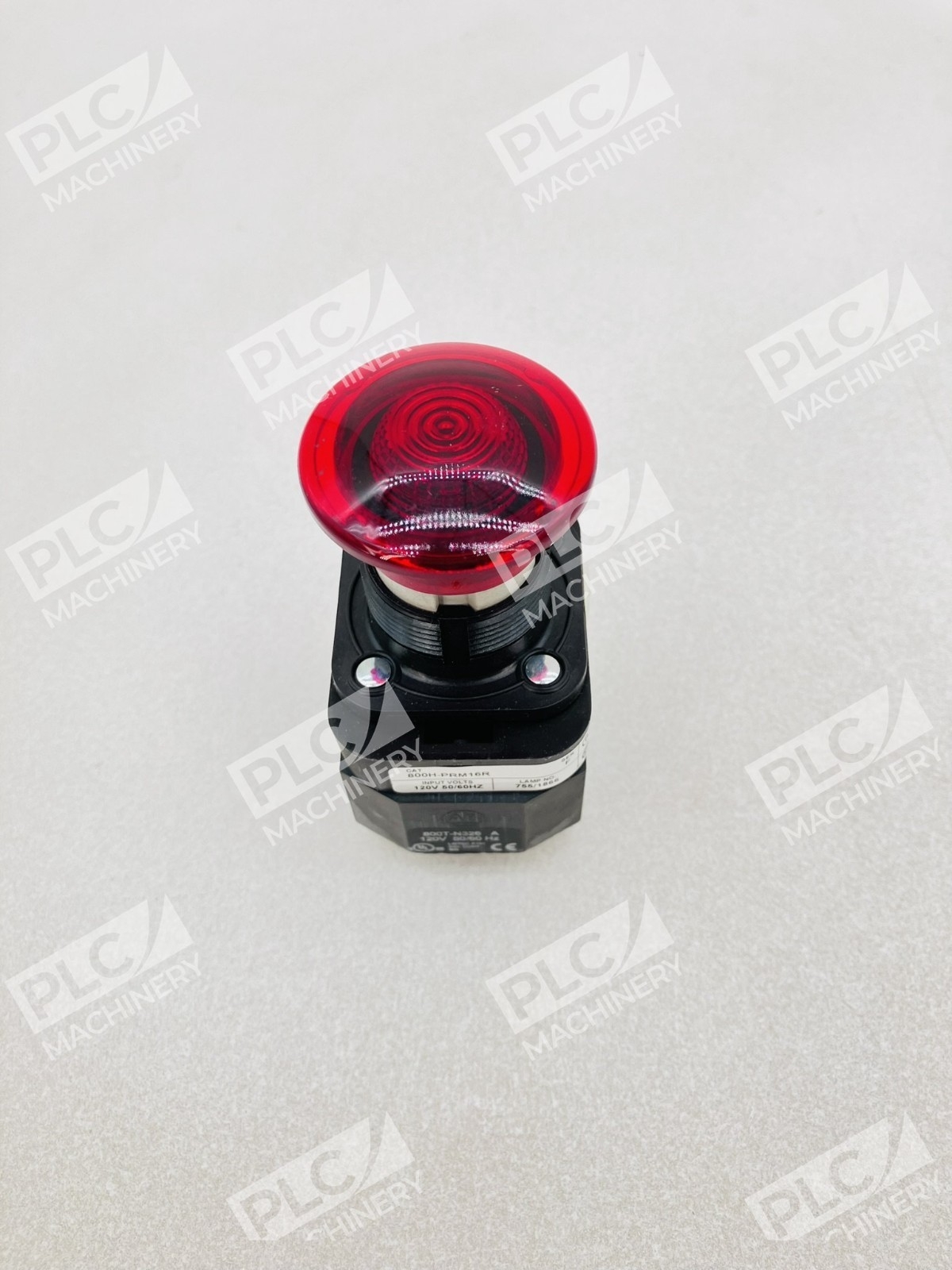

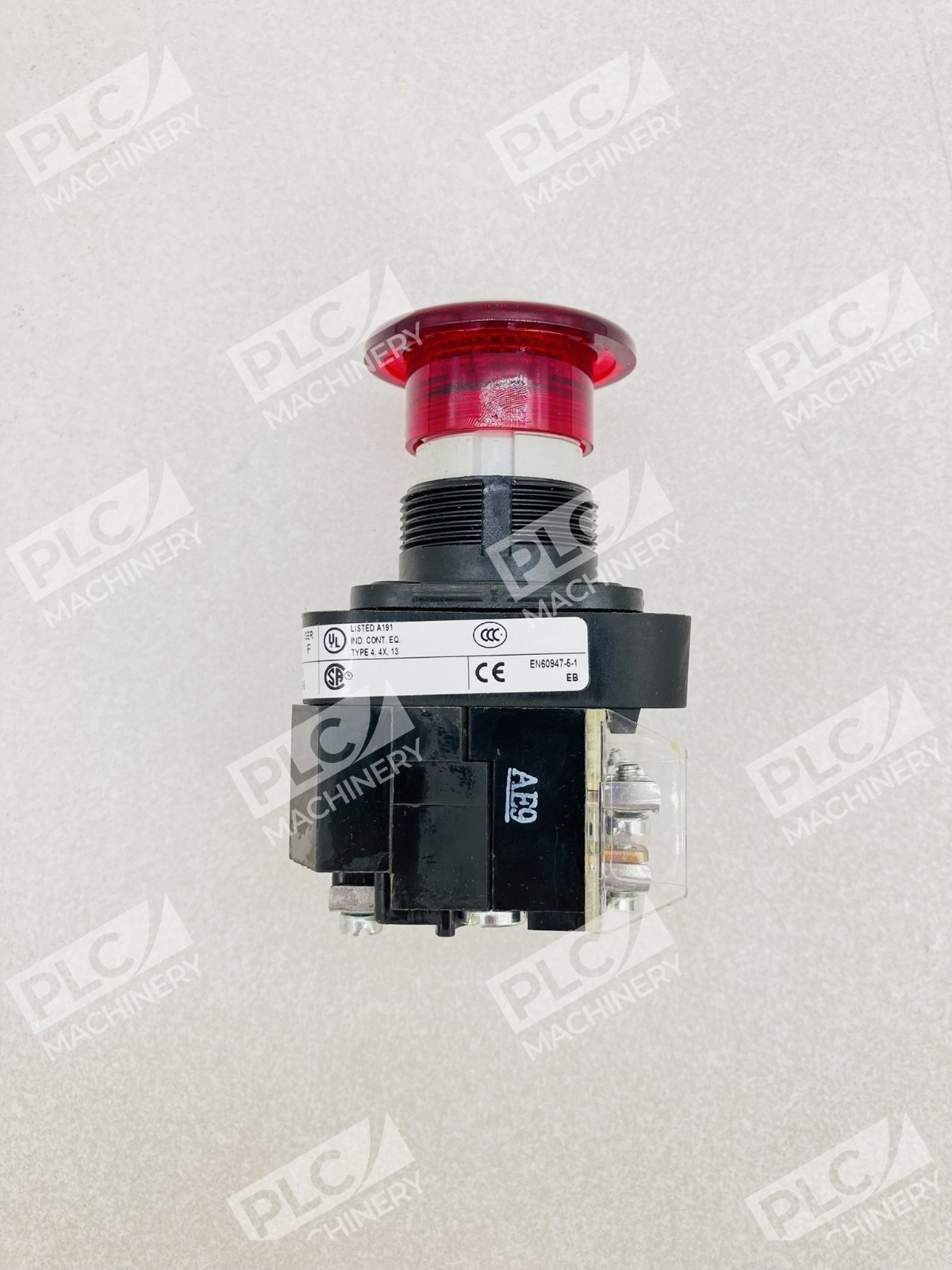

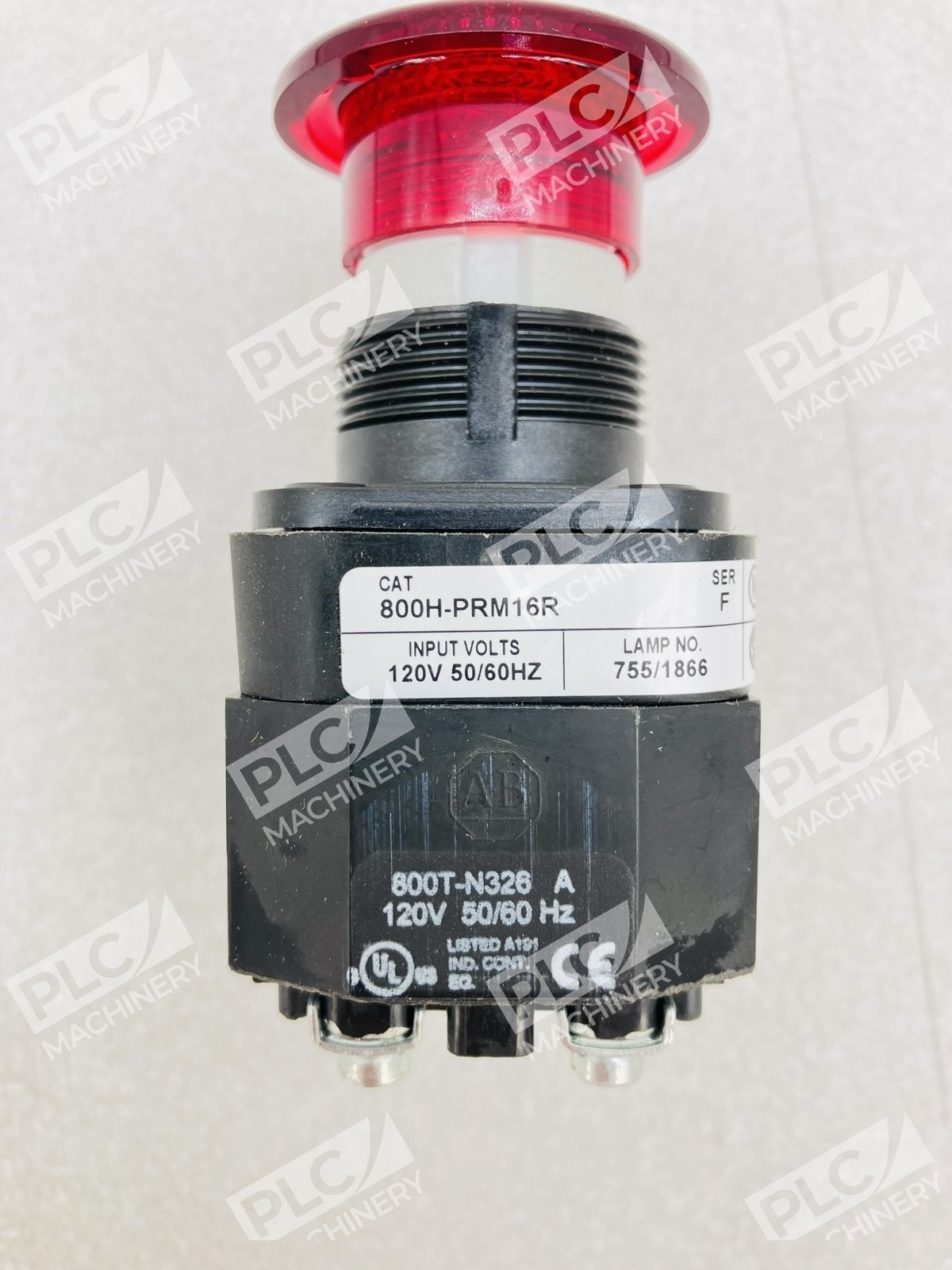

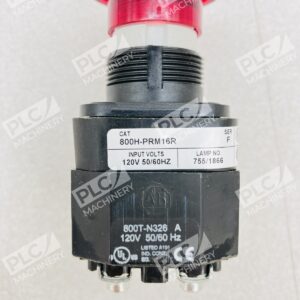

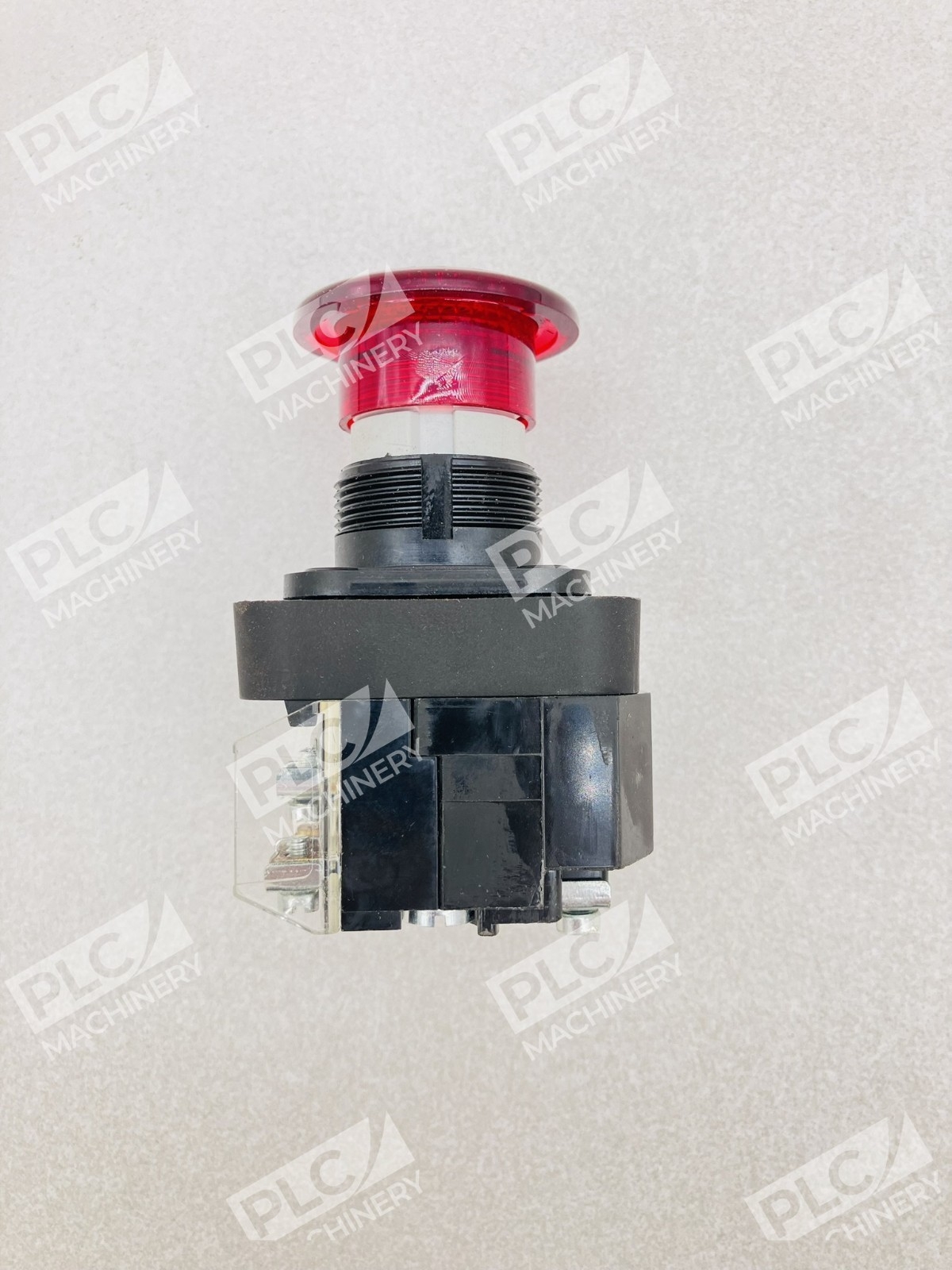

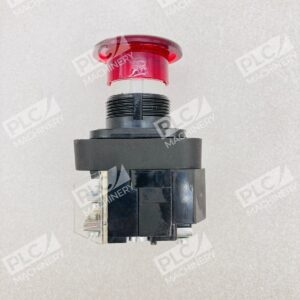

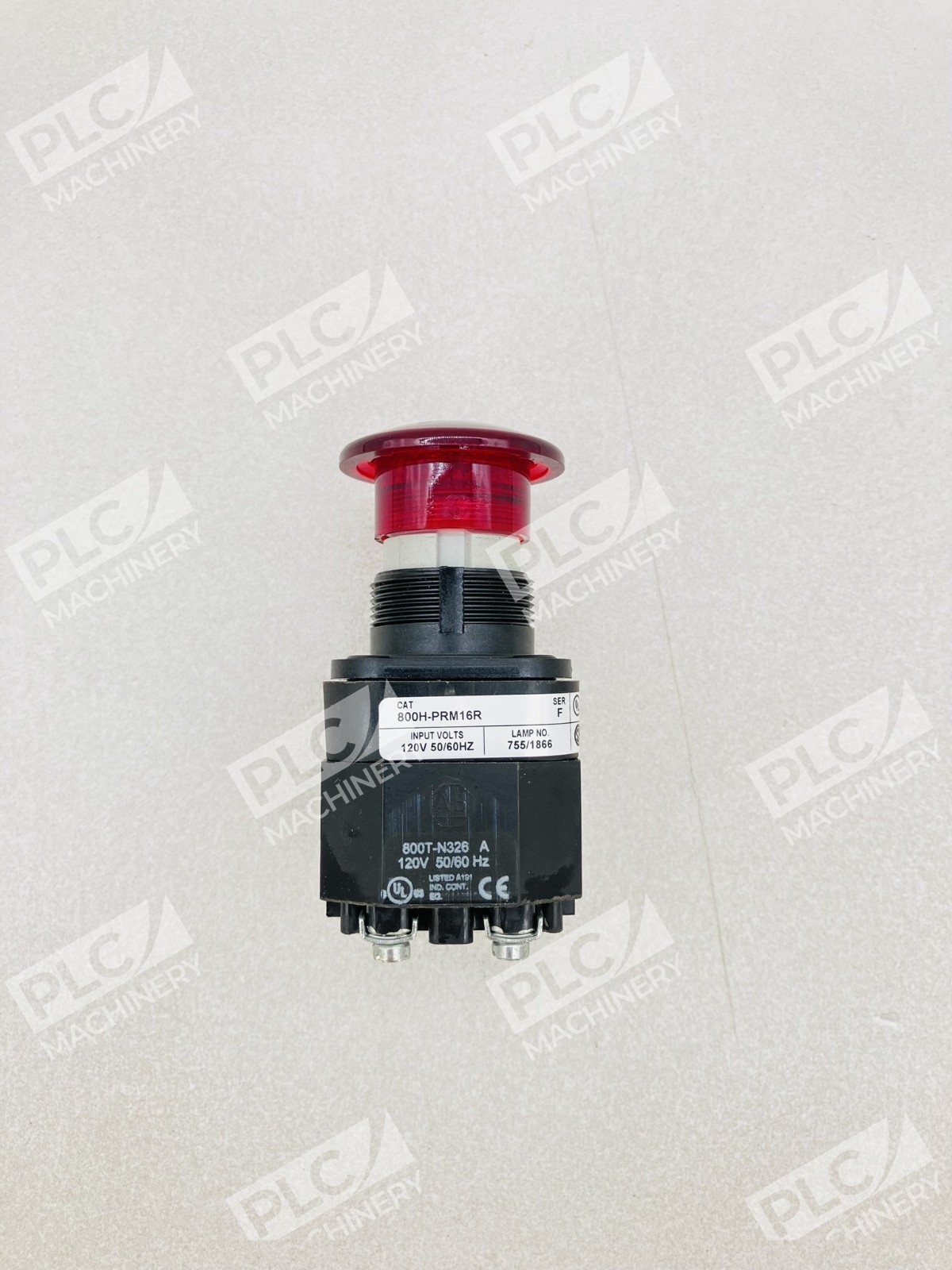

The Allen-Bradley 800H-PRM16R is a 30mm momentary push button switch from the industry-standard 800H Bulletin series. Designed for general industrial automation and control applications, this red-colored push button features an extended head without guard and incandescent lamp illumination rated at 120 VAC, 50/60 Hz. The unit is suitable for operator interface in machinery control systems, emergency stop stations, and standard control panel assemblies.
Key Features
- 30mm momentary push button with extended head design and no guard protection
- Red lens color for clear visual indication and consistent operator recognition
- Incandescent illumination support (120 VAC, 50/60 Hz) with transformer lamp type
- Standard 1 NO / 1 NC contact configuration for flexible control logic integration
- Tested for reliability and available new in box from factory
- Fingersafe terminals as standard for added worker safety
Technical Specifications
- Model: 800H-PRM16R
- Bulletin / Series: 800H Push Button (PB)
- Size: 30 mm
- Action: Momentary
- Lens Color: Red
- Head Type: Extended Head Without Guard
- Illumination Type: Incandescent
- Lamp Type: Incandescent
- Lamp Voltage: 120 VAC at 50/60 Hz

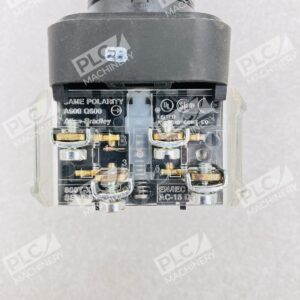

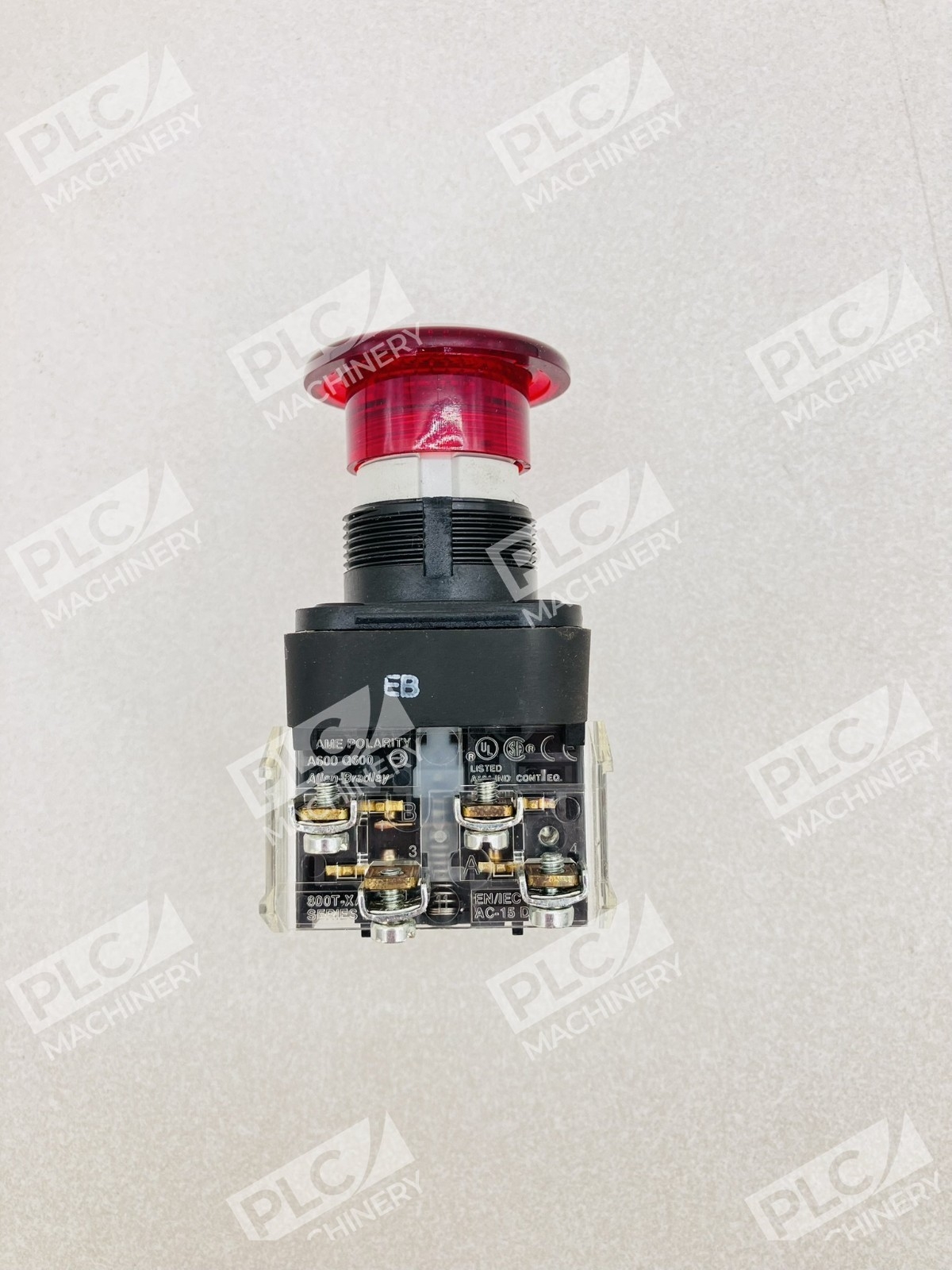

- Contact Configuration: 1 NO / 1 NC (standard)

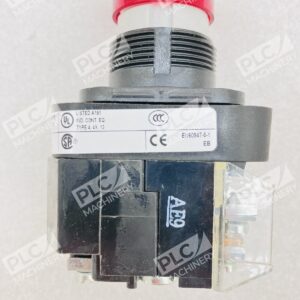

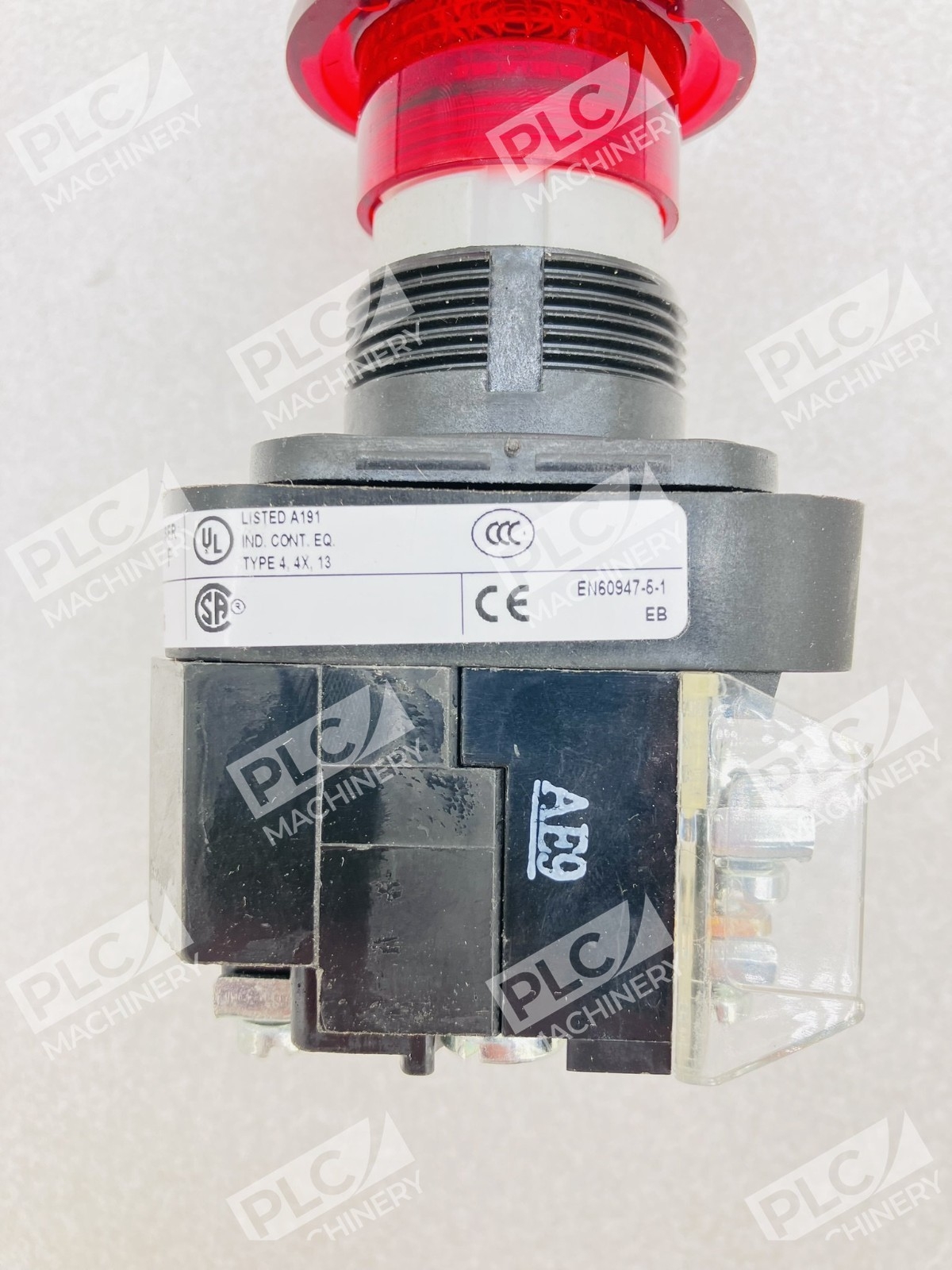

- Certifications: CCC, CE, CSA, CUL, KC, MARINE, UL

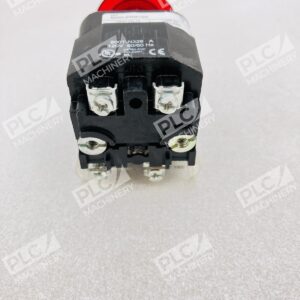

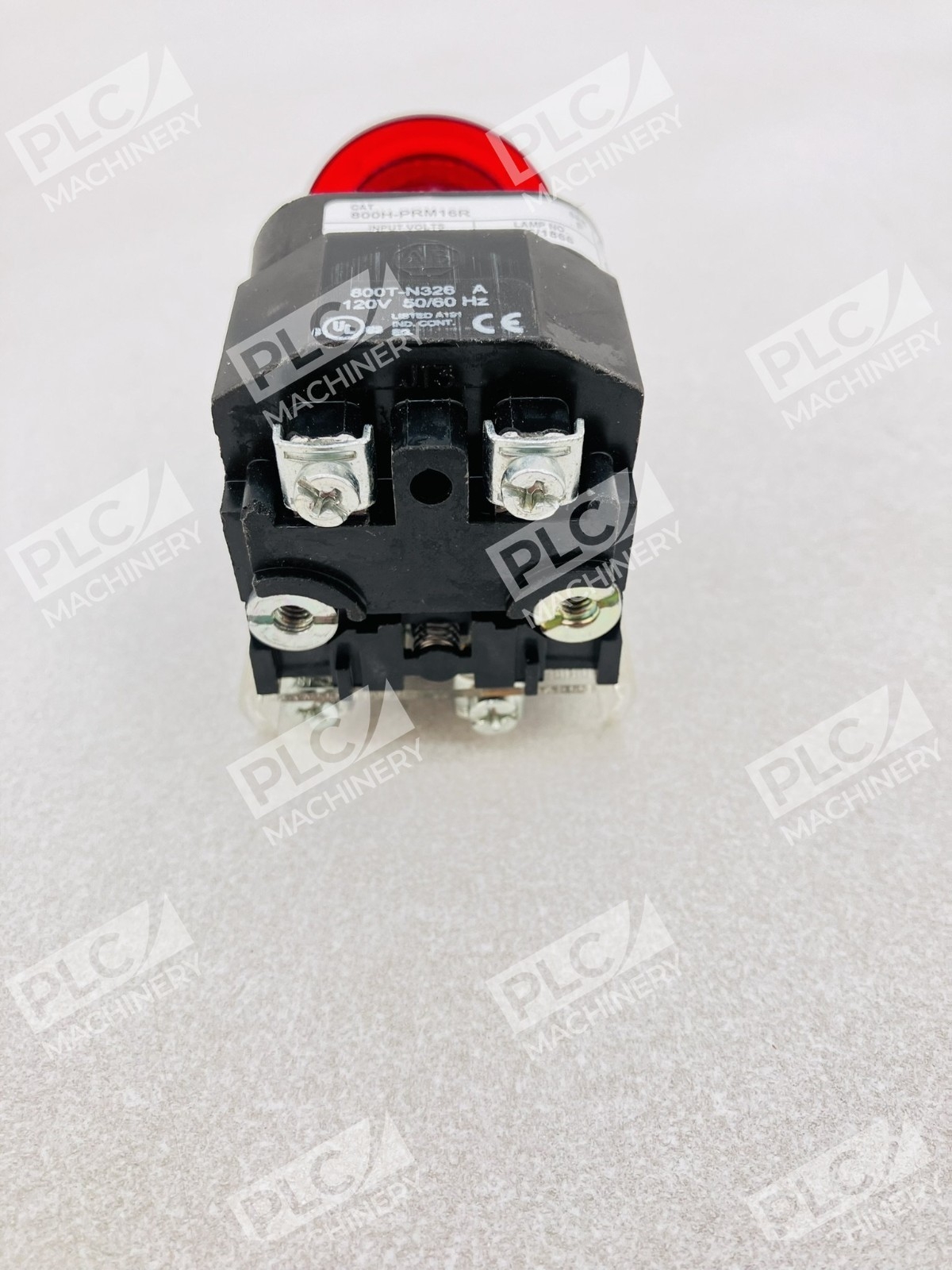

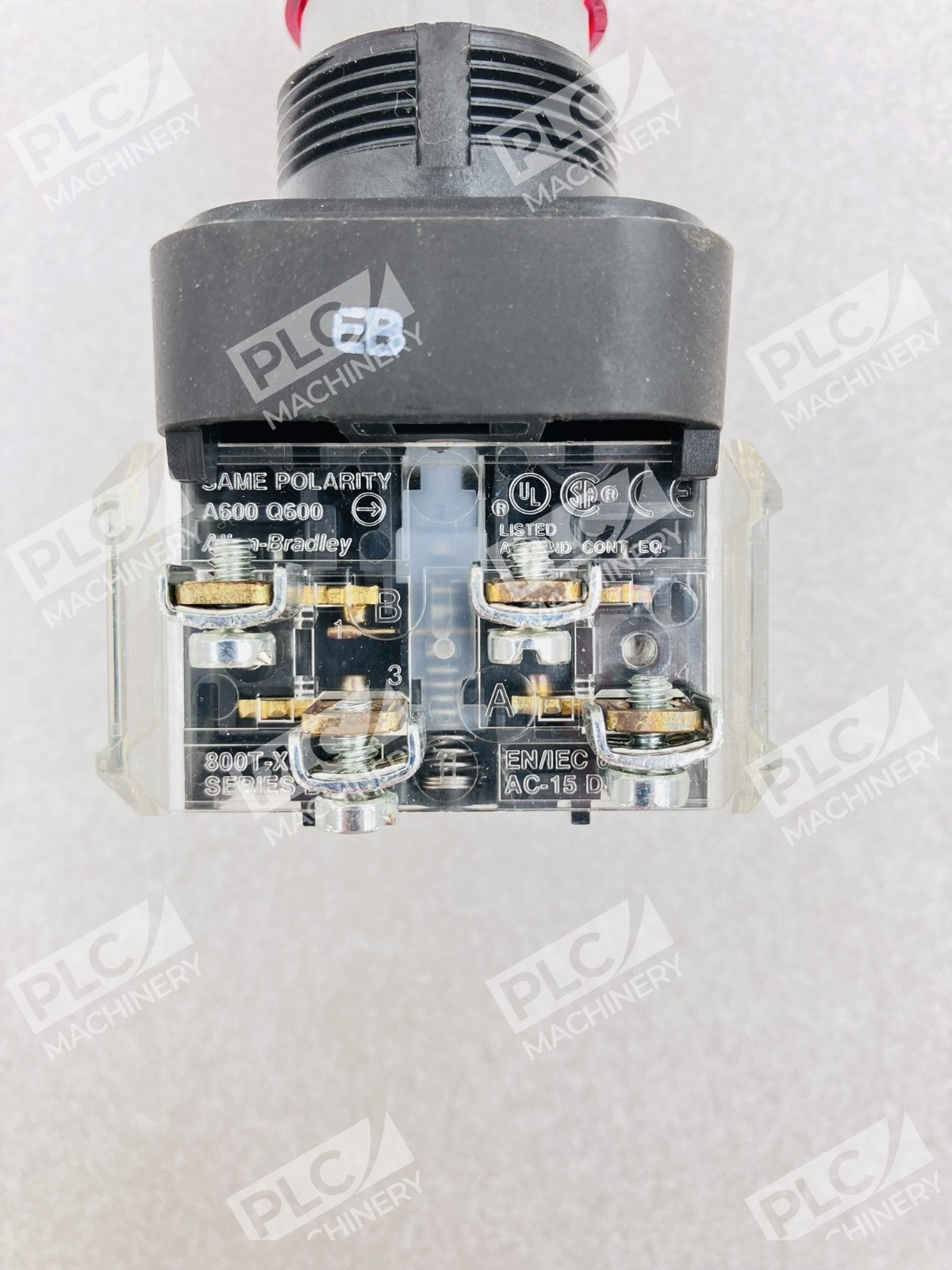

- Terminal Type: Fingersafe (standard)

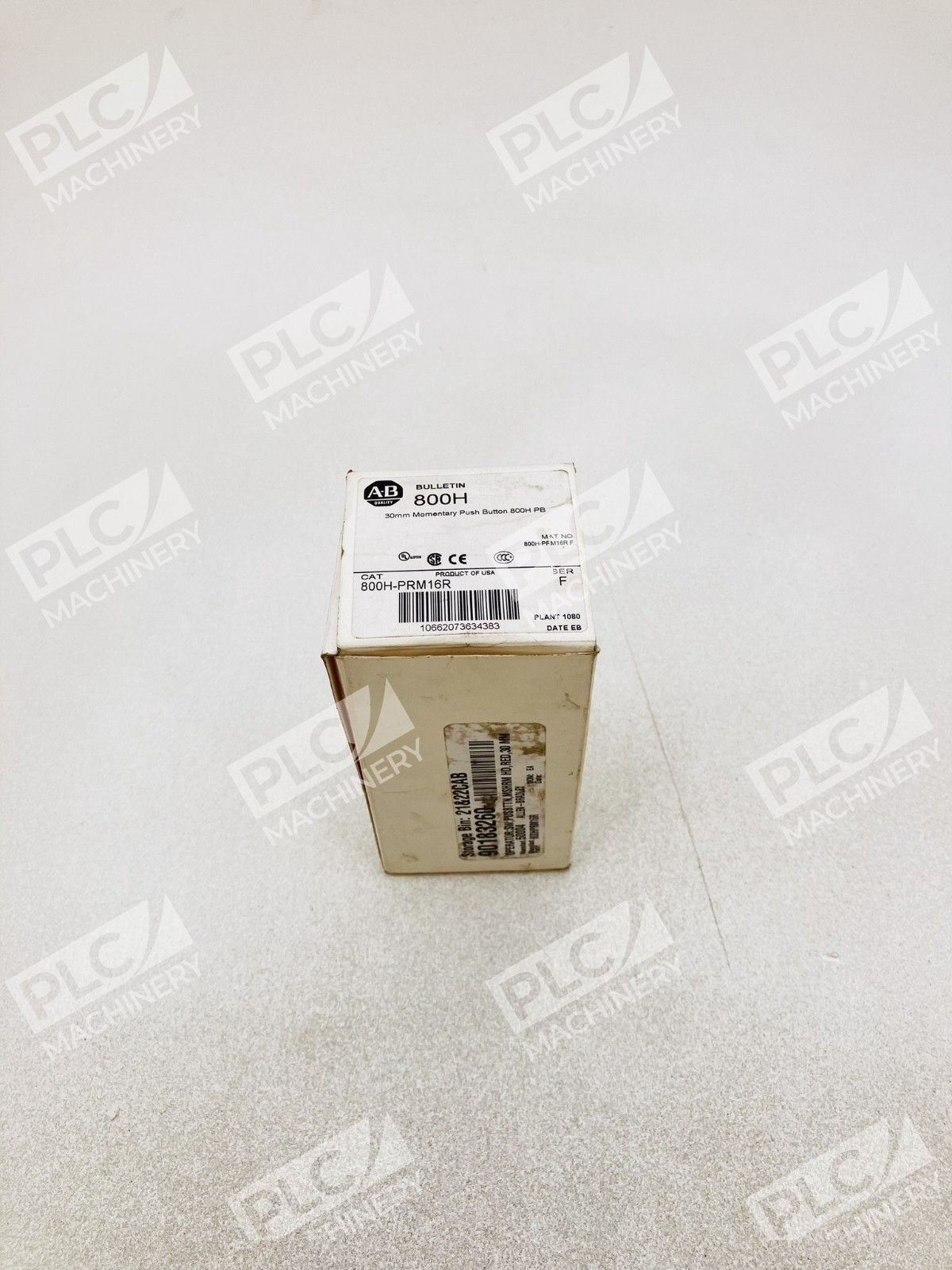

- Condition: New in Box
Typical Applications
- Machine start / stop control stations
- Emergency stop and safety circuit activation
- Process equipment momentary commands (jog, enable, reset functions)
- General operator interface on control panels and enclosures
- Factory automation and production line operator stations
- NEMA 4 / 4X enclosure-mounted control systems
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H series modular bases and contact blocks
- Standard 30mm push button mounting holes (30.5 mm panel cutout)
- NEMA 4, 4X, and Type 13 industrial enclosures
- AC control circuits rated for momentary switching duty
- Standard industrial PLC and relay-based control systems
Replaces / Drop-In Replacement For
- Allen-Bradley 800H-PRB16R (non-illuminated variant)
- Other red 30mm momentary push buttons with extended head extended-head mounting
- Legacy Rockwell Automation 30mm momentary buttons in similar configurations
Works With
- Allen-Bradley ControlLogix, CompactLogix, and SLC 500 systems via hardwired contact logic
- Siemens S7-1200/1500 and S7-200 systems with standard relay modules
- Mitsubishi FX and Q-series PLCs with discrete input cards
- Omron CP, CJ, and NJ-series controllers with standard input modules
- Discrete 24 VDC/AC relay control circuits and safety relay modules
- Standard pushbutton enclosure stations (mounted to bases or directly to enclosure)
