Overview

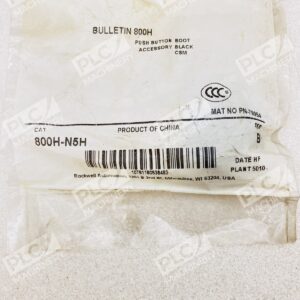

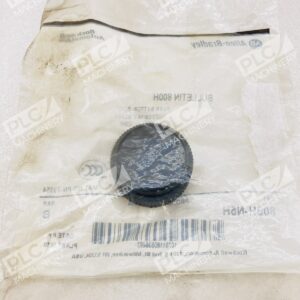

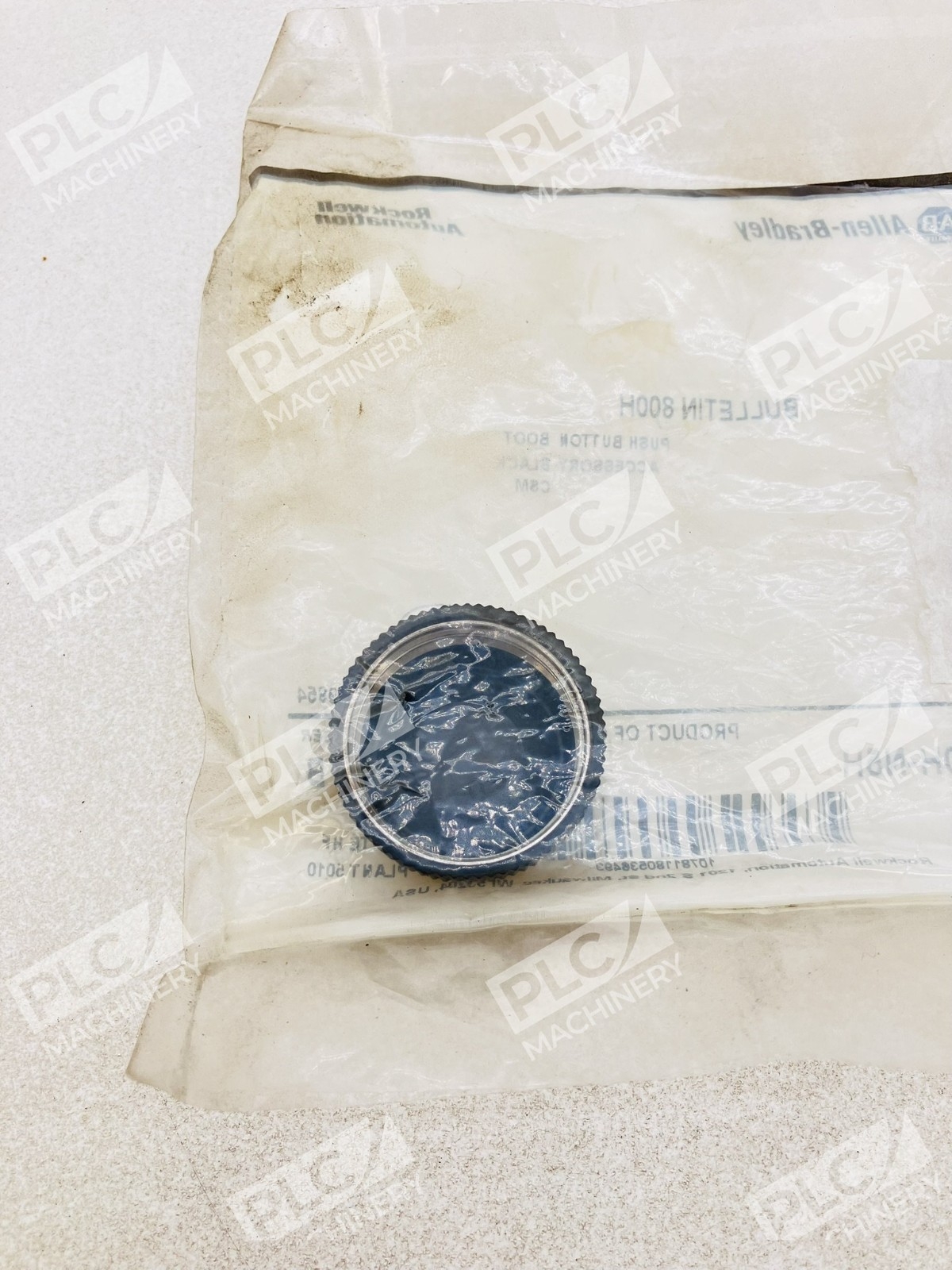

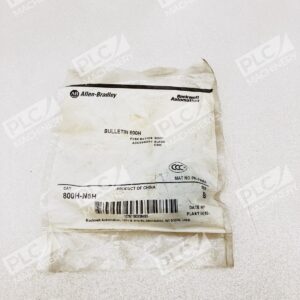

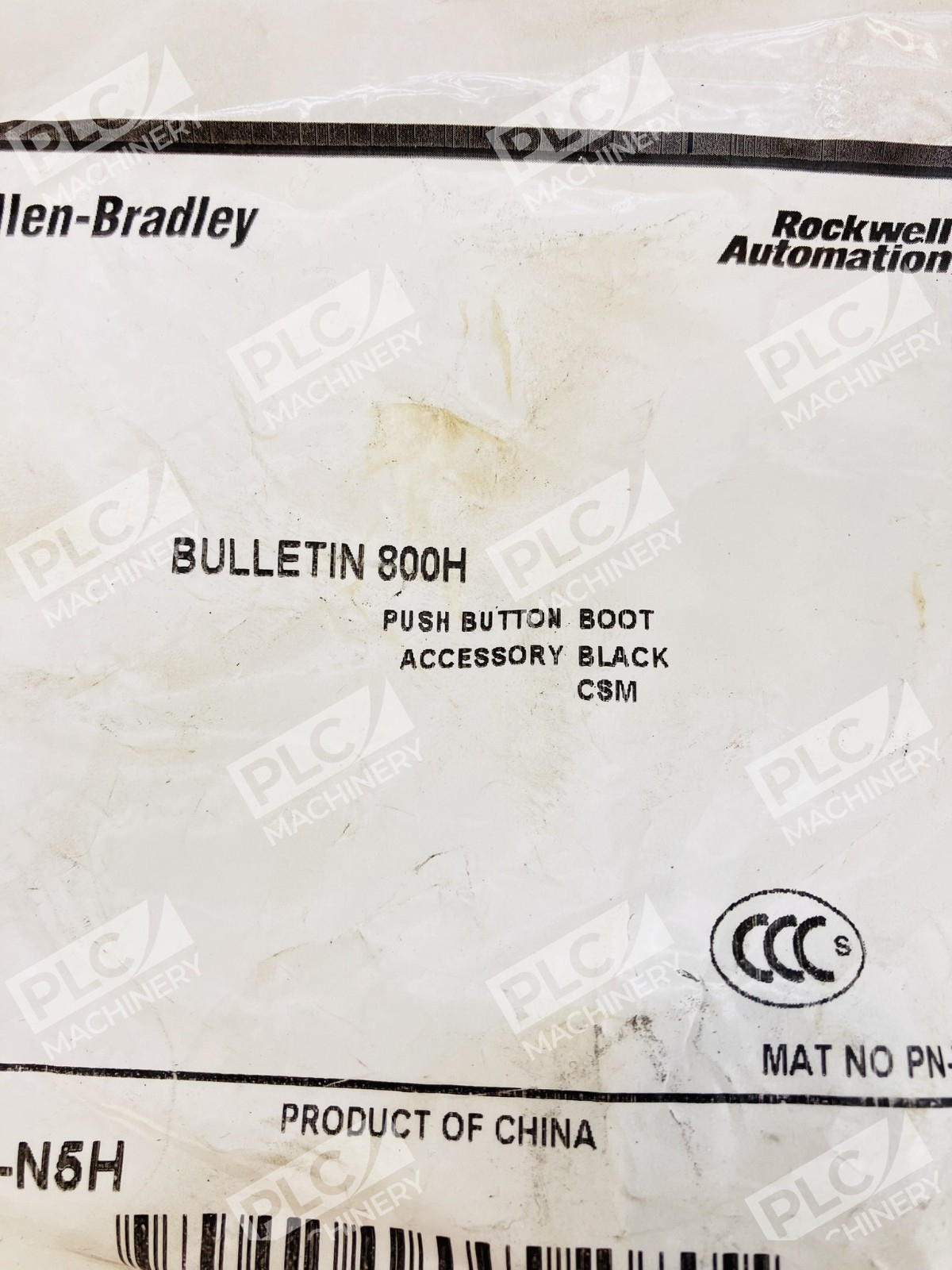

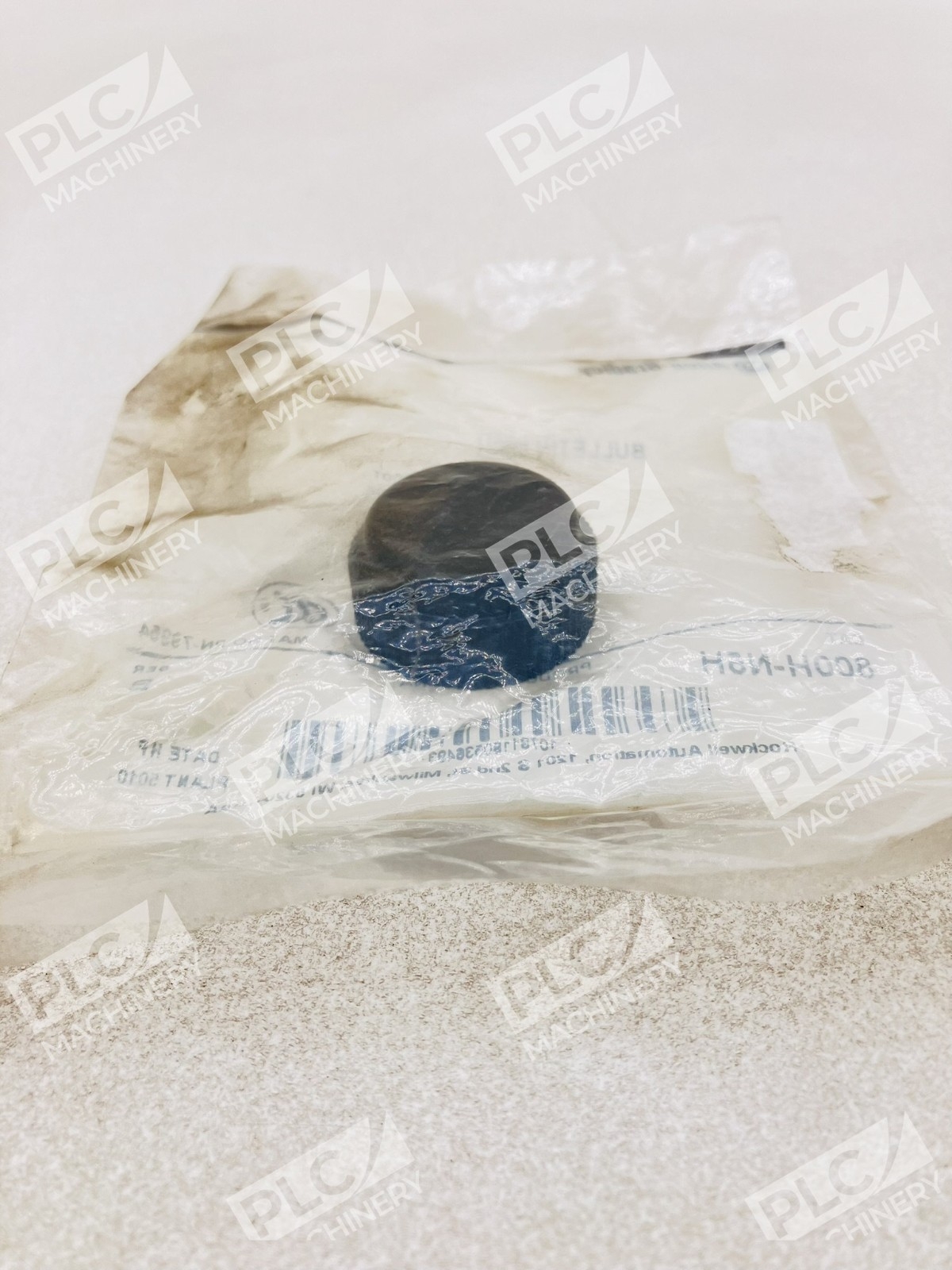

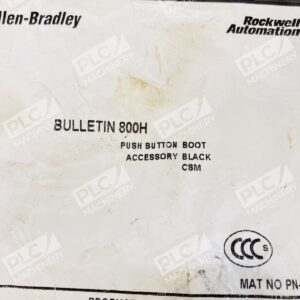

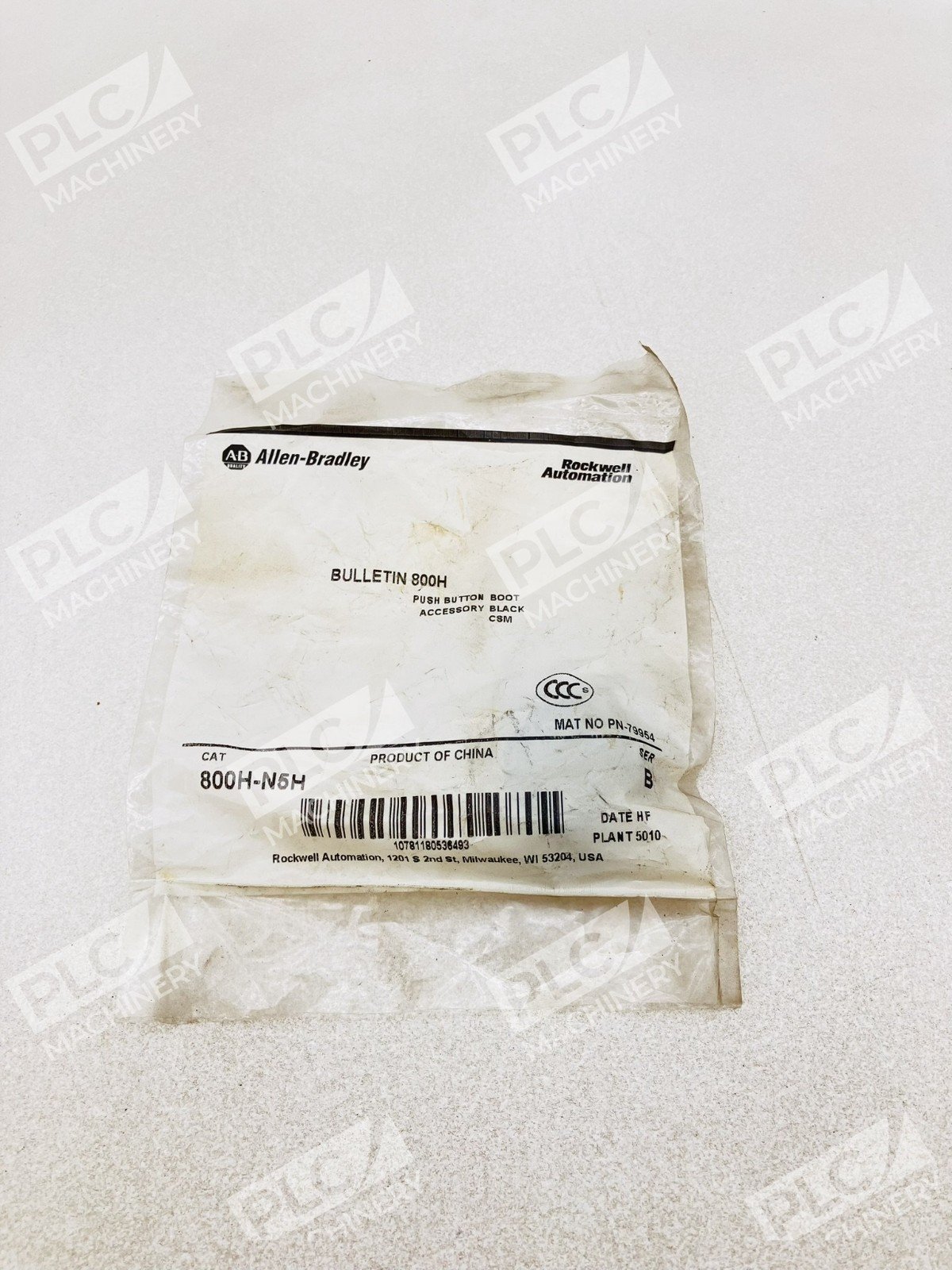

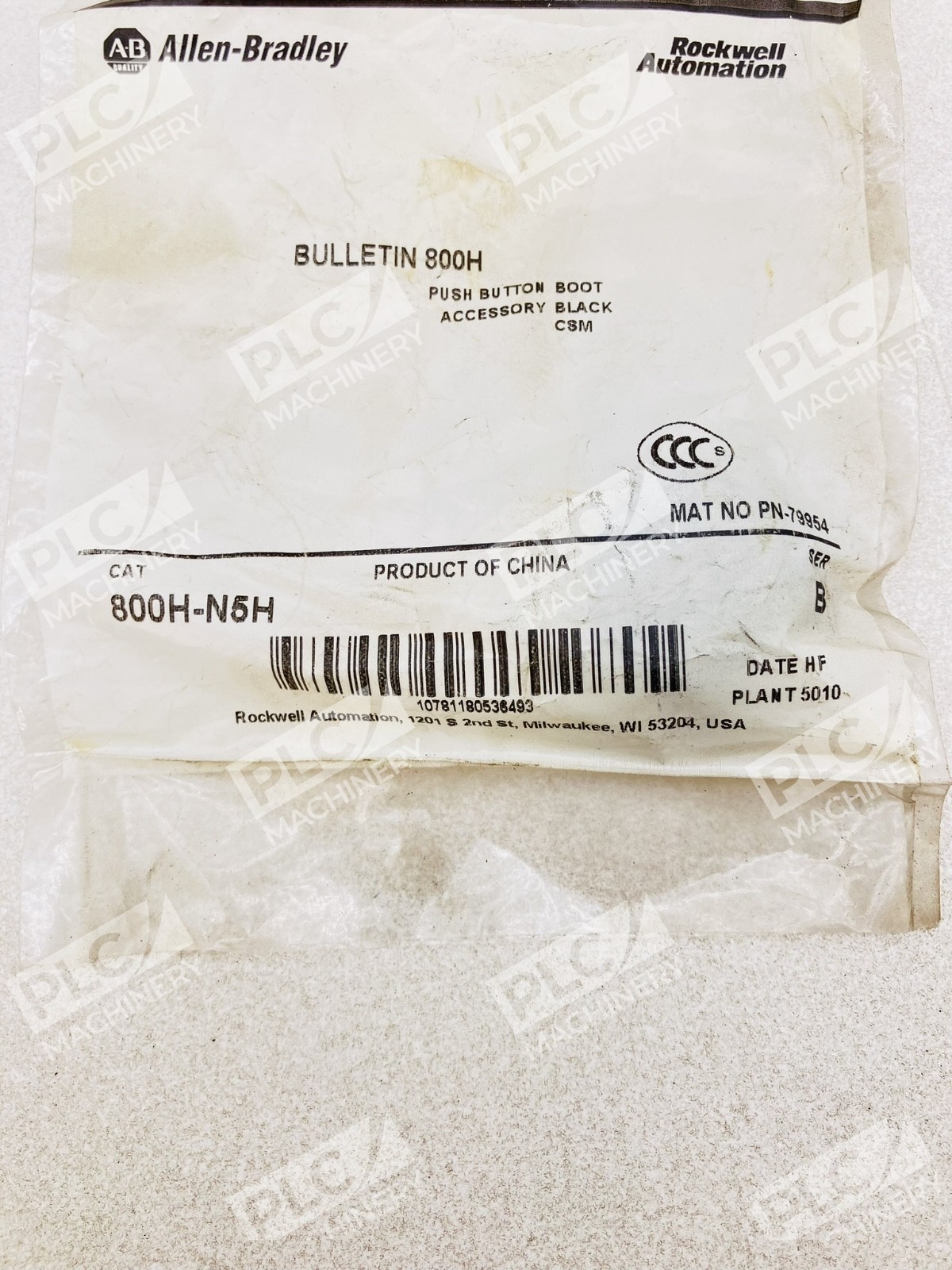

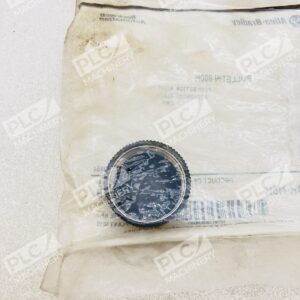

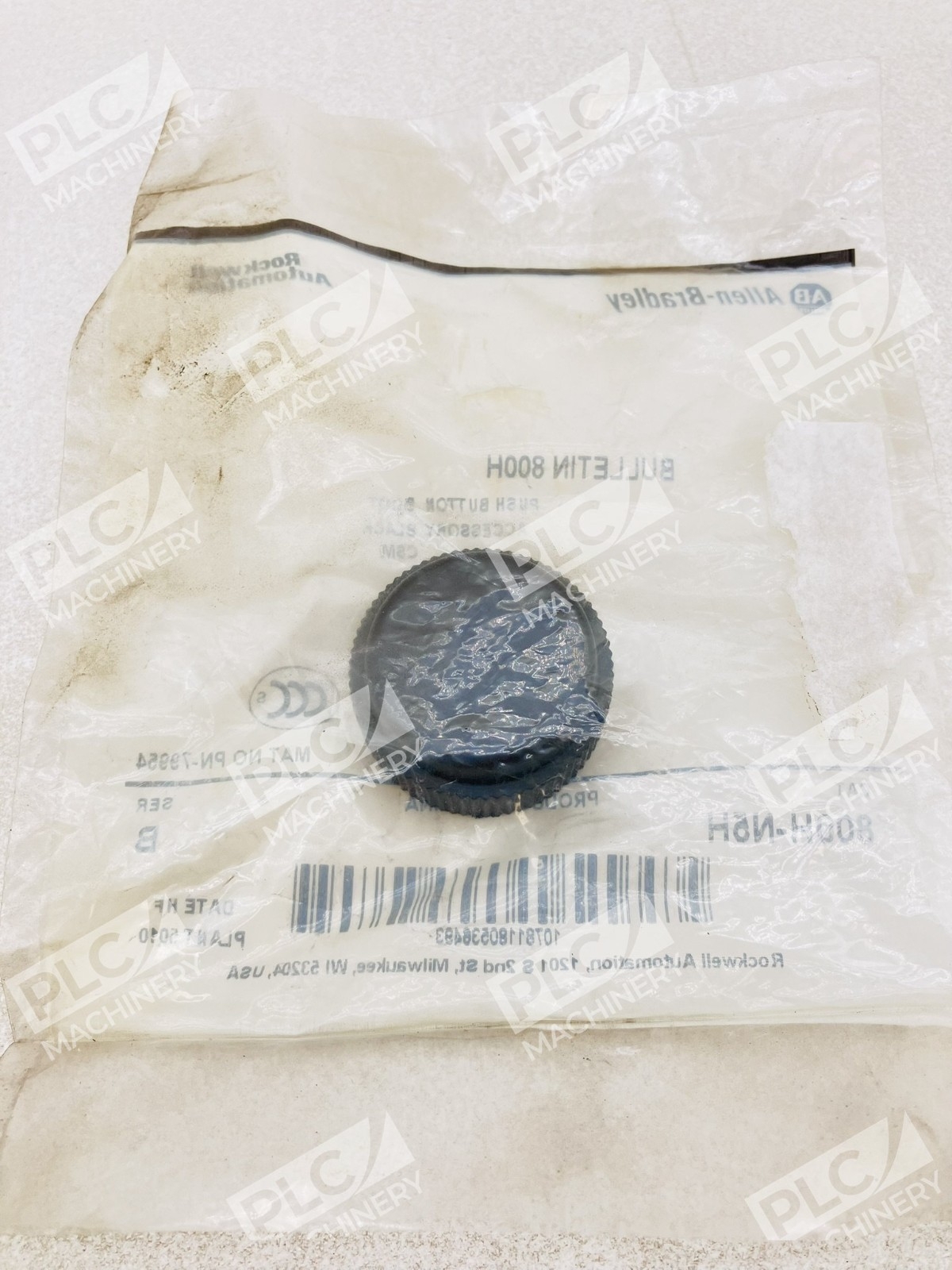

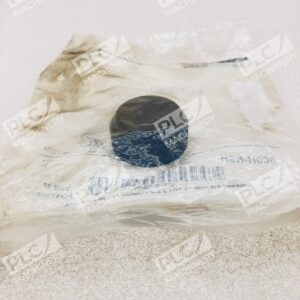

The Allen-Bradley 800H-N5H is a protective boot accessory engineered for non-illuminated 30mm pushbutton switches in the 800H series. This compact accessory is a drop-in replacement designed to extend pushbutton durability and reliability in demanding industrial environments. The black polyethylene construction provides environmental protection against dust, moisture, and contaminants while maintaining compatibility with standard 800H pushbutton assemblies.
Key Features
- Durable polyethylene material for harsh industrial conditions
- Designed for 30mm non-illuminated pushbuttons in the 800H series
- Black color for high visibility and easy identification
- Protective barrier against dust, moisture, and environmental contaminants
- Simple snap-on installation without tools
Technical Specifications
- Part Number: 800H-N5H
- Manufacturer: Rockwell Automation (Allen-Bradley)
- Product Type: Protective Boot Accessory
- Mounting Size: 30mm
- Material: Polyethylene
- Color: Black
- Application: Non-Illuminated Push Button
- Enclosure Rating: NEMA 4, 4X, 13
- UPC: 781180536496
- Condition: New in Box
Typical Applications
The Allen-Bradley 800H-N5H is ideal for:
- Machine tool emergency stops and control panels
- Manufacturing automation control stations
- Hazardous location pushbutton assemblies (NEMA 4/4X rated)
- Process control systems requiring environmental protection
- Chemical processing and washdown environments
- Replacement or preventive maintenance on existing 800H installations
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H Series 30mm non-illuminated pushbutton switches
- Rockwell Automation 800H standard control stations
- NEMA 4, 4X, and 13 rated enclosures
- Industrial control panels and electrical equipment using 30.5mm pushbutton assemblies
Replaces / Drop-In Replacement For
Direct replacement boot for any worn, damaged, or missing black protective boot on 800H Series 30mm non-illuminated pushbuttons. Verify compatibility with your system integrator before ordering if you are unsure of your current pushbutton configuration.
Works With
- Allen-Bradley 800H series pushbutton control stations
- Rockwell Automation industrial control platforms
- Standard industrial electrical enclosures and control cabinets
- Any hazardous location rated pushbutton assembly requiring environmental sealing
