Overview

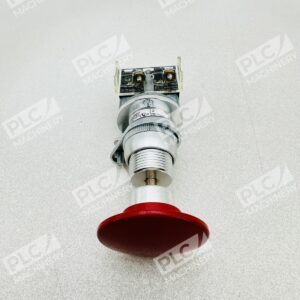

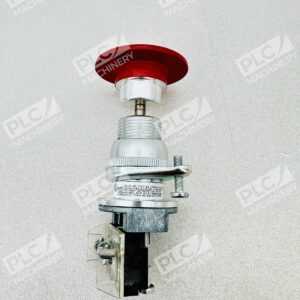

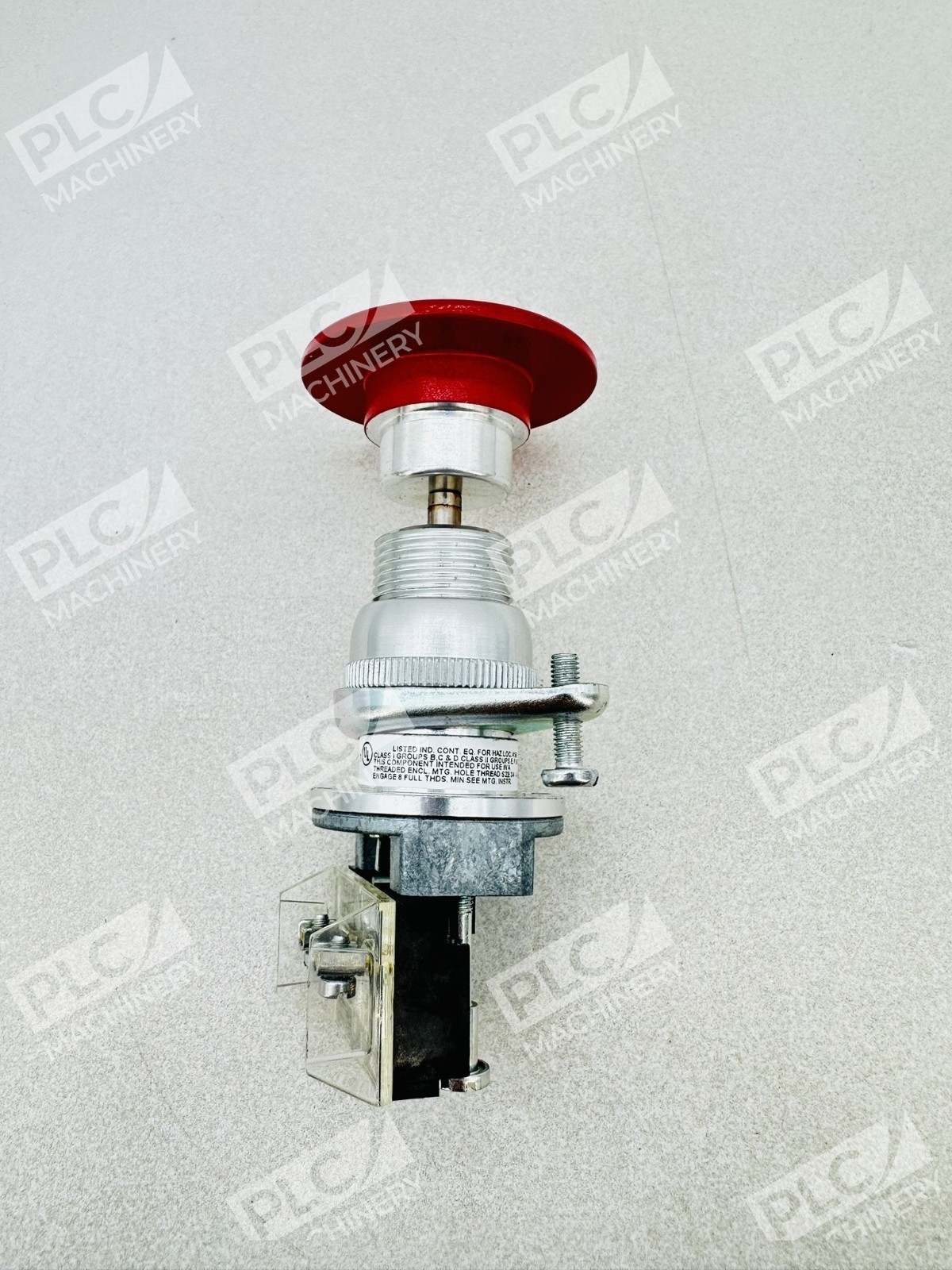

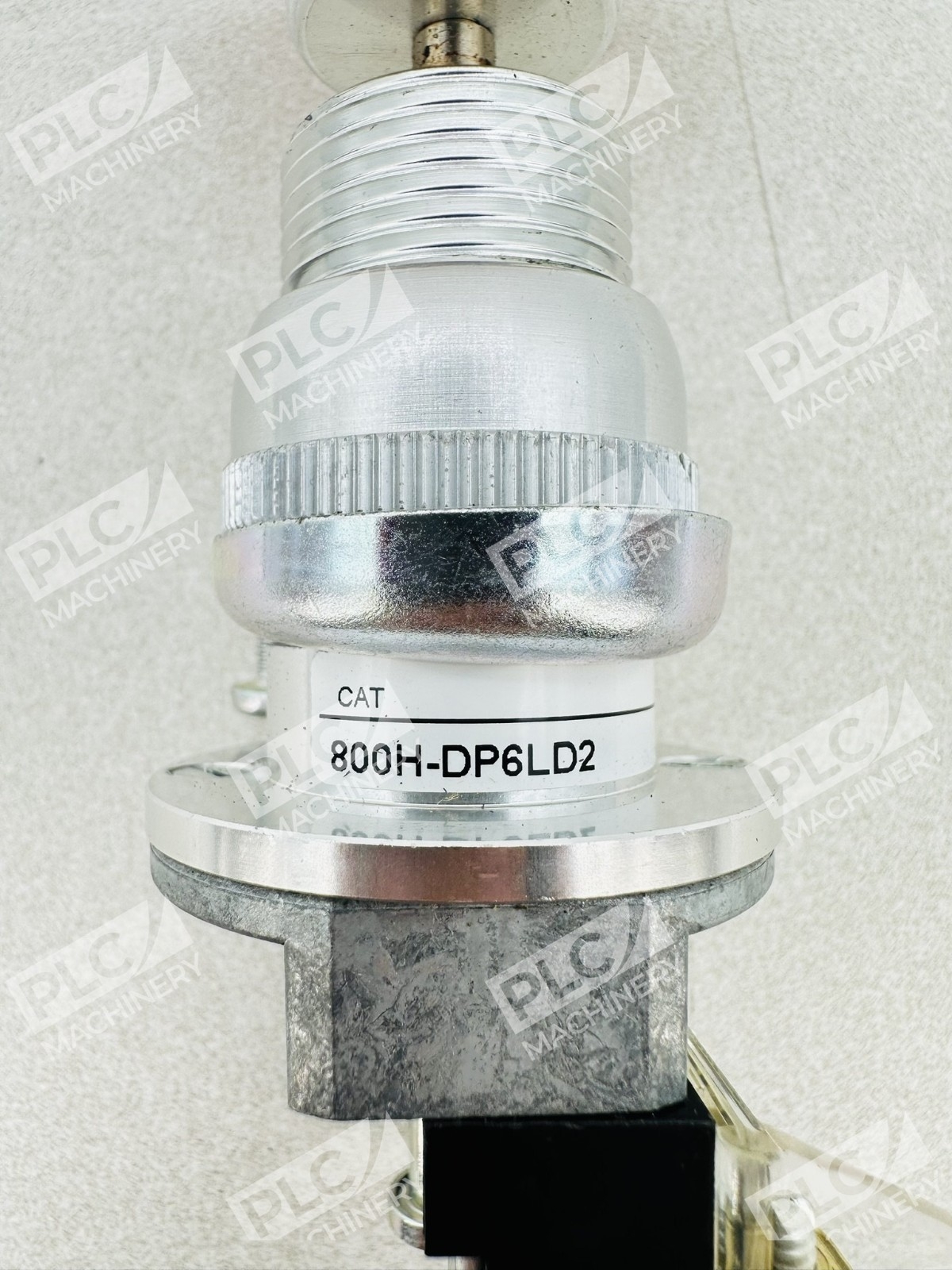

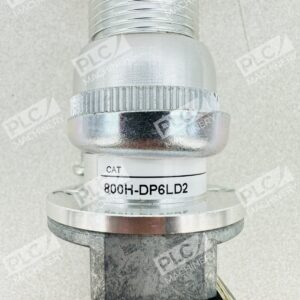

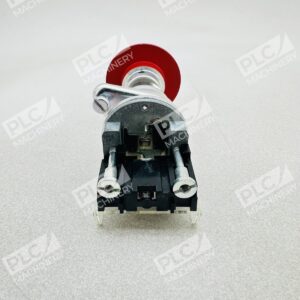

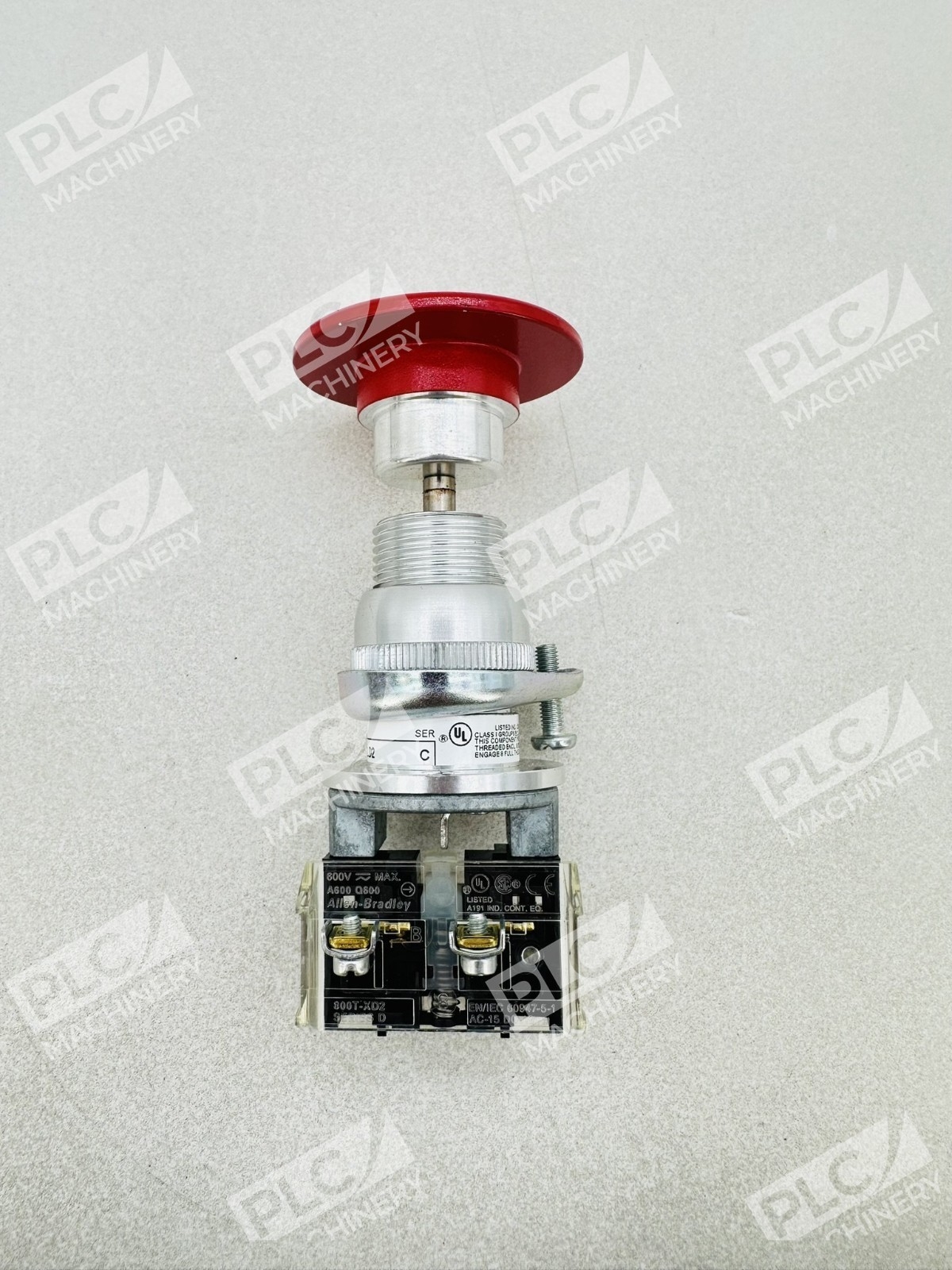

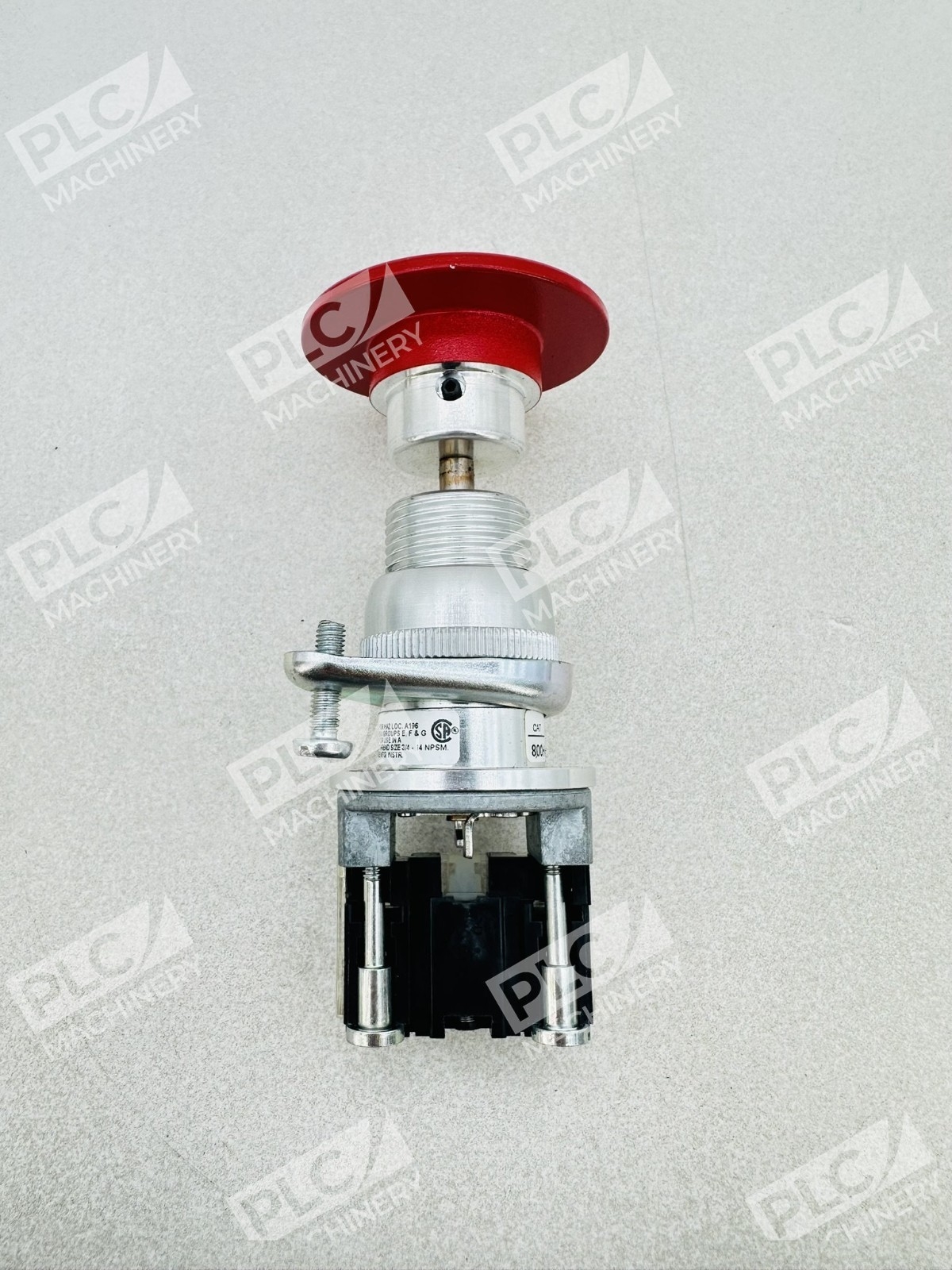

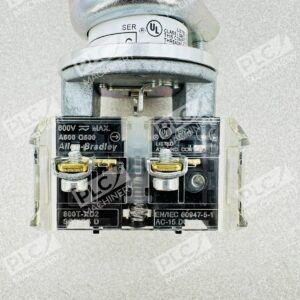

The Allen-Bradley 800H-DP6LD2 is a 30mm standard barrel length mushroom head push button operator designed for use in electrical equipment enclosures and industrial settings. Part of the Bulletin 800H series, this red mushroom operator is constructed to Type 4/4X/13 specifications, offering corrosion resistance and suitability for both hazardous locations (Type 7/9) and harsh industrial environments. The 800H-DP6LD2 features momentary contact operation without built-in contact blocks, allowing engineers to specify their own contact configurations based on application requirements.
Key Features
- 30mm Standard Barrel Length: Fits standard 25.4 mm (1 inch) panel cutout
- Red Mushroom Head: High-visibility emergency stop and control identification per ANSI standards
- Momentary Contact Operation: Spring-return design with no maintained position
- Type 4/4X/13 Rated: Watertight, oiltight, and corrosion-resistant for harsh environments
- Operator Only Configuration: Supplied without contact blocks—integrate with Allen-Bradley contact modules for custom control logic
- Industrial-Grade Durability: 10,000,000 mechanical cycle design life for non-illuminated momentary applications
Technical Specifications
| Catalog Number | 800H-DP6LD2 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Type | Mushroom Head Push Button Operator |
| Button Head Style | Standard Mushroom Head |
| Button Color | Red |
| Operation | Momentary Contact (Non-Illuminated) |
| Barrel Length | Standard (for 25.4 mm panel thickness) |
| Mounting Hole Size | 30.5 mm |
| NEMA / IEC Rating | Type 4/4X/13 (Watertight, Oiltight, Corrosion-Resistant) |
| Hazardous Location Rating | Type 7/9 Compatible |
| Mechanical Life Cycles | 10,000,000 minimum (momentary, non-illuminated) |
| Contact Blocks Supplied | None (operator only) |
| Terminal Type | Fingersafe by design |
| Series | Bulletin 800H |
Typical Applications
- Emergency Stop Stations: Red mushroom design meets ANSI requirements for E-Stop identification
- Hazardous Location Control: Chemical plants, refineries, and classified areas requiring Type 7/9 equipment
- Heavy Industrial Machinery: Pump stations, compressor controls, and motor starters
- Watertight/Oiltight Enclosures: Outdoor, washdown, and corrosive environments
- Control Panel Integration: As an operator-only unit, pairs with Allen-Bradley contact blocks for custom logic
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H push button contact blocks (standard, sealed switch, and MaxDutyâ„¢ options)
- Allen-Bradley 800H enclosures (stainless steel, Rosite, and fiberglass construction)
- Standard 30.5 mm electrical control enclosures
- Type 4/4X/13 rated electrical assemblies
Replaces / Drop-In Replacement For
- Allen-Bradley 800H-DP6 (standard red mushroom, base model)
- Similar hazardous location red mushroom operators in Type 7/9 applications
Works With
- Allen-Bradley contact block kits (single-make, double-make/double-break, sealed switch)
- Industrial control logic systems and hard-wired circuit designs
- PLC input modules via contact block wiring
- Standard #18–12 AWG wire gauges with 6–8 lb-in terminal screw torque
