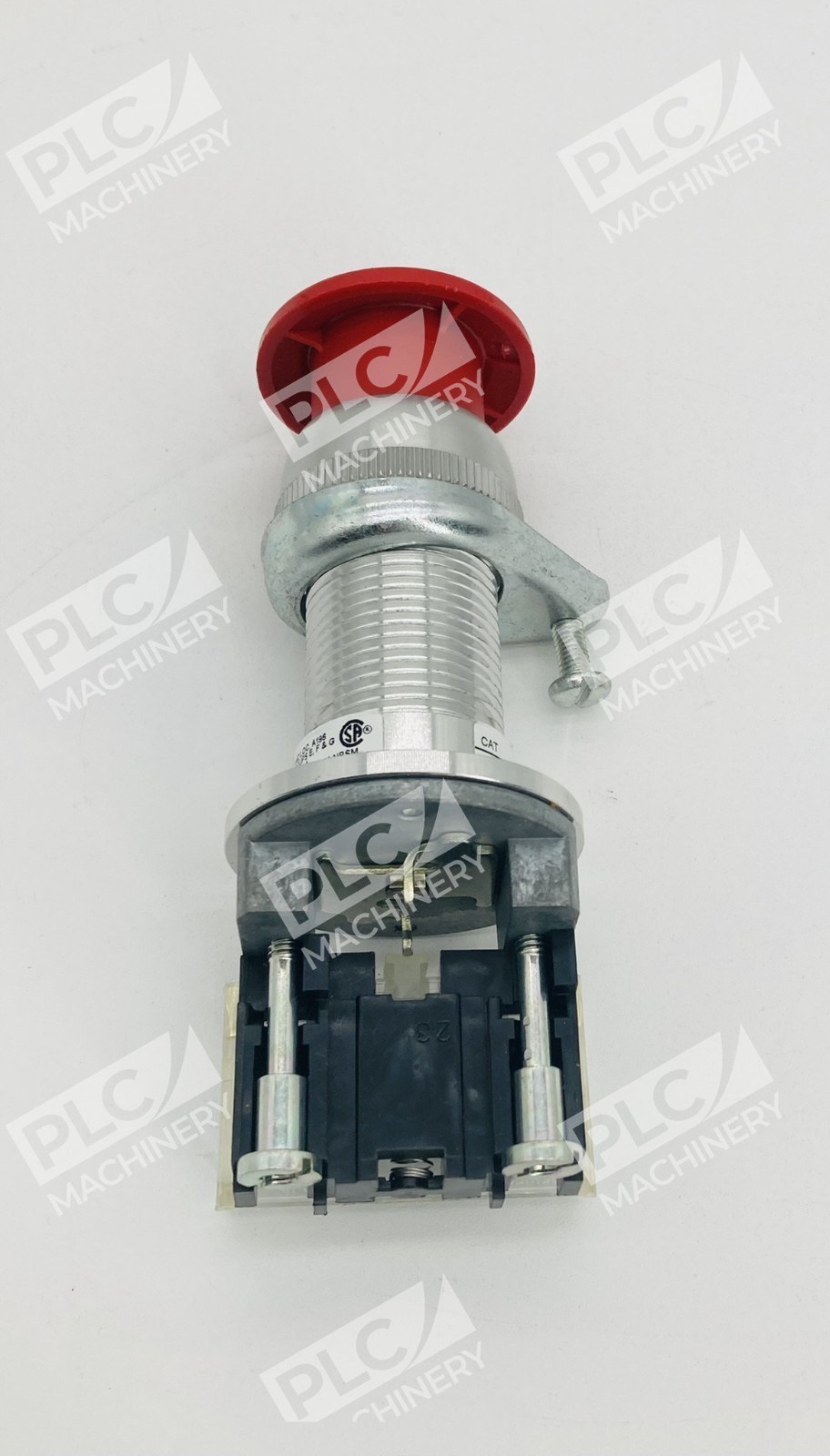

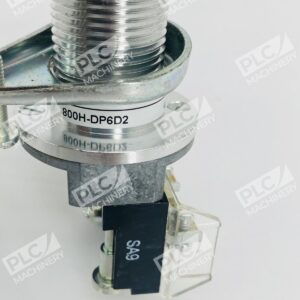

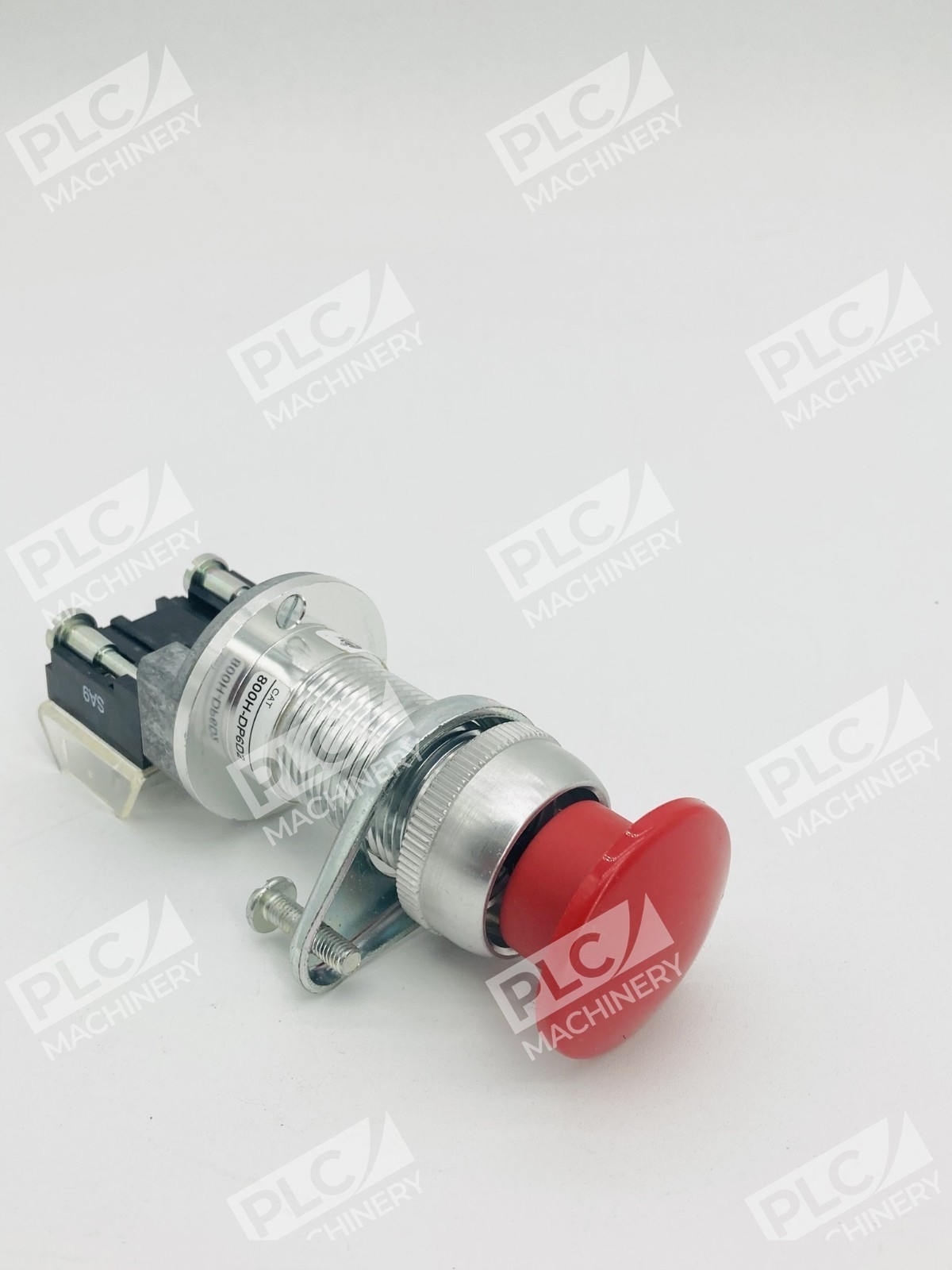

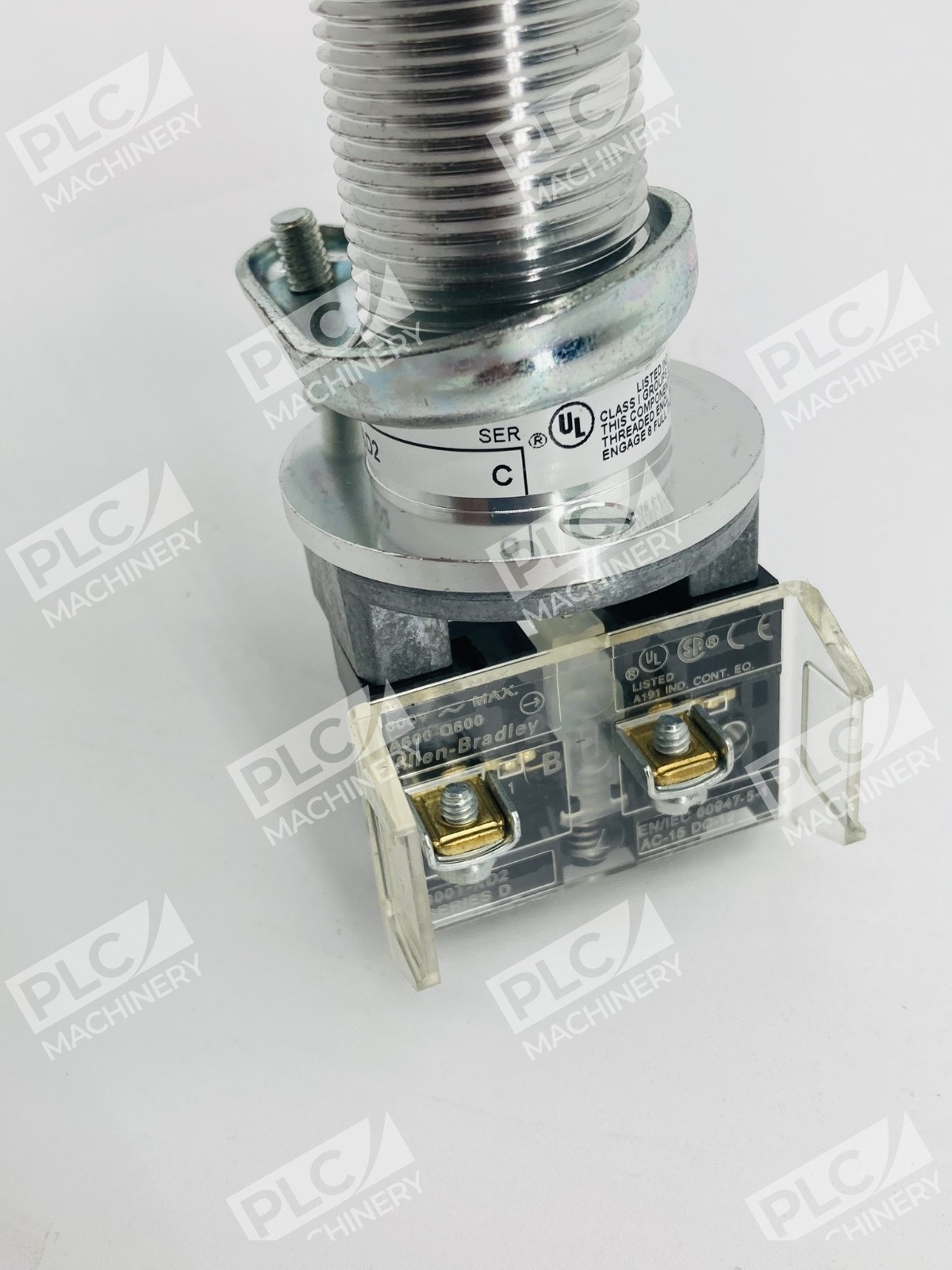

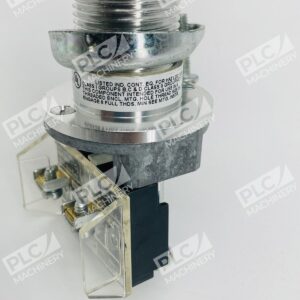

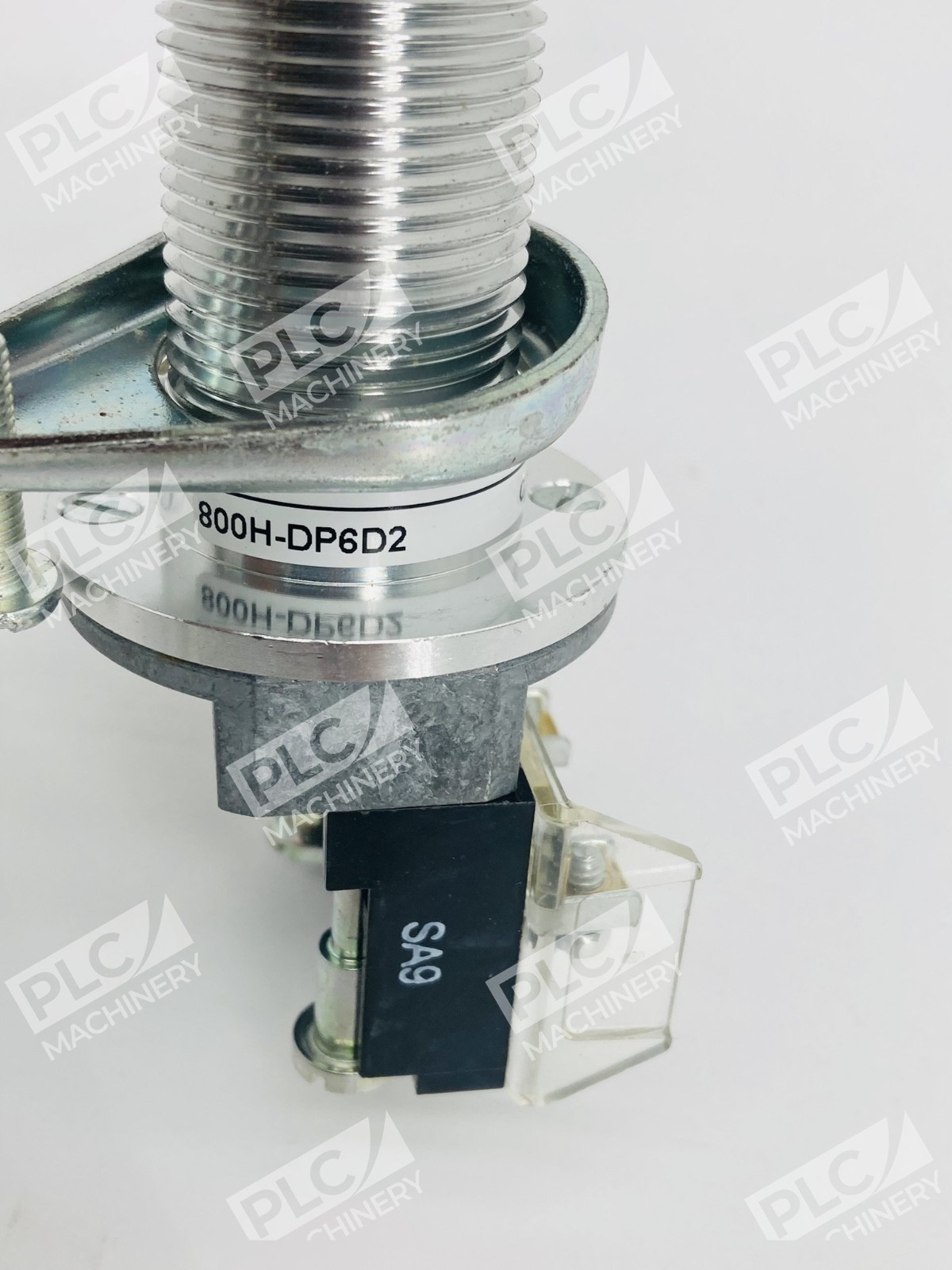

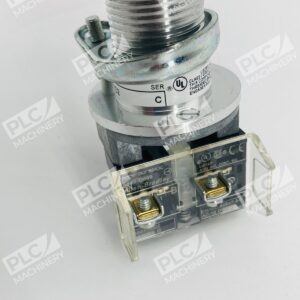

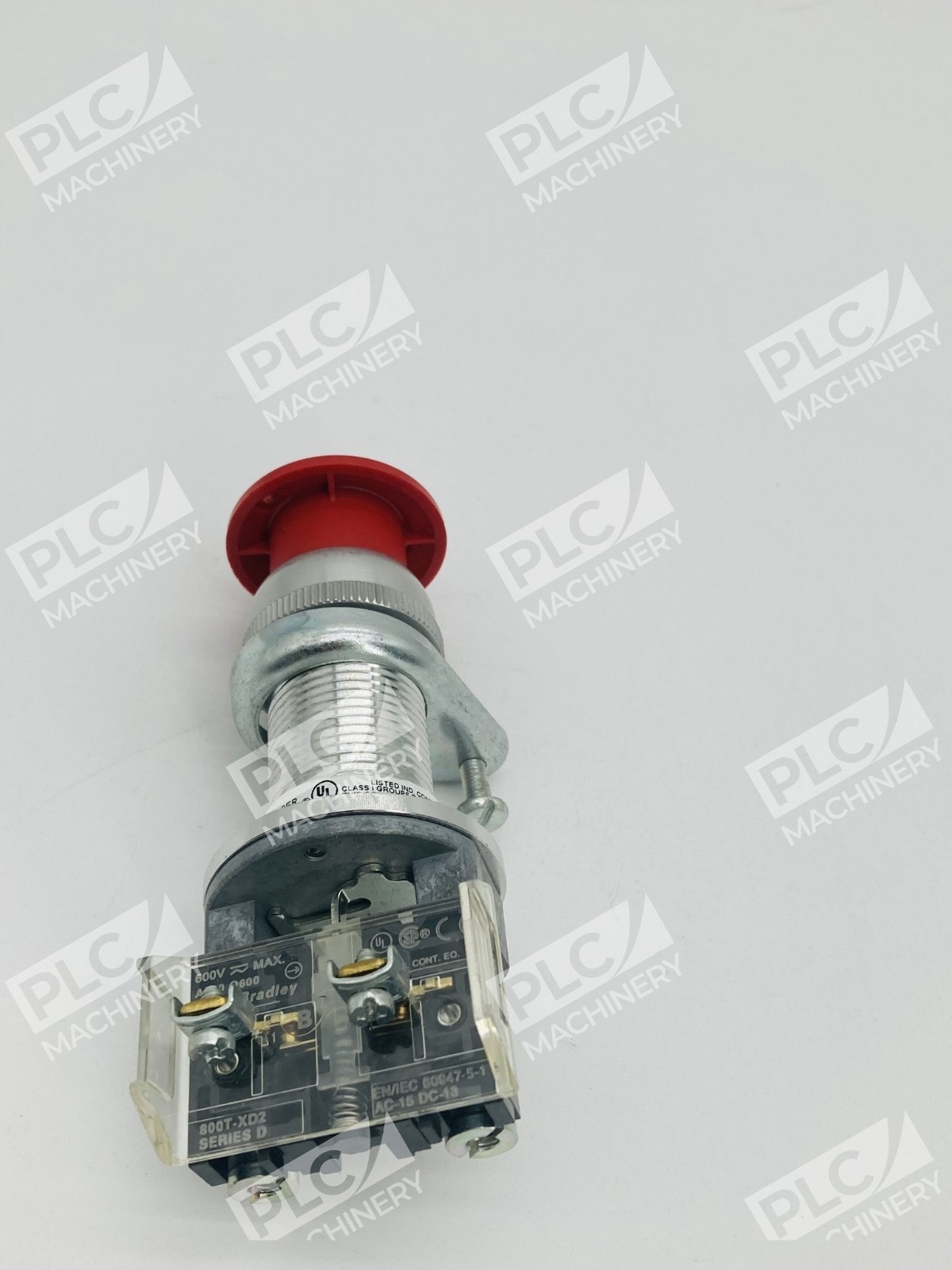

Allen Bradley 800H-DP6D2 Mushroom Head Push Button Ser C

<h2>Overview</h2>

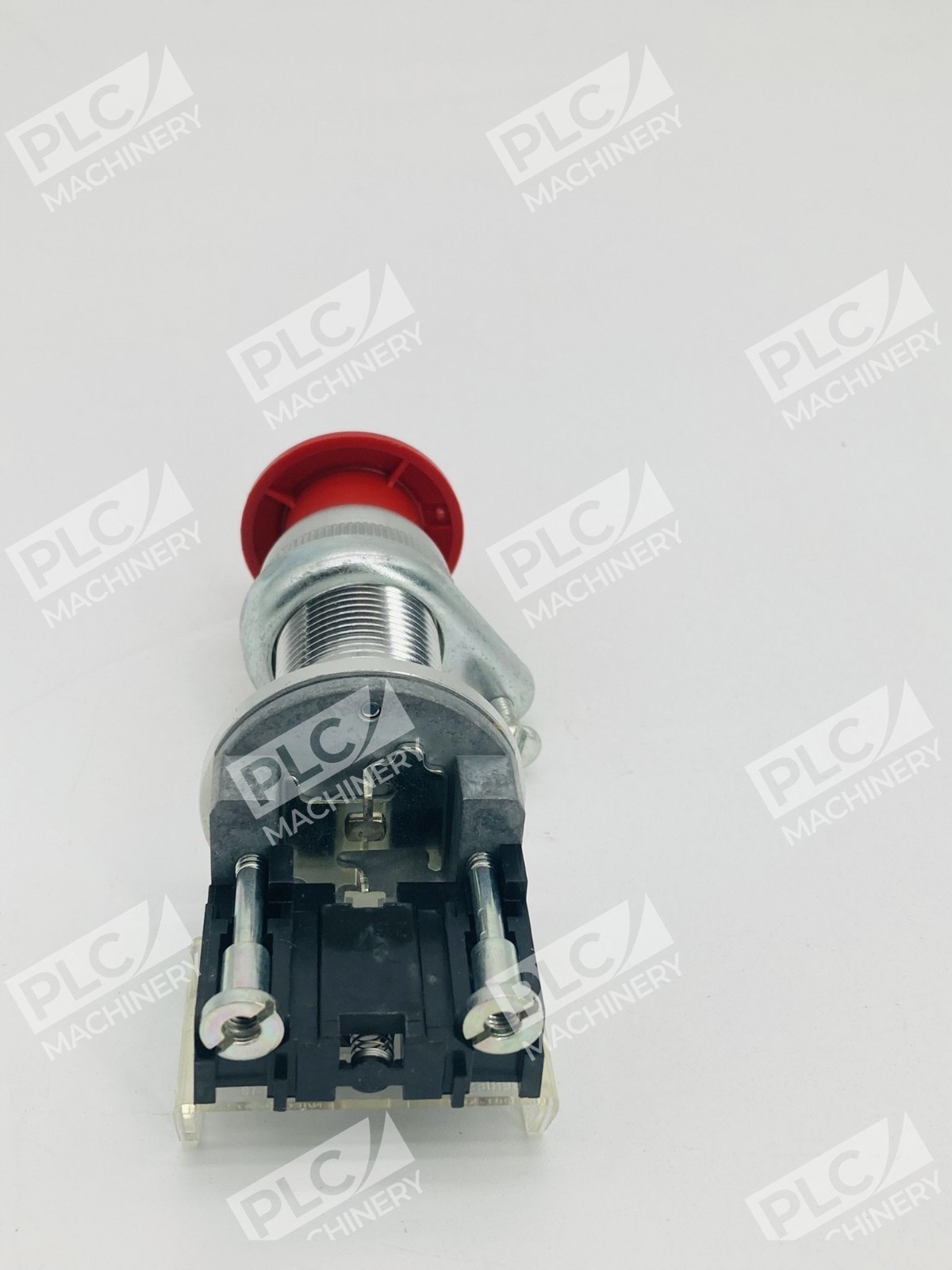

<p>The <strong>Allen-Bradley 800H-DP6D2</strong> is a momentary contact push button operator designed for industrial environments requiring hazardous location certification. This non-illuminated unit features a red mushroom head and standard barrel length, making it suitable for Class I and Class II hazardous locations where reliable pilot device performance is critical. The robust construction and proven reliability of the Bulletin 800H series make it the choice for demanding process control applications.</p>

<h2>Key Features</h2>
<ul>
<li>Momentary contact operation—returns to neutral when released</li>
<li>Red mushroom head for intuitive emergency stop or alarm signaling</li>
<li>NEMA Type 7&9 rated for hazardous gas and dust environments</li>
<li>Standard barrel length—fits panel thickness up to 1 inch (25.4 mm)</li>
<li>Non-illuminated design—no lamp or lens components required</li>
<li>Single NO/1 NC contact configuration</li>
</ul>

<h2>Technical Specifications</h2>
<ul>
<li><strong>Contact Type:</strong> 1 NO (Normally Open)</li>
<li><strong>Operation:</strong> Momentary (spring return)</li>
<li><strong>Head Style:</strong> Mushroom, Standard</li>
<li><strong>Head Color:</strong> Red</li>
<li><strong>NEMA Rating:</strong> Type 7&9</li>

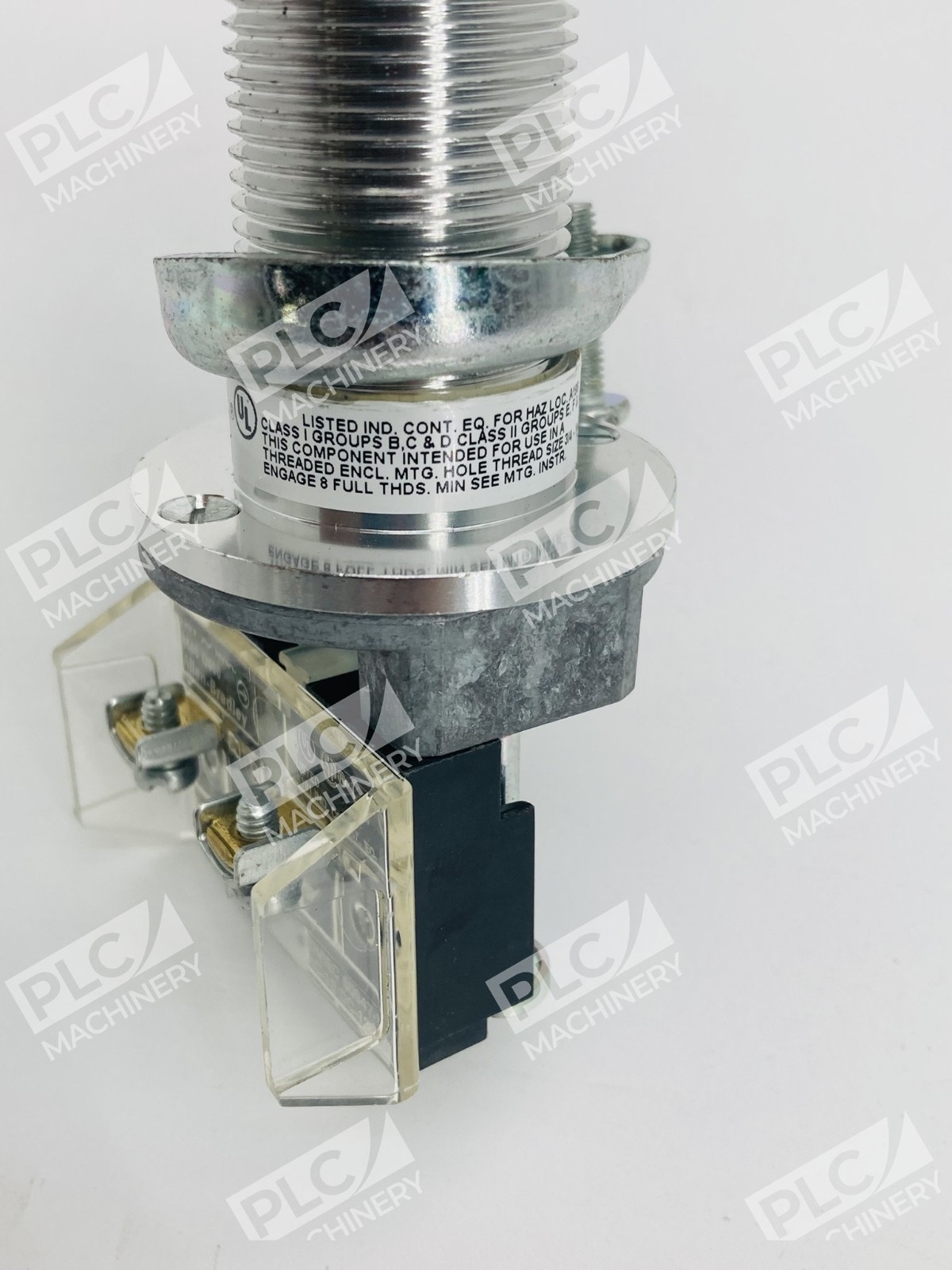

<li><strong>Certification:</strong> Class I Div 1&2 Hazardous Gas (Groups B, C, D); Class II Div 1&2 Hazardous Dust (Groups E, F, G); Class III Hazardous Fiber</li>
<li><strong>Barrel Length:</strong> Standard (fits panels up to 1 in. / 25.4 mm)</li>
<li><strong>Illumination:</strong> Non-illuminated</li>
<li><strong>Mechanical Life Cycles:</strong> 10,000,000+ (momentary non-illuminated)</li>
<li><strong>Series:</strong> Bulletin 800H (Corrosion-Resistant / Type 4/4X/13)</li>
</ul>

<h2>Typical Applications</h2>
<ul>
<li>Hazardous location emergency stop stations (Class I/II environments)</li>
<li>Momentary control of alarms, motors, and solenoids in classified areas</li>
<li>Oil and gas processing facilities</li>
<li>Chemical plants and refineries</li>
<li>Paint spray booths and flammable vapor areas</li>
<li>Grain handling and dust collection systems</li>
<li>Pharmaceutical and food processing with explosive atmospheres</li>
</ul>

<h2>Compatibility &amp; Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Bulletin 800H station bases and enclosures (Type 4/4X/13 rated)</li>
<li>Standard 30 mm (1.18 in.) push button contact blocks</li>
<li>Allen-Bradley control relays and discrete I/O modules</li>
<li>Industrial motor starters and compressor controls</li>
<li>Most hardwired control circuits rated for pilot duty loads</li>
</ul>

<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>800H-DP6A (standard non-hazardous location version with same mushroom head)</li>
<li>Similar 30 mm momentary push buttons with 1 NC/1 NO contact configuration</li>
</ul>

<h3>Works With</h3>
<ul>
<li>Hardwired pilot duty circuits—no software or networks required</li>
<li>Contact blocks: Standard single/double break, MaxDuty™, Logic Reed, sealed switch types</li>
<li>NFPA 79 compliant emergency stop systems</li>
<li>Rockwell Automation and third-party industrial control systems</li>
</ul>
