Overview

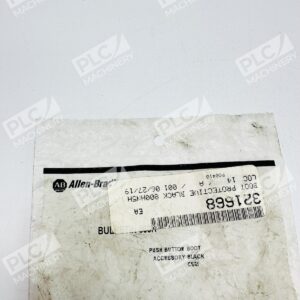

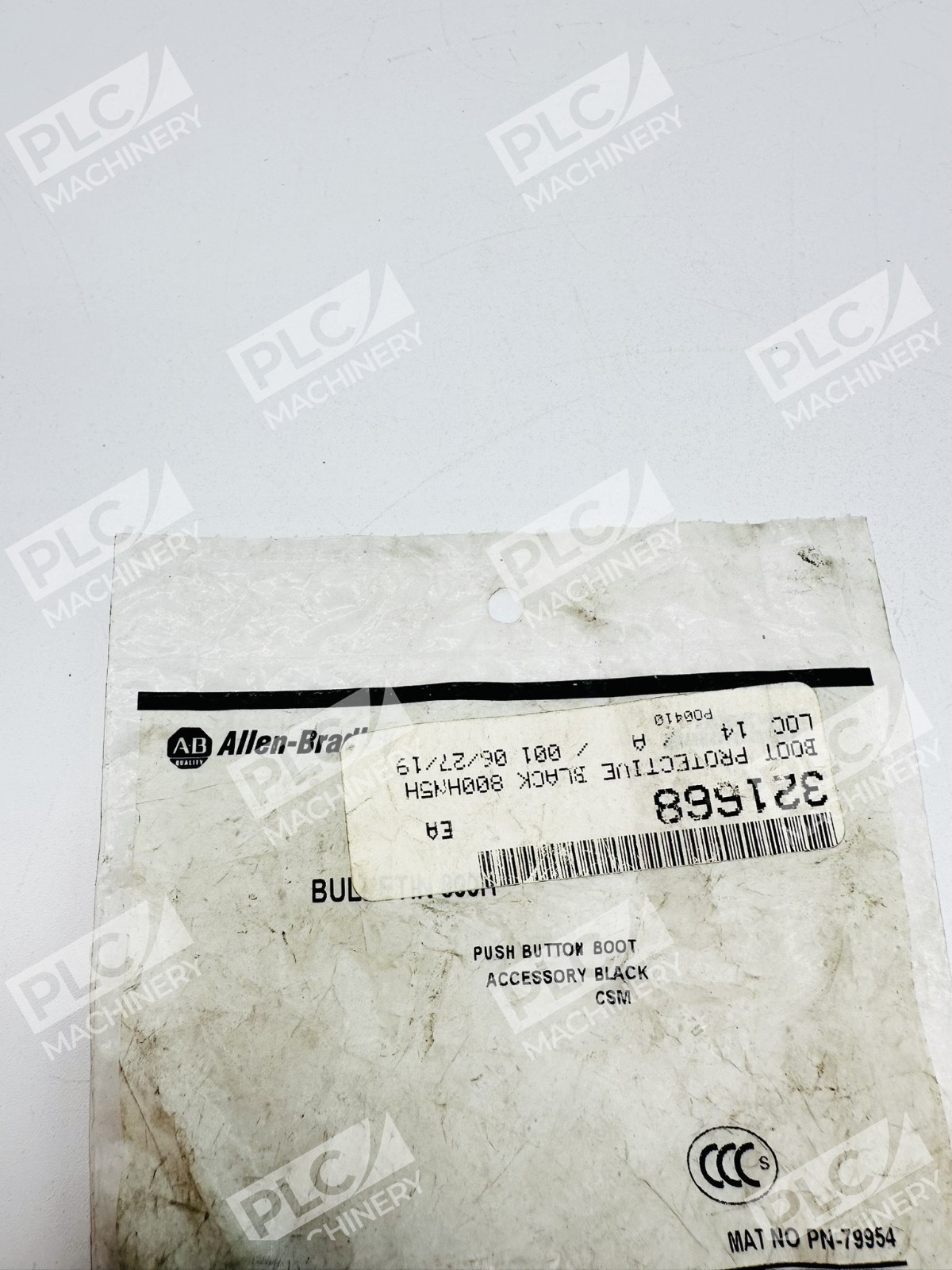

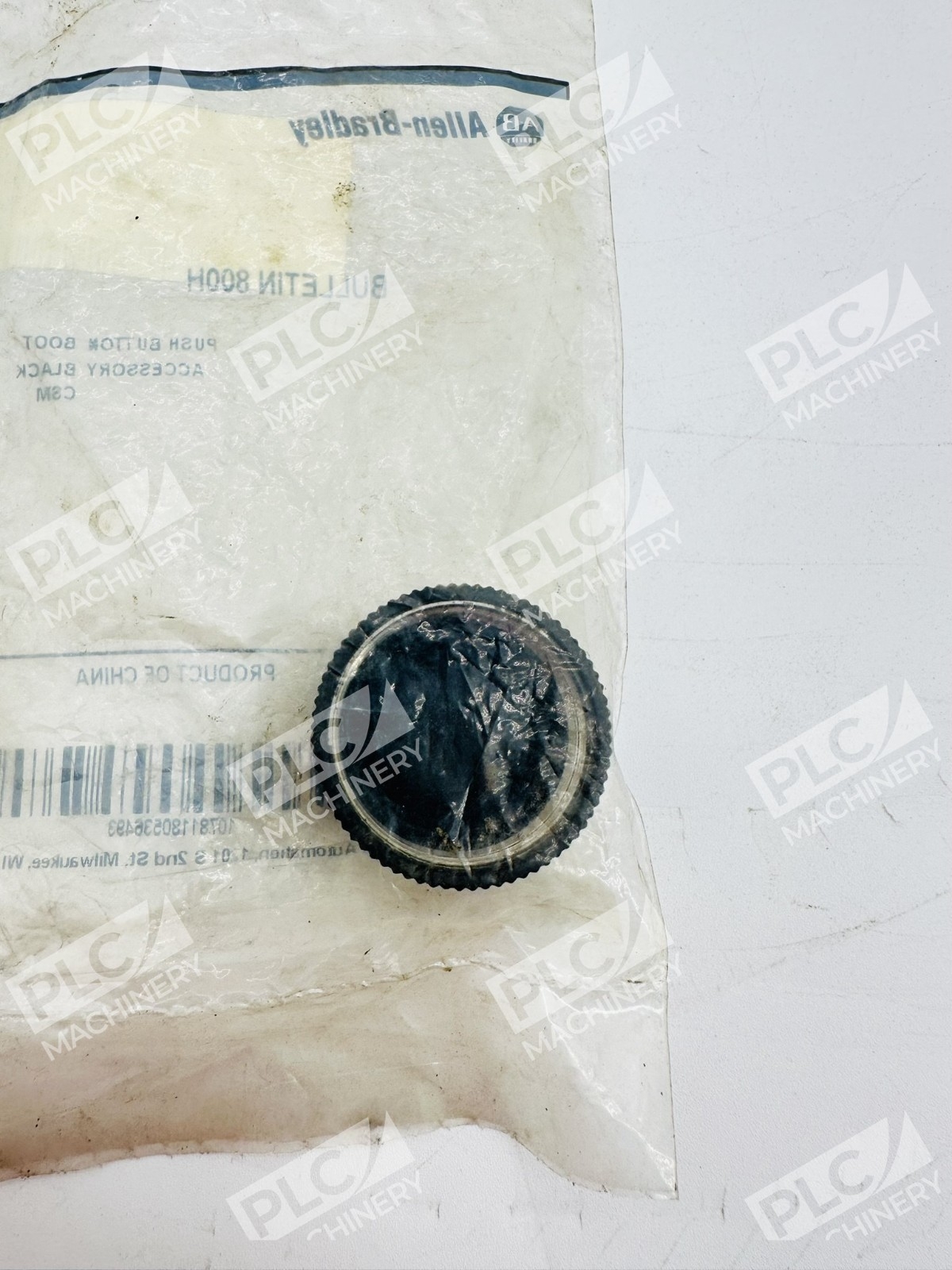

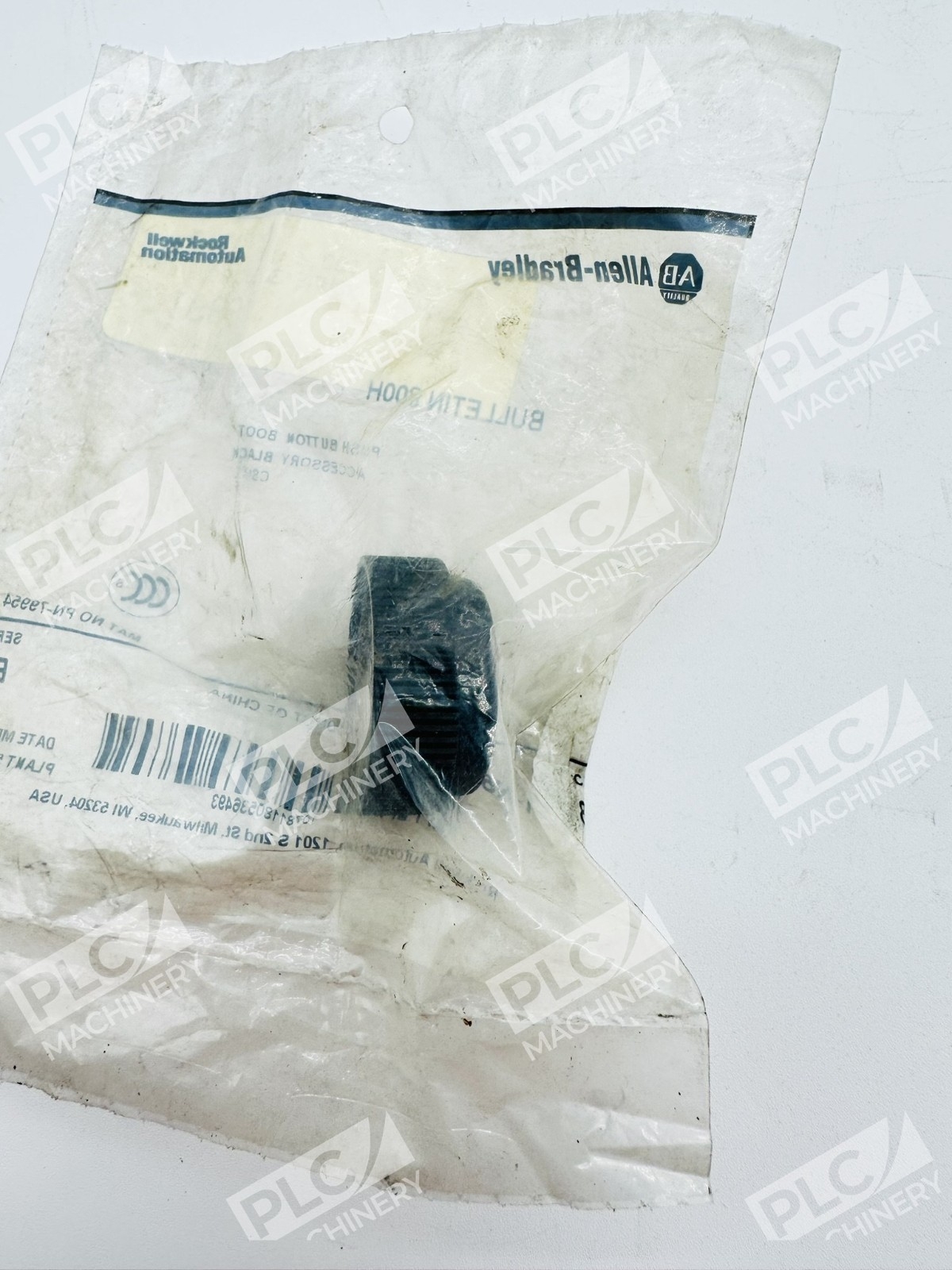

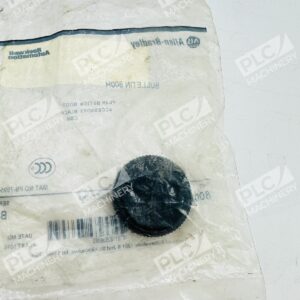

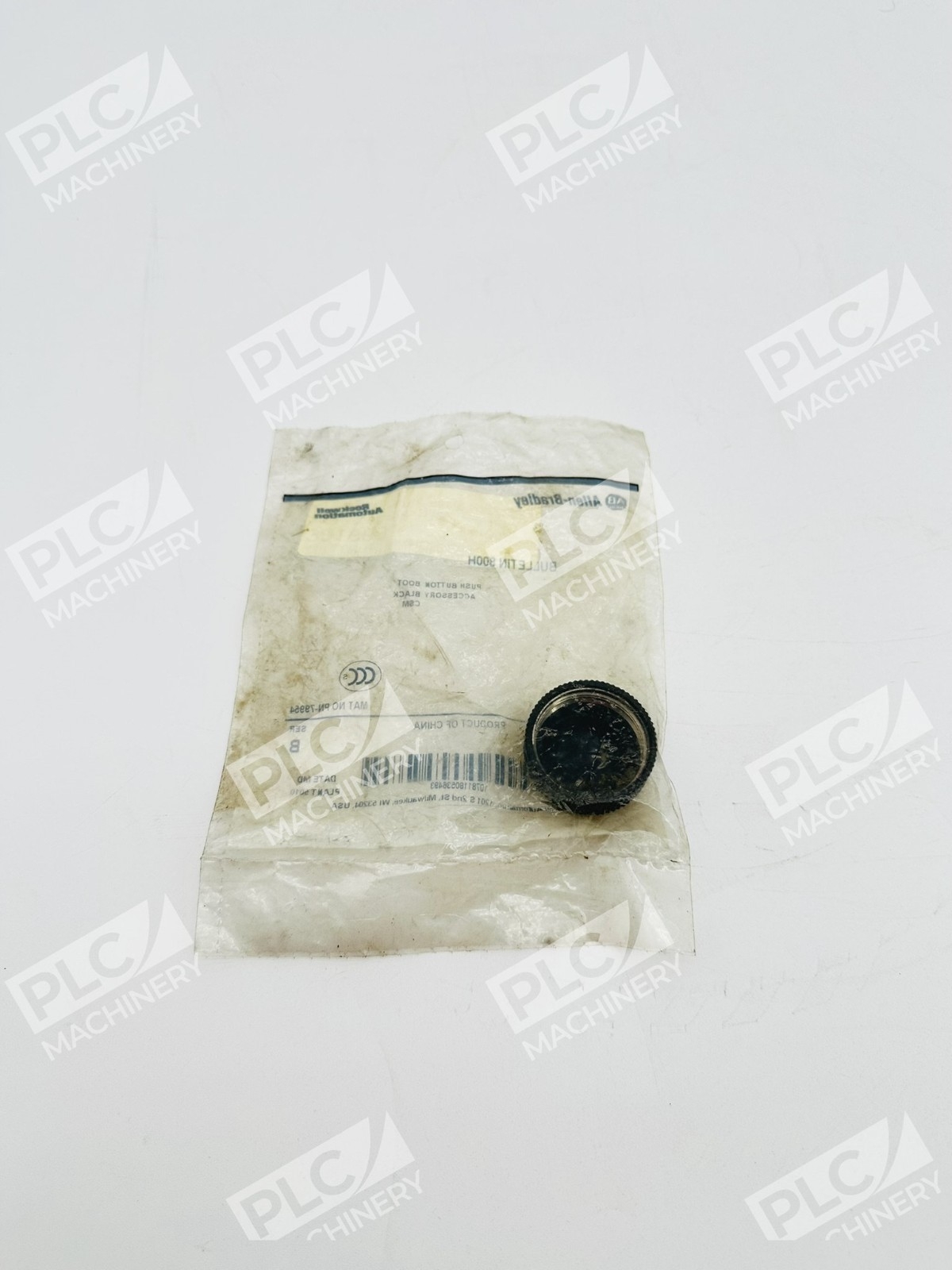

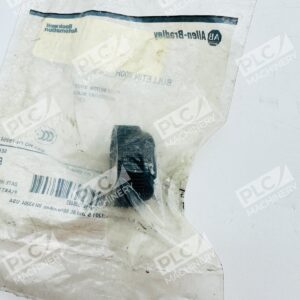

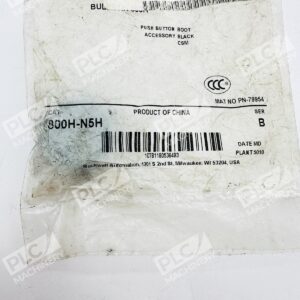

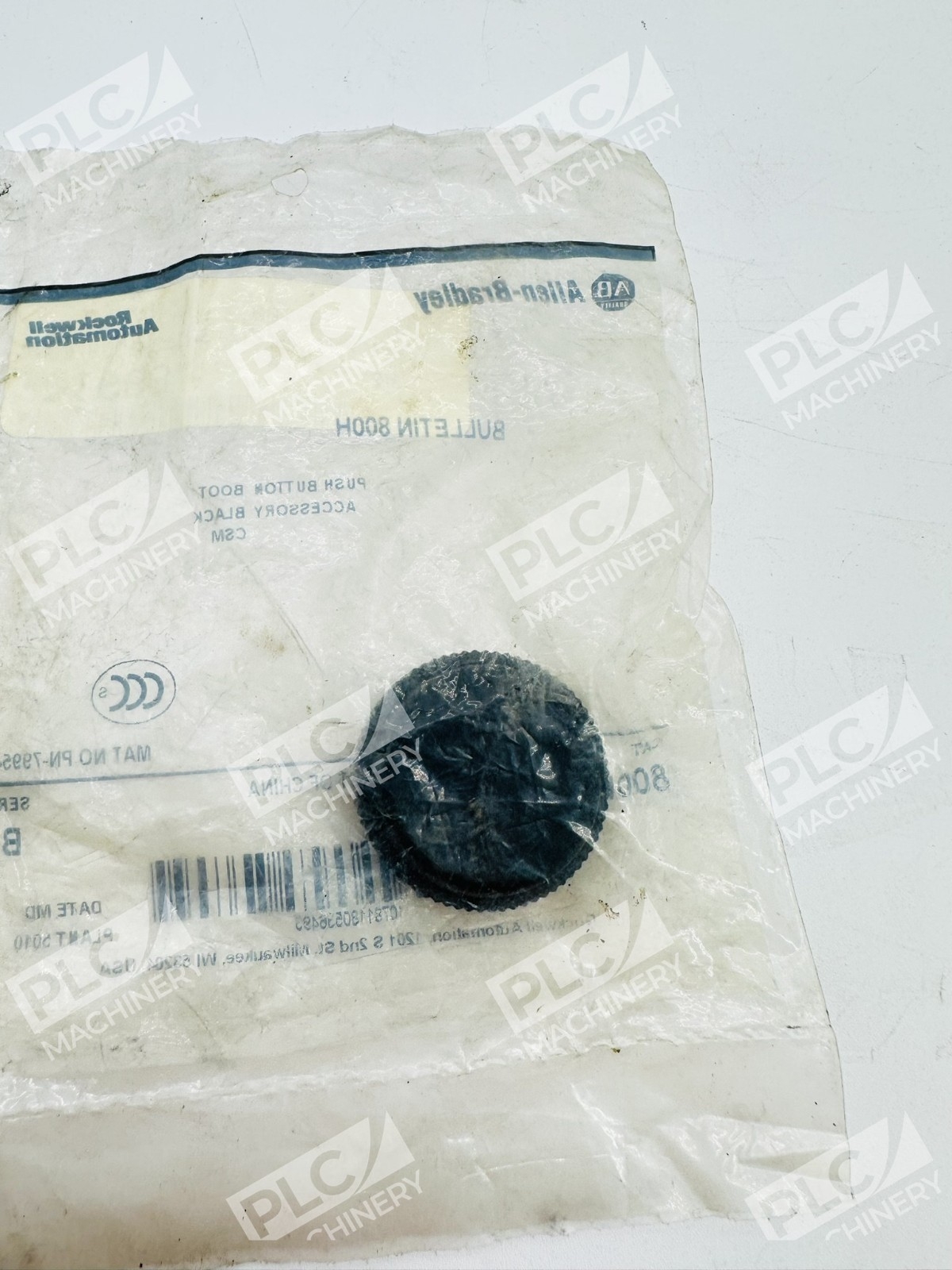

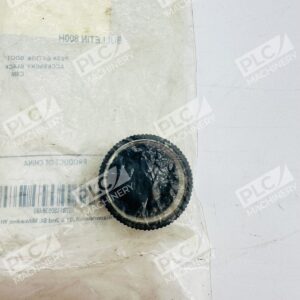

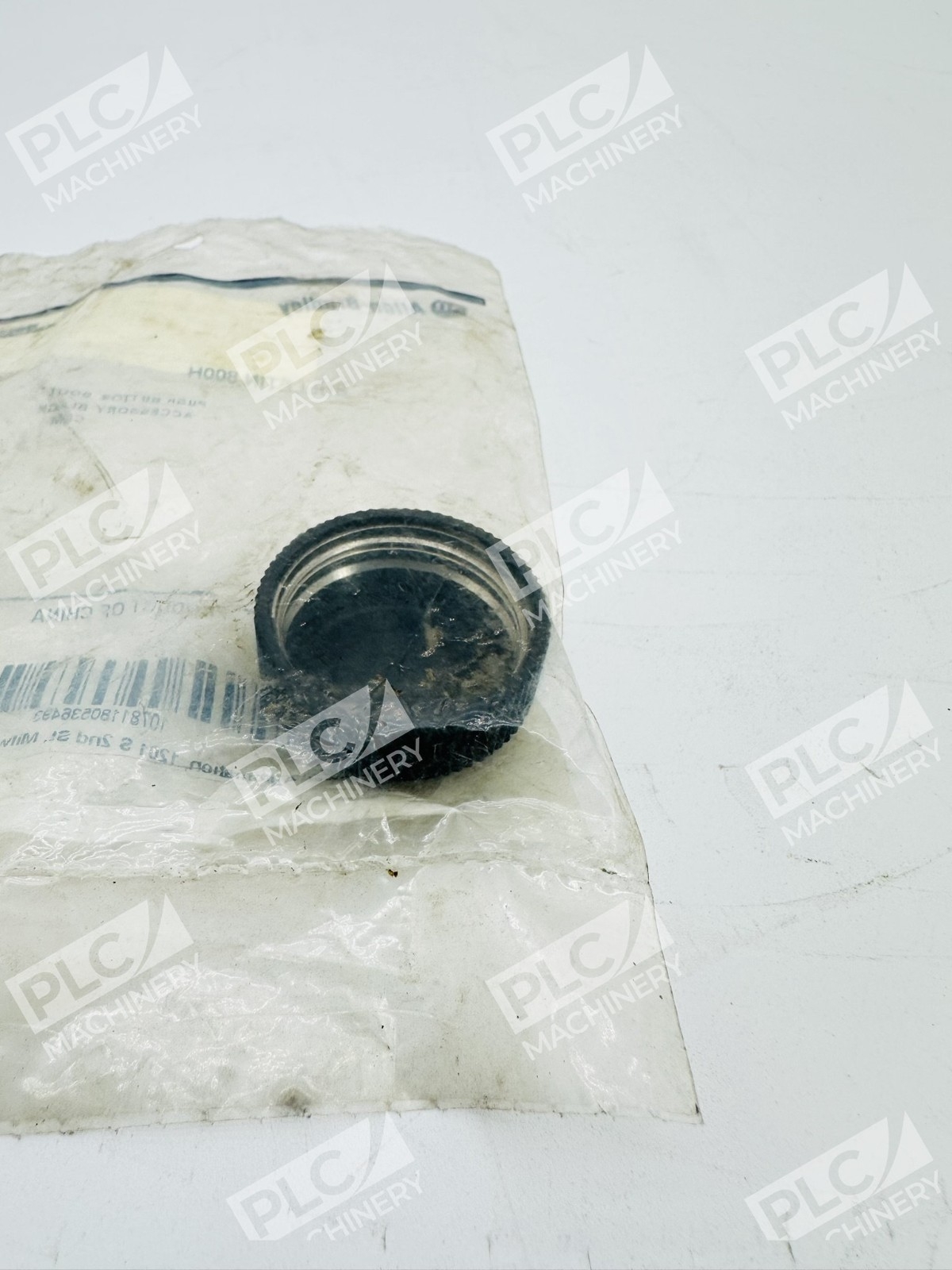

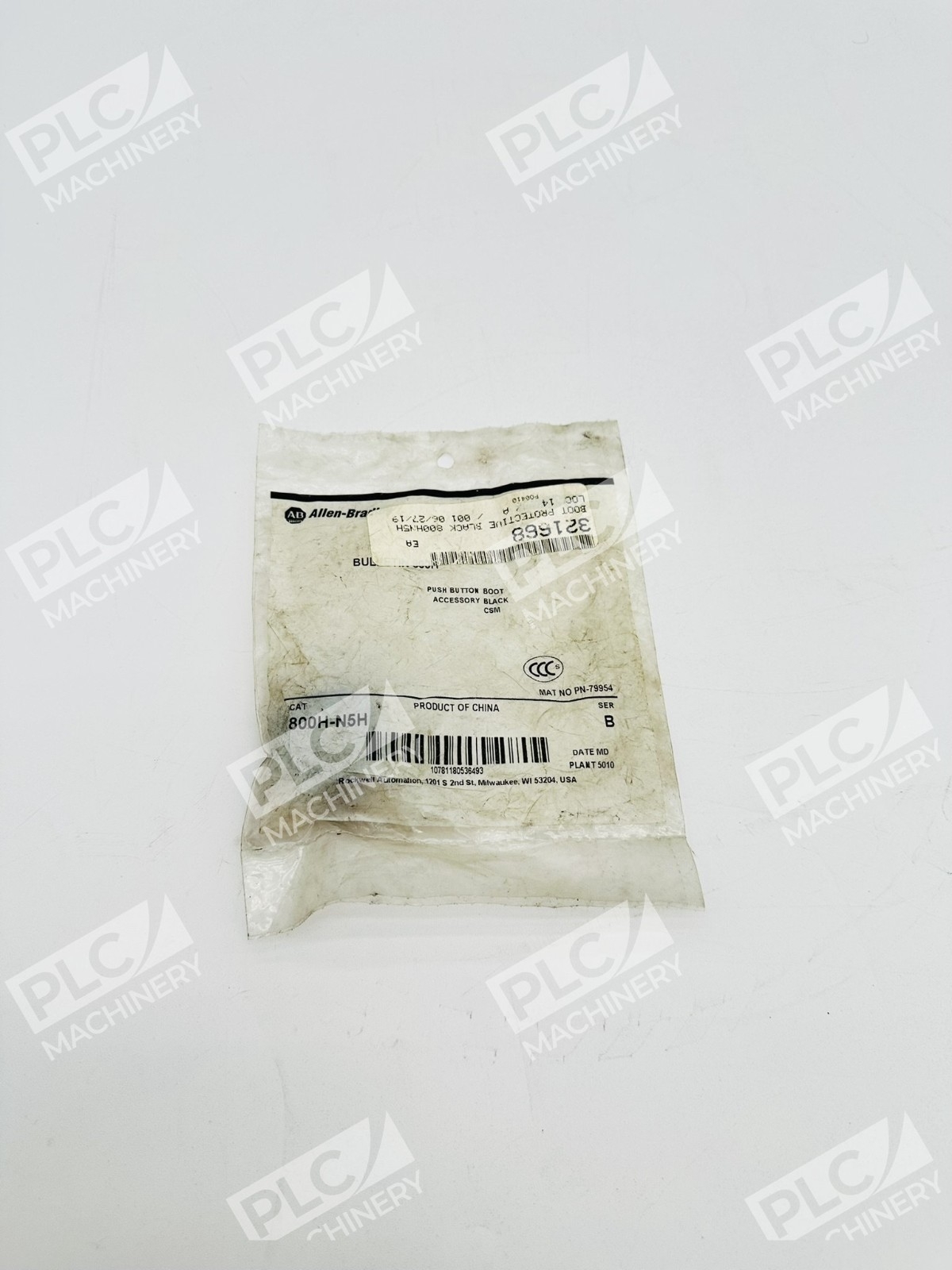

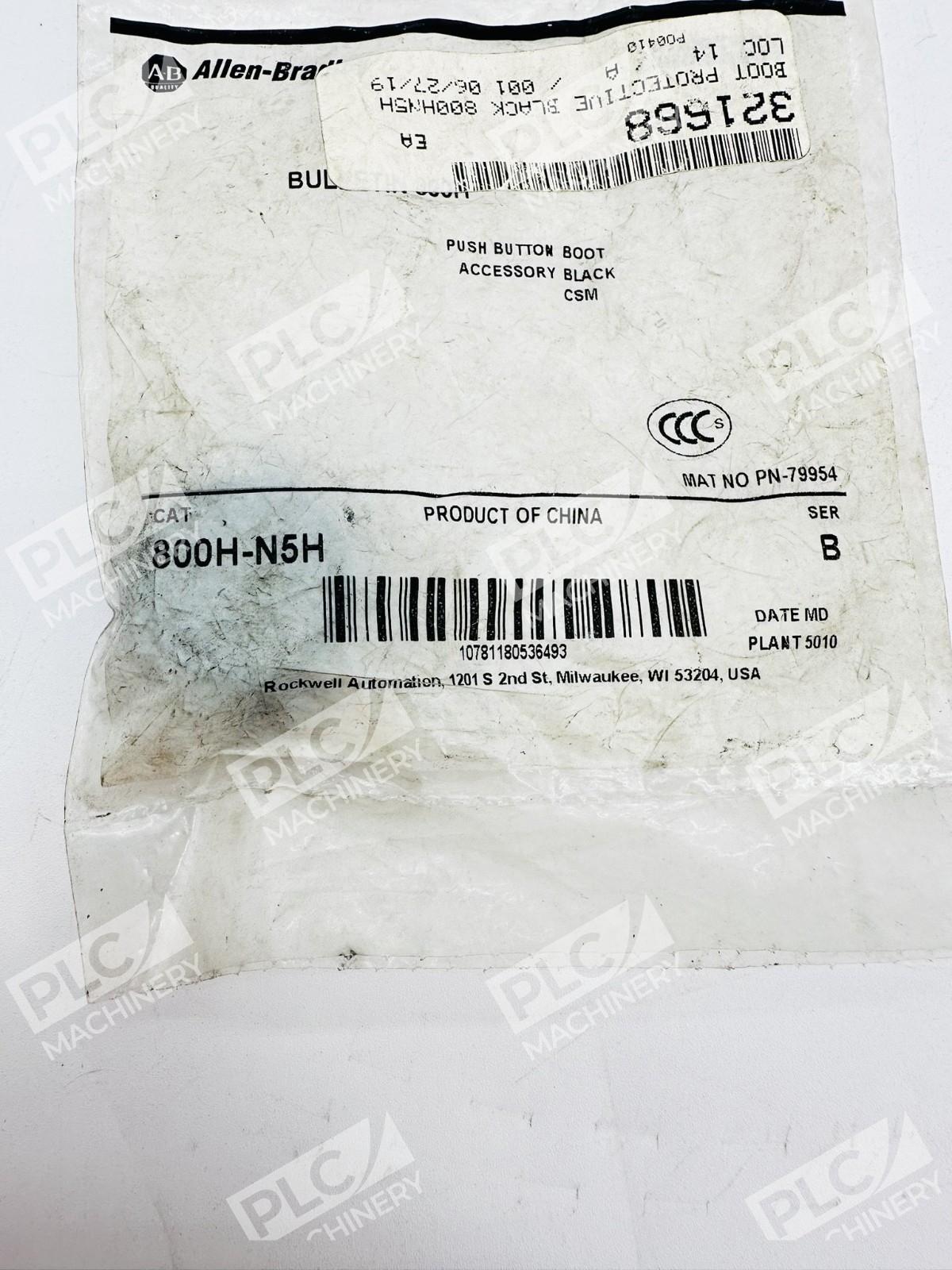

The Allen-Bradley 800H-N5H push button boot is a protective Hypalon accessory designed for non-illuminated 30mm push buttons in 800H control stations. This black polymer boot shields push button mechanisms from dust, moisture, and environmental contaminants, extending component life and ensuring reliable operation in harsh industrial environments.
Key Features
- Protective Hypalon material resists oils, chemicals, and environmental exposure
- Designed for non-illuminated 30mm push buttons in 800H series
- Black color for high visibility and standard industrial appearance
- Simple push-fit installation—no tools required
- Lightweight and compact form factor
- Meets KC certification standards for control station accessories
Technical Specifications
- Material: Polyethylene/Hypalon composite
- Mounting Type: 30mm push button
- Button Type: Non-Illuminated
- Color: Black
- Shape: Round
- Series: 800H
- Brand: Allen-Bradley / Rockwell Automation
- UPC: 781180536496
- Certification: KC
Typical Applications
The 800H-N5H protective boot is ideal for:
- Industrial control stations in manufacturing and process automation
- Emergency stop and start/stop button protection
- Harsh factory environments with oil, coolant, or washdown exposure
- Machine tool control panels and press stations
- Electrical enclosures requiring weather resistance
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H series push buttons (non-illuminated 30mm models)
- Rockwell Automation control stations
- Industrial control panels and operator interface systems
- Standard 30mm push button mounting holes
Replaces / Drop-In Replacement For
- 800H-N5H Series A (interchangeable)
- Previous generation 800H protective boots (verify color and size)
- Direct replacement for any discontinued 800H-N5H inventory
Works With
- Allen-Bradley 800H push button switches
- Standard 30mm push button enclosures
- Industrial control networking and HMI systems (boot is passive accessory)
- Both AC and DC control circuits (passive protection only)
