Overview

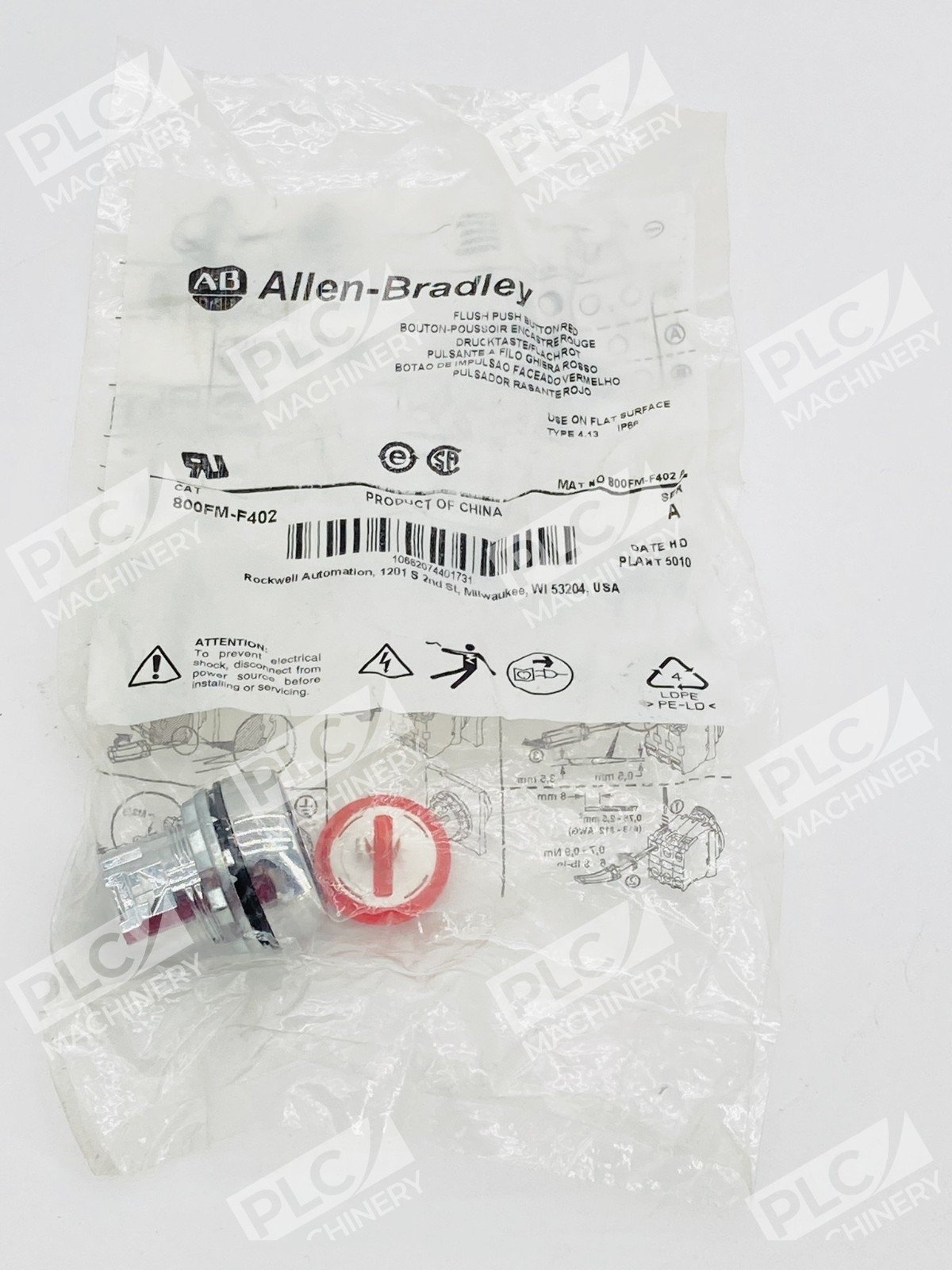

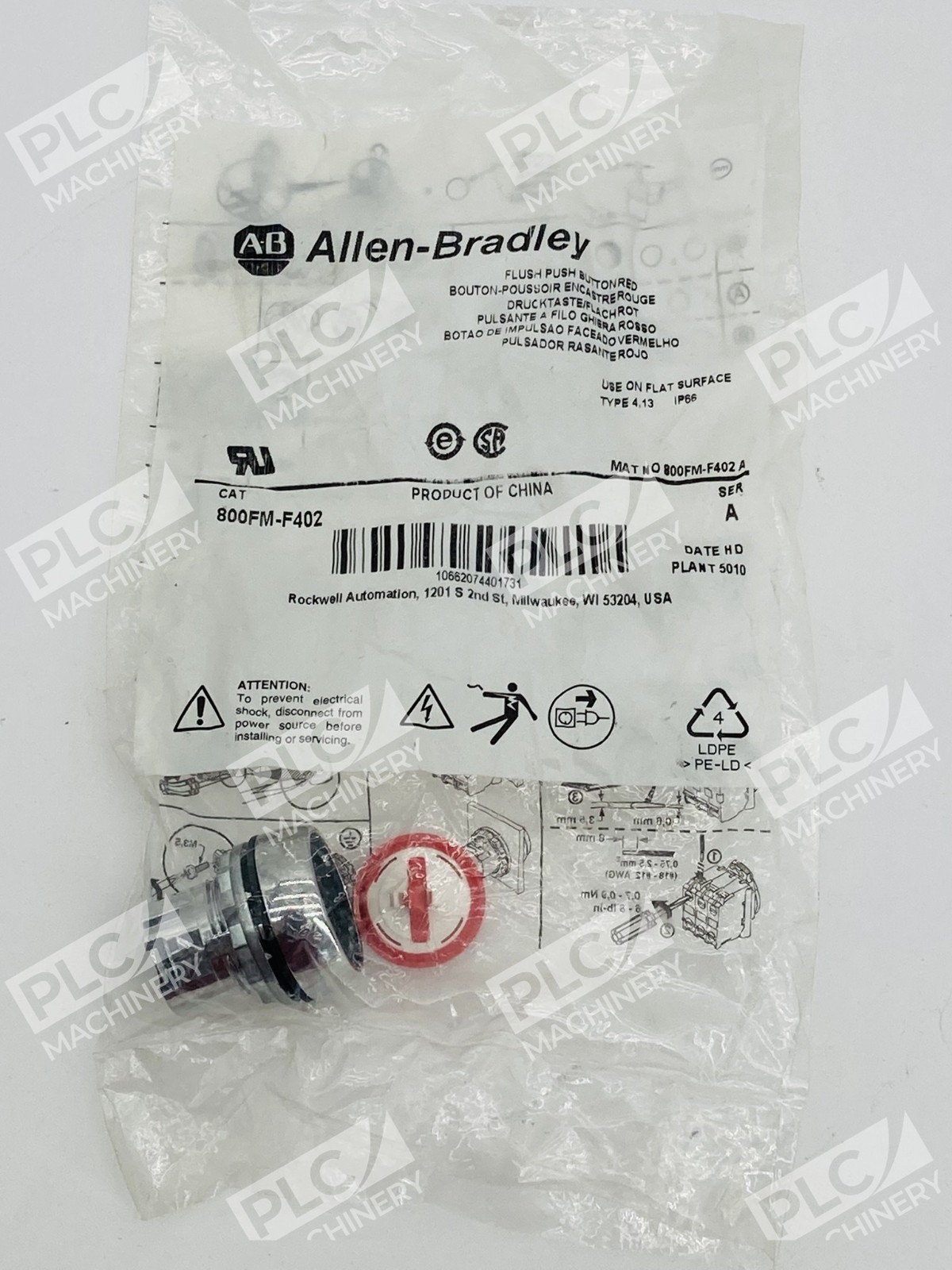

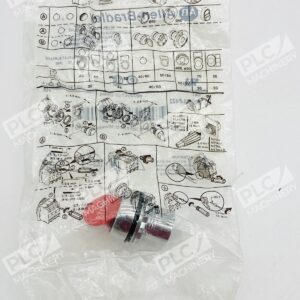

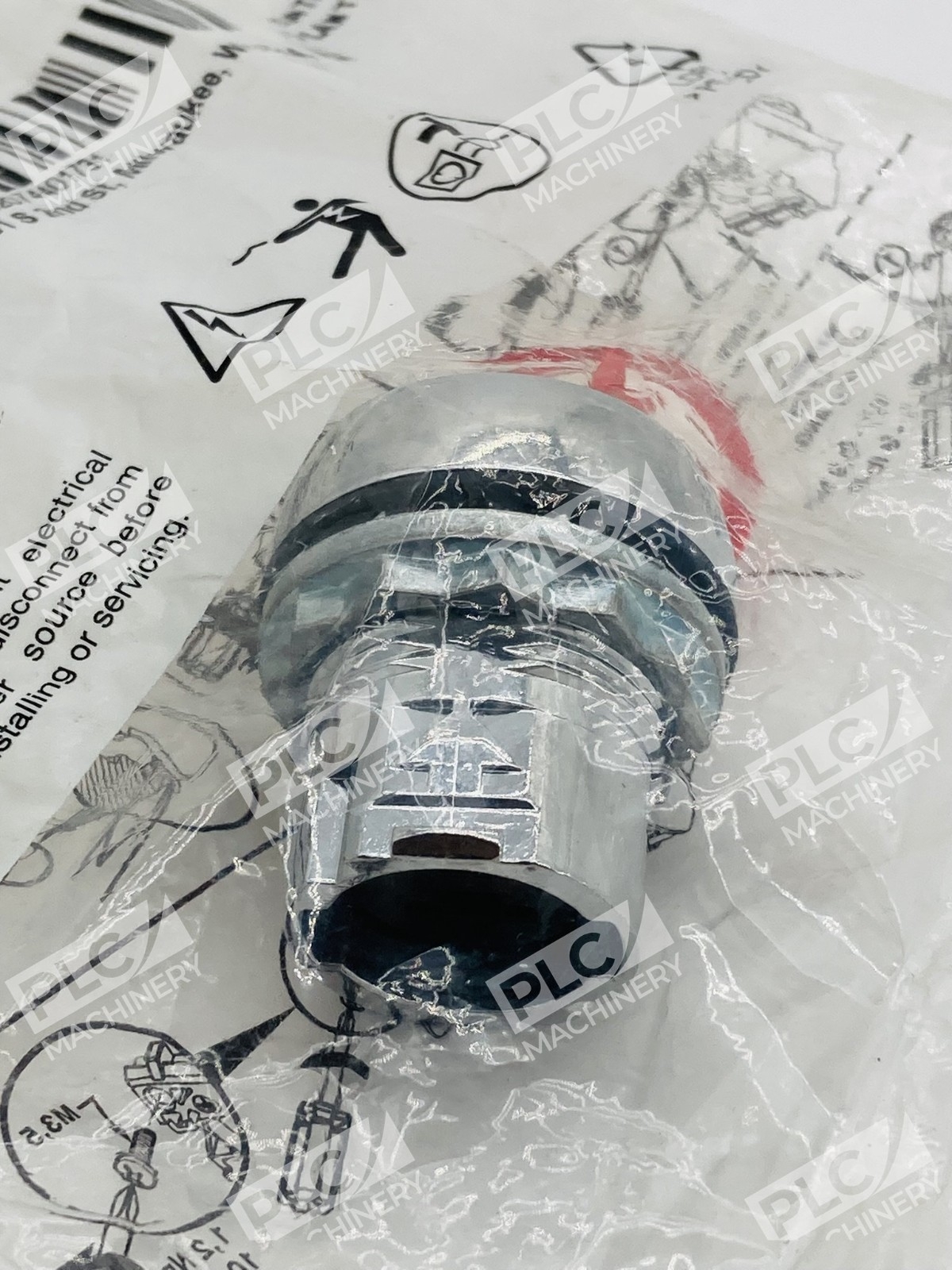

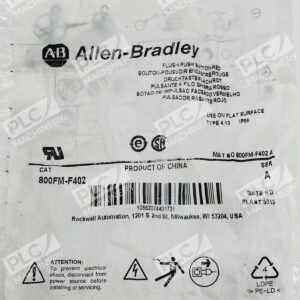

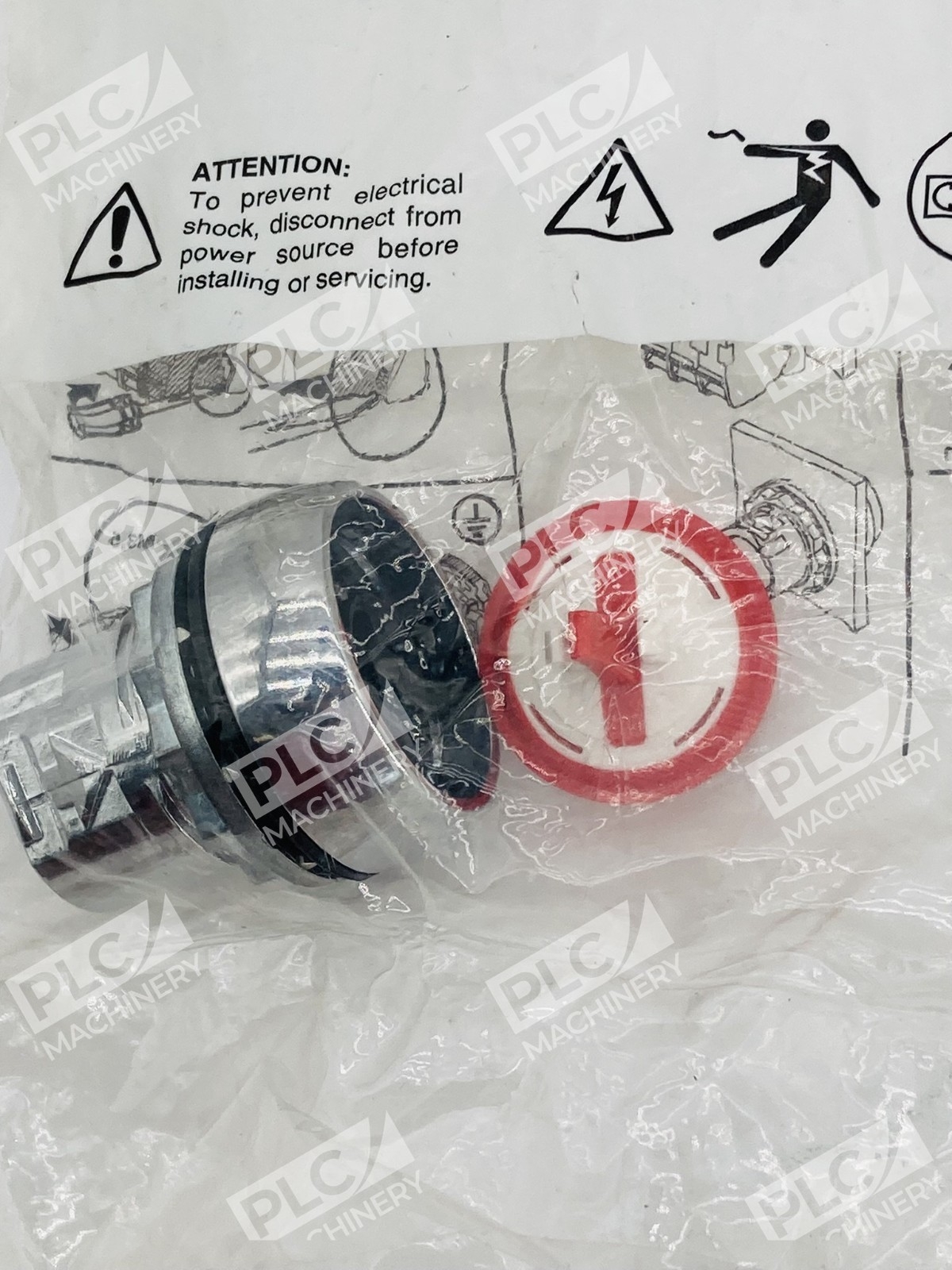

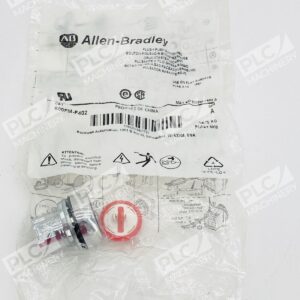

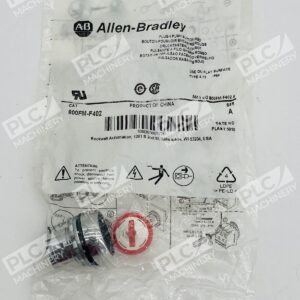

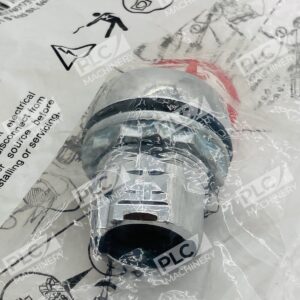

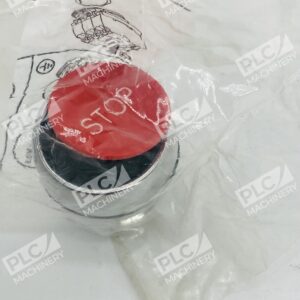

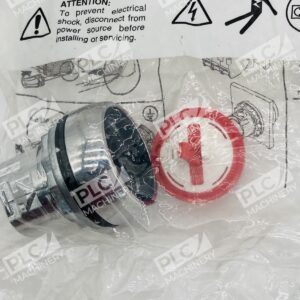

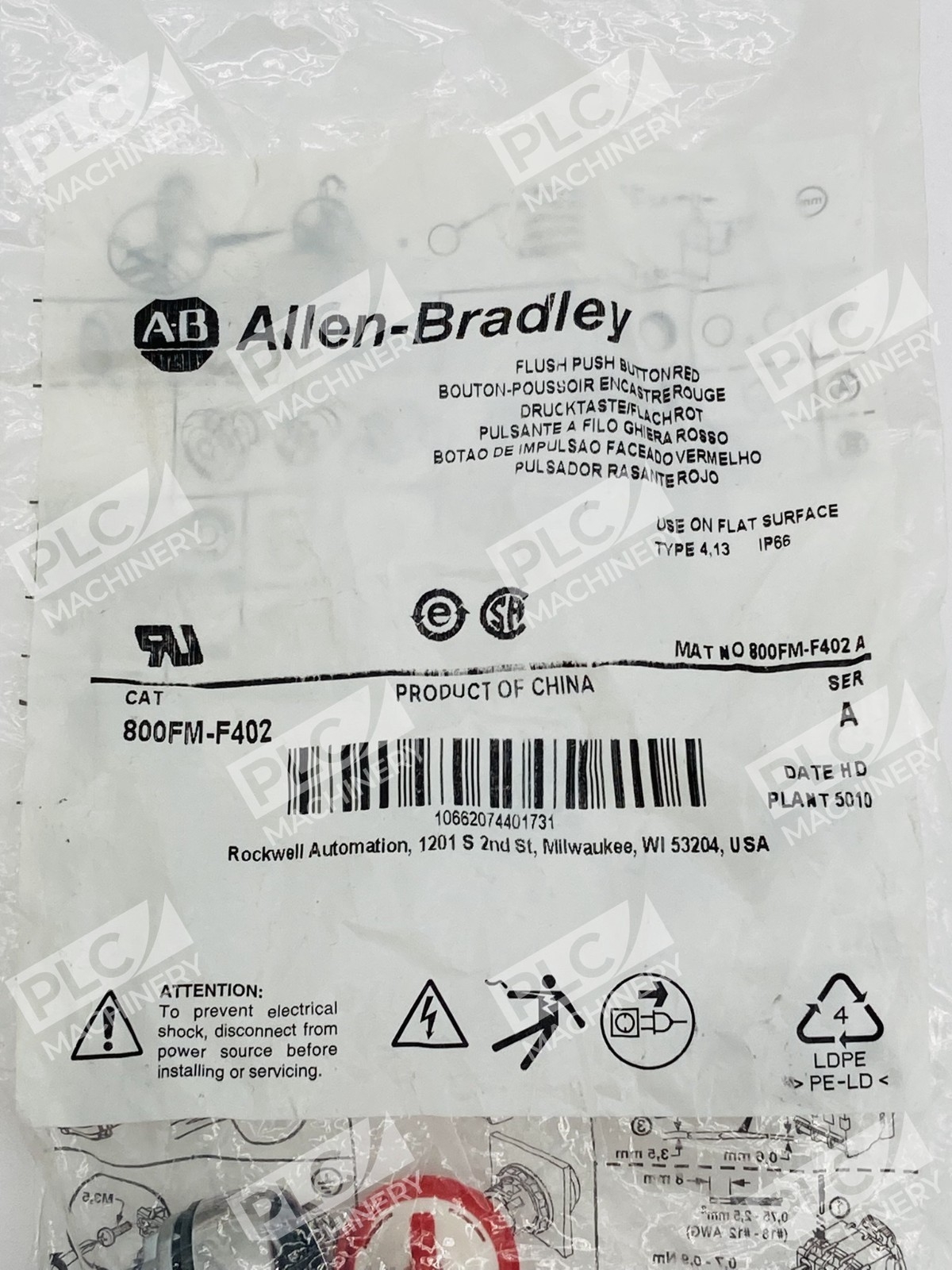

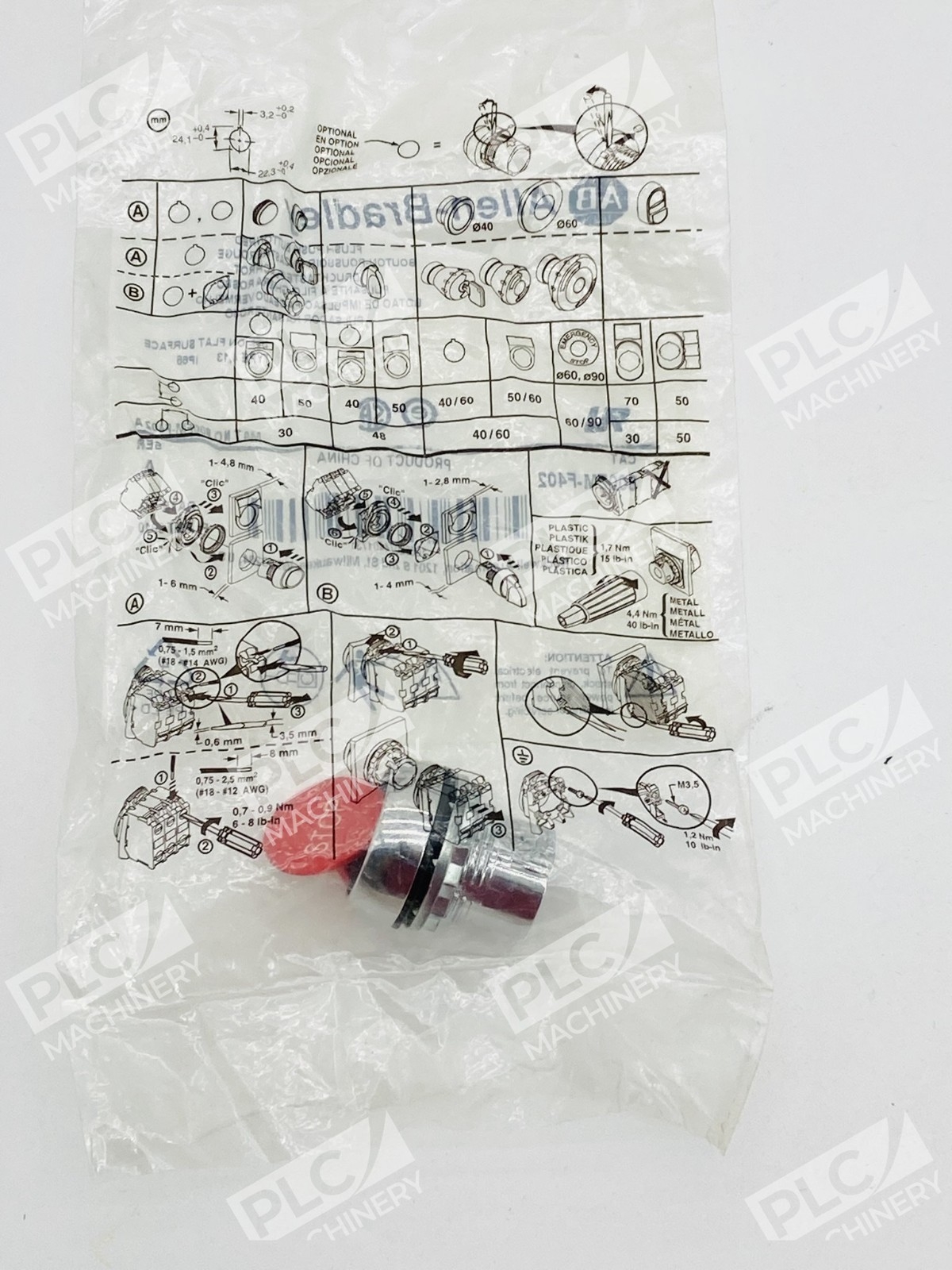

The Allen-Bradley 800FM-F402 is a 22mm momentary push button operator from the industry-standard 800F series. This flush-mount pushbutton delivers reliable switching for industrial control panels, machinery interfaces, and automation equipment. The red color is widely recognized for start/stop and control functions across manufacturing environments.
Key Features
- 22mm diameter — compact, standard-size pushbutton for operator panels
- Flush design — recessed cap for a streamlined, protected appearance
- Momentary action — spring-return operation for safe, temporary signal activation
- Red color — high-visibility operator indication for control/stop functions
- Lot of 6 units — new in box condition for immediate deployment or stock
- Allen-Bradley 800F series heritage — proven durability in global industrial applications
Technical Specifications
- Product Line: 800F Series (22mm Push Buttons)
- Part Number: 800FM-F402
- Operator Style: Momentary, Flush, Non-Illuminated
- Color Cap: Red
- Body Diameter: 22mm
- Mounting: Panel mount, standard 22.5mm hole cutout
- Contact Blocks: Sold separately; compatible with standard 800F contact modules
- Electrical Ratings: Dependent on selected contact block configuration
- IP Rating: IP66 (when properly gasketed in enclosure)
- Operating Temperature Range: -25°C to +70°C
- Mechanical Life: 10,000,000 cycles (standard for 800F series)
- Condition: New in Box (Series A)
- Quantity: 6 units
Typical Applications
- Machinery start/stop control panels
- Emergency stop (E-stop) button assemblies
- Process automation operator interfaces
- Manual control stations for pumps, motors, and compressors
- Manufacturing production line push-button stations
- Replacement pushbuttons in existing 800F-based control enclosures
Compatibility & Replacements
Compatible With
- Allen-Bradley 800F contact block modules (800F-N, 800F-K, 800F-D series)
- Standard 22mm pushbutton enclosures and control panels
- Industrial automation systems using modular pushbutton architecture
- Manual control stations requiring momentary switching
- Allen-Bradley motor starters and control components
Replaces / Drop-In Replacement For
- Earlier generation Allen-Bradley 800F red flush push buttons
- Generic 22mm red momentary pushbutton operators with equivalent footprint
- Verify exact replacement compatibility with your system integrator or control drawing before ordering
Works With
- Allen-Bradley ControlLogix, CompactLogix, and Micro-series PLCs (when wired to appropriate inputs)
- Siemens, Omron, Mitsubishi, and other industrial control systems via discrete I/O inputs
- Standard 24 VDC or 120 VAC control circuits
- Enclosure-based motor starter circuits and control relay logic
- Any system requiring basic momentary pushbutton signal input
