Overview

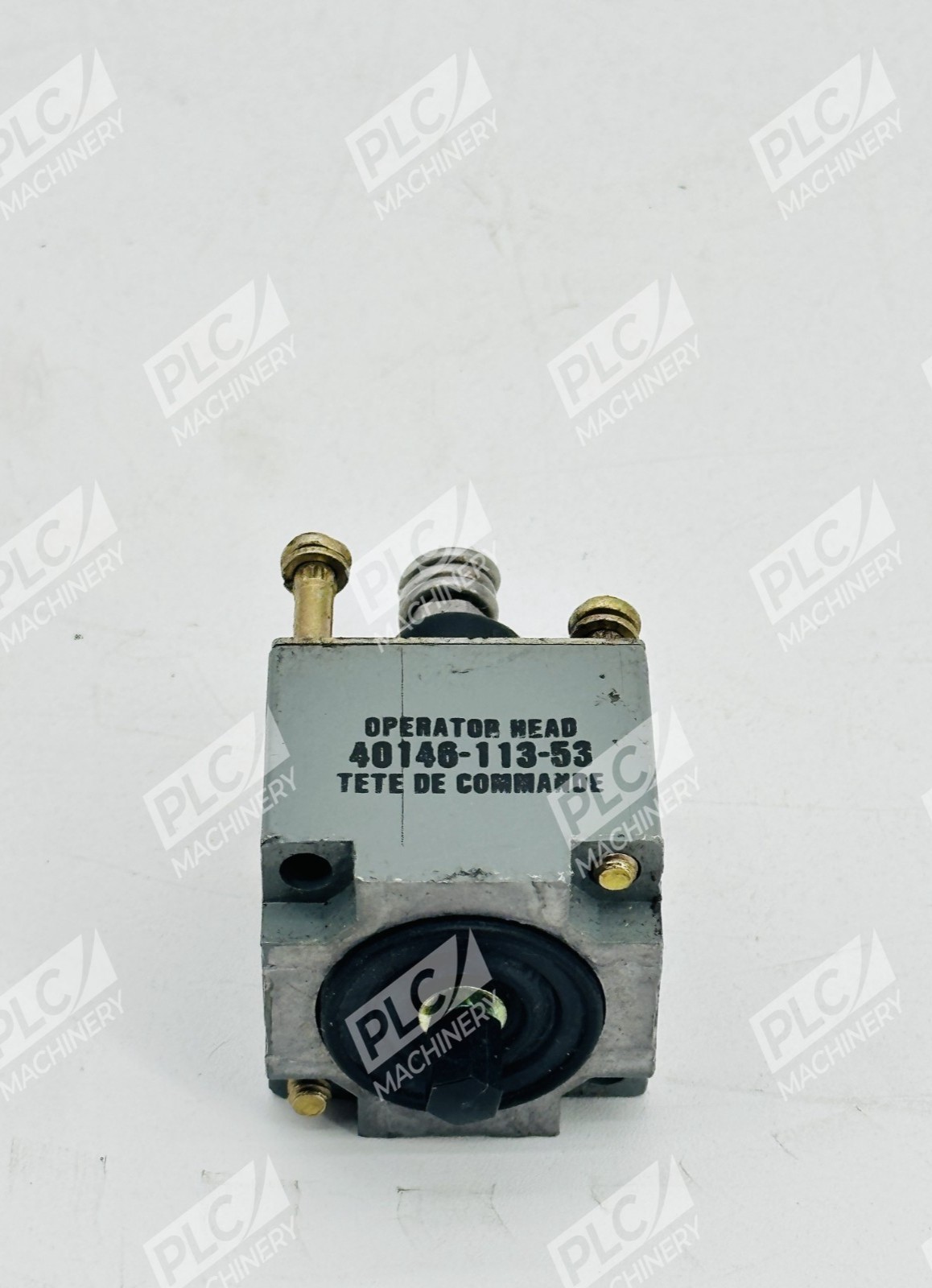

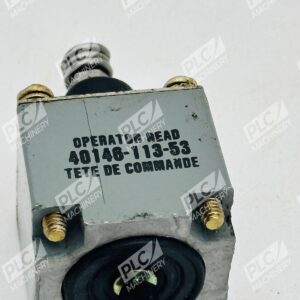

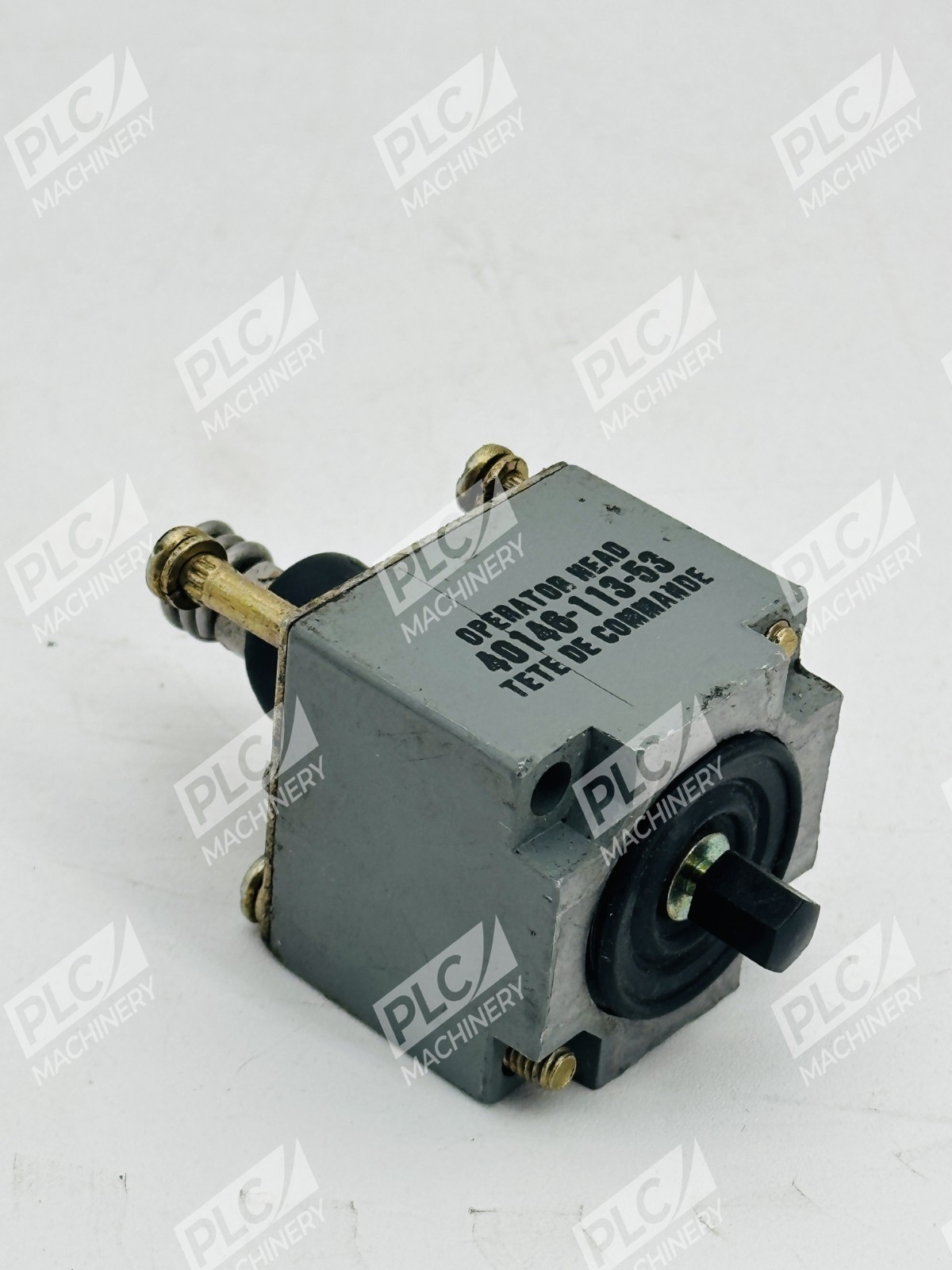

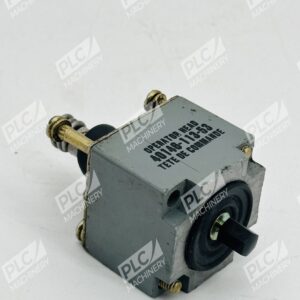

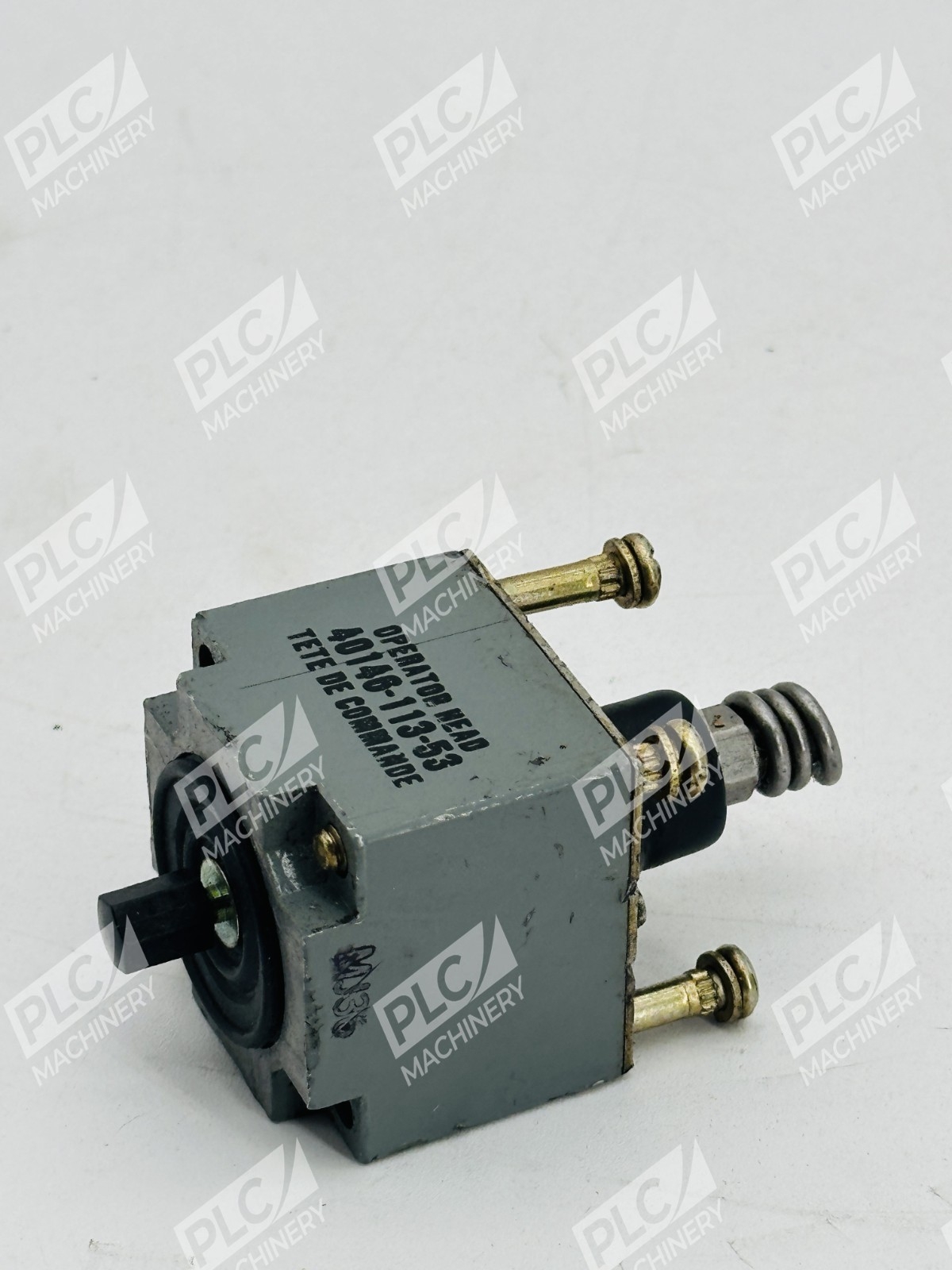

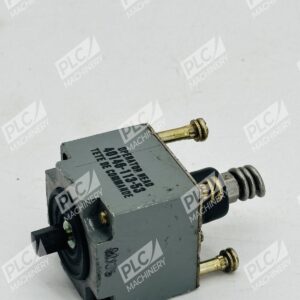

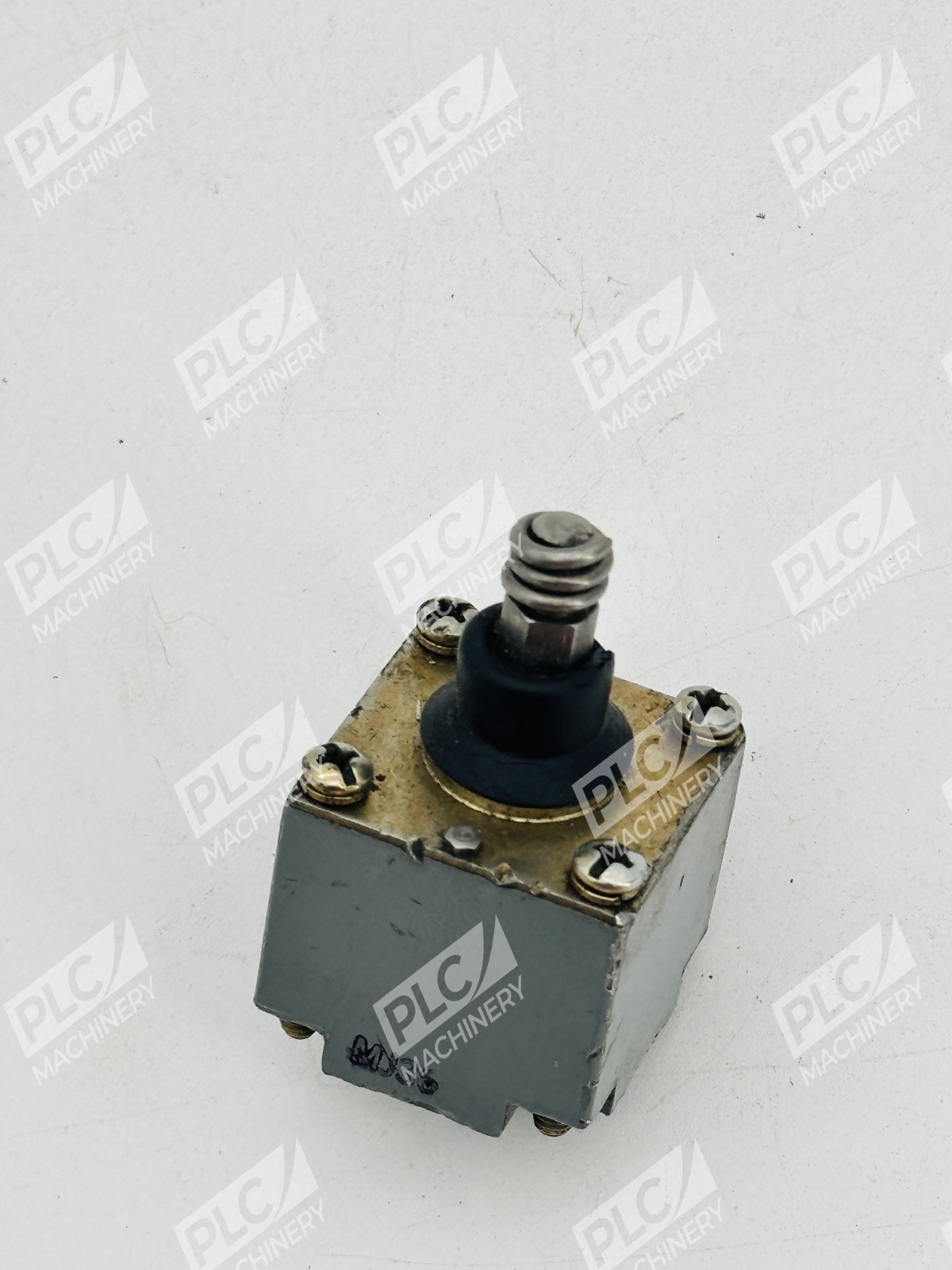

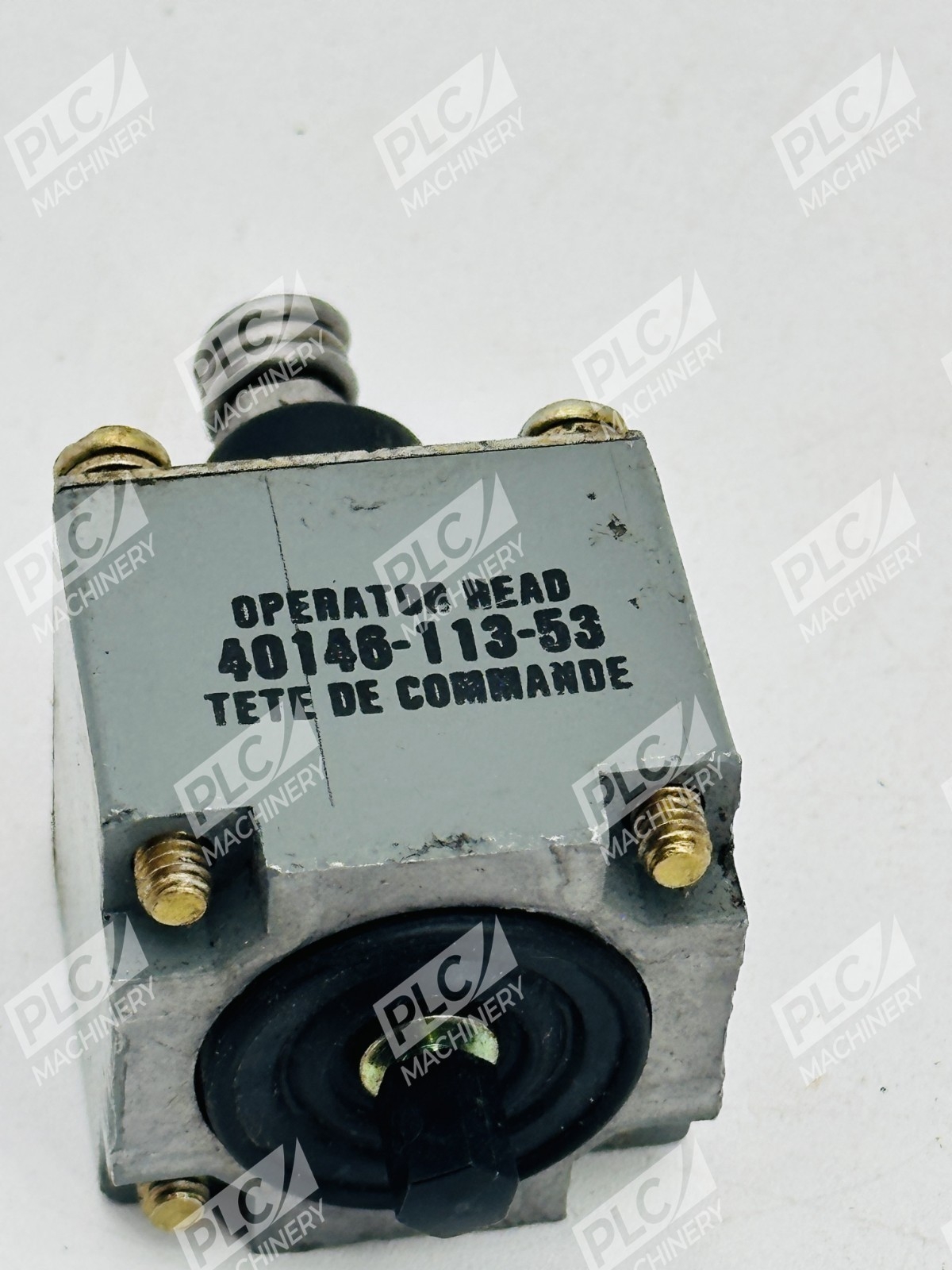

The Allen-Bradley 40146-113-53 is a replacement operator head for the 802T series limit switch platform. This wobble stick operator head provides mechanical actuation for position sensing and limit switching applications in industrial equipment. Built to Allen-Bradley/Rockwell Automation standards, this component delivers consistent performance in demanding manufacturing and machine control environments.
Key Features
- Wobble stick actuator design for smooth, reliable actuation
- Durable nylon construction provides chemical and impact resistance
- Temperature range: -18 to 110 degrees Celsius
- Contact rating -18+110 (0+230) for industrial electrical specifications
- Conforms to KC standard for quality and safety
Technical Specifications
- Operator shaft diameter: 6.35mm (0.25″)
- Operator length: 138mm (5.44″)
- Weight: 159.0 grams
- Height: 2.2799 inches
- Actuator material: Nylon
- Operating temperature: -18 to 110 degrees Celsius
- Contact rating: -18+110°C (0+230°F)
- UPC: 662074161928
Typical Applications
- Machine safeguarding and position sensing
- Production line end-of-travel detection
- Conveyor system control and monitoring
- Industrial automation limit switching
- Equipment motion verification and lockout
Compatibility & Replacements
Compatible With
- 802T series limit switch assemblies
- 802T-KPS6 plug-in style limit switches
- 802T-KTPS6 plug-in style limit switches
- Rockwell Automation 802T platform
- Allen-Bradley industrial control systems
Replaces / Drop-In Replacement For
- Original Allen-Bradley 40146-113-53 operator heads
- 802T wobble stick operators with identical specifications
Works With
- 802T plug-in limit switch base units
- Allen-Bradley industrial panel mount systems
- Standard industrial automation wiring and control circuits
- NEMA 4, 13, 6P and IP67 enclosures
