Overview

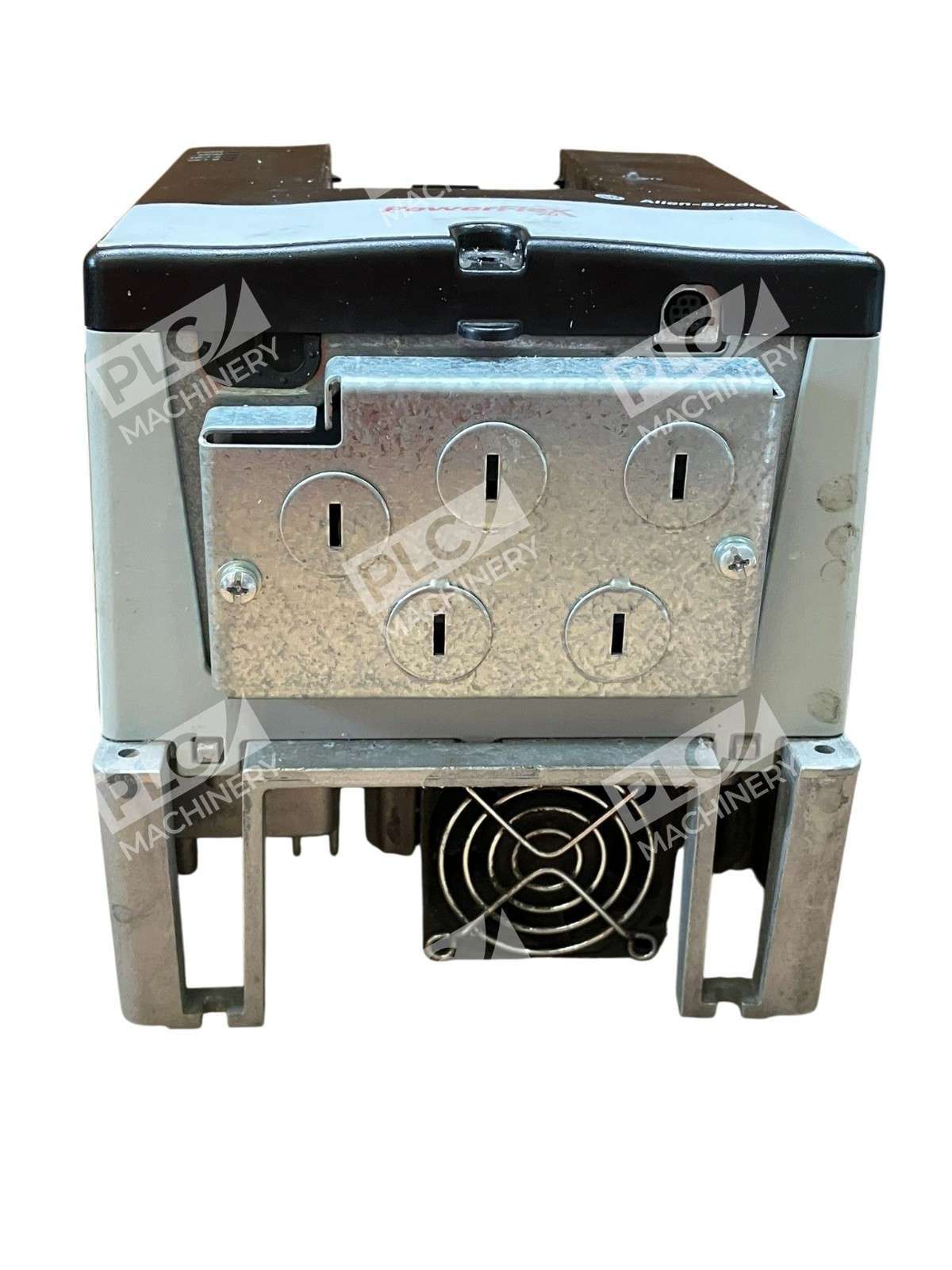

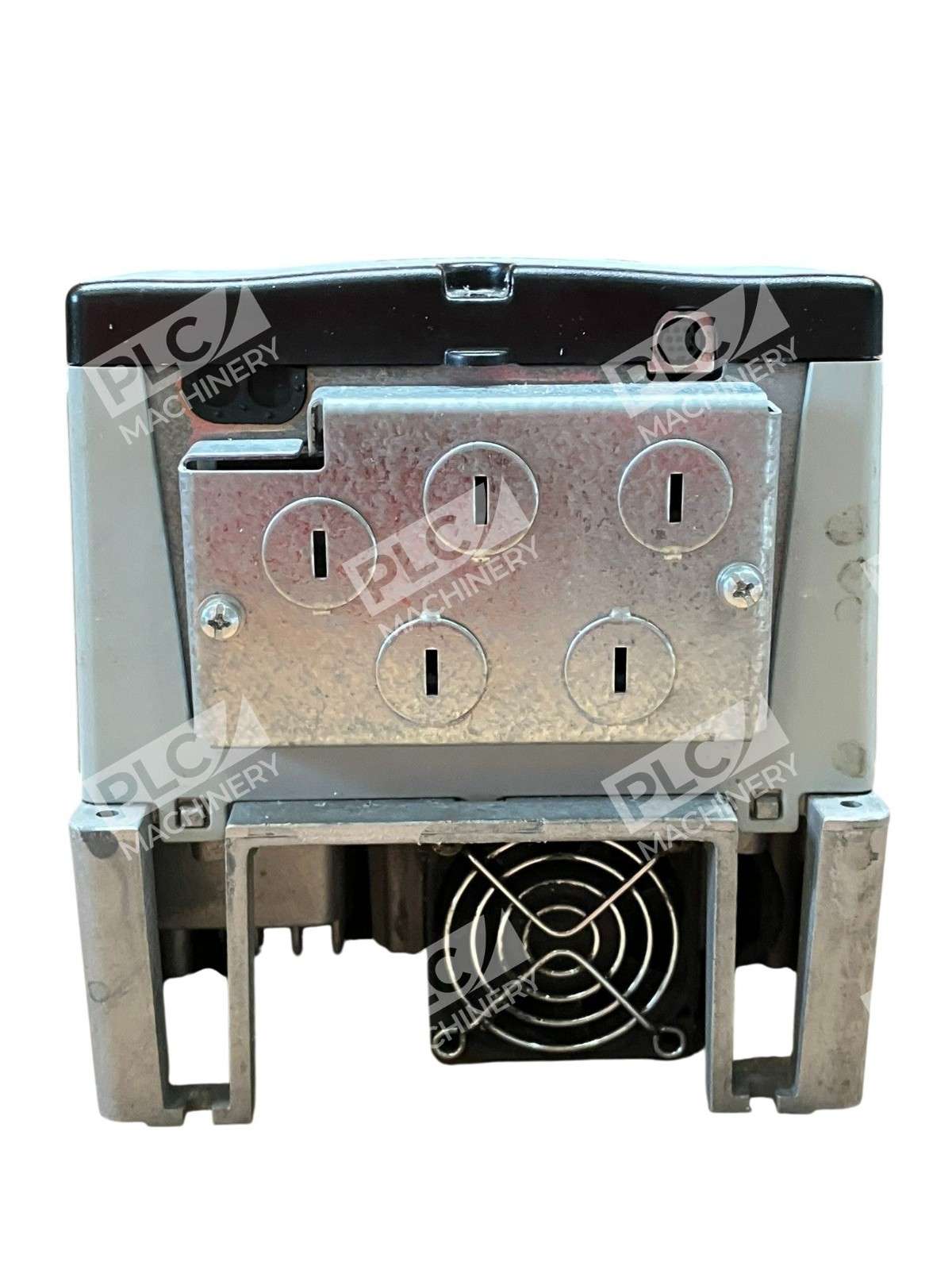

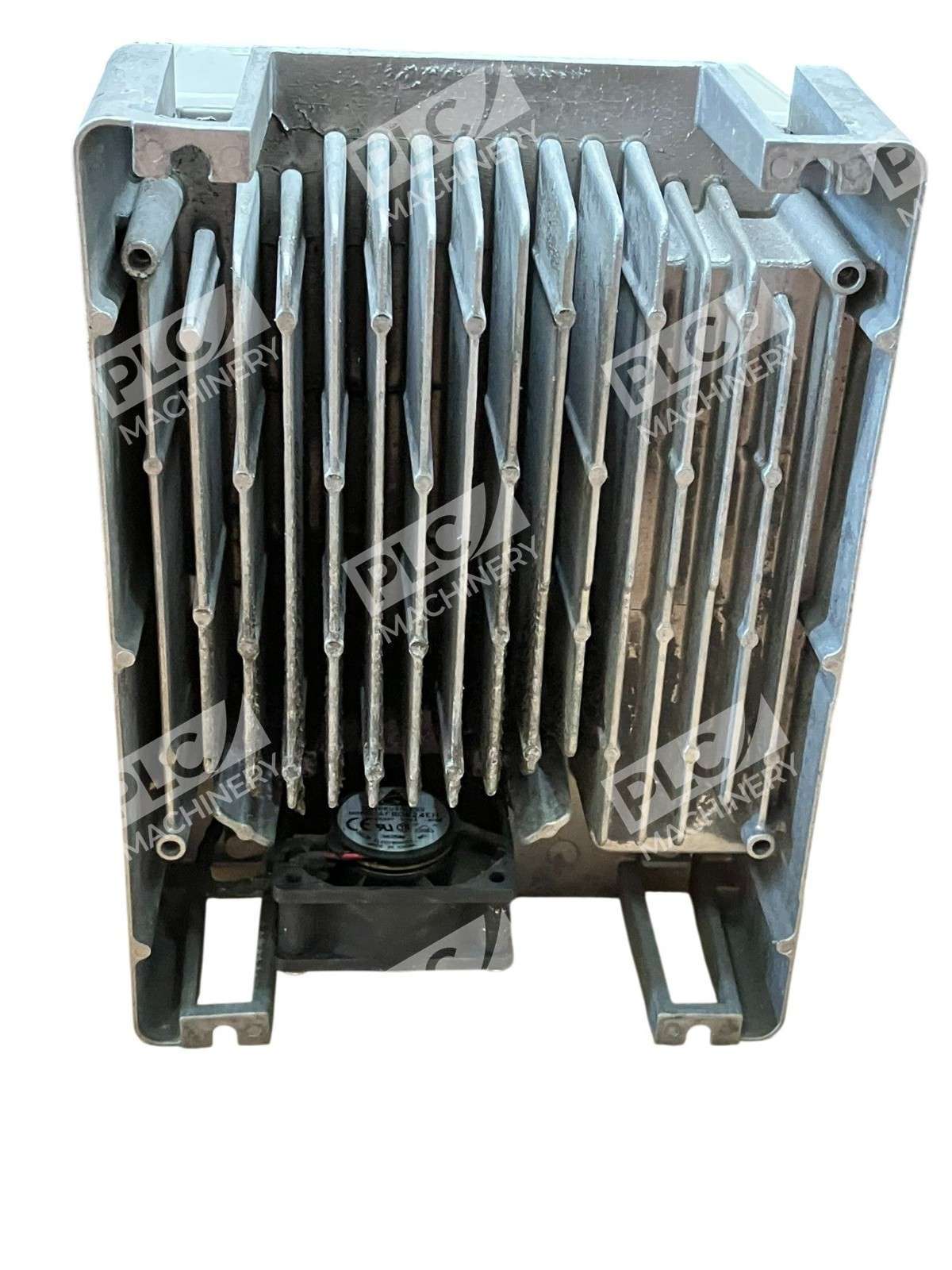

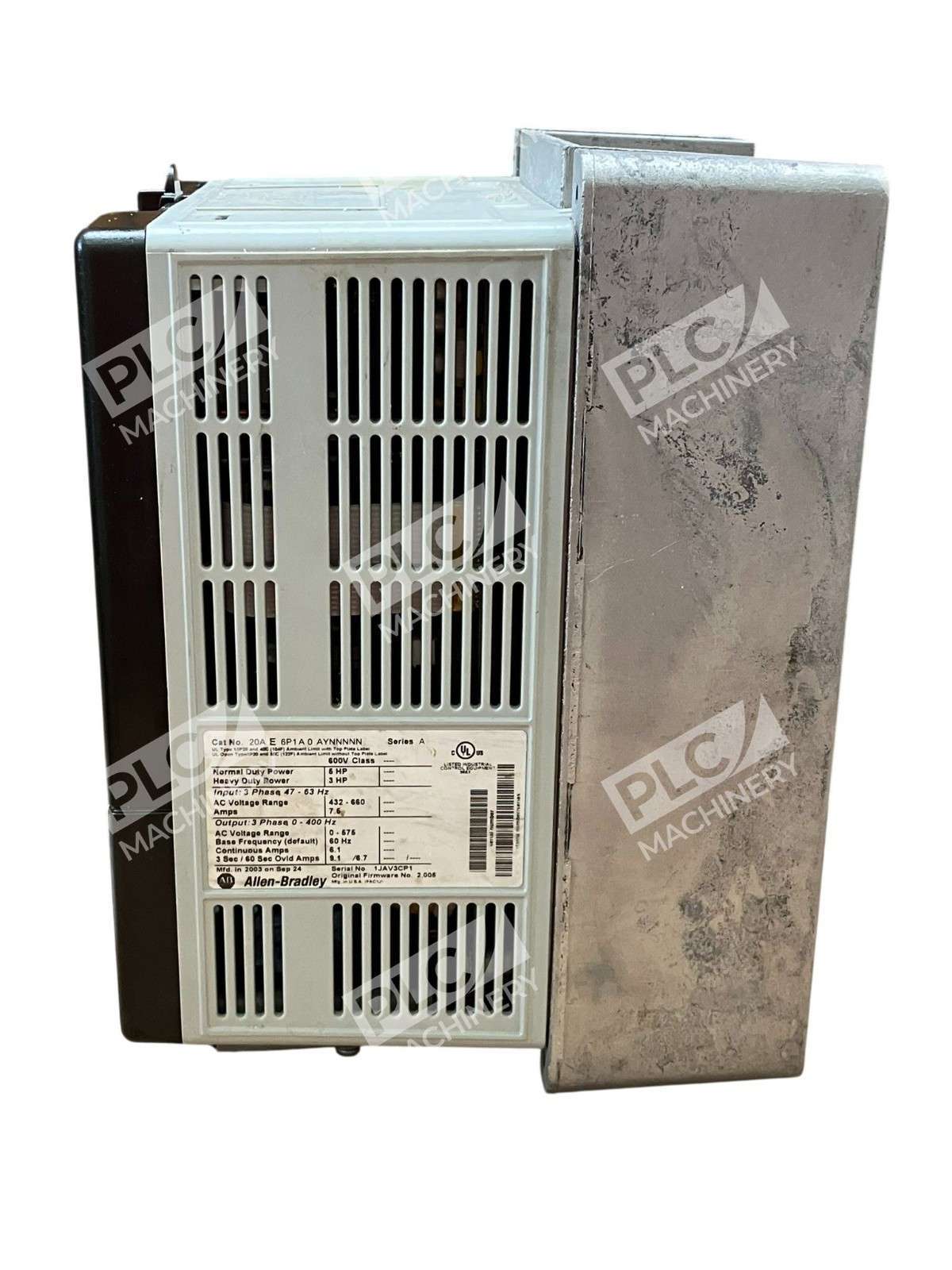

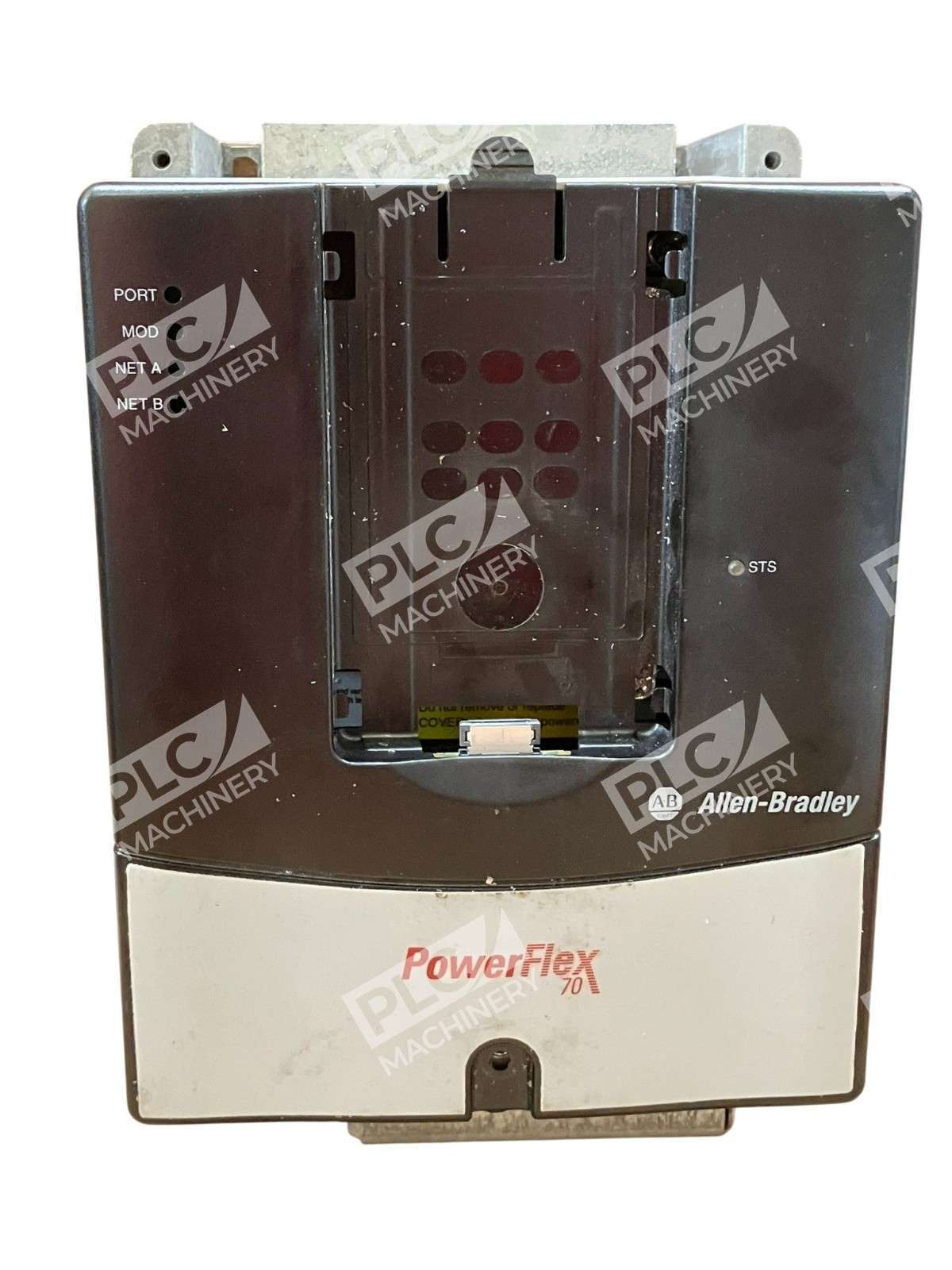

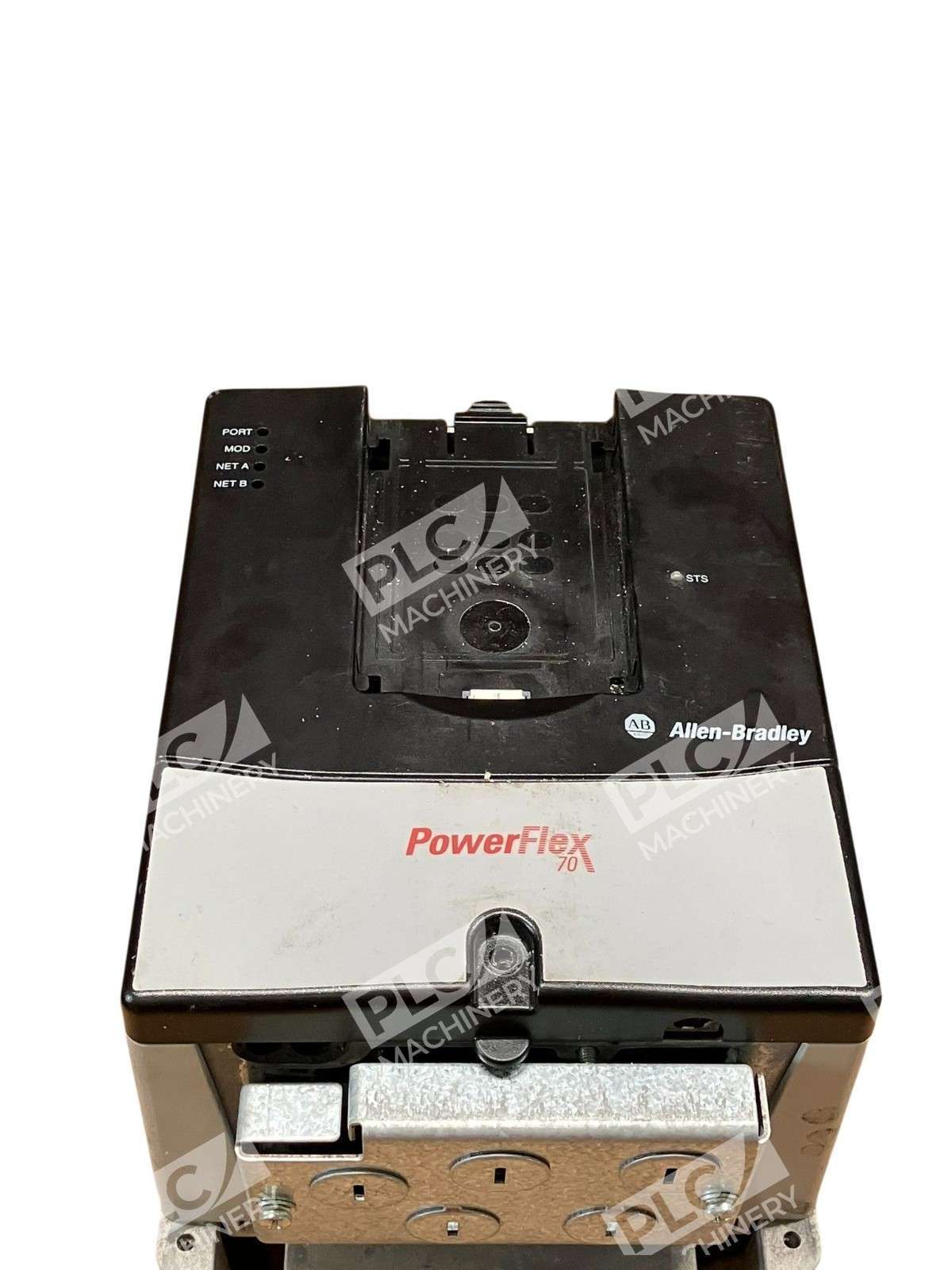

The Allen-Bradley 20AE6P1A0AYNNNNN PowerFlex 70 is a compact, field-proven adjustable frequency AC drive designed for general-purpose motor control in industrial automation. Rated at 5 HP for 600V class normal duty operation, this Frame A drive combines proven reliability with flexible control capabilities—from basic volts-per-Hertz to advanced vector control with FORCE Technology for applications requiring dynamic torque response.
Key Features
- Vector Control with FORCE Technology – Outstanding torque and speed regulation with or without encoder feedback
- Sensorless Vector Control – High torque across wide speed range; adapts to individual motor characteristics
- Fast Current Limit & Bus Voltage Regulation – Maximizes acceleration and deceleration without nuisance trips
- PI Control & Inertia Ride-Through – Eliminates need for separate process controller; tripless operation during brief power loss
- Slip Compensation – 0.5% open-loop speed regulation for precise applications
- Multiple Communication Modules – EtherNet/IP, DeviceNet, ControlNet, and serial protocols supported
Technical Specifications

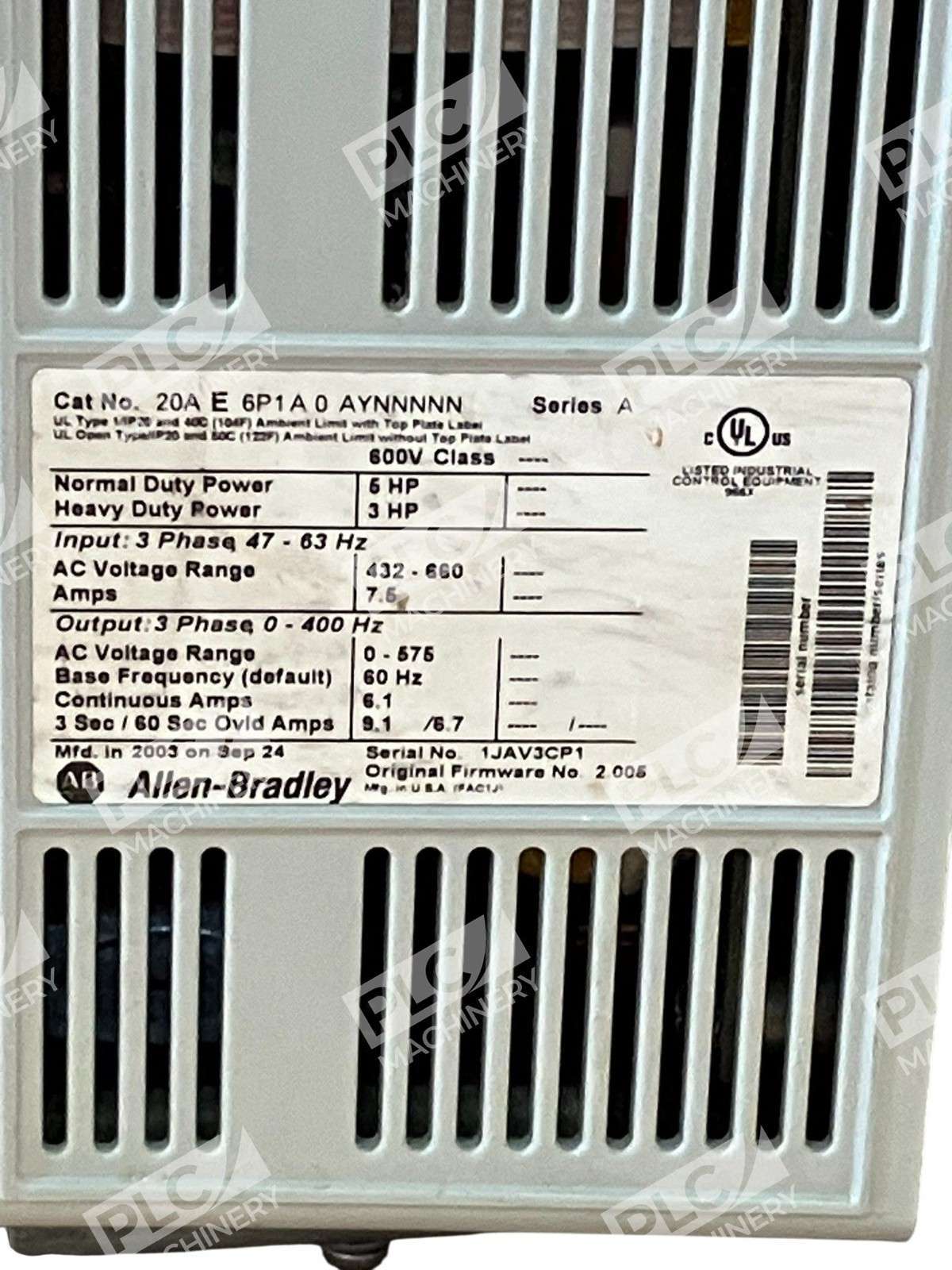

- Horsepower Rating (Normal Duty): 5 HP
- Horsepower Rating (Heavy Duty): 3 HP
- Input Voltage: 600V AC, 3-phase
- Output: Variable 0–600V, 0–400 Hz
- Frame Size: A (compact)
- Dimensions (Approximate): 10″ × 7″ × 7″
- Operating Temperature: 32–122°F (0–50°C) standard enclosure
- Control Methods: Volts/Hertz, Sensorless Vector, Vector Control with FORCE
- Programming Interface: LCD HIM or DriveExplorer/DriveTools software
- Enclosure Options: IP20 NEMA 1, IP66 NEMA 4X/12, flange-mount available
- Certifications: IEC 61800-9-2 IE2 energy efficiency (when marked)
- User Sets: Up to 3 complete parameter data sets for batch processes
- Series: PowerFlex 7-Class (20A product family)
Typical Applications
The PowerFlex 70 excels in demanding motor speed and torque control applications:
- Conveyors and material handling systems
- Centrifugal and positive displacement pumps
- Mixers, agitators, and batch processes
- Machine tool spindles and grinders
- HVAC systems and fan duty motors
- OEM equipment requiring precise motor regulation
Compatibility & Replacements
The 20AE6P1A0AYNNNNN is fully compatible with Rockwell Automation platforms and networks. Integration with CompactLogix and ControlLogix PLCs is straightforward via Studio 5000 or RSLogix 5000 software using EtherNet/IP or optional communication modules. Optional DPI adapters extend connectivity to DeviceNet, ControlNet, PROFIBUS, and RS-485 Modbus. When standard cable lengths are exceeded at 600V, a 1204-TFA1 Terminator is recommended for 5 HP and below (supports up to 121.9 m cable at 2 kHz PWM). For long motor leads or harsh EMI environments, the 1321-RWR reflected wave reduction device provides additional protection. Drive-to-drive communication via Ethernet enables peer control and unconnected messaging, reducing network traffic and simplifying system architecture.
