Overview

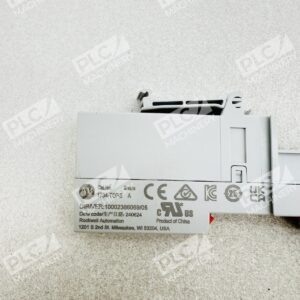

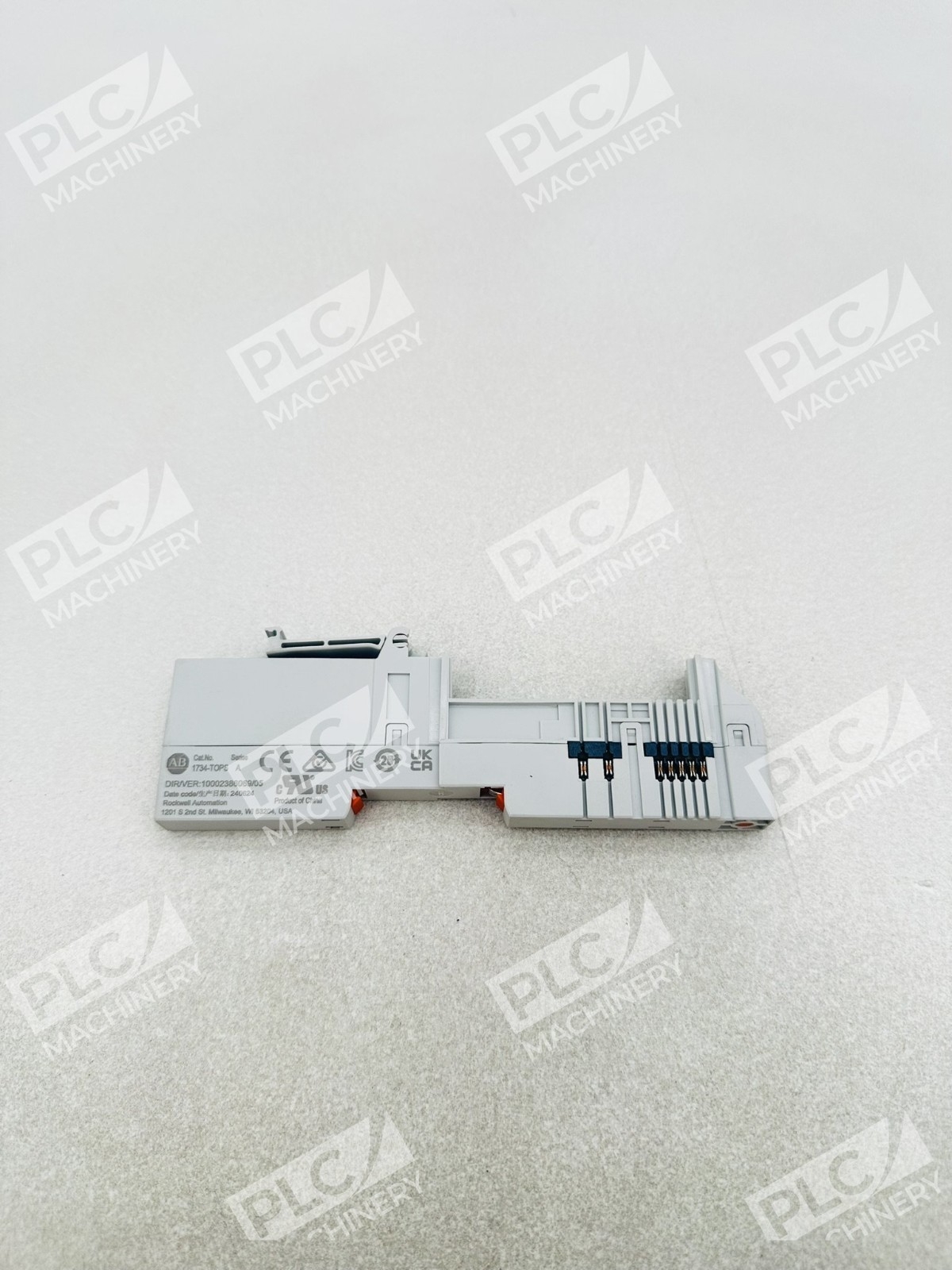

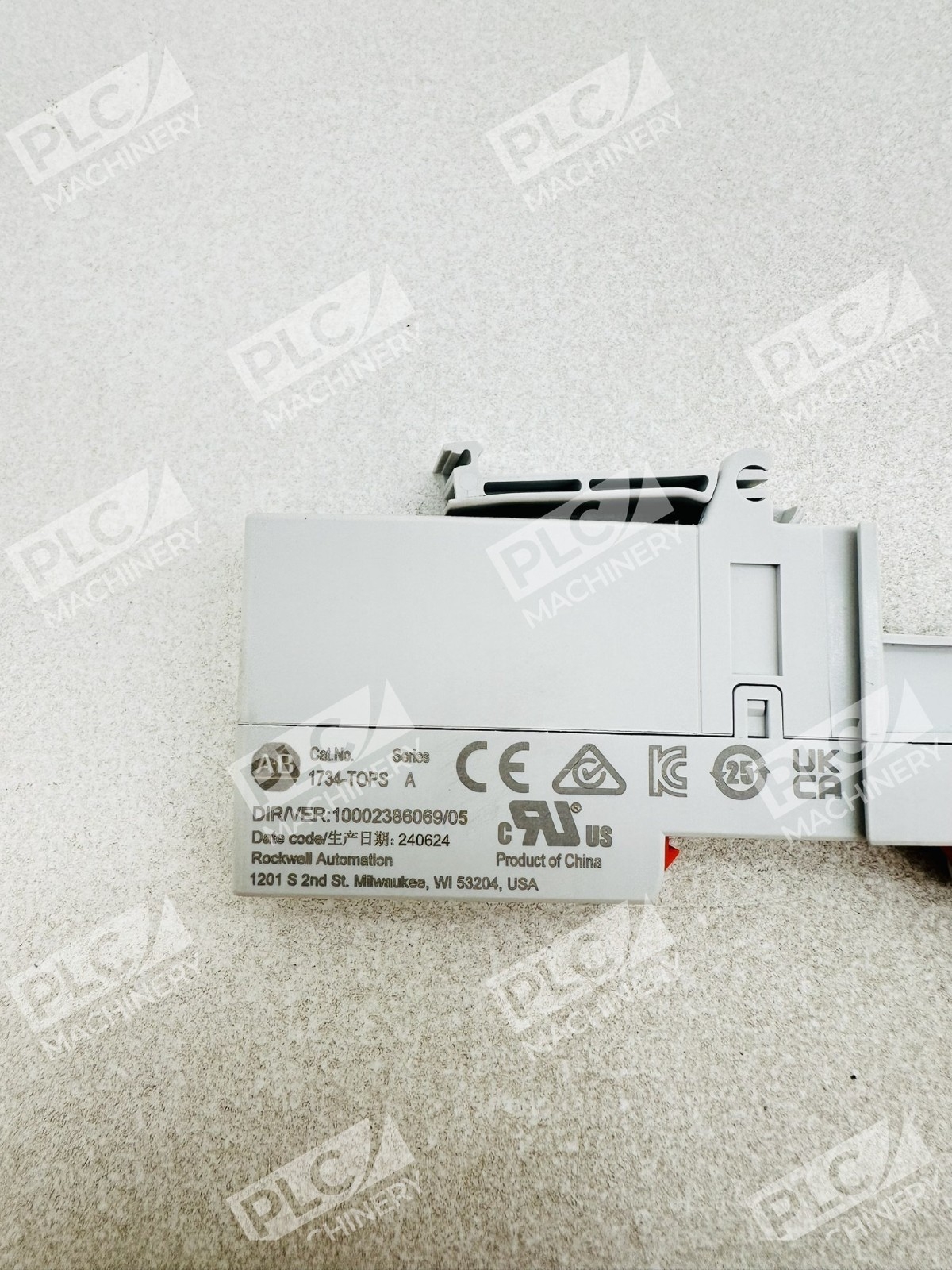

The Allen-Bradley 1734-TOPS is a one-piece Point I/O terminal base featuring integrated spring-clamp terminals for field-wire termination. It serves as both the mechanical mounting interface and electrical connection platform for Allen-Bradley POINT I/O modules on 15 mm DIN rails. This terminal base unit supports Removal and Insertion Under Power (RIUP), enabling module replacement while the system is in operation. The spring-clamp design (compared to screw terminals on the 1734-TOP variant) accelerates installation and reduces the risk of installation errors in high-density control cabinets.
Key Features
- Spring-clamp terminal design with compact dimensions of 49 x 12 x 168 mm (1.93 x 0.47 x 6.61 inches) and weight of 55.68 grams (1.96 ounces)
- Compatible with a wide range of POINT I/O modules including digital input/output, analog input/output, counters, and relay modules
- Mechanical keying features to prevent incorrect I/O module installation, with color-coded (orange) keying for visibility
- Backplane interface operates via PointBus, allowing easy communication within the system
- Auto Device Replacement (ADR) reduces downtime and improves system availability
Technical Specifications
- Rated for 300V supply with 8A maximum terminal current
- Accepts 22–14 AWG (0.25–2.5 mm²) wire sizes
- Operating temperature: –20°C to 55°C (–4°F to 131°F)
- Mounting: 15 mm DIN Rail with open-style enclosure
- Certifications: C-TICK, CCC, CE, CUL, GOST, KC, MARINE, UL
- Termination style: Spring clamp (8 positions)
- Product family: POINT I/O 1734 series
Typical Applications
The 1734-TOPS is essential for distributed control architectures and modular I/O systems in:
- In-cabinet field I/O distribution and wire termination
- Discrete and analog signal conditioning for control systems
- High-density DIN rail installations requiring space-efficient design
- Industrial facilities requiring hot-swappable module changes and uptime-critical operations
Compatibility & Replacements
Compatible With
- Allen-Bradley POINT I/O digital input/output modules
- POINT I/O analog input/output modules
- POINT I/O counter and specialty modules
- DIN rails conforming to EN 50022 standard
- PointBus backplane communication protocol
Replaces / Drop-In Replacement For
The 1734-TOPS directly replaces other 1734-TOPS units and serves as a spring-clamp alternative to the 1734-TOP (screw-clamp) terminal base for new installations or upgrades requiring spring-terminal convenience.
Works With
- Allen-Bradley Studio 5000 (Logix Designer) project configuration
- FactoryTalk View and other HMI platforms for POINT I/O systems
- EtherNet/IP network adapters with POINT I/O gateways
- CompactLogix and ControlLogix controllers managing POINT I/O networks
