Overview

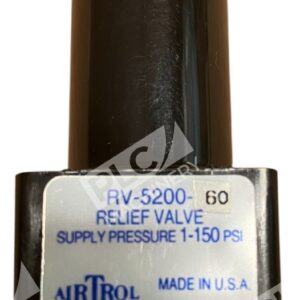

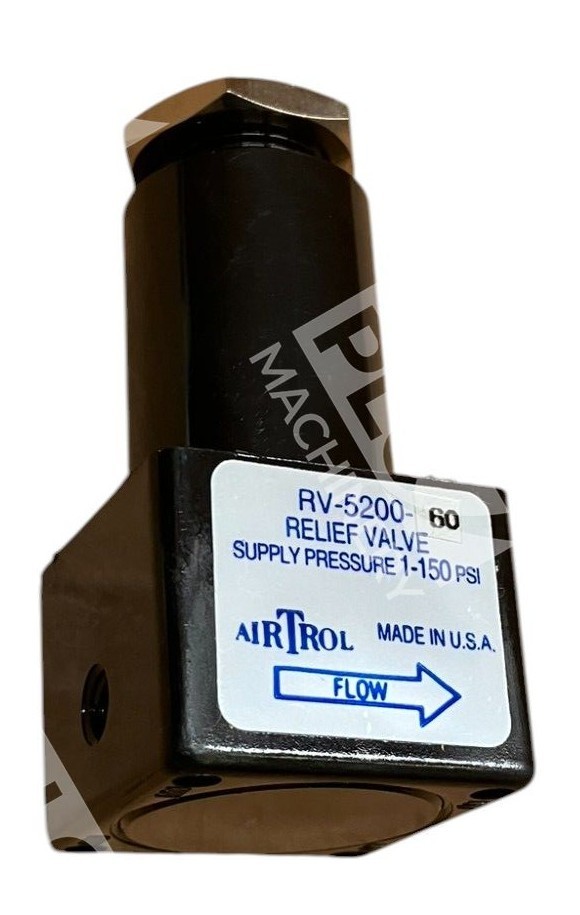

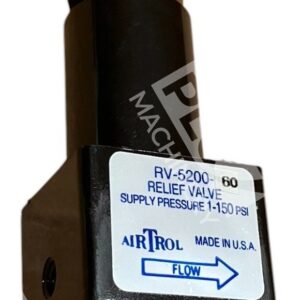

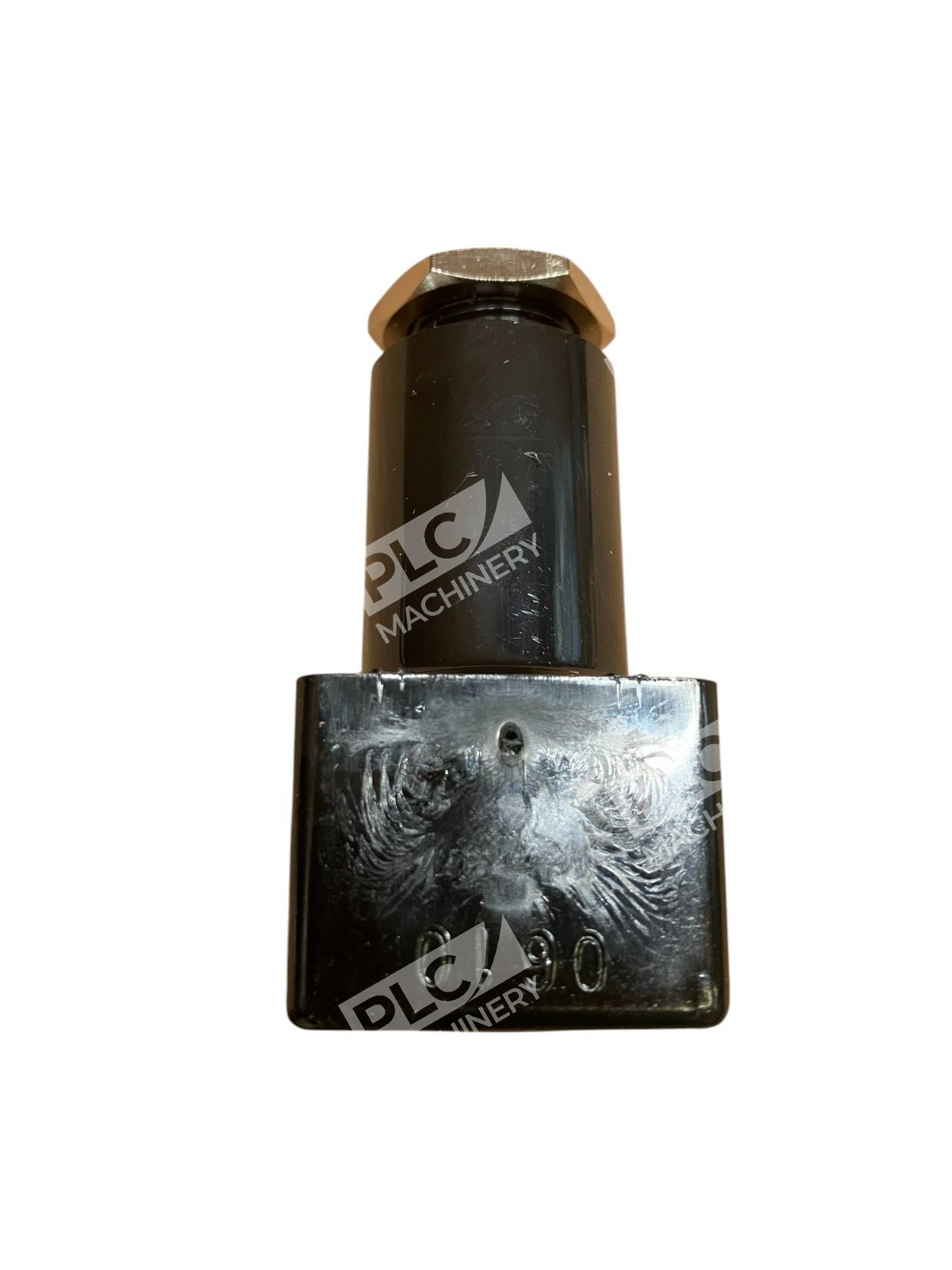

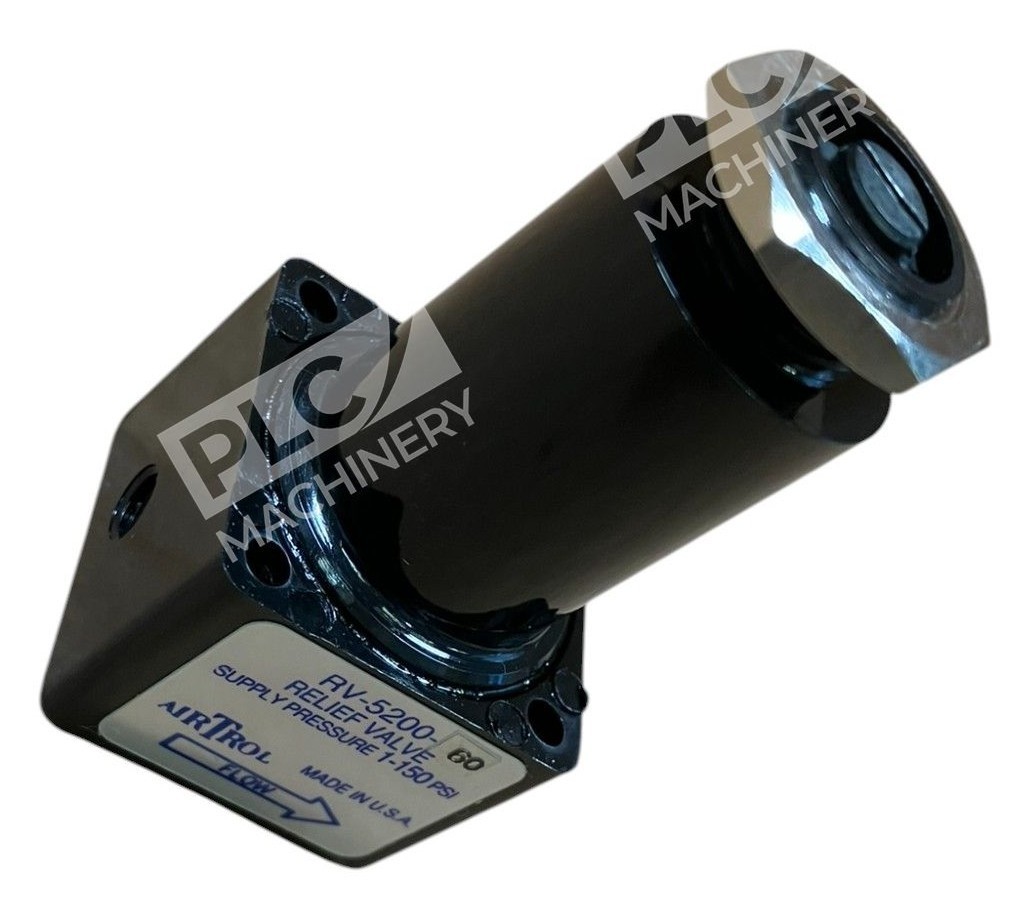

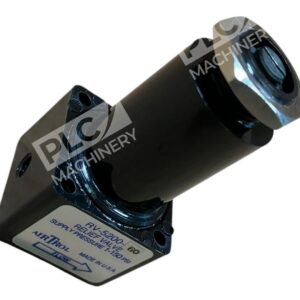

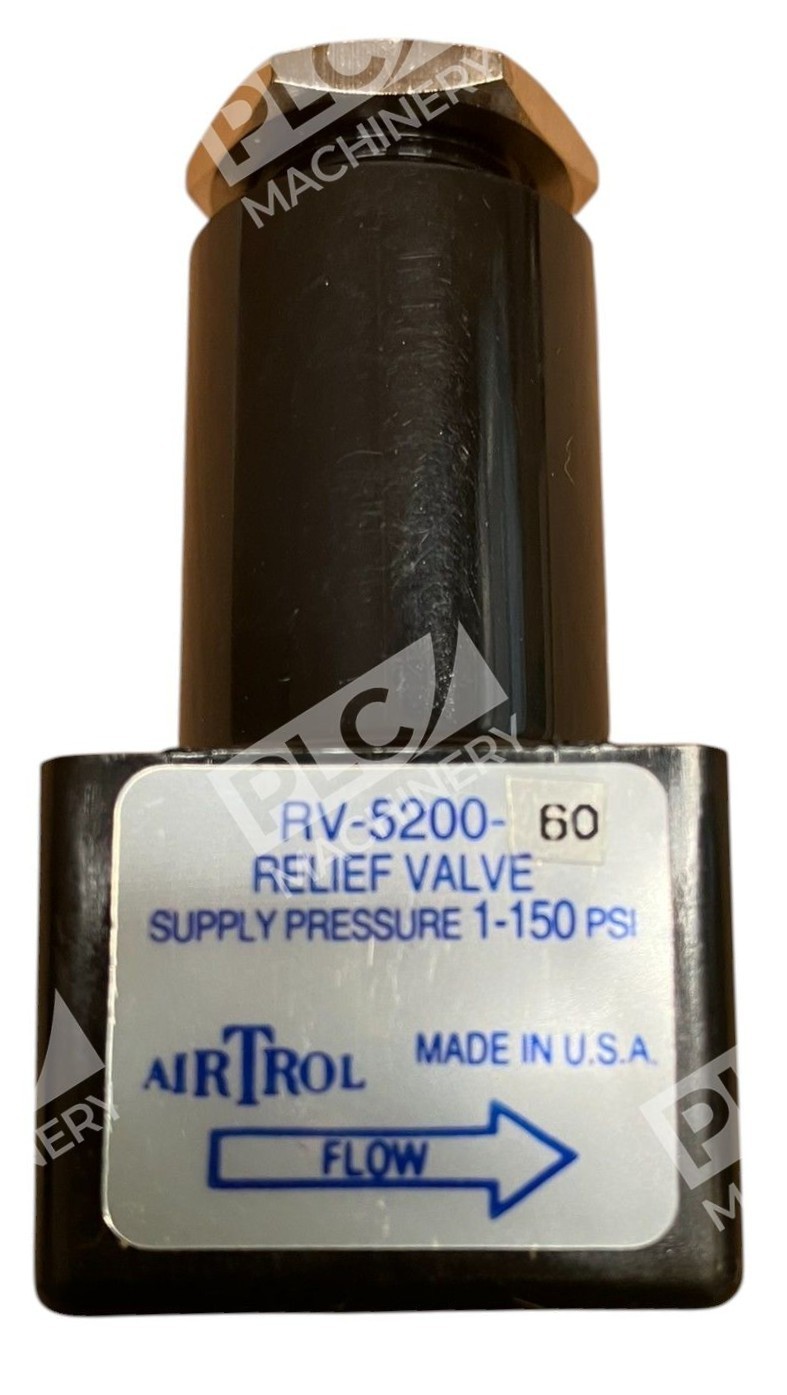

The Airtrol RV-5200-60 is a miniature relief valve engineered for pneumatic systems requiring precise pressure control. The RV-5200 series functions as a miniature relief valve or low-flow back pressure regulator. This unit provides a 1–150 PSI setting range and delivers repeatability of < +/− 1% F.S., making it suitable for OEM equipment, manufacturing automation, and precision control applications where system reliability is critical.
Key Features
- Wetted materials include polysulfone, silicone, and buna-N for durability in compressed air and pneumatic environments
- Adjustments made via non-rising stem, available with attractive knob, plain for OEM installation, or flush for back-panel applications
- Operating temperature range of 40°–150°F (4°–66°C)
- Repeatability < +/− 1% F.S. ensures consistent pressure control across duty cycles
- Typical application: used between a compressor and load to prevent the compressor from “loading up” when dead-ended
Technical Specifications
The RV-5200-60 maintains stable pressure control with minimal drift:
- Pressure range: 1–150 PSI
- Flow capacity: 10-32 port = 0.6 CFM (16 LPM) @ 30 PSI; 1/8 NPT port = 0.7 CFM (19 LPM) @ 30 PSI
- Temperature range: 40°–150°F (4°–66°C)
- Port connection: 10-32 and 1/8 NPT options
- Repeatability: < +/− 1% F.S.
Typical Applications
The Airtrol RV-5200-60 is ideal for:
- CNC machinery and automated manufacturing systems
- Metalworking equipment requiring pressure limiting
- Pneumatic compressor unloading circuits
- Precision control systems in test and measurement equipment
- OEM pneumatic systems requiring compact relief protection
Compatibility & Replacements
Compatible With
- Pneumatic systems with 1–150 PSI nominal operating pressure
- Compressed air networks up to 150 PSI supply
- Miniature pneumatic tubing and fittings (10-32 and 1/8 NPT)
- Industrial automation and manufacturing control circuits
Replaces / Drop-In Replacement For
- Airtrol RV-5200 series variants with equivalent pressure ratings
- Other miniature relief valves with 10-32 and 1/8 NPT port compatibility
- Verify compatibility with your system integrator or Airtrol technical support before ordering to ensure knob style (attractive knob, plain, or flush) matches your application
Works With
- Airtrol Components pneumatic systems and accessories
- Standard compressed air delivery systems
- Industrial automation platforms requiring pneumatic pressure control
- Compressor load-unload and relief circuits
