Overview

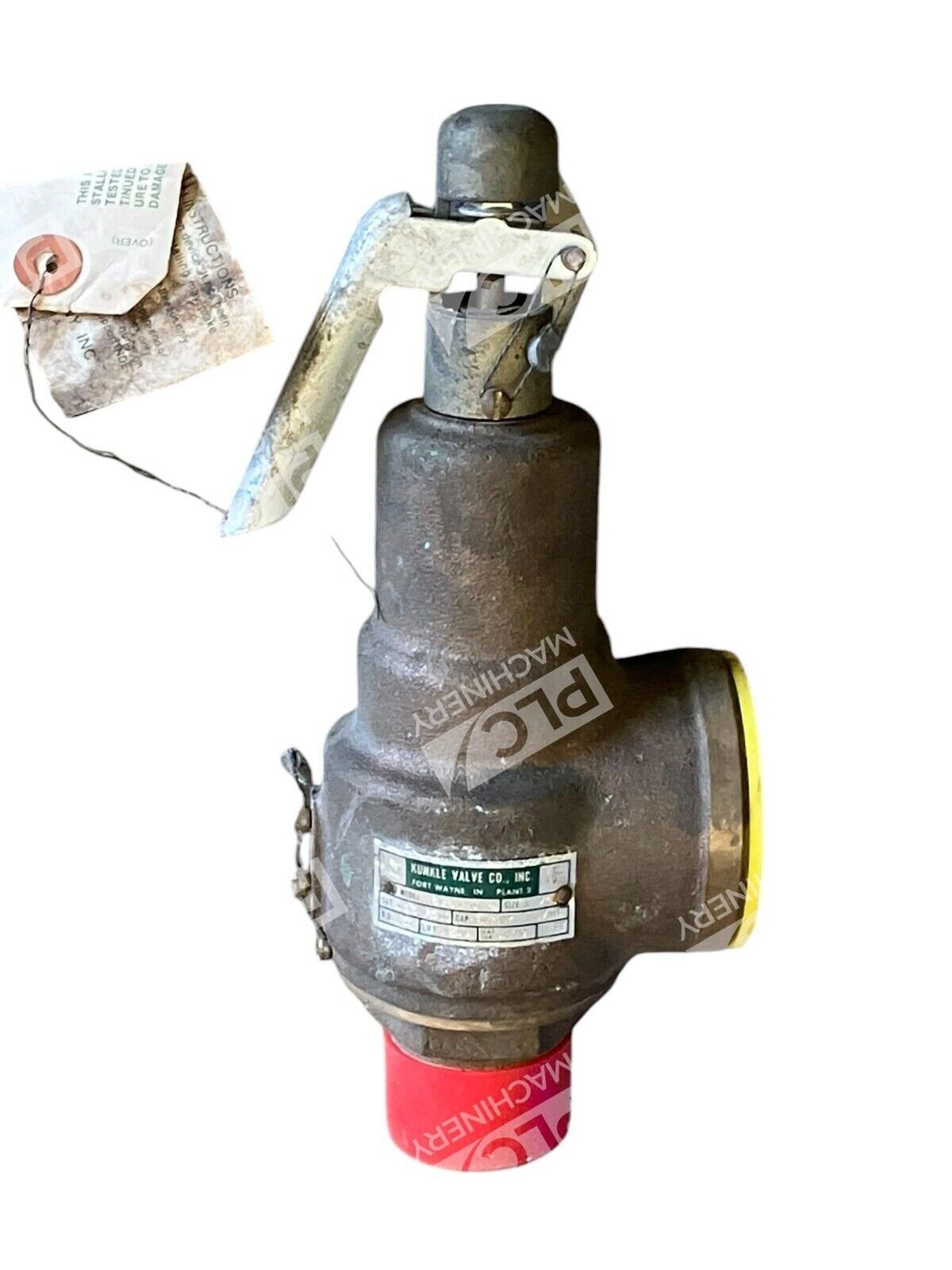

The Kunkle Valve 6283G is a Series 6000 direct-acting relief valve engineered for dependable overpressure control in industrial steam, air, and gas systems. Rated to 125 PSIG, this valve combines a full nozzle design with oversized side outlet and bronze/brass trim to deliver precise pressure regulation with minimal maintenance. Part of the Kunkle Series 6000—manufactured by Emerson—the 6283G meets ASME Section I and Section VIII codes and is suitable for boilers, generators, compressors, and pressure-containing vessels.
Key Features
- Full nozzle design with bronze/brass trim for durability and corrosion resistance
- Over-sized side outlet configuration for high flow capacity
- Dual control rings enable precise opening adjustment and exact blowdown control
- Grooved piston disc reduces sliding friction and improves responsiveness
- Wide hex on valve nozzle provides superior service clearance for installation and maintenance
- ASME Section I and Section VIII certified for steam and air/gas service
Technical Specifications

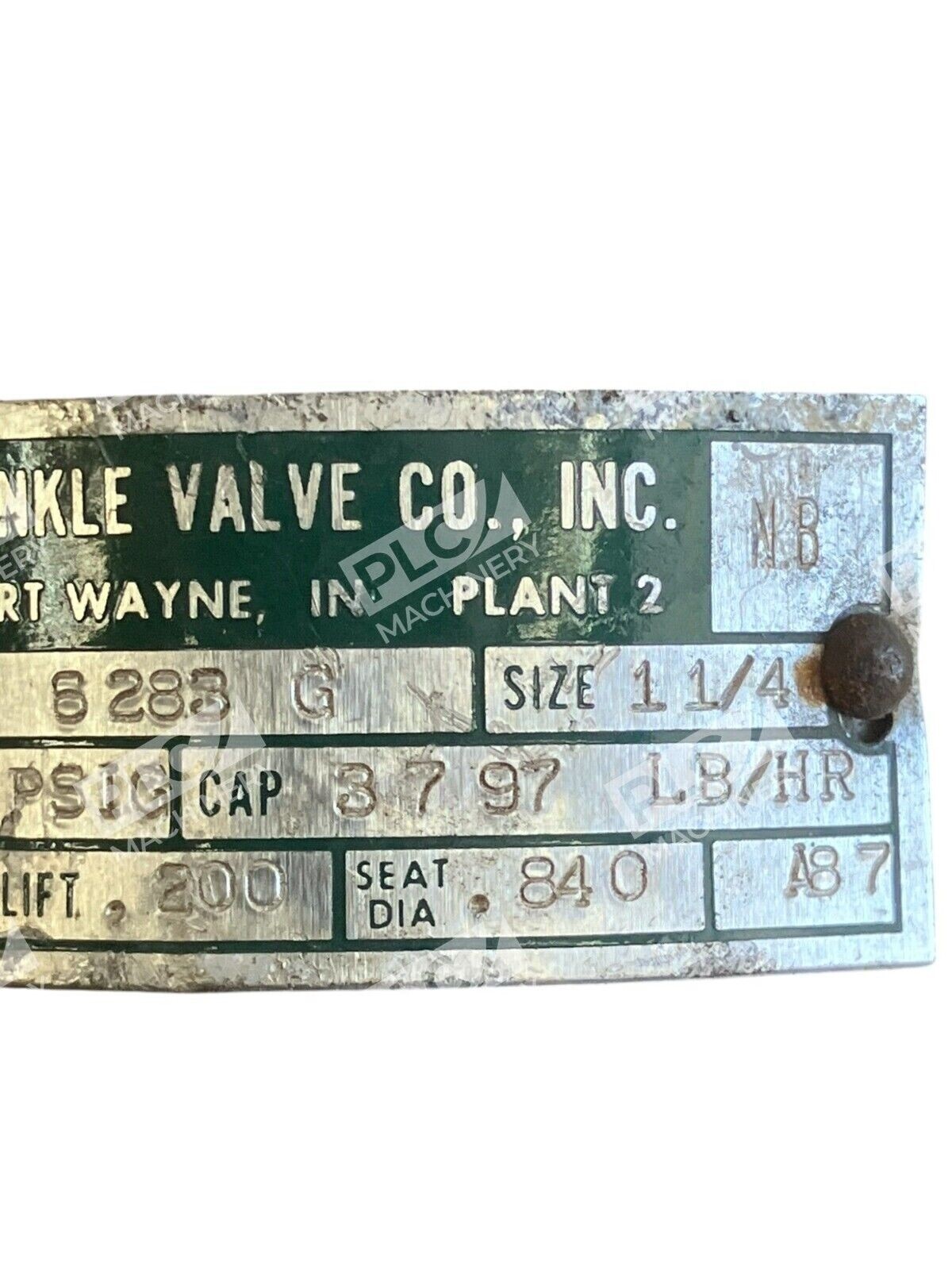

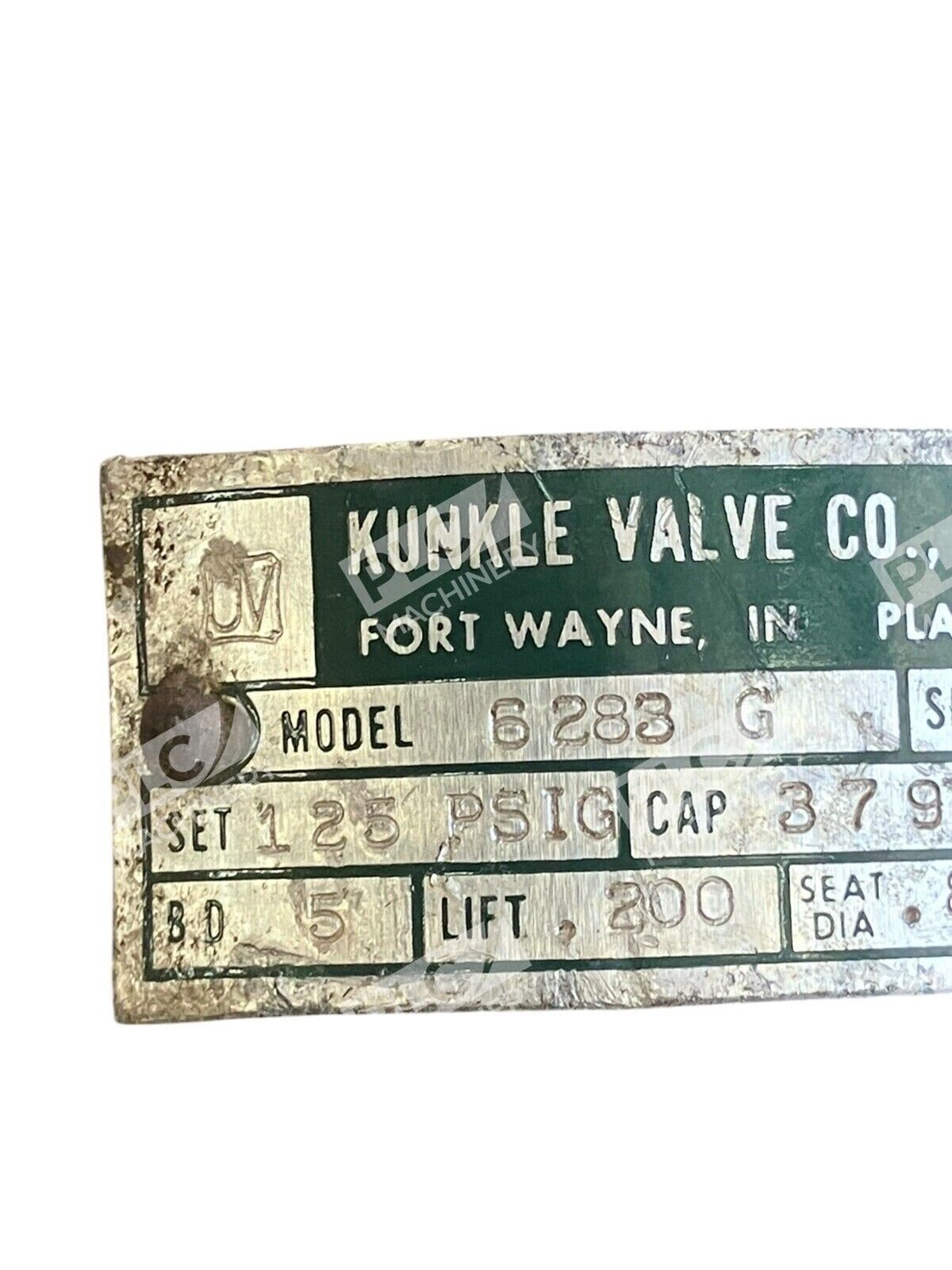

- Model: Kunkle 6283G
- Outlet Configuration: Over-sized side outlet
- Trim Material: Bronze/brass (full nozzle and disc)
- Pressure Range (Steam): 3 to 250 PSIG
- Pressure Range (Air/Gas): 3 to 300 PSIG
- Temperature Range: -60°F to 406°F (-51°C to 208°C)
- Certifications: ASME Section I (V Stamp), ASME Section VIII (UV Stamp)
- Seat Configuration: Soft seat (O-ring) available as optional upgrade
Typical Applications
- Steam boilers and generators
- Reciprocating and rotary air/gas compressors
- Intercoolers and aftercoolers
- Pressure vessels containing steam, air, or non-hazardous gas
- Pressure-reducing stations and safety systems
- Industrial sterilizers and autoclaves
Compatibility & Replacements
Compatible With
- ASME Section I boiler systems
- ASME Section VIII pressure vessels
- Standard steam piping (1″ to 2″ port sizes available)
- Air and non-hazardous gas distribution systems
- Direct mounting on boiler or pressure vessel nozzles
Replaces / Drop-In Replacement For
- Kunkle Series 6000 equivalent models (verify exact port sizes and outlet configuration before ordering)
- Other direct-acting nozzle-type relief valves in the 125 PSIG range with matching connection sizes
Works With
- Standard ANSI flanged and threaded port connections
- Gauge glass assemblies and pressure gauges for system monitoring
- ASME boiler control systems and safety instrumentation
- Industrial pressure relief stations and manifold systems
