Overview

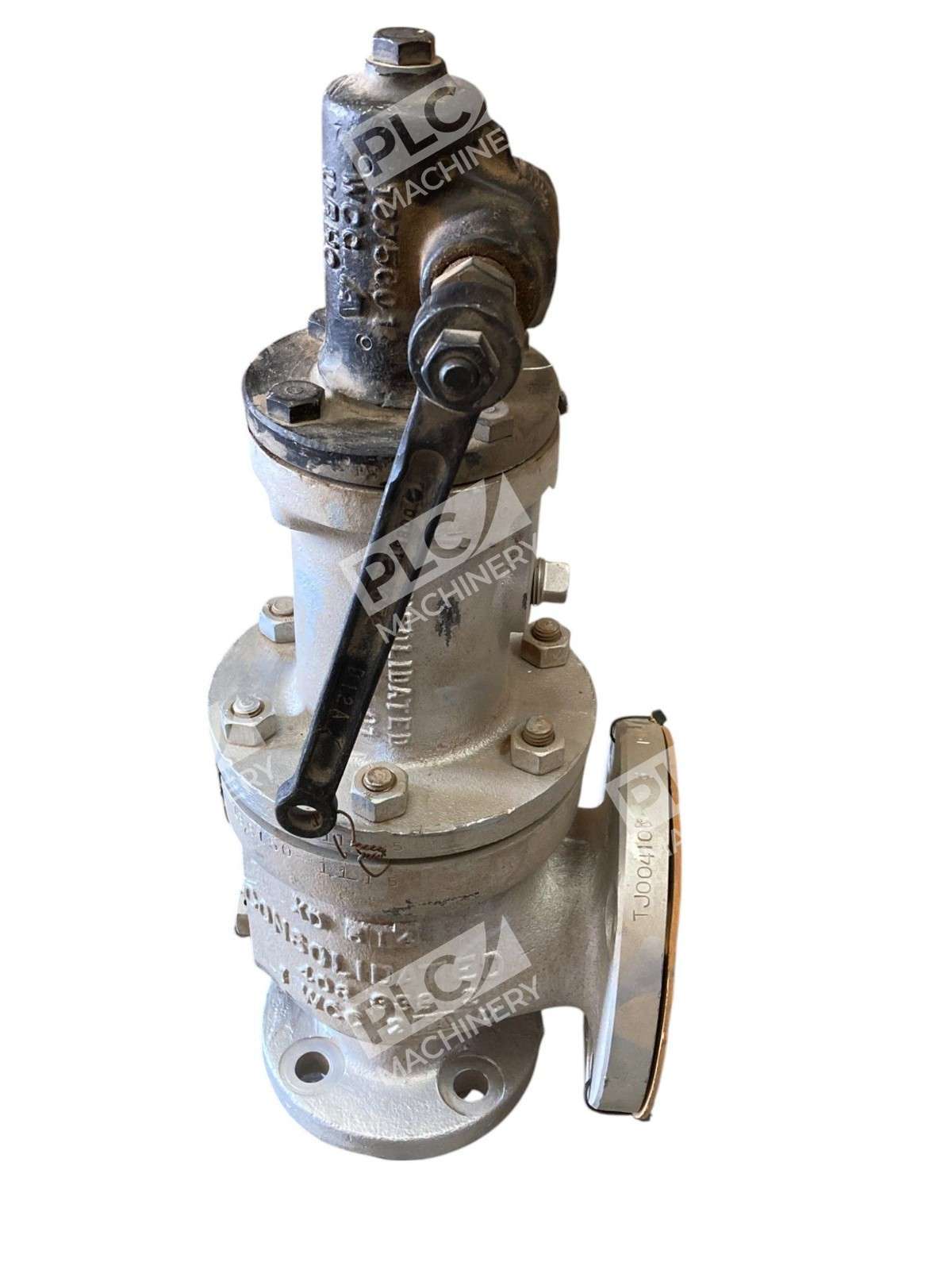

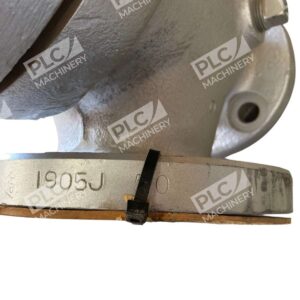

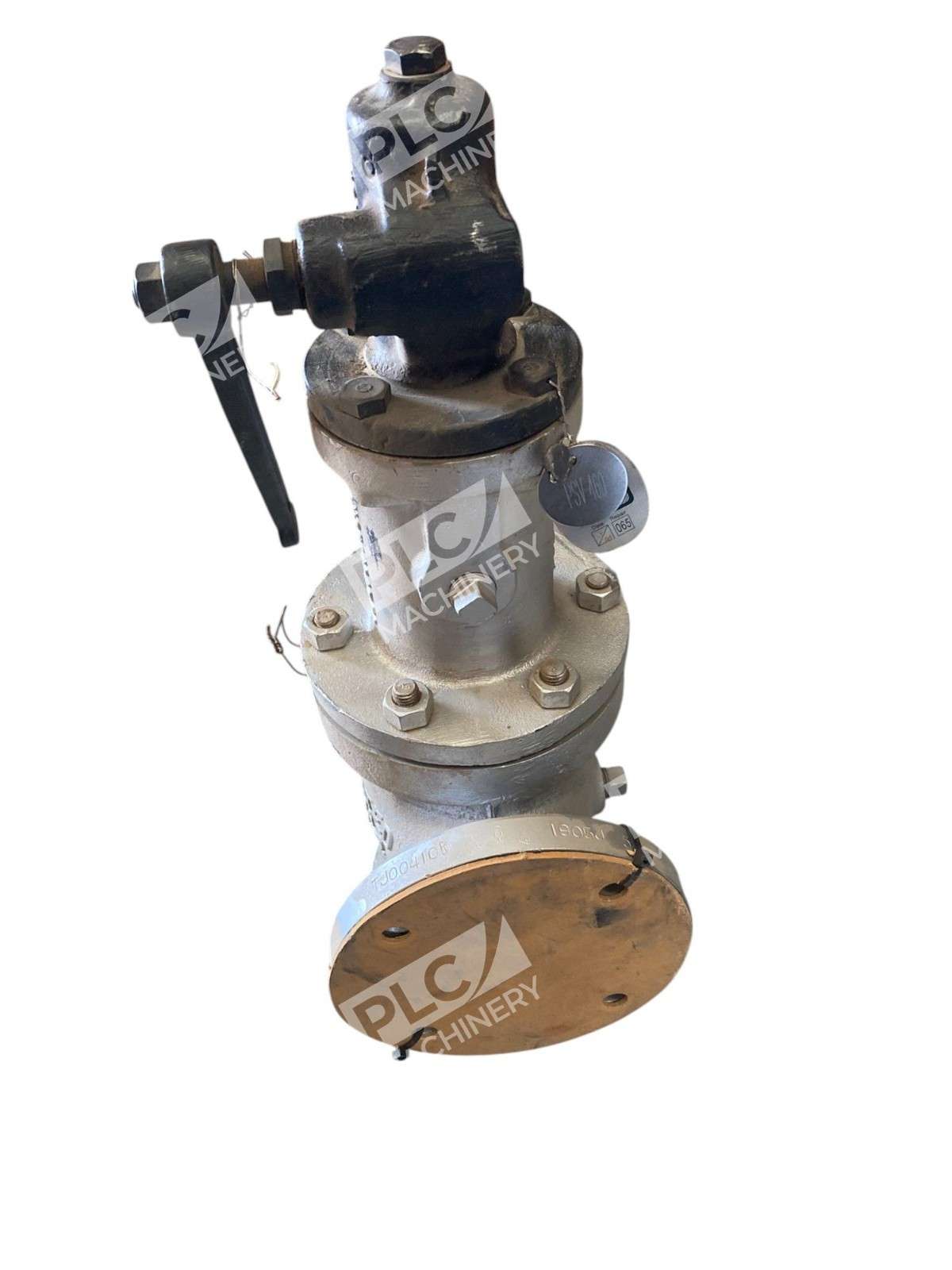

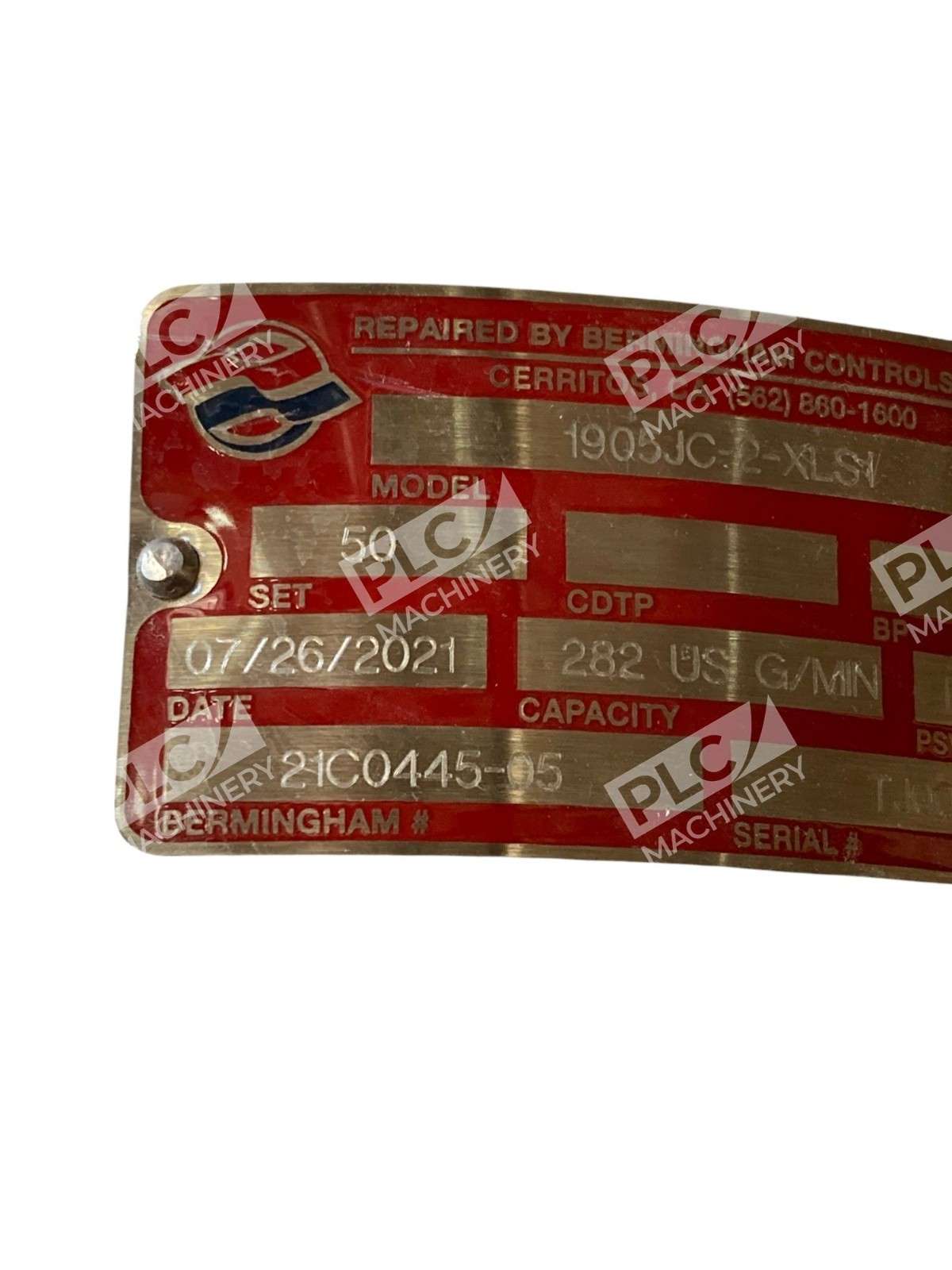

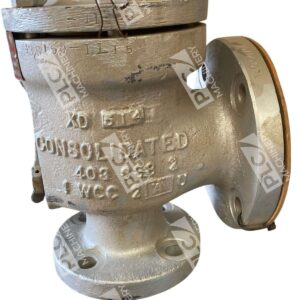

The Consolidated 1905JC-2-XLS1 relief valve is a proven pressure regulation component from the Type 1905 series, manufactured by Consolidated Valves (a Dresser brand now part of Baker Hughes). This relief valve is designed for liquid service in hydraulic, pneumatic, and plumbing applications where precise pressure relief is critical. The 1905 series delivers consistent performance through simple, robust construction and precision-engineered components.
Key Features
- 50 PSI Pressure Setting — Pre-set at 50 pounds per square inch for direct drop-in installation
- Precision Valve Seat — Machined and lapped construction ensures positive seating and prevents media loss
- Compact Design — Space-efficient footprint suitable for industrial plumbing and hydraulic circuits
- Simple Maintenance — Straightforward internal design reduces parts inventory requirements
- Liquid Service Rated — Optimized for water, oil, and other non-corrosive liquids
Technical Specifications

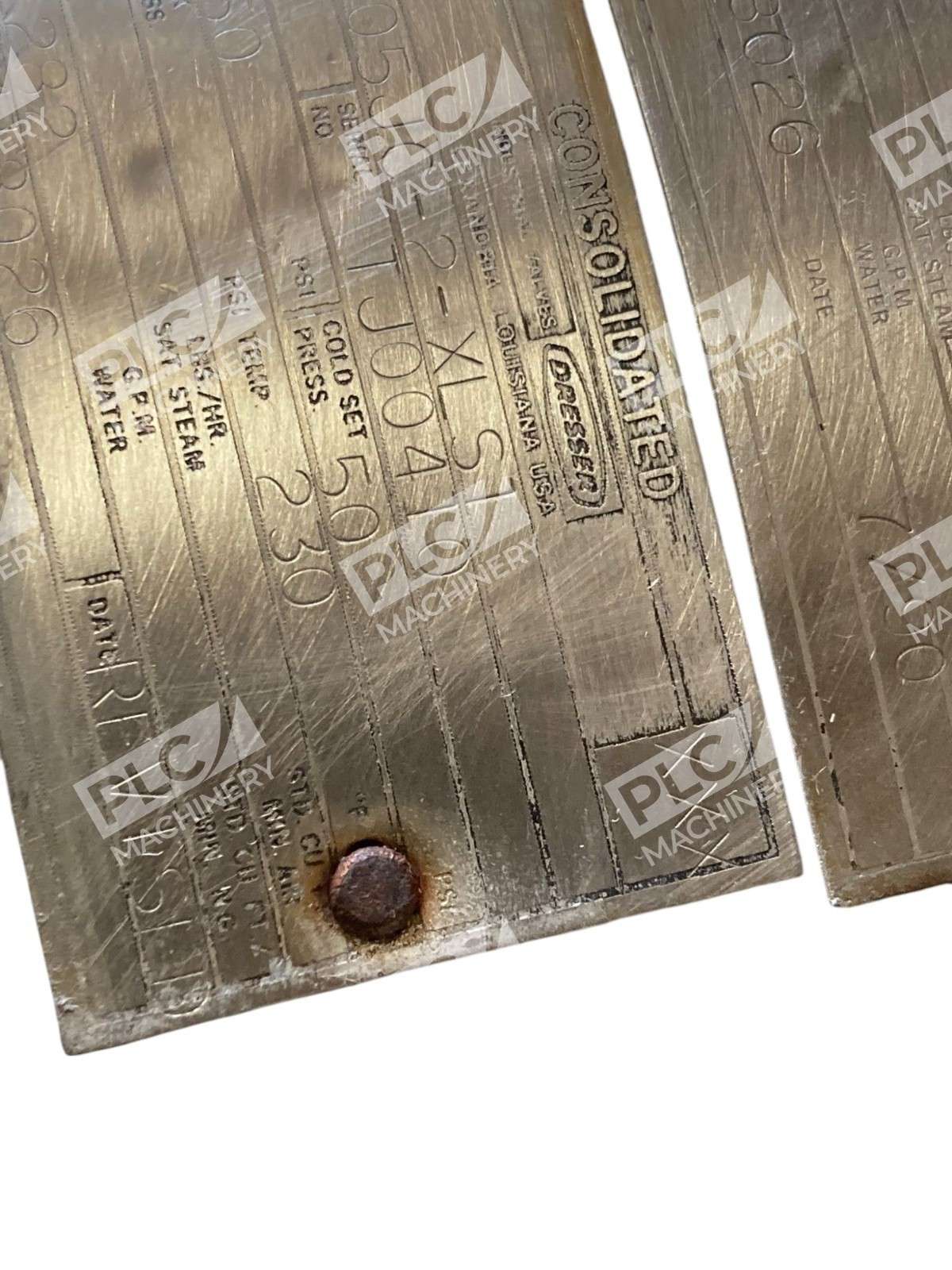

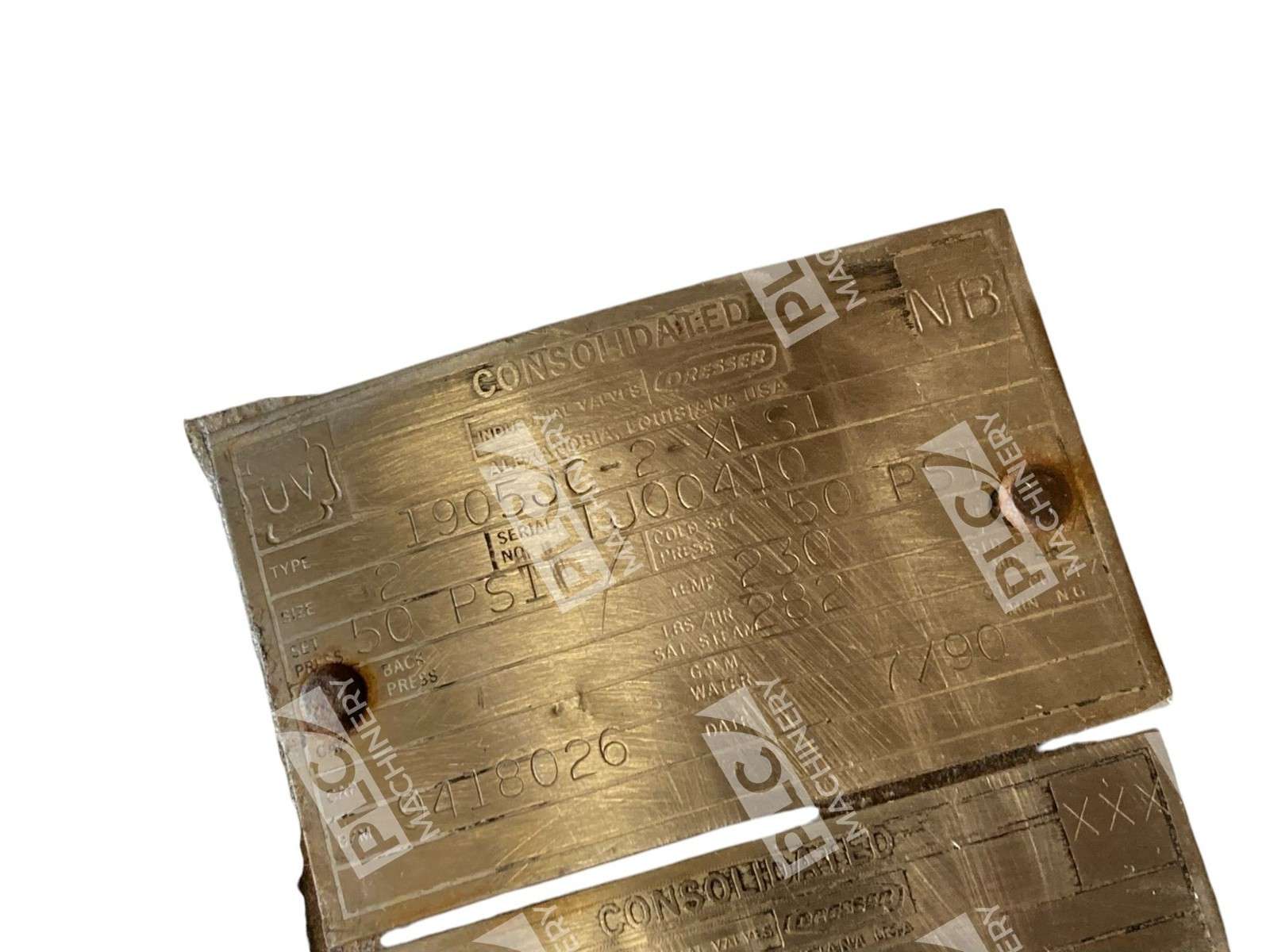

- Model Series: Consolidated Type 1905 (Dresser)
- Pressure Setting: 50 PSI
- Valve Type: Direct-acting relief valve
- Application Media: Liquid (water, hydraulic oil, plumbing systems)
- Seat Design: Precision-machined metal seat
- Operation: Automatic pressure relief

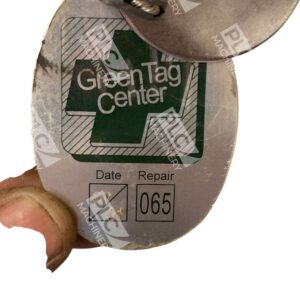

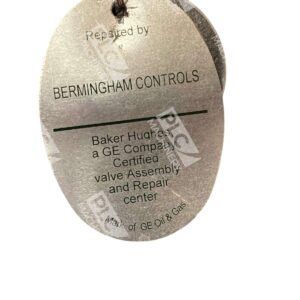

- Condition: Remanufactured
Typical Applications
- Hydraulic system overpressure protection
- Commercial plumbing pressure relief
- Pump discharge line protection
- Accumulator charging circuits
- Process water and liquid circulation systems
- Retrofit and replacement installations
Compatibility & Replacements
Compatible With
- Consolidated / Dresser hydraulic system components
- Standard SAE and NPT port configurations
- Industrial plumbing and process water systems
- Fluid power circuits up to 50 PSI nominal operation
Replaces / Drop-In Replacement For
- Earlier Consolidated 1905 series configurations
- Direct replacement for 1905JC variants with matching port specifications
- Verify inlet/outlet port size and connection type before installation
Works With
- Consolidated / Dresser relief valve adjustment tooling
- Standard hydraulic pressure gauges and transducers
- Liquid media: mineral oil, synthetic hydraulic fluids, water
- Inline or manifold-mounted configurations
