Overview

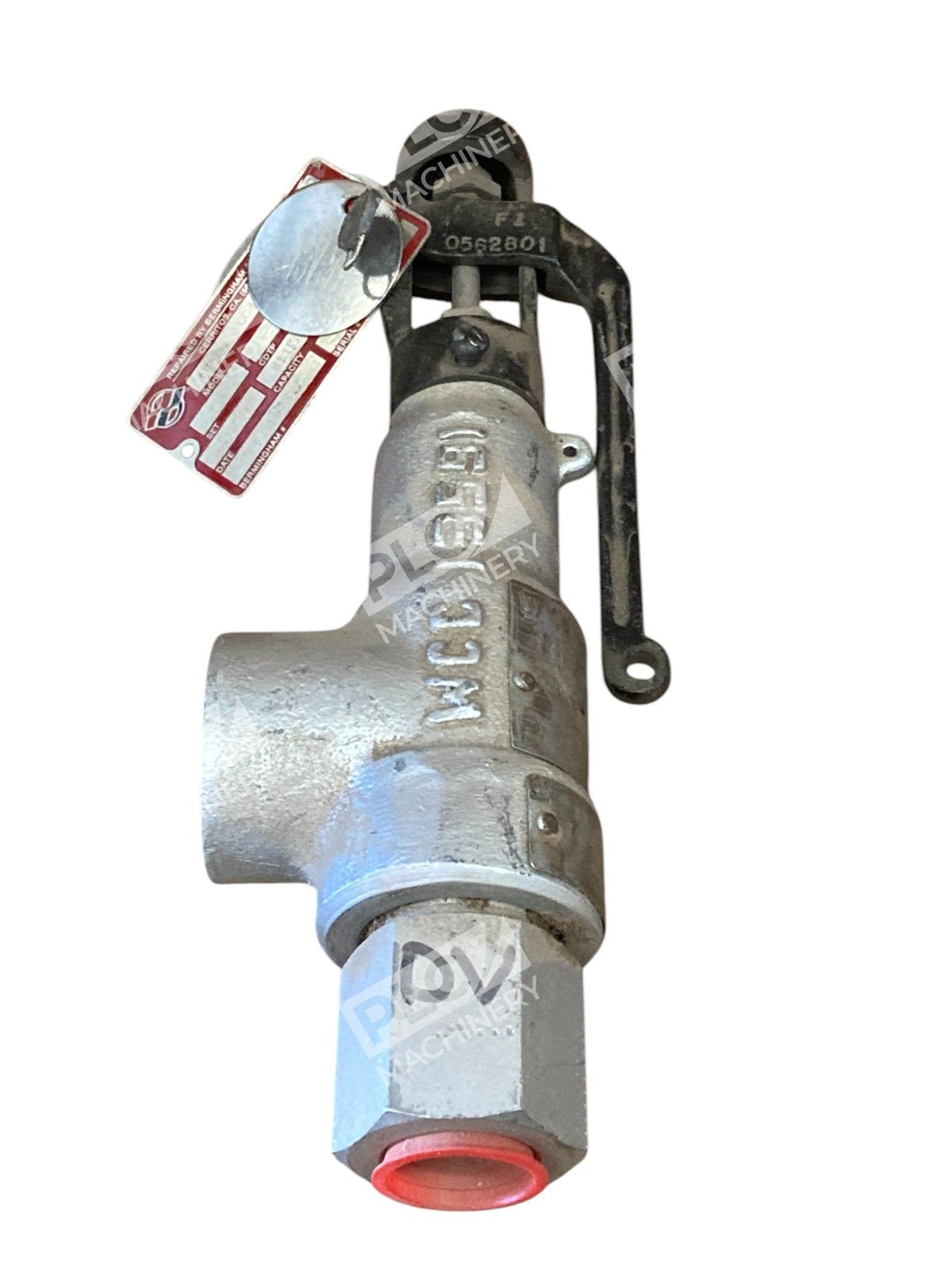

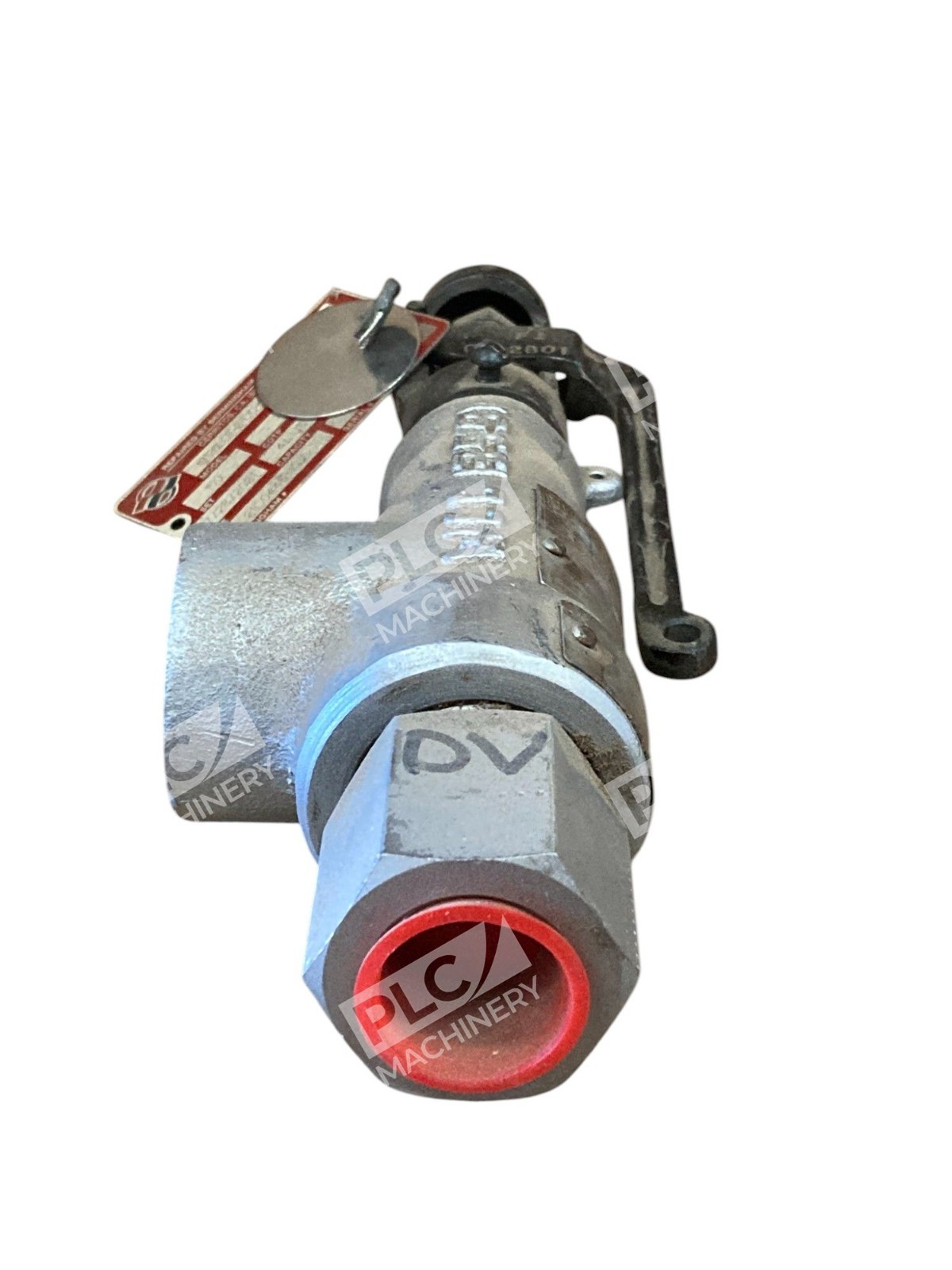

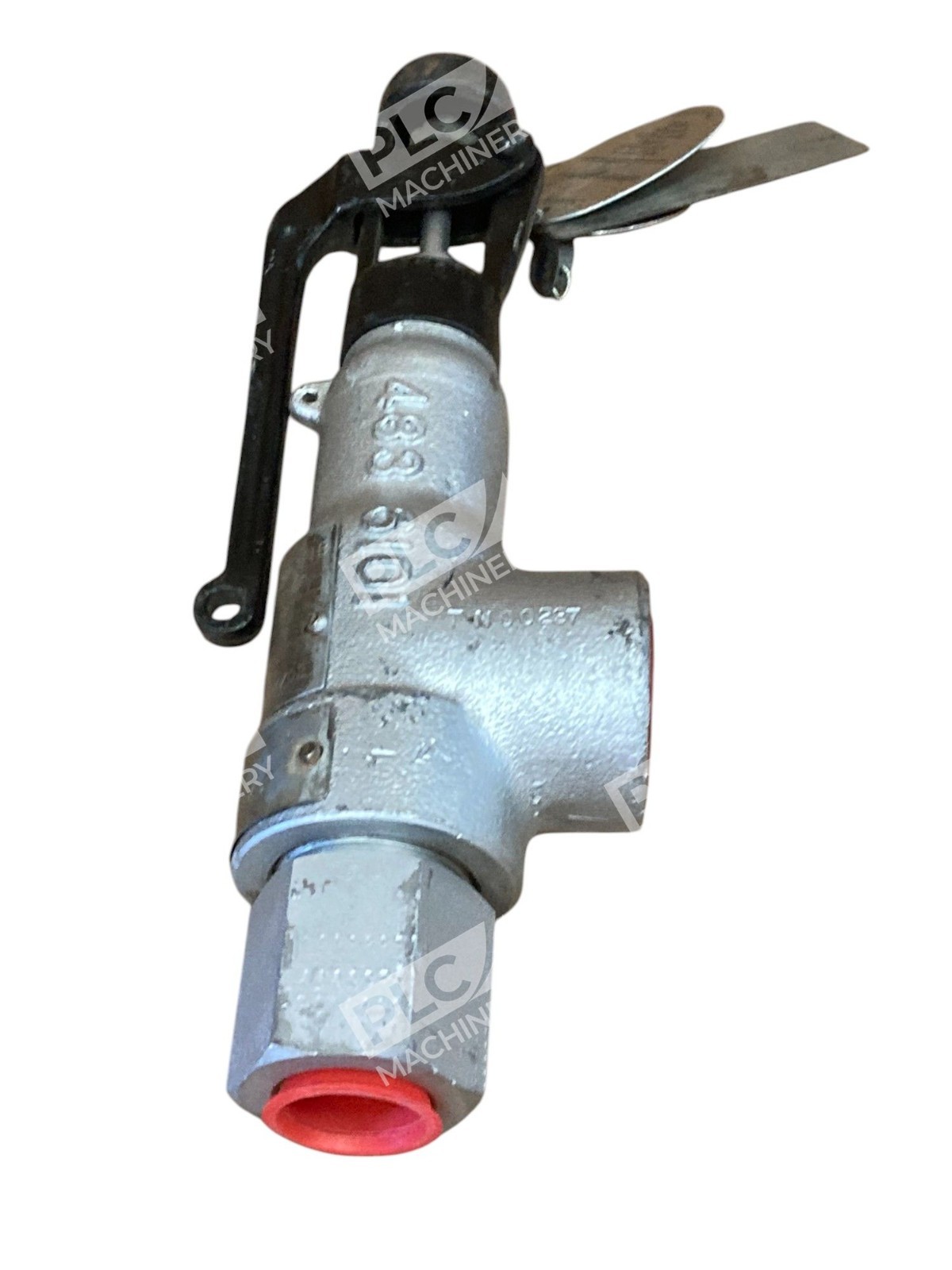

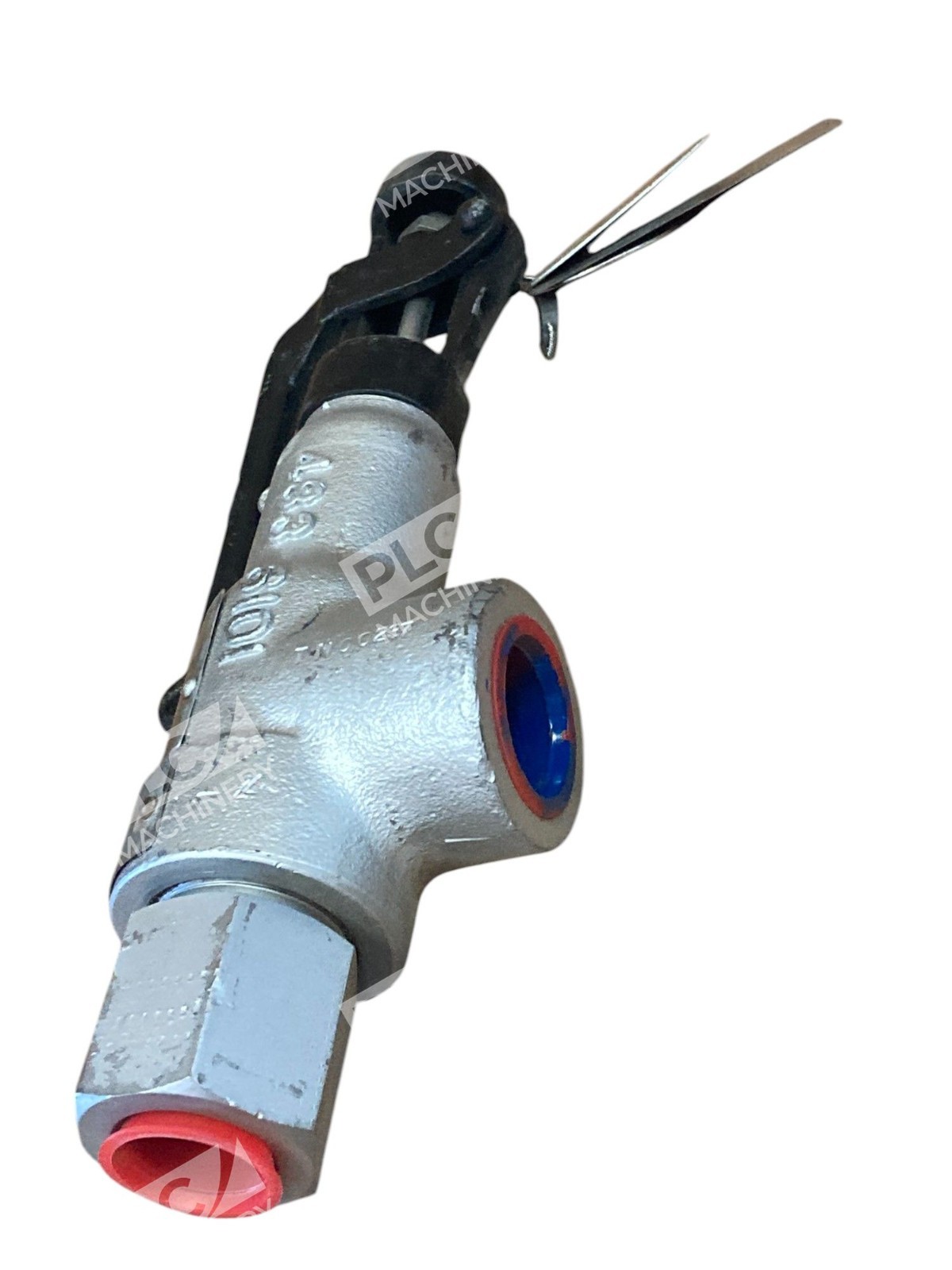

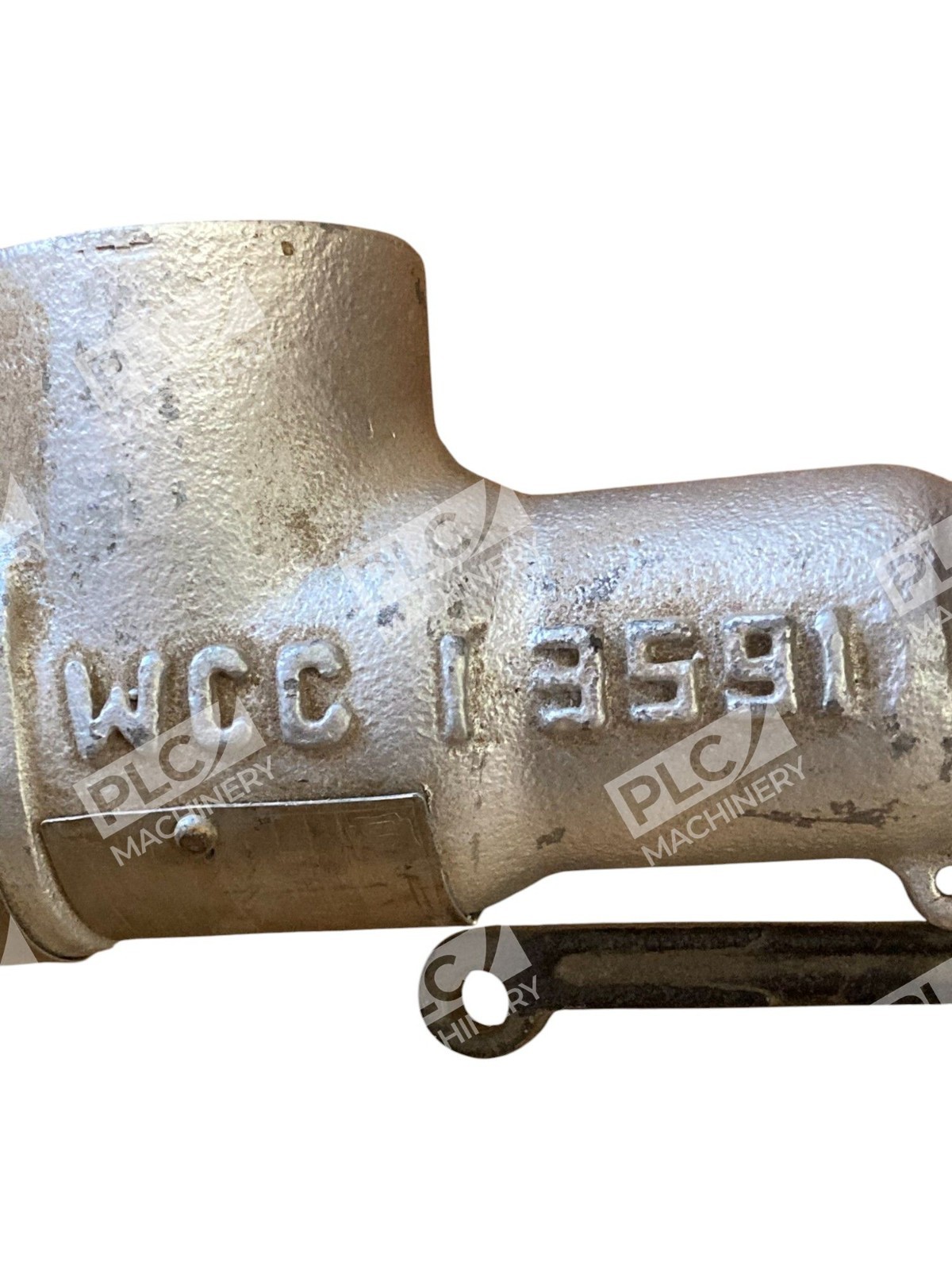

The Consolidated 19126LCF-2-CC-MS-34 Model 150 is a 3/4″ direct-acting safety relief valve from the Consolidated 19000 Series. Originally manufactured by Consolidated and now supported through Baker Hughes distribution channels, this valve is widely used in hydraulic systems, process equipment, and industrial pressure containment applications. The 19126LCF-2-CC-MS-34 features a compact, proven design with fixed blowdown characteristics and excellent seat tightness across a wide range of media.
Key Features
- Direct-Acting Design: Simple, reliable mechanism with no external pilot requirement; easy to maintain and service
- Pressure Relief: Protects systems by venting excess pressure when set point is reached
- Adjustable Set Pressure: Field-tunable for different pressure ratings to match application requirements
- Fixed Blowdown: All 19000 Series valves feature fixed blowdown for consistent cracking behavior
- Excellent Seat Tightness: Delivers bubble-tight seat sealing at high percentages of set pressure (available with optional O-ring seat design)
- Multiple Connection Options: Available in various port configurations (this unit: female threads, SAE/ISO compatible)
Technical Specifications
- Valve Series: Consolidated 19000 Series

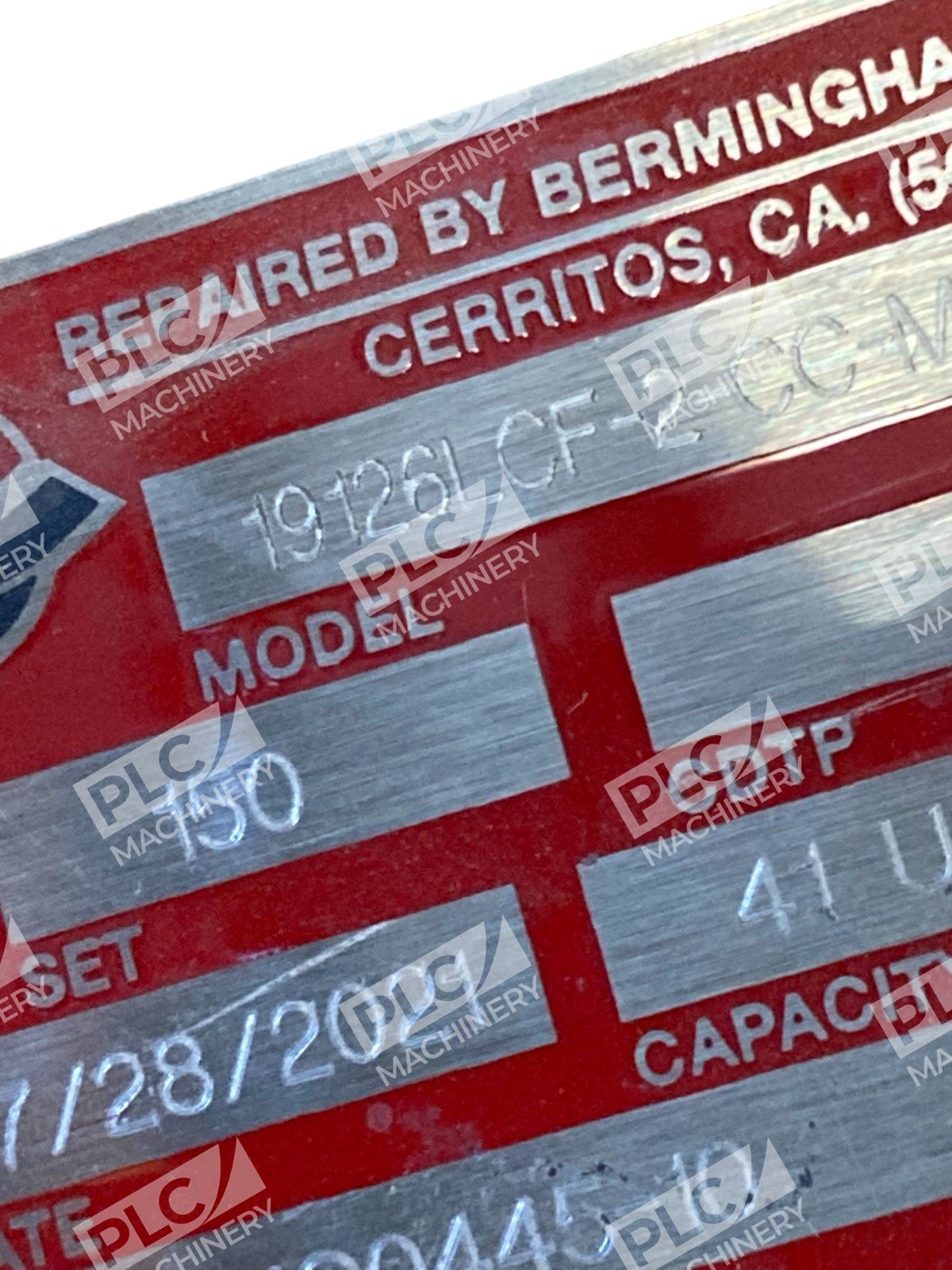

- Model: 150
- Port Size: 3/4 inch

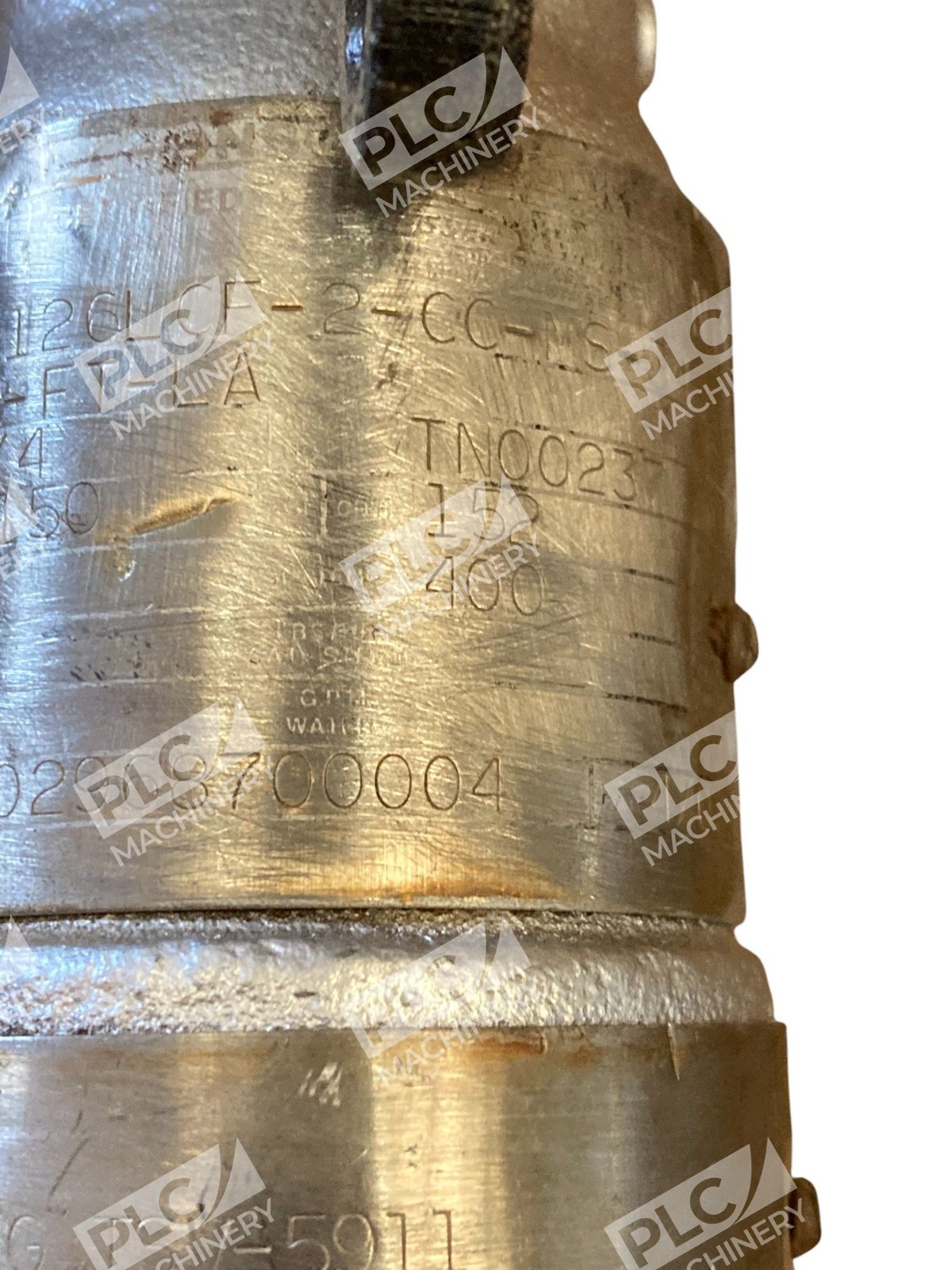

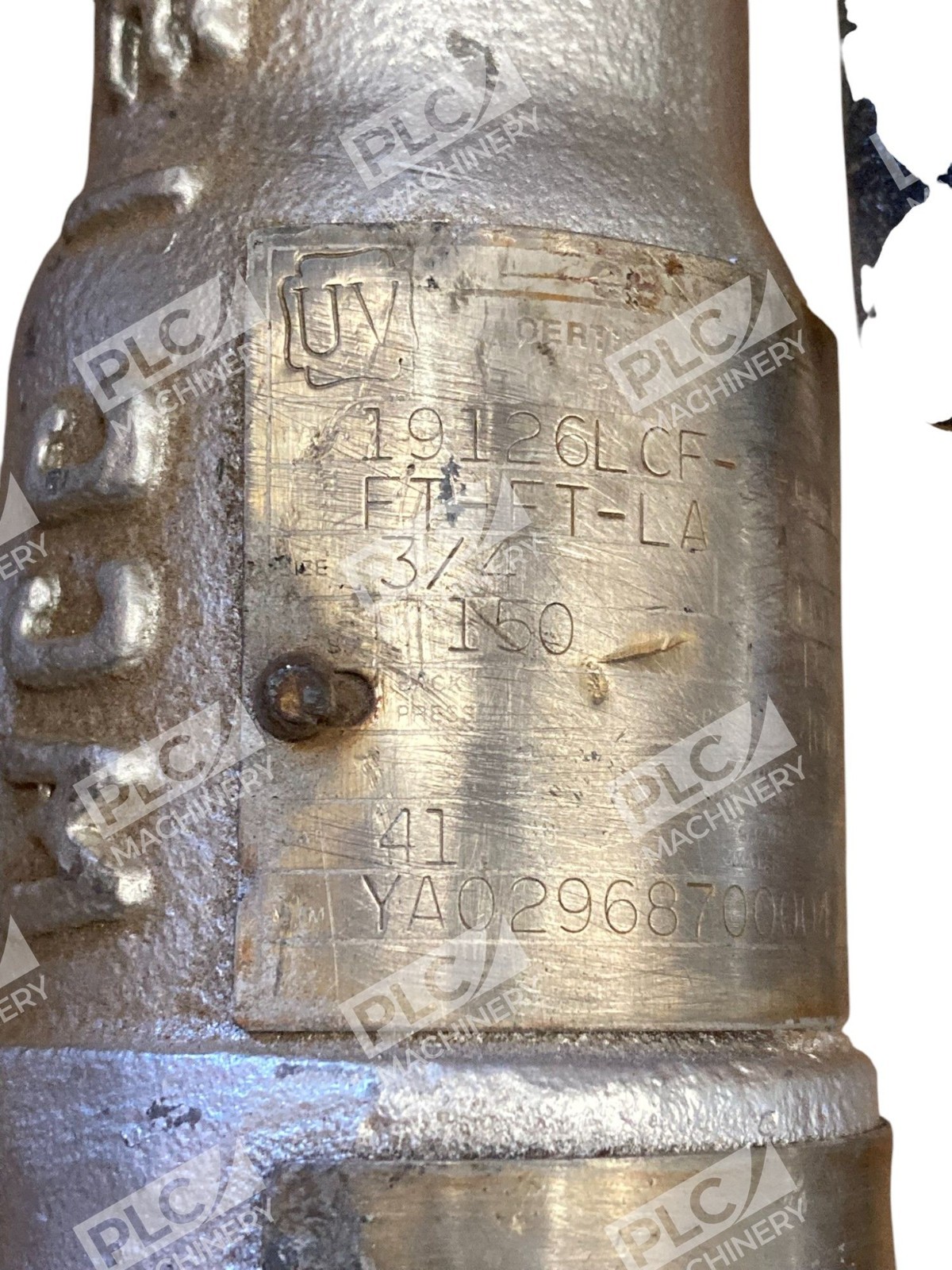

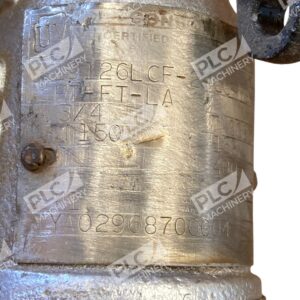

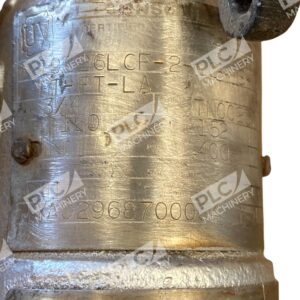

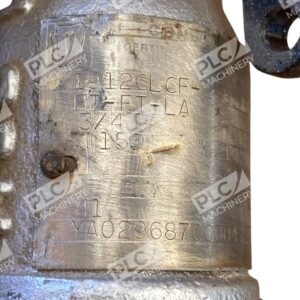

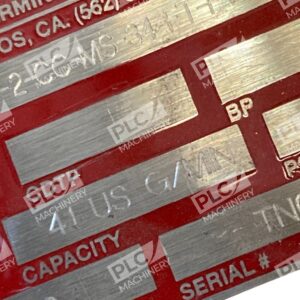

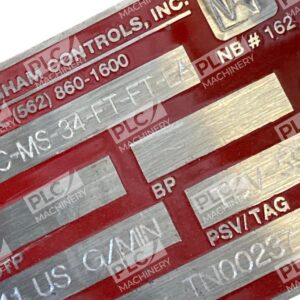

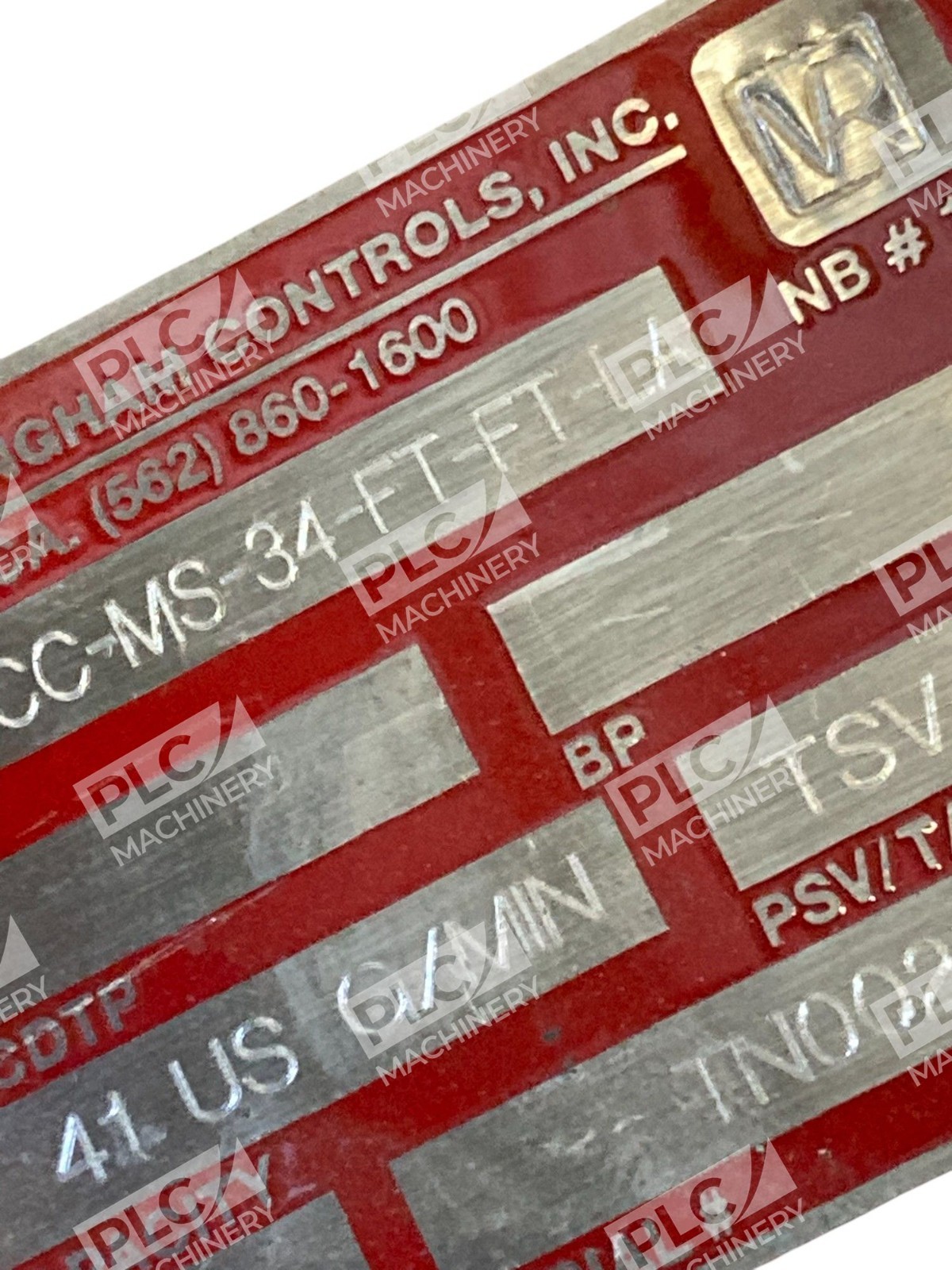

- Part Number: 19126LCF-2-CC-MS-34-FT-FT-LA
- Function: Direct-Acting Safety Relief Valve
- Connection Type: Female Threaded Ports (FT configuration)
- Mounting: Vertical (±1 degree from true vertical recommended)
- Configuration Code: 2-CC-MS-34 indicates standard cartridge cavity, cavity seat, manual adjustment, and specific orifice/nozzle size
- Compatible Fluids: Hydraulic oils, process fluids, compatible with most industrial media
Typical Applications
- Industrial hydraulic pump protection and pressure limiting
- Process equipment pressure containment
- Hydraulic circuit overpressure protection
- Mobile equipment and machinery systems
- High-pressure fluid transfer and test stand applications
- Retrofit and replacement installations in existing systems
Compatibility & Replacements
Compatible With
- Consolidated / Dresser-Consolidated hydraulic system components
- Baker Hughes valve control systems
- Standard SAE/ISO threaded cavity manifold blocks
- Industrial hydraulic circuits rated for 3/4″ port sizes
- Direct-acting pressure relief applications requiring 19000 Series performance
Replaces / Drop-In Replacement For
- Other Consolidated Model 150 valves with equivalent configuration codes
- Legacy Consolidated 19000 Series direct-acting relief valves
- Verify specific pressure rating and cavity configuration before substitution
Works With
- Consolidated mainline manifold cavity systems
- SAE and ISO industrial hydraulic standards
- ISO 1219 hydraulic circuit designs
- Pressure gauges and remote pressure monitoring compatible with 3/4″ porting
- Thermal protection and pilot drain systems for enhanced control (where applicable)
