Overview

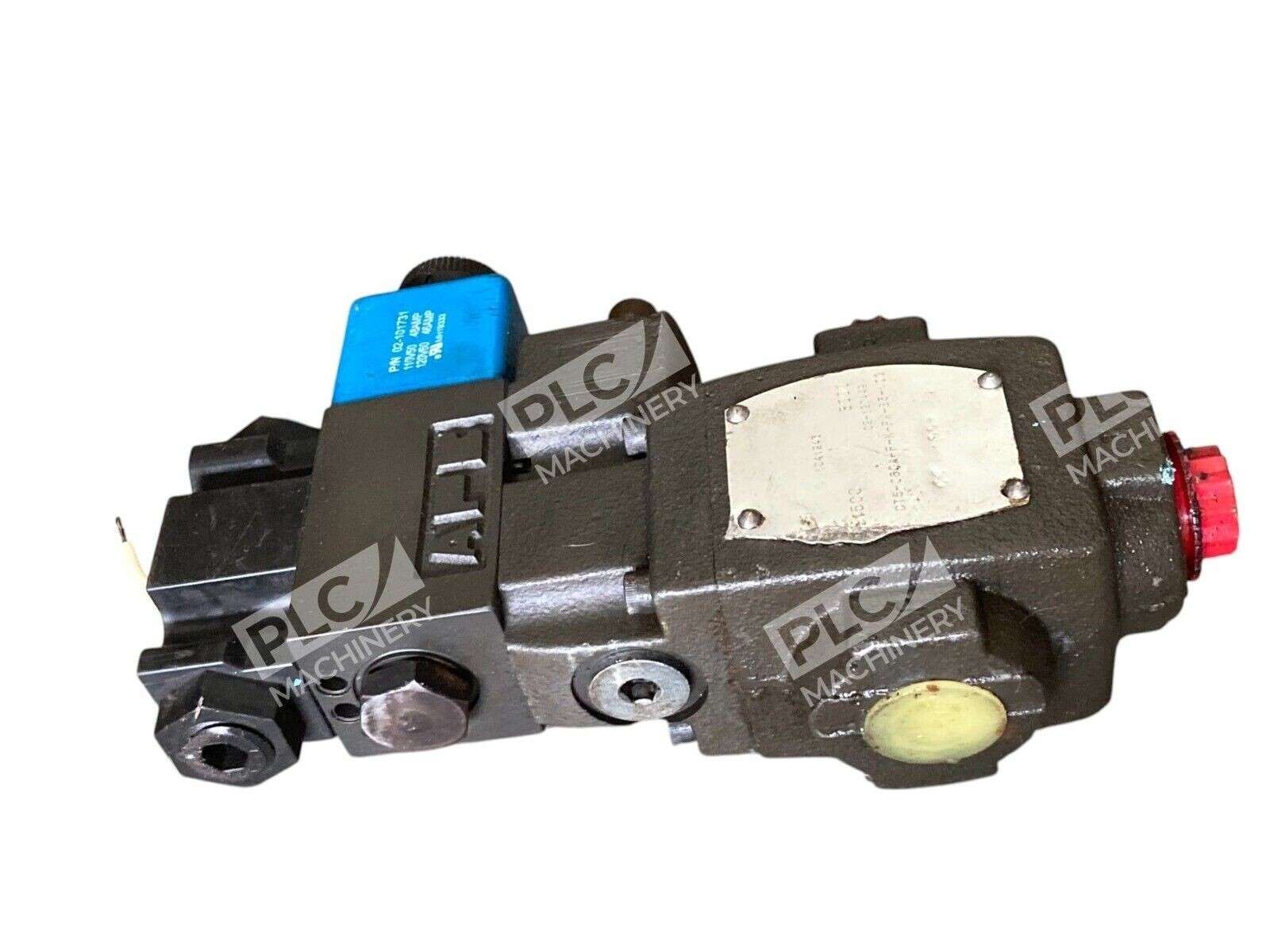

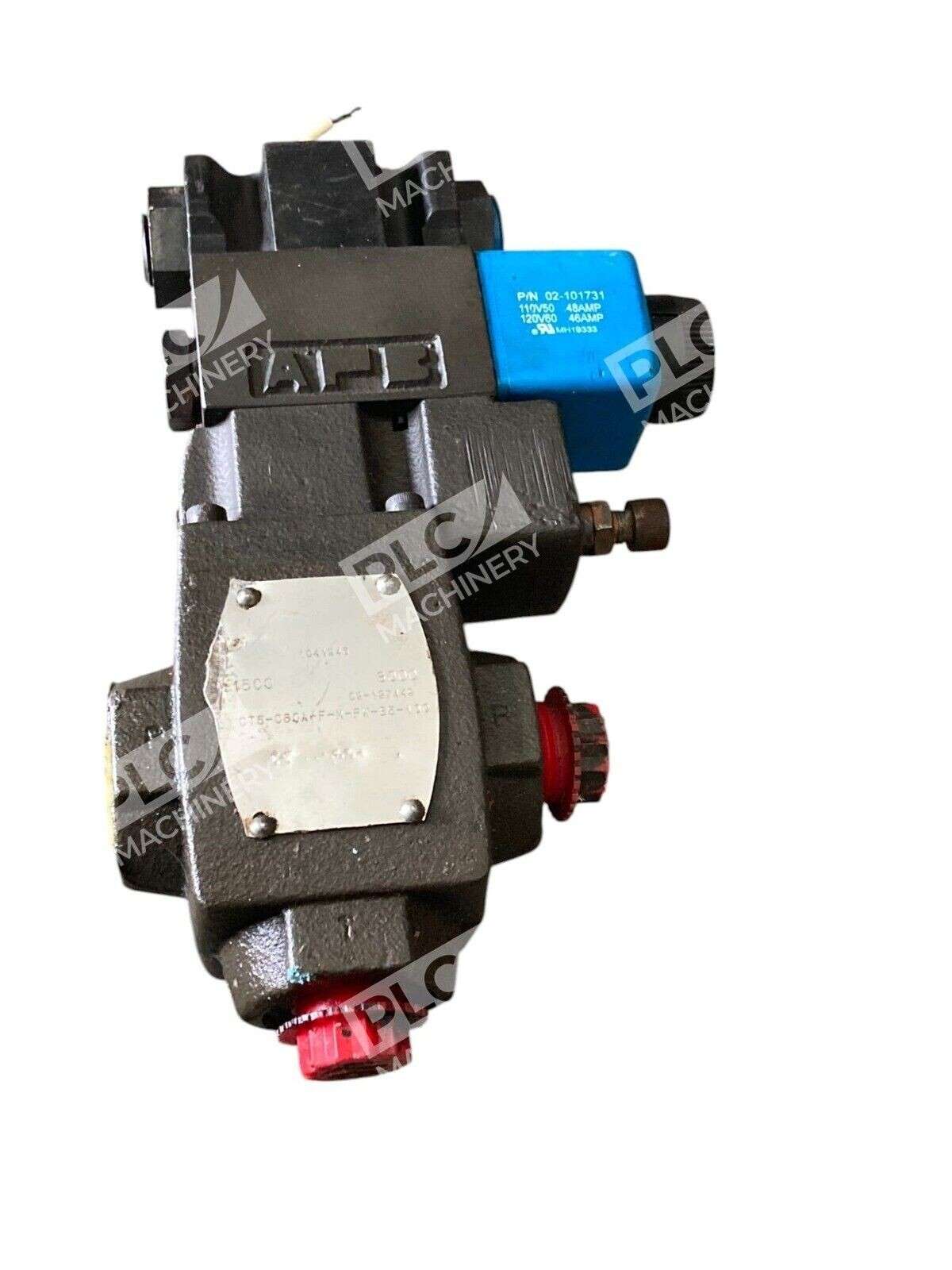

The Vickers Eaton CT5-060A-F-M-FW-B5-100 is a solenoid-controlled hydraulic balanced piston relief valve engineered for industrial hydraulic systems requiring precise pressure management. As a relief valve, this unit protects system components by limiting pressure to a safe maximum threshold while maintaining stable flow control. The balanced piston design minimizes pressure differential effects, delivering consistent performance across varying system conditions.
Key Features
- Solenoid-operated control for remote operation and automation integration
- Balanced piston design ensures stable pressure control and reduced pilot pressure requirements
- Compact relief valve form factor suitable for inline and manifold mounting
- Proven Vickers/Eaton construction for reliability in demanding hydraulic applications
- Compatible with industrial mobile equipment and stationary hydraulic systems
Technical Specifications
Verify exact specifications with your system integrator or consult Vickers technical documentation for your specific application requirements.
Typical Applications
- Mobile hydraulic systems (construction equipment, agricultural machinery)
- Industrial machinery pressure protection
- Pump discharge relief and load-sensing applications
- Manifold-mounted system protection
Compatibility & Replacements
Compatible With
- Vickers/Eaton CT-series solenoid valve platforms
- Industrial hydraulic systems using SAE-flange and cavity-mount interfaces
- Manifold cavity systems accepting CT5-series valves
- 24 VDC solenoid control circuits (verify coil code per model designation)
Replaces / Drop-In Replacement For
This unit directly replaces other CT5-060A-F-M-FW-B5-100 models. Verify compatibility with your system integrator before ordering, as relief valve settings and port configurations must match your application requirements.
Works With
- Vickers proportional and directional control valve systems
- Industrial hydraulic circuit design and optimization software
- Manifold design platforms requiring pressure relief integration
- Pump load-sensing and pressure compensator networks
