Overview

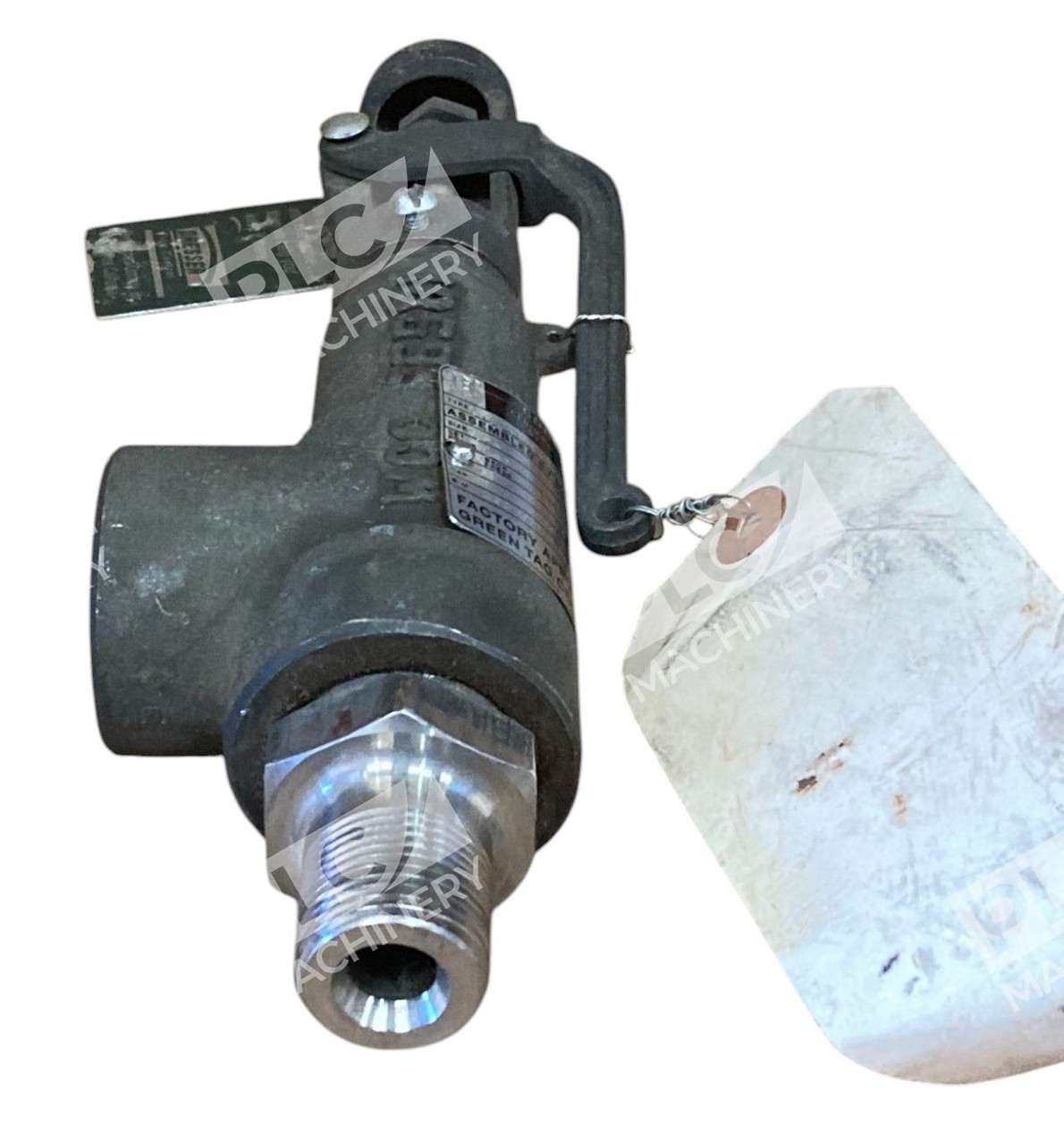

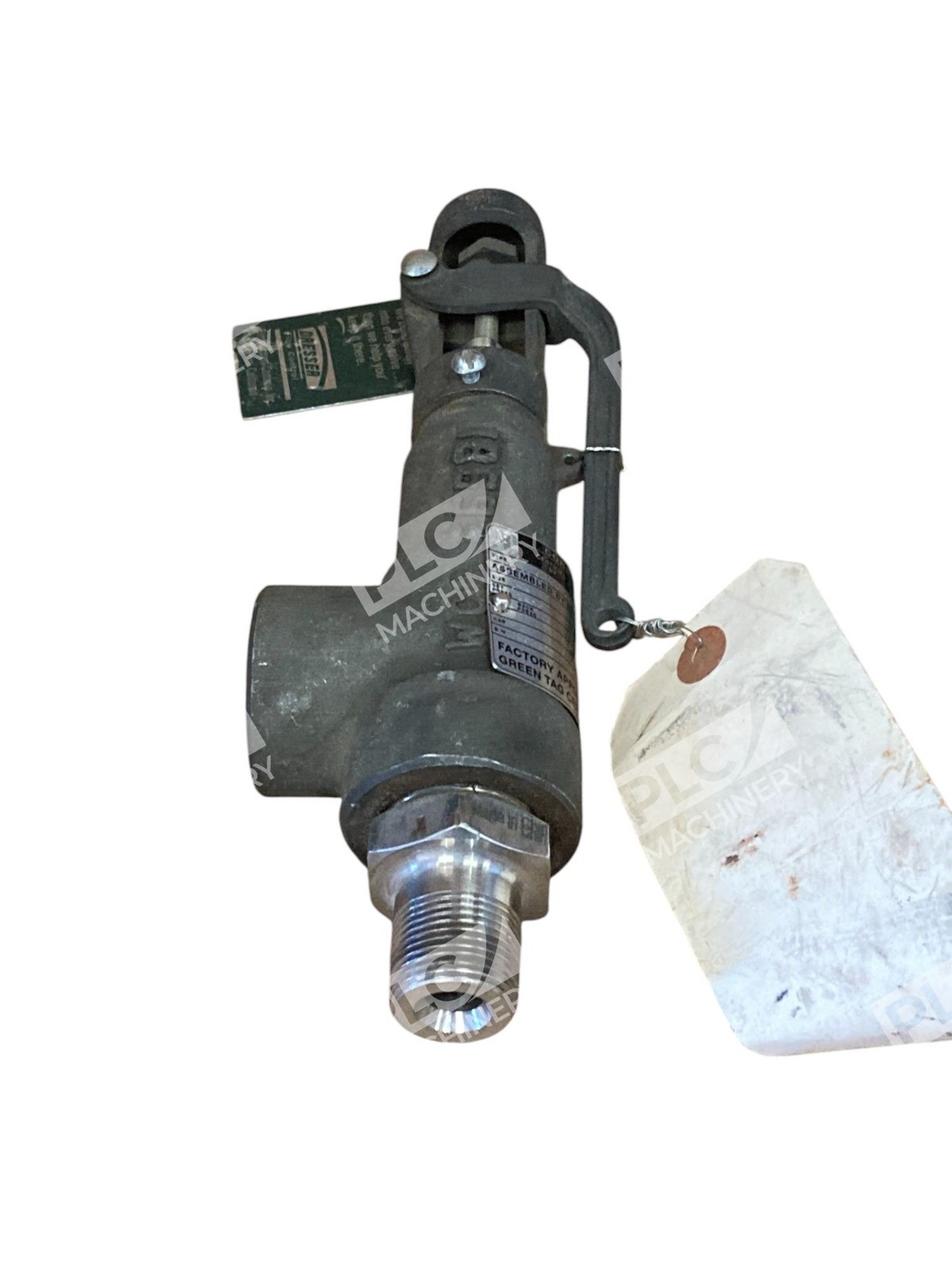

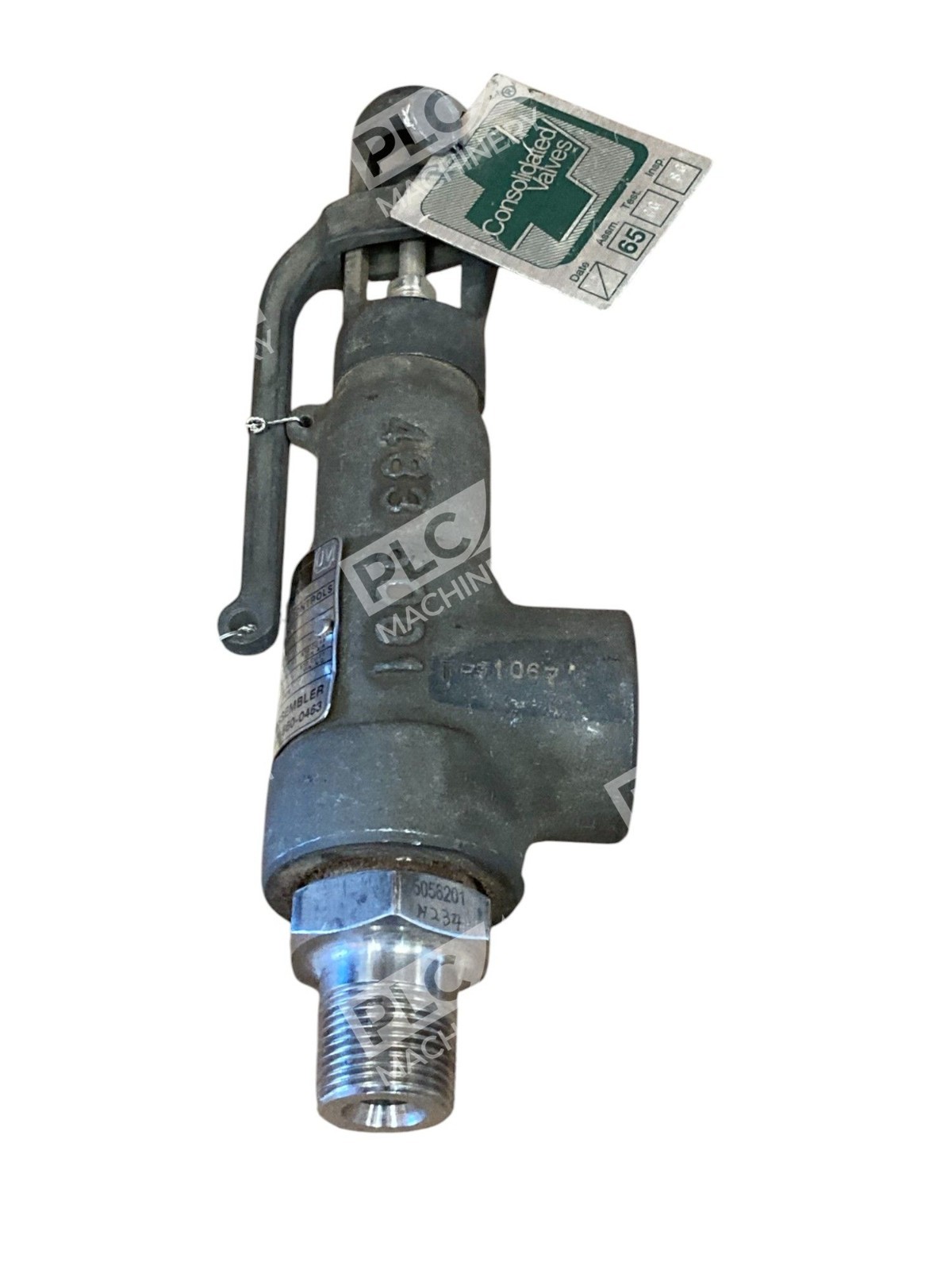

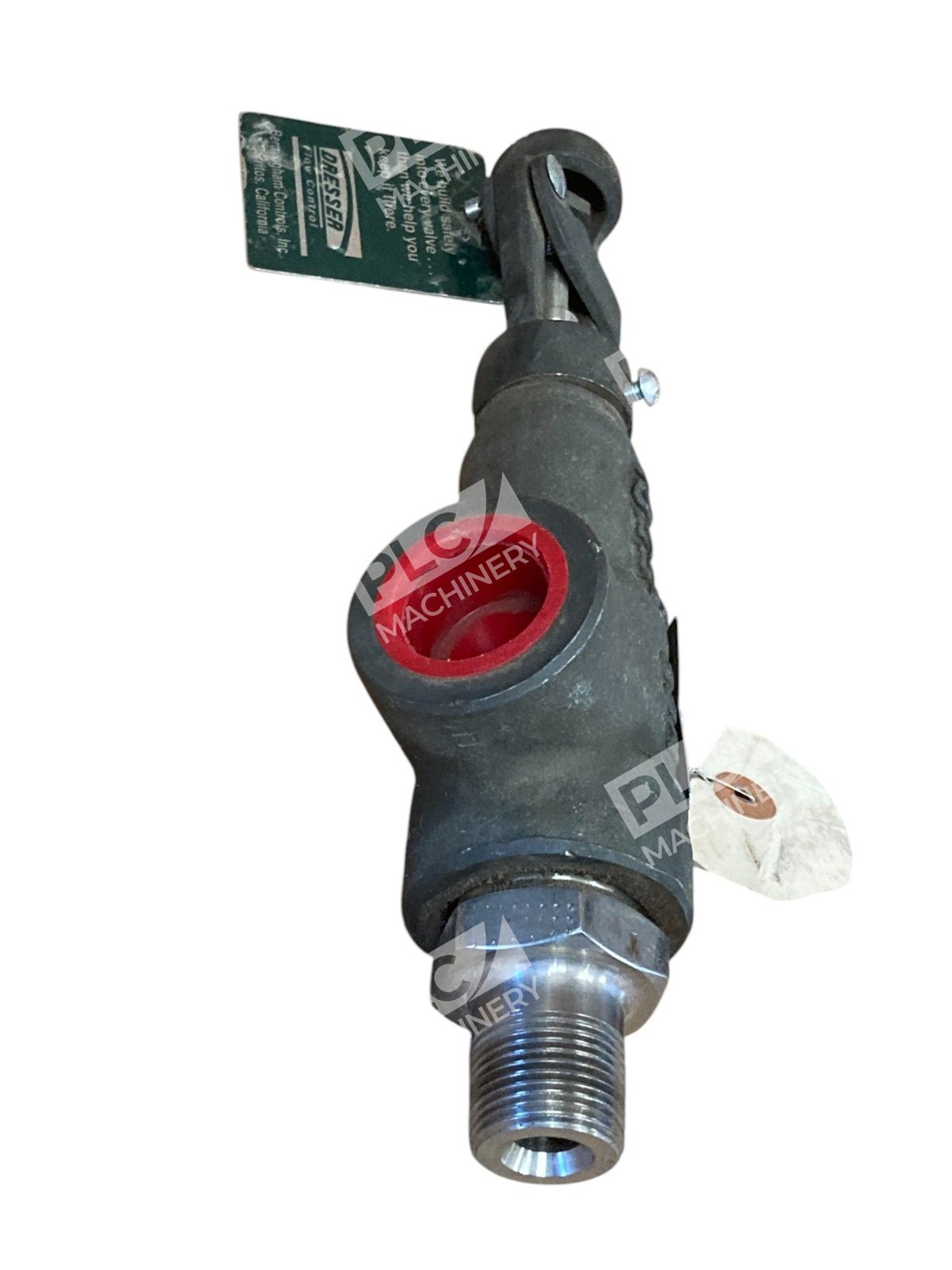

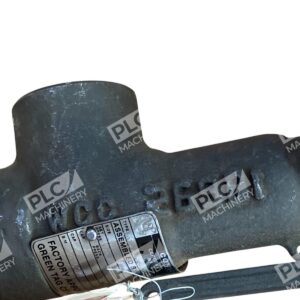

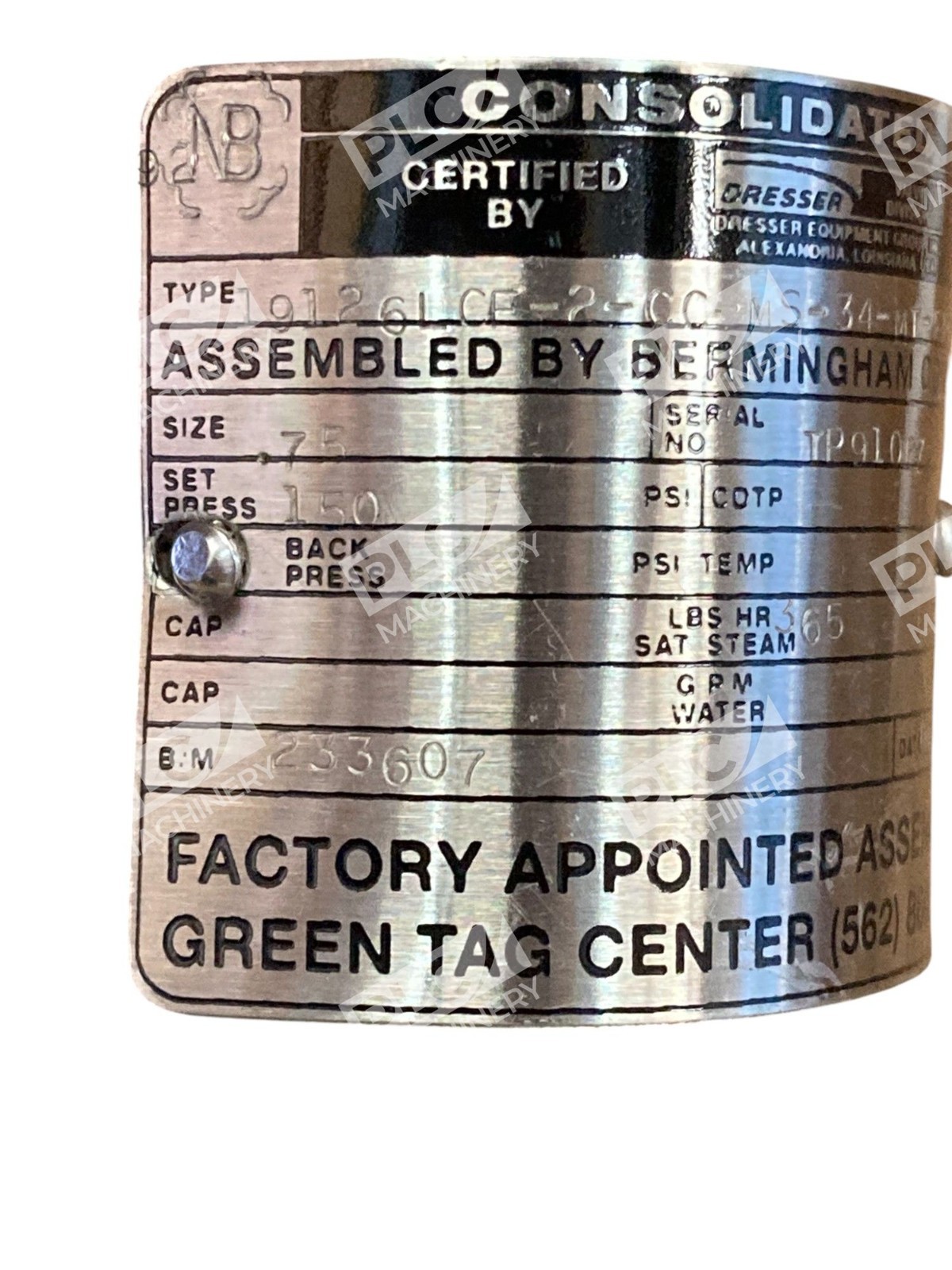

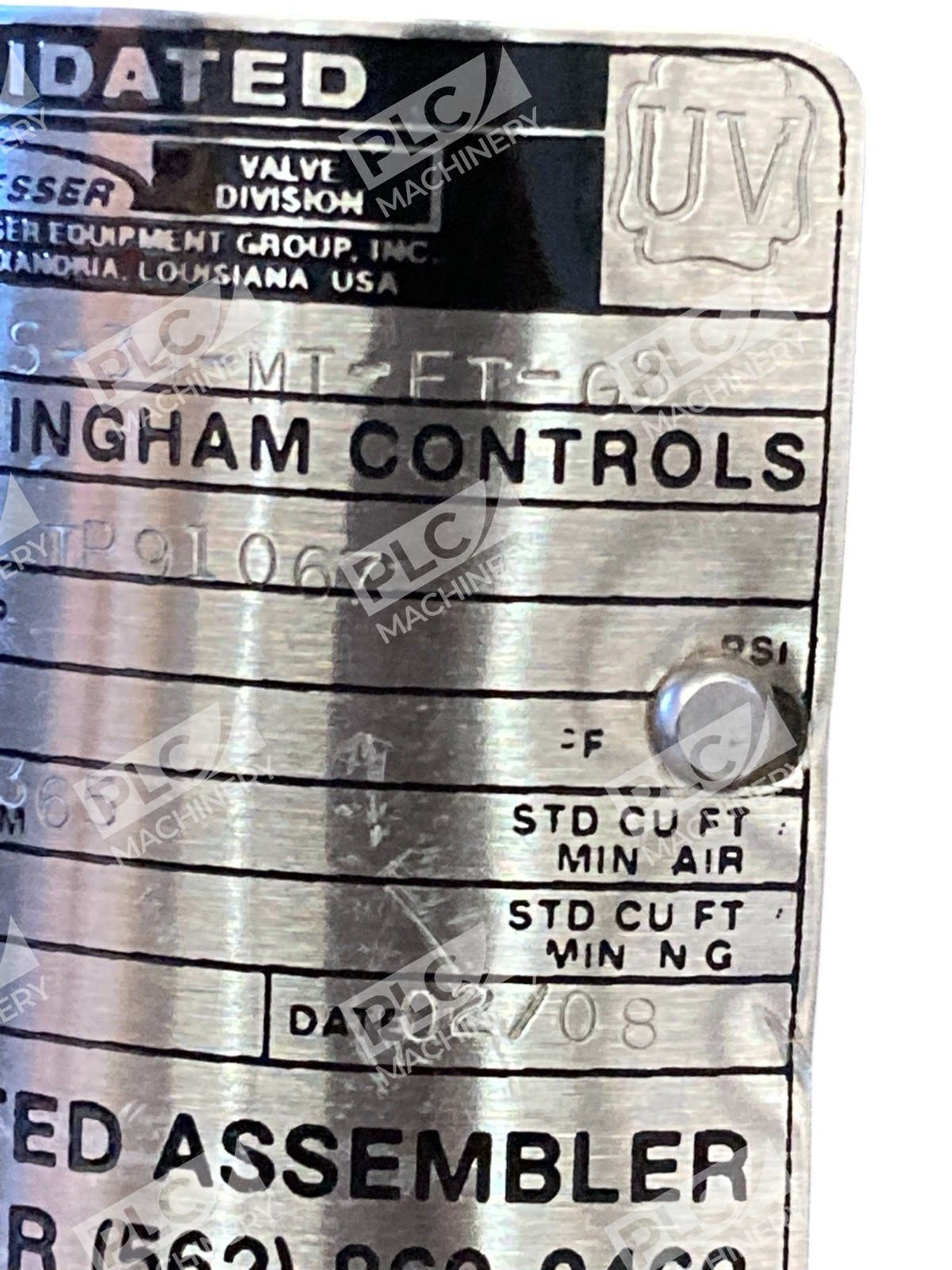

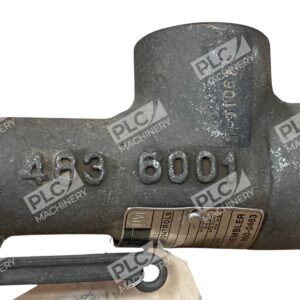

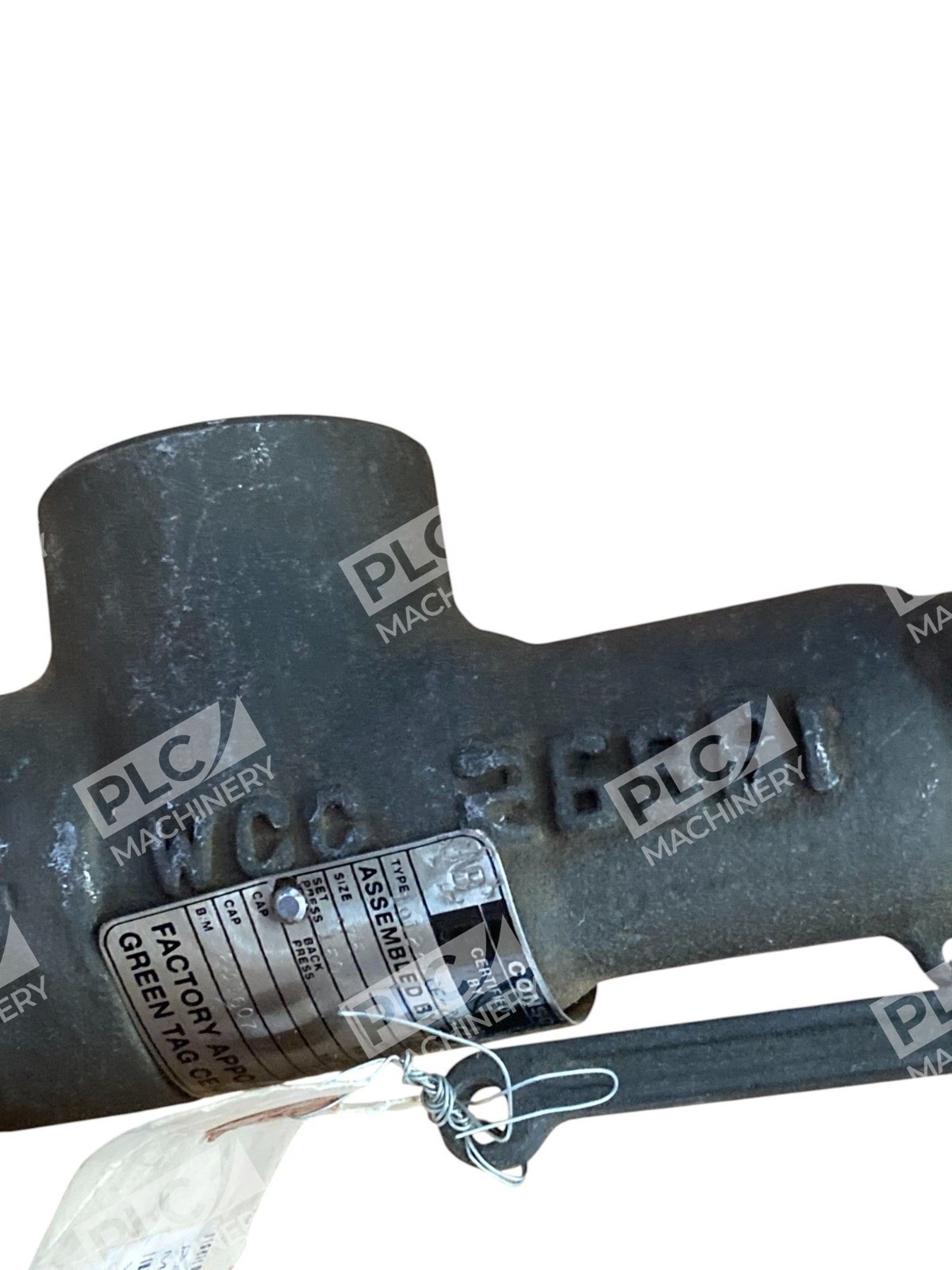

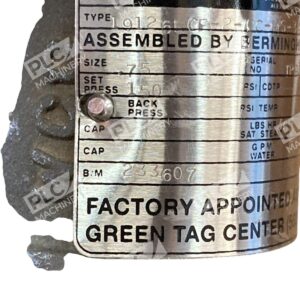

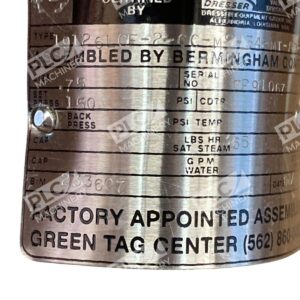

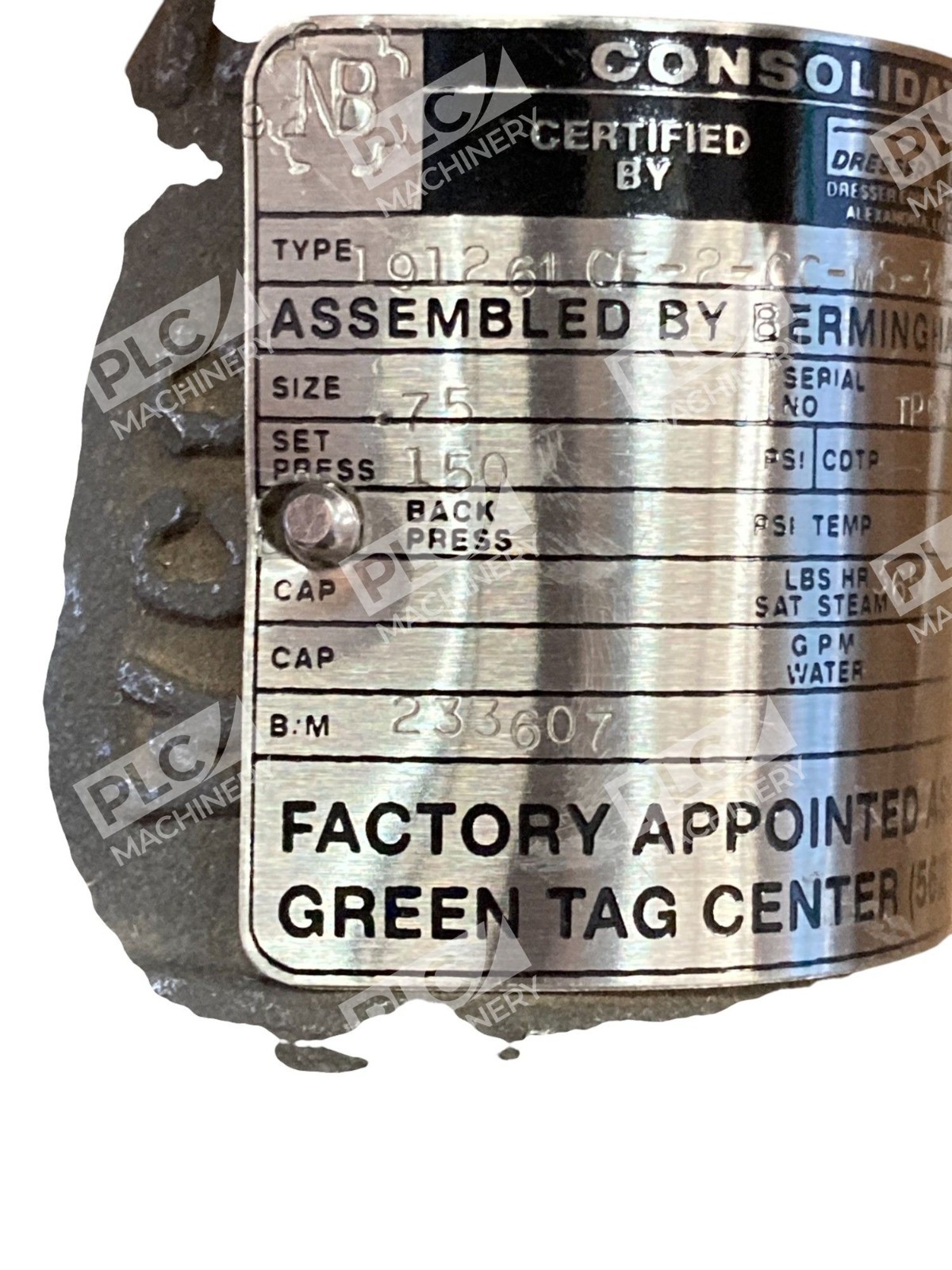

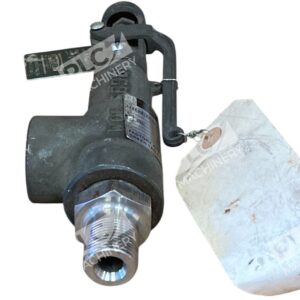

The Consolidated 19126LCF relief valve is a compact, direct-acting safety relief valve engineered for industrial pressure systems. Part of Consolidated’s 19000 Series, this 3/4″ valve is rated for 150 PSI maximum working pressure. The valve features a proven poppet-seat design that delivers bubble-tight sealing and reliable overpressure venting in hydraulic, pneumatic, and process fluid applications. Consolidated, now part of Baker Hughes, manufactures these valves to exacting industry standards for critical pressure management.
Key Features
- 3/4″ (0.75″) inlet/outlet size for common industrial piping
- 150 PSI cracking/relief pressure rating
- Direct-acting poppet design for fast response and repeatability
- Integral cast connection design with threaded ports
- Adjustable pressure setting via top-mounted screw
- Durable ductile iron construction with corrosion-resistant finish
- Suitable for hydraulic, pneumatic, and light process fluid service
Technical Specifications
- Port Size: 3/4″ NPT threaded
- Pressure Rating: 150 PSI
- Series: Consolidated 19000
- Configuration: Direct-acting safety relief valve
- Body Material: Ductile iron
- Sealing Type: Poppet-seat design
- Adjustment: Top-mounted adjustment screw
- Port Configuration: MT (main), FT (vent), GS (gauge connection)
- Cavity Design: MS (manifold cavity ready)
- Manufacturer: Consolidated (Baker Hughes)
Typical Applications
- Hydraulic system overpressure protection on mobile equipment and industrial machinery
- Pneumatic air line pressure regulation and safety venting
- Pump discharge protection to prevent system damage from pressure spikes
- Process fluid lines requiring precise relief setpoints
- Manifold cavity installations with modular control systems
- Equipment retrofits and maintenance replacements in established plants
Compatibility & Replacements
The Consolidated 19126LCF integrates into ductile iron manifold systems and standard 3/4″ NPT industrial piping configurations. Verify compatibility with your system integrator before ordering to ensure correct cavity dimensions and pressure settings.
Compatible With
- Standard industrial hydraulic systems rated 150 PSI and below
- Pneumatic compressed air systems (dry air service)
- Ductile iron manifold blocks with cavity provisions
- NPT-threaded piping networks (3/4″ female adapters)
- Consolidated/Dresser control system modules
Replaces / Drop-In Replacement For
- Direct replacement for other Consolidated 19126LCF variants with matching cavity codes (CC-MS-34)
- Compatible as a replacement for similar 3/4″ 150 PSI relief valves in legacy systems
- Verify original equipment specifications before substituting
Works With
- Ductile iron manifold bodies and cavity systems
- Standard NPT piping, hose adapters, and female ports
- Manual pressure gauges (via GS gauge connection)
- Integrated hydraulic and pneumatic control circuits
- Industrial pump discharge lines and accumulator protection
