Overview

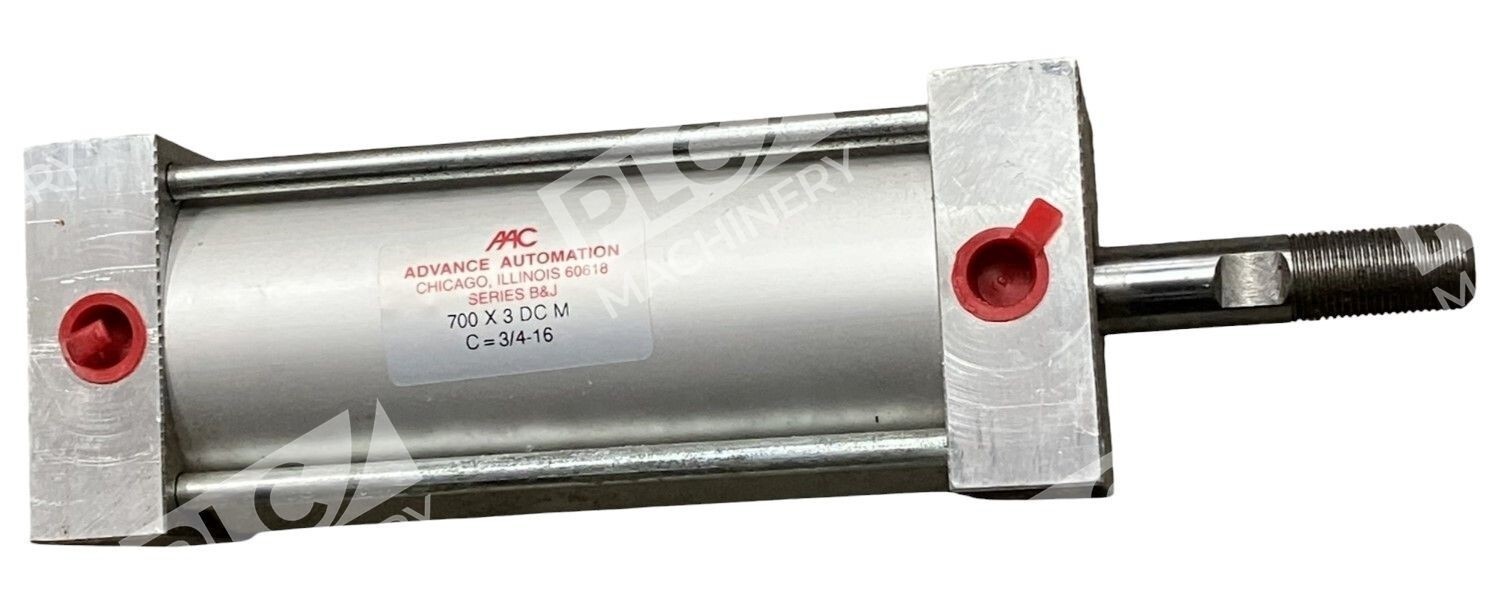

The Advance Automation Company 700X3DCMC=3/4-16 is a pneumatic cylinder engineered for reliable motion control in industrial automation applications. Advance Automation Company is a manufacturer of pneumatic and hydraulic cylinders since 1960, known for consistent quality and durability. This cylinder delivers precise, repeatable actuation suitable for machinery, automotive systems, packaging equipment, and factory automation workflows.
Key Features
- Double-acting pneumatic cylinder with 3/4-16 port configuration
- Aluminum construction for lightweight, corrosion-resistant performance
- NFPA-compatible mounting for easy integration into standard systems
- Teflon-standard cushioning for smooth deceleration and noise reduction
- Bronze bushing and nylon piston bearing for extended service life
- Rod wiper and O-ring seals for reliable, leak-free operation
Technical Specifications
Advance Automation Company manufactures industrial cylinders using 6063-T832 grade aluminum alloy with hard-coated internal diameter for durability. Standard configurations include adjustable stroke options and cushion designs suited for various pressure ranges and cycle speeds. Refer to manufacturer documentation or contact our team for the exact bore size, stroke length, and pressure rating specific to your 700X3DCMC configuration.
Typical Applications
- Automotive assembly and material handling
- Plastic injection molding and machine automation
- Food processing and packaging systems
- Pneumatic press and clamping operations
- Agricultural and general-purpose machinery
- Material transfer and positioning in factory floors
Compatibility & Replacements
Compatible With
- Standard industrial pneumatic control systems (80–250 PSI operating range)
- NFPA Interchangeable mounting configurations
- PLC and automation controllers with proportional or solenoid valve outputs
- Pneumatic valve assemblies with 3/4-16 SAE or metric port threads
Replaces / Drop-In Replacement For
For specific model numbers this cylinder directly replaces, verify compatibility with your system integrator or Advance Automation Company’s cross-reference documentation before ordering. Pneumatic cylinder interchangeability depends on bore size, stroke length, port thread type, and cushion configuration.
Works With
- ISO 4401 (CETOP) and NFPA ported solenoid valves
- Pneumatic logic circuits and proportional control systems
- Air preparation units (regulators, filters, lubricators)
- Proximity sensors and pilot-operated control schemes
- Reed limit switches (Advance Automation supplies OEM switch components)
