Overview

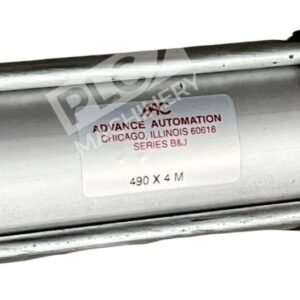

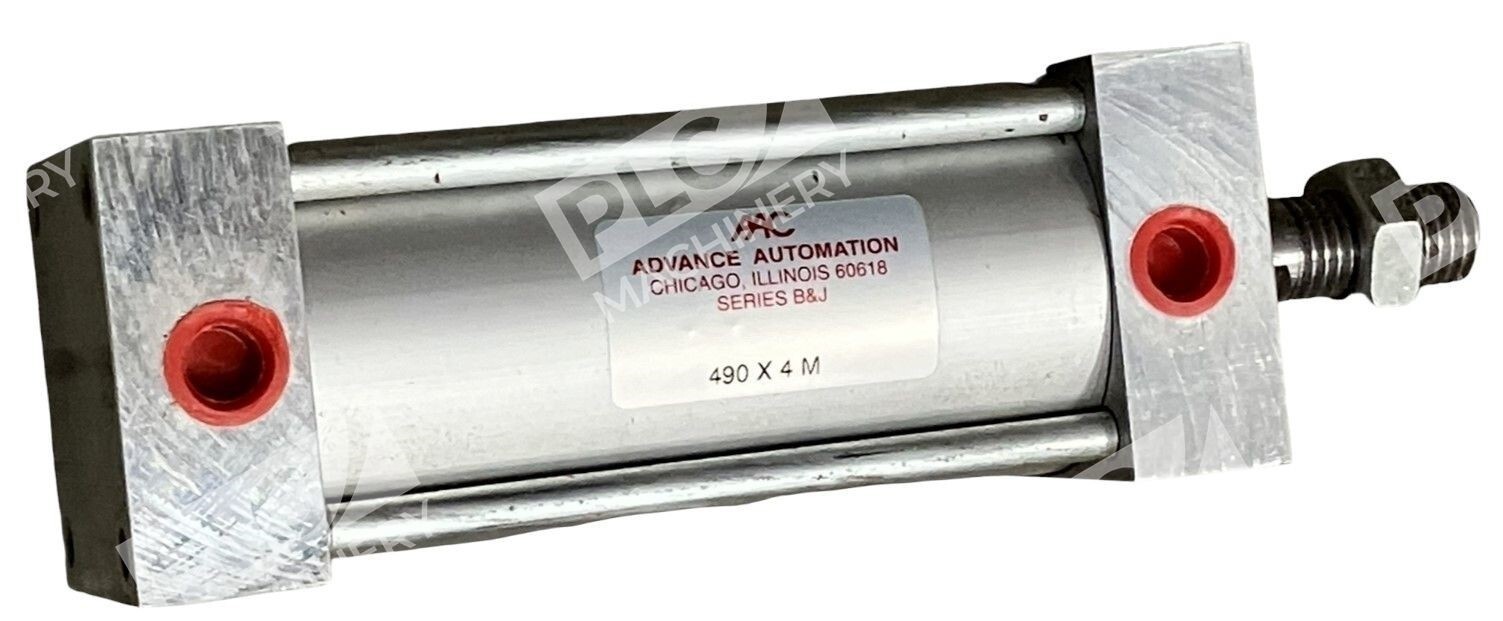

The Advance Automation AAC 490X4M pneumatic cylinder is a precision-engineered air actuator manufactured by Advance Automation Company, a Chicago-based specialist in aluminum cylinder design since 1960. This unit combines proven reliability with aluminum construction for lightweight performance in industrial automation environments. Model AAC 490X4M is suitable for applications requiring dependable pneumatic actuation in manufacturing, packaging, dairy, automotive, and fluid power systems.
Key Features
- Aluminum extruded cap and head design for corrosion resistance and durability
- NFPA interchangeable cylinder configuration for standardized mounting and port compatibility
- Cast bronze bushing construction for high tensile strength and load capacity
- Nylon piston bearing strip for improved wear characteristics and operational stability
- Unique cushion design to reduce shock and extend service life
- Made in USA by established manufacturer with proven quality control standards
Technical Specifications
- Manufacturer: Advance Automation Company (Chicago, Illinois)

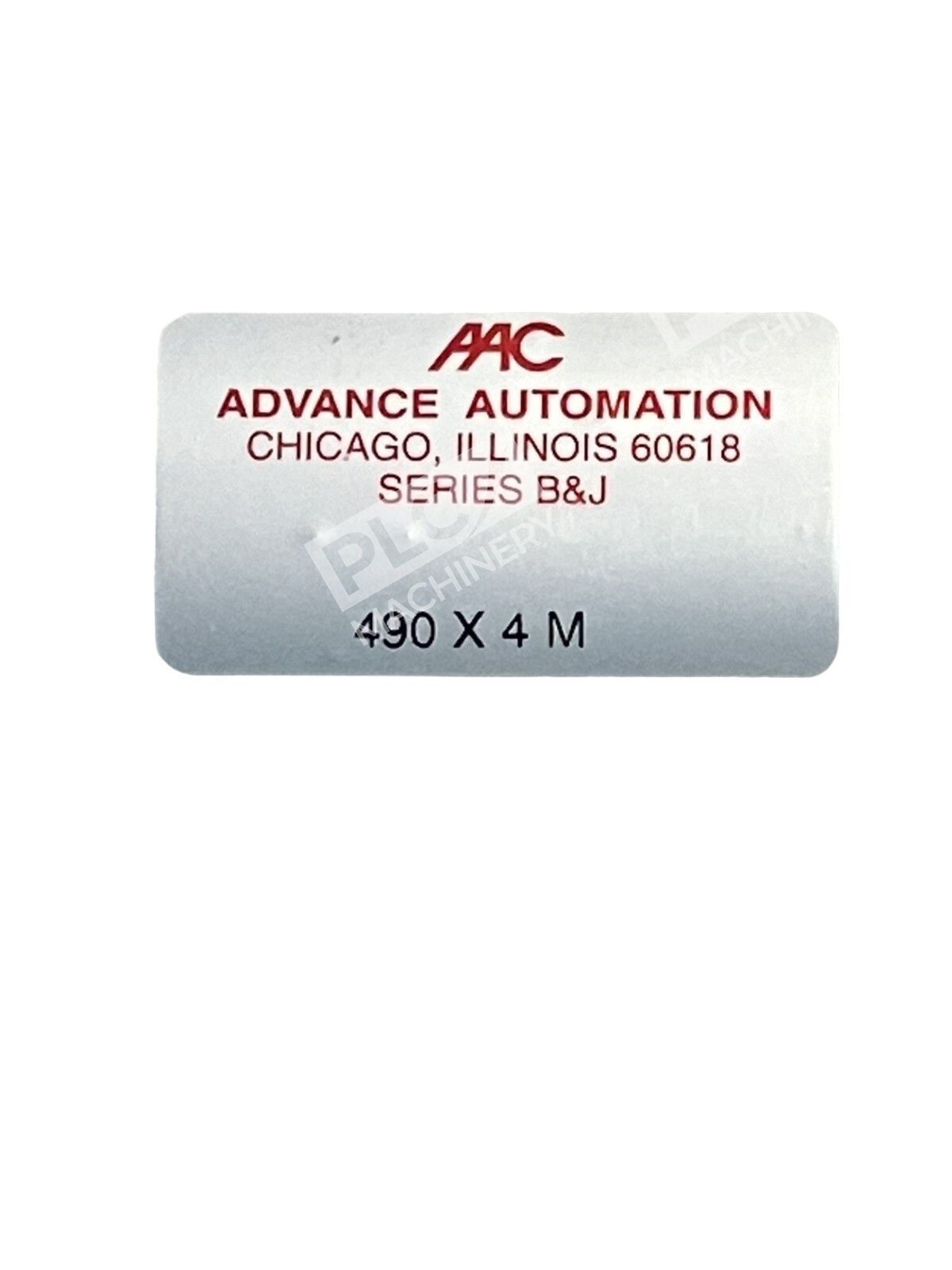

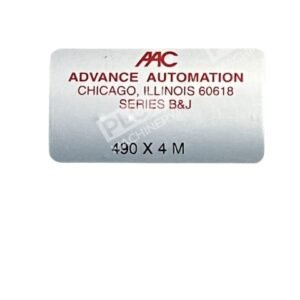

- Model Number: AAC 490X4M
- Cylinder Type: Pneumatic / Air Actuator
- Body Material: Aluminum Extrusion
- Bushing Type: Cast Bronze
- Piston Bearing: Nylon Strip
- Configuration: NFPA Interchangeable
- Pressure Rating: 250 PSI Pneumatic / 250 PSI Non-Shock Hydraulic (standard NFPA range)
- Condition: Used, fully functional, ready for deployment
Typical Applications
The Advance Automation AAC 490X4M is engineered for a wide range of industrial fluid power applications including:
- Packaging machinery and material handling automation
- Automotive manufacturing assembly and test stands
- Dairy processing equipment actuation
- Car wash systems and automated washing equipment
- General industrial automation and process control
- Clamping, holding, and positioning applications
- Custom fluid power system integration
Compatibility & Replacements
Compatible With
- NFPA standard pneumatic control systems
- Industrial 250 PSI pneumatic compressor networks
- Standard ISO and SAE pneumatic port configurations
- Custom manifold and valve assemblies (verify port sizing)
- Legacy and modern industrial automation equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Advance Automation AAC series cylinders are NFPA interchangeable with other standard bore and stroke combinations from the same series.
Works With
- Pneumatic solenoid valve systems
- Manual control valve manifolds
- Proportional air valve assemblies
- Pneumatic hose and tubing networks (ISO 4414 compliant)
- Industrial PLC and control system integration
- Pressure regulators and flow control devices
