Overview

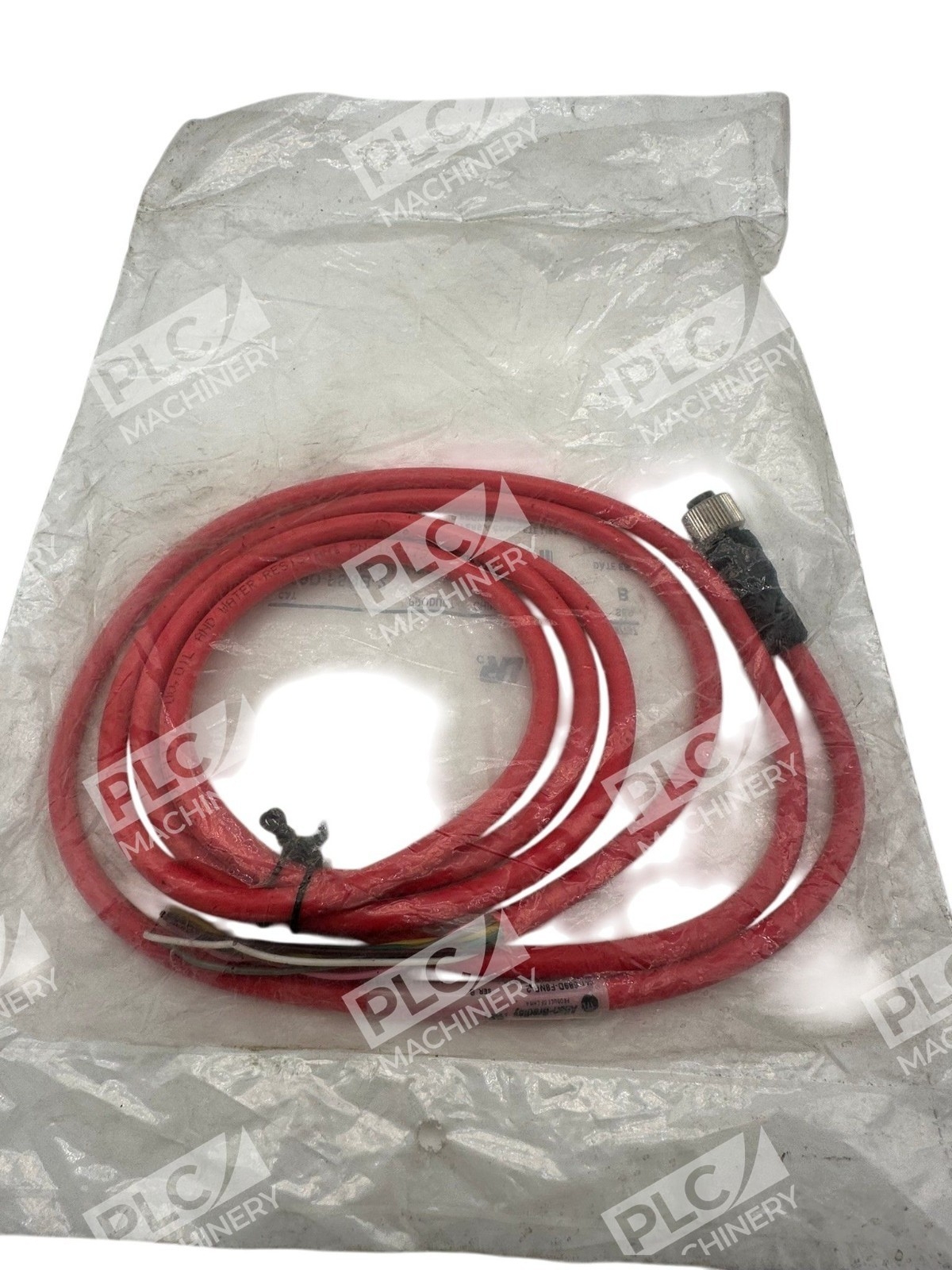

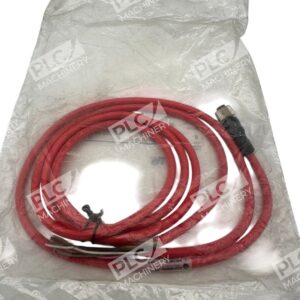

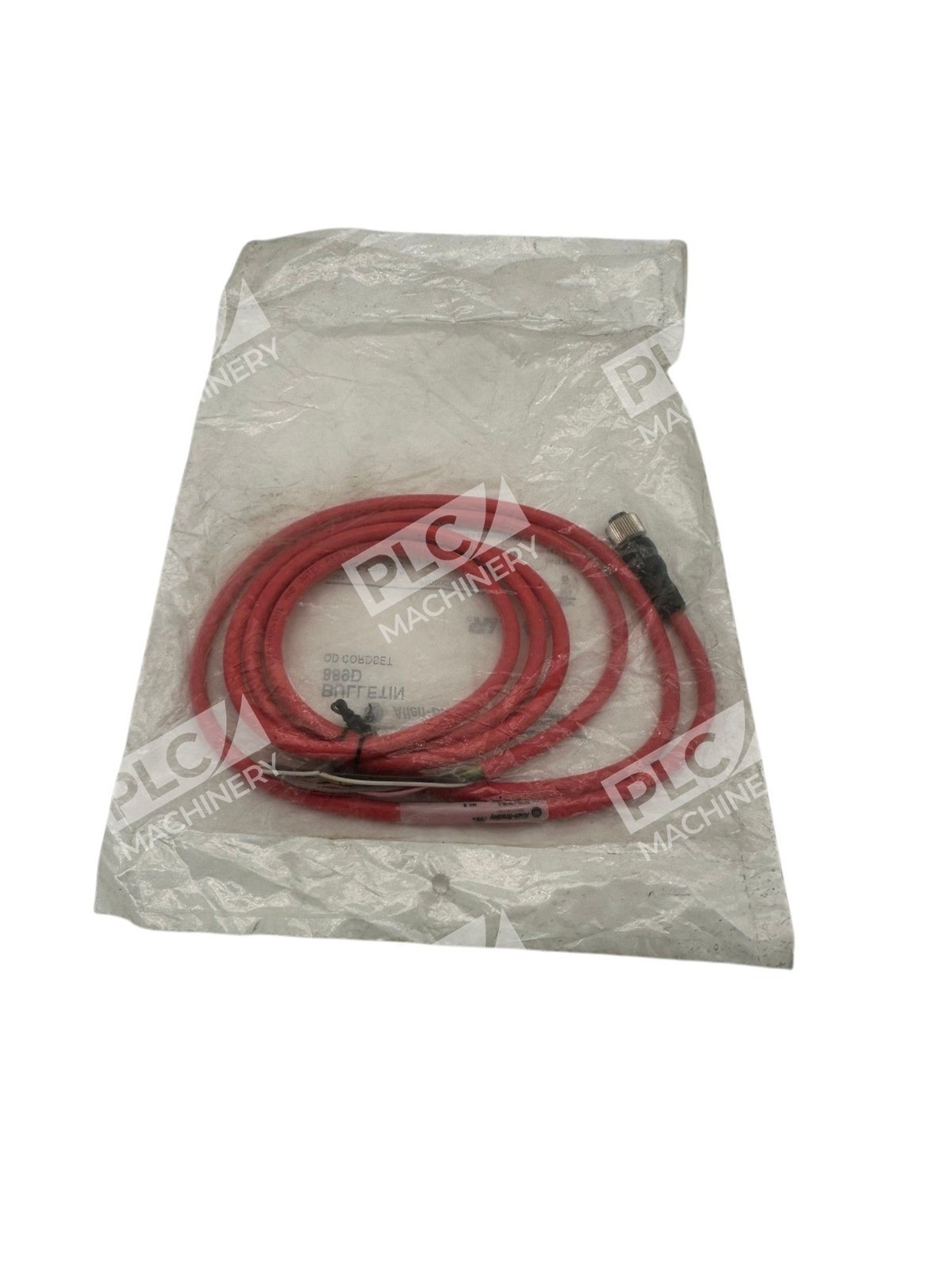

The Allen-Bradley 889D-F8NB-2 Series B cordset is an 8-pin DC Micro quick-disconnect (QD) connector assembly designed for industrial automation applications requiring reliable sensor and actuator connectivity. The Bulletin 889D DC Micro (M12) Connection System features industry standard 2-, 3-, 4-, 5-, or 8-pin connectors for DC-powered components. This 2-meter straight cordset with overmolded connectors is available in various configurations to suit a wide range of applications and environments.
Key Features
- 8-pin M12 QD connector—standard for DC Micro applications
- 2-meter cable length with straight connector orientation
- Overmolded connector design for enhanced durability and field reliability
- Series B manufacturing—current production standard
- New in Box condition, factory sealed
- Supports DC-powered sensors, actuators, and distributed I/O modules
Technical Specifications
- Connector Type: M12 Quick-Disconnect (QD)
- Pin Configuration: 8-pin
- Cable Length: 2 meters
- Connector Orientation: Straight, Female
- Connector Construction: Overmolded
- Series: B

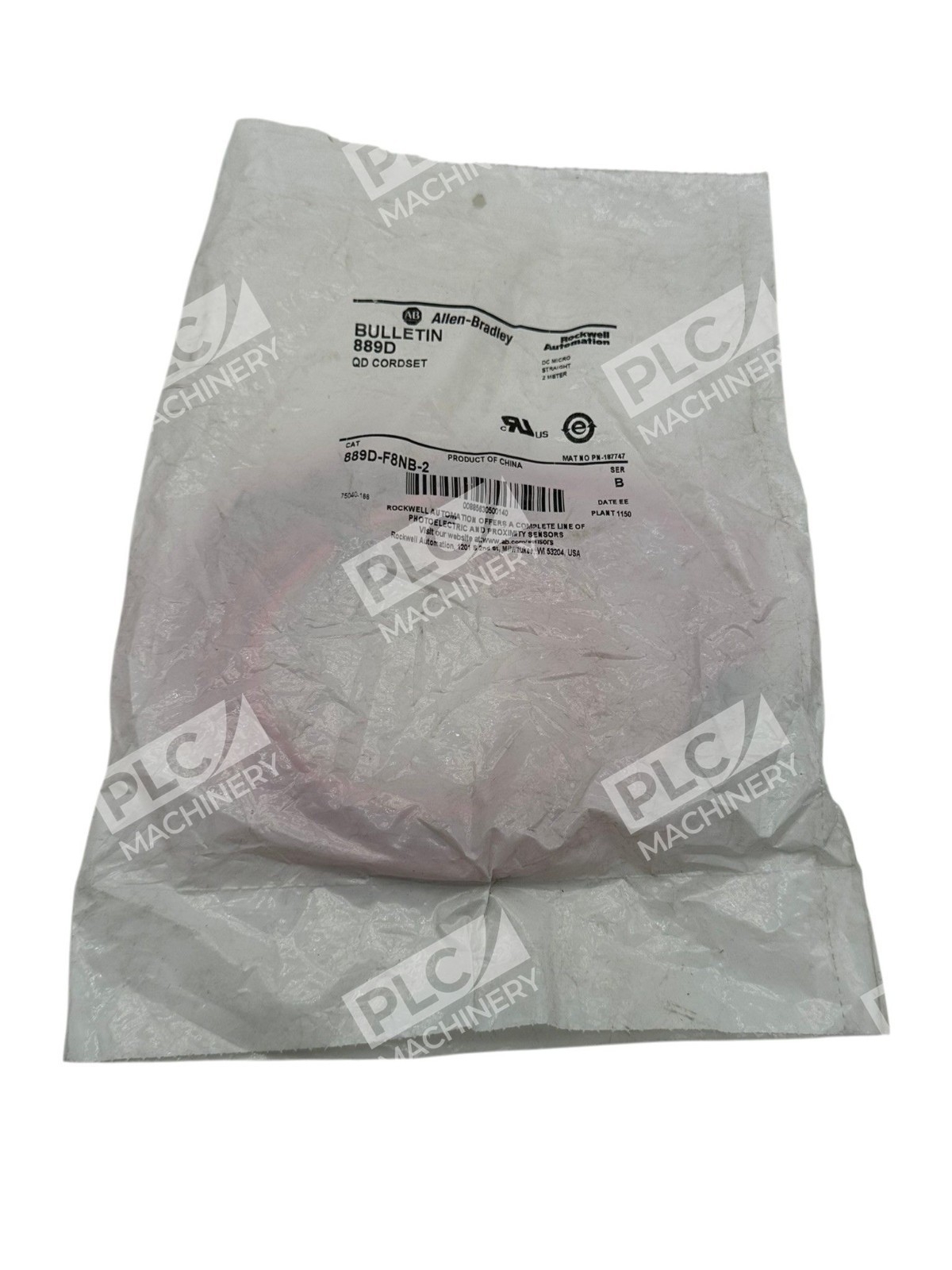

- Condition: New in Box
Typical Applications
- Distributed I/O module connectivity in industrial control systems
- Sensor and actuator cabling for programmable logic controllers (PLCs)
- Motion control system field wiring and quick-disconnect requirements
- On-machine junction and device interconnection
- Factory automation and assembly line control circuits
Compatibility & Replacements
Compatible With
- Allen-Bradley 889D DC Micro Quick-Disconnect systems
- M12 8-pin QD connectors and receptacles
- DC-powered distributed I/O modules and sensor networks
- Rockwell Automation CompactLogix and ControlLogix motion modules
- Industrial sensors and actuators with M12 QD female ends
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering cordset replacements. The 889D-F8NB-2 8-pin straight configuration may replace other 2-meter 8-pin straight cordsets in the 889D family; consult Rockwell Automation technical documentation or your controls integrator to confirm interchangeability for your specific application.
Works With
- Allen-Bradley EtherNet/IP networks with distributed I/O
- Rockwell Automation Studio 5000 Logix Designer firmware
- Industrial automation platforms using M12 QD connectivity standards
- Legacy and current-generation Allen-Bradley control systems
