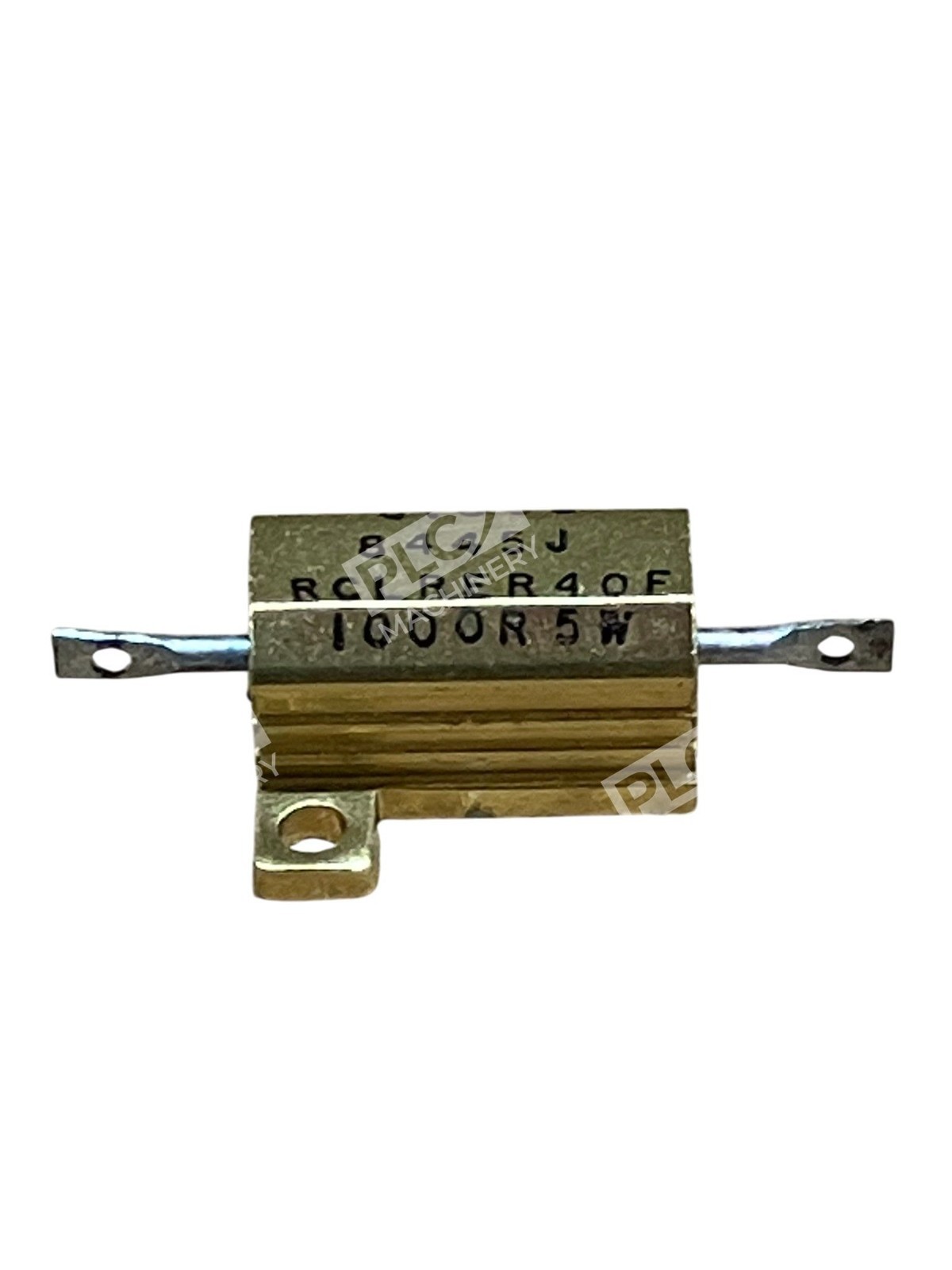

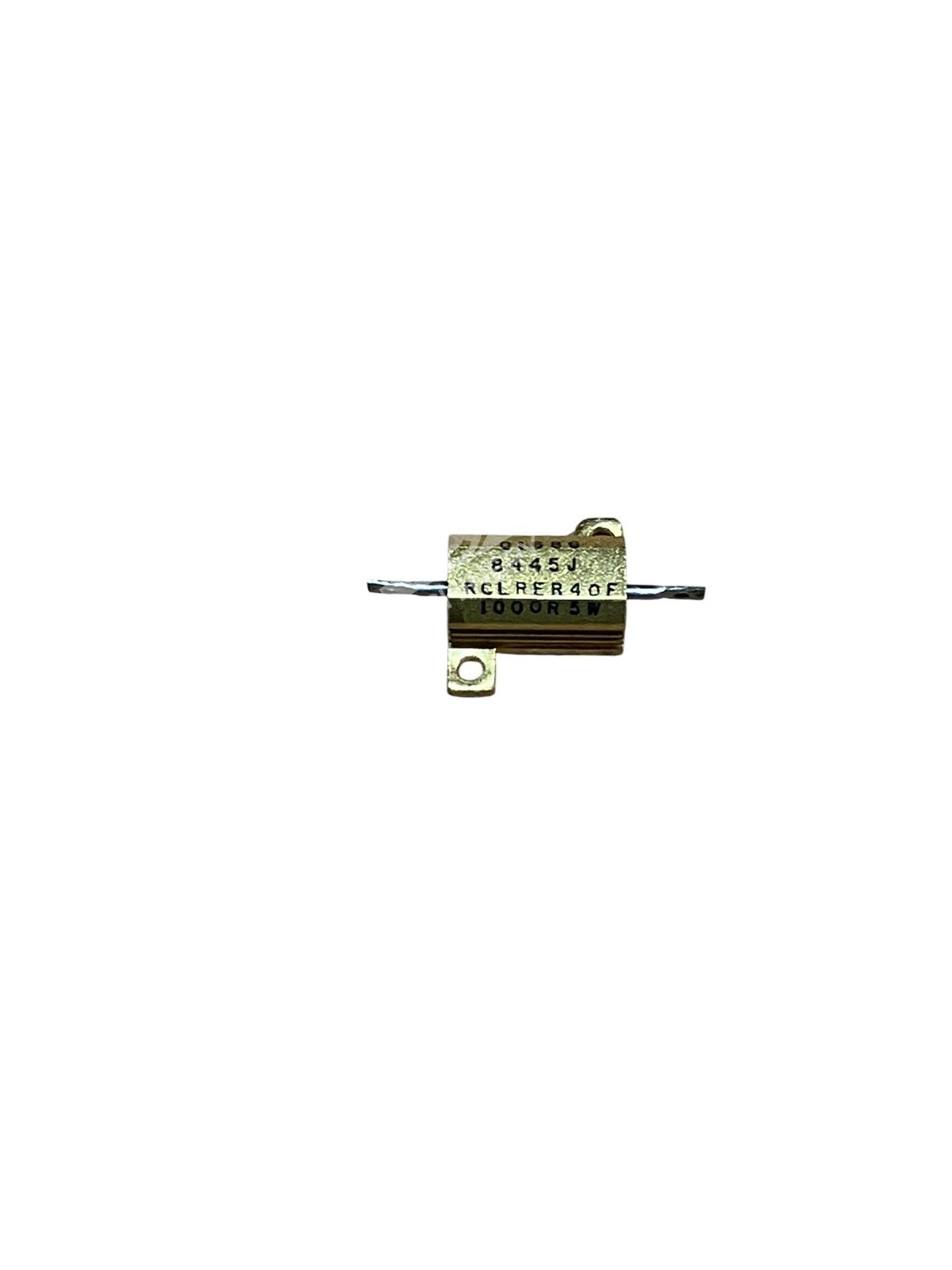

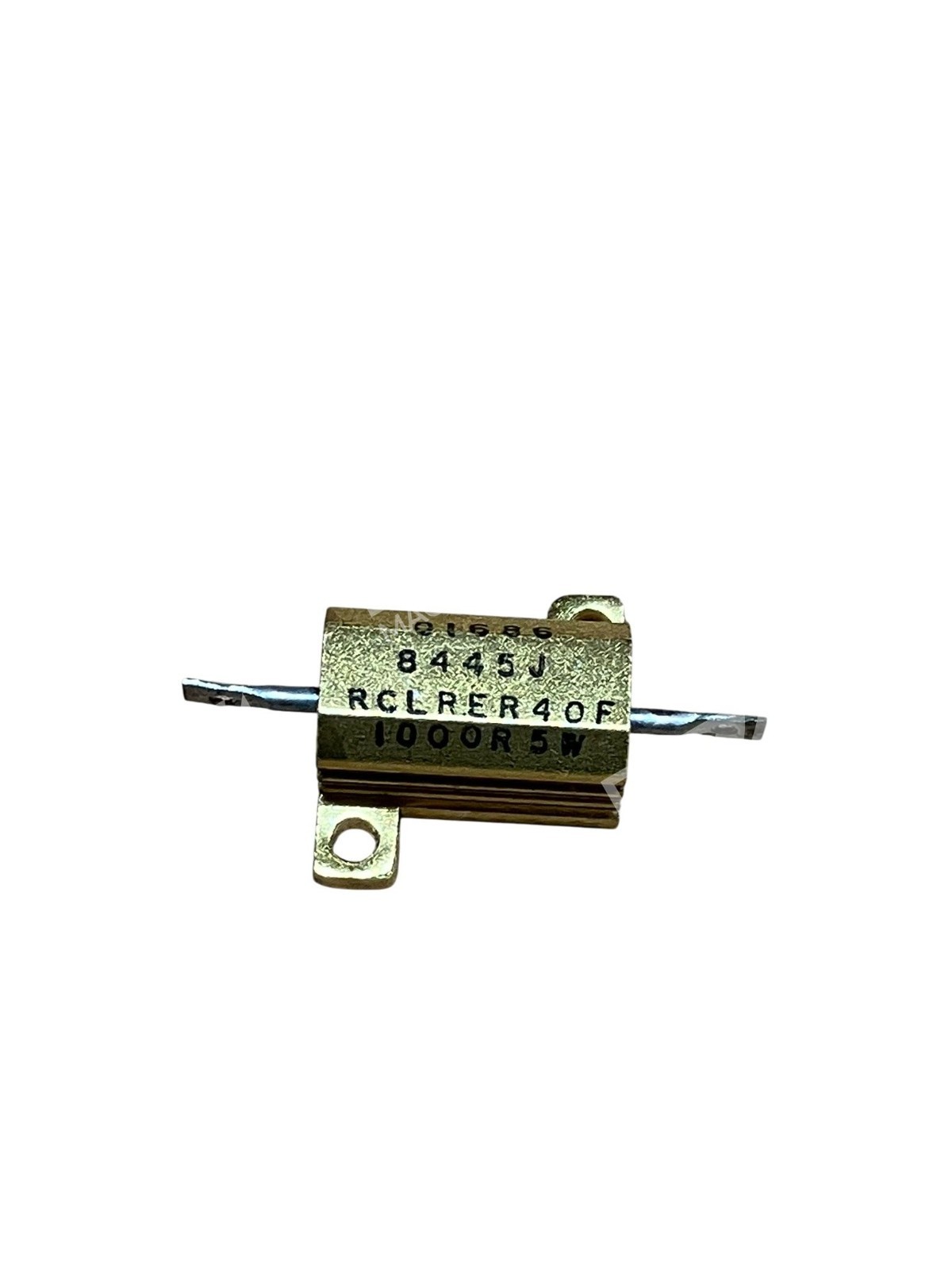

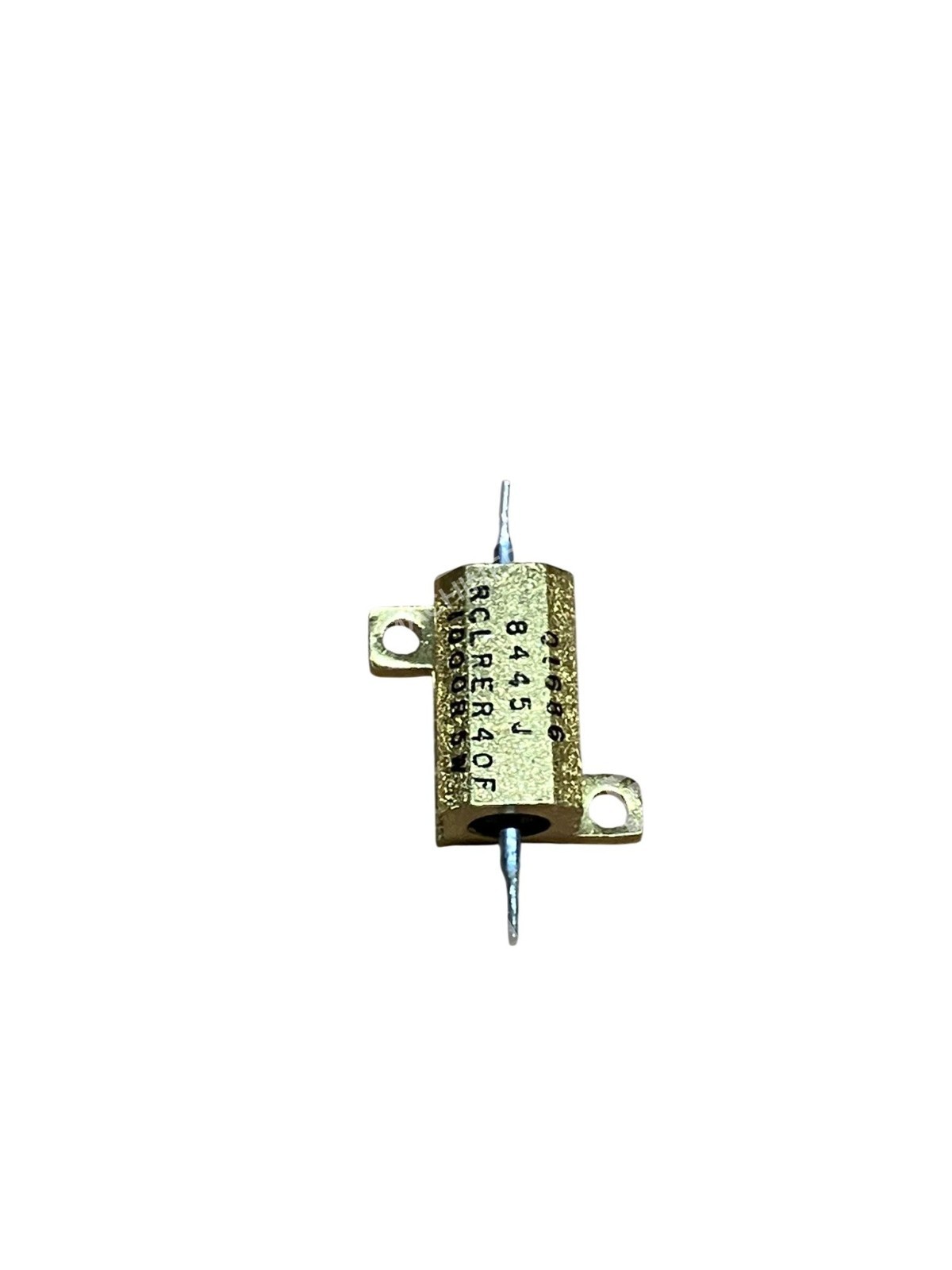

Dale RCLRER40F is a high-power wirewound resistor engineered for precision electrical resistance in industrial and power electronics applications. Offering stable performance and reliable current handling, this fixed resistor meets demanding circuit requirements where precision and durability are essential.
Overview
The Dale RCLRER40F wirewound resistor provides precise electrical resistance with a nominal value of 1000 ohms. Designed for high-power applications, this resistor delivers stable performance in power supplies, load banks, test equipment, and industrial control circuits where predictable resistance characteristics are required.
Key Features
- 1000 ohm resistance value for stable circuit performance
- Wirewound construction for reliable power handling
- Suitable for high-power and high-current applications
- Fixed resistor design eliminates drift and tuning concerns
- Precision electrical characteristics for demanding circuits
Technical Specifications
Verify the following specifications against your circuit requirements before ordering:
| Resistance Value | 1000 Ohms |
| Resistor Type | Wirewound, Fixed |
| Power Rating | 1000 Watts |
| Manufacturer | Dale |
| Part Number | RCLRER40F |
| Lead Type | Axial or Solder Terminal (verify exact configuration) |
Typical Applications
- Power supply load resistors and precision loading
- Test and measurement equipment
- Industrial control circuit components
- High-current circuit protection and limiting
- Equipment requiring precise, stable resistance characteristics
Compatibility & Replacements
Compatible With
- Standard 1000-ohm fixed resistor applications
- Industrial power electronics circuits requiring 1000W dissipation
- Test equipment and load banks
- Power supply designs and feedback networks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This resistor is designed as a direct replacement for equivalent 1000-ohm, 1000-watt wirewound fixed resistors. Dale RCLRER40F is commonly used to replace damaged or aged resistors in industrial applications where precision and power rating match the original circuit design.
Works With
- Power supply circuits and filtering networks
- Industrial control and automation systems
- Precision test and measurement equipment
- High-power electronic load applications
