Overview

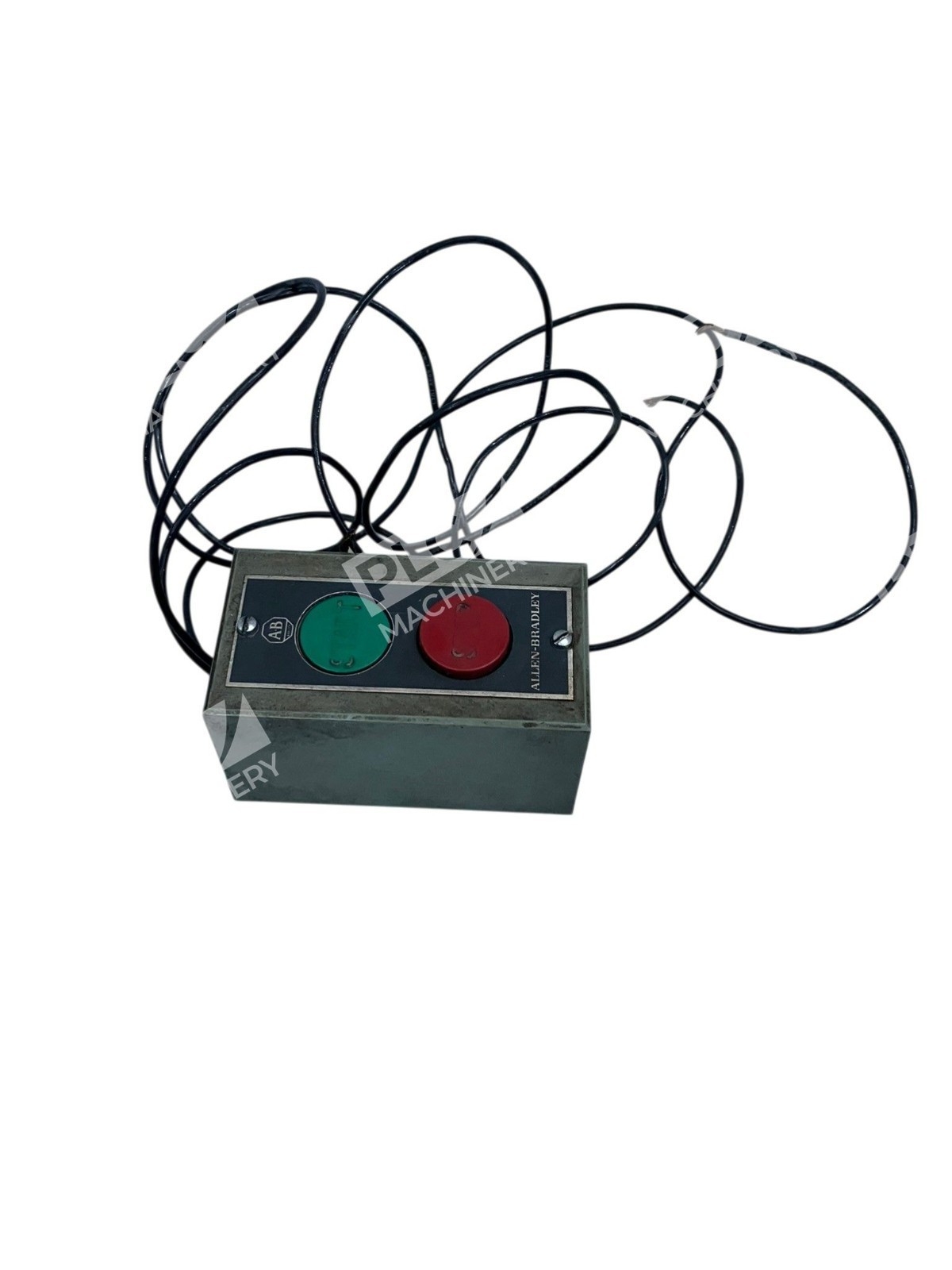

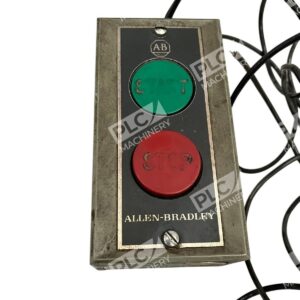

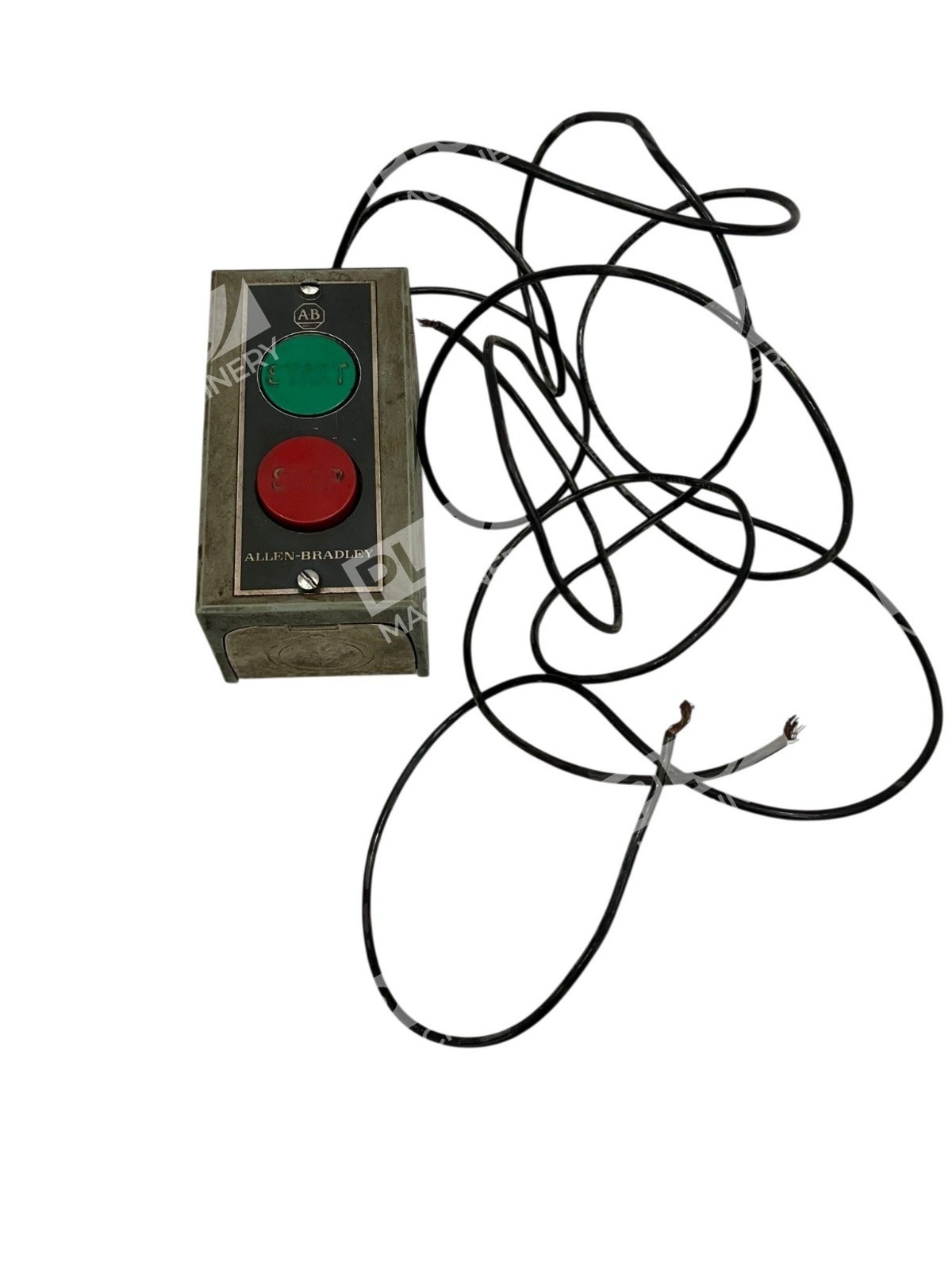

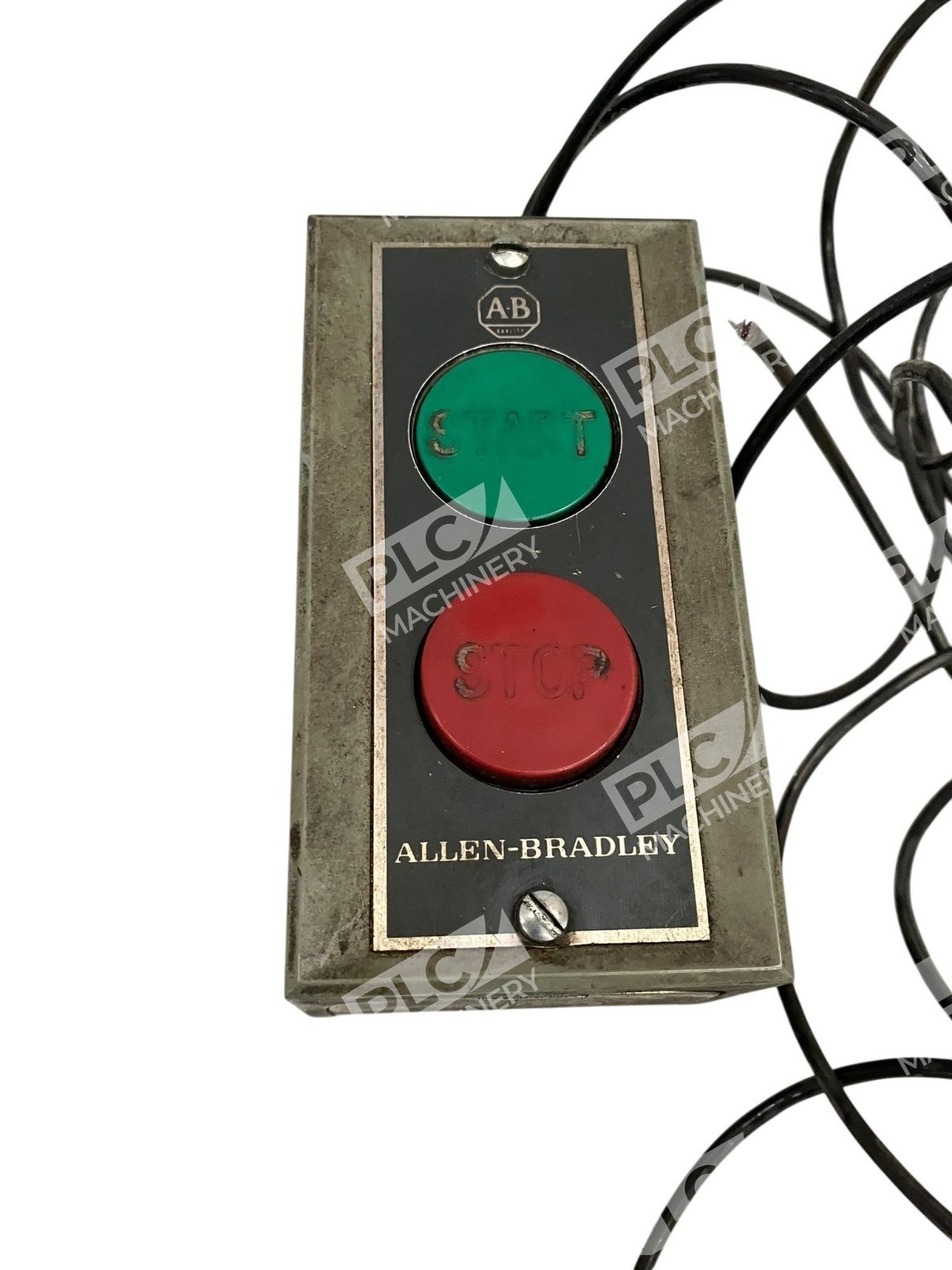

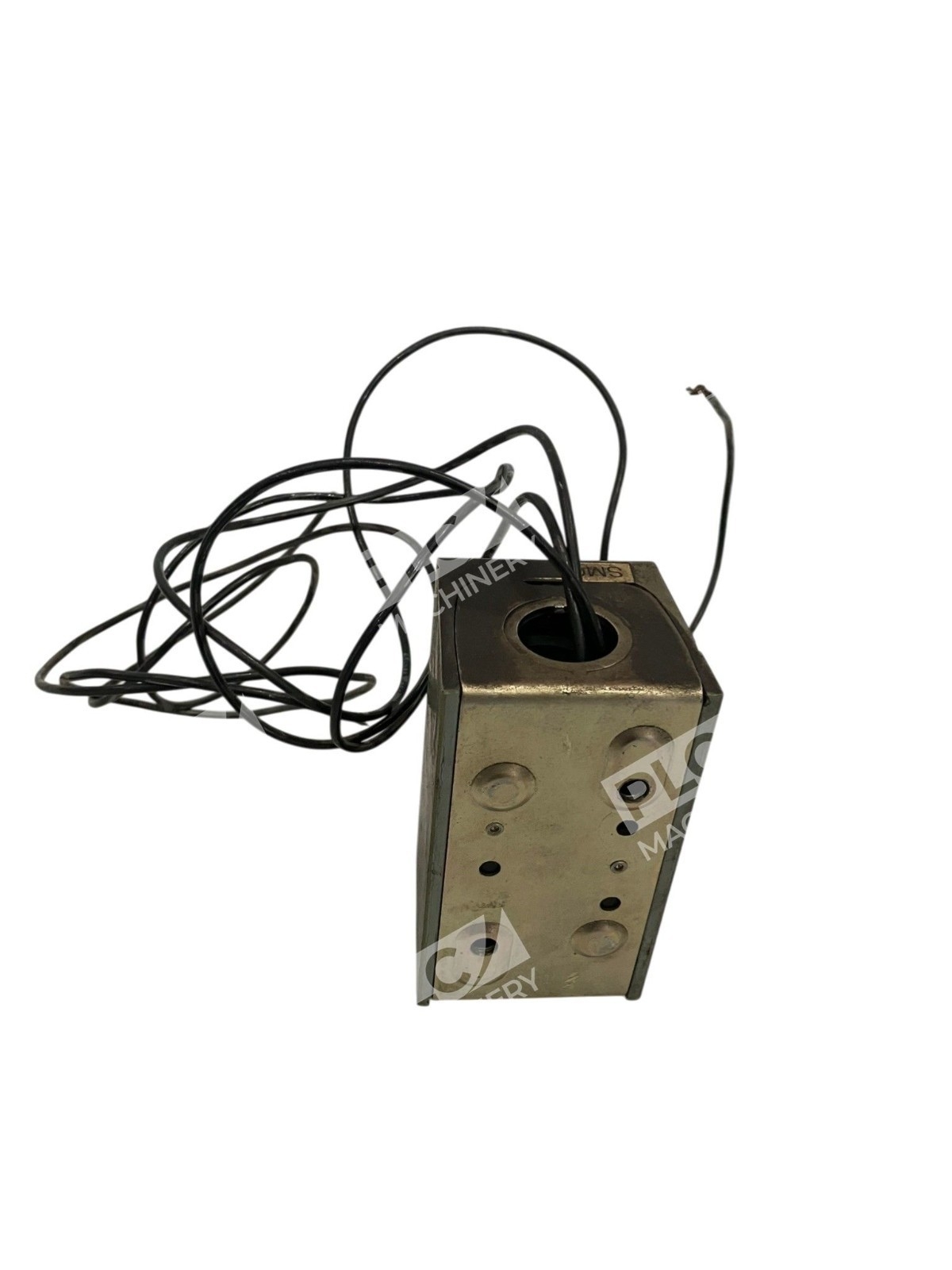

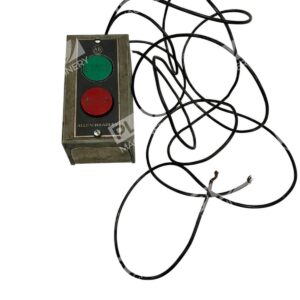

The Allen-Bradley 800S-2SA is a proven standard duty pushbutton station designed for reliable start/stop control in industrial automation environments. This momentary contact pushbutton station delivers consistent performance in machinery control, process control, and general electrical equipment applications. With its robust NEMA Type 1 metal enclosure and verified 5 A contact rating at 600 VAC, the 800S-2SA provides the dependable switching needed for critical production control circuits.
Key Features
- Momentary Contact Operation: Momentary push buttons with automatic return for safe, reliable control
- Contact Configuration: 1 NC (normally closed) and 1 NO (normally open) contacts for flexible control logic
- Enclosure Type: NEMA Type 1 metal construction rated for general industrial use
- Mounting: Surface mount with 2-hole configuration for quick installation
- Standards Compliance: Meets UL, CSA, and KC certification standards for safety and reliability
Technical Specifications
- Contact Rating: 5 A at 600 VAC
- Enclosure Rating: NEMA Type 1
- Enclosure Material: Metal
- Button Action: Momentary Contact Buttons
- Contact Configuration: 1 NO, 1 NC
- Mounting Type: Surface Mount
- Number of Holes: 2 Hole
- Standards: UL, CSA, KC
- Manufacturer: Allen-Bradley / Rockwell Automation
Typical Applications
The 800S-2SA is widely used in:
- Machine tool control and operator interface stations
- Production line start/stop control
- Motor starter circuits and equipment interlocks
- General industrial control panels and enclosures
- Equipment requiring standard duty momentary switching
Compatibility & Replacements
Compatible With
- Allen-Bradley control systems and PLCs
- Rockwell Automation integrated control platforms
- Standard 600 VAC industrial circuits
- NEMA Type 1 control enclosures
- Any application requiring 5 A, 600 VAC momentary switching
Replaces / Drop-In Replacement For
- Earlier 800S series pushbutton stations with identical contact ratings
- General industrial momentary pushbutton stations with 1NC/1NO configuration
- Verify specific model compatibility with your system integrator before ordering for legacy applications
Works With
- Allen-Bradley CompactLogix, ControlLogix, and MicroLogix PLCs
- Rockwell Automation Studio 5000 Logix software
- Standard industrial relay circuits and motor starters
- EtherNet/IP and ControlNet networked control systems
- Any DC or AC control logic requiring momentary pushbutton input
