Overview

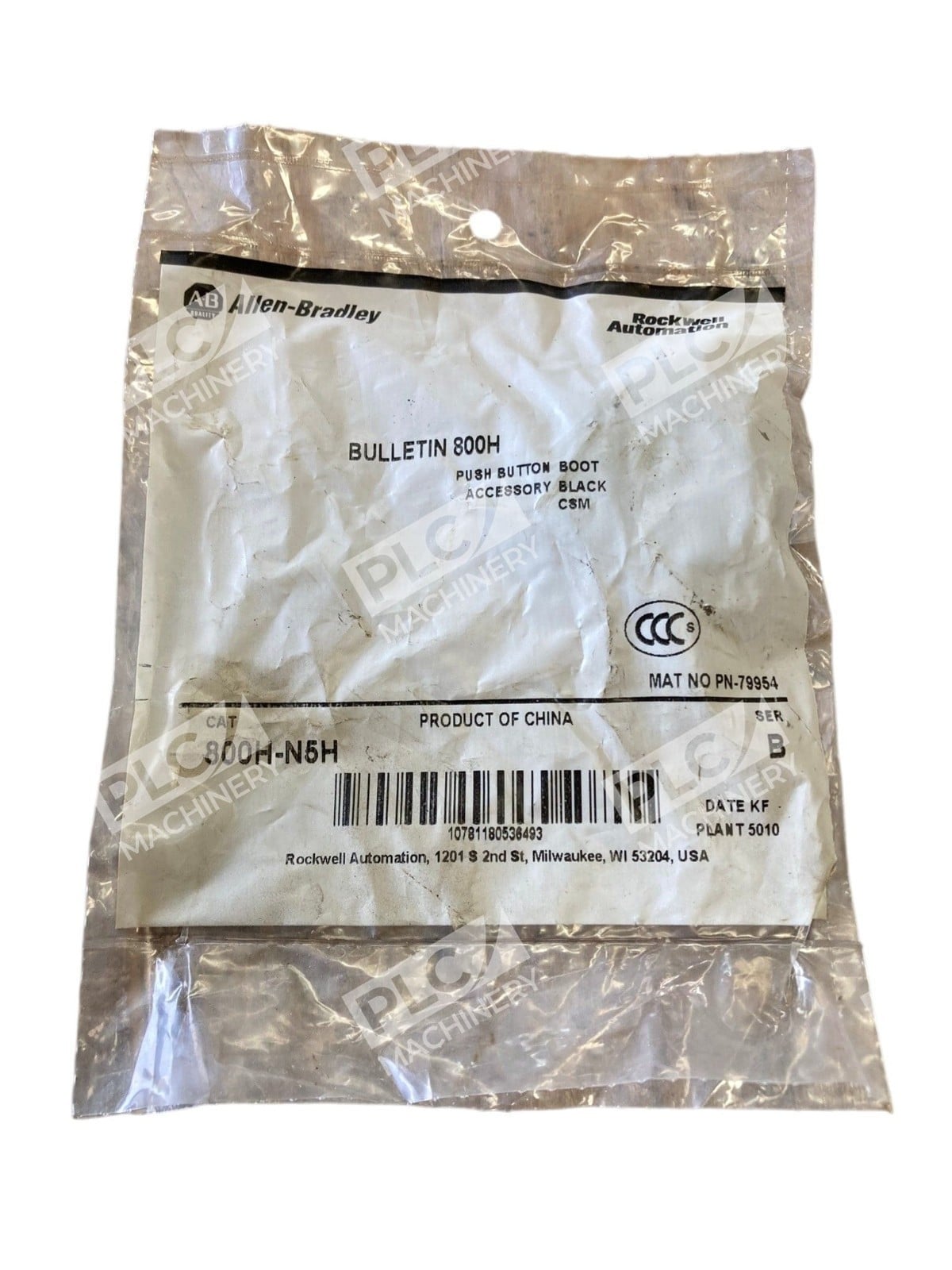

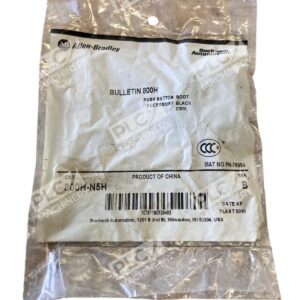

The Allen-Bradley 800H-N5H is a 30mm replacement protective boot designed specifically for the 800H series of non-illuminated pushbuttons. This accessory is engineered to shield pushbutton operators from environmental contaminants, moisture, and dust in demanding industrial automation environments. The black hypalon construction provides excellent chemical and UV resistance, making it ideal for both indoor and outdoor installations where operator protection is critical.
Key Features
- 30mm standardized mounting for seamless integration with 800H pushbutton operators
- Durable black hypalon (chlorosulfonated polyethylene) material resists chemicals, oils, and weathering
- Brass threaded inserts ensure secure, corrosion-resistant attachment
- Drop-in replacement for OEM boots without requiring additional modifications
- Suitable for use in both standard industrial and hazardous location Type 7/9 rated installations
Technical Specifications
- Material: Black Hypalon (Chlorosulfonated Polyethylene)
- Size: 30mm push button
- Thread Type: Brass threaded inserts
- Series: 800H
- Type: Protective boot/operator cover
- Weight: 0.05 lbs (0.023 kg)
- Color: Black
- UPC: 78118053649
Typical Applications
- Industrial machinery start/stop pushbutton stations
- Machine tool control panels and operator interfaces
- Processing equipment in harsh chemical or corrosive environments
- Outdoor control enclosures and weatherproofed stations
- Hazardous location classified facilities requiring sealed equipment
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H Series 30mm non-illuminated pushbuttons
- Rockwell Automation Bulletin 800H hazardous location push buttons
- Type 4/4X/13 industrial control stations
- Standard 30mm push button operator assemblies
Replaces / Drop-In Replacement For
- Original Allen-Bradley 800H-N5H OEM protective boots
- Worn or damaged push button boots on existing 800H assemblies
- Verify specific pushbutton model compatibility with your system integrator before ordering
Works With
- Allen-Bradley 800H series pushbutton operators (all versions)
- Rockwell Automation industrial control systems
- Standard 30mm pushbutton mounting systems
- NEMA 4/4X outdoor-rated enclosures and stations
