Overview

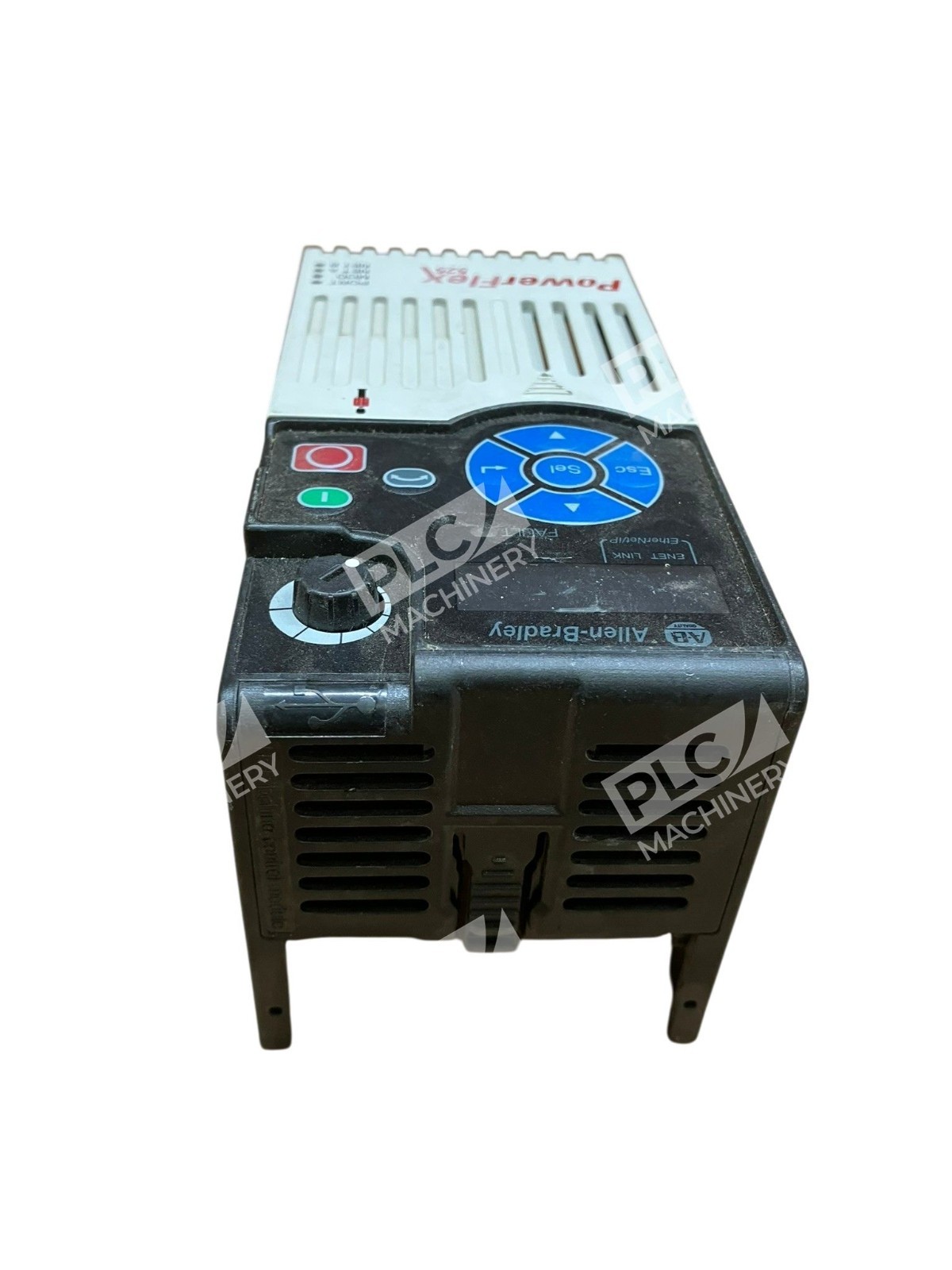

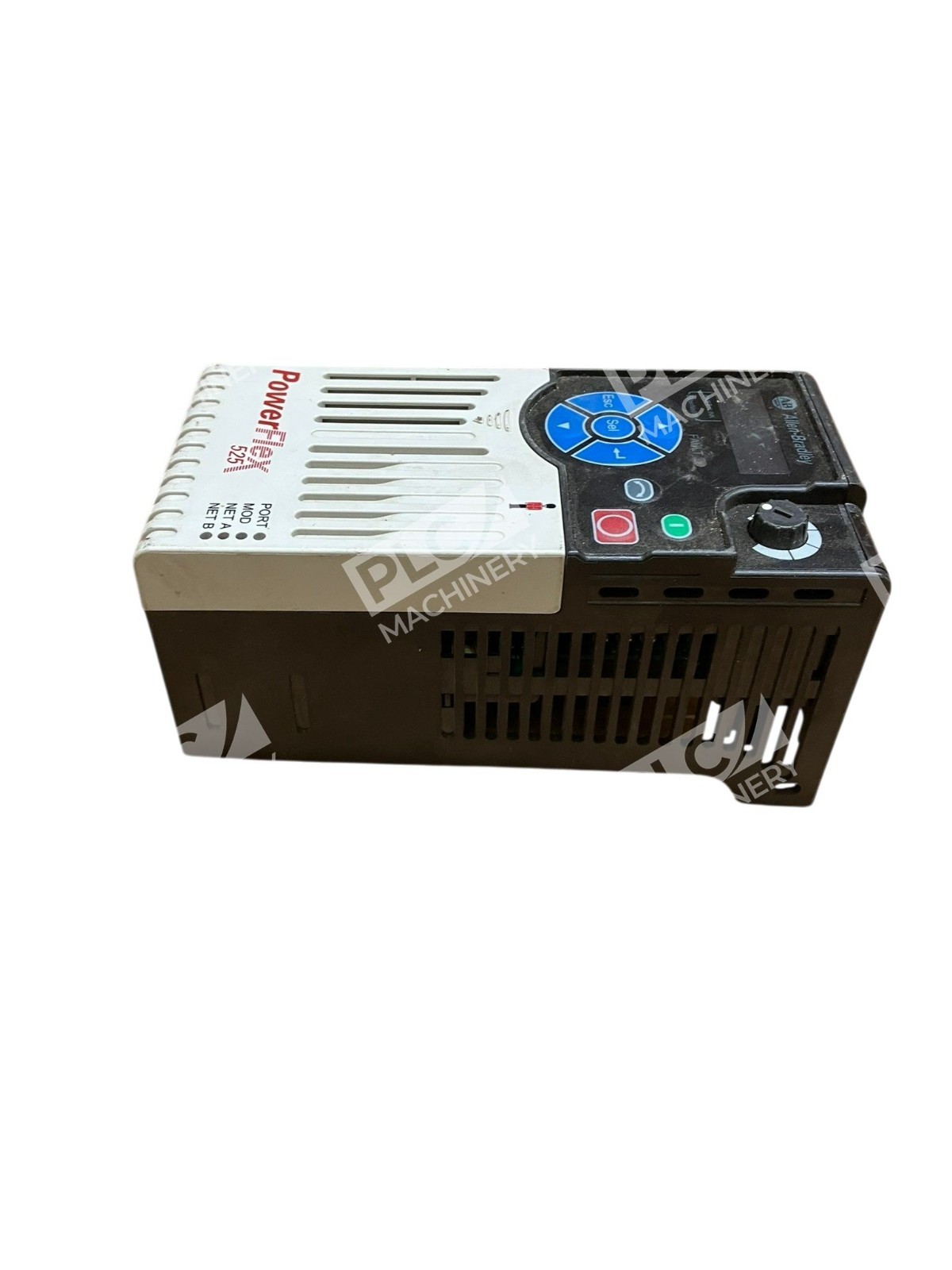

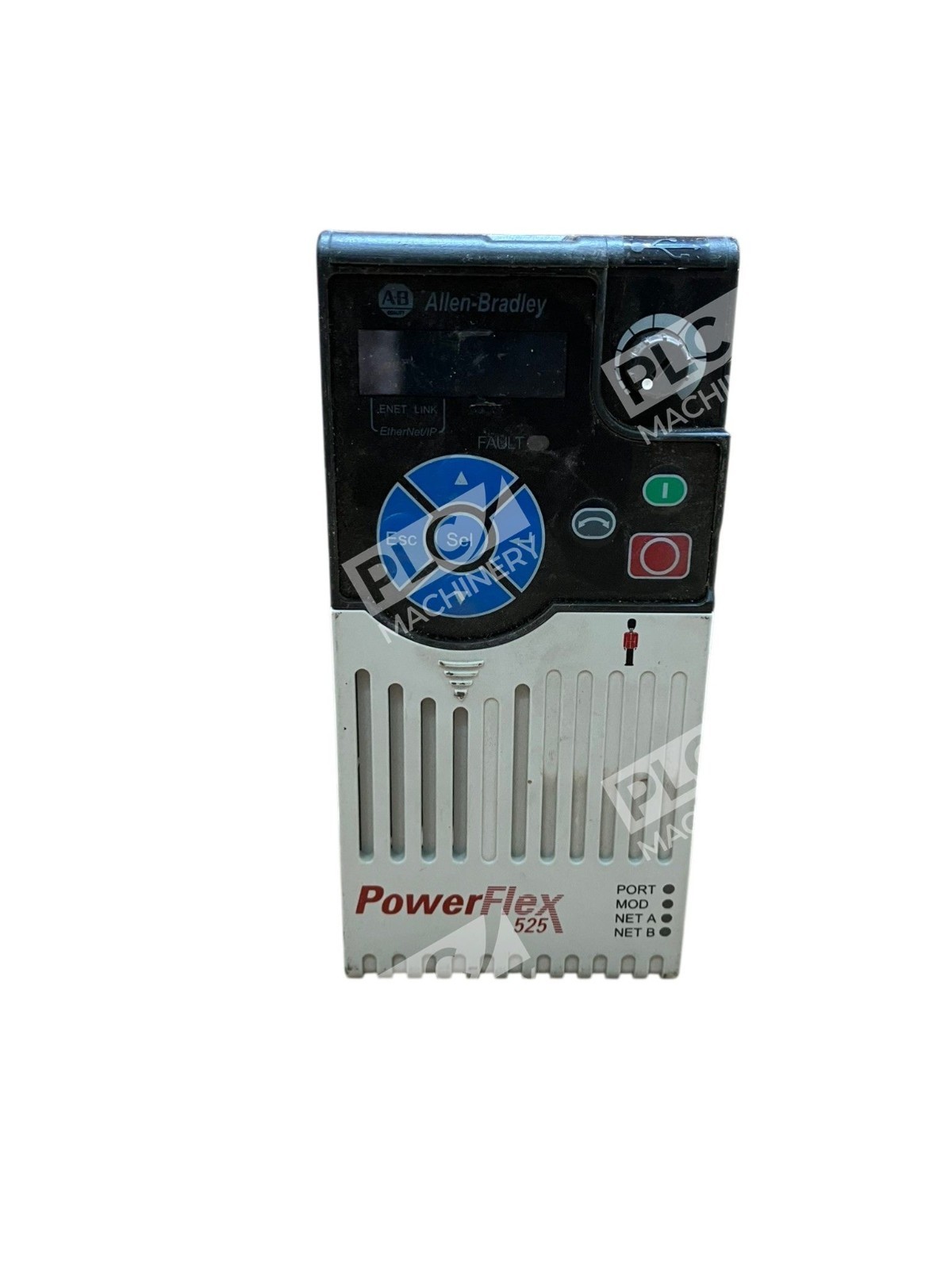

The Allen-Bradley 25B-CTMFC1 is a control module front cover designed for PowerFlex 525 series AC drives. PowerFlex 525 AC drives offer standard safety and EtherNet/IP communications with compact, modular design. This cover provides protection and secure mounting for the removable control module in industrial automation applications requiring networked motor control.
Key Features
- Compatible with PowerFlex 525 Frames A through E
- Supports modular drive architecture for flexible installation
- CUL, GOST, KC, and UL certifications for global compliance
- Enables quick control module installation and removal
- Protects control core from environmental exposure
- Integrates with networked automation systems via EtherNet/IP
Technical Specifications
- Application support for PowerFlex 525 control modules
- Frame compatibility: Frames A–E
- Enclosure rating: IP20 / UL NEMA open type
- Standards: ACS 156, ATEX, C-Tick, CE, CE Marine (RINA), CUL, GOST-R, KCC, RoHS, Semi F47, TUV, UL
- Part type: Spare part kit / Control module accessory
Typical Applications
- Standalone and networked motor control systems
- Machine automation requiring modular drive architecture
- Industrial process control with EtherNet/IP connectivity
- OEM and retrofit motor control configurations
- Environmental protection for control modules during installation and operation
Compatibility & Replacements
Compatible With
- PowerFlex 525 series AC drives, all power ratings (1.5 kW – 22 kW, 2–30 Hp)
- PowerFlex 525 Frames A, B, C, D, E
- Removable control modules for PowerFlex 525 drives
- EtherNet/IP networked automation systems
- Allen-Bradley automation controllers and networks
Replaces / Drop-In Replacement For
- PowerFlex 527 replacement: 25C-CTMFC1
- Other PowerFlex 525 Series A front covers (verify exact model)
Works With
- EtherNet/IP communication protocol
- Rockwell Automation Studio 5000 programming environment
- Allen-Bradley ControlLogix and CompactLogix platforms
- PowerFlex 520-series drive families
- Standard industrial AC motors across multiple frame sizes
