Overview

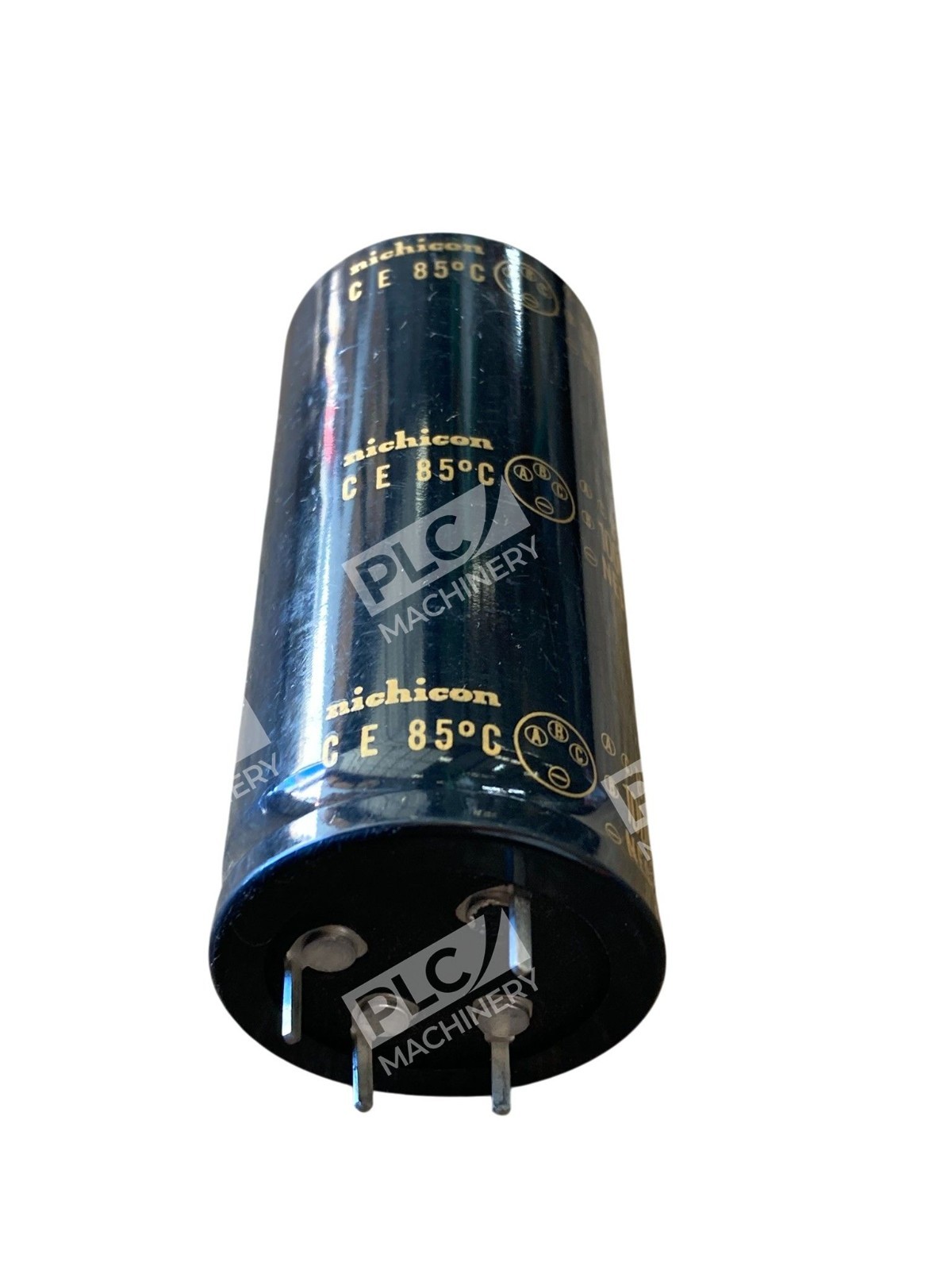

The Nichicon CE 85C 1000uF 200V capacitor is an industrial-grade aluminum electrolytic capacitor designed for long-term stability and reliable performance in power electronics and industrial equipment. The CE 85C series represents Nichicon’s proven technology for mid-voltage applications requiring dependable energy storage and filtering. With a 1000µF capacitance rating and 200V working voltage, this unit is suited for switchmode power supplies, amplifier circuits, and industrial control systems.
Key Features
- Capacitance: 1000µF with ±20% tolerance
- Voltage Rating: 200V DC working voltage
- Temperature Rating: 85°C operational temperature
- Snap-in termination for secure mechanical mounting
- Aluminum electrolytic construction for high ripple current handling
- Proven Nichicon reliability across industrial applications
Technical Specifications
- Rated Capacitance: 1000 µF
- Rated Voltage: 200 V DC
- Capacitance Tolerance: ±20%
- Operating Temperature Range: –40°C to +85°C
- Termination Type: Snap-in (2-pin)
- Case Diameter: Approximately 35 mm
- Dielectric: Aluminum oxide
- Series: CE 85C
- Standard: JIS C 5101-4
Typical Applications
- Switchmode power supply filtering and bulk energy storage
- Power amplifier decoupling and output filtering
- Industrial equipment and motor control circuits
- UPS and renewable energy inverter systems
- Audio amplifier power supply smoothing
- LED driver and ballast circuits
Compatibility & Replacements
Compatible With
- Industrial power supply designs rated 200V or below
- Standard PCB and chassis-mounted applications accepting snap-in terminals
- Equipment requiring long-life, mid-voltage capacitor solutions
- Systems requiring 85°C thermal stability
Replaces / Drop-In Replacement For
- Other Nichicon 1000µF 200V snap-in capacitors in the CE series
- Compatible with equivalent generic aluminum electrolytic capacitors meeting JIS C 5101-4 standards with identical terminal configuration
- Verify footprint and terminal spacing with your original component before ordering
Works With
- Industrial PCB designs and schematics calling for 1000µF 200V capacitors
- Snap-in mounting frames and chassis designed for standard capacitor terminals
- Power supply topologies and filtering circuits for mid-voltage DC applications
