Overview

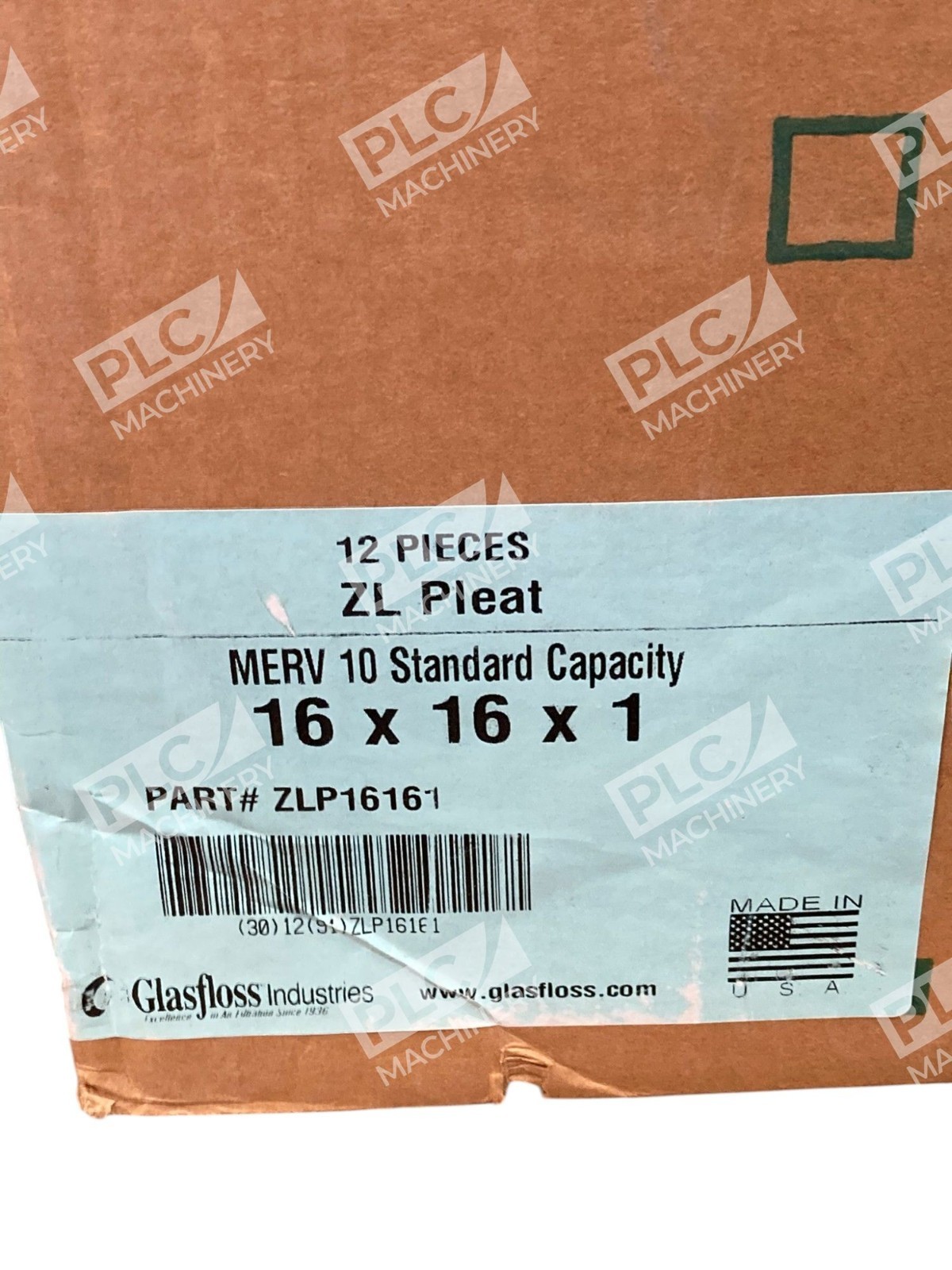

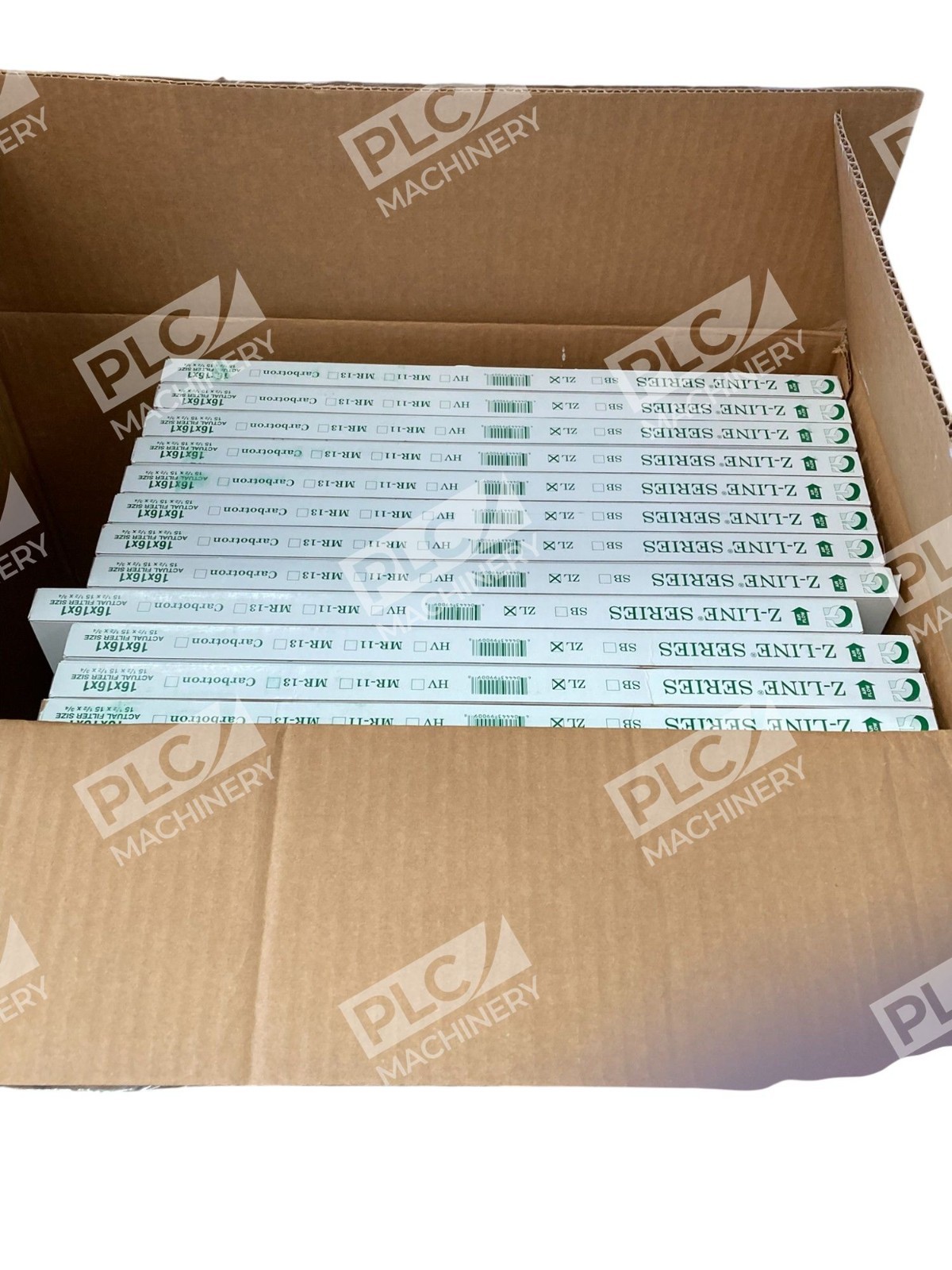

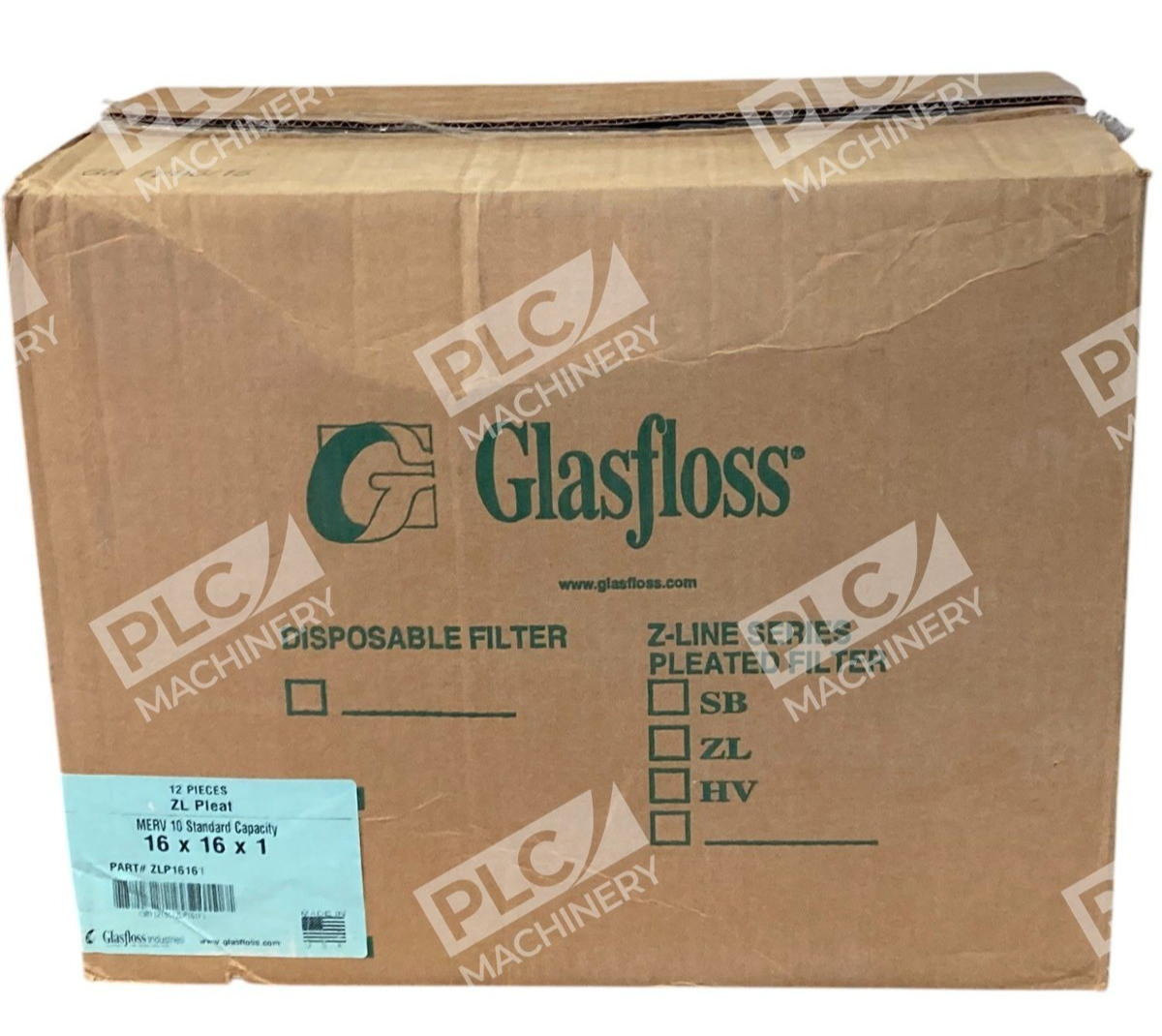

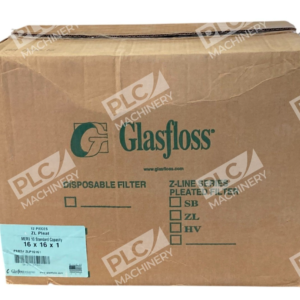

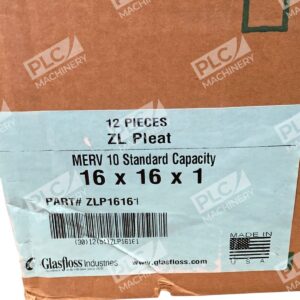

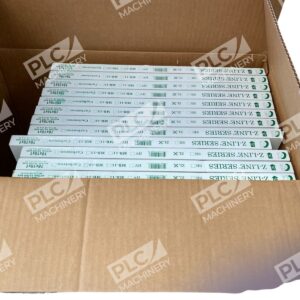

The Glasfloss ZLP16161 is a pleated air filter from the Z-Line series, designed for residential and commercial HVAC systems. Rated MERV 10 with synthetic filter media and paper filter frame, these filters are designed to last 3 months. This 12-pack offers reliable particle capture and system protection at standard replacement intervals.
Key Features
- Enhanced filtration over MERV 8 filters with no additional pressure drop, capturing more pollen, dust and other pollutants without your system having to work harder
- Heavy duty beverage board frame with expanded metal backing to support the synthetic pleated filter media for optimum performance
- Fibers do not absorb moisture and will not support microbial growth
- Sturdy frame using heavy-duty, moisture-resistant materials; synthetic fibers won’t support mold growth or absorb moisture
- Should be changed every 30 to 90 days
Technical Specifications
- MERV 10 (50-55% Efficiency) with 14 Pleats Per Lineal Foot and 1.73 Media Area to Face Area Ratio
- 2.63 Square Footage of Media, 300 FPM (Rated Velocity), 0.21″ W.G. Initial Resistance

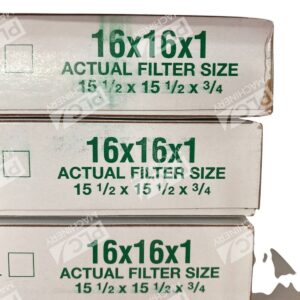

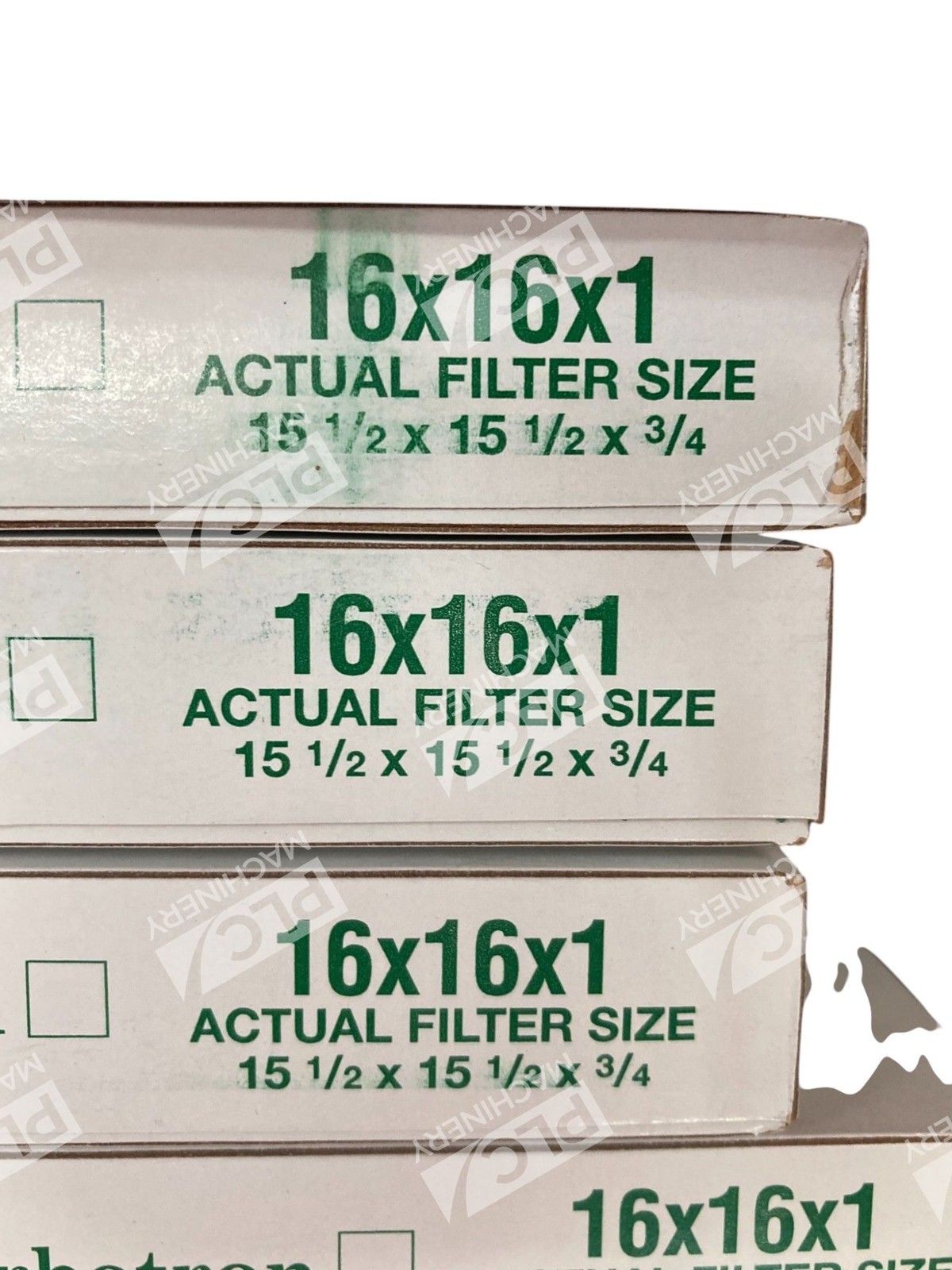

- Exact Size: 15-1/2″ x 15-1/2″ x 7/8″; Nominal Size: 16x16x1
- 100% Synthetic Fibers, Electrostatic Filtration Technology, White Color
- Manufactured in the United States
Typical Applications
- Central air conditioning systems
- Forced-air furnace systems
- Residential HVAC units
- Commercial ventilation systems requiring MERV 10 filtration
- Allergen and dust removal for improved indoor air quality
Compatibility & Replacements
Compatible With
- Standard 16x16x1 nominal filter slots in residential furnaces and air handlers
- AC units and heat pump systems using 1-inch pleated filters
- HVAC systems designed for MERV 10 or lower ratings
- Systems requiring no additional static pressure accommodation beyond standard MERV 10
Replaces / Drop-In Replacement For
- Other 16x16x1 pleated air filters in the same MERV class
- Previous Z-Line ZLP16161 units reaching end of life
- Any furnace or AC filter system using 16x16x1 nominal dimensions
Works With
- All standard residential and commercial HVAC systems with 16x16x1 filter racks
- Compatible with both ducted and non-ducted air handling equipment
- Works with variable speed and constant speed furnace blowers
- Suitable for systems with electronic or mechanical air flow controls
