Overview

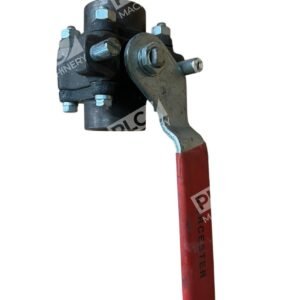

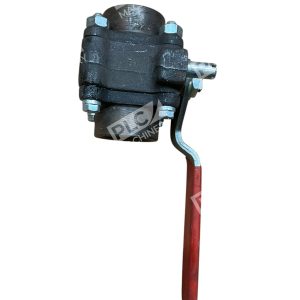

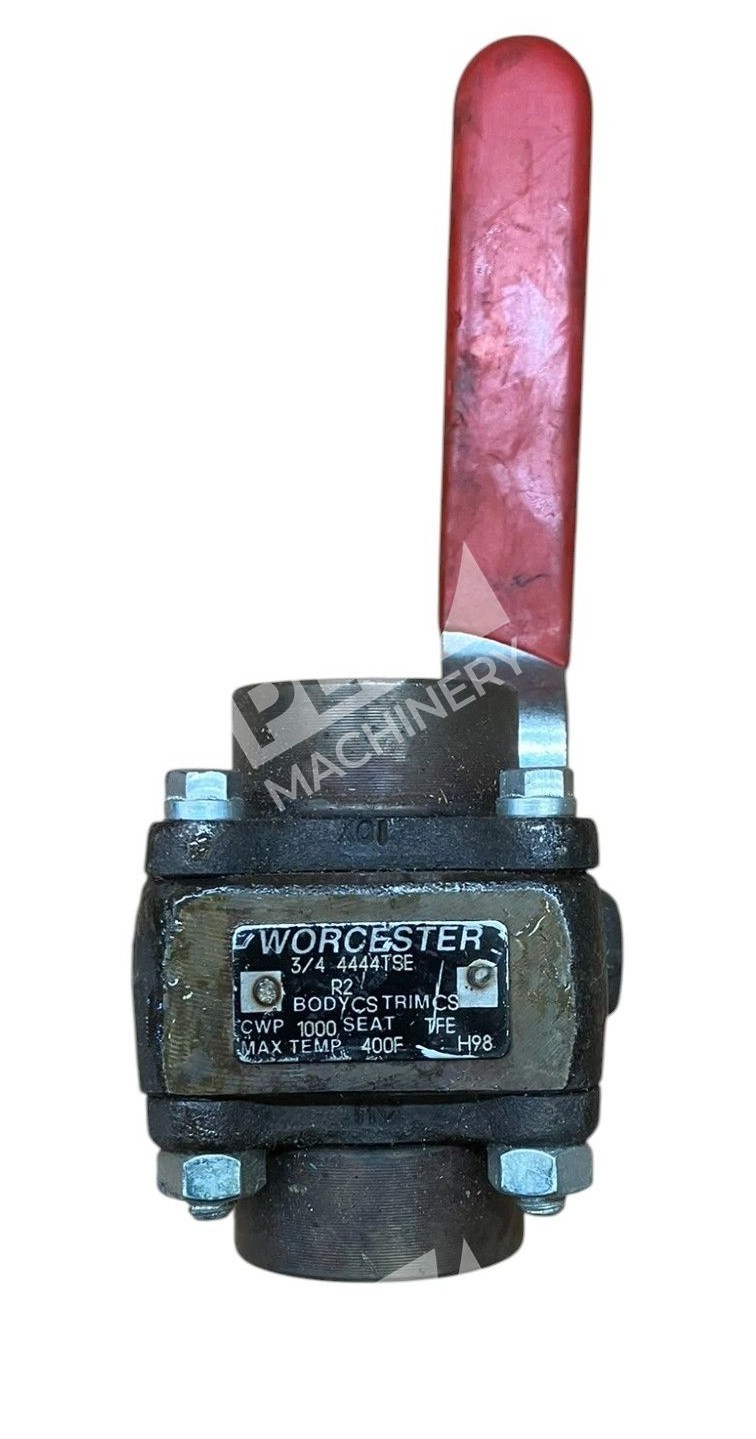

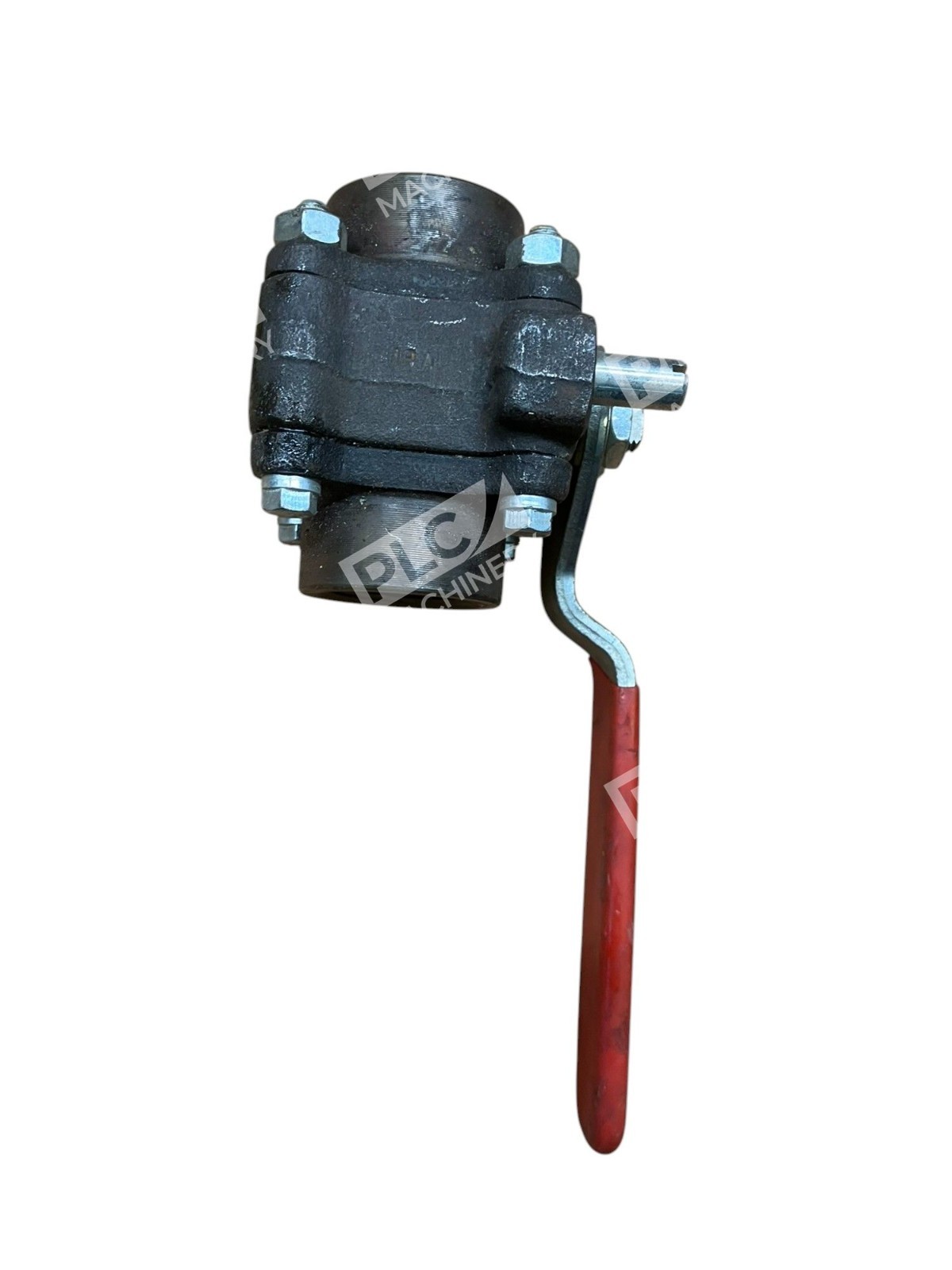

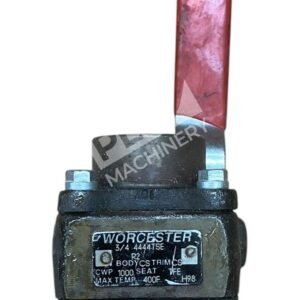

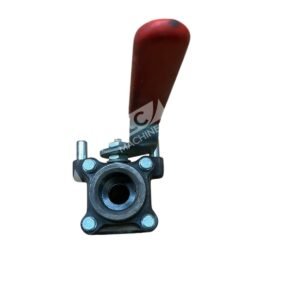

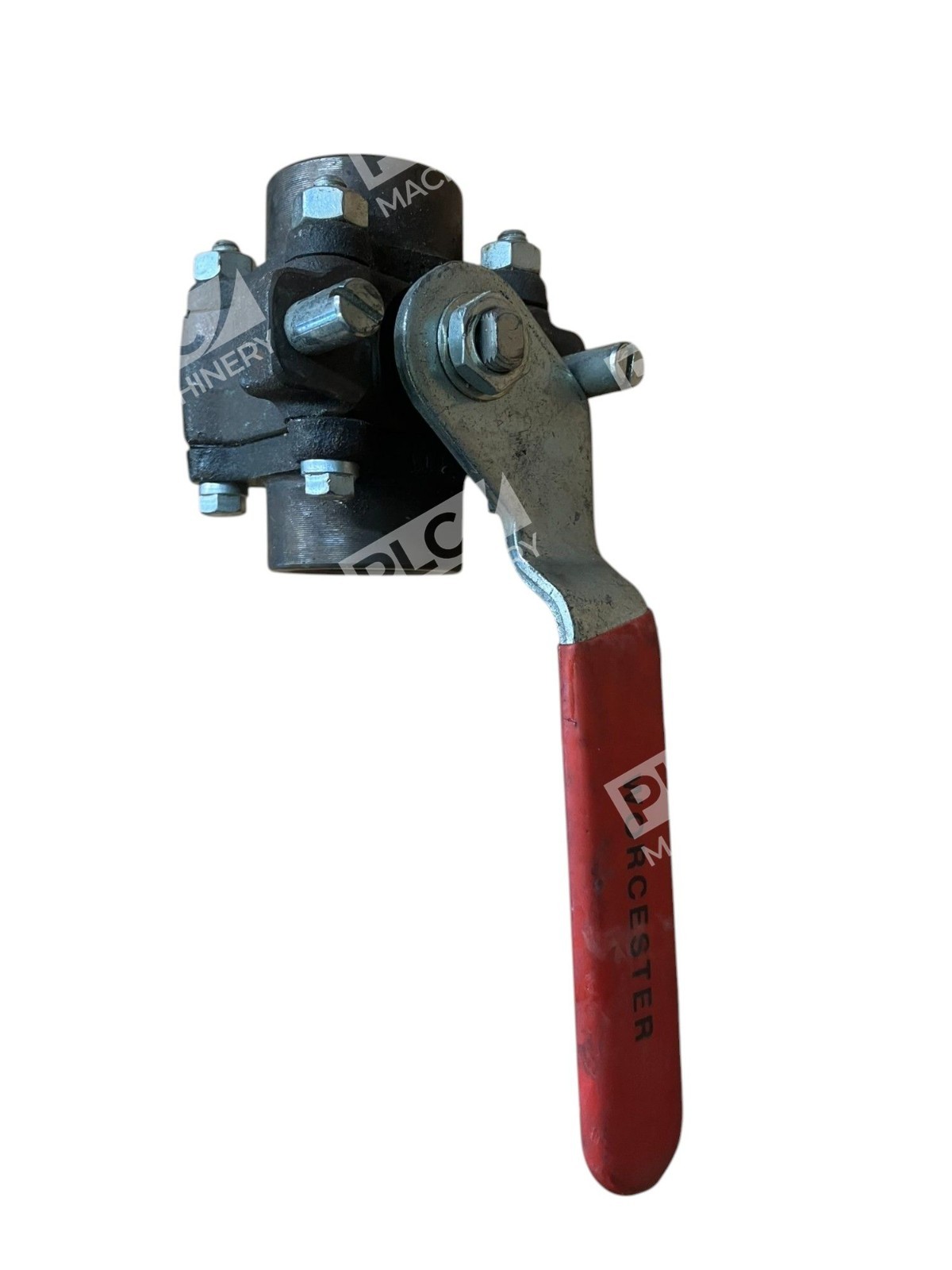

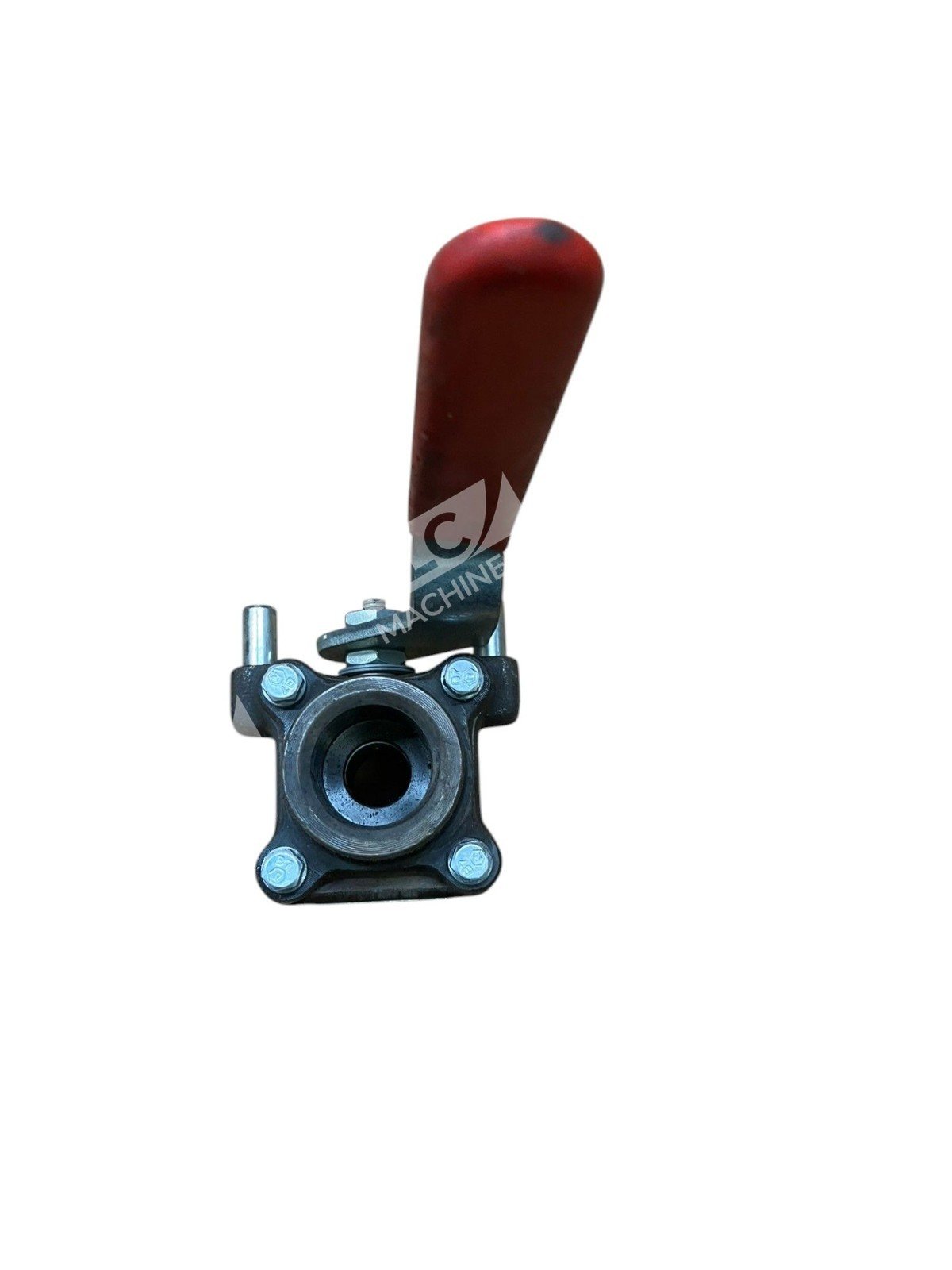

The Worcester 4444TSE ball valve is a three-piece design featuring carbon steel body construction, stainless steel trim, and TFE (Teflon) seats. Built to ASME B16.34 specifications, this 3/4 inch valve delivers reliable performance in industrial piping systems, hydraulics, pneumatics, and process applications requiring precise flow control and bubble-tight shutoff.
Key Features
- Three-piece slip-out body design allows quick access to seats and body seals for maintenance
- Bubble-tight shutoff with bi-directional flow capability for process flexibility
- Low operating torque enables use with compact actuators, reducing space and cost
- TFE seats and seals provide chemical resistance and extended service life
- Stainless steel ball and stem prevent corrosion in demanding environments
- Manual lever handle for easy manual operation
Technical Specifications
- Port Size: 3/4 inch NPT
- Connection Type: Female NPT threaded
- Body Material: Carbon Steel
- Trim Material: Stainless Steel (ball and stem)
- Seat Material: TFE (Teflon/PTFE)
- Pressure Rating: 1000 PSI WOG at 70°F
- Temperature Range: -4°F to +230°F (-20°C to +110°C) with TFE seats
- Flow Type: Reduced bore
- Valve Type: Floating ball, three-piece
- Standards: ASME B16.34, ANSI B1.20.1, ASTM A-105 (body)
- Series: Worcester Series 44
Typical Applications
The Worcester 4444TSE is suitable for:
- General industrial fluid control in piping systems
- Process applications requiring precise modulation
- Hydraulic and pneumatic systems
- HVAC and mechanical systems
- Water treatment and chemical feed systems
- Manual or actuated shut-off duty
Compatibility & Replacements
Compatible With
- NPT threaded male connections (3/4 inch)
- Standard ball valve mounting brackets
- Industrial actuators rated for Series 44 valve body mounting
- ASME B16.34 compliant piping systems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering—this specific model may replace other Worcester Series 44 3/4 inch configurations with matching trim (CS body, SS ball/stem, TFE seats).
Works With
- Manual lever handles (included)
- Pneumatic and hydraulic actuators (body mount bracket compatible)
- Standard ball valve maintenance tooling
- Industrial process control systems using ASME B16.34 components
