Overview

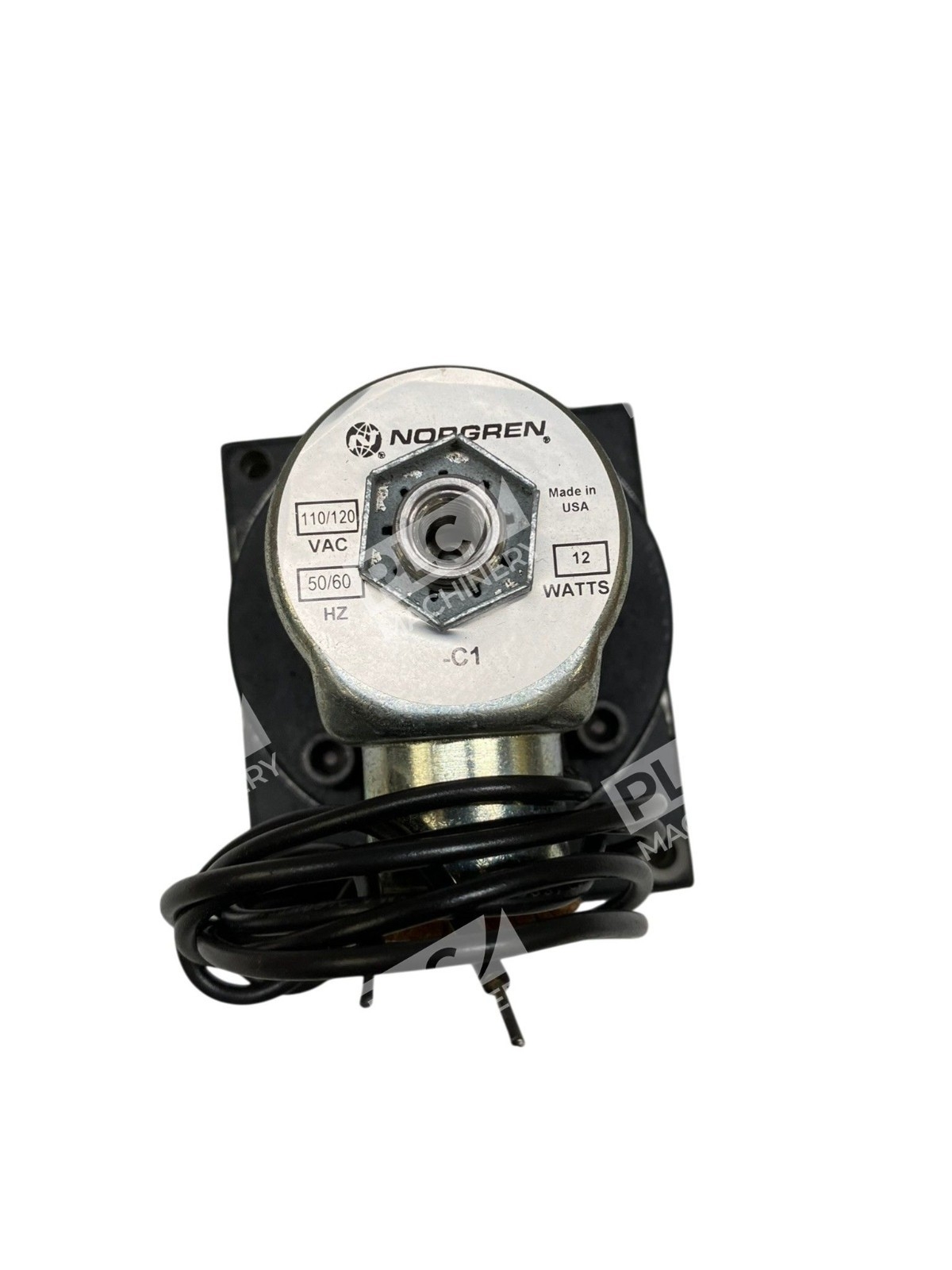

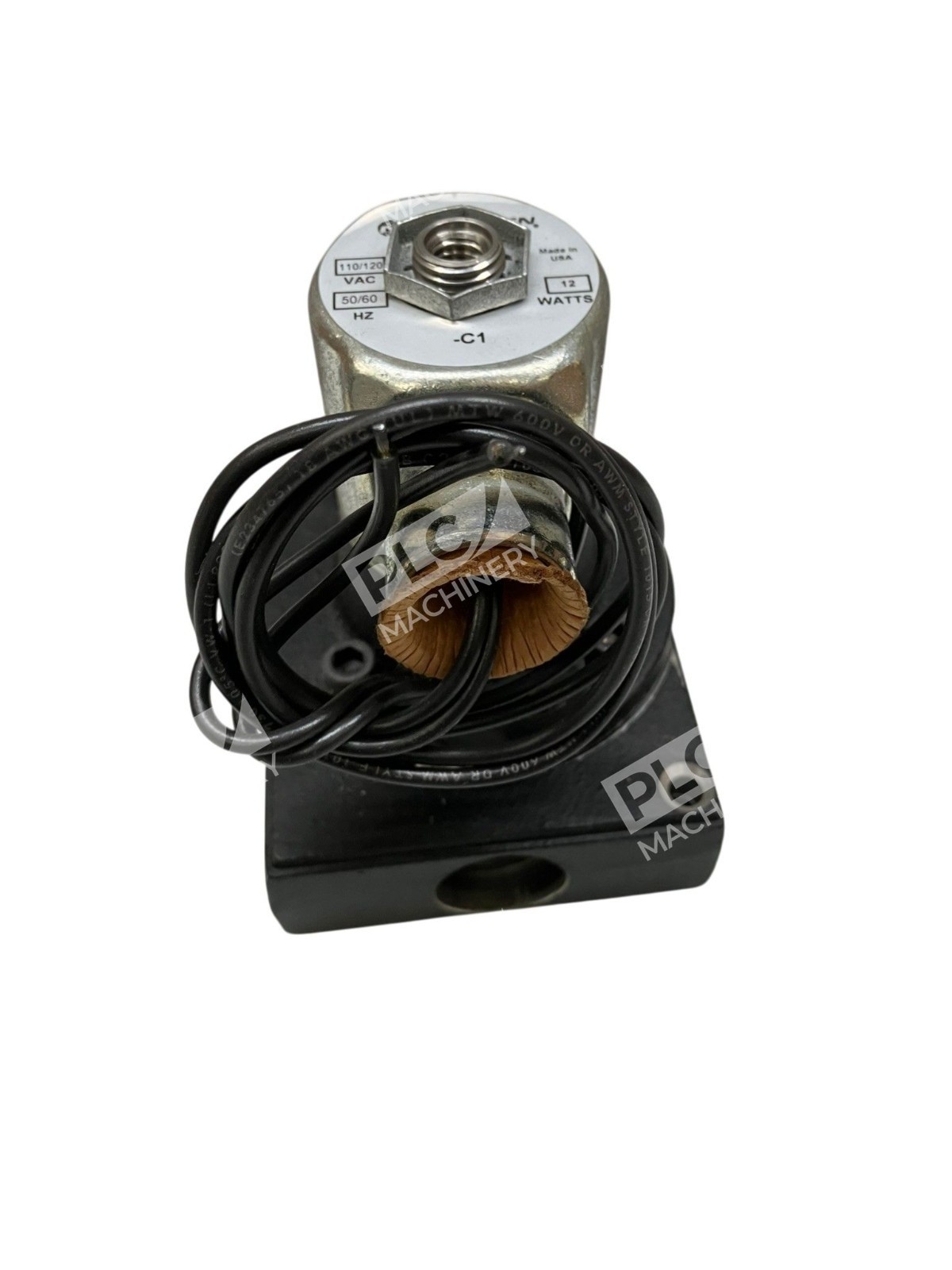

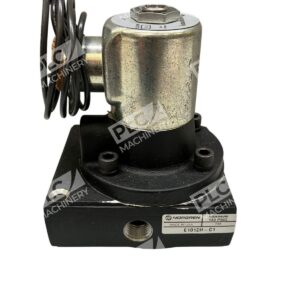

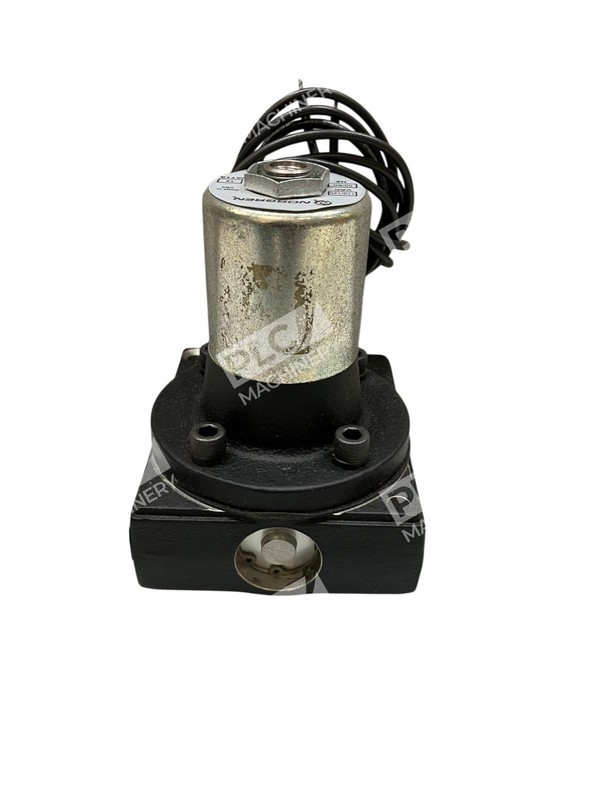

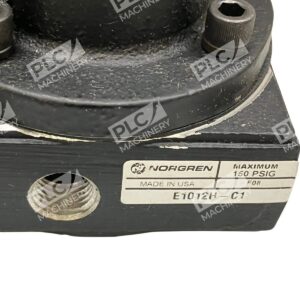

The Norgren E1012H-C1 is a pneumatic poppet valve from Norgren’s proven Prospector Series. This air-pilot-actuated inline valve provides dependable on-off control for compressed air systems in manufacturing, packaging, and process automation environments. The valve’s poppet design ensures tight sealing and rapid response to control signals.
Key Features
- Aluminum alloy body, piston, and poppets for durability and corrosion resistance
- Nitrile rubber seals (fluorocarbon available as option)
- Air-pilot actuation for responsive switching without solenoids
- Compatible with filtered and lubricated or non-lubricated compressed air or vacuum
- Through-hole porting for flexible manifold integration
- Compact inline design for space-constrained applications
Technical Specifications
Maximum operating pressure: 150 psig (10.3 bar). The valve is designed for use in general industrial automation where pneumatic control is required. Check with technical support for specific flow capacity and pressure-drop characteristics for your application.
Typical Applications
The Norgren E1012H-C1 is commonly used for:
- Air motor speed and direction control
- Cylinder actuation in production systems
- Sequence and interlock control in automated machinery
- Plant air and branch-line shutoff
- Vacuum system operation
Compatibility & Replacements
Compatible With
- Standard pneumatic manifold subplates (through-hole design)
- 1/4″ to 2″ port-size Prospector Series bodies
- NPT-threaded port connections (standard)
- Filtered and lubricated or dry compressed air systems
- Vacuum systems (29″ Hg and below with appropriate seals)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Norgren part number variants within the Prospector Series may be cross-compatible; contact technical support for specific replacement confirmation.
Works With
- Pneumatic control circuits and automated manufacturing systems
- Industrial PLC and motion control systems using pneumatic outputs
- Standard 1/4″ NPT pneumatic hose and tubing
- Manual and air-pilot operator stations
