Overview

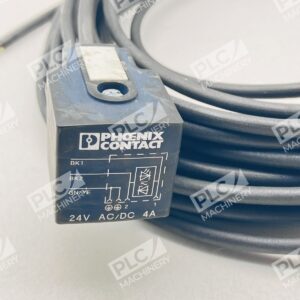

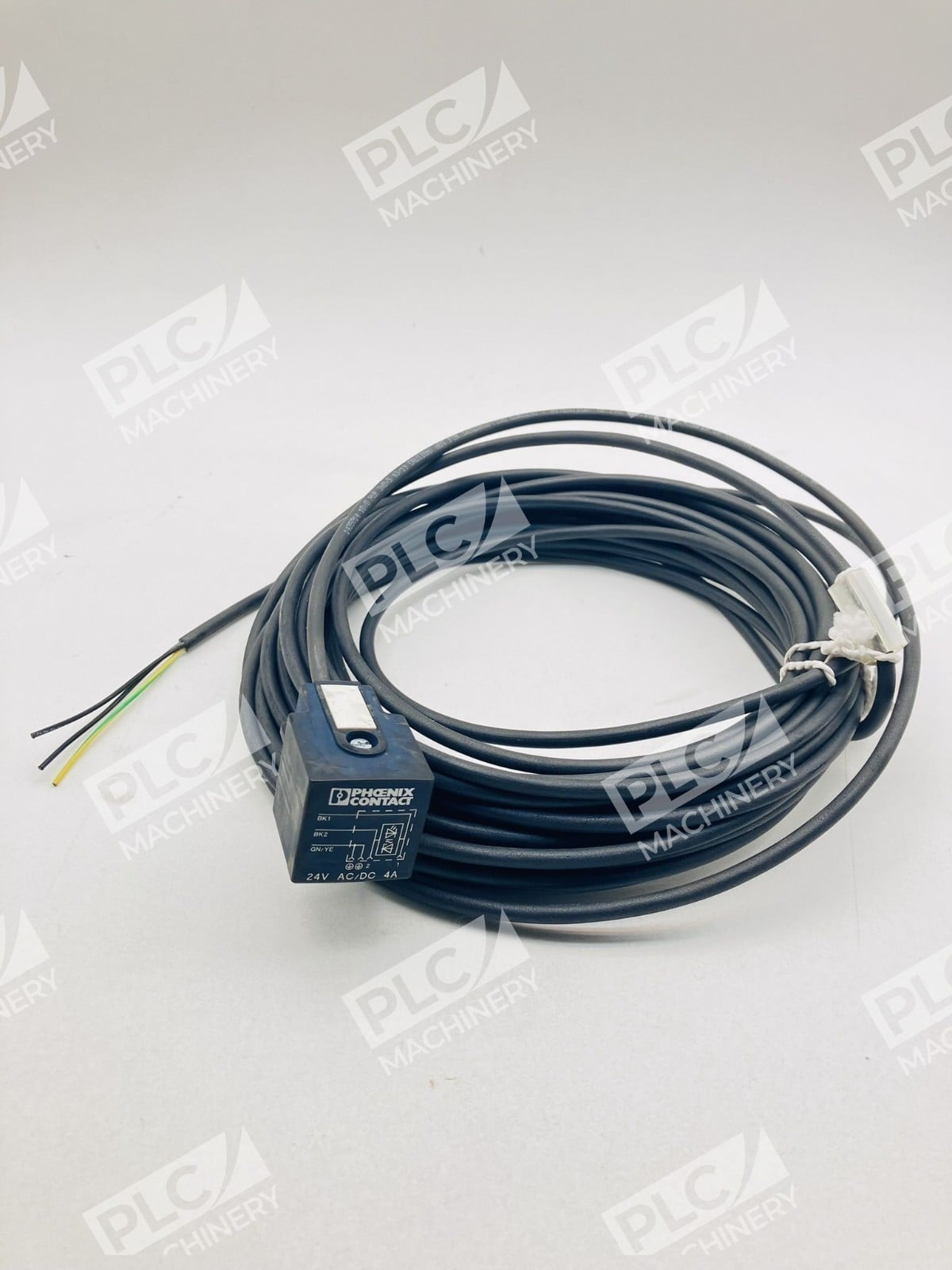

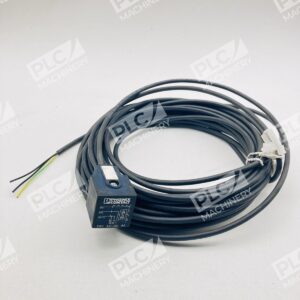

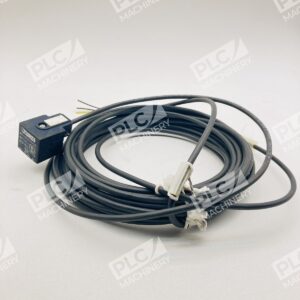

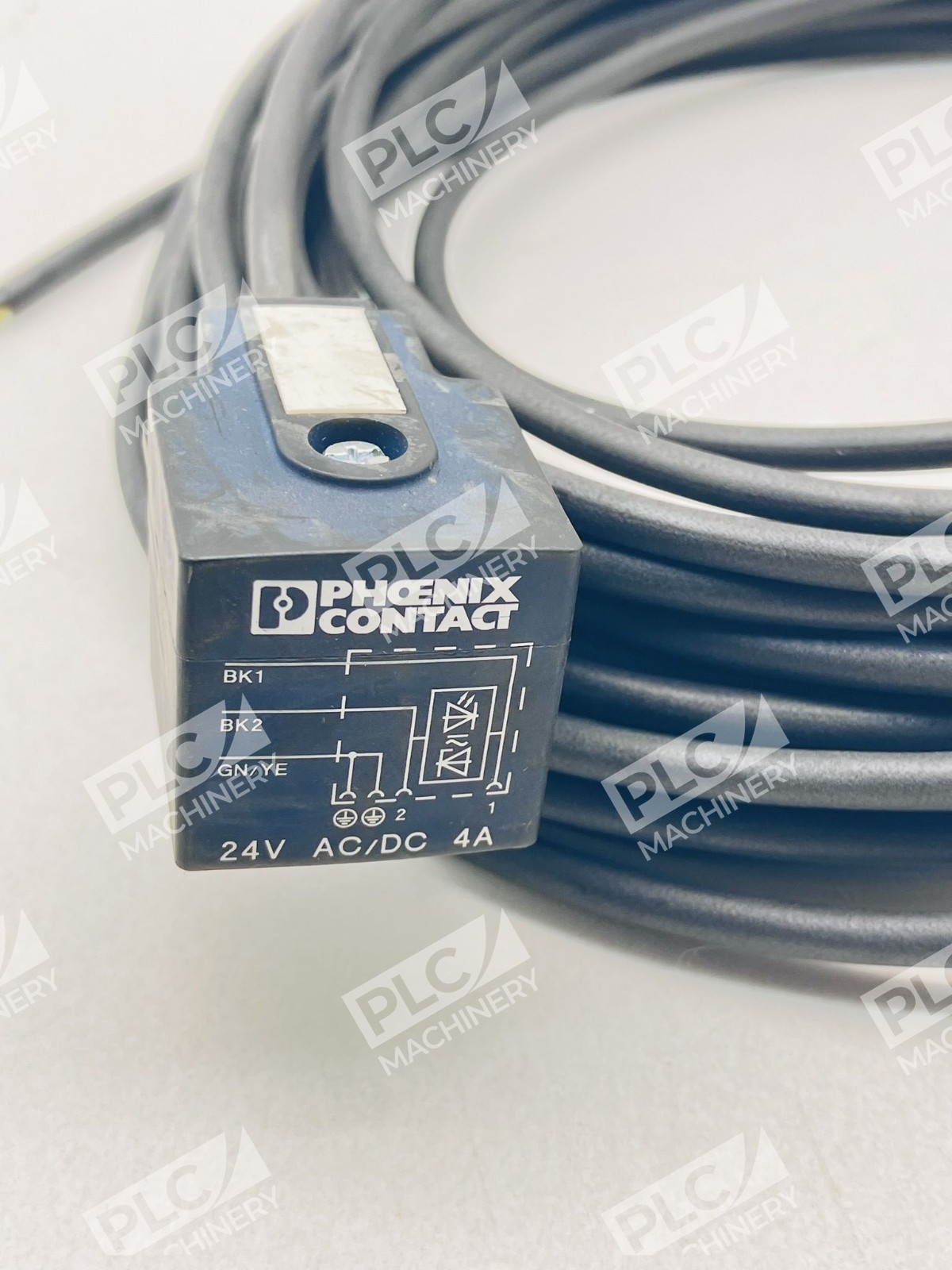

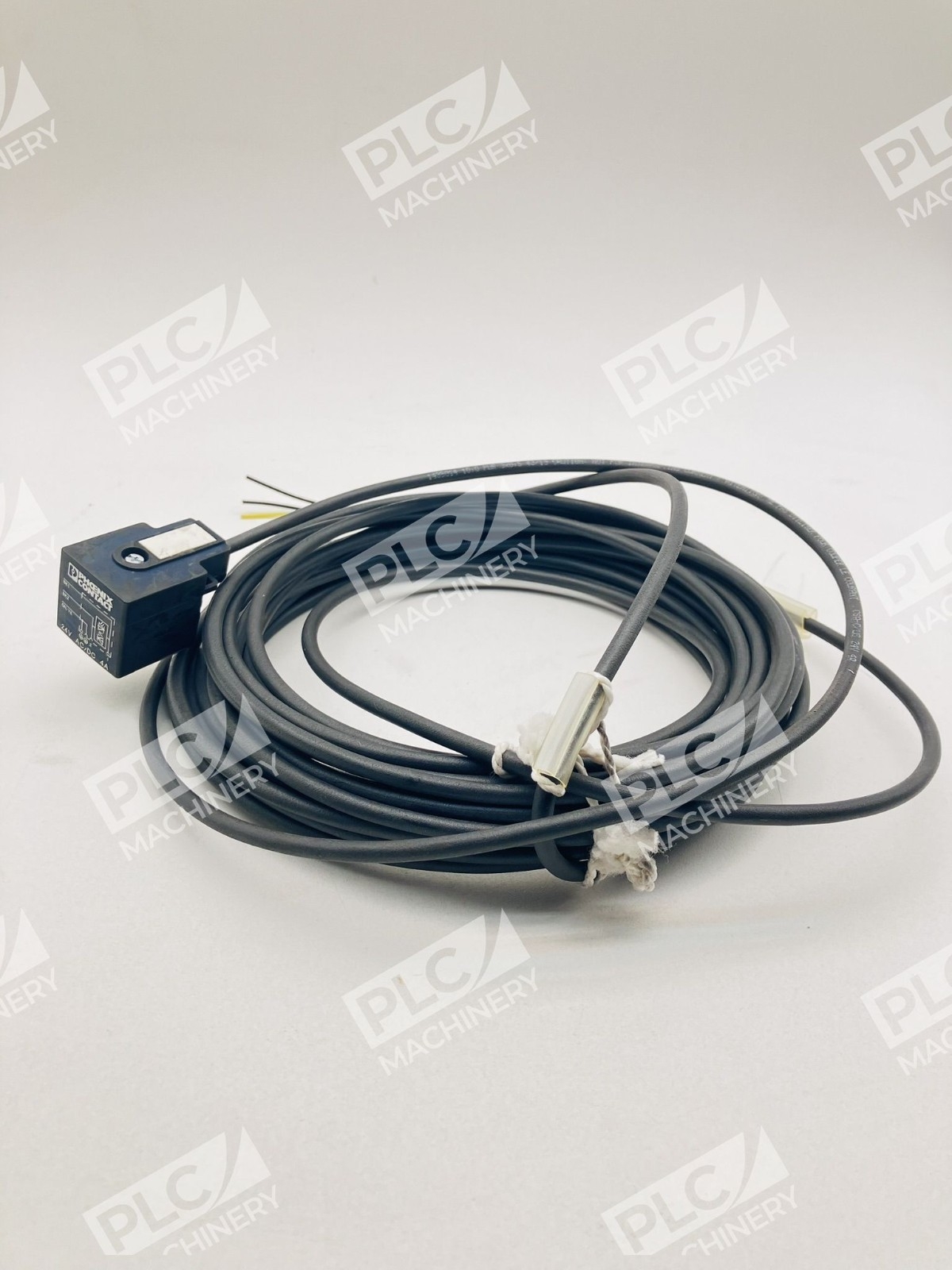

The Phoenix Contact 1435014 is a sensor/actuator cable purpose-built for connecting electromagnetic valves and valve-mounted solenoid actuators in industrial automation environments. This 3-position, PUR halogen-free cable features a black-gray color (RAL 7021), free cable end, Valve connector A, with 1 LED status indicator, and Z diode wiring over a 10 m cable length. The cable meets valve connector standard EN 175301-803 and is 100% electrically tested for safety and reliability.
Key Features
- 100% electrically tested plug-in components with robust valve connector featuring Zener diode protective circuit

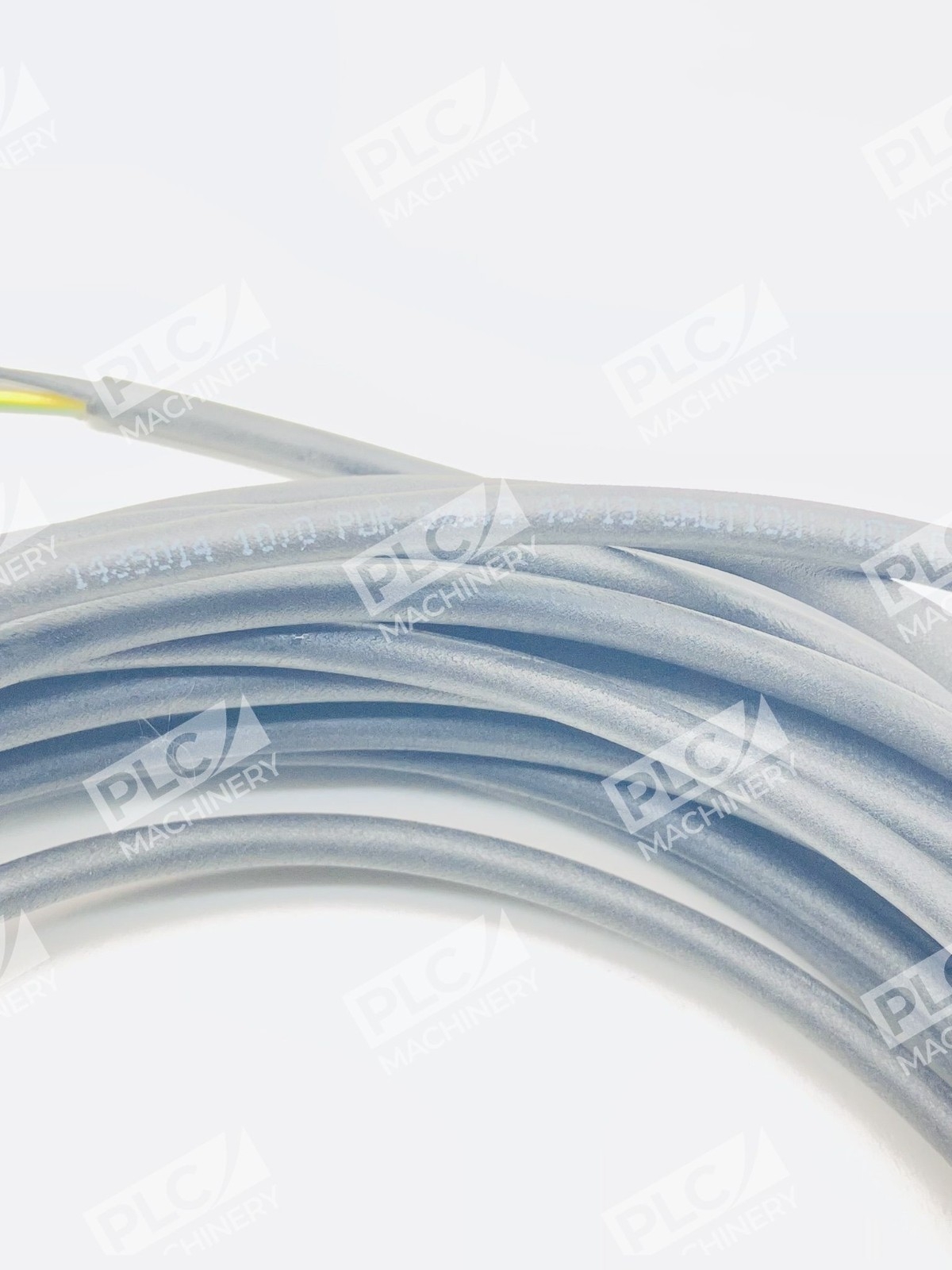

- Halogen-free PUR cable construction for safer use in enclosed industrial spaces
- LED status display with 1 integrated indicator light for quick diagnostics
- Complies with valve connector standard EN 175301-803 and UL 94 V0 flammability rating
- Free cable end allows customization and field termination
- IP65/IP67-rated connector for protection against dust and moisture ingress
Technical Specifications
- Rated voltage: 24 V AC / 24 V DC
- Rated current at 40°C: 4 A
- Number of positions: 3
- Insulation resistance: ≥ 100 MΩ
- Pulse power (100 µs square-wave): 40 W max
- Terminal voltage: 70 V (at 2 mA constant current)
- Overvoltage category: III
- Operating temperature: −20 °C to +85 °C (valve plug)
- Cable length: 10 m
- Weight (excluding packing): 302.5 g
- Connector type: Valve connector A
- Degree of protection: IP65 / IP67
Typical Applications
The Phoenix Contact 1435014 is ideal for:
- Hydraulic and pneumatic valve solenoid control systems
- Industrial automation machine control and process control
- Machine tool valve actuation circuits
- Factory automation and integrated control systems
- Field-wired sensor and actuator interconnection in harsh manufacturing environments
Compatibility & Replacements
Compatible With
- Valve connector A (EN 175301-803 standard)
- Phoenix Contact valve connectors and actuator coils
- 24 V DC / 24 V AC solenoid valve systems
- Industrial Ethernet-enabled valve terminals and I/O modules with valve connector interfaces
- Proportional and directional control valve circuits
Replaces / Drop-In Replacement For
- Original Phoenix Contact SAC-3P-10,0-PUR/A-1L-Z assemblies
- OEM valve connector cables with matching Valve connector A specifications
- Legacy sensor/actuator cables requiring 3-position, 10 m halogen-free configurations
Works With
- Industrial control systems using EN 175301-803 valve connectors
- PLC and controller valve output modules
- Phoenix Contact PLUGLIFE and other modular connector ecosystems
- 24 V industrial relay and solenoid valve circuits
