Overview

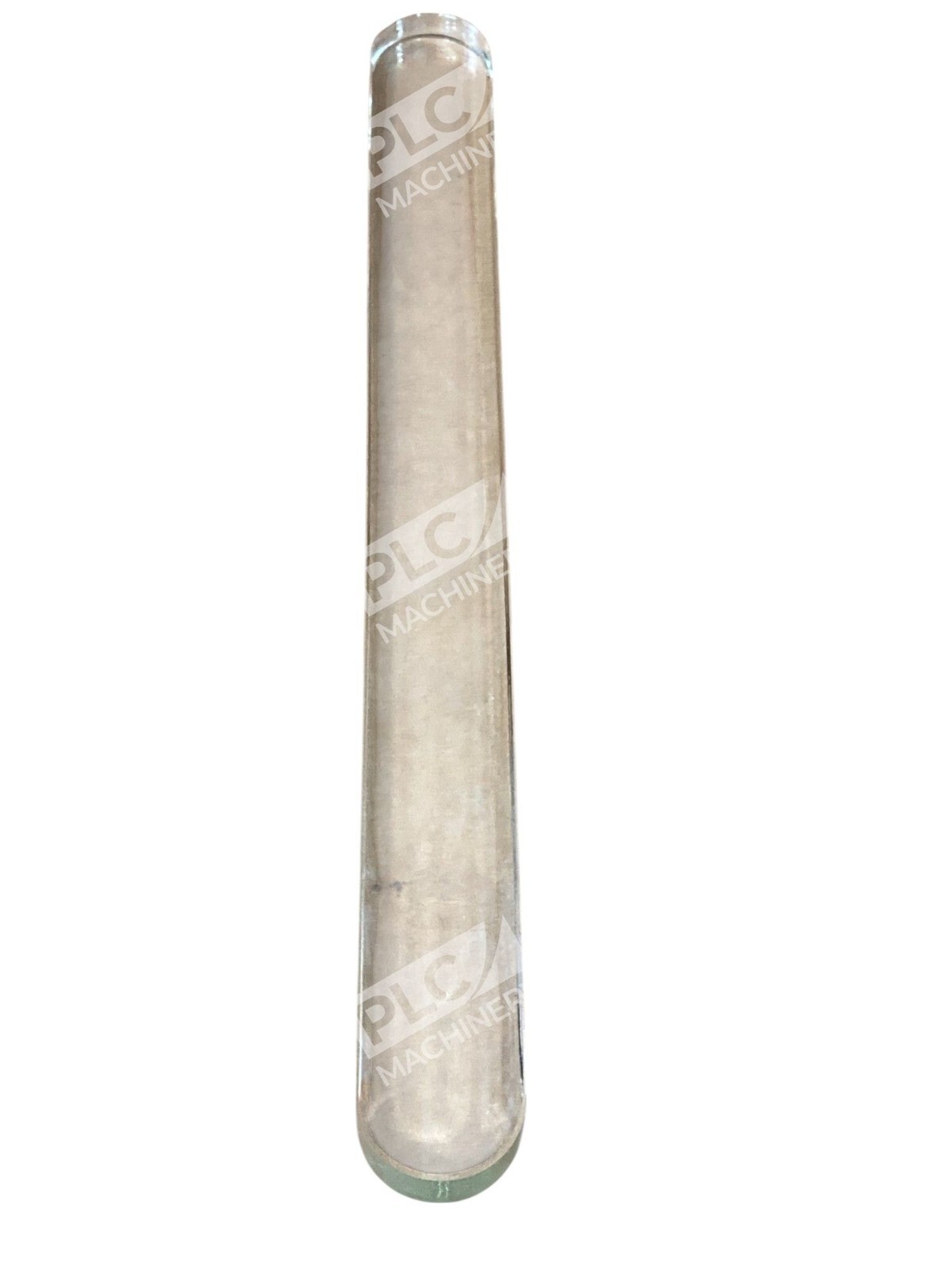

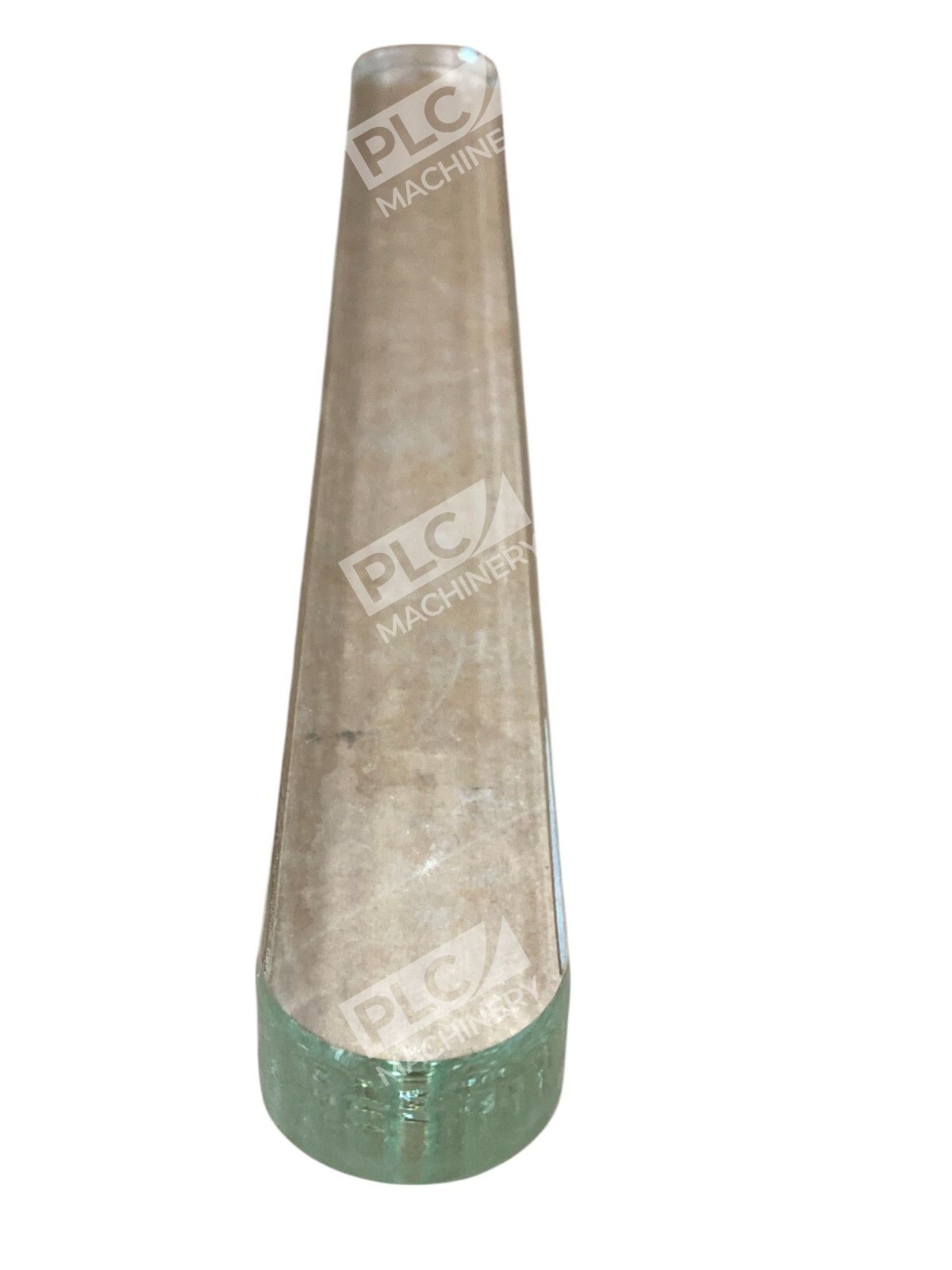

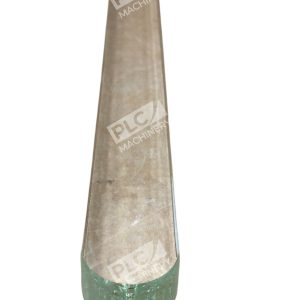

The Jerguson V16756-8 is a transparent, tempered borosilicate gage glass in Size 7 configuration, engineered for direct installation in Jerguson liquid level gauge assemblies. This replacement component provides accurate, clear visibility of fluid levels in industrial process vessels and systems. Manufactured to exacting standards, the V16756-8 delivers reliable service in demanding applications across petrochemical, HVAC, refrigeration, and general industrial sectors.
Key Features
- Tempered borosilicate construction conforming to BS 3463, JIS B8211, and DIN 7081 standards
- Transparent flat-glass design with unobstructed fluid visibility
- Size 7 specification—direct replacement for legacy Jerguson gauge systems
- Recessed gasket surface prevents lateral movement and gasket blow-out
- Can be repaired in-place while mounted to the vessel
- Suitable for temperatures below 317°C (600°F)
Technical Specifications
- Glass Type: Tempered Borosilicate
- Style: Transparent (flat sides)
- Size Designation: 7

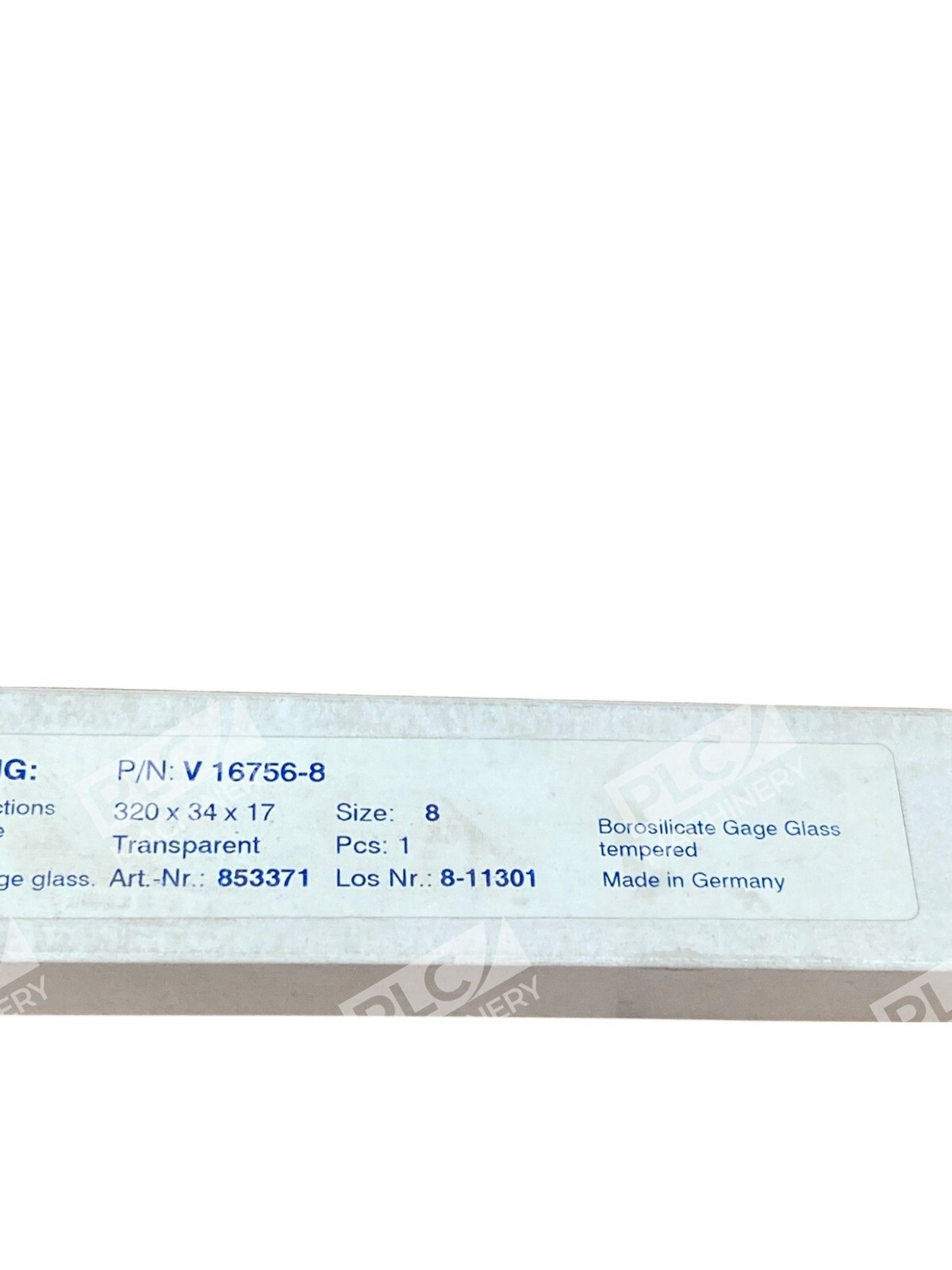

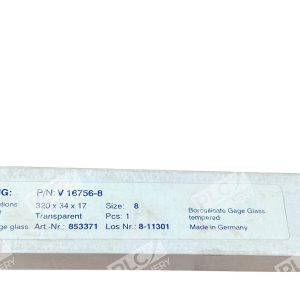

- Dimensions: 320mm × 34mm × 17mm
- Weight: 1.0 lb
- Reference Code: 853371
- Maximum Temperature: Below 317°C (600°F)
- Material Standard: BS 3463, JIS B8211, DIN 7081
- Gasket Type: Non-asbestos (standard)
Typical Applications
- Liquid level indication in boiler and pressure vessel systems
- HVAC and refrigeration system level monitoring
- Petrochemical process instrumentation
- Steam condensate and feedwater gauge installations
- Compressed gas storage vessels
- General industrial level gauge assemblies
Compatibility & Replacements
Compatible With
- Jerguson Series 20 and similar armored glass gage assemblies
- Jerguson liquid level gauge chambers and mounting blocks
- Reflex and transparent gage valve configurations
- Standard industrial level gauge instrumentation systems
Replaces / Drop-In Replacement For
- OEM Jerguson V16756-8 transparent gage glass components
- Previous generation Size 7 borosilicate glass elements in Jerguson assemblies
- Legacy transparent glass sight glasses in armored gauge housings
Works With
- Jerguson gage valve bodies and flanges
- Standard industrial gauge assembly hardware (bolts, gaskets, shrouds)
- Both low and high-pressure liquid level measurement systems
- Process control and monitoring instrumentation networks
