<h2>Overview</h2>

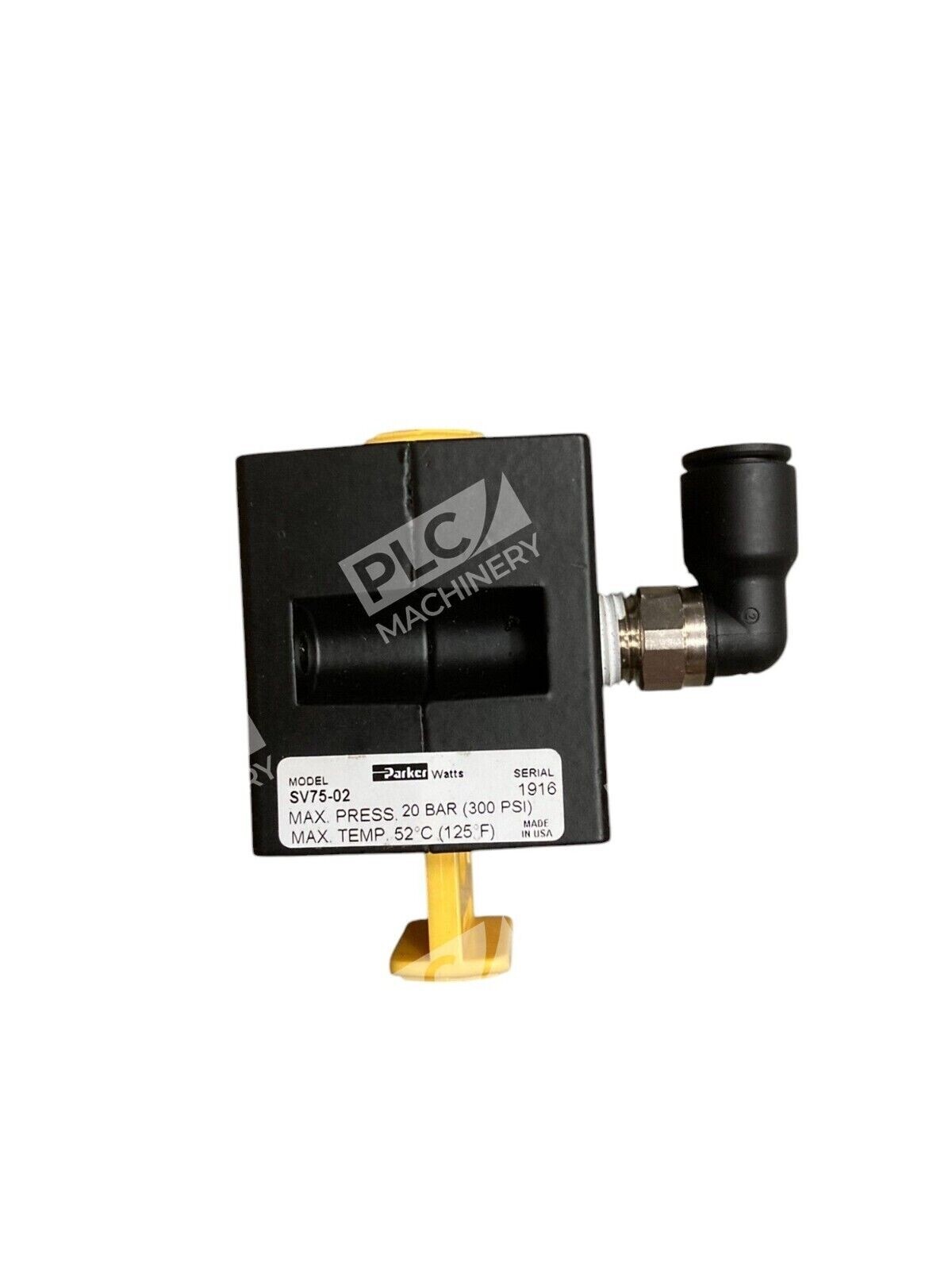

<p>The Parker SV75-02 is a compact pneumatic shut-off valve from the Parker Watts manual lockout series. Designed for use with vacuum and compressed air applications, this 1/4″ NPT inline valve provides reliable pressure isolation and manual actuation for industrial pneumatic systems across manufacturing, machine tooling, and automotive assembly environments.</p>
<h2>Key Features</h2>
<ul>
<li>Manual slide-type shut-off design with lockout capability</li>
<li>1/4″ NPT threaded ports for direct inline installation</li>
<li>Maximum rated pressure: 20BAR (300 PSI)</li>
<li>Accepts standard single padlock or safety lock for OSHA-compliant lockout/tagout</li>
<li>Relieves downstream pressure when closed</li>
<li>Zinc body construction for durability in industrial environments</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Model:</strong> SV75-02</li>
<li><strong>Valve Type:</strong> Manual 3-port, 2-position slide shut-off</li>
<li><strong>Port Size:</strong> 1/4″ NPT</li>
<li><strong>Maximum Pressure:</strong> 20 BAR (300 PSIG)</li>
<li><strong>Operating Temperature:</strong> -4°C to +52°C (25°F to 125°F)</li>
<li><strong>Body Material:</strong> Zinc alloy</li>
<li><strong>Mounting:</strong> Inline threaded connection</li>
<li><strong>Lockout:</strong> Padlock compatible (lock not included)</li>
</ul>
<h2>Typical Applications</h2>
<p>The Parker SV75-02 shut-off valve is commonly used in:</p>
<ul>
<li>Pneumatic tool circuits requiring isolation during maintenance</li>
<li>Compressed air distribution manifolds in machine tool applications</li>
<li>Lockout/tagout stations on production equipment</li>
<li>Vacuum pump shutdown and air brake isolation in industrial machinery</li>
<li>Modular FRL (filter-regulator-lubricator) system installations</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Parker Watts pneumatic filter and regulator manifolds</li>
<li>Standard QUBE modular FRL components</li>
<li>ISO 4401 (CETOP 05) ported hydraulic/pneumatic systems</li>
<li>Compressed air systems rated 20 BAR or lower</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Legacy Parker Watts SV75 series installations</li>
<li>Generic 1/4″ NPT slide shut-off valves (verify pressure/port compatibility)</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Pneumatic control and isolation circuits up to 300 PSI</li>
<li>Standard padlock or safety gate devices for lockout compliance</li>
<li>Air and vacuum service media</li>
</ul>
