Overview

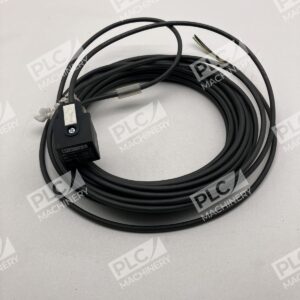

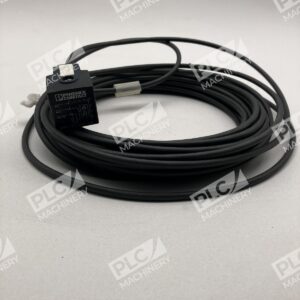

The Phoenix Contact 1435014 (SAC-3P-10.0-PUR/A-1L-Z) is a professional-grade sensor/actuator cable designed for reliable control of electronically adjustable industrial valves. Manufactured by Phoenix Contact, a leader in industrial automation connectivity, this cable combines robust construction with safety features suitable for demanding industrial environments.
Key Features

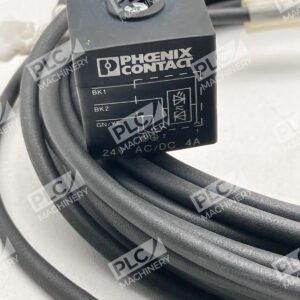

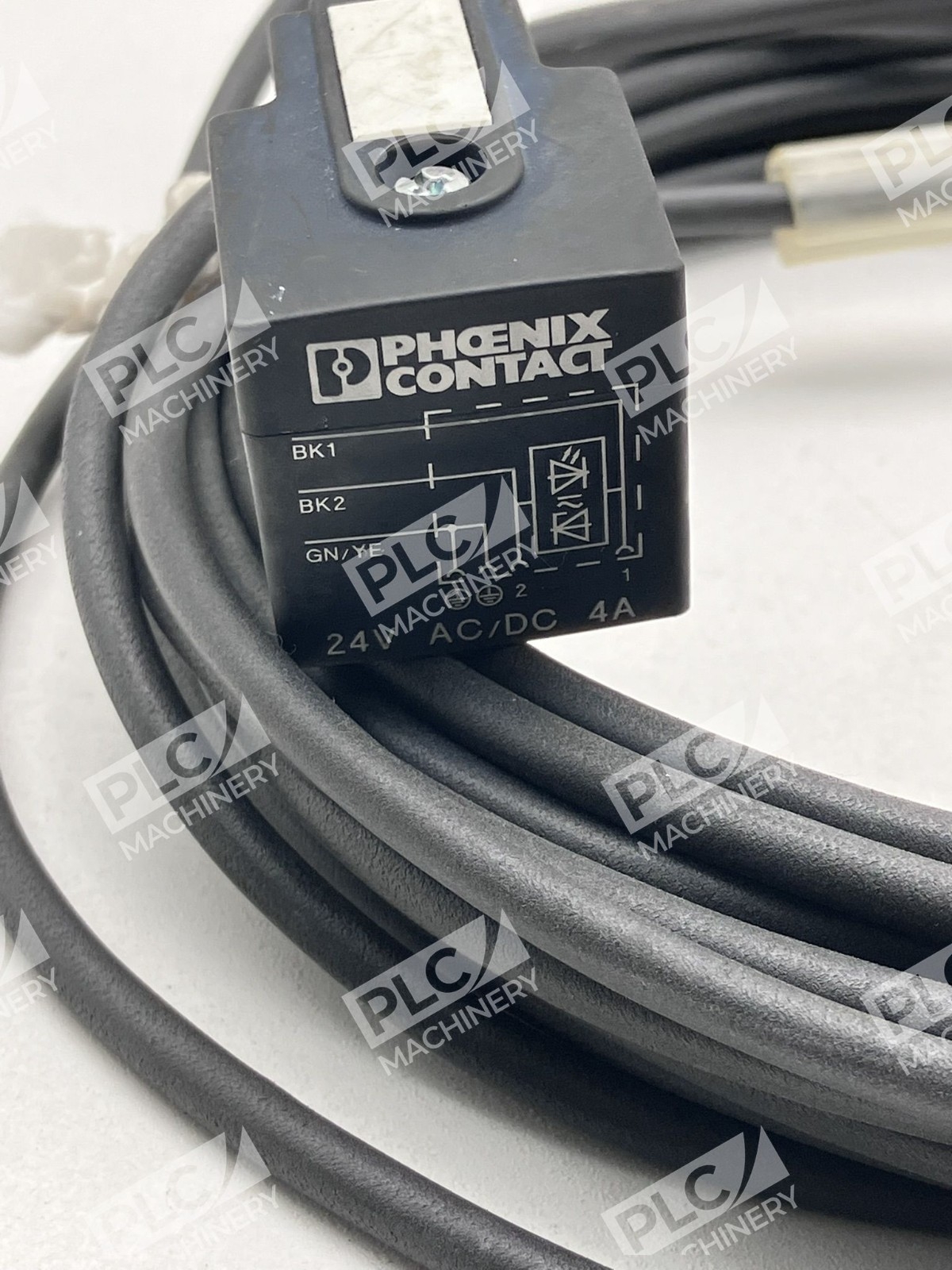

- 3-position Valve Connector Type A with Zener diode protective circuit
- Halogen-free PUR (polyurethane) cable for enhanced safety
- 10-meter cable length with free cable end and one integrated LED indicator
- 100% electrically tested plug-in components for reliable connections
- Black-gray RAL 7021 color coding for easy identification
- Compliant with EN 175301-803 valve connector standard and UL 94 V0 flammability rating
Technical Specifications
- Rated Voltage: 24 V DC nominal (scope of application 24–230 V AC/DC)
- Rated Current: 4 A per contact
- Cable Length: 10 meters
- Connector Type: Valve Connector A (3-position)

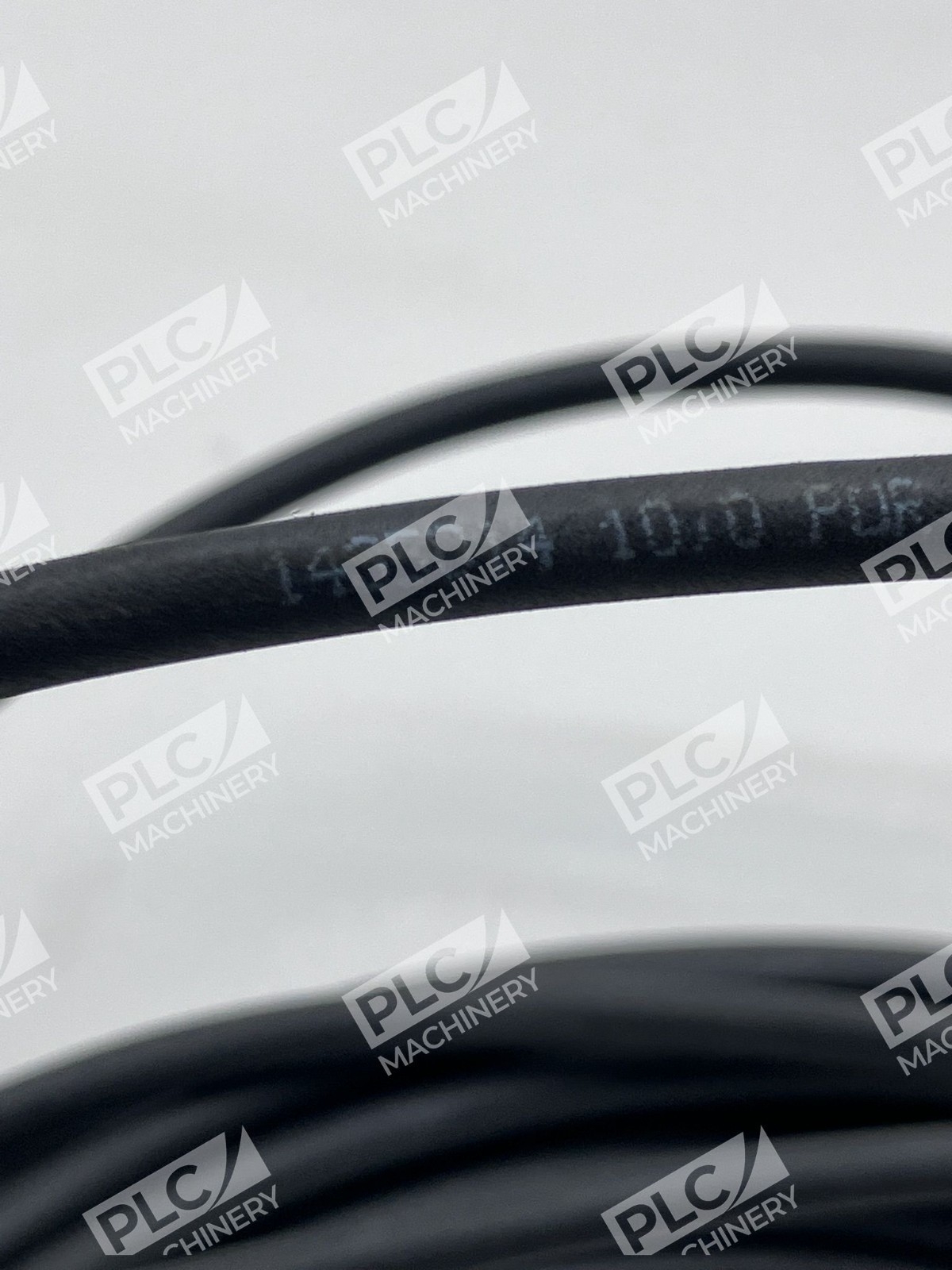

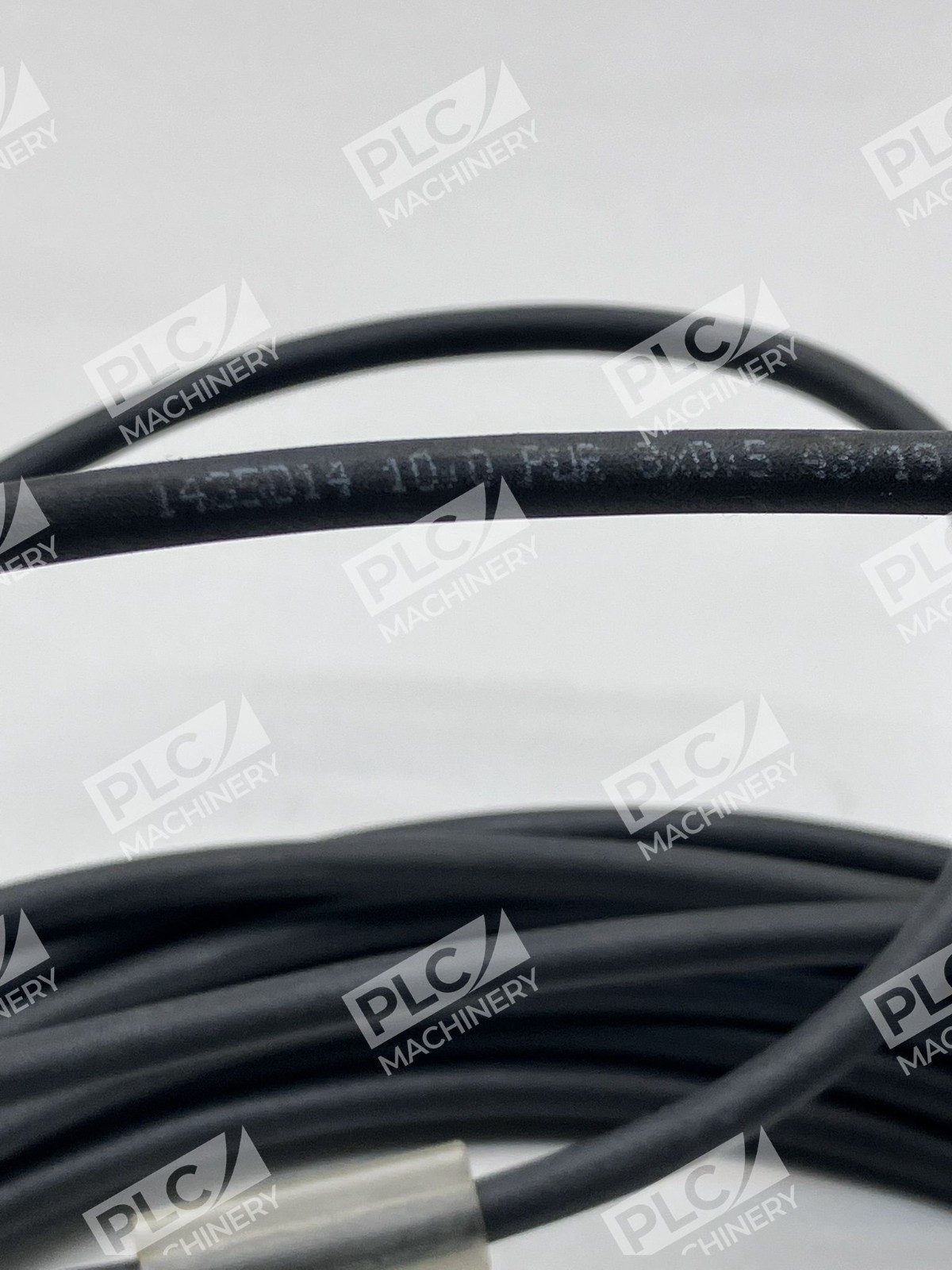

- Cable Material: Halogen-free PUR (polyurethane)
- Cable Color: Black-gray RAL 7021
- Wiring: Z diode (Zener protective circuit)
- Cable End Configuration: Free cable end
- LED Indicator: Yes (1 LED)
- Standards: EN 175301-803, UL 94 V0
- RoHS Compliant: Yes
Typical Applications
The Phoenix Contact 1435014 sensor/actuator cable is widely used in:
- Pneumatic and hydraulic valve control systems in automation equipment
- Industrial machinery and production line solenoid valve actuation
- Mobile and agricultural equipment valve signal transmission
- Factory automation systems requiring flexible, pre-assembled cable solutions
- Field installations where halogen-free cable is mandated by safety standards
Compatibility & Replacements
Compatible With
- Valve Connector A (Universal, 3-position) devices and assemblies
- Phoenix Contact solenoid valve drivers and control modules
- Industrial automation systems operating at 24–230 V AC/DC
- Systems requiring EN 175301-803 valve connector compatibility
- Any industrial controller or PLC with discrete 24 V DC valve output terminals
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to confirm this cable is a suitable replacement for your existing valve connector assembly.
Works With
- All Valve Connector A devices manufactured to EN 175301-803 standard
- 24 V DC and AC industrial control systems
- Allen-Bradley, Siemens, Mitsubishi, and other major PLC brands with discrete valve outputs
- Pneumatic and hydraulic manifold solenoid coils
