Overview

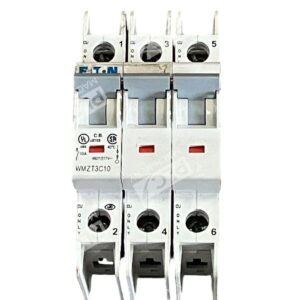

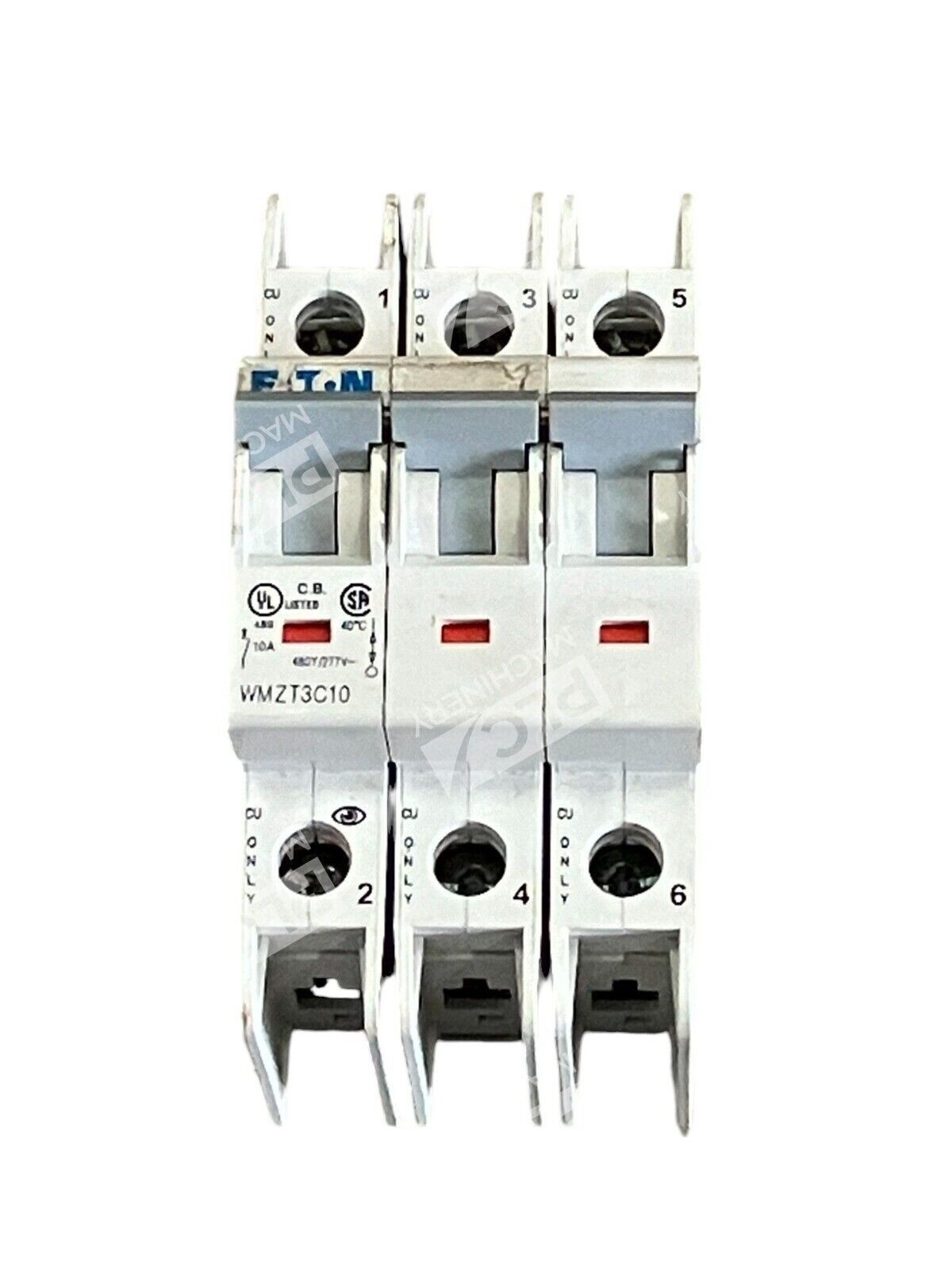

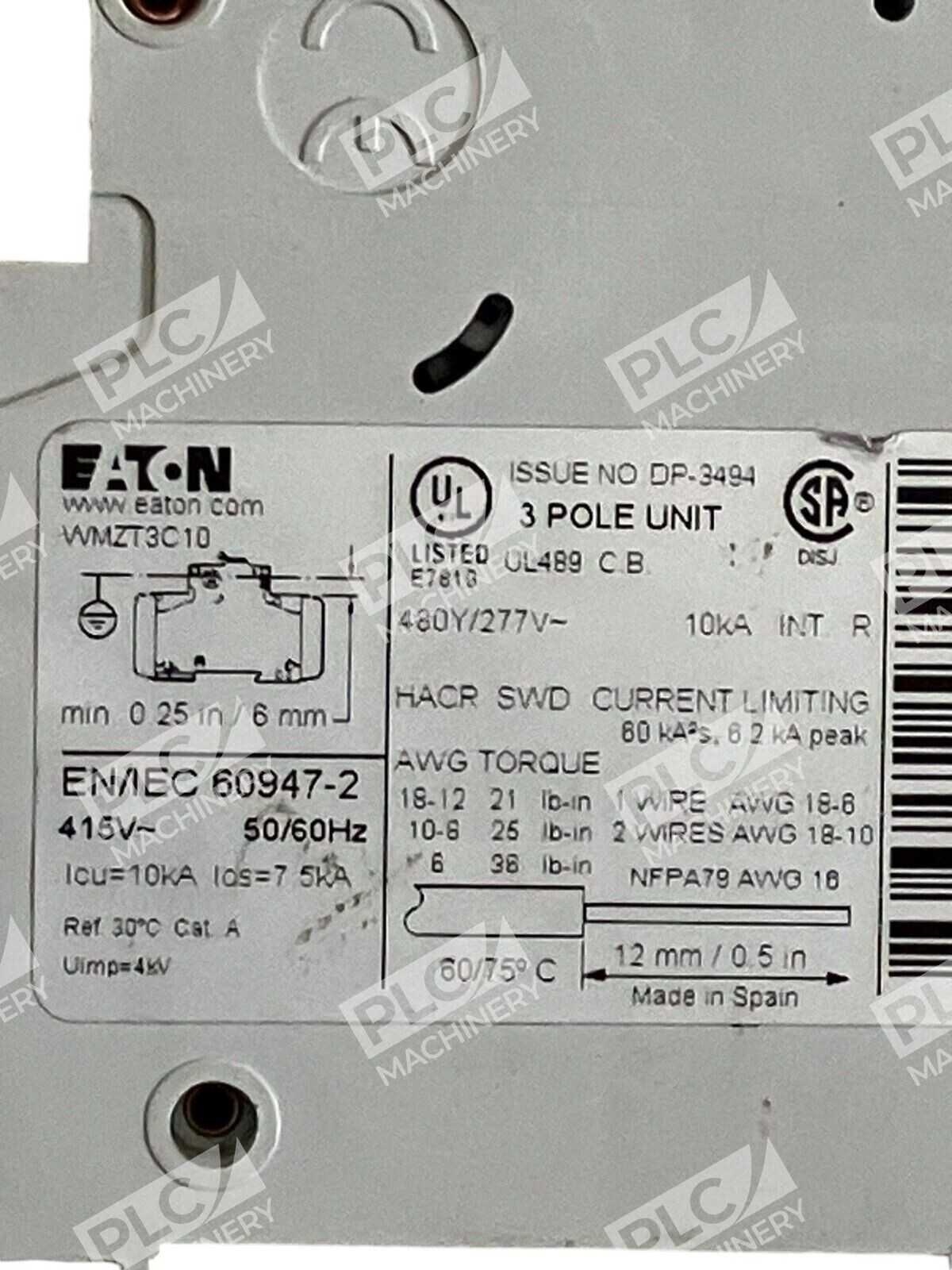

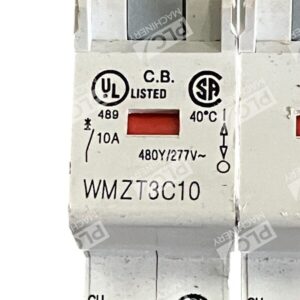

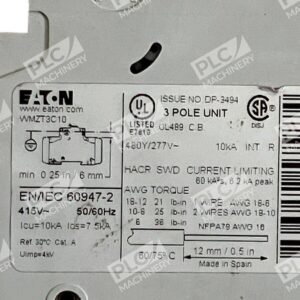

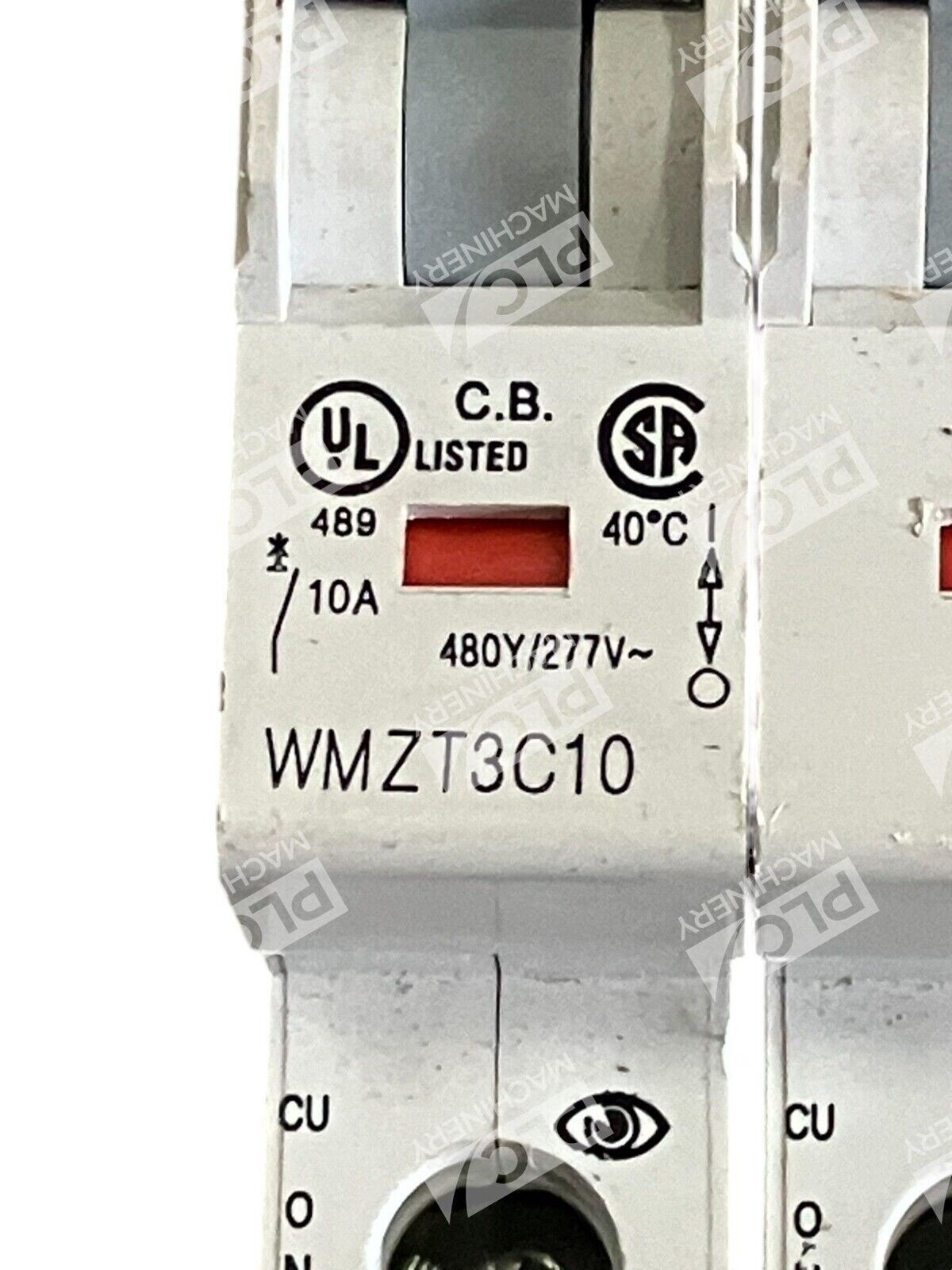

The Eaton WMZT3C10 is a 10A, 3-pole miniature circuit breaker rated for 277/480V VAC with Type C trip curve characteristics. UL 489 listed and designed for 35mm DIN rail mounting, the WMZT3C10 delivers current-limiting protection, interrupting fault currents within one half-cycle of the fault to reduce peak let-through energy. This device is ideal for branch circuit protection in industrial control panels and pilot devices.
Key Features
- 10A rated current with Type C trip curve (5–10× In magnetic threshold)
- 10kA SCCR (Short-Circuit Current Rating) per UL 489
- 277/480V VAC operation; single voltage for 3-pole configuration
- Current-limiting technology halts fault currents in under half-cycle
- DIN rail mounted for compact panel integration
- Thermal-magnetic protection for overcurrent and fault conditions
Technical Specifications
- Rated Current: 10 A
- Number of Poles: 3
- Voltage Rating: 277/480V VAC
- Trip Curve: Type C (5–10 In)
- Short-Circuit Current Rating (SCCR): 10 kA
- Certification: UL 489
- Mounting: 35mm DIN Rail
- Tripping Method: Thermal-magnetic
- Product Family: WMZT Miniature Circuit Breaker
Typical Applications
The WMZT3C10 Type C curve is suited for applications with medium levels of inrush current, including:
- Small transformers and lighting circuits
- Pilot control devices and coils
- Industrial control circuit branch protection
- Equipment panels requiring compact overcurrent protection
- Standard commercial and industrial distribution
Compatibility & Replacements
Compatible With
- 35mm DIN rail enclosures (standard industrial panels)
- Eaton WMZT product ecosystem (mixed Type C and Type D configurations)
- Three-phase 277/480V VAC circuits
- UL 489 compliant panel designs
Replaces / Drop-In Replacement For
The WMZT3C10 is the direct factory part number for 10A, 3-pole Type C configuration. Verify compatibility with your system integrator before ordering if replacing other similar miniature circuit breakers.
Works With
- Standard industrial control software and SCADA systems (no active electronic interface required)
- Manual operator training and installation per UL 489 guidelines
- Thermal-magnetic trip coordination in multi-breaker panels
