<h2>Overview</h2>

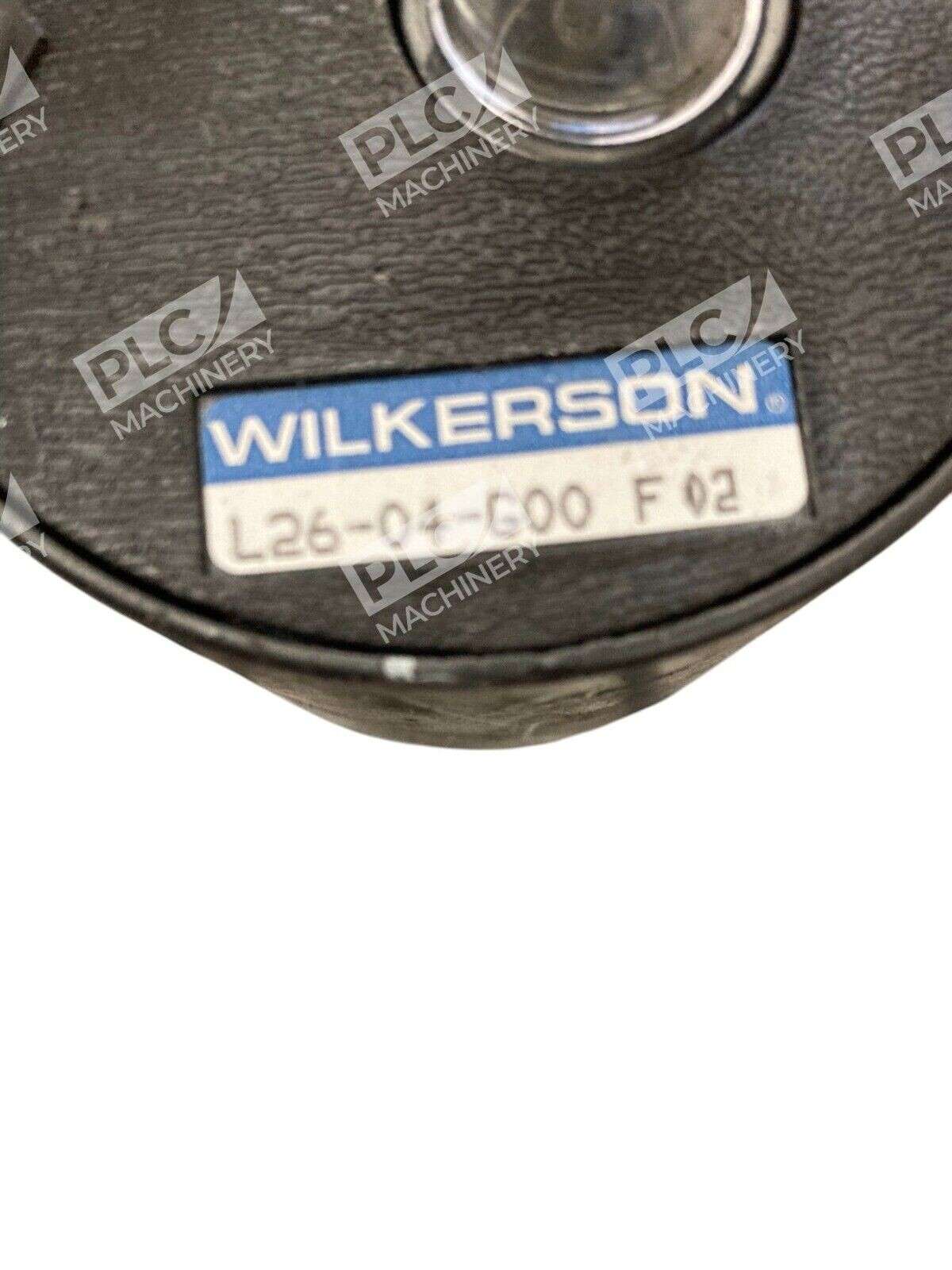

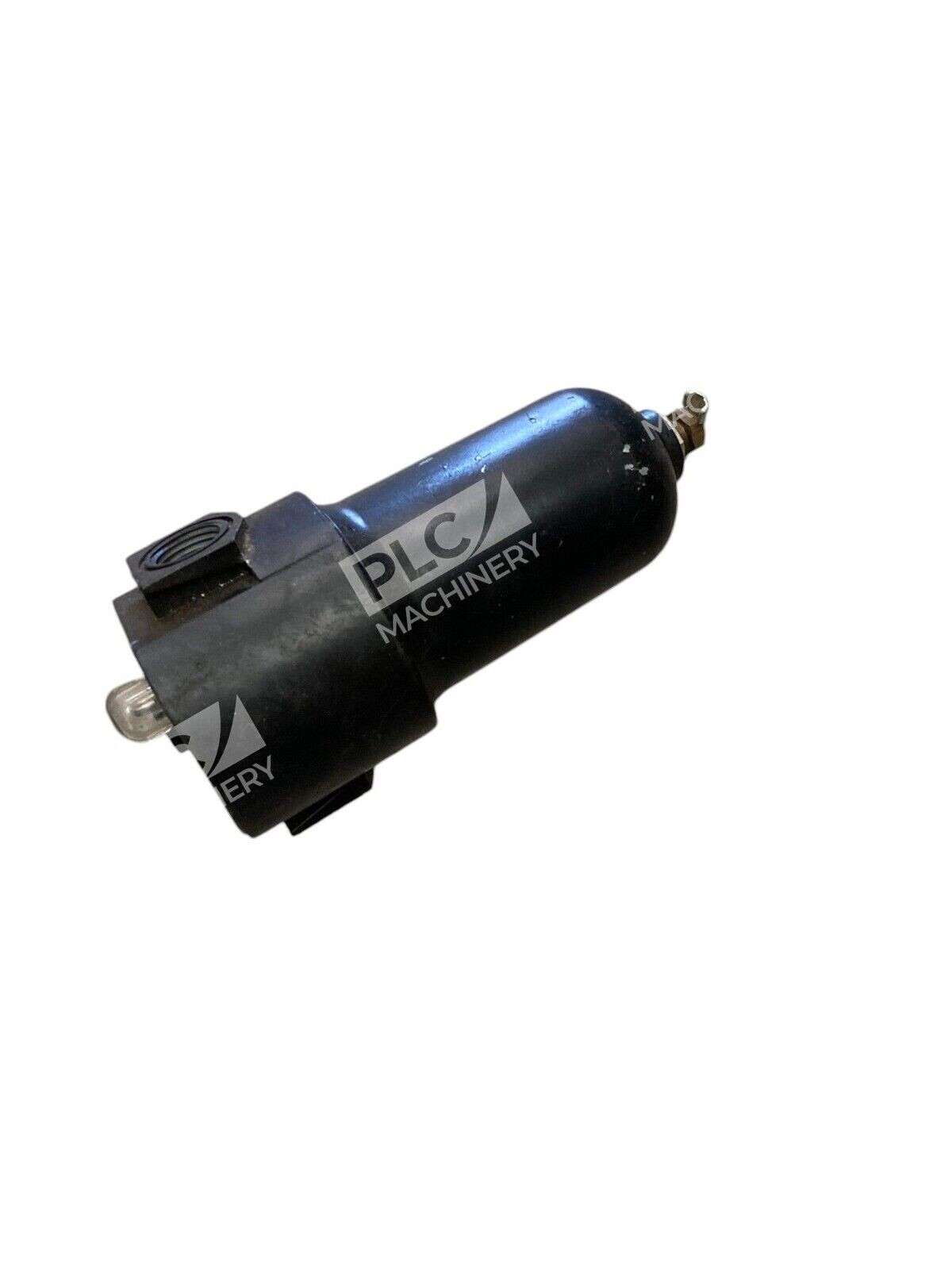

<p>The <strong>Wilkerson L26-04-G00 F02</strong> is a 1/2″ NPT pneumatic line lubricator designed for compressed air systems requiring reliable, consistent oil delivery to downstream pneumatic tools and components. This model features a durable metal bowl with integral sight gauge, allowing operators to monitor oil levels at a glance. The robust construction and proven EconOmist design make this lubricator suitable for both single-tool and multi-tool pneumatic circuits.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Flow Guide Technology:</strong> <cite index=”5-5,5-6″>Elastomer disc-shaped device automatically maintains a constant ratio of oil flow to airflow regardless of changing rates of airflow, allowing one lubricator to serve several pneumatic components operating together or intermittently</cite></li>
<li><strong>Metal Bowl with Sight Gauge:</strong> <cite index=”1-1″>Metal bowl with sight gauge for easy monitoring of lubricant level</cite></li>
<li><strong>Adjustable Oil Feed:</strong> <cite index=”5-11″>Oil delivery rate controlled by turning the adjusting screw counter clockwise for more and clockwise for less oil delivery</cite></li>
<li><strong>Siphon Tube Filter:</strong> <cite index=”5-3″>Provides clean lubricant downstream</cite></li>
<li><strong>Pressurizable Design:</strong> <cite index=”6-5,6-8″>Can be filled under pressure</cite></li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Port Size:</strong> <cite index=”1-1″>1/2 inch NPT</cite></li>
<li><strong>Bowl Type:</strong> <cite index=”1-1″>Metal Bowl with Sight Gauge</cite></li>
<li><strong>Flow Capacity:</strong> <cite index=”6-6″>128 SCFM</cite></li>
<li><strong>Bowl Capacity:</strong> <cite index=”6-2,6-3″>10 oz.</cite></li>
<li><strong>Item Weight:</strong> <cite index=”1-1″>3.10 lbs per EA</cite></li>
<li><strong>Series:</strong> EconOmist Standard L26</li>
<li><strong>Recommended Oil:</strong> <cite index=”6-11″>Petroleum-base, non-detergent light weight oil (SAE 10/150SSU) such as Mobil DTE light</cite></li>
</ul>
<h2>Typical Applications</h2>
<p>The Wilkerson L26-04-G00 F02 is ideal for:</p>
<ul>
<li>Industrial pneumatic tool circuits requiring consistent lubrication</li>
<li>Manufacturing facilities with compressed air systems</li>
<li>Multi-tool pneumatic stations operating at variable flow rates</li>
<li>Maintenance applications requiring drop-in replacement lubricators</li>
<li>Air preparation systems in automation and assembly operations</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard pneumatic tool circuits with 1/2″ NPT ports</li>
<li>All Wilkerson FRL (Filter-Regulator-Lubricator) system components</li>
<li>Pneumatic cylinders, motors, and actuators rated for lubricated air</li>
<li>Parker pneumatic systems and air preparation equipment</li>
<li>Standard compressed air piping systems (1/2″ NPT connections)</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li><cite index=”3-3″>L26-04-000 (polycarbonate bowl version)</cite></li>
<li>L26-04A (transparent bowl variant)</li>
<li>Other 1/2″ NPT standard lubricators with compatible port sizing</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Pneumatic regulator outlets and filter units in FRL assemblies</li>
<li>Compressed air supply lines up to 200 psig</li>
<li>Pneumatic tool supply manifolds and distribution blocks</li>
<li>Any 1/2″ NPT threaded pneumatic connection</li>
</ul>
