Overview

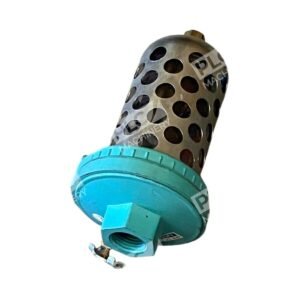

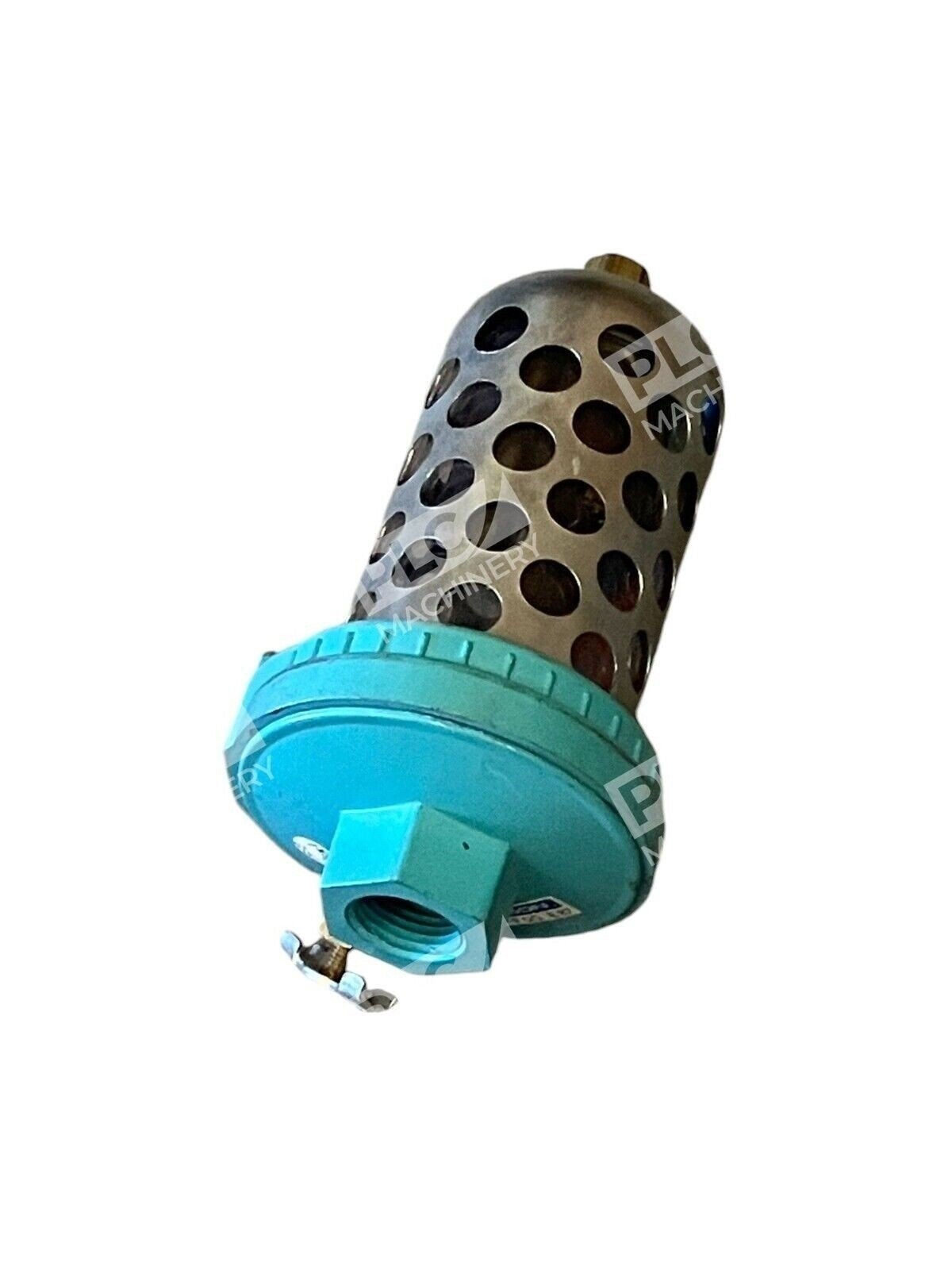

The Wilkerson X02-04-F00 is a compact automatic drain assembly for pneumatic air preparation systems. This float-type drain removes condensate and contaminants from compressed air lines, filters, and air storage tanks. With proven reliability in industrial pneumatic networks, this unit delivers consistent moisture removal to protect downstream equipment and extend component life.
Key Features
- Automatic float-activated drain mechanism—no manual intervention required
- 1/2″ NPT main connection for standard air line integration
- 1/4″ NPT drain and vent ports for flexible installation
- Rated for 150 PSIg maximum operating pressure
- 5 oz. bowl capacity for condensate collection
- Compact, lightweight design for space-constrained applications
Technical Specifications
Designed for use in compressed air treatment systems where reliable condensate removal is essential. The X02-04-F00 integrates seamlessly into existing air stations, filters, regulators, and lubricators (FRL units) used across manufacturing, automotive, food processing, and general industrial facilities.
Typical Applications
- Air compressor discharge lines and air storage tanks
- Filter-regulator-lubricator (FRL) assembly drainage
- Industrial pneumatic tool systems
- Pneumatic automation and controls networks
- Compressed air treatment and drying systems
Compatibility & Replacements
Compatible With
- Wilkerson air preparation components and systems
- Standard NPT-threaded pneumatic air lines and fittings
- Air compressor discharge and receiver tanks
- Industrial FRL (filter-regulator-lubricator) units
Replaces / Drop-In Replacement For
- Wilkerson X02-04-000 (base model)
- Other X02 series automatic drains (verify exact port configuration)
Works With
- Parker Pneumatic Division products (Wilkerson is a Parker subsidiary)
- Standard compressed air preparation systems
- Pneumatic control and automation networks
- Industrial maintenance schedules for moisture and contaminant removal
