Overview

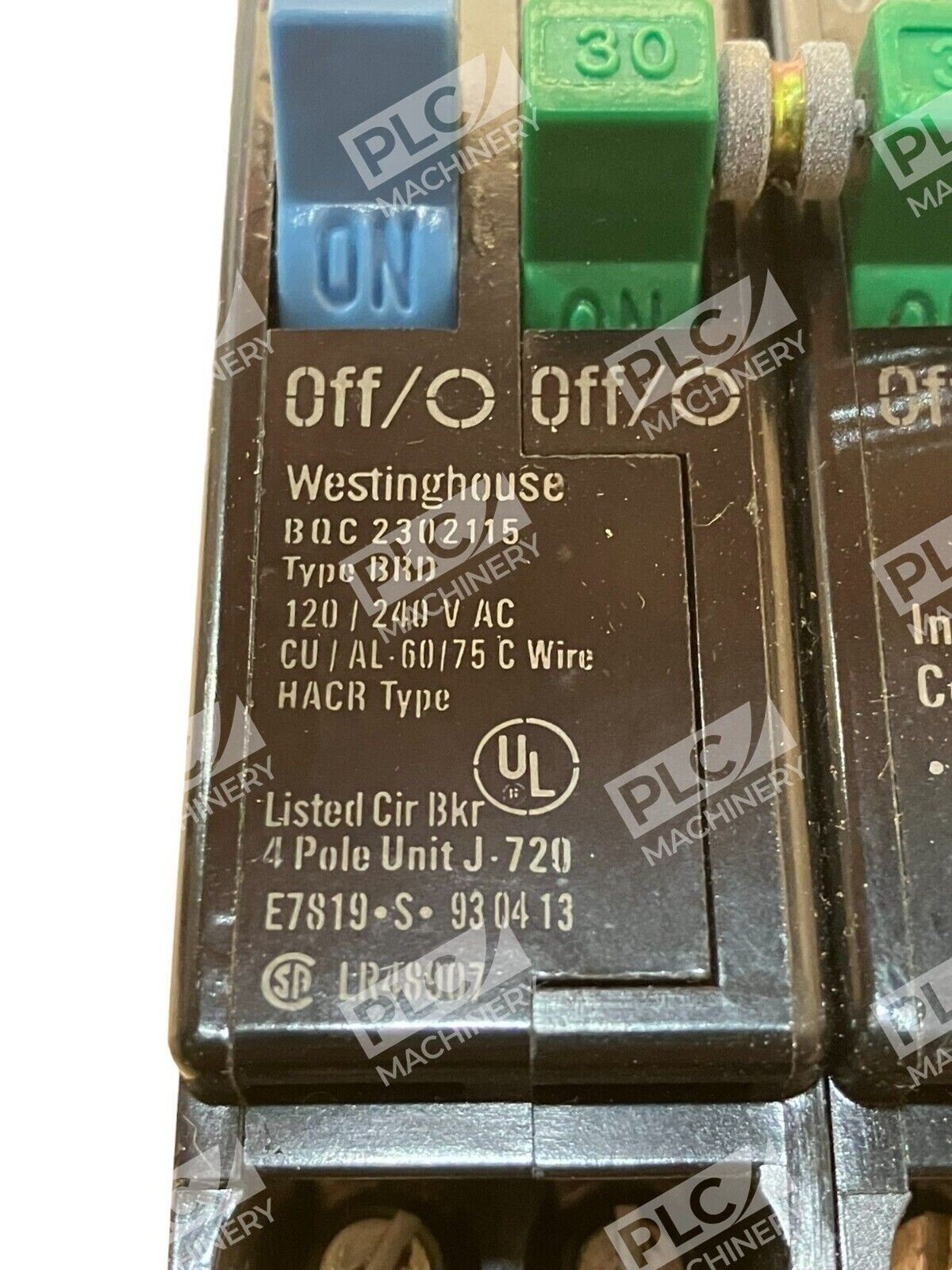

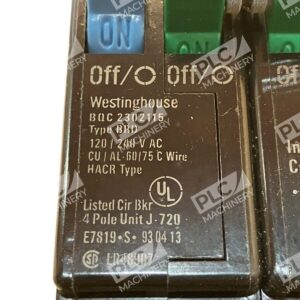

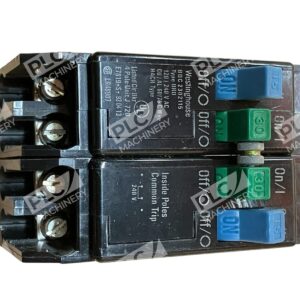

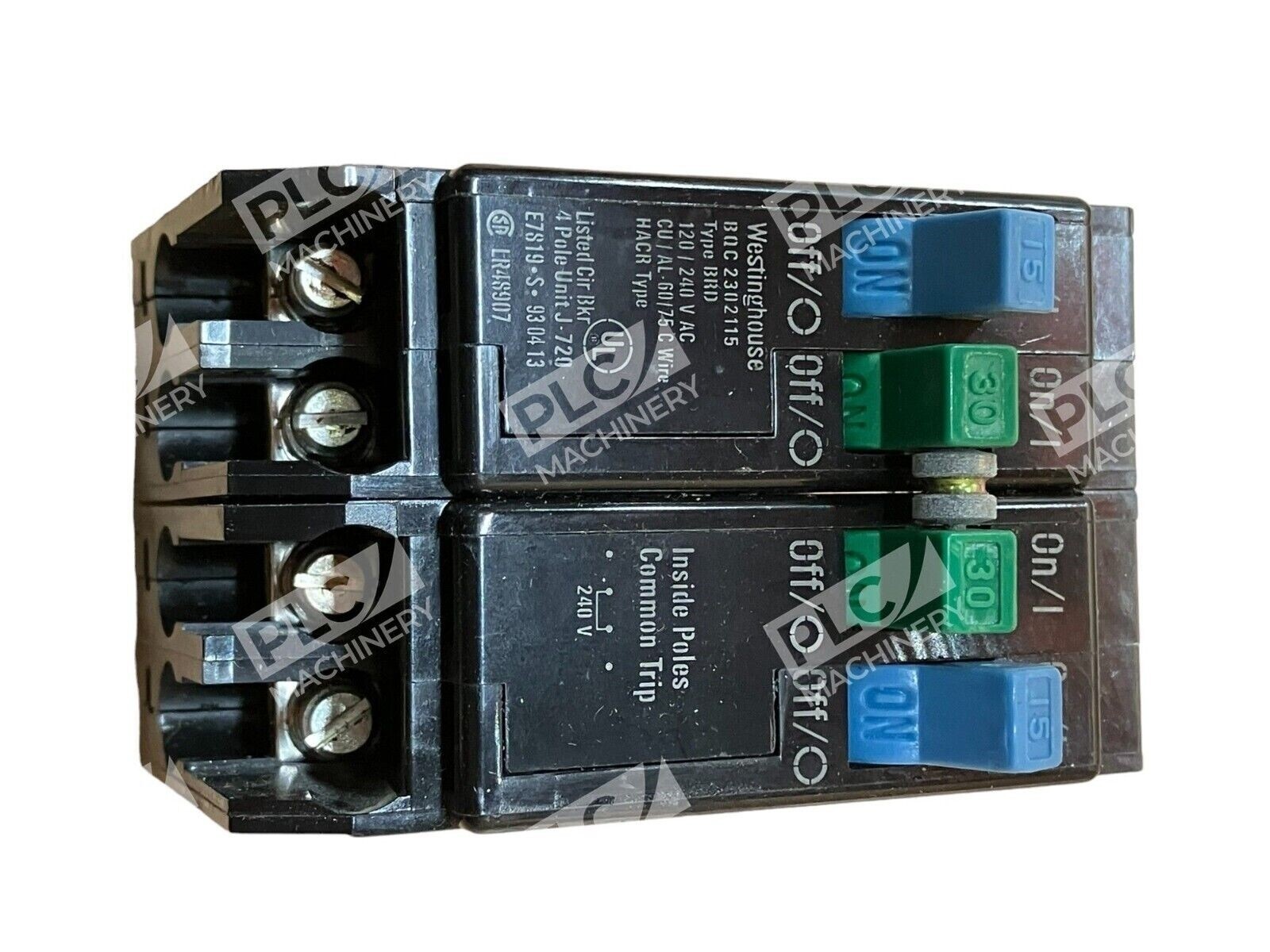

The Eaton BQC2302115 is a quad molded case circuit breaker designed for branch circuit and supplementary protection in residential and light commercial applications. This unit combines one 2-pole 30-amp breaker with two single-pole 15-amp breakers in a single plug-on module, delivering reliable overcurrent protection for 120/240VAC systems. The BQC2302115 series has established a proven track record in the field, offering thermal-magnetic operation with fixed instantaneous and long-time trip characteristics.
Key Features
- Quad configuration: 1 x 2-pole 30A + 2 x 1-pole 15A in one unit
- Plug-on mounting for BR-type load centers
- Thermal-magnetic trip with long-time and instantaneous protection
- 10kA interrupting rating at 240VAC
- UL 489 and CSA certified for North American applications
- Compact 2-inch width for space-efficient panel layouts
Technical Specifications
- Voltage Rating: 120/240VAC
- Current Configuration: 2-pole 30A + 2 single-pole 15A (Quadplex)

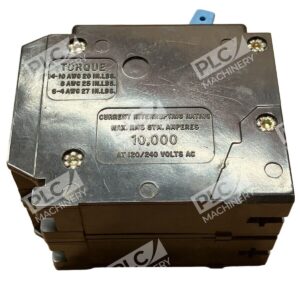

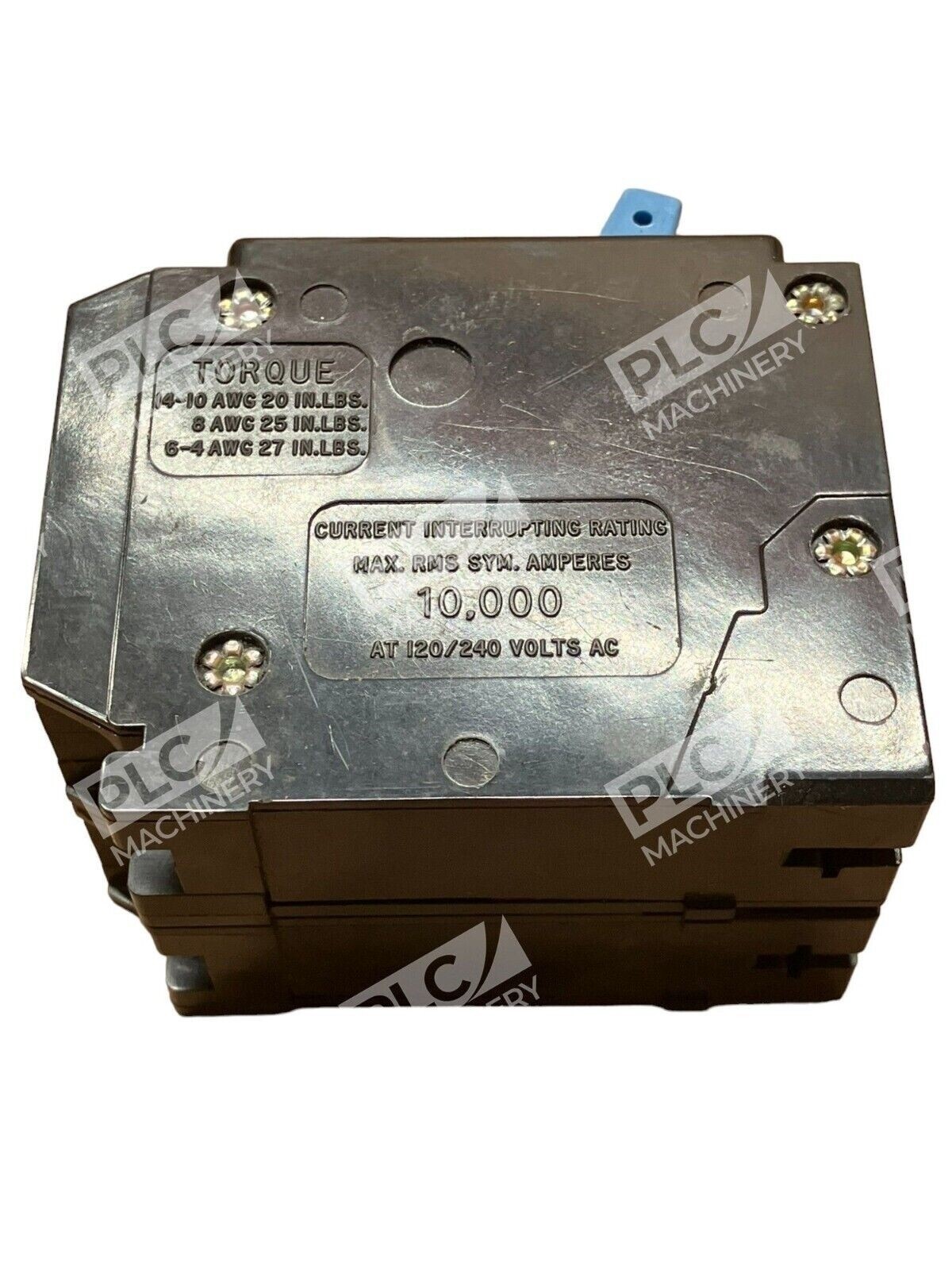

- Interrupting Capacity: 10kA @ 240VAC
- Trip Type: Thermal-Magnetic (fixed, long-time + instantaneous)
- Mounting: Plug-on for BR load centers
- Width: 2 inches

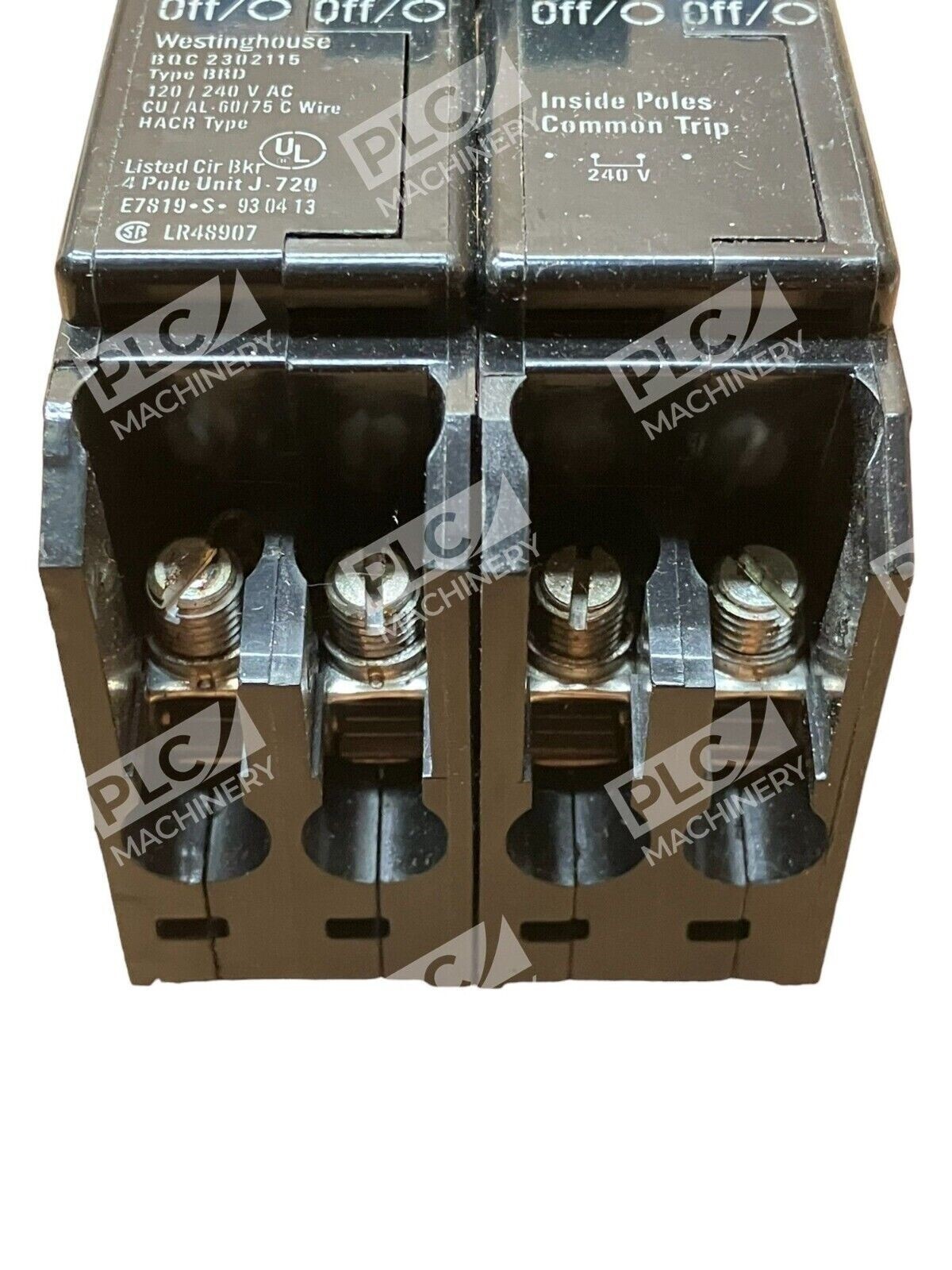

- Wire Size: 14 to 4 AWG (aluminum/copper)
- Approvals: UL 489, CSA, CE
- Manufacturer Series: Cutler-Hammer BR / Eaton Breaker
Typical Applications
The BQC2302115 is ideal for protecting branch circuits in residential homes, apartments, and light commercial facilities. Common uses include circuits for receptacles, lighting loads, external motors, heating equipment, refrigeration, and air conditioning units. The quad configuration makes it particularly suited for panelboards where space is at a premium and multiple circuit protection is required from a single breaker unit.
Compatibility & Replacements
Compatible With
- BR-type load centers and distribution panels
- Westinghouse, Eaton, and Cutler-Hammer panelboards
- Standard 120/240VAC single-phase electrical systems
- Residential and light commercial branch circuit protection
Replaces / Drop-In Replacement For
- Westinghouse BQ2302115 (same specification quad breaker)
- Cutler-Hammer legacy quad breaker configurations with identical amp ratings
- Bryant-branded equivalent models (same OEM product)
Works With
- BR-series load center ecosystems
- Standard electrical panel wiring (14–4 AWG)
- UL 489 and CSA-compliant branch circuit protection schemes
- Thermal-magnetic trip coordination with main breakers and other protective devices
