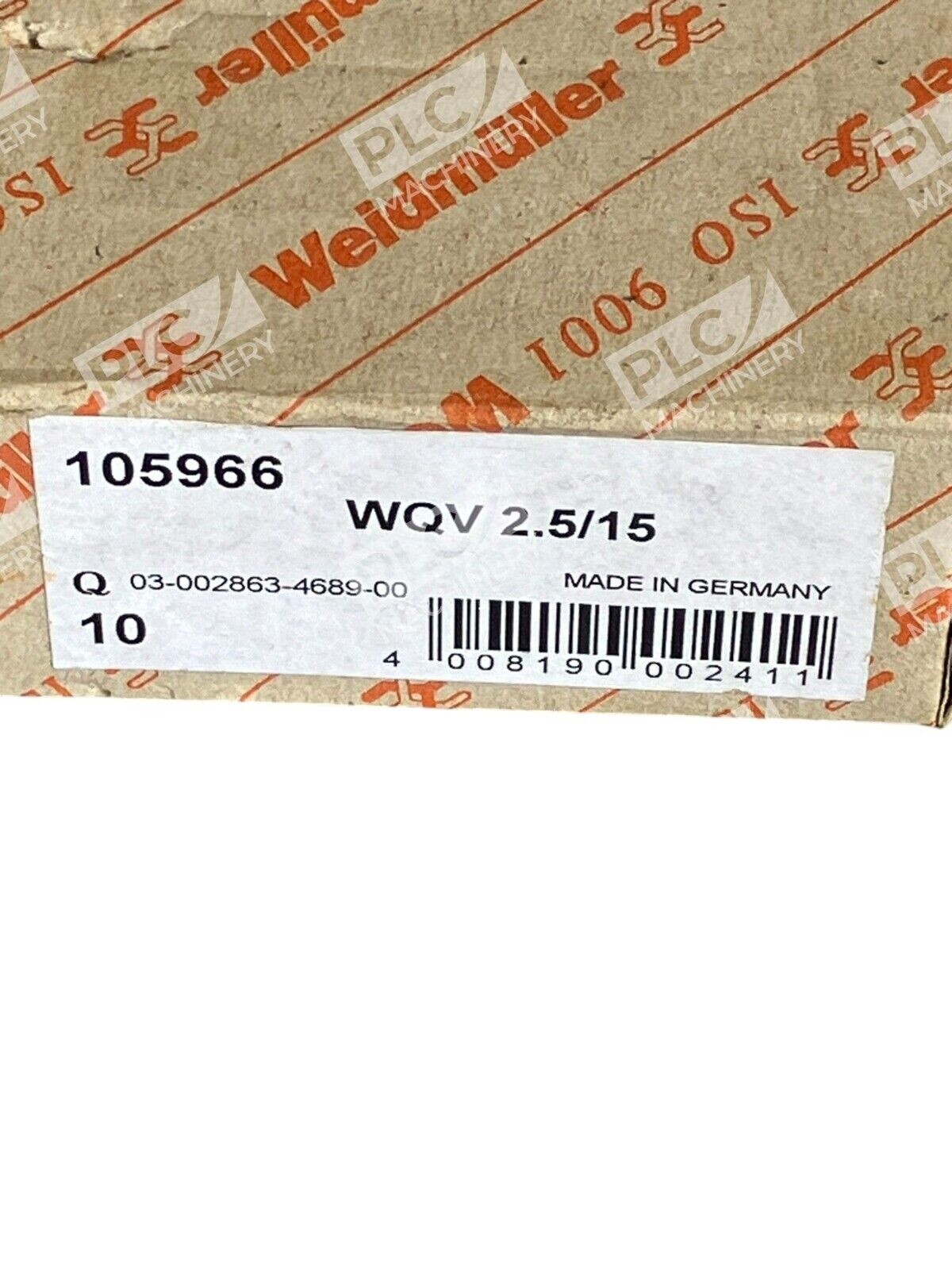

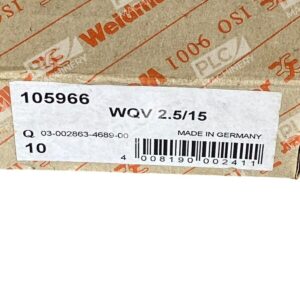

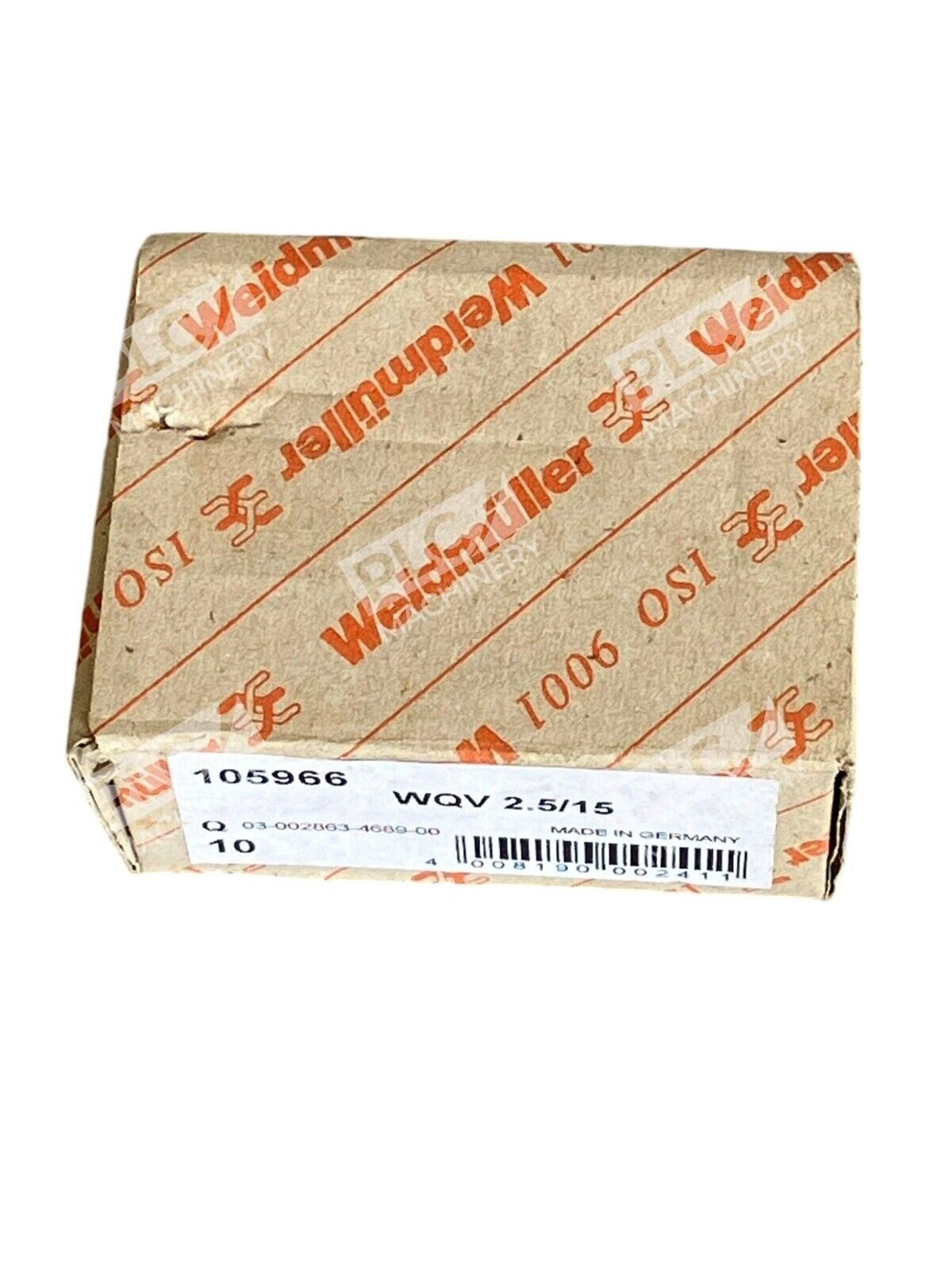

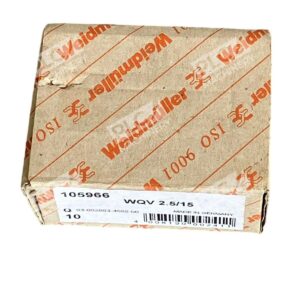

Weidmuller 105966 WQV 2.5/15 (Box of 10)

Overview

The Weidmüller 105966 WQV 2.5/15 is a screw-in cross-connector jumper bar designed for W-Series terminal block systems. This 15-position jumper bar simplifies the connection of multiple terminal blocks by bridging adjacent positions with a single component, reducing assembly time and improving reliability in industrial control cabinets and electrical distribution systems.

Key Features

• 15-Position Design: Bridges 15 positions in a single insertion, reducing manual jumper connections.
• 32A Current Rating: Rated for 32A continuous current, supporting moderate-to-high-load distribution circuits.
• 5.10mm Pitch: Standard W-Series spacing ensures compatibility with Weidmüller WDU 2.5, WDU 1.5, WDU 1.5/2.5, and WDK 2.5 series terminal blocks.
• Insulated Yellow Construction: PA66 insulation with yellow color-coding for easy identification and safe operation.
• Box of 10 Units: Economical pack size for maintenance stock or multi-unit installations.

Technical Specifications

Typical Applications

• Industrial control panels and PLCs requiring bridge connections across multiple terminal points.
• Motor control centers and variable frequency drive (VFD) installations.
• Building automation and HVAC control systems.
• Power distribution and circuit protection assemblies.
• OEM equipment manufacturers standardizing on W-Series terminal block infrastructure.

Compatibility & Replacements

Compatible With

• Weidmüller WDU 2.5 Series Feed-Through Terminal Blocks
• Weidmüller WDU 1.5 Series Terminal Blocks
• Weidmüller WDU 1.5/2.5 Mixed Terminal Blocks
• Weidmüller WDK 2.5 Series Terminal Blocks
• W-Series DIN Rail terminal block systems

Replaces / Drop-In Replacement For

• Original Weidmüller 105966 WQV 2.5/15 assemblies
• Equivalent 15-position 32A rated jumper bars in W-Series installations

Works With

• Weidmüller W-Series family of modular terminal blocks
• Standard DIN rail mounting systems (EN 60715 compliant)
• IEC 60947-7-1 screw-type terminal technology
